Lens type	Wide-angle zoom
Focal length range	16-35 mm
Maximum aperture	f/4
Optical construction	16 elements in 12 groups
Special elements	2 ED glass elements, 3 aspherical elements
Image stabilization	VR (Vibration Reduction)
Minimum focusing distance	0.28 m
Filter diameter	77 mm
Dimensions	Approx. 83 x 126 mm
Weight	Approx. 1,000 g
Compatibility	Nikon F mount (FX and DX)
Recommended use	Landscape, architecture, travel photography
Maintenance	Regular optical cleaning, protection against moisture
Safety precautions	Do not expose to extreme temperatures, avoid shocks
Additional information	Manufacturer warranty, compatible accessories available

Frequently Asked Questions - Nikkor AFS 1635mm f4G ED VR NIKON

How can I clean the NIKON Nikkor AFS 1635mm f4G ED VR lens?

Use a soft, dry microfiber cloth to wipe the lens. For stubborn spots, apply a small amount of lens cleaning solution to the cloth, never directly on the lens.

Why is my NIKON Nikkor AFS 1635mm f4G ED VR lens not focusing?

Make sure the focus switch is set to "AF" (autofocus) and your camera is set to use autofocus. Also check for any obstructions on the lens.

Is the NIKON Nikkor AFS 1635mm f4G ED VR lens waterproof?

Yes, this lens is designed with weather-sealing to resist the elements, but it is not fully submersible. Avoid using it in rain or extreme conditions.

What type of filter can I use with the NIKON Nikkor AFS 1635mm f4G ED VR lens?

This lens uses 77 mm diameter filters. Make sure to choose a quality filter to avoid image degradation.

How do I use the vibration reduction (VR) function on the lens?

Activate the VR function using the switch on the side of the lens. This helps reduce blur caused by camera shake when shooting handheld.

Is the NIKON Nikkor AFS 1635mm f4G ED VR lens compatible with all Nikon cameras?

It is compatible with most Nikon DSLR cameras and some mirrorless cameras with an adapter. Check compatibility before purchasing.

What is the weight of the NIKON Nikkor AFS 1635mm f4G ED VR lens?

The lens weighs approximately 795 g, making it relatively light for a lens of this class.

How can I update the firmware of my NIKON Nikkor AFS 1635mm f4G ED VR lens?

Lenses generally do not have firmware to update like cameras do. Check Nikon's website for any announcements regarding updates or known issues.

Why are there flares or reflections in my photos taken with this lens?

Flares can occur when strong light sources are in the frame. Try using a lens hood to reduce unwanted reflections.

How do I achieve good bokeh with the NIKON Nikkor AFS 1635mm f4G ED VR lens?

To get good bokeh, use a wide aperture (f/4) and get close to your subject while keeping the background distant.

USER MANUAL Nikkor AFS 1635mm f4G ED VR NIKON

Diagram illustrating three-step mechanical or optical process steps with labeled arrows and dashed circles indicating rotation or alignment.

Illustration of a person walking on a city street with buildings and a bridge in the background (no text or symbols)

D < 花畑 >

Grayscale abstract texture with four small square checkboxes and a central bracket, no text or symbols present.

Notes on Safety Operations

En

CAUTION

Do not disassemble

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury.

After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
• When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

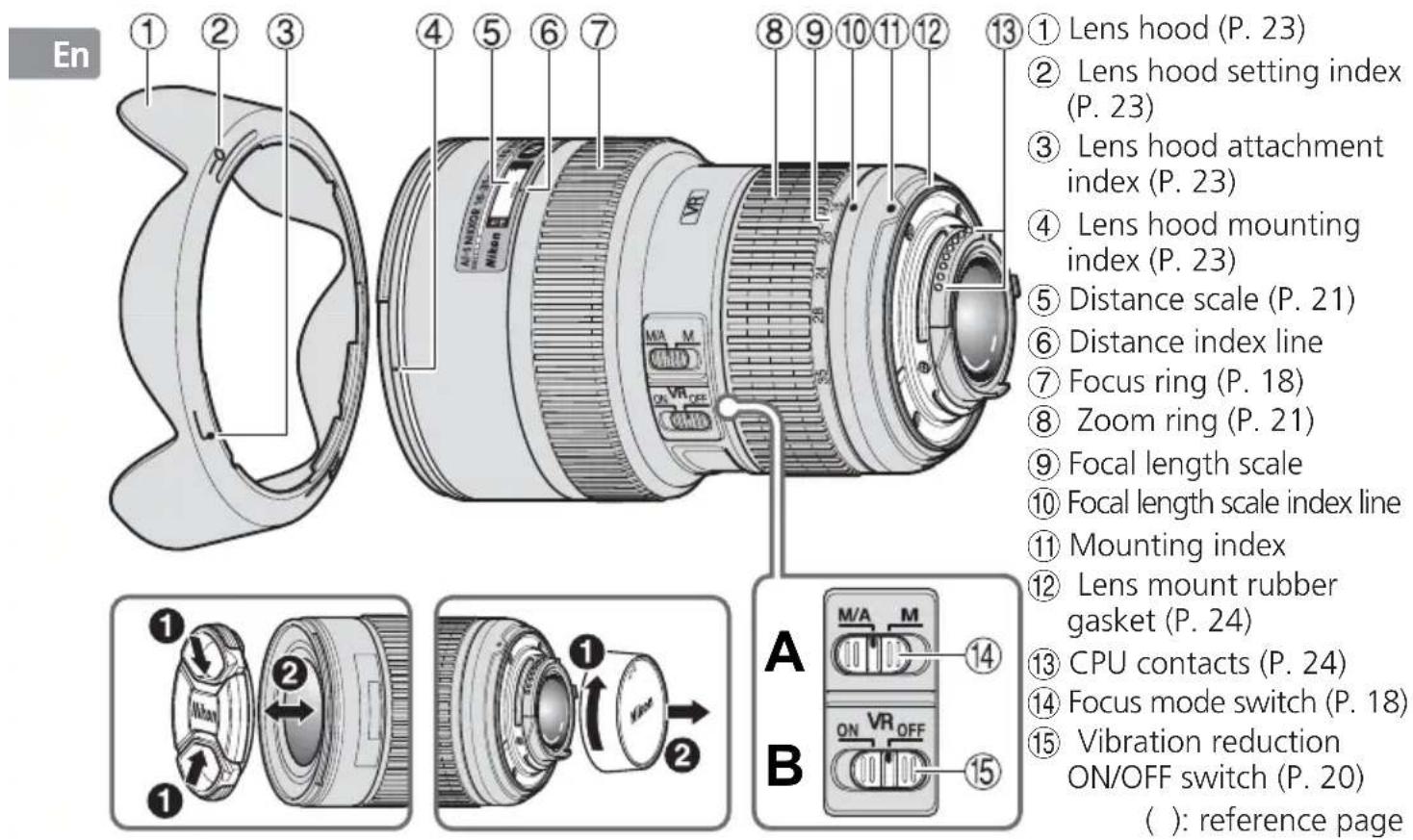

Nomenclature

En ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ Lens hood (P. 23) ② Lens hood setting index (P. 23) ③ Lens hood attachment index (P. 23) ④ Lens hood mounting index (P. 23) ⑤ Distance scale (P. 21) ⑥ Distance index line ⑦ Focus ring (P. 18) ⑧ Zoom ring (P. 21) ⑨ Focal length scale ⑩ Focal length scale index line ⑪ Mounting index ⑫ Lens mount rubber gasket (P. 24) ⑬ CPU contacts (P. 24) ⑭ Focus mode switch (P. 18) ⑮ Vibration reduction ON/OFF switch (P. 20) ( ): reference page

Thank you for purchasing the AF-S NIKKOR 16-35mm f/4G ED VR lens. Before using this lens, please read these instructions and refer to your camera's User's Manual.

■ Major features

• The Nano Crystal Coat deposited on some of the lens elements ensures that fine, clear images can be reproduced under various shooting conditions, from the sunny outdoors to spotlighted interior scenes.
• By enabling vibration reduction, slower shutter speeds (2.5 stops*) can be used, thus increasing the range of usable shutter speeds and zoom positions, particularly when hand-holding the camera. (*The effects of VR on shutter speed are measured according to Camera and Imaging Products Association (CIPA) standards; FX-format lenses are measured using FX-format digital cameras, DX-format lenses using DX-format cameras. Zoom lenses are measured at maximum zoom.)
• Superior optical performance and rendering characteristics are maximized with the use of three aspherical lens elements and two extra-low dispersion (ED) glass elements, which ensure correction of chromatic aberration. In addition, the rounded aperture produces soft and pleasing blur characteristics in portions of pictures that are out-of-focus.

Important

- When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D7000, the lens' picture angle becomes 83°-44° and its 35mm equivalent focal length is approx. 24-52.5 mm.

■ Usable cameras and available functions

There may be some restrictions or limitation for available functions. Refer to camera's User's Manual for details.

√: Possible —: Not possible
VR: Vibration reduction AF: Autofocus

Cameras	Function		Exposure mode
	VR	AF	P*1	S	A	M
Nikon digital SLR(Nikon FX/DX format)cameras, F6, F5, F100,F80-Series/N80-Series*,F75-Series/N75-Series*,F65-Series/N65-Series*	√		√		√	√
Pronea 600i/6i*, Pronea S*2	—	√		√	√	√
F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70*	—	√	√	√	—	—
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	—	—	√	√	√	√
F-801s/N8008s*, F-801/N8008*, F-601M/N6000*	—	—	√	√	—	—
F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*)	—	—	—	—	—	—

*: Sold exclusively in the USA

**: Sold exclusively in the USA and Canada

*1: P includes AUTO and Vari-Program System.

*2: Manual (M) is not available.

■ Focusing (Fig. A)

Set your camera's focus-mode selector according to the chart below:

Autofocus with manual override (M/A mode)

1 Set the lens focus mode switch to M/A.

2 Autofocus is enabled, but autofocus operation can be overridden by rotating the separate focus ring while pressing the shutter-release button halfway, or by pressing the AF-ON button on the camera body of cameras so equipped.

3 Press the shutter-release button halfway or the AF-ON button once again to cancel manual focus and resume autofocus.

Getting good results with autofocus

Refer to "Notes on using wide- or super wide-angle AF NIKKOR lenses" (P. 27).

Cameras	Camera focus mode	Lens' focus mode switch
		M/A M
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600i/6i*, Pronea S	AF	Autofocus with manual override	Manual focus (Electronic rangefinder can be used.)
	MF	Manual focus (Electronic rangefinder can be used.)
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	AF MF	Manual focus (Electronic rangefinder can be used, except with the F-601M/N6000*)

* Sold exclusively in the USA

■ Vibration reduction mode (Fig. B)

Setting the vibration reduction ON/OFF switch

ON: The effects of camera shake are reduced while the shutter-release button is pressed halfway and also at the instant the shutter is released. Because vibration is reduced in the viewfinder, auto/manual focusing and exact framing of the subject are easier.

OFF: The effects of camera shake are not reduced.

Notes on using vibration reduction

• After pressing the shutter-release button halfway, wait until the image in the viewfinder stabilizes before pressing the shutter-release button the rest of the way down.

• Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may be blurred after the shutter is released. This is not a malfunction.

• If the camera is panned in a wide arc, compensation for camera shake in the panning direction is not performed. For example, only the effects of vertical camera shake is reduced with horizontal panning.

• Do not turn the camera off or remove the lens from the camera while vibration reduction is operating. Failure to observe this note could result in the lens sounding and feeling as if an internal component is loose or broken when it is shaken. This is not a malfunction. Turn the camera on again to correct this.
• With cameras featuring a built-in flash, vibration reduction does not function while the built-in flash is charging.
• When the camera is mounted on a tripod, set the vibration reduction ON/OFF switch to OFF. However, it is recommended that the switch be set to ON when using the camera on an unsecured tripod head or with monopod.

- If this lens is used with cameras that do not have the vibration reduction function (P.17), set the vibration reduction ON/OFF switch to OFF. With the Pronea 600i/6i camera, in particular, battery power may become quickly depleted if this switch is left ON.

■ Focusing, zooming, and depth of field

Before focusing, rotate the zoom ring to adjust the focal length until the desired composition is framed. If your camera has a depth-of-field preview (stopdown) button or lever, depth of field can be previewed through the camera viewfinder.

• This lens is equipped with the Internal Focusing (IF) system. As the shooting distance decreases, the focal length also decreases.
• The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide. When shooting distant landscapes, depth

of field may influence operation and the subject may appear in focus at a position that is closer than infinity.

- For more information, see p. 156.

■ Setting the aperture

Use the camera to adjust the aperture setting.

■ The built-in flash and vignetting

• The built-in flash cannot be used over distances of less than 0.6 m (2.0 ft).
• To prevent vignetting, do not use the lens hood.
• For the latest information on vignetting with this lens, see the camera manual.
• Vignetting is the darkening of the corners around the image that occurs when the light emitted by the flash is obstructed by the lens barrel.

Cameras	Supported focal length/ Shooting distance
D810, D800-Series, D750, D5500, D5300, D5200, D3300, D3200	• 35 mm/1 m (3.3 ft) or greater
D700 (FX format)	• 28 mm/3 m (9.8 ft) or greater • 35 mm/1 m (3.3 ft) or greater
D700 (DX format)	• 20 mm/1.5 m (4.9 ft) or greater • 24 mm or longer/No restriction
D300-Series, D200, D100, D7000	• 24 mm/2 m (6.6 ft) or greater • 28 mm/1 m (3.3 ft) or greater • 35 mm/No restriction
D7200, D7100	• 24 mm/1.5 m (4.9 ft) or greater • 28 mm/1 m (3.3 ft) or greater • 35 mm/No restriction
D7200, D7100 (1.3x crop of DX)	• 20 mm/1.5 m (4.9 ft) or greater • 24 mm/1 m (3.3 ft) or greater • 28 mm/No restriction
D610, D600, D5100	• 35 mm/1.5 m (4.9 ft) or greater

Cameras	Supported focal length/ Shooting distance
D90, D80, D5000, D3100, D3000, D60, D50, D40-Series	28 mm/1.5 m (4.9 ft) or greater35 mm/1 m (3.3 ft) or greater
D70-Series	28 mm/2 m (6.6 ft) or greater35 mm/1 m (3.3 ft) or greater
Other cameras	Vignetting occurs at any shooting distance.

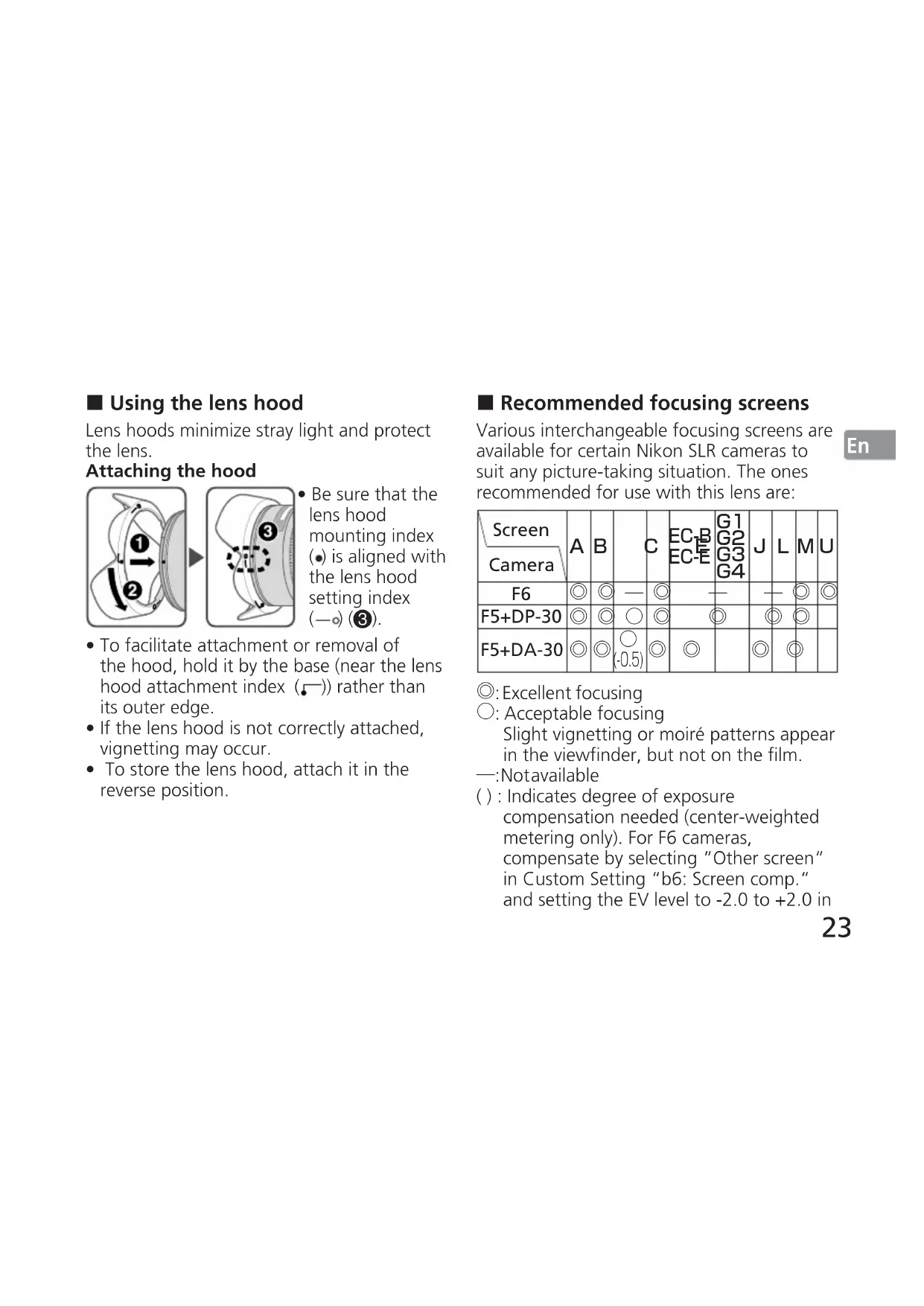

■ Using the lens hood

Lens hoods minimize stray light and protect the lens.

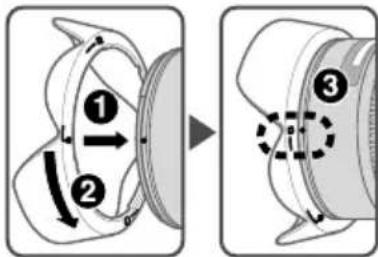

Attaching the hood

Diagram illustrating three-step mechanical or fluid dynamics process with labeled components and directional arrows

- Be sure that the lens hood mounting index (●) is aligned with the lens hood setting index (—○) (③).

• To facilitate attachment or removal of the hood, hold it by the base (near the lens hood attachment index (☐)) rather than its outer edge.
• If the lens hood is not correctly attached, vignetting may occur.
• To store the lens hood, attach it in the reverse position.

■ Recommended focusing screens

Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:

ScreenCamera	A	B	C	EC-BEC-E	G1G2G3G4	J	L	M	U
F6	◎	◎	—	◎	—	—	—	◎	◎
F5+DP-30	◎	◎	○	◎	◎	◎	◎	◎
F5+DA-30	◎	◎	○(-0.5)	◎	◎		◎	◎

◎: Excellent focusing

○: Acceptable focusing Slight vignetting or moiré patterns appear in the viewfinder, but not on the film.

—:Not available

( ) : Indicates degree of exposure compensation needed (center-weighted metering only). For F6 cameras, compensate by selecting "Other screen" in Custom Setting "b6: Screen comp." and setting the EV level to -2.0 to +2.0 in

0.5 EV steps. When using screens other than type B or E, "Other screen" must be selected even when the required compensation value is "0" (no compensation required). For F5 cameras, compensate using Custom Setting #18 on the camera body.

See user's manual of the camera body for more details.

Blank box means not applicable. Since type M screen can be used for both macro-photography at a magnification ratio of 1:1 or above and for photomicrography, it has different applications than other screens.

Important

- For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in Matrix Metering.

Lens care

- Be careful not to allow the CPU contacts to become dirty or damaged.

• If the lens mount rubber gasket is damaged, be sure to visit the nearest Nikon-authorized service representative for repair.
• Clean lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from the center to outer edge, taking care not to leave traces or touch other parts of the lens.
• Never use organic solvent such as thinner or benzene to clean the lens.
• NC filters are available to protect the front lens element. The lens hood also helps to protect the front of the lens.
• When storing the lens in its flexible lens pouch, attach both the front and rear lens caps.

• When the lens is mounted on a camera, do not pick up or hold the camera and lens by the lens hood.

• When the lens will not be used for an extended period of time, store it in a cool, dry place to prevent mold and rust. Be sure to store the lens away from direct sunlight or chemicals such as camphor or naphthalene.

• Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.

■ Standard accessories

• 77mm Snap-on Front Lens Cap LC-77
• Rear Lens Cap
• Bayonet Hood HB-23
  • Flexible Lens Pouch CL-1120

■ Optional accessory

- 77mm screw-on filters

Specifications

Type of lens: G-type AF-S Zoom-NIKKOR lens with built-in CPU and Nikon bayonet mount

Focal length: 16-35mm

Maximum aperture: f/4

Lens construction: 17 elements in 12 groups (2 ED, 3 aspherical and some Nano Crystal Coat-deposited lens elements)

Picture angle: 107°-63° with 35mm (135) format Nikon film SLR cameras and Nikon FX format digital SLR cameras 83°-44° with Nikon DX format digital SLR cameras 94°-52° with IX240 system cameras

Focal length scale: 16, 20, 24, 28, 35mm

Distance information: Output to camera

Zoom control: Manually via separate zoom ring

Focusing: Nikon Internal Focusing (IF) system, autofocus using a Silent Wave Motor; manually via separate focus ring

Vibration reduction: Lens-shift method using voice coil motors (VCMs)

Shooting distance scale: Graduated in meters and feet from 0.28 m (1 ft) to infinity ( )

Closest focusing 0.29 m (1.0 ft) from focal plane (at 16mm, 35mm)

distance: 0.28 m (0.9 ft) from focal plane (at 20-28mm)

No. of diaphragm blades: 9 pcs. (rounded)

Diaphragm: Fully automatic

Aperture range: f/4 to f/22

Exposure measurement: Via full-aperture method with cameras with CPU interface system

Attachment size: 77mm (P = 0.75 mm)

Dimensions: Approx. 82.5 mm dia. × 125 mm (extension from the camera's lens-mount flange)

Weight: Approx. 680 g (24.0 oz)

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

■ Notes on using wide- or super wide-angle AF NIKKOR lenses

In the following situations, autofocus may not perform as expected when shooting with wide-or super wide-angle AF NIKKOR lenses.

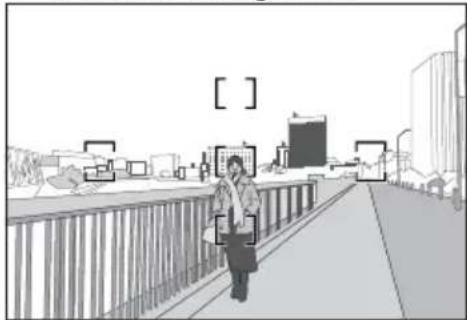

C A person standing in front of a distant background

Illustration of a person walking on a bridge with city buildings and a building in the background (no text or symbols)

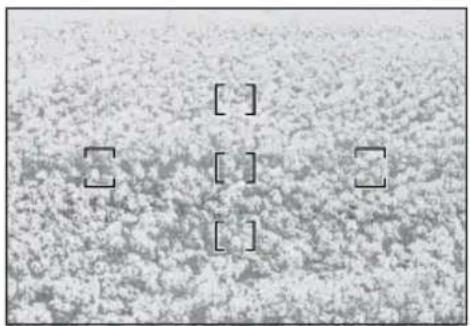

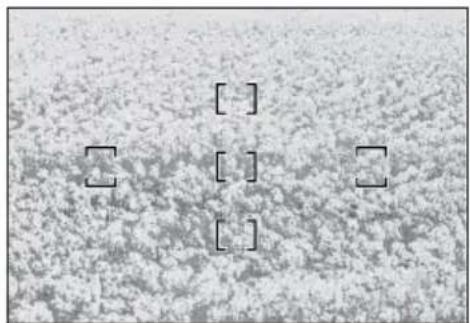

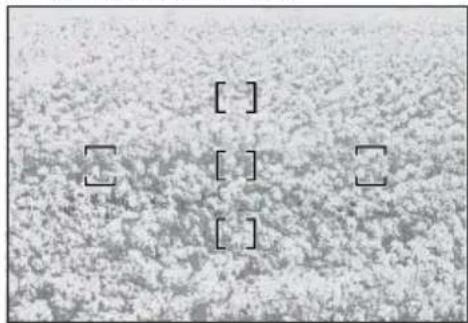

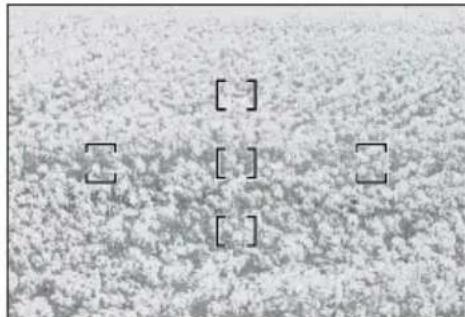

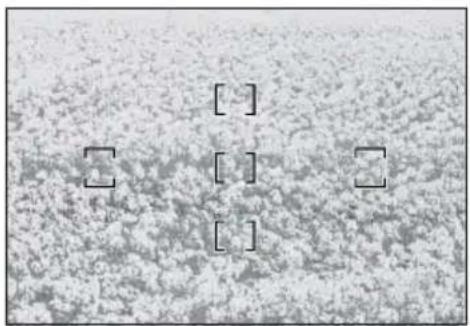

D A field filled with flowers

[ ] [ ] [ ]

1. When the main subject in the focus brackets is relatively small

When a person standing in front of a distant background is positioned within the focus brackets, as shown in Fig. C, the background may be in focus, while the subject is out of focus.

2. When the main subject is a finely patterned subject or scene

When the subject is finely patterned or of low contrast, such as a field filled with flowers, as shown in Fig. D, focus may be difficult to acquire using autofocus.

Responses to these types of situations

(1) Focus on a different subject located at the same distance from the camera, apply focus lock, recompose, and shoot.
(2) Set the camera's focus mode to manual focus and focus manually on the subject.
Refer to "Getting Good Results with Autofocus" in the camera's User's Manual.

Labeled diagram of a Nikon VR lens with numbered parts and control buttons

Illustration of a person walking on a city street with buildings and a bridge in the background (no text or symbols)

D Eine Blumenwiese

[ ] [ ] [ ]

Labeled diagram of a Nikon EF-1902 DSLR camera showing main components and parts with numbered parts and control buttons.

Diagram showing a mechanical or fluidic component with labeled parts and directional arrows indicating motion or flow.

VerreAppareil	A	B	C		EC-BEEC-E	G1G2G3G4	J	L	M	U
F6	◎	◎	—	◎	—	—	◎	◎
F5+DP-30	◎	◎	○	◎	◎		◎	◎
F5+DA-30	◎	◎	○(-0,5)	◎	◎		◎	◎

Illustration of a person walking on a bridge with city buildings and a building in the background (no text or symbols)

Labeled diagram of a Nikon VR camera showing main components and parts with numbered annotations

Diagram illustrating three-step mechanical or fluid dynamics process with labeled components and directional arrows

Black-and-white illustration of a person walking on a bridge with city buildings in the background (no text or symbols)

D Un campo repleto de flores

[ ] [ ] [ ]

Labeled diagram of a Nikon EF-1902 DSLR camera showing main components and parts with numbered parts and control buttons.

SkärmKamera	A	B	C		EC-BEEC-E	G1G2G3G4	J	L	M	U
F6	◎	◎	—	◎	—	—	◎	◎
F5+DP-30	◎	◎	○	◎	◎		◎	◎
F5+DA-30	◎	◎	(-0,5)	◎	◎		◎	◎

Illustration of a person walking on a bridge with city buildings and a building in the background (no text or symbols)

Labeled diagram of a Nikon EF-1902 DSLR camera showing main components and parts with numbered parts and control buttons.

Diagram showing two labeled circular components with directional arrows, likely illustrating a physical or engineering concept.

Diagram showing a mechanical or optical component with numbered annotation '3' and circular arrows indicating motion or direction.

Illustration of a person walking on a city street with buildings and a bridge in the background (no text or symbols)

Labeled diagram of a Nikon EF-1902 DSLR camera showing main components and parts with numbered parts and control buttons.

MatglazenCamera	A	B	C		EC-BEEC-E	G1G2G3G4	J	L	M	U
F6	◎	◎	—	◎	—	—	◎	◎
F5+DP-30	◎	◎	○	◎	◎		◎	◎
F5+DA-30	◎	◎	(-0,5)	◎	◎		◎	◎

Illustration of a person walking on a bridge with city buildings in the background (no text or symbols)

D Een bloemenveld

[ ] [ ] [ ]

Labeled diagram of a Nikon EF-1902 DSLR camera showing main components and parts with numbered parts and control buttons.

Diagram showing a mechanical component with labeled parts and a circled section marked ③

SchermoFotocamera	A	B	C		EC-BEEC-E	G1G2G3G4	J	L	M	U
F6	◎	◎	—	◎	—	—	◎	◎
F5+DP-30	◎	◎	○	◎	◎		◎	◎
F5+DA-30	◎	◎	(-0,5)	◎	◎		◎	◎

Illustration of a person walking on a bridge with city buildings in the background (no text or symbols)

D Prato fiorito

[ ] [ ] [ ]

Labeled diagram of a Nikon EF-1903 main lens with parts numbered 1 to 15, showing internal components and adjustment indicators.

Illustration of a person walking on a bridge with city buildings and a building in the background (no text or symbols)

D Pole plné květin

[ ] [ ] [ ] [ ]

Labeled diagram of a Nikon EF-1903 main lens with parts numbered 1 to 15, showing internal components and adjustment indicators.

① Slnečná clona objektívu (str. 114)
② Značka umiestnenia tienidla objektívu (str. 114)
③ Značka nasadenia tienidla objektívu (str. 114)
④ Značka upevnenia tienidla objektívu (str. 114)
⑤ Stupnica vzdialenosti (str. 113)
⑥ Čiara značky vzdialenosti
⑦ Zaostrovací krúžok (str. 111)
⑧ Krúžok transfokátora (str. 112)
⑨ Stupnica ohniskových vzdialeností
⑩ Značka na stupnici ohniskových vzdialeností
⑪ Značka upevnenia
⑫ Gumové tesnenie upevnenia objektívu (str. 115)
⑬ Kontakty CPU (str. 115)
⑭ Prepínač režimov ostrenia (str. 111)
⑮ Prepínač stabilizácie obrazu (str. 112)

Illustration of a person walking on a city street with buildings and a bridge in the background (no text or symbols)

D Pole plné kvetov

[ ] [ ] [ ]

Labeled diagram of a Nikon NR camera showing main components and parts with numbered annotations

① 镜头遮光罩 (p. 129)

② 镜头遮光罩锁定标记 (p. 129)

③ 镜头遮光罩对齐标记 (p. 129)

④ 镜头遮光罩安装标记 (p. 129)

⑤ 距离刻度 (p. 127)

⑥ 距离标线

⑦ 对焦环 (p. 125)

⑧ 变焦环 (p. 127)

⑨ 焦距刻度

⑩ 焦距刻度标线

⑪ 镜头安装标记

⑫ 镜头卡口橡胶垫圈 (p. 130)

⑬ CPU接点 (p. 130)

⑭ 对焦模式切换器 (p. 124)

⑮ 减震ON/OFF开关 (p. 126)

( ): 参考页

Diagram illustrating three-step mechanical or optical process steps with numbered arrows and dashed circles highlighting specific states.

照相机\对焦屏	A	B		C	EC-B E EC-E	G1 G2 G3 G4	J	L	M	U
F6	◎	◎	—	◎	—	—	◎	◎
F5+DP-30	◎	◎	○	◎	◎		◎	◎
F5+DA-30	◎	◎	○ (-0.5)	◎	◎		◎	◎

◎: 对焦效果良好
○：对焦效果一般

Illustration of a person walking on a city street with buildings and a bridge in the background (no text or symbols)

D 花团锦簇的田野

[ ] [ ] [ ] [ ]

1. 对焦框内的拍摄对象较小时

Labeled diagram of a Nikon EF-328 lens showing main components and parts with numbered parts and control buttons.

Diagram illustrating three-step mechanical or fluid dynamics process with labeled components and directional arrows

- 必須確保鏡頭遮光罩接環標記（●）與鏡頭遮光罩設置標記（→對準（③）。

Illustration of a person walking on a bridge with city skyline and buildings in background (no text or symbols)

D 充滿著鮮花田野

[ ] [ ] [ ]

1. 對焦框內的主體較小時

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or movement.

스크린카메라	A	B		C	EC-BEC-E	G1G2G3G4	J	L	M	U
F6	◎	◎	—	◎	—		—	◎	◎
F5+DP-30	◎	◎	○	◎	◎		◎	◎
F5+DA-30	◎	◎	(-0.5)	◎	◎		◎	◎

Illustration of a person walking on a city street with buildings and a bridge in the background (no text or symbols)

D 꽃으로 가득 찬 들판

[ ] [ ] [ ]

- With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.

■ Depth of field (ft)

Shooting distance Depth of field Reproduction ratio
	f/4 f/5.6	f/8 f/11 f/16	f/22
[f=16mm]
1	11-8/16 in.1 ft 10/16 in.	11-4/16 in.1 ft 13/16 in.	11-1/16 in.1 ft 1-5/16 in.	10-13/16 in.1 ft 2-1/16 in.	10-7/16 in.1 ft 3-8/16 in.	9-15/16 in.1 ft 6-6/16 in.	1/9.7
1.25	1 ft 1-15/16 in.1 ft 4-5/16 in.	1 ft 1-9/16 in.1 ft 5-1/16 in.	1 ft 1-3/16 in.1 ft 6-2/16 in.	1 ft 10/16 in.1 ft 8-3/16 in.	1 ft2 ft 8/16 in.	11-3/16 in.3 ft 3 in.	1/14.3
2	1 ft 8-6/16 in.2 ft 5-14/16 in.	1 ft 7-7/16 in.2 ft 9-4/16 in.	1 ft 6-2/16 in.3 ft 4-11/16 in.	1 ft 4-11/16 in.5 ft 2-6/16 in.	1 ft 3-4/16 in.41 ft	1 ft 1-11/16 in.∞	1/28.2
∞	6 ft 11-14/16 in.∞	5 ft 2-12/16 in.∞	3 ft 10-1/16 in.∞	2 ft 10-5/16 in.∞	2 ft 2-1/16 in.∞	1 ft 8-3/16 in.∞	1/∞
[f=20mm]
1	11-10/16 in.1 ft 8/16 in.	11-8/16 in.1 ft 10/16 in.	11-4/16 in.1 ft 15/16 in.	11-1/16 in.1 ft 1-7/16 in.	10-11/16 in.1 ft 2-3/16 in.	10-5/16 in.1 ft 3-10/16 in.	1/8.3
1.25	1 ft 2-3/16 in.1 ft 3-15/16 in.	1 ft 1-15/16 in.1 ft 4-5/16 in.	1 ft 1-9/16 in.1 ft 5-1/16 in.	1 ft 1-1/16 in.1 ft 6-2/16 in.	1 ft 10/16 in.1 ft 8-3/16 in.	11-14/16 in.2 ft 10/16 in.	1/12.1
2	1 ft 9-6/16 in.2 ft 3-12/16 in.	1 ft 8-8/16 in.2 ft 5-10/16 in.	1 ft 7-7/16 in.2 ft 9-2/16 in.	1 ft 6-4/16 in.3 ft 4-3/16 in.	1 ft 4-13/16 in.5 ft 4/16 in.	1 ft 3-4/16 in.26 ft 6-10/16 in.	1/23.5
∞	10 ft 8/16 in.∞	7 ft 5-6/16 in.∞	5 ft 4-15/16 in.∞	3 ft 11-10/16 in.∞	2 ft 11-6/16 in.∞	2 ft 2-12/16 in.∞	1/∞

f/4 f/5.6

f/8 f/11 f/16

f/22

[f=24mm]
1	11-12/16 in.1 ft 6/16 in.	11-10/16 in.1 ft 8/16 in.	11-8/16 in.1 ft 10/16 in.	11-4/16 in.1 ft 15/16 in.	11-1/16 in.1 ft 1-7/16 in.	10-11/16 in.1 ft 2-4/16 in.	1/6.9
1.25	1 ft 2-6/16 in.1 ft 3-10/16 in.	1 ft 2-4/16 in.1 ft 3-15/16 in.	1 ft 1-15/16 in.1 ft 4-5/16 in.	1 ft 1-9/16 in.1 ft 5-1/16 in.	1 ft 1-1/16 in.1 ft 6-4/16 in.	1 ft 10/16 in.1 ft 8-4/16 in.	1/10.1
2	1 ft 10-1/16 in.2 ft 2-8/16 in.	1 ft 9-6/16 in.2 ft 3-10/16 in.	1 ft 8-8/16 in.2 ft 5-8/16 in.	1 ft 7-7/16 in.2 ft 9 in.	1 ft 6-4/16 in.3 ft 4-1/16 in.	1 ft 4-13/16 in.4 ft 11-12/16 in.	1/19.6
∞	14 ft 3 in.∞	10 ft 6-2/16 in.∞	7 ft 6-13/16 in.∞	5 ft 6 in.∞	4 ft 6/16 in.∞	2 ft 11-14/16 in.∞	1/∞
[f=28mm]
1	11-12/16 in.1 ft 4/16 in.	11-12/16 in.1 ft 6/16 in.	11-10/16 in.1 ft 8/16 in.	11-6/16 in.1 ft 12/16 in.	11-4/16 in.1 ft 15/16 in.	11-1/16 in.1 ft 1-9/16 in.	1/5.9
1.25	1 ft 2-8/16 in.1 ft 3-8/16 in.	1 ft 2-6/16 in.1 ft 3-12/16 in.	1 ft 2-3/16 in.1 ft 3-15/16 in.	1 ft 1-15/16 in.1 ft 4-7/16 in.	1 ft 1-9/16 in.1 ft 5-3/16 in.	1 ft 1-1/16 in.1 ft 6-6/16 in.	1/8.6
2	1 ft 10-9/16 in.2 ft 1-13/16 in.	1 ft 10-1/16 in.2 ft 2-8/16 in.	1 ft 9-6/16 in.2 ft 3-13/16 in.	1 ft 8-6/16 in.2 ft 5-14/16 in.	1 ft 7-5/16 in.2 ft 9-10/16 in.	1 ft 6 in.3 ft 5-6/16 in.	1/16.8
∞	19 ft 2-12/16 in.∞f/4 f/5.6	14 ft 1-11/16 in.∞f/8 f/11 f/16	10 ft 1-11/16 in.∞	7 ft 3-13/16 in.∞	5 ft 3-13/16 in.∞	3 ft 10-15/16 in.∞f/22	1/∞
[f=35mm]
1	11-14/16 in. — 1 ft 2/16 in.	11-12/16 in. — 1 ft 4/16 in.	11-12/16 in. — 1 ft 6/16 in.	11-10/16 in. — 1 ft 8/16 in.	11-8/16 in. — 1 ft 10/16 in.	11-4/16 in. — 1 ft 15/16 in.	1/4.7
1.25	1 ft 2-12/16 in. — 1 ft 3-6/16 in.	1 ft 2-10/16 in. — 1 ft 3-8/16 in.	1 ft 2-6/16 in. — 1 ft 3-10/16 in.	1 ft 2-4/16 in. — 1 ft 3-15/16 in.	1 ft 1-15/16 in. — 1 ft 4-5/16 in.	1 ft 1-9/16 in. — 1 ft 5-1/16 in.	1/7
2	1 ft 10-15/16 in. — 2 ft 1-3/16 in.	1 ft 10-9/16 in. — 2 ft 1-11/16 in.	1 ft 10-1/16 in. — 2 ft 2-6/16 in.	1 ft 9-8/16 in. — 2 ft 3-10/16 in.	1 ft 8-8/16 in. — 2 ft 5-8/16 in.	1 ft 7-9/16 in. — 2 ft 9 in.	1/13.7
∞	28 ft 10/16 in. — ∞	20 ft 6-13/16 in. — ∞	14 ft 8-6/16 in. — ∞	10 ft 6-10/16 in. — ∞	7 ft 7-5/16 in. — ∞	5 ft 6-6/16 in. — ∞	1/∞

• With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.

Nikon

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

© 2009 Nikon Corporation

CE

TT5C13(E3)

7MAA63E3-13
