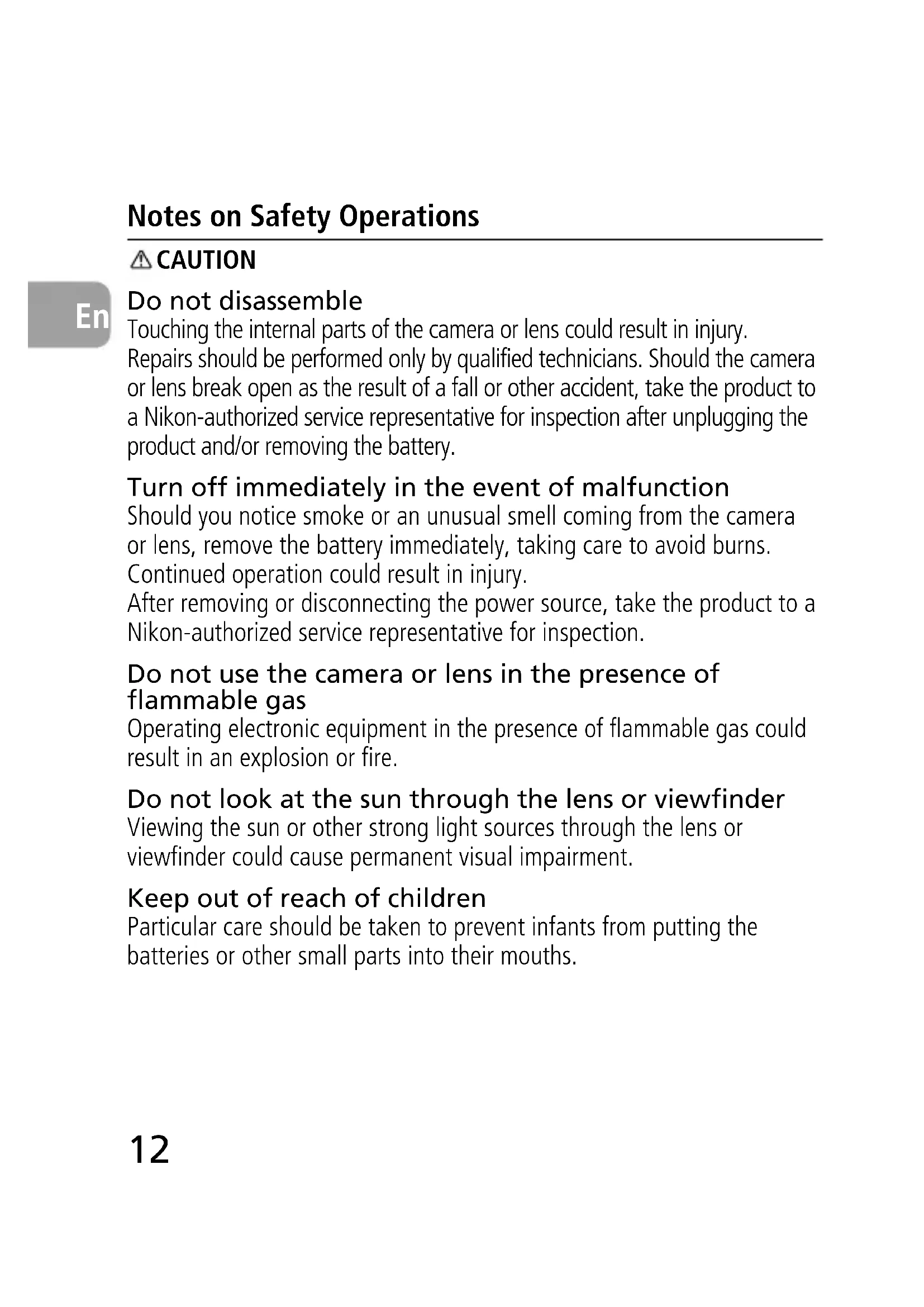

Notes on Safety Operations

CAUTION

En

Do not disassemble

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns.

Continued operation could result in injury.

After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
• When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

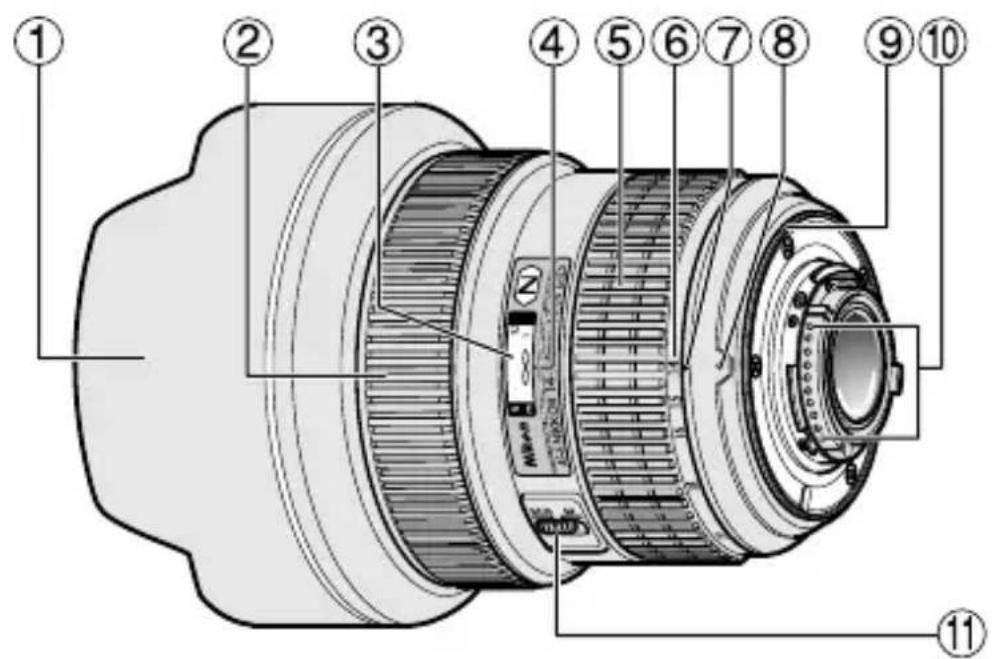

Nomenclature ( ): Reference page

① Fixed lens hood
② Focus ring (p. 17)
③ Distance scale
④ Distance index line
⑤ Zoom ring (p. 18)
⑥ Focal length scale

⑦ Focal length index line
⑧ Mounting index
⑨ Lens mount rubber gasket (p. 16)
⑩ CPU contacts (p. 16)
⑪ Focus mode switch (p. 17)

Labeled diagram of a camera lens with numbered parts for identification

Diagram showing a Nikon lens component being cut off into a lens (no text or symbols present)

1 2 B

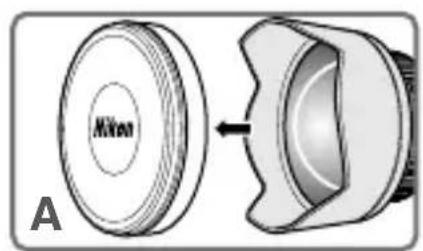

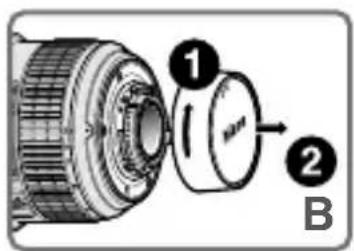

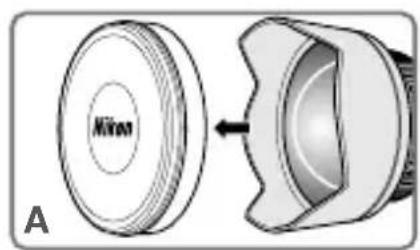

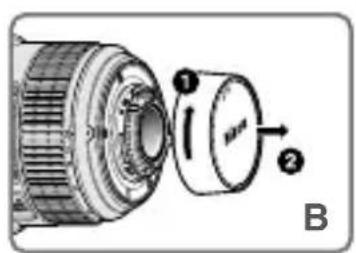

- Because of the shape of the lens, its surface can be easily damaged when coming into contact with other objects. To protect the lens, always attach the lens cap when not using it, and when mounting to or detaching it from the camera.

Usable cameras and available functions

There may be some restrictions or limitation for available functions.

Refer to your camera user's manual for details.

Cameras Autofocus		Exposure mode
		P*1	S	A	M
Nikon digital SLR (Nikon FX/DX format) cameras	○	○		○	○
F6, F5, F100, F80-Series/N80-Series*, F75-Series/N75-Series*, F65-Series/N65-Series*	○	○		○	○
Pronea 600i/6i*, Pronea S*2	○	○		○	○
F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70*	○	○		×	×
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	×	○	○	○	○
F-801s/N8008s*, F-801/N8008*, F-601M/N6000*	×	○	○	×	×
F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*)	×	×		×	×

○: Possible ×: Impossible

*Sold exclusively in the USA. **Sold exclusively in the USA and Canada.

*1 P includes AUTO (General-Purpose Program) and Vari-Program System.
*2 Manual (M) is not available.

1. Introduction

Thank you for purchasing the AF-S NIKKOR 14-24mm f/2.8G ED lens. This is a high-grade, internal focusing (IF) lens employing a Silent Wave Motor to drive the focusing mechanism, thus the "S" designation. As a result, autofocusing is smooth, silent, and almost instantaneous.

■Major features

• Autofocus (A) or manual (M) mode can easily be selected with the Focus mode switch.
• Autofocusing with manual override is provided, allowing instant change from autofocusing to manual focusing.
• More accurate exposure control is possible when this is mounted on a Nikon camera having 3D Matrix Metering capability, because subject distance information is transferred from the lens to the camera body.
• The use of three aspherical and two ED (extra-low dispersion) lens elements ensures sharp pictures virtually free of color fringing. Also, by utilizing a 9-blade diaphragm that produces a nearly circular aperture, out-of-focus images in front of or behind the subject are rendered as pleasing blurs.
• The Nano Crystal Coat deposited on some of the lens elements ensures that fine, clear images can be reproduced under various shooting conditions, from the sunny outdoors to spotlighted interior scenes.

■Important

Do not lift the lens, even when unmounted, by the lens cap. The lens cap can become detached, causing the lens or camera to fall.

• Be careful not to soil or damage the CPU contacts ⑩.
• When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D7000, the lens' picture angle becomes 90°–61° and its 35mm equivalent focal length range is approx. 21mm – 36mm.
• If the lens mount rubber gasket ⑨ is damaged, be sure to visit the nearest Nikon authorized dealer or service center for repair.

2. Focusing

Set your camera's focus mode selector according to this chart.

Cameras	Camera's focus mode	Lens' focus mode
		M/A	M
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600i/6i*, Pronea S	AF	Autofocus with manual priority	Manual focus (Electronic rangefinder can be used.)
	MF	Manual focus (Electronic rangefinder can be used.)
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	AFMF	Manual focus (Electronic rangefinder can be used, except with the F-601M/N6000*.)

*Sold exclusively in the USA.

■Autofocus with manual override (M/A mode)

1 Set the Focus mode switch ⑪ to [M/A].

Note: Be sure to set the switch so that the indicator aligns with [M/A] precisely.

2 Autofocus is provided, but you can manually override the focus by operating the separate Focus ring ② while lightly depressing the shutter release button or the AF start (AF-ON) button on the camera.

3 To cancel manual override, again lightly depress the shutter release button or the AF start button on the camera. This will return the camera to autofocus mode.

M/A M 11

■Getting good results with autofocus

Refer to "Notes on using wide or super-wide angle AF Nikkor lenses" (p. 122).

3. Focusing, zooming, and depth of field (p. 112)

First turn the zoom ring ⑤ until the desired composition is framed in the viewfinder before focusing. If your camera has a depth of field preview (stop-down) button or lever, depth of field can be observed while looking through the camera viewfinder.

• The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide.

Technical illustration of a mechanical component with no visible text or symbols

4. Setting the aperture

Set the aperture on the camera body.

5. Taking flash pictures with cameras having built-in flash

Vignetting occurs when using these cameras because the light emitted from the flash may be obstructed by the lens barrel.

- For the latest information on vignetting with this lens, see the camera manual.

Cameras Supported focal length/Shooting distance
D7100(1.3x crop of DX)	24 mm/3 m (9.8 ft) or greater
Other cameras Vignetting occurs at any shooting distance.

6. Recommended focusing screens

Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:

◎: Excellent focusing
○: Acceptable focusing

Slight vignetting or moiré patterns appear in the viewfinder, but not on the film.

—: Not available.

Blank box means not applicable. Since type M screen can be used for both macrophotography at a magnification ratio of 1:1 or above and for photomicrography, it has different applications than other screens.

Note:

• For F6 cameras, when using screens other than type B or E, "Other screen" must be selected in Custom Setting. Refer to camera user's manual for details.
• For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in Matrix Metering.
• When using the B and E focusing screens in cameras other than those listed above, refer to the columns for the B and E screens.

7. Lens care

• Clean the lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from center to outer edge, taking care not to leave traces or touch other parts of the lens.
• Never use thinner or benzene to clean the lens as this might damage it, result in a fire, or cause health problems.
• When the lens is not in use, attach the lens cap to protect the front lens element.
• When storing the lens in its lens case, attach both front and rear caps.
• When the lens will not be used for a long time, store it in a cool, dry place to prevent mold. Also store the lens away from direct sunlight or chemicals such as camphor or naphthalene.
• Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.
• Rapid changes in temperature may cause damaging condensation inside and outside the lens. Before taking the lens from a warm to a cold environment or vice versa, place it in a bag or plastic case to slow the change in temperature.

8. Standard accessories

- Slip-on front lens cap - Rear lens cap - Semi-soft case CL-M3

9. Incompatible accessories

• Teleconverters (all models) • Auto Ring BR-2A/BR-4 and all models of Auto Extension Ring PK, K Ring, Bellows focusing attachment and filter
• Attachment Ring SX-1

Other accessories may not be suitable for use with this lens. For details, carefully read your accessories user's manual.

10. Specifications

Type of lens: G-type AF-S Zoom-Nikkor lens with built-in CPU and Nikon bayonet mount

Focal length: 14mm–24mm

Maximum aperture: f/2.8

Lens construction: 14 elements in 11 groups (2 ED, 3 aspherical and some Nano Crystal Coat-deposited lens elements)

Picture angle: 114° – 84° with 35 mm (135) format Nikon film SLR cameras and Nikon FX format digital SLR cameras

90° – 61° with Nikon DX format digital SLR cameras 102° – 71° with IX240 system cameras

Focal length scale: 14, 15, 16, 18, 20, 24mm

Distance information: Output to camera body

Zoom control: Manually via separate zoom ring

Focusing: Nikon Internal Focusing (IF) system (utilizing an internal Silent Wave Motor); manually via separate focus ring

Shooting distance scale: Graduated in meters and feet from 0.28m (1 ft) to infinity ( )

Closest focus distance: 0.28m (0.92 ft) from focal plane (at 18mm – 24mm), 0.3m (0.98 ft) from focal plane (at less than 18mm)

No. of diaphragm blades: 9 pcs. (rounded)

Diaphragm: Fully automatic

Aperture range: f/2.8 - 22

Exposure measurement: Via full-aperture method

Dimensions: Approx. 98mm dia. x 131.5mm (extension from the camera's lens mount flange)

Weight: Approx. 970g (34.2 oz)

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

En

⚠️ ACHTUNG

Keinesfalls zerlegen.

Technical diagram of a Nikon lens with numbered parts and close-up views labeled A and B

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a Nikon lens with numbered parts and close-ups of the main component labeled A and B.

Technical line drawing of a mechanical component with no visible text or symbols

Focales : 14, 15, 16, 18, 20, 24mm

Informations de

Technical diagram of a Nikon lens with numbered parts and close-ups of internal components labeled A and B.

Technical line drawing of a mechanical component with no visible text or symbols

4. Ajuste de abertura

Escala de distancias: 14, 15, 16, 18, 20, 24mm

Technical diagram of a Nikon lens with numbered parts and exploded view labeled A and B

Technical line drawing of a mechanical component with no visible text or symbols

SkivaKamera

A

EC-BEC-E

F

G1G2G3G4B

C

E

K

F6

◎

◎

—

◎

—

—

—

—

—

—

◎

—

◎

—

F5+DP-30

◎

◎

◎

◎

—

◎

◎

—

◎

—

F5+DA-30

◎

◎

◎

◎

—

◎

—

◎

—

F4+DP-20

—

◎

◎

—

○

◎

◎

F4+DA-20

—

◎

◎

—

○

◎

◎

L M P

Sv

Brännviddsskala: 14, 15, 16, 18, 20, 24 mm

Avständsinformation: Utdata till kamerahuset

Zoomkontroll: Manuell via en separat zoomring

Technical diagram of a Nikon lens with numbered parts and close-ups of the main component and internal components.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a Nikon lens with numbered parts and close-ups of the internal components.

Technical line drawing of a mechanical component with no visible text or symbols

focale: 14, 15, 16, 18, 20, 24mm

Technical diagram of a Nikon lens with numbered parts and close-ups of the main component labeled A and B.

Technical illustration of a mechanical component with a dome-shaped top and flanged base (no text or symbols)

4. 光圈设定

在照相机机身上设定光圈。

Technical diagram of a Nikon lens with numbered parts and close-ups of the internal components.

Technical line drawing of a mechanical component with no visible text or symbols

Labeled diagram of a Nikon lens with numbered parts for identification

Diagram showing a circular component labeled 'Mikra' being cut into a mechanical housing (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts and directional arrows

Technical line drawing of a mechanical component with no visible text or symbols

4. 조리개 설정

카메라 본체의 조리개를 설정합니다.

스크린카메라

A

EC-BEC-E

F

G1

G2

G3

G4

B

C

E

K

F6

◎

◎

—

◎

—

—

—

—

—

—

—

◎

—

◎

—

F5+DP-30

◎

◎

◎

◎

—

◎

◎

—

◎

—

F5+DA-30

◎

◎

◎

◎

—

◎

—

◎

—

F4+DP-20

—

◎

◎

—

○

◎

◎

F4+DA-20

—

◎

◎

—

○

◎

◎

■ Depth of field (ft)

Focused distance Depth of field Reproduction ratio
	f/2.8 f/4 f/5.6 f/8 f/11 f/16 f/22
[f = 14mm]
1	11-8/16 in.1 ft 10/16 in.	11-4/16 in.1 ft 15/16 in.	11-1/16 in.1 ft 1-5/16 in.	10-13/16 in.1 ft 2-3/16 in.	10-7/16 in.1 ft 3-6/16 in.	9-15/16 in.1 ft 6-6/16 in.	9-8/16 in.2 ft 2-1/16 in.	1/11.76
1.25	1 ft 1-15/16 in.1 ft 4-5/16 in.	1 ft 1-11/16 in.1 ft 4-15/16 in.	1 ft 1-3/16 in.1 ft 6 in.	1 ft 10/16 in.1 ft 7-15/16 in.	1 ft1 ft 11-8/16 in.	11-3/16 in.3 ft 8/16 in.	10-7/16 in.19 ft 10-11/16in.	1/17.05
2.5	2 ft 6/16 in.3 ft 4-7/16 in.	1 ft 10-13/16 in.3 ft 11-8/16 in.	1 ft 9 in.5 ft 4-7/16 in.	1 ft 6-15/16 in.12 ft 11-14/16in.	1 ft 5-1/16 in.∞	1 ft 2-12/16 in.∞	1 ft 1-1/16 in.∞	1/43.51
∞	7 ft 6-12/16 in.∞	5 ft 6-15/16 in.∞	4 ft 1-7/16 in.∞	3 ft 6/16 in.∞	2 ft 3-15/16 in.∞	1 ft 9 in.∞	1 ft 4-15/16 in.∞	1/∞
	f/2.8 f/4 f/5.6 f/8		f/11 f/16	f/22
[f = 15mm]
1	11-8/16 in.1 ft 10/16 in.	11-4/16 in.1 ft 13/16 in.	11-3/16 in.1 ft 1-3/16 in.	10-13/16 in.1 ft 1-15/16 in.	10-7/16 in.1 ft 3 in.	9-15/16 in.1 ft 5-10/16 in.	9-8/16 in.1 ft 11-8/16 in.	1/11.4
1.25	1 ft 2-1/16 in.1 ft 4-3/16 in.	1 ft 1-11/16 in.1 ft 4-13/16 in.	1 ft 1-5/16 in.1 ft 5-12/16 in.	1 ft 12/16 in.1 ft 7-7/16 in.	1 ft 2/16 in.1 ft 10-9/16 in.	11-4/16 in.2 ft 8-4/16 in.	10-9/16 in.7 ft 8-6/16 in.	1/16.48
2.5	2 ft 12/16 in.3 ft 3-6/16 in. 3	1 ft 11-3/16 in.ft 9-6/16 in.	1 ft 9-8/16 in.4 ft 10-15/16 in.	1 ft 7-5/16 in.9 ft 5-14/16 in.	1 ft 5-6/16 in.∞	1 ft 3-4/16 in.∞	1 ft 1-7/16 in.∞	1/41.88
∞	8 ft 1-15/16 in.∞	6 ft 2/16 in.∞	4 ft 5-3/16 in.∞	3 ft 2-14/16 in.∞	2 ft 5-14/16 in.∞	1 ft 10-5/16 in.∞	1 ft 5-12/16 in.∞	1/∞

	f/2.8 f/	4 f/5.6 f/8	f/11 f/16	f/22
[f = 16mm]
1	11-8/16 in.1 ft 8/16 in.	11-6/16 in.1 ft 12/16 in.	11-3/16 in.1 ft 1-1/16 in.	10-15/16 in.1 ft 1-11/16 in.	10-9/16 in.1 ft 2-10/16 in.	10-1/16 in.1 ft 4-11/16 in.	9-10/16 in.1 ft 8-12/16 in.	1/10.85
1.25	1 ft 2-3/16 in.1 ft 4-1/16 in.	1 ft 1-13/16 in.1 ft 4-9/16 in.	1 ft 1-7/16 in.1 ft 5-6/16 in.	1 ft 13/16 in.1 ft 6-13/16 in.	1 ft 6/16 in.1 ft 9-4/16 in.	11-8/16 in.2 ft 3-13/16 in.	10-13/16 in.4 ft 3-8/16 in.	1/15.61
2.5	2 ft 1-3/16 in.3 ft 2-1/16 in.	1 ft 11-12/16 in.3 ft 6-12/16 in.	1 ft 10-1/16 in.4 ft 4-9/16 in.	1 ft 8-1/16 in.6 ft 11-3/16 in.	1 ft 6-2/16 in.35 ft 7-11/16 in.	1 ft 3-13/16 in.	1 ft 2-1/16 in.	1/39.42
	9 ft 2-8/16 in.	6 ft 9-4/16 in.	4 ft 11-10/16 in.	3 ft 7-7/16 in.	2 ft 9-2/16 in.	2 ft 8/16 in.	1 ft 7-5/16 in.	1/
[f = 18mm]
1	11-10/16 in.1 ft 8/16 in.	11-8/16 in.1 ft 10/16 in.	11-4/16 in.1 ft 13/16 in.	11-1/16 in.1 ft 1-5/16 in.	10-13/16 in.1 ft 2-1/16 in.	10-5/16 in.1 ft 3-6/16 in.	9-15/16 in.1 ft 5-12/16 in.	1/9.84
1.25	1 ft 2-4/16 in.1 ft 3-13/16 in.	1 ft 2-1/16 in.1 ft 4-5/16 in.	1 ft 1-11/16 in.1 ft 4-15/16 in.	1 ft 1-3/16 in.1 ft 5-14/16 in.	1 ft 12/16 in.1 ft 7-9/16 in.	1 ft1 ft 11-6/16 in.	11-4/16 in.2 ft 8-3/16 in.	1/14.08
2.5	2 ft 1-15/16 in. 3 ft	2 ft 12/16 in.3 ft 3-4/16 in.	1 ft 11-3/16 in.3 ft 9-4/16 in.	1 ft 9-6/16 in.4 ft 11-8/16 in.	1 ft 7-7/16 in.8 ft 8-3/16 in.	1 ft 5-3/16 in.	1 ft 3-4/16 in.	1/35.24
	11 ft 6-6/16 in.	8 ft 5-3/16 in.	6 ft 1-13/16 in.	4 ft 5-4/16 in.	3 ft 4-3/16 in.	2 ft 5-6/16 in.	1 ft 10-13/16 in.	1/

f/2.8 f/4 f/5.6 f/8 f/11 f/16 f/22

[f = 20mm]
1	11-10/16 in.1 ft 6/16 in.	11-8/16 in.1 ft 8/16 in.	11-6/16 in.1 ft 12/16 in.	11-3/16 in.1 ft 1-1/16 in.	10-15/16 in.1 ft 1-9/16 in.	10-9/16 in.1 ft 2-10/16 in.	10-3/16 in.1 ft 4-3/16 in.	1/8.97
1.25	1 ft 2-6/16 in.1 ft 3-12/16 in.	1 ft 2-3/16 in.1 ft 4-1/16 in.	1 ft 1-13/16 in.1 ft 4-7/16 in.	1 ft 1-7/16 in.1 ft 5-4/16 in.	1 ft 15/16 in.1 ft 6-8/16 in.	1 ft 6/16 in.1 ft 9 in.	11-10/16 in.2 ft 1-13/16 in.	1/12.78
2.5	2 ft 2-10/16 in.2 ft 10-11/16 in.	2 ft 1-9/16 in.3 ft 1-1/16 in.	2 ft 2/16 in.3 ft 5-3/16 in.	1 ft 10-7/16 in.4 ft 1-13/16 in.	1 ft 8-10/16 in.5 ft 9 in.	1 ft 6-6/16 in.19 ft 4-11/16 in.	1 ft 4-7/16 in.∞	1/31.83
∞	14 ft 1-7/16 in.∞	10 ft 3-8/16 in.∞	7 ft 5-12/16 in.∞	5 ft 4-7/16 in.∞	4 ft 6/16 in.∞	2 ft 10-15/16 in.∞	2 ft 2-14/16 in.∞	1/∞

	f/2.8 f/4	f/5.6 f/8	f/11 f/16 f/22
[f = 24mm]
1	11-12/16 in.1 ft 4 /16 in.	11-10/16 in.1 ft 6 /16 in.	11-8/16 in.1 ft 8 /16 in.	11-6/16 in.1 ft 12 /16 in.	11-3/16 in.1 ft 1-1/16 in.	10-13/16 in.1 ft 1-11/16 in.	10-9/16 in.1 ft 2-10/16 in.	1/7.61
1.25	1 ft 2-8/16 in.1 ft 3-8/16 in.	1 ft 2-6/16 in.1 ft 3-12/16 in.	1 ft 2-3/16 in.1 ft 4-1/16 in.	1 ft 1-13/16 in.1 ft 4-9/16 in.	1 ft 1-7/16 in.1 ft 5-4/16 in.	1 ft 15/16 in.1 ft 6-12/16 in.	1 ft 6/16 in.1 ft 9 in.	1/10.81
2.5	2 ft 3-8/16 in.2 ft 9-4/16 in.	2 ft 2-10/16 in.2 ft 10-11/16 in.	2 ft 1-9/16 in.3 ft 1-1/16 in.	2 ft3 ft 5-8/16 in.	1 ft 10-9/16 in.4 ft 1-1/16 in.	1 ft 8-6/16 in.6 ft 1-1/16 in.	1 ft 6-8/16 in.16 ft 9-12/16 in.	1/26.82
∞	19 ft 9-12/16 in.∞	14 ft 4-11/16 in.∞	10 ft 4-15/16 in.∞	7 ft 5-1/16 in.∞	5 ft 6-4/16 in.∞	3 ft 11-3/16 in.∞	2 ft 11-12/16 in.∞	1/∞

• Due to the optical characteristics of this lens, as the lens is focused closer, the focal length slightly decreases.

[ ]

〈人物〉

A person standing in front of a distant background

Notes on using wide or super-wide angle AF Nikkor lenses

In the following situations, autofocus may not work properly when taking pictures using wide or super-wide angle AF Nikkor lenses.

1. When the main subject in the focus brackets is relatively small.

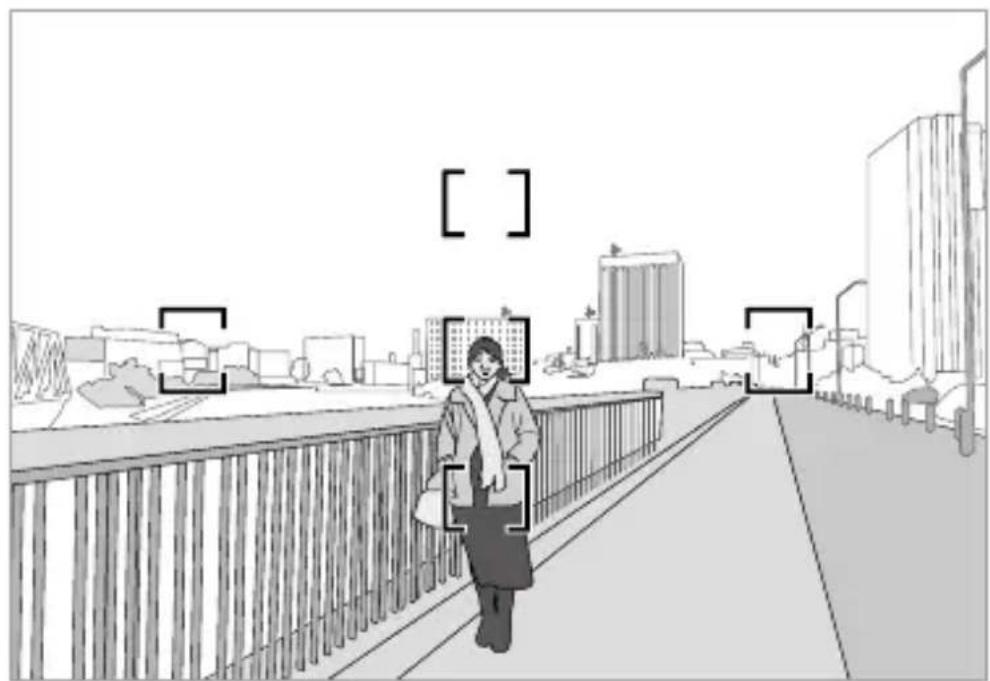

As shown in Fig. A (p. 122), when a person standing in front of a distant background is placed within the focus brackets, the background may be in focus, while the subject is out of focus.

1. When the main subject is a small, patterned subject or scene.

As shown in Fig. B (p. 123), when the subject is highly patterned or of low contrast, such as a field covered with flowers, autofocus may be difficult to obtain.

In such situations:

(1) Focus on a different subject located at the same distance from the camera, then use the focus lock, recompose, and shoot.

(2) Or set the camera's focus mode selector to M (manual) and focus manually on the subject.

- Also, refer to “Getting Good Results with Autofocus” in your camera’s user’s manual.

Illustration of a person walking on a city bridge with buildings and trees in the background (no text or symbols)

站在远景前面的人

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol indicates that electrical and electronic equipment is to be collected separately.

The following apply only to users in European countries:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources and prevent negative consequences for human health and the environment that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in charge of waste management.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge, plus a solid black rectangle below (no text or labels)

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
