Product type	4-slot toaster
Brand	Koenic
Model	KTO 4331 M
Power supply	220 - 240 V ~ 50 Hz
Rated power	1600 W
Protection class	I
Capacity	4 slices of bread
Functions	Toasting, defrosting (DEFROST), reheating (REHEAT), stop (CANCEL)
Browning adjustment	Rotary selector, levels 1 to 6 (recommended 3-4 for golden)
Integrated accessory	Bun warmer (ejectable via lever)
Crumb tray	Removable, cleanable
Cord length	Approx. 70 cm (adjustable by winding under the base)
Material	Plastic and metal
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 30 x 20 x 25 cm
Maintenance	Empty crumb tray regularly; clean exterior with a damp cloth; do not immerse
Safety instructions	Do not use unattended; do not cover; keep away from flammable materials; unplug before cleaning
Repairability	Only entrust to an approved repairer; do not disassemble yourself

Frequently Asked Questions - KTO 4331 M Koenic

How to use the defrosting (DEFROST) function?

Insert the frozen bread, select the toasting level, lower the lever, then press the DEFROST button to activate defrosting. The cycle stops automatically.

How to reheat already toasted bread?

Place the toast in the slots, lower the lever, then press the REHEAT button. The appliance will warm the bread without further toasting. Do not reheat buttered or topped bread.

What to do if a slice of bread gets stuck in the toaster?

Unplug the appliance and let it cool completely. Gently remove the bread carefully without using metal objects to avoid damaging the heating elements.

How to clean the crumb tray?

Unplug the toaster and wait for it to cool. Remove the crumb tray, empty the crumbs and clean it with a slightly damp cloth if necessary. Put it back in place before the next use.

Can I use aluminum foil or metal utensils in the toaster?

No, never place metal foil, metal tools or plastic wrappers in the slots. This can cause a fire or damage the appliance.

How to use the bun warmer accessory?

Press the lever to eject the accessory, place the buns on the support, select a medium toasting level and lower the control lever. Turn them occasionally for even results. Never place buns directly on the slots.

Why does my toaster emit smoke or smell during first use?

This is normal. Before first use, run the appliance empty for about 10 minutes in a well-ventilated room. The smoke and smell will disappear after a few cycles.

How to achieve perfect browning?

Adapt the browning level to the freshness of the bread: use a lower setting for dry bread, a higher setting for wholemeal or fresh bread. For a single slice, place it in the center and choose a low level.

Can I leave the toaster unattended while it is operating?

No, never leave the appliance unattended while in use. It can overheat or the bread can burn, posing a fire risk.

What to do if the power cord is damaged?

A damaged cord must be replaced only by an approved after-sales service to avoid any danger. Do not try to repair it yourself.

USER MANUAL KTO 4331 M Koenic

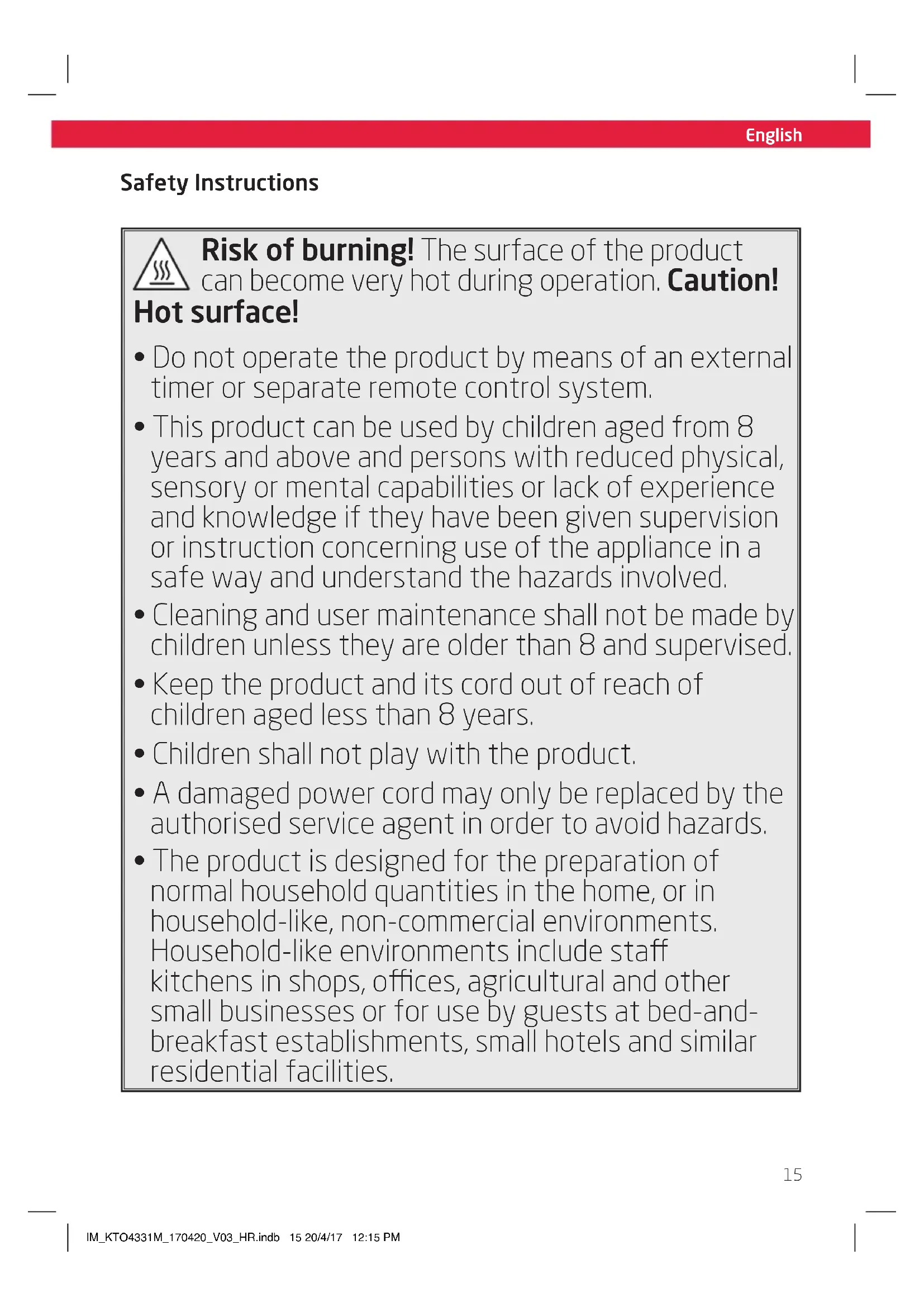

Risk of burning! The surface of the product can become very hot during operation. Caution!

Hot surface!

• Do not operate the product by means of an external timer or separate remote control system.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the product and its cord out of reach of children aged less than 8 years.
• Children shall not play with the product.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

English

Safety Instructions

• Bread can burn. Therefore, do not use this product near or below flammable materials such as curtains. Please be sure to keep a sufficient safe distance from flammable materials.
• Caution! Risk of burning hazard when not using typical bread for toasting. Due to smaller size or shape there is a risk of touching hot parts when taking out the toasted bread.
• Clean the crumb tray regularly and remove the crumbs.
• Follow the instructions in the chapter Cleaning and care.
• Fire hazard! Bread can burn! Do not leave the toaster unsupervised when in use. Do not use the toaster near flammable materials such as curtains, textiles, walls, etc. and do not cover the toaster. Always ensure that there is a safe distance to flammable materials.

Safety Instructions

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
3. Never leave the product unsupervised while it is switched on.
4. Do not place heavy objects on top of the product.
5. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
6. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
7. The mains voltage must match the information on the rating label of the product.
8. Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
9. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
10. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
11. Only unplug from the power socket by the plug itself. Do not pull on the cord.

12. Unplug the product .. - when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

13. Use this product in dry indoor areas only and never outdoors.

14. Place the product on a flat, sturdy and slip-resistant surface.

15. Never use, expose or put the product near to:

16. direct sunlight and dust;

17. fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

18. This product is not intended for commercial use. It is designed for household use only.

19. Attention! Never remove toast slices while the device is in operation.

20. If a slice of toast is stuck in the toaster: - Pull the plug from the power socket and let the device cool off completely.

21. Then remove the stuck slice from the toaster.

22. Do not use any metal objects for this and avoid any contact with the internal metal parts of the toaster.

23. Risk of fire and electrical shock! Do not put any large slices of bread, metal foil, or metal tools into the toaster.

24. Never cover the toaster while it is in operation - it could overheat and catch fire.
25. Never toast bread with toppings or filling in order to prevent the filling from dripping and igniting.
26. Never wrap the bread when you warm it on the roll attachment. Plastic wrap melts and can ignite. Aluminium foil reflects the heat and leads to damage of the toaster.
27. If the toaster begins to smoke, stop it immediately and pull the plug.
28. Never operate the toaster without the crumb tray.

English

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for toasting bread only. The roll attachment is intended only for crisping up rolls or croissants. Any other use can lead to damage to the device or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first use

Operate the product for few cycles or about 10 minutes without bread in a properly ventilated room. Please ensure for sufficient ventilation, as this may lead to slight smell and smoke, but this is normal and will disappear after a short time.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for

the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Toaster
1 x Instruction manual

Technical data

Rated voltage : 220 - 240 V~

Rated input power : 1600 W

Rated frequency : 50 Hz

Protection class : I

Partlist

A Integrated roll attachment
B Roll attachment lever
C Crumb tray
Bread slots
Control lever
F REHEAT button
G DEFROST button
H CANCEL button
1 Toasting level setting
Power cord with plug

Toasting bread

Fig. 1 Adjust the right length of the power cord and lead the cord out at the side of the toaster. Connect the plug to a suitable power outlet.

Fig. 2 Put up to four slices of bread into the bread slot.

Caution

Risk of burning hazard when not using typical bread for toasting. Due to smaller size or shape there is a risk of touching hot parts when taking out the toasted bread.

Fig. 3 Set the desired toasting level with the selector.

Note

The toasting is dependent on the type of bread. Levels 3 and 4 generally result in a gold-brown.

Fig. 4 Press the control lever down to start the toasting procedure.
Fig. 5 When the toast is ready, the control lever springs back to the start position and the device switches itself off automatically.
Fig. 6 You can manually end the toasting procedure at any time by pressing the CANCEL button. The control lever springs upwards and the toast can be removed.

Note

Should a slice of toast become trapped in the bread slot, unplug the toaster and let it cool down. Remove the toast carefully without touching the heating elements.

Toasting frozen bread

Follow the steps 1-4 in the chapter Toasting bread.

Fig. 7 Press the DEFROST button, then follow steps 5-6 in the chapter Toasting bread.

Warming toasted bread

Follow the steps 1-4 in the chapter Toasting bread.

Fig. 8 Press the REHEAT button, then follow steps 5-6 in the chapter Toasting bread.

Note

Do not warm up any toast bread which has butter or any spreads on it.

Using roll attachment

Use only the integrated roll attachment.
Fig. 9 Push the lever to pop up the roll attachment.
Fig. 10 Lay the rolls on the roll attachment.
Fig. 11 Select a medium toasting level with the selector and press the control lever downwards. Turn the rolls occasionally.

Caution

In order to prevent damages to the product, never lay the rolls directly on the bread slots.

English

Clean crumb tray

Regularly remove the crumb tray from the product and remove the crumbs.

Fig. 12 Unplug and let the toaster cool down. Pull out the crumb tray and remove the crumbs. Wipe the crumb tray with a slightly damp cloth if there are heavy stains. Re-insert the crumb tray.

Caution

Never use the toaster without the crumb tray.

Note

Be sure to re-insert the crumb tray into the device properly.

Cleaning and care

Fig. 13 Prior to cleaning, pull the power plug out of the power outlet. Wait until the device has completely cooled off. Clean the exterior surfaces of the housing with a slightly damp cloth.

Caution

Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water. Never use solvents and abrasives, hard brushes, metallic or sharp objects for cleaning. Solvents are harmful to health and attack the plastic parts. Abrasive cleaners and tools do scratch the surface.

Storage

Fig. 14 Wrap the power cord around the cord stem as indicated on the underside of the toaster. Store the toaster in a dry, cool area which is protected from humidity.

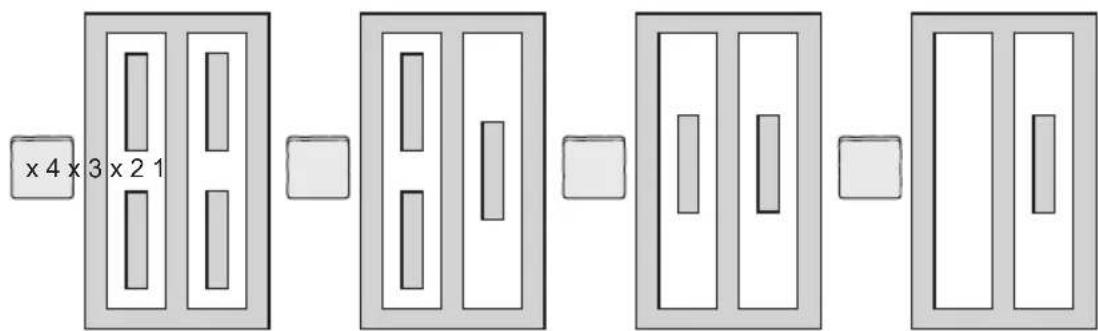

The best tasting result

1. Depending on the moisture content of the bread, the degree of roasting should be adjusted. Choose a lower level for dry bread.

2. Choose a higher level for whole grain bread, fresh bread or loaves with an uneven surface.

3. If only toasting one bread slice, place it centrally in the toaster and select a lower degree of toasting.

4. Please note that the toast result will be darker if the toasting is repeated several times without cooling.
