USER MANUAL OSF 443W OK

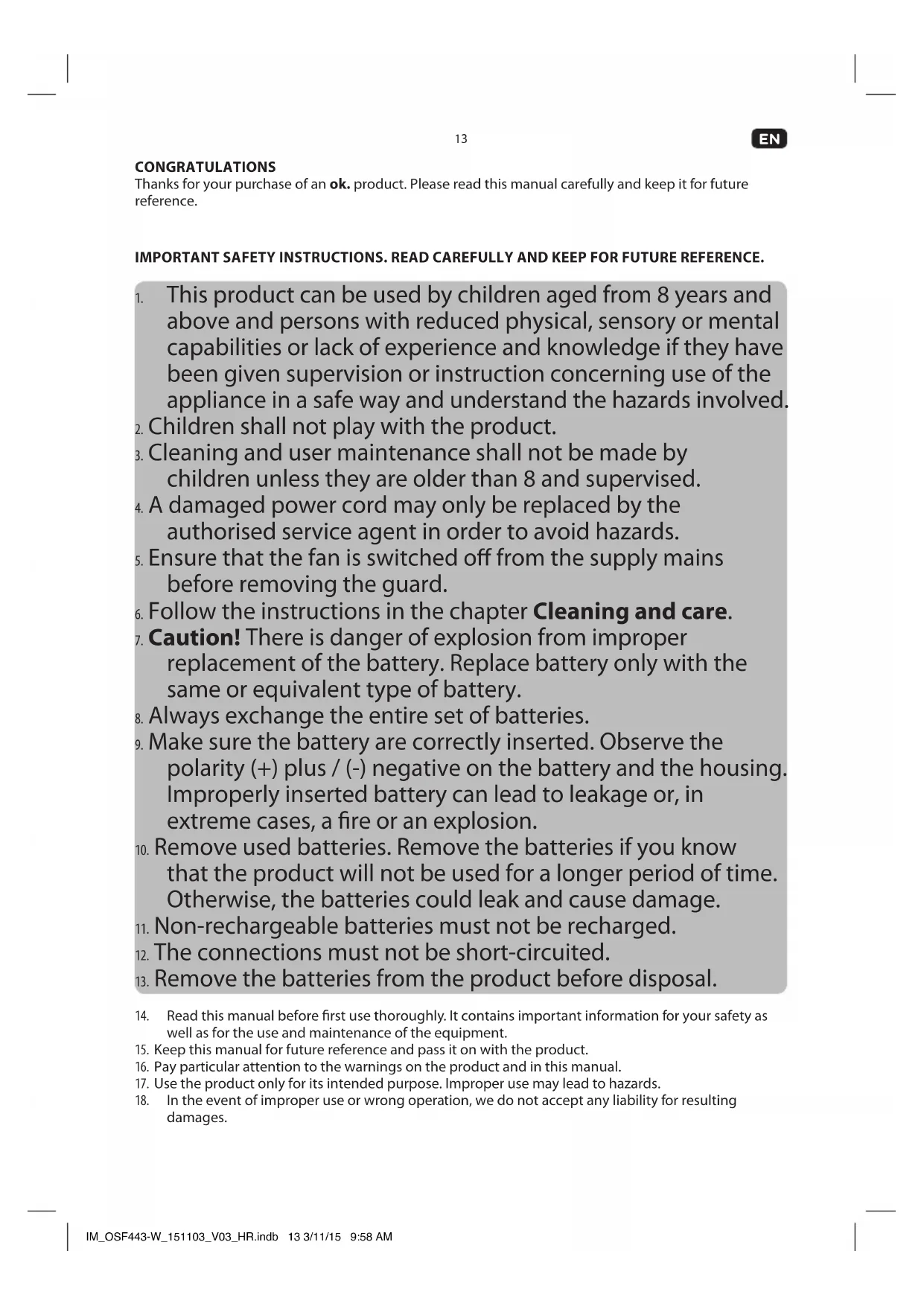

CONGRATULATIONS Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the product.

3. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

4. A damaged power cord may only be replaced by the

authorised service agent in order to avoid hazards.

5. Ensure that the fan is switched o from the supply mains

before removing the guard.

6. Follow the instructions in the chapter Cleaning and care.

7. Caution! There is danger of explosion from improper

replacement of the battery. Replace battery only with the same or equivalent type of battery.

8. Always exchange the entire set of batteries.

9. Make sure the battery are correctly inserted. Observe the

polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted battery can lead to leakage or, in extreme cases, a re or an explosion.

10. Remove used batteries. Remove the batteries if you know

that the product will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.

11. Non-rechargeable batteries must not be recharged.

12. The connections must not be short-circuited.

13. Remove the batteries from the product before disposal.

14. Read this manual before rst use thoroughly. It contains important information for your safety as

well as for the use and maintenance of the equipment.

15. Keep this manual for future reference and pass it on with the product.

16. Pay particular attention to the warnings on the product and in this manual.

17. Use the product only for its intended purpose. Improper use may lead to hazards.

18. In the event of improper use or wrong operation, we do not accept any liability for resulting

19. The use of accessories and components not expressly recommended by the manufacturer may

result in injuries or damages and voids the warranty.

20. Never leave the product unsupervised while it is switched on.

21. Do not place heavy objects on top of the product.

22. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the

product under running water.

23. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs,

please consult an authorised service agent.

24. The mains voltage must match the information on the rating label of the product.

25. The power plug is used as the disconnect device. Please be sure that the power plug is in operable

26. Only unplug from the power socket can separate the product completely from the mains.

27. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

28. Keep this product including power cord and power plug away from all heat sources like for

example, ovens, hot plates and other heat-producing devices/objects.

29. Only unplug from the power socket by the plug itself. Do not pull on the cord.

30. Unplug the product when the product is not in use, in case of malfunctions, prior to attaching or

removing accessories and prior to each cleaning.

31. If the power cord or the casing of the product is damaged or if the product is dropped, the product

may not be used before it is examined by an authorised service agent.

32. Place the product on a at, sturdy and slip-resistant surface.

33. Use this product in dry indoor areas only and never outdoors.

34. Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside

a swimming pool or bathtub.

35. Keep this product away from all heat sources like for example, ovens, hot plates and other heat-

producing devices/objects.

36. Protect this product from extreme heat and cold as well as from direct sunlight and dust.

37. Do not remove the guard or insert any object during operation.

38. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

39. In order to avoid overheating, do not cover the product.

40. Small children, children and older people should not be exposed to cold air currents for a long time.

41. Keep product away from loose objects such as plants, curtains, etc. The product may only be

connected to the mains once it has been completely assembled. Batteries

42. Never expose batteries to excessive heat (e.g. bright sun, re), and never throw them into re. The

batteries could explode.

43. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate

44. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery

acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, ush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the aected area with lots of water and soap. IM_OSF443-W_151103_V03_HR.indb 14 3/11/15 9:58 AM15

INTENDED USE The product is only intended for circulating room air. Only use according to these instructions. Any other use can lead to damages to product or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specied purpose. COMPONENTS A. Front guard B. Spinner C. Fan blade D. Plastic nut E. Rear guard F. Oscillation knob G. Motor unit H. Motor shaft

I. Power cord with plug

J. Extension pole K. Height adjustment ring L. Stand cover M. Foot parts N. Remote control

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care. IM_OSF443-W_151103_V03_HR.indb 15 3/11/15 9:58 AM16

ASSEMBLING AND MOUNTING

Assemble the two foot parts crosswise. Remove the four screws from the foot parts.

Use the four screws to mount the extension pole onto the feet. Then remove the height adjustment ring.

Slide the stand cover over the extension pole onto the feet. Pull out the extension pole and secure it by installing and fastening the height adjustment ring.

Attach the motor unit to the extension pole and secure it with the screws.

Remove the spinner and the plastic nut from the motor unit. Attach the rear guard to the motor unit.

Secure the rear guard with the plastic nut.

Slide the fan blade onto the motor shaft so that the pin locks to the groove. Secure the fan blade by tightening the spinner onto the shaft.

Open the clips on the front guard. Hook the front guard onto the rear guard, thereby aligning the screw holes at the bottom of the guards.

Install the screw and nut to lock the guards. Make sure all the clips are closed.

Place on a stable level surface. Set the desired angle and height. OPERATION

Plug in the product.

Press ON/OFF to switch the fan on. Press SPEED repeatedly to cycle through the fan speeds (L=Low; M=Medium; H=High). Alternativ you can use the button on the remote control to select the speed. Press button to turn on/o the product.

Press TIMER or button on the remote control for timed operation. Press TIMER or button repeatedly to set the hours (1, 2, 4 hours) after which the fan should turn o.

• The product may only be connected to the mains once it has been completely assembled.

• The appliance must not be disassembled during operation, general care, cleaning and user maintenance.

• The product may never be operated without the stand or in a horizontal position.

• Switch o and disconnect the product before adjusting height or desired angle.

• The guard must be completely closed when operating the product.

• During operation, do not put ngers or other objects in the guard.

• Unplug if it is not used for some time. CHANGING BATTERIES

Open the battery compartment of the remote control. Insert 2 batteries (not included) of type LR03 (AAA) observing the + and – polarities as indicated on the batteries and inside the battery compartment. Close the battery compartment. IM_OSF443-W_151103_V03_HR.indb 16 3/11/15 9:58 AM17

• Warning! Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.

• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.

• Dry all parts thoroughly before storage.

• Store the appliance in a cool, dry and clean place, out of the reach of children and pets. SPECIFICATION Rated voltage : 220 - 240 V~, 50 Hz Rated power : 45 W Protection class : II Fan diameter : 400 mm Weight : approx. 2.98 kg Description Symbol Value Unit Maximum fan ow rate F 84.1 m
