OSF 4332 B RC - Fan OK - Free user manual and instructions

Product type	Pedestal fan
Brand	OK
Model	OSF 4332 B RC
Rated voltage	220-240 V~, 50 Hz
Rated power	40 W
Protection class	II
Blade diameter	400 mm
Weight	2.98 kg
Number of speeds	3 (Low, Medium, High)
Timer	1, 2, 4 hours
Oscillation	Yes, with dedicated button
Remote control	Yes (AAA batteries not included)
Housing material	Plastic
Usage	Indoor only
Sound power level	52.74 dB(A)
Maximum air flow	50.60 m³/min
Annual energy consumption	10.34 kWh/year
Maintenance	Clean with a soft cloth and mild detergent; do not immerse
Safety	Overheat protection; do not insert objects
Height adjustment	Yes, via telescopic rod
Tilt angle	Manually adjustable
Package contents	Fan, remote control, user manual

Frequently Asked Questions - OSF 4332 B RC OK

How to assemble the OSF 4332 B RC fan?

Follow the steps in the manual: assemble the base with screws, attach the telescopic rod, then the motor unit. Mount the rear guard, the blade, and the front guard. Ensure all tabs are closed before use.

Why is my remote control not working?

Check that the AAA batteries are inserted with correct polarity (+/-). Remove the protective film from the contacts. If the problem persists, replace the batteries with new ones of the same type.

How to clean the fan?

Turn off and unplug the fan. Use a soft, slightly damp cloth with mild detergent. Never immerse the motor in water. Dry all parts before restarting.

How to use the oscillation function?

Press the OSCILLATION/SWING button on the fan or remote control to activate oscillation. Press again to stop.

How to set the timer?

Press the TIMER button on the remote control repeatedly to select 1, 2, or 4 hours. The fan will automatically turn off after the selected time.

How to change the fan speed?

Press the SPEED button (on the fan or remote control) to cycle through speeds: Low (L), Medium (M), High (H). The corresponding indicator light turns on.

Can I adjust the fan height?

Yes. Loosen the height adjustment ring, adjust the telescopic rod to the desired height, then tighten the ring. Turn off and unplug before adjusting.

Is the fan safe for use with children?

The appliance can be used by children aged 8 and above under supervision. Do not let children play with it. Keep the cord out of reach of children under 8.

What should I do if the fan makes an unusual noise?

Check that the blade is not obstructed and all guards are properly fixed. Ensure the fan is on a stable surface. If the noise persists, stop use and contact an authorized service.

How to store the fan after use?

Clean the fan, let it dry completely. Store in a clean, dry, cool place out of reach of children. Keep the remote control in a safe place.

USER MANUAL OSF 4332 B RC OK

Technical diagram showing five-step installation of a device with labeled components and directional arrows

Medical illustration showing steps to organize a procedure with labeled components and directional arrows

1H.05F 4332 W RC.05F 4332 B RC.19104 V05

OSF 4332 W RC OSF 4332 B RC

STANDVENTILATOR // STAND FAN // VENTILADOR DE PIE // VENTILATEUR SUR MONTANT

Product display setup including a flat-screen fan, a flat-screen phone, and a stand with a lamp (no visible text or symbols)

The image is too blurry to recognize any text content.

广力云
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
44

G F E CAD B H I K L M 1 2 3 4 5 O 1 2 3 N

Technical diagram illustrating mechanical assembly steps with numbered instructions and labeled components

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

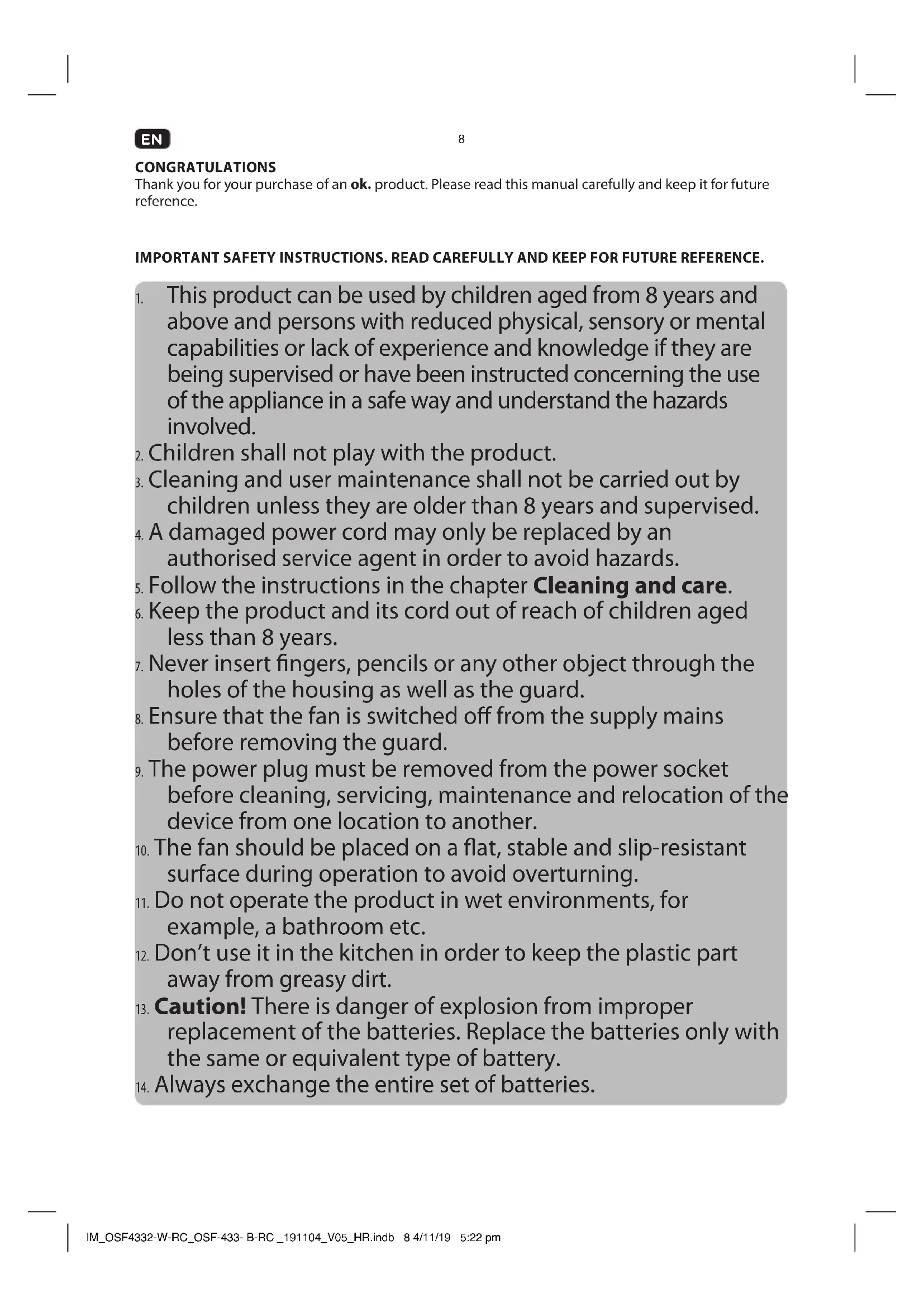

HERZLICHEN GLÜCKWUNSCH!

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning the use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.
4. A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
5. Follow the instructions in the chapter Cleaning and care.
6. Keep the product and its cord out of reach of children aged less than 8 years.
7. Never insert fingers, pencils or any other object through the holes of the housing as well as the guard.
8. Ensure that the fan is switched off from the supply mains before removing the guard.
9. The power plug must be removed from the power socket before cleaning, servicing, maintenance and relocation of the device from one location to another.
10. The fan should be placed on a flat, stable and slip-resistant surface during operation to avoid overturning.
11. Do not operate the product in wet environments, for example, a bathroom etc.
12. Don't use it in the kitchen in order to keep the plastic part away from greasy dirt.
13. Caution! There is danger of explosion from improper replacement of the batteries. Replace the batteries only with the same or equivalent type of battery.

14. Always exchange the entire set of batteries.

15. Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the batteries and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.

16. Remove used batteries. Remove the batteries if you know that the product will not be used for a longer period of time, otherwise, the batteries could leak and cause damage.
17. Non-rechargeable batteries must not be recharged.
18. The connections must not be short-circuited.

19. Remove the batteries from the product before disposal.

20. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

21. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

22. Never leave the product unsupervised while it is switched on.

23. Do not place any objects on top of the product.

24. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.

25. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

26. The mains voltage must match the information on the rating label of the product.

27. Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

28. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

29. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

30. Only unplug from the power socket by the plug itself. Do not pull on the cord.

31. Unplug the product.

32. when the product is not being used,

33. in case of malfunctions,
34. before attaching / detaching accessories and

35. before cleaning the product.

36. Use this product in dry indoor areas only and never outdoors.

37. Never use, expose or put the product near to:

- direct sunlight and dust;

- fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.

1. This product is not intended for commercial use. It is designed for household use only.

2. Do not remove the guard or insert any objects during operation.

3. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

4. In order to avoid overheating, do not cover the product.

5. Small children, children and older people should not be exposed to cold air currents for a long time.

6. Keep product away from loose objects such as plants, curtains, etc.

7. The product may only be connected to the mains once it has been completely assembled.

Batteries

1. Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.

2. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.

3. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.

4. Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.

5. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.
6. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.

EN

10

INTENDED USE

The product is only intended for circulating room air. Only use it according to these instructions. Any other use can lead to damages to the product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

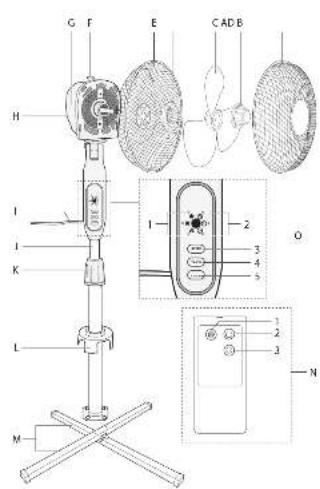

CONTROLS AND COMPONENTS

A. Front guard
B. Propeller nut
C. Fan blade
D. Plastic nut
E. Rear guard
F. Oscillation knob
G. Motor unit
H. Motor shaft

1. Power cord with plug

J. Extension pole

K. Height adjustment ring

L. Stand cover

M. Foot parts

N. Remote control

1. Speed button

2. ON/OFF button

3. TIMER button

O. Control button

1. Speed indicator L, M, H

2. Time indicator 1, 2, 4

3. SPEED button

4. TIMER button

5. ON/OFF button

DELIVERY CONTENTS

1 x Stand fan

1 x Remote control

1 x User manual

BEFORE FIRST TIME USE

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
  • After unpacking, please refer to chapter Cleaning and care.
• Tear off the protection foil from the remote control.

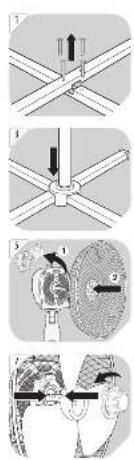

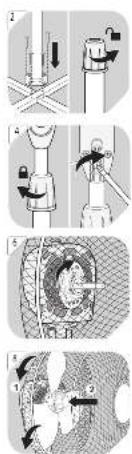

ASSEMBLING AND MOUNTING

1 Assemble the two foot parts crosswise. Remove the four screws from the foot parts.
2 Use the four screws to mount the extension pole onto the feet. Then remove the height adjustment ring.
3 Slide the stand cover over the extension pole onto the feet. Pull out the extension pole and secure it by installing and fastening the height adjustment ring.
4 Attach the motor unit to the extension pole and secure it with the screws. Before secure it, the height of the fan can be adjusted individually, by inserting / extracting the extension pole.
5 Remove the propeller nut and the plastic nut from the motor unit. Attach the rear guard to the motor unit. The handle on the rear guard must point upwards and the dowel pins must fit into the intended holes.
6 Secure the rear guard with the plastic nut.
7 Slide the fan blade onto the motor shaft so that the pin locks to the groove. Secure the fan blade by tightening the propeller nut onto the shaft.
8 Open the clips on the front guard. Hook the front guard onto the rear guard, thereby aligning the screw holes at the bottom of the guards.
9 Install the screw and nut to lock the guards. Make sure all the clips are closed.

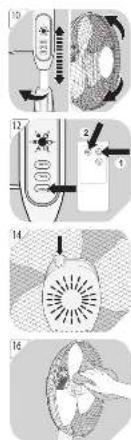

10 Place on a stable level surface. Set the desired angle and height.

OPERATION

11 Plug in the product.
12 Press the ON/OFF to switch on the fan. Press SPEED repeatedly to cycle through the fan speeds (L=Low; M=Medium; H=High). Alternatively you can use the button ⚙️ on the remote control to select the speed. Press the ⏻ button to turn on/off the product.
13 Press Ⓤ button on the remote control for timed operation. Press the ⏚ button repeatedly to set the hours (1, 2, 4 hours) after which the fan should turn off.
14 Press the OSCILLATION / SWING knob to activate oscillation function.

Caution

• The product may only be connected to the mains once it has been completely assembled.
- The product must not be disassembled during operation, general care, cleaning and user maintenance.
• The product may never be operated without the stand or in a horizontal position.
- Switch off and disconnect the product before adjusting height or desired angle.
• The guard must be completely closed when operating the product.
• During operation, do not put fingers or other objects in the guard.
• Unplug the product if it is not used for some time.

CHANGING BATTERIES

15 Open the battery compartment of the remote control. Insert 2 batteries (not included) of type LR03 (AAA) observing the + and - polarities as indicated on the batteries and inside the battery compartment. Close the battery compartment.

EN

12

CLEANING AND CARE

• Warning! Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
  • Dry all parts thoroughly before storage.
  • Store the product in a cool, dry and clean place, out of the reach of children and pets.

16 Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

SPECIFICATION

Rated voltage: 220 - 240 V\~, 50 Hz

Rated power : 40 W

Protection class : II

Fan diameter : 400 mm

Weight: approx. 2.98 kg

Product information according to (EU) No 206/2012

Description Symbol Value Unit
Maximum fan flow rate F 50.60 m			^3 /min
Fan power input P 31.80 W
Service value	SV	1.59	( m^3 /min)/W
Standby power consumption	P_SB	0.15	W
Off power consumption	P_OFF	--	W
Fan sound power level	L_WA	52.74 dB(A)
Maximum air velocity	c	2.97	m/s
Seasonal electricity consumption	Q	10.34 KWh/a
Measurement standard for service value IEC 60879:1986 (corr.1992)
Contact details for obtaining more information	Imtron GmbHWankelstraße 585046 IngolstadtGermany

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.
