USER MANUAL OSF 4332 W RC OK

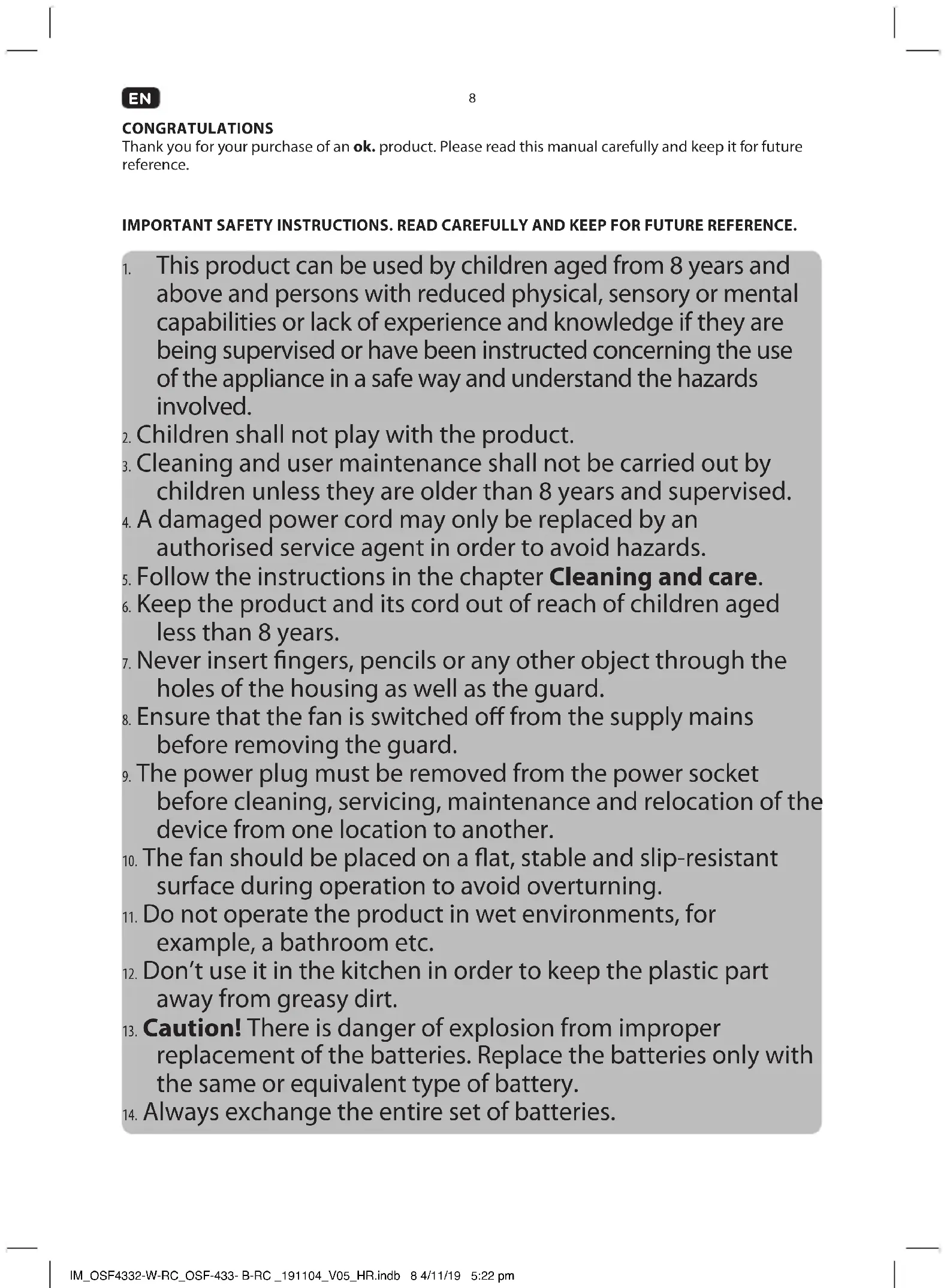

CONGRATULATIONS Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning the use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the product.

3. Cleaning and user maintenance shall not be carried out by

children unless they are older than 8 years and supervised.

4. A damaged power cord may only be replaced by an

authorised service agent in order to avoid hazards.

5. Follow the instructions in the chapter Cleaning and care.

6. Keep the product and its cord out of reach of children aged

7. Never insert ngers, pencils or any other object through the

holes of the housing as well as the guard.

8. Ensure that the fan is switched o from the supply mains

before removing the guard.

9. The power plug must be removed from the power socket

before cleaning, servicing, maintenance and relocation of the device from one location to another.

10. The fan should be placed on a at, stable and slip-resistant

surface during operation to avoid overturning.

11. Do not operate the product in wet environments, for

example, a bathroom etc.

12. Don’t use it in the kitchen in order to keep the plastic part

away from greasy dirt.

13. Caution! There is danger of explosion from improper

replacement of the batteries. Replace the batteries only with the same or equivalent type of battery.

14. Always exchange the entire set of batteries.

15. Make sure the batteries are correctly inserted. Observe

the polarity (+) plus / (-) negative on the batteries and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a re or an explosion.

16. Remove used batteries. Remove the batteries if you know

that the product will not be used for a longer period of time, otherwise, the batteries could leak and cause damage.

17. Non-rechargeable batteries must not be recharged.

18. The connections must not be short-circuited.

19. Remove the batteries from the product before disposal.

20. Read this user manual thoroughly before rst use and pass it on with the product. Pay attention to

the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

21. Use the product only for its intended purpose and with recommended accessories and

components. Improper use or wrong operation may lead to hazards.

22. Never leave the product unsupervised while it is switched on.

23. Do not place any objects on top of the product.

24. Never immerse electrical parts of the product in water or any other uid during cleaning or

operation. Never hold the product under running water.

25. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.)

to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

26. The mains voltage must match the information on the rating label of the product.

27. Only unplugging from the power socket can separate the product completely from the mains.

Please be sure that the power plug is in operable condition.

28. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

29. Keep this product including power cord and power plug away from all heat sources such as ovens,

hot plates and other heat-producing products/objects.

30. Only unplug from the power socket by the plug itself. Do not pull on the cord.

31. Unplug the product ...

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

32. Use this product in dry indoor areas only and never outdoors.

33. Never use, expose or put the product near to:

- direct sunlight and dust; - re (replace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.

34. This product is not intended for commercial use. It is designed for household use only.

35. Do not remove the guard or insert any objects during operation.

36. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

37. In order to avoid overheating, do not cover the product.

38. Small children, children and older people should not be exposed to cold air currents for a long time.

39. Keep product away from loose objects such as plants, curtains, etc.

40. The product may only be connected to the mains once it has been completely assembled.

41. Never expose batteries to excessive heat (e.g. bright sun, re), and never throw them into re. The

batteries could explode.

42. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate

43. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery

acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, ush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the aected area with lots of water and soap. IM_OSF4332-W-RC_OSF-433- B-RC _191104_V05_HR.indb 9 4/11/19 5:22 pm10

INTENDED USE The product is only intended for circulating room air. Only use it according to these instructions. Any other use can lead to damages to the product or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specied purpose.

CONTROLS AND COMPONENTS

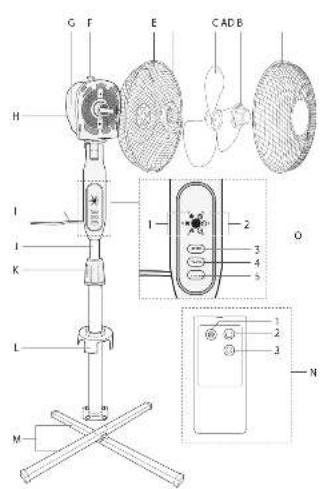

A. Front guard B. Propeller nut C. Fan blade D. Plastic nut E. Rear guard F. Oscillation knob G. Motor unit H. Motor shaft

I. Power cord with plug

J. Extension pole K. Height adjustment ring L. Stand cover M. Foot parts N. Remote control

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care.

ASSEMBLING AND MOUNTING

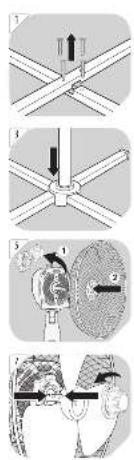

Assemble the two foot parts crosswise. Remove the four screws from the foot parts.

Use the four screws to mount the extension pole onto the feet. Then remove the height adjustment ring.

Slide the stand cover over the extension pole onto the feet. Pull out the extension pole and secure it by installing and fastening the height adjustment ring.

Attach the motor unit to the extension pole and secure it with the screws. Before secure it, the height of the fan can be adjusted individually, by inserting / extracting the extension pole.

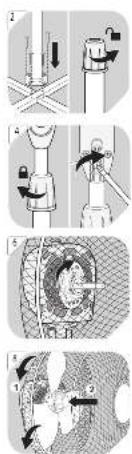

Remove the propeller nut and the plastic nut from the motor unit. Attach the rear guard to the motor unit. The handle on the rear guard must point upwards and the dowel pins must t into the intended holes.

Secure the rear guard with the plastic nut.

Slide the fan blade onto the motor shaft so that the pin locks to the groove. Secure the fan blade by tightening the propeller nut onto the shaft.

Open the clips on the front guard. Hook the front guard onto the rear guard, thereby aligning the screw holes at the bottom of the guards.

Install the screw and nut to lock the guards. Make sure all the clips are closed.

Place on a stable level surface. Set the desired angle and height. OPERATION

Plug in the product.

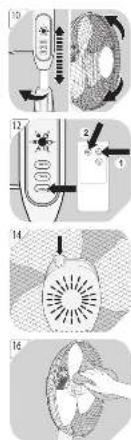

Press the ON/OFF to switch on the fan. Press SPEED repeatedly to cycle through the fan speeds (L=Low; M=Medium; H=High). Alternatively you can use the button on the remote control to select the speed. Press the button to turn on/o the product.

Press button on the remote control for timed operation. Press the button repeatedly to set the hours (1, 2, 4 hours) after which the fan should turn o.

• The product may only be connected to the mains once it has been completely assembled.

• The product must not be disassembled during operation, general care, cleaning and user maintenance.

• The product may never be operated without the stand or in a horizontal position.

• Switch o and disconnect the product before adjusting height or desired angle.

• The guard must be completely closed when operating the product.

• During operation, do not put ngers or other objects in the guard.

• Unplug the product if it is not used for some time. CHANGING BATTERIES

Open the battery compartment of the remote control. Insert 2 batteries (not included) of type LR03 (AAA) observing the + and – polarities as indicated on the batteries and inside the battery compartment. Close the battery compartment. IM_OSF4332-W-RC_OSF-433- B-RC _191104_V05_HR.indb 11 4/11/19 5:22 pm12

• Warning! Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.

• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.

• Dry all parts thoroughly before storage.

• Store the product in a cool, dry and clean place, out of the reach of children and pets.

O power consumption P OFF -- W Fan sound power level L
