OTF 153W - Fan OK - Free user manual and instructions

Brand	OK
Model	OTF 153W
Product type	Pedestal fan
Fan blade diameter	150 mm
Weight	0.6 kg
Rated voltage	220-240 V~, 50 Hz
Rated power	17 W
Power consumption	13.9 W
Maximum air flow	9.09 m³/min
Sound power level	47.7 dB(A)
Maximum air speed	2.31 m/s
Annual energy consumption	4.45 kWh/year
Standby power consumption	0.00 W
Service value (SV)	0.65 (m³/min)/W
Number of speeds	2 (low I, high II)
Control type	Rotary knob
Orientation	Adjustable tilt (adjustable angle)
Front guard	Removable grille (thumbscrew)
Cleaning	Soft cloth and mild detergent; do not immerse
Power supply	220-240 V wall outlet
Safety	Overheating protection; do not cover
Usage	Indoor domestic use only

Frequently Asked Questions - OTF 153W OK

How to assemble the OTF 153W fan?

The fan comes in several parts. Attach the motor housing to the base using the thumbscrew. Never plug in the device until it is fully assembled. Refer to the Assembly and mounting section of the manual.

What speeds are available?

The fan has two speeds: position I for low speed and position II for high speed. Turn the knob to O to turn off.

How to clean the fan?

Unplug the device and let it cool down. Remove the front grille by loosening the thumbscrew. Clean the blades and grille with a soft cloth and mild detergent. Never immerse the motor in water. Dry all parts before reassembling.

Can I use the fan outdoors?

No, this fan is designed for indoor domestic use only. Do not use it in a humid environment or outdoors.

How to adjust the fan tilt?

Use the thumbscrew to secure the motor housing at the desired angle. Make sure the device is turned off and unplugged before any adjustment.

The fan makes noise, is this normal?

The maximum sound level is 47.7 dB(A), which is normal for a fan of this size. If the noise is excessive, check that the blades are not obstructed and that the grille is properly secured.

What to do if the fan does not start?

Check the power outlet and that the cord is not damaged. Make sure the knob is set to I or II. If the problem persists, contact an authorized after-sales service. Do not attempt to repair it yourself.

How to maintain the fan in the long term?

Store it in a clean, dry, cool place out of reach of children. Clean it regularly to prevent dust buildup. Follow the cleaning instructions in the manual.

Can I use an extension cord?

Only use an extension cord suitable for the device's power (17 W). Make sure the extension cord is in good condition and that the plug remains accessible.

Is the fan safe for children?

Yes, but under supervision. Children aged 8 years and older may use it if safety instructions have been given. Children must not play with the device. Keep young children away from prolonged cold air drafts.

USER MANUAL OTF 153W OK

OK. OTF 153-W TISCHVENTILATOR // TABLE FAN // VENTILADOR DE SOBREMESA // VENTILATEUR DE TABLE IT_OTF153_W_151020_V02 CE Inner Cent. I Waste sheets 2 D2-F4 (Insgesamt) Ceiling www.intertel.org OK. OF RESEVAVCHAMWERSUNG 3 EN RIGHTE ZAPRENE 7 EN INHAIE MANUEL 1 ES MANUAL DE TRANSLICITIANS 15 FR MODE C'INFLOT 15 EN EUNASZHALLEZENOVY 1 IF MANUAL DEL'VENTE 2 RIS GEMMERSHAMWERSUNG 3 PK INSTITURCA DESOLU 25 PK MANUAL DE ENTRATO 15 RN PONIONEER TRUSTINNATION 15 SW GRUSMANVISHING 4 TN KULLAWIVKLLAVIZU 1

N. GIP10A 12006 47 HR NO. 113875 54 Rn

Technical diagram of a two-side fan with labeled parts A through H, showing internal structure and mounting points.

Technical diagram illustrating a mechanical or architectural component with numbered parts and directional arrows indicating motion or assembly.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating movement.

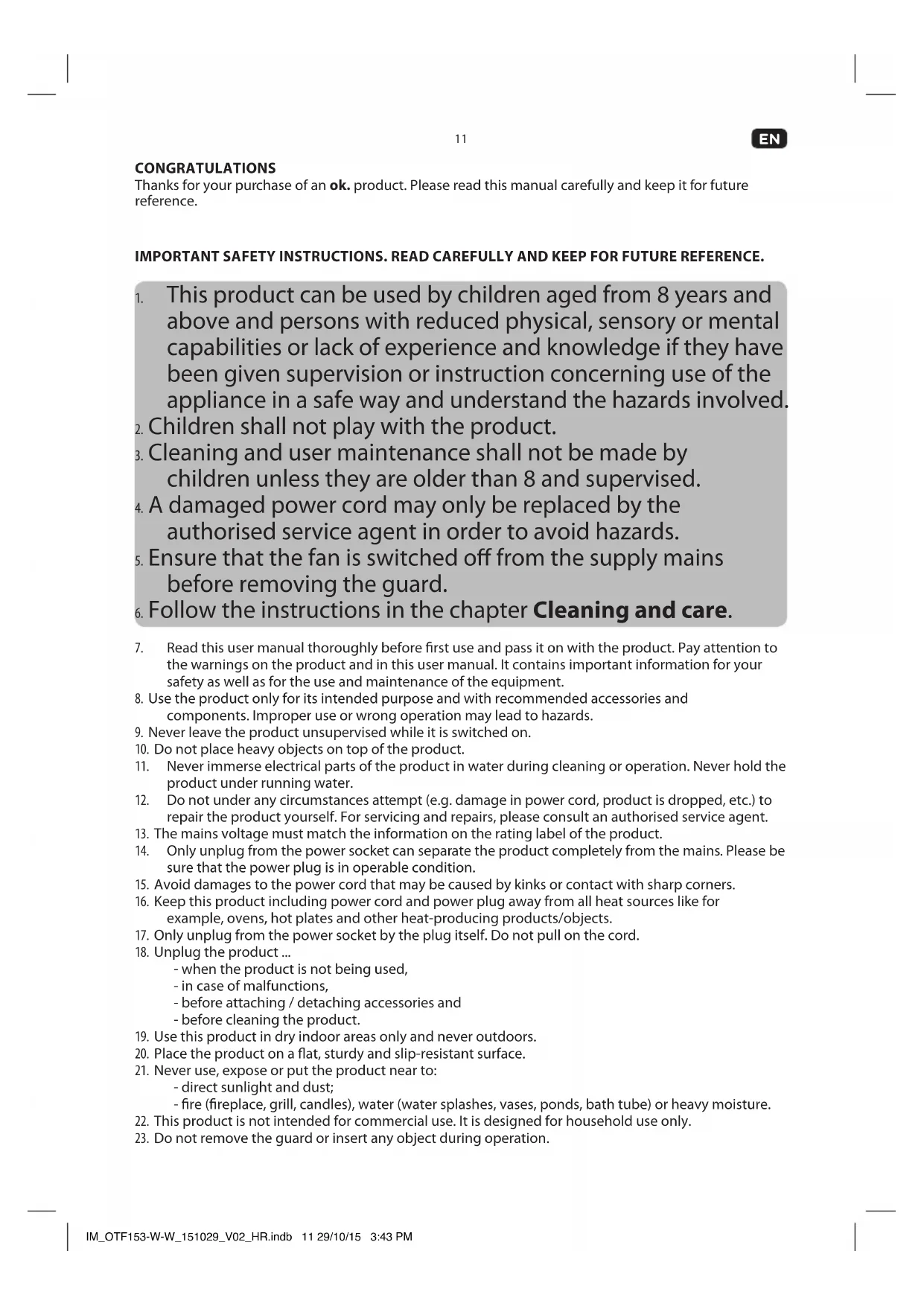

HERZLICHEN GLÜCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
5. Ensure that the fan is switched off from the supply mains before removing the guard.

6. Follow the instructions in the chapter Cleaning and care.

7. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

8. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

9. Never leave the product unsupervised while it is switched on.

10. Do not place heavy objects on top of the product.

11. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

12. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

13. The mains voltage must match the information on the rating label of the product.

14. Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

15. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

16. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

17. Only unplug from the power socket by the plug itself. Do not pull on the cord.

18. Unplug the product ...

19. when the product is not being used,

20. in case of malfunctions,
21. before attaching / detaching accessories and

22. before cleaning the product.

23. Use this product in dry indoor areas only and never outdoors.

24. Place the product on a flat, sturdy and slip-resistant surface.

25. Never use, expose or put the product near to:

26. direct sunlight and dust;

27. fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

28. This product is not intended for commercial use. It is designed for household use only.

29. Do not remove the guard or insert any object during operation.

EN

12

1. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
2. In order to avoid overheating, do not cover the product.
3. Small children, children and older people should not be exposed to cold air currents for a long time.
4. Keep product away from loose objects such as plants, curtains, etc.
5. The product may only be connected to the mains once it has been completely assembled.

INTENDED USE

The product is only intended for circulating room air. Only use according to these instructions. Any other use can lead to damages to product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

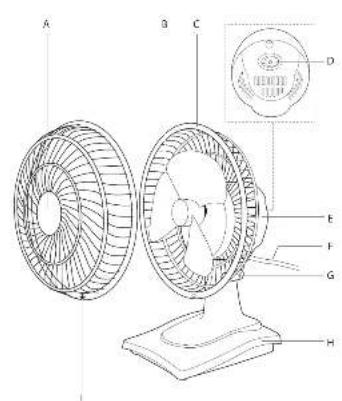

COMPONENTS

A. Front guard
B. Fan blade
C. Rear guard
D. Control switch II O I
E. Motor unit
F. Power cord
G. Thumb screw
H. Base
I. Screw

BEFORE FIRST TIME USE

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
  • After unpacking, please refer to chapter Cleaning and care.

INSTALLATION

1 Use the thumb screw to attach the motor housing at the desired angle.

Caution

• The product may only be connected to the mains once it has been completely assembled.
- The appliance must not be disassembled during operation, general care, cleaning and user maintenance.
- The product may never be operated without the stand or in a horizontal position.

Note

Switch off and disconnect the product before adjusting the angle.

OPERATION

2 Plug in the product.
3 To switch the appliance on, turn selector to II (high speed) or I (low speed). To switch it off, turn selector to O.
4 Unplug if it is not used for some time.

Caution

• The guard must be completely closed when operating the product.
- During operation, do not put fingers or other objects in the guard.

EN

14

CLEANING AND CARE

• Warning! Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
• Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.
• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
  • Dry all parts thoroughly before storage.
  • Store the appliance in a cool, dry and clean place, out of the reach of children and pets.

5 Loosen the screw and snap out the front guard.

6 Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

SPECIFICATION

Rated voltage: 220 - 240 V\~, 50 Hz

Rated power : 17 W

Fan diameter : 150 mm

Weight : approx. 0.6 kg

Description Symbol Value Unit
Maximum fan flow rate F 9.09 m			^3 /min
Fan power input P 13.9 W
Service value SV 0.65 (m)			^3 /min)/W
Standby power consumption	P_SB	0.00 W
Fan sound power level	L_WA	47.7 dB(A)
Maximum air velocity	c	2.31 m/s
Seasonal electricity consumption	Q	4.45 KWh/a
Measurement standard for service value Commission Regulation (EU) No 206/2012IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	Imtron GmbHWankelstraße 585046 IngolstadtGermany

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
