USER MANUAL G24RS GREENWORKS

24V RECIPROCATING SAW

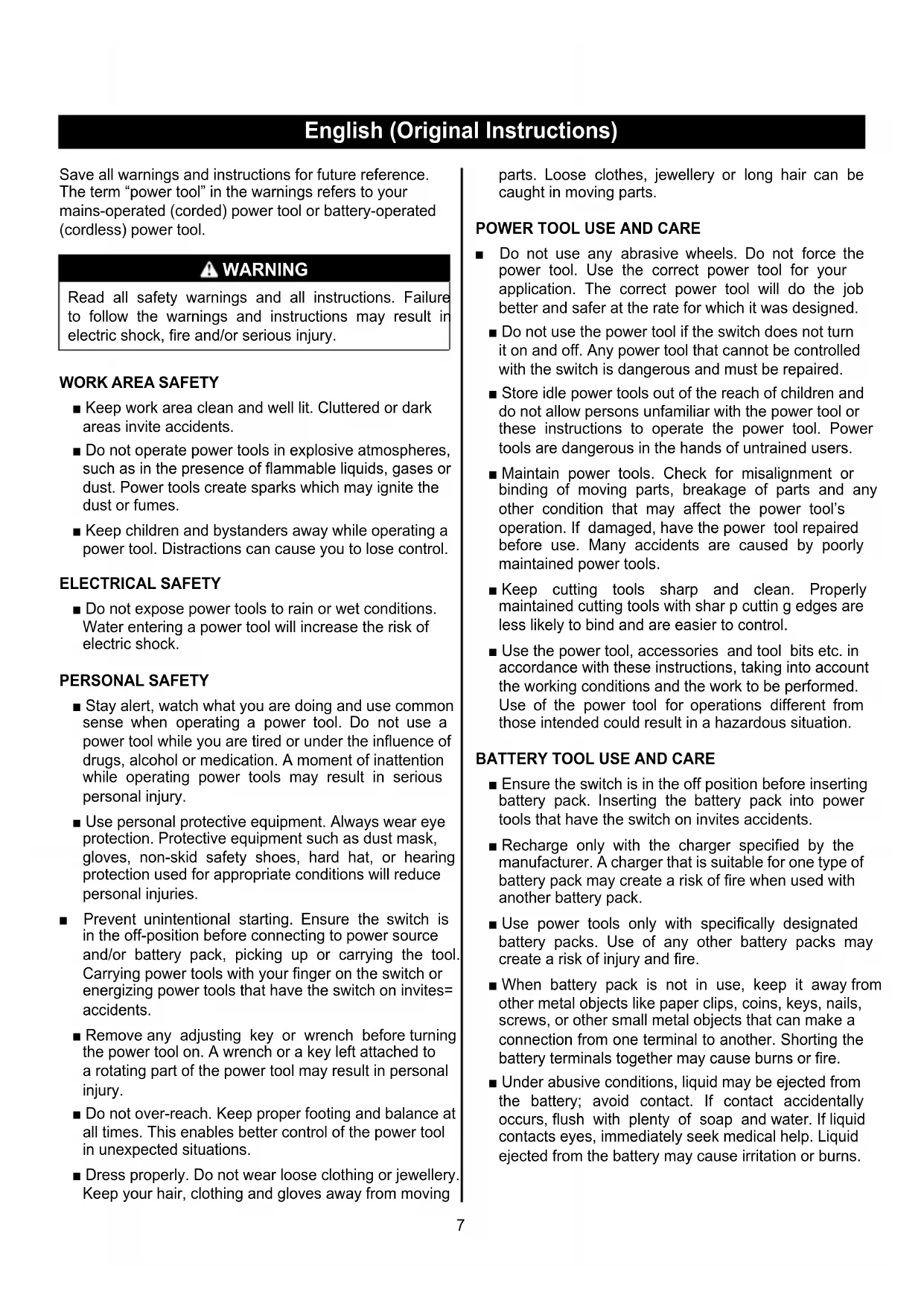

■ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ■ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ■ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY ■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. PERSONAL SAFETY ■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, gloves, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites= accidents. ■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ■ Do not over-reach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

POWER TOOL USE AND CARE

■ Do not use any abrasive wheels. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ■ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ■ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ■ Keep cutting tools sharp and clean. Properly maintained cutting tools with shar p cuttin g edges are less likely to bind and are easier to control. ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

BATTERY TOOL USE AND CARE

■ Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents. ■ Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. ■ Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re. ■ When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or re. ■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with plenty of soap and water. If liquid contacts eyes, immediately seek medical help. Liquid ejected from the battery may cause irritation or burns.8 9 English (Original Instructions) English (Original Instructions) Do not touch blade Wood SPECIFICATIONS Voltage 24 V d.c. Variable speed No load speed 0-2700/min. (SPM) Length of stroke 28 mm Max cutting capacity 180 mm Weight with battery pack 3.45kg Compatible battery pack (not included) 29807/29837 Compatible charger (not included)

CE conformity Please read the instructions carefully before starting the machine. Wear a dust mask Wear ear protection Wear eye protection Recycle Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice

ICONS IN THIS MANUAL

Safety Getting started Operation Information Lock Unlock

SAFETY INSTRUCTIONS FOR BATTERY PACK

■ Do not dismantle, open or shred secondary battery pack. ■ Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. ■ Do not short-circuit battery pack. Do not store battery pack haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. ■ Do not remove battery from its original battery pack enclosure required for use. ■ Do not subject battery pack to mechanical shock. ■ In the event of leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. ■ Do not use any charger other than that specifically provided for use with the equipment. ■ Observe the plus (+) and minus (–) marks, battery and equipment and ensure correct use. ■ Do not use any battery pack which is not designed for use with the equipment. ■ Do not mix battery pack with different manufacture, capacity, size or type within a device. ■ Keep battery pack out of the reach of children. ■ Seek medical advice immediately if battery pack has been swallowed. ■ Always purchase the correct cell or battery for the equipment. ■ Keep battery pack clean and dry. ■ Wipe the battery pack terminals with a clean dry cloth if they become dirty. ■ Secondary battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. ■ Do not leave a battery pack on prolonged charge when not in use. ■ After extended periods of storage, it may be necessary to charge and discharge the cells or battery pack several times to obtain maximum performance. ■ Secondary battery pack give their best performance when they are operated at normal room temperature (20 °C ± 5 °C). ■ Retain the original product literature for future reference. SERVICE using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIAL SAFETY RULES

■ Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ■ Protect your lungs. Wear a face or dust mask if the operation is dusty. INTENDED USE You may use this product for the purposes listed below: ■ Cutting all types of wood ■ Cutting plastic ■ Cutting drywall ■ Cutting metals MAINTENANCE ■ When servicing, use only identical Greenworks Tools replacement parts. Use of any other parts may create a hazard or cause product damage. ■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. ■ Do not attempt to modify this tool or create accessories not recommended for use with this tool. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental- friendly recycling. SYMBOL Safety alert V Volts Reciprocations per minute Direct current8 9 English (Original Instructions) English (Original Instructions) Do not touch blade Wood SPECIFICATIONS Voltage 24 V d.c. Variable speed No load speed 0-2700/min. (SPM) Length of stroke 28 mm Max cutting capacity 180 mm Weight with battery pack 3.45kg Compatible battery pack (not included) 29807/29837 Compatible charger (not included)

CE conformity Please read the instructions carefully before starting the machine. Wear a dust mask Wear ear protection Wear eye protection Recycle Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice

ICONS IN THIS MANUAL

Safety Getting started Operation Information Lock Unlock

SAFETY INSTRUCTIONS FOR BATTERY PACK

■ Do not dismantle, open or shred secondary battery pack. ■ Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. ■ Do not short-circuit battery pack. Do not store battery pack haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. ■ Do not remove battery from its original battery pack enclosure required for use. ■ Do not subject battery pack to mechanical shock. ■ In the event of leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. ■ Do not use any charger other than that specifically provided for use with the equipment. ■ Observe the plus (+) and minus (–) marks, battery and equipment and ensure correct use. ■ Do not use any battery pack which is not designed for use with the equipment. ■ Do not mix battery pack with different manufacture, capacity, size or type within a device. ■ Keep battery pack out of the reach of children. ■ Seek medical advice immediately if battery pack has been swallowed. ■ Always purchase the correct cell or battery for the equipment. ■ Keep battery pack clean and dry. ■ Wipe the battery pack terminals with a clean dry cloth if they become dirty. ■ Secondary battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. ■ Do not leave a battery pack on prolonged charge when not in use. ■ After extended periods of storage, it may be necessary to charge and discharge the cells or battery pack several times to obtain maximum performance. ■ Secondary battery pack give their best performance when they are operated at normal room temperature (20 °C ± 5 °C). ■ Retain the original product literature for future reference. SERVICE using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers. This warranty is non-transferable. LIMITATIONS This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.

2. Routine tune up or adjustment.

3. Damage caused by improper handling/abuse/misuse or neglect.

4. Overheating due to lack of maintenance.

5. Damage due to fittings/fasteners becoming loose/detached through lack

6. Damage caused by cleaning with water.

7. Machines serviced or repaired by non-authorised Greenworks Tools

9. Damage caused by improper use of the machine.

10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by

the warranty, including but not limited to: ● Batteries ● Electric cables ● Blade and blade assemblies ● Belts ● Filters ● Chucks and tool holders

12. Certain products may contain components such as engines,

transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer’s warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer’s warranty period.

13. Second hand goods are not covered under this warranty policy.

14. The fitting of spares, replacements or extra components which are not

supplied or approved by Greenworks Tools Europe GmbH. Warranty To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced. If the central service facility finds that machine is not found to be at fault then the consumer will be advised they will need to pay for the cost of the repair. This warranty policy is subject to change from time to time to accommodate the needs of new products. A copy of the latest warranty policy will be available at www.greenworkstools.eu. ENLa política de garantía de Greenworks Tools para máquinas de bricolage

EC DECLARATION OF CONFORMITY

Manufacturer: Changzhou Globe Co., Ltd. Address: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.China Name and address of the person authorised to compile the technical le: Name: Peter Söderström Address: Hjortronvägen 3, 555 93 Jönköpin, Sweden Herewith we declare that the product Category: 24V RECIPROCATING SAW Model:3600107a Serial number: See product rating label Year of Construction: See product rating label ■ is in conformity with the relevant provisions of the Machinery Directive 2006/42/ EC; EMC directive :2014/30/EU And furthermore, we declare that the following (parts/clauses of) European harmonised standards have been used EN 60745-1, EN 60745-2-11, EN55014-1, EN55014-2 Sound pressure level LpA=79dB(A), KpA =3dB(A) Guaranteed sound power level LwA=90dB(A), KwA =3dB(A) Vibration of cutting board α h ,B = 7.849 m/s², K

= 1,5 m/s² Vibration of cutting wooden beam α h,WB = 6.526 m/s²,
