USER MANUAL WX550.1 WORX

Technical line drawing of a handheld electronic device labeled A2, showing internal components and wiring (no text or symbols beyond label)

A3 20V MORX 20V MORX

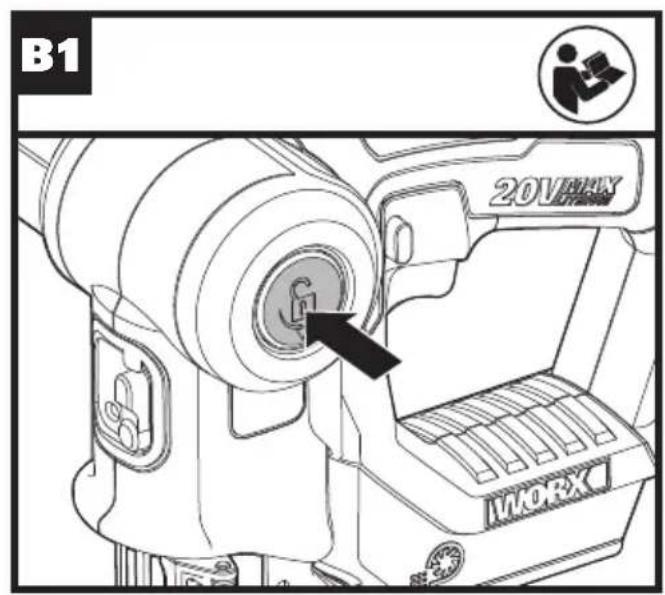

B1 20V MAX IMORX

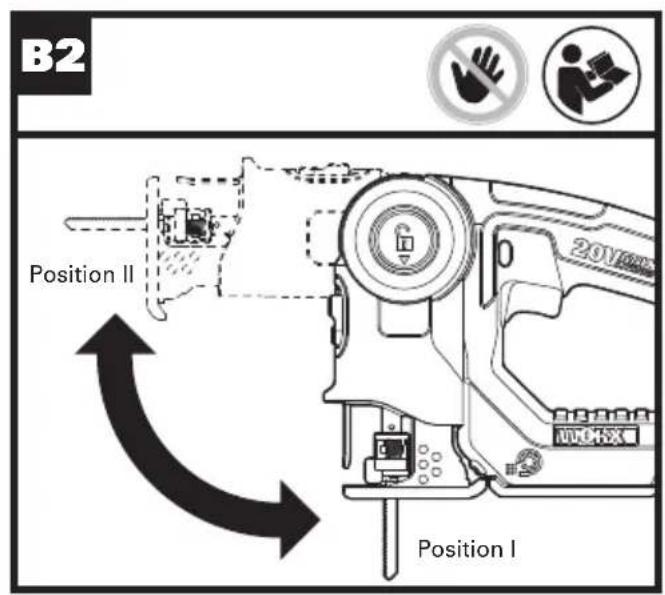

B2 Position II Position I 2016X UW45X

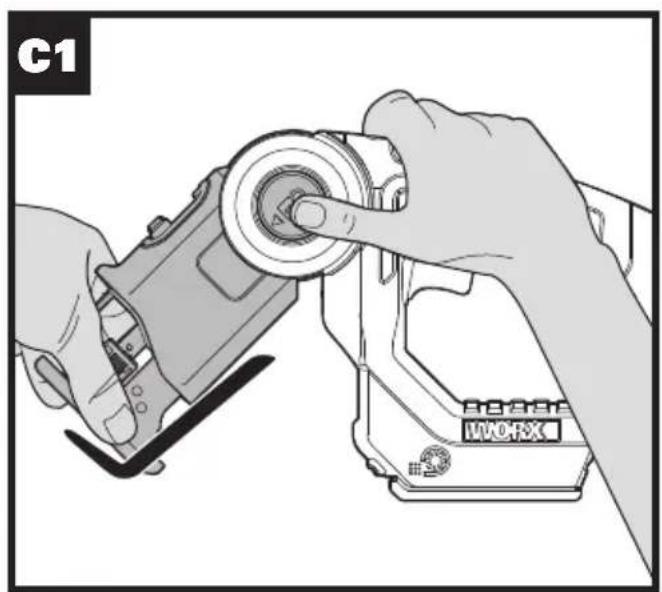

Illustration of hands operating a camera module with a rotary knob (no text or symbols visible)

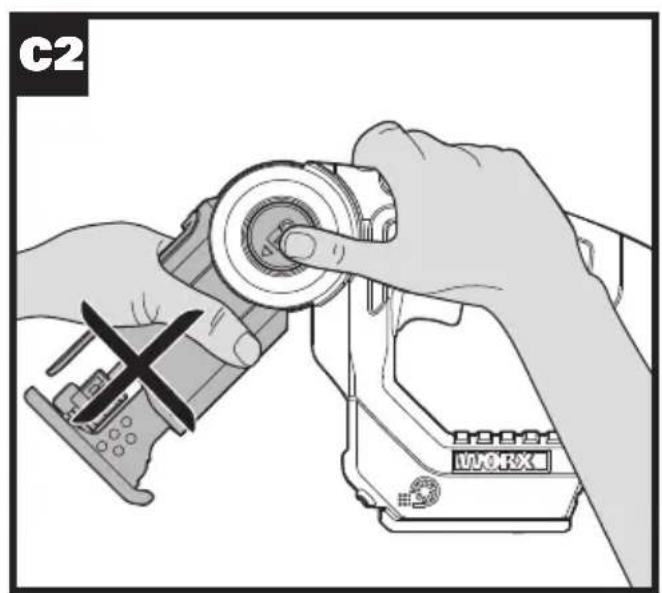

Illustration of hands operating a Bruker VR camera with a circular dial (no text or symbols visible)

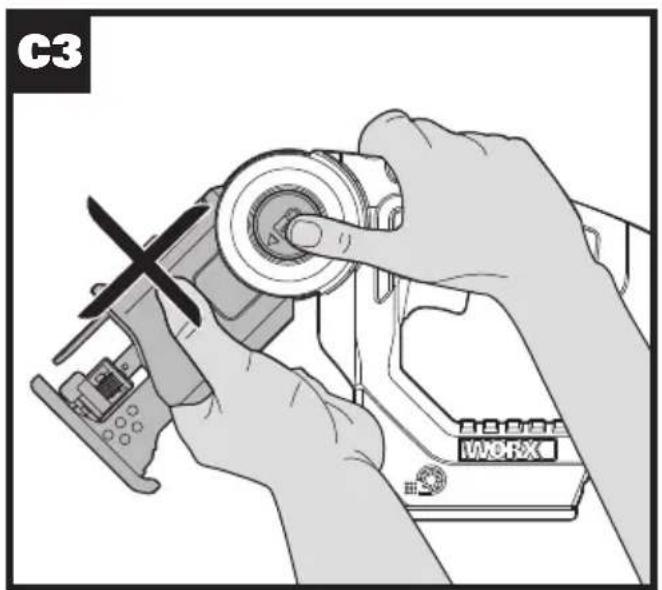

Illustration of hands operating a mechanical device with a rotary knob (no text or symbols visible)

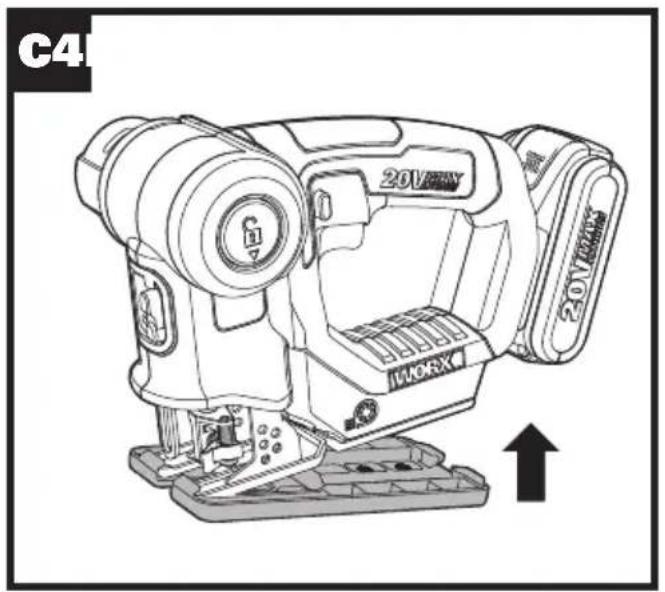

C4 20V 20V 100000000000000000000000000000000000000000000000000000000000000000000000000000000000 1111111111111111111111111111111111111111111111111111111111111111111111111111111111

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

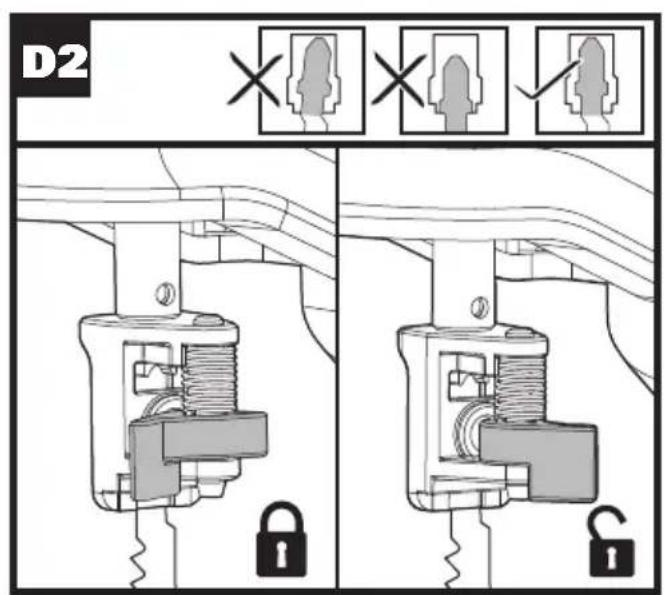

D2 X X ✓

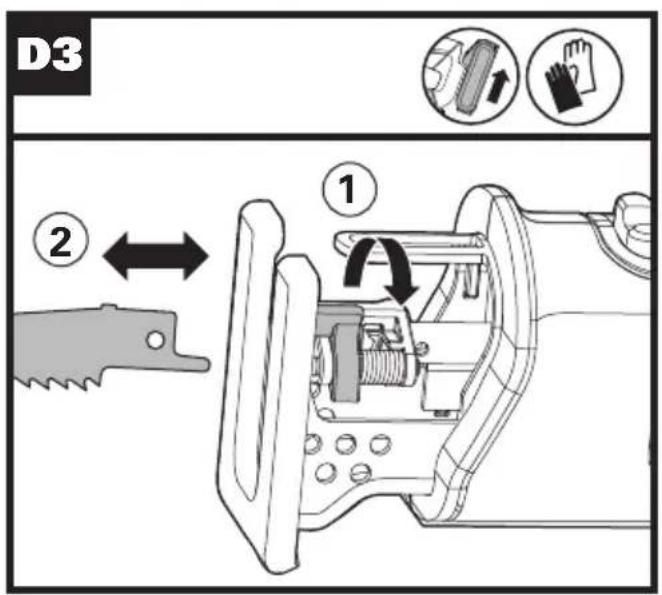

D3 ② ← ①

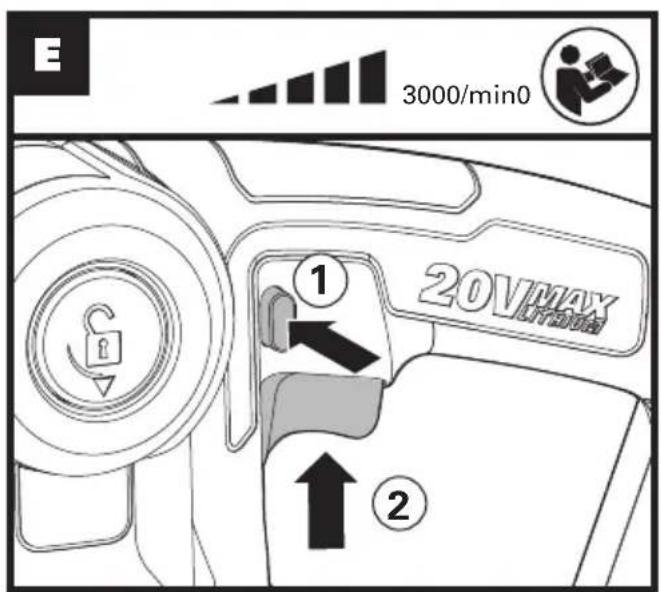

E 3000/min0 1 20VMAX ① ②

F1

Mechanical assembly diagram showing a gear shift mechanism with no visible text or symbols

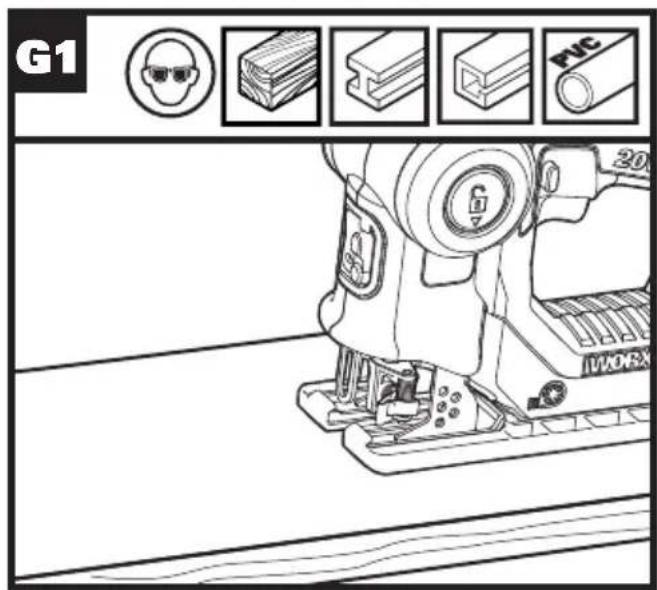

G1 PVC 20 VACEX

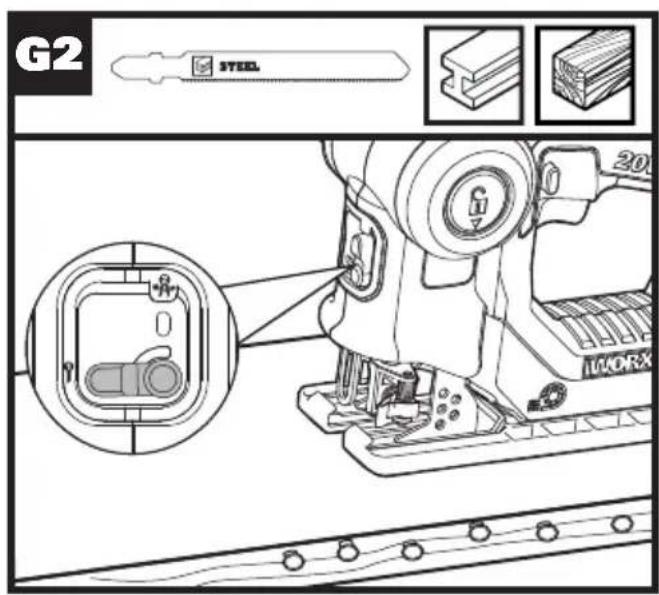

G2 STEEL 20 WORK

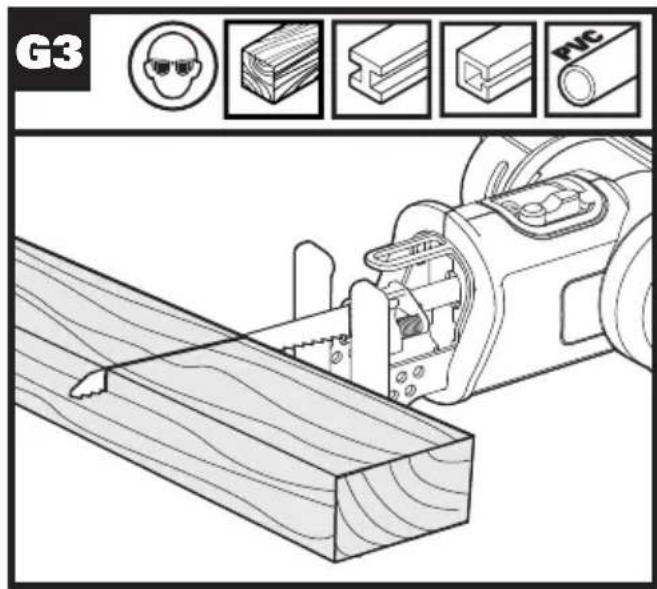

G3 PVC

Technical illustration of a mechanical device with a cutting tool and internal components, showing no text or symbols.

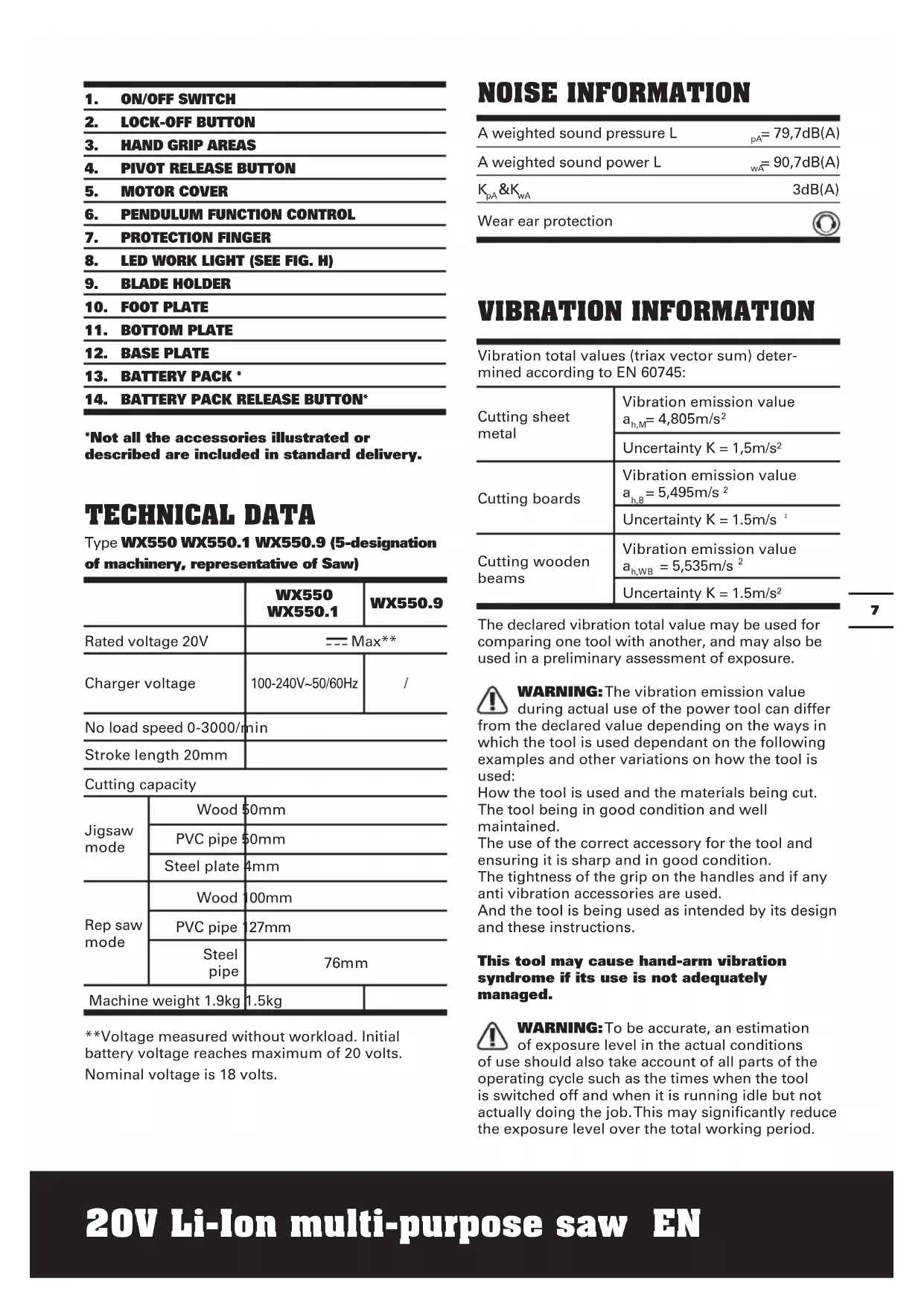

1. ON/OFF SWITCH

2. LOCK-OFF BUTTON

3. HAND GRIP AREAS

4. PIVOT RELEASE BUTTON

5. MOTOR COVER

6. PENDULUM FUNCTION CONTROL

7. PROTECTION FINGER

8. LED WORK LIGHT (SEE FIG. H)

9. BLADE HOLDER

10. FOOT PLATE

11. BOTTOM PLATE

12. BASE PLATE

13. BATTERY PACK *

14. BATTERY PACK RELEASE BUTTON*

*Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX550 WX550.1 WX550.9 (5-designation of machinery, representative of Saw)

		WX550WX550.1	WX550.9
Rated voltage 20V		--- Max**
Charger voltage		100-240V~50/60Hz	/
No load speed 0-3000/min
Stroke length 20mm
Cutting capacity
Jigsaw mode	Wood	50mm
	PVC pipe	50mm
	Steel plate	4mm
Rep saw mode	Wood	100mm
	PVC pipe	27mm
	Steel pipe	76mm
Machine weight 1.9kg		1.5kg

**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE INFORMATION

A weighted sound pressure L	_pA = 79,7dB(A)
A weighted sound power L	_wA = 90,7dB(A)
K_pA & K_wA	3dB(A)
Wear ear protection

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Cutting sheet metal	Vibration emission value a_h,M = 4,805m/s^2
	Uncertainty K = 1,5m/s2
Cutting boards	Vibration emission value a_h,B = 5,495m/s^2
	Uncertainty K = 1.5m/s2
Cutting wooden beams	Vibration emission value a_h,WB = 5,535m/s^2
	Uncertainty K = 1.5m/s2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut. The tool being in good condition and well maintained.

The use of the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk. ALWAYS use sharp blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ C or less.

Plan your work schedule to spread any high

vibration tool use across a number of days.

ACCESSORIES

	WX550	WX550.1	WX$50.9
1hr Charger (WA3860)	1 1 /
2Ah Battery Pack (WA3551.1)	1 2 /
Wood cutting jig saw blade	1 1 1
Metal cutting jig saw blade	1 1 1
Aluminum cutting jig saw blade	1 1 1
Wood cutting rep saw blade	1 1 1
Bottom plate	1 1 1

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

RECIPROCATING SAW SAFETY WARNINGS

1. Hold reciprocating saw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY RULES FOR RECIPROCATING SAW

1. Always wear a dust mask.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual		Wood
	Warning		Metal
	Wear ear protection		Aluminium
	Wear eye protection		Plastic
	Wear dust mask		Incorrect
	Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point		Correct
			Saw with moderate pressure in order to achieve optimal and precise cutting results
	Do not burn		Lock
	Do not expose to rain or water		Unlock
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.		Pinch points
	Make sure the battery is removed prior to changing accessories	xINR18/65-y	Cylindrical lithium lon battery cells with max diameter of 18mm and max height of 65mm; “x” represents a number cells serial connected, blank if 1; “-y” represents a number of cells paralleled connected, blank if 1.
	Wear protective gloves

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is 2 saws in 1 tool with rep saw and jig saw function, intended for sawing wood, plastic, metal and building materials while resting firmly on the workpiece. It is suitable for straight and curved cuts.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION
Removing the battery pack See Fig. A1
Charging the battery pack See Fig. A2

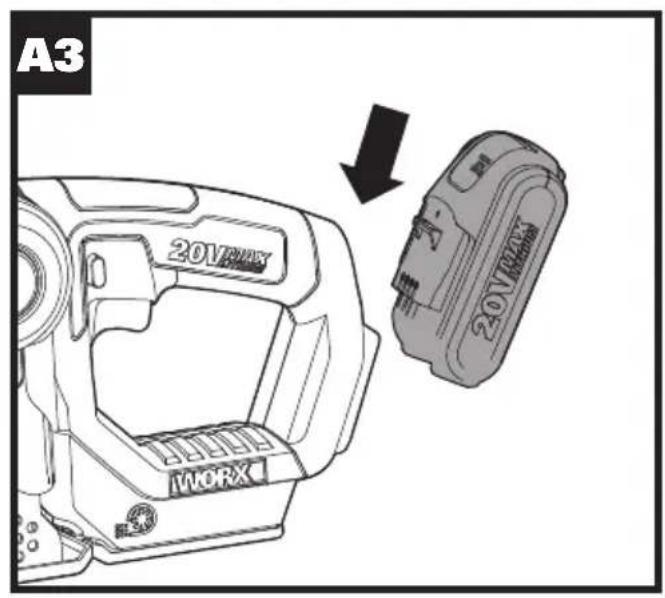

Installing the battery pack See Fig. A3
Working mode adjustment Position I worked as a jigsaw. Position II worked as a reciprocating saw.NOTE: Select the blade best suitable for the working mode for better cutting performance (special reciprocating saw blade not included).WARNING!To avoid being pinched, keep hands away from the hinge when changing positions.To avoid tool being turned on accidentally, make sure keep your hands away from the lock-off button.Before operation, make sure the pivot release button is locked into position.	See Fig. B1-C4
ASSEMBLY

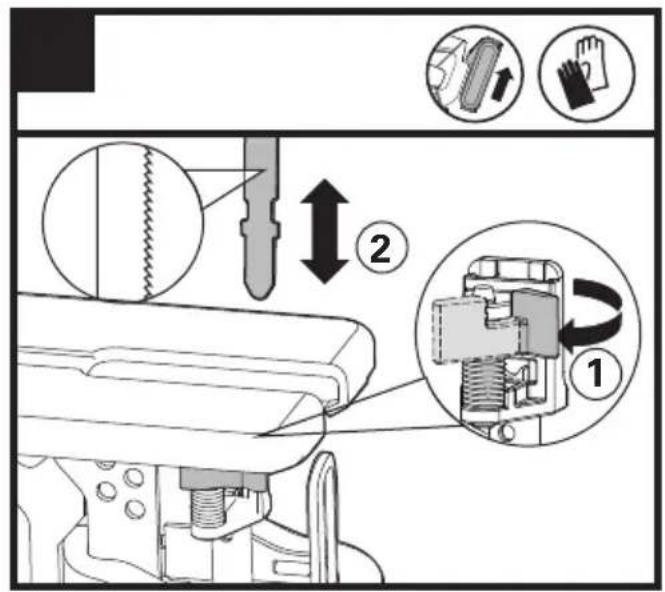

Replacing the saw bladeWhen using jig saw mode, the blade teeth face outward as shown in Fig. D1; while in rep saw mode, the blade teeth should face as shown in Fig. D3.CAUTION: Keep your hands away from the lock-off button to prevent switch actuation before making any adjustments or removing or installing attachments or accessories.	See Fig. D1-D3
OPERATION

WARNING! Burn hazard. Do not touch the blade immediately after use. Contact with the e may result in personal injury.

Switching On and OffNOTE: For safety reasons the On/Off switch of the machine cannot be locked; it must remain pressed during the entire operation.	See Fig. E

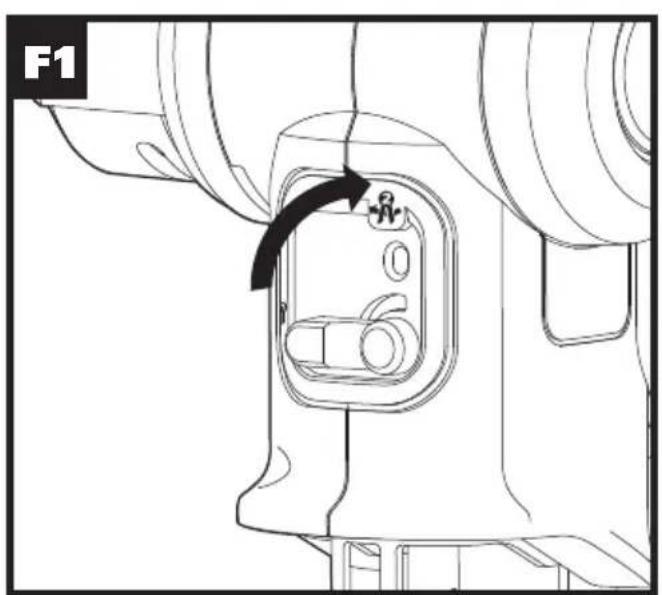

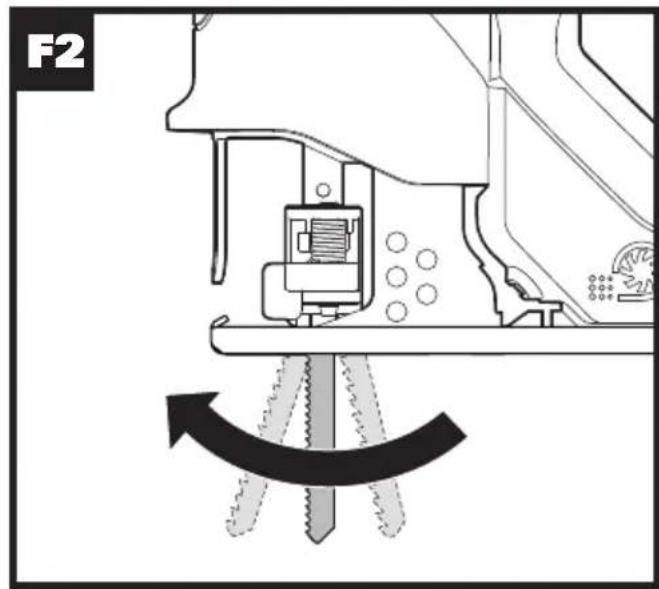

Pendulum Function See Fig. F1, F2
CuttingWARNING!Never hold the pivot head when operating the tool.Never hold the motor cover when operating the tool.Always use a blade suited to the material and material thickness to be cut. Before cutting any type of material, be sure it is firmly anchored or clamped to prevent slipping. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.Whenever possible, the saw foot plate must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and minimize blade breakage.	See Fig. G1 – G3

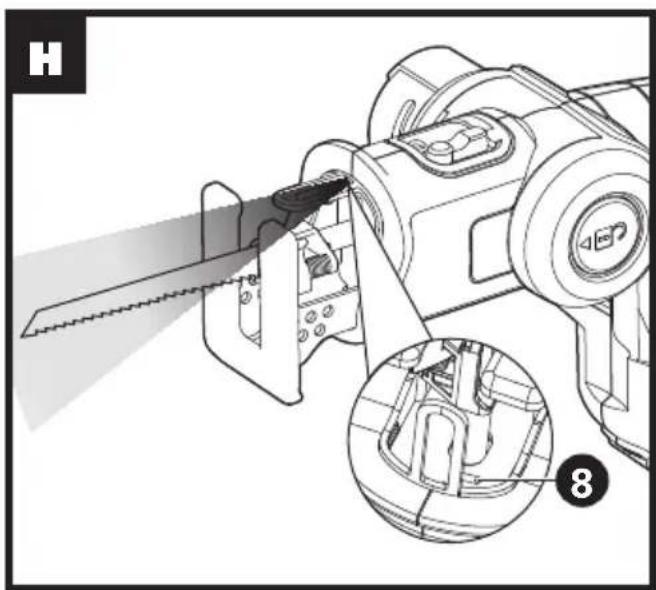

LED Work Light See Fig. H

WORKING HINTS FOR YOUR MULTI-PURPOSED SAW

If your power tool becomes too hot, run no-load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds.

Any movement of the material may affect the quality of the cut. The blade cuts on the upward stroke and may chip the uppermost surface.

Ensure your uppermost surface is a non-visible surface when your work is finished.

MAINTENANCE

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

TROUBLESHOOTING

Symptom	Possible Causes	Possible Solution
The tool suddenly stops during operation.	Over loadBattery temperature too high	Relieve the load on the machine immediately and allow cooling for approx. 30 seconds by running the machine on no-load.
	Low battery capacity	Charge the battery pack.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities

or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Li-ion Multi-Purpose Saw

Type WX550 WX550.1 WX550.9 (5-designation of machinery, representative of Saw)

Function Sawing various materials

Complies with the following Directives,

2006/42/EC

2011/65/EU

2014/30/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-11

The person authorized to compile the technical file, Name Russell Nicholson

Address Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK

A# C E

Suzhou 2017/04/18

Allen Ding

Deputy Chief Engineer, Testing & Certification

Typ WX550 WX550.1 WX550.9 (5-
