ZHC60156X - Range hood ZANUSSI - Free user manual and instructions

Brand	Zanussi
Model	ZHC60156X
Product type	Cooker hood
Mode of use	Extracting (external evacuation) or recirculating (internal recycling)
Material	Stainless steel
Color	Stainless steel
Power supply	230 V ~ 50 Hz (according to rating plate)
Number of speeds	3 (minimum, medium, maximum)
Lighting	LED, max power 2.5 W, socket E14
Grease filter	Aluminium, dishwasher safe (monthly cleaning)
Charcoal filter	Activated, not washable, replace every 4 months
Minimum safety distance (electric cooker)	60 cm
Minimum safety distance (gas/mixed cooker)	65 cm
Control	Control panel with push buttons
External maintenance	Damp cloth and neutral liquid detergent (no alcohol or abrasive)
Replacement lamp type	LED 2.5 W max, E14 (ref. ILCOS D)
Environmental protection	Recycling of packaging and appliances at end of life

Frequently Asked Questions - ZHC60156X ZANUSSI

What is the minimum distance between the hood and the hob?

The minimum distance between the support surface of the containers and the lowest part of the hood must be at least 60 cm for electric cookers and 65 cm for gas or mixed cookers. If the cooking device instructions specify a greater distance, that must be respected.

How to clean the grease filter?

The grease filter must be cleaned once a month. Use non-aggressive detergents, by hand or in the dishwasher at low temperature and short cycle. Washing in the dishwasher may cause discoloration, but the filtering characteristics remain unchanged.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced after a maximum of four months of use, depending on frequency of use and regularity of grease filter cleaning. It cannot be cleaned or regenerated.

How to replace the bulb?

Before any intervention, disconnect the appliance and ensure the lamps are cool. Replace the burnt-out bulb with a LED bulb of 2.5 W max with E14 socket. For more details, consult the enclosed 'ILCOS D' manual.

Can I use the hood without the charcoal filter?

Yes, if the hood is installed in extracting mode with external evacuation, the charcoal filter is not necessary. On the other hand, in recirculating mode (internal recycling), the charcoal filter is essential to purify the air before returning it to the room.

How to install the hood in recirculation mode?

For use in recirculation mode, the hood must be equipped with an activated charcoal filter (not supplied). The air is filtered then returned to the room. Follow the installation instructions provided in the manual for fitting this filter. Ensure the room is sufficiently ventilated.

What to do if the hood does not work?

First check that the power supply is plugged in and the main switch is not off. Make sure the filters are not clogged and the controls are correctly operated. If the problem persists, contact after-sales service.

Is it possible to wash the charcoal filter?

No, the activated charcoal filter is not washable. It must be replaced about every 4 months. Washing it would destroy its filtering properties. Never attempt to clean or regenerate it.

Which detergents to use to clean the hood?

Use a damp cloth with a neutral liquid detergent. Never use abrasive products or alcohol, as they could damage the surfaces. For the interior and exterior, clean at least once a month at the same time as the grease filter.

How to turn off the hood completely?

To turn off the hood completely, press the OFF motors button (button 2). If you want to disconnect the power, unplug the plug or cut the main switch. Before any maintenance operation, it is imperative to disconnect the appliance.

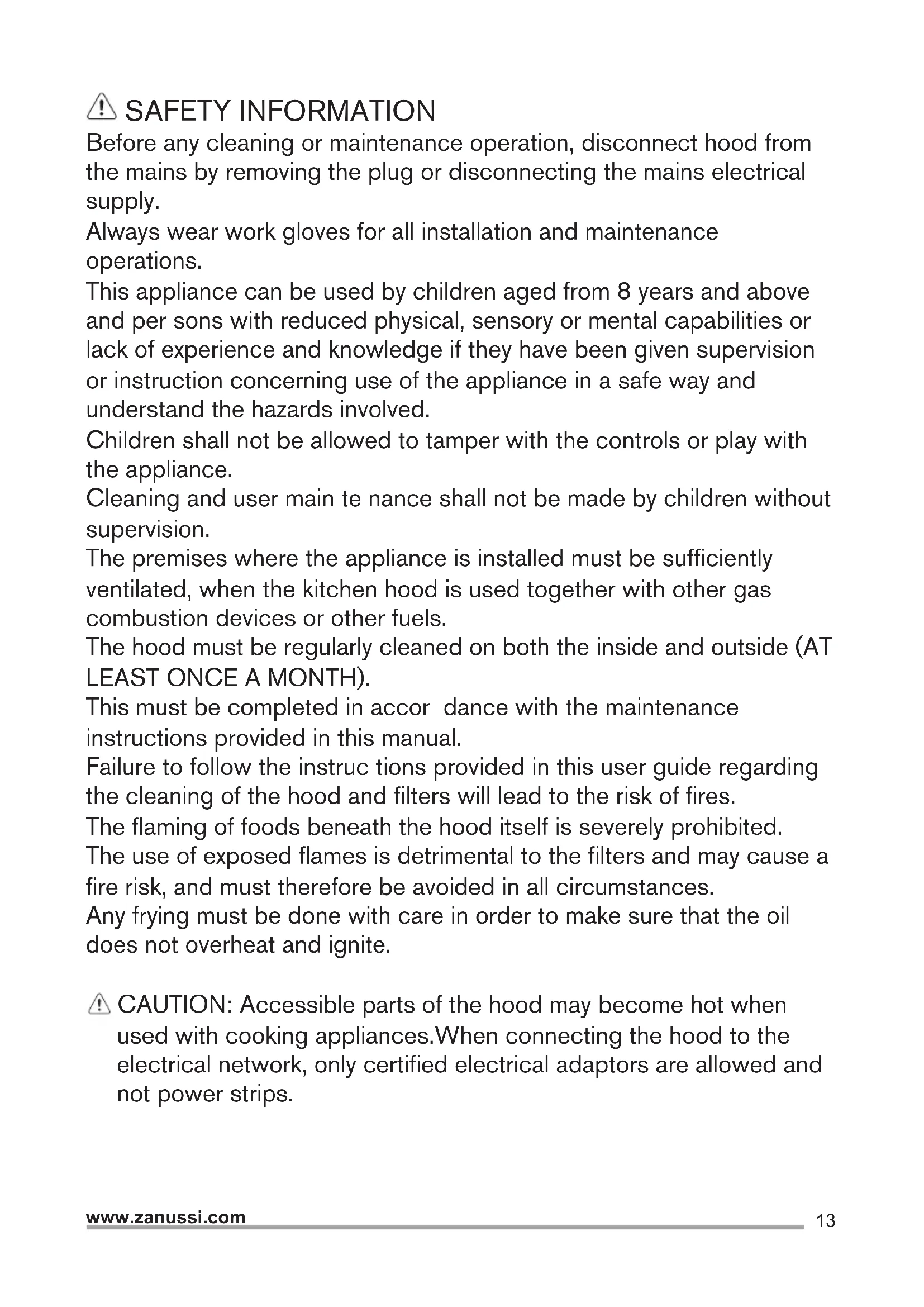

USER MANUAL ZHC60156X ZANUSSI

Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual.

Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances. When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

SAFETY INSTRUCTIONS

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

USE

The hood is designed to be used either for

exhausting or filter version.

INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60 cm from electric cookers and 65 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

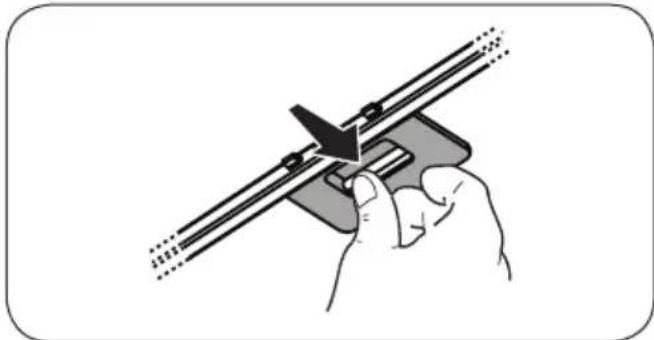

Grease filter - The grease filter must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

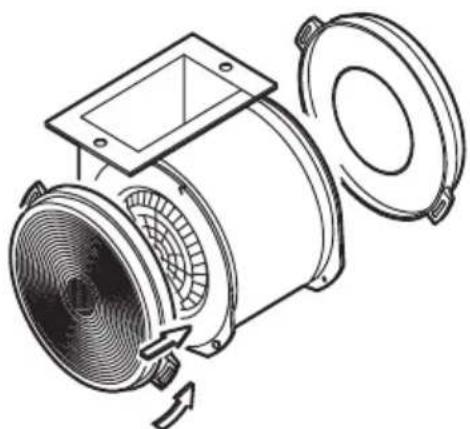

Non-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

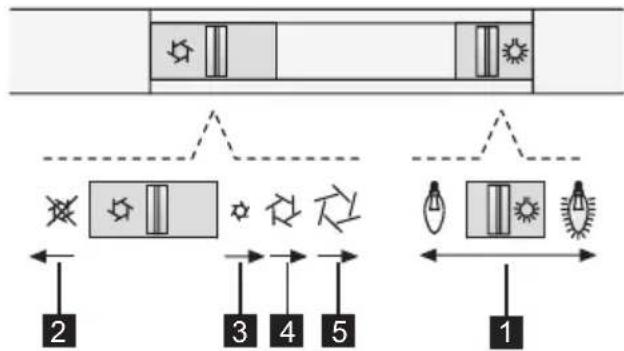

1 ON/OFF lights 2 OFF motors 3 Minimum suction power 4 Medium suction power 5 Maximum suction power

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

Disconnect the hood from the electricity.

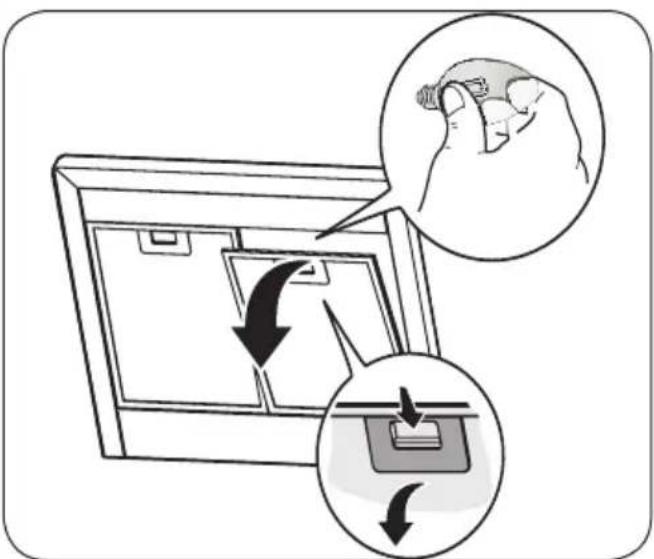

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp.

Use E14 2,5W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1e").

SAFETY INFORMATION

Warning! Do not connect the appliance to the electricity supply until the installation is completely finished.

As far as technical measures and conditions for safety in the discharge of fumes are concerned, it is necessary to strictly follow the laws established by local authorities. The exhausted air must not be discharged into a flue used for exhaust fumes from appliances burning gas or other fuels. Do not use or leave the hood

without correctly installed lamps, this may lead to electric shock. Never use the hood without the correctly installed grille! The hood should never be used as a supporting surface, unless such use is specifically indicated. Use only the fixing screws supplied with the product, or if they are not included, purchase screws of the correct type. Use the correct screw length as indicated in the installation instructions. In case of doubt, contact an authorized service center or qualified personnel.

Warning! Failure to install the screws and fixing devices in accordance with these instructions may result in electrical hazards.

ENVIRONMENTAL PROTECTION

Materials with the symbol should be recycled. Dispose of the packaging in appropriate containers for recycling. By participating in the recycling of old electrical appliances, you help protect the environment and human health. Do not dispose of them with household waste

household waste, place the product at a local recycling facility or contact your local waste management authority.

OPERATION

The appliance has been manufactured for use in

extraction mode with exhaust to the outside, or in extraction mode with internal air recirculation.

INSTALLATION

The mains voltage must correspond to the voltage indicated on the data plate located inside the appliance. If the hood is supplied with a plug, connect the hood to a compliant socket, which must be accessible after installation. If the hood is not supplied with a plug (direct mains connection) or if the socket is not accessible after installation, use a suitable two-pole switch that ensures complete disconnection from the mains in case of overvoltage category III, in accordance with installation instructions.

Warning! Before connecting the electrical system of the hood to the mains, check that it is functioning properly and ensure that the power cable is correctly installed.

The distance between the lower edge of the hood and the hob surface must be at least 60 cm for electric hobs, and at least 65 cm for gas or combination hobs. If the installation instructions for the gas hob specify a greater distance, follow that.

MAINTENANCE

Warning! Before performing any cleaning or maintenance operation, disconnect the hood from the electrical supply by unplugging it or switching off the main switch of the room.

The hood must be cleaned both inside and outside (at least as often as the grease filters are maintained). For cleaning, use a special cloth moistened with neutral liquid detergent. Do not use abrasive materials. Do not use alcohol!

Warning! Failure to follow the cleaning instructions for the appliance and the replacement of filters may lead to a fire risk. Therefore, we recommend following the instructions given. Any liability for possible damage to the motor or fires arising from incorrect maintenance or failure to follow the above warnings is disclaimed.

Grease filter - The filter should be washed monthly with non-abrasive detergents, by hand or in a dishwasher at low temperature and short cycle. Washing in a dishwasher may cause slight discoloration of the grease filter, but its filtering capacity remains completely unchanged.

CHARCOAL FILTER

The saturation of the charcoal filter occurs after a more or less prolonged period of use, depending on the type of cooking and the frequency of grease filter cleaning. In any case, replace the cartridge at least every 4 months.

The charcoal filter cannot be washed or regenerated.

CONTROL ELEMENTS

The exhaust hood control panel is used to control the speed of the exhaust fan and the lighting for the work surface.

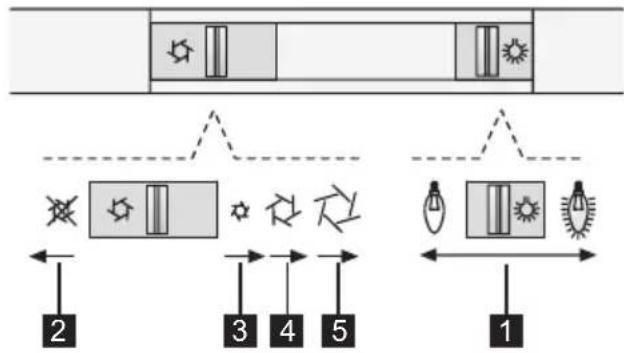

1 Light on/off 2 Motor off 3 Exhaust speed low,

minimum

4 Exhaust speed medium 5 Exhaust speed maximum

The intensive mode is used for the exhaust hood in case of very high concentration of kitchen vapors. We recommend turning on the exhaust hood 5 minutes before starting the cooking process and leaving it on for 15 minutes after the process is finished.

LIGHTING

Disconnect the appliance from the power supply.

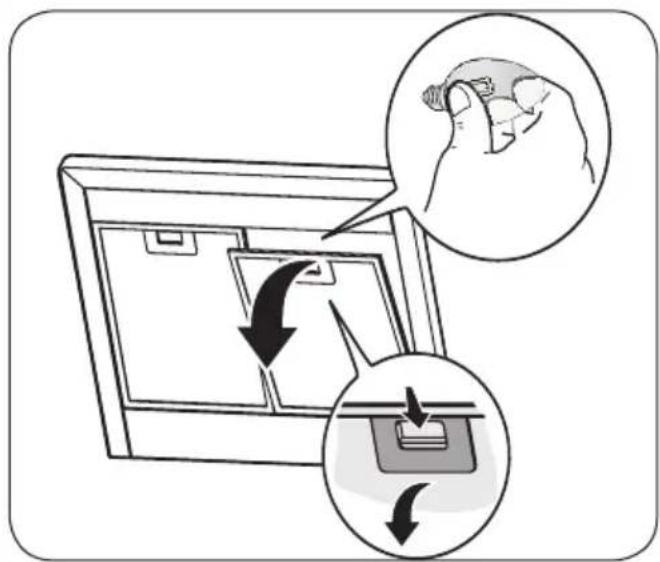

Attention! Before touching the lamps, make sure they are cool. Replace the damaged lamp.

Use only LED lamps max. 2.5W, with E14 socket. For detailed information, see the attached sheet "ILCOS D" (alphanumeric code "1e").

Use the correct length for the screws which are identified in the Installation Guide.

Replace the defective bulb.

Use exclusively LED bulbs of max 2.5W-E14.

For more details, consult the attached instructions "ILCOS D" (alphanumeric position "1e").

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect the hood from the electrical power supply by removing the plug or disconnecting the main switch in the house. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning safe use of the appliance and understand the hazards involved. Children must be supervised to ensure that they do not play with the appliance.

Children must be supervised to ensure that they do not play with the appliance.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Place the packaging in the relevant recycling containers if available. Help protect the environment and human health and promote the recycling of waste from electrical and electronic equipment. Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling point or contact your municipal office.

USE

The hood has been designed to be used in the

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect the hood from the electrical power supply by removing the plug or disconnecting the main switch in the house. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning safe use of the appliance and understand the hazards involved. Do not allow children to play with the appliance.

Cleaning and maintenance must not be carried out by children without supervision. The room must have adequate ventilation when the hood is used simultaneously with gas or other fuel-burning appliances. The hood must be cleaned regularly both internally and externally (at least once a month), following the maintenance instructions provided in this user manual. Failure to comply with the cleaning regulations for the hood and the replacement of filters poses a fire risk. Strictly forbidden is cooking with open flames under the hood. The use of open flames is harmful to the filters and may cause fire, so it must be avoided at all times. Cooking with hot oil must be carried out under supervision, as overheated oil may ignite.

Warning! When the hood is in operation, accessible parts of the hood may become hot.

To replace the lamps, use only those specified in the "Maintenance/Replacing Lamps" section, as indicated in this user manual.

Do not connect the device to the mains until you have completed the installation.

When connecting the vacuum cleaner to the electrical mains, the use of a certified electrical adapter is permitted. The use of electrical contacts in the socket is not permitted.

SAFETY INSTRUCTIONS

All technical dimensions and safety measures that you must take for the removal of harmful gases are subject to the regulations of the competent local authorities. We recommend that you strictly follow the rules set out in the regulations of the competent local authorities.

The vacuumed air must not be discharged into devices used for the removal of harmful gases, which are used when operating with gas or other fuels.

Do not use or leave the vacuum cleaner without the correctly mounted filter, due to the risk of electric shock.

Never use the vacuum cleaner without the correctly mounted grille!

The vacuum cleaner must never be used as a floor polisher unless this is specifically indicated.

When mounting, use only the screws provided with the device, or if such are available, purchase suitable screws. Use screws with a suitable thread, as indicated in the installation manual. In case of doubt, contact the technical service or qualified personnel.

WARNING! Incorrect installation of

the screws and the fixing mechanisms in accordance with these instructions may lead to a risk of electric shock.

ENVIRONMENTAL PROTECTION

Recycle materials with the symbol

Place the packaging in the appropriate recycling containers.

Help protect the environment and human health, as well as the recycling of waste from electrical and electronic devices. Do not dispose of the device marked with

Remove the plug from the socket. Take the device to a local collection point or return it to your local service.

USE

The filters are effective

The filters with active carbon should be replaced approximately after the first period of use, depending on the type of cooking and how often the filter is used.

In any case, it is necessary to replace the active carbon filter every four months or when the filter saturation indicator shows that it is necessary.

Do not wash or reuse them.

CONTROLS

The extractor is equipped with a control panel with options for adjusting the extraction speed and presetting the lighting of the hob.

1 ON/OFF of the lights 2 OFF of the motor 3 Extraction power minimum 4 Extraction power medium 5 Extraction power maximum

If during cooking a lot of smoke is produced, switch to maximum working mode. It is recommended to turn on the extractor 5 minutes before starting to cook and to leave it running for about 15 minutes after finishing cooking.

LIGHTING

Disconnect the device from the mains. Wait.

Attention! Before replacing the bulb, disconnect the device from the mains. Check that the bulb is cool. Replace the damaged lamp. Use only lamps with a maximum power of 2.5 W - E14. For further information, consult the attached leaflet "ILCOS D" (letter code "1e").

INFORMATION FOR THE USER

Before any cleaning or maintenance operation, disconnect the extractor from the electrical mains by pulling the plug or by switching off the household mains switch. For installation and maintenance operations, use work gloves.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. The room must be sufficiently ventilated when the cooker hood is used together with appliances that burn gas or other fuels.

The hood must be cleaned regularly both internally and externally (at least once a month), in any case follow the maintenance instructions given in this manual.

Failure to follow the instructions regarding the hood and the cleaning of the filters will lead to a risk of fire.

Flambéing food under the hood is strictly forbidden. The use of open flames is harmful to the filters and may cause a fire risk, therefore it must be avoided in all circumstances.

Every frying must be done carefully to prevent overheating of the oil and flambéing.

Attention! When the hob is in operation

the accessible parts of the hood may become hot. For replacing the lamp, use only the type of lamp indicated in the Maintenance/Replacing the lamp section of this manual.

Attention! Do not connect the appliance to the electrical supply until the installation is fully completed.

When connecting the hood to the electrical mains, only certified electricians are allowed; extension cords are not permitted.

SAFETY INSTRUCTIONS

Regarding the technical and safety measures for installation, it is important to follow the rules given by the competent authorities. The exhaust air must not be discharged into an active flue used for fumes from appliances that burn gas or other fuels. Do not use or leave the hood without correctly installed lamps due to the possible risk of electric shock. Never use the hood without correctly installed mesh filters! The hood must never be used as a support surface unless precisely indicated. Use only the fixing screws provided with the product for mounting, or if not provided, use the correct type of screws. Use the correct screw length as indicated in the installation instructions. In case of doubt, consult the competent technical support center or qualified personnel.

ATTENTION! Failure to install the screws or fixing devices in accordance with these instructions may result in electrical hazards.

ECOLOGY AND DISPOSAL

PeuKnnpajTe rMaTepeJaJIte co Cm6oJIoT

Ctabete ja am6aJaxata BO cooDBeTHN KOHTeJHepn 3a da ja peuKnpaTe. POMOrHeTe BO 3aHTnTaHa JxNBTHaTcpeiHa N OOBekOBOT 3dpaBje n peuKnpajTe ro OTnadoT OD eNeKTpuHn n eKeTPOHcKn anapatn. He cPpnaTe rAnapatnte O3aHcHn CO Cm6bONOT BO OTnADOT OD DomaknHCTBOTo. BpaTeTe ro npOn3BOoT BO BaWnOT IOKaJIeH KanaUrTe 3a peuKnpaBe nI IN KOHTaKtnpajTe ja BaWaTa ONHTINHcKaHcJIapnJa.

yNOTPEBA

AcnpaTopoT MoKe Da Ce KopNCTN BO BapJaHTa CO HaBOpewHo NcPpIaHBe Ha N3DyBHNO T Bo3dyx, Hn BO BapJaHTa Co pntep co KpyXHO CTpyeHe Ha Bo3dyxOT

MOHTAXKA

Главностуьно habоюяваъ мора д ODROBAPA co ONTEROT NOKЖан Ha etNKeTaTа 3a KapakTePncTnKIne CTabEHa BHaTpe BO acnnpaTOPO. Ako acnnpaTOPO OIN CO npNKJnyHnK NOBp3eTe Ro BO wTeKePOT BO corIaCHOCT CO STpyjHnTE nPoIncN I NO3nUHOHnH Na npICTaHNo MeCTO Dypn I NO MOHTaKaTaN.AKO He e cHa6dEN Co npNKJyHnK (DinpeKTHa BpCKa Co eJIeKTPnuHOTo HanojYBaHBe) IIIN AKO npNKJyHnKOT He e IIOuPAH Na IPnCTaHNo MeCTO, Dypn I NO MOHTaKaTaN, IPnIMHeTe 6n-NoIapEn npeKNHyBaU Bo CORNAcHOCT Co cTAHdApDITe KoJ o6e36eDyBa KOMPiETHO NCKNJyBaHBe Ha eJIeKTPnuHOTO HANOJyBaHBe NOD yCnOBN NOBp3AHN Co PpeONTOBAPyBaHBe Ha mpeXaTaN Kateropnja III, BO CORNAcHOCT Co yNaTCTBOTO 3a MOHTaKa.

！PpeDynpEduBaHe!Ppei (noBTOPO) NOBp3yBaHe Ha KOJIoTo OD acnnpaTOPO T CO eJIeKtpuHOTo HanojyBaHe I PPOBepyBaHeTo Ha cyHKUHOHaHOCTa, CEkOraI npOBepTe daII cTpyjHNoT Ka6eI e I npABINHO MOHTipAn.

HajmaIOTpactoJHne nomery nnoyata Od Unpot 3a caObnte 3a rotBeHe N DOHNOT pa6 Ha acnnapotop Da He 6nnde NOMAIO Od 60cm 3a eNeKtpuHnTe anapatn 3a rotBeHe n 65cm 3a rachnTe nn KOM6HHpuHnTe anapatn 3a rotBeHe.

Ako ynaTcBOTO 3a MOHTaxa 3a pnnHCKnTe nIOOu OD IINOpETOT INpeu3npaaT NOrOJIeMo pactojaHne, Mopate Da ce npndpxyBaTe Do Toa.

OДРЖУBAиE

IpeDypeyBaHe!Pep6nOKaBa onepaunja 3a YnCTeHbe nn OdpXyBaHe, NCKnyTe ro acnnpaTopoT od eNktpnHaTa MpexCo BAede He Ha CTpyHNO TpNKnyHnK nn Co NCKnyuBaHe Ha DOMaUHNO Mpexhen PpeKnHyBa.

AcnnpaTOPOT Mopa peoBHO da ce chntu (HajMaJky co nCTaTa φpeKBeHcNja co Koja ce BpUO odPxyBaHbeto Ha qnItepuTe 3a MaCTu) KaO OD BHATpeWHOCTa Taka N ODAHBOpEWHOCTa.3a cHeTbTo KopNCTeTe Kpna HABNaXHeTa CO TeuH HeYtpaHn DeTeprEHTN. Da He KopNCtnte npOn3BoDn KOI codPkaT a6pa3nBn. HE KOPNCETETE

AJIKOXOJI!IpeDynpdYBaHBe!Ako He ce CNeDaT yNaCTBaTA BO ODNOC Ha YNCTeHbETo HA ACnIPAToPOT N 3aMeHaTa Ha FInlTpnte Ke DOBede Do pN3NK OD NOxapn. Ce npenopayBa Do npndpKByBaHe Ha npedIOXKeHnte yNATCTBa.Hne O6NBaMe BnIOKAKBa ONGOBOPHOCT 3a eBEHTyaHn OuTeTyBaHA Ha MOTOPOT Hn IOxap PpeIN3BnKaH Kako pe3yNTaT Ha HnPaBnHO ODPKyBaHe Nn HecJeDeHbe Ha HabeDeHtE yNAtCTBaTa.

Фиntep 3a MacTn -MetaJIHnot Фиntep 3a MaCTn Tpe6a Да сеЧNTN eДнau Meceyho CO HearpeCINBn DeTereHTN, paCyHO IIN BO MaunHa 3a MneHe Ha caOBN Ha HnCKN TempepaTypN IN BO KpaTOK nHTepBaI. Co nepeHbTo BO MaunHa 3a MneHe Ha caOBN MeTAnHnot Фиntep 3a MaCTn MoKe Da ja Na3ry6bMaNKy BoJaTa HO HeROBIne KapakTePncTnK 3a ФиntpnpaBe BOONIsto He ce MeHyBaat.

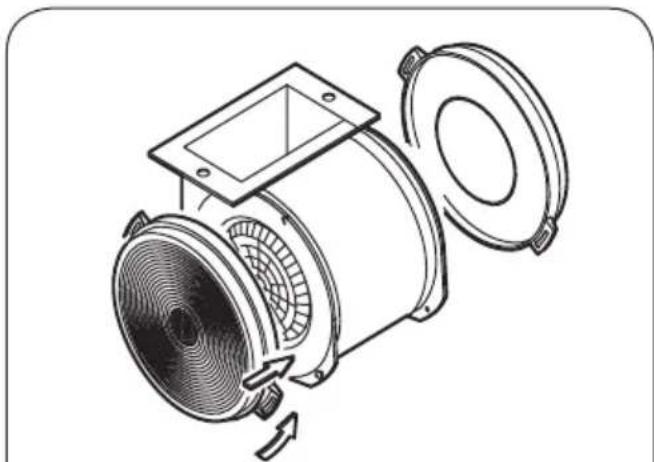

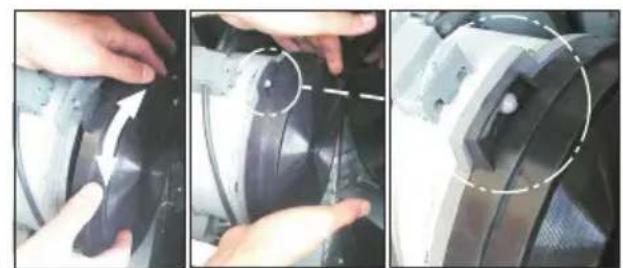

ФиNTep co akTINbEN jarNeH wTo HE ce nepe

The activated carbon filter should be replaced depending on the type and frequency of cooking. In any case, it is necessary to replace the filter at least every 4 months.

It cannot be washed or reused.

CONTROL

The hood is controlled using the control panel with speed regulator for suction and lighting regulator for the lamp.

1 ON/OFF light OFF Motor 3 suction power Minimum 4 suction power Medium 5 suction power Maximum

Use the highest speed in case of high concentration of vapors in the kitchen. We recommend turning on the suction 5 minutes before starting to cook and leaving it on for about 15 minutes after finishing cooking.

LIGHTING UNIT

Disconnect the appliance from the power supply before any maintenance. Warning! Before touching the lamps, make sure they are cool. Remove the grille.

Use only one lamp of max 2.5W-E14. For more details, consult the attached document "LEDS D" (no. "1e").

!SAFETY INFORMATION

Before any operation of maintenance or repair, disconnect the hood from the electrical supply by removing the plug or switching off the main switch in the house.

Always wear protective gloves for all installation and maintenance operations. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised or have been given instructions concerning safe use of the appliance and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance. Cleaning and maintenance must not be performed by children without supervision. The room must be sufficiently ventilated when the kitchen hood is used together with gas or other fuel-burning appliances.

The hood must be cleaned regularly, inside and out (at least once a month). However, it is necessary to follow the maintenance instructions given in this manual. Failure to follow the instructions for cleaning the hood and for replacing and cleaning the filter may cause a fire.

It is strictly forbidden to cook food over an open flame under the hood. The use of an open flame is harmful to the filters and may cause a fire, so it must be avoided in any case. Cooking must be done under supervision to avoid overheated oil catching fire.

!Caution! When the pan is on the cooker, the accessible parts of the hood may become hot.

3a 3amehy kapybe, Kopncntte cmo TnJkapybe HaBeDen y IorIaBby OndPkaBaHbe / 3ameHa kapybe y OBOM MaHyany.

! NaЖьa! He cnajajte anapat Ha eNeKtpnHy mpexky dOK nHCTaIauNiJa Hnje notnyHO 3aBpseHa.

BntxKnKOBnak CnpoeKToBaHn DnA

BVKOPNCaHHN B pexnmi BiBOy Ha3OB

peKIMi BnHyTpiriHbOoi peunpkyIaui

IHCTAJLJ

Hanpyra B eNeKtpomepexi Mae BiNobidaTu BkazAHIM XapaKtepncTnKaMaHaETnKeTci, Ra Ka 3NaXoNTbcBcepeDHHI BHTaKK. RaLo B KOMJIeKT BXoNTb BNka NiE'EdHaHHB eNeKtpomepexy, To CnId NiE'EDHaTHB NHTaKKy Do PO3eTKu, Lo BIDNoBidaC icHyOuHM HopmAm Ta 3HaxoNTbcB DOCTyHOMy MICU, UO MoKHbBAKOHaTu NicJr IHCTaJIaII. RaKIOx BnIka He BXoNTb B KOMJIeKT (npame NiIe'EDHaHHB eNeKtpomepexy), a6o PO3eTKa He 3HaxoNTbcB DOCTyHOMy MICU, TAKOX i niCJr IHCTaJIaII, TO CnIi BMOHTyBaTu HaJeKHn IBOX- NOIUCNH BIMNKaU, RKn 3a6e3neHTb NobHe BiKDJIIOUeHHB BiD MepeKi B yMOBax nepeHapnyr lI kateropii, B NobHi BIDNOBIDHOCTi 3 npabnamn IHCTaJIaII.

Ybara!nepeTdTMJIK3HOByPiDKNIOUHTNBITAKKy do eIeKtpomepeksi i nepeBipuTN npaBnHicTb po60Tu,3aBXKn KOHTpOJIHOte 0o6 shHyp Mepexi 6yb 3MOHTOBAHNI BIPHO.

BiDCTaHb HnXhBoi BiUdactHn BNTJxKn Do nocydy Ha KxyoHHi nnTi MaE 6ytN He MeHwe 60cm, y BnnaKy eNeKtpnHnx nnT, Ta 65cm, y BnnaKny ra3OBnX Ta KOM6iHOBahnx nnT. Heo6XiHo npniMaTHn Do yBaru BiDCTaHI, RaKIO BkA3yOtbcra B iHCTpyKcII 3 IHCTaJIra3OBOI nnTn.

OBCJYROBYAHN

! Ybara! Npeep 6ydb-koO onepaueo qnCTkn nn 06cnyrobyBaHH, BiD'EDnaIte BNTkky BiE eNEKtpomepeki, BnTaryouN BuKy a60 BiKNHOaOHrTOOBnH BIMNKauch JNTna. BnTkka MaecuCTntncb yacto i k3OBHi tak i B cepeHNi (no KpaHm Mpi 3 TAKOIO X nepioDnHicTIO kIDORJAD 3a fInbTpamn dnn 3aTPMaHn H KnpBCTOByTe CneiaIbHy cepBetKY, HamOeyH HeITpAubHM pIKM MnOuym 3acobom. He BnKOpNCBOyTe 3acobn 10 Maotb abpa3NBH mATEpiaHn.

HE BUKOPUCTOBYITE CINPT!

YBara! He BnKoHaHH npabIN pUeHHI 3amHn cIbTpIB MOKe npBecTN Do pN3NKy BnHKHeHH NOKExi. Tomy peKomeHdycMo DToPMyBaTncB npBedeHNx IHCTpyKci. 3Himaetbc BcKa BIDNOBIdaJIbHiCTb B 3B'3Ky 3 MOKInBIMN yIKOJXeHHAMN DBnryHa i NOXeKAmu, 00 BnHKnBhAcNiIOK HeBipHoro peMOHTy a60 He BnKoHaHH BnIeONCaHH NOppeJXeHb.

ΦiNbTp 3aTpIMKn JxpiB - IOBnHeH YIcCTNTncb OAnH pa3 Ha MicraH He CINbHoDIouChM MnOChmN 3acO6amn, BpyHy a6o B NocydomnHi MaunHi npn Hn3bkI Tempeatypi i 3 KOPoTKmU cIKlOM.

Pn MntTi B NocydomnHi MaunHi MetaneBn φ IbTp 3aTpIMKn Knpy MoKe BtpaTNTn KOIp, aJe Ioro XapaKTepeNCTnKn 3 φ IbTpYBaHHa KOHNm YHOM He 3MiHrTbcra.

Replacement of the filter element should be carried out no later than the specified period of use, depending on the type of filter and the regularity of filter cleaning. In any case, it is necessary to replace the cartridge at least every four months.

The filter element is not subject to renewal.

CONTROL ELEMENTS

Hood control panel

With control of extraction intensity and lighting control for the work surface.

1 ON/OFF light 2 OFF button 3 Minimum extraction power 4 Medium extraction power 5 Maximum extraction power

Use intensive extraction in case of particularly high concentration of cooking vapors. We recommend turning on the hood 5 minutes before starting to cook and leaving it on for 15 minutes after finishing cooking.

LIGHTING DEVICE

Disconnect the device from the electrical network.

Warning! Before touching the lamp, make sure it has cooled down. Replace the damaged lamp. Use a light bulb of max 2.5W-E14. For more detailed information, see Appendix "ILCOSD" (position "1e").

SAFETY INSTRUCTIONS

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Children should not be allowed to change the control elements or to play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The device must be used in accordance with the technical requirements specified in the operating manual. When using this device, it is necessary to follow the safety instructions provided in the manual. The device is intended for use in accordance with the instructions given in the operating manual.

Do not use the device in a dusty environment or in the presence of smoke.

For safe operation, it is necessary to ensure proper ventilation and avoid blocking the air vents. To prevent the device from overheating or malfunctioning, it is important to keep the device clean.

WARNING: The device's internal components may become hot during operation. Do not touch the device with wet hands or in a humid environment. Only use the device with the provided power adapter.

SAFETY INSTRUCTIONS

For repair, only use the parts specified in the section "Technical Service/Repair" of this manual.

WARNING! Do not connect the device to a power source without proper grounding.

Please note the safety instructions and follow the regulations set by local authorities. The device should not be used for purposes other than those intended. It is important to follow the instructions for use and maintenance. Do not use the device in environments with flammable gases or other hazardous materials. The device should be used only as described in the manual. If the device is not working properly, contact the service center or the manufacturer. Do not attempt to repair the device yourself.

WARNING! Do not connect the device to power outlets that are not properly grounded.

PROTECTION OF THE ENVIRONMENT

Do not dispose of the device with household waste. To dispose of the device, place it in appropriate containers. By properly disposing of the device, you help prevent potential negative consequences for the environment and human health. Do not dispose of the device with other waste. For more information, contact your local waste management service or the manufacturer.

DISPOSAL
