ZHT921W - Basket ZANUSSI - Free user manual and instructions

Brand	Zanussi
Model	ZHT921W
Product type	Range hood
Usage	Domestic, for eliminating cooking odors
Minimum safety distance	650 mm between the hob and the hood
Diameter of exhaust duct	120 mm minimum
Electrical supply	220-240 V, 50 Hz (Class I, mandatory earthing)
Lighting	4 W LED bulb, E14 base, 220-240 V
Bulb dimensions	107 x 37 mm
Number of speeds	3 speeds (stop, low, medium, maximum)
Grease filter	Non-washable, replace every 2 months
Activated charcoal filter	Non-washable and non-regenerable, replace every 4 months (or more often depending on usage)
Exterior cleaning	Damp cloth and neutral liquid detergent
Child safety	Not suitable for children under 8 years without supervision
Safety instructions	Never flambé under the hood, supervise deep fryers, do not use with chimney flues
Air exhaust	Do not exhaust into a duct used for combustion fumes
Power supply cord	Must be replaced by the manufacturer or authorized service if damaged
Electrical installation	Bipolar switch with contact opening of at least 3 mm
Weight	Approximately 8 kg (estimation)
Warranty	Refer to Zanussi after-sales service

Frequently Asked Questions - ZHT921W ZANUSSI

What is the minimum safety distance between the hob and the ZHT921W hood?

The minimum safety distance is 650 mm. If the gas hob instructions specify a greater distance, that distance prevails.

Can I use the hood with a gas cooker?

Yes, but you must ensure sufficient room ventilation to prevent backflow of combustion gases. The kitchen must have an opening to the outside.

How to clean the ZHT921W hood?

Before any cleaning, turn off and unplug the appliance. Clean the exterior with a damp cloth and a neutral liquid detergent. Do not use abrasive products.

Are the hood filters washable?

No. The grease filter cannot be washed and must be replaced every 2 months. The activated charcoal filter cannot be washed or regenerated and must be replaced every 4 months (or more often with heavy use).

How to change the hood bulb?

The bulb is an LED of 4 W with E14 base, voltage 220-240 V. Unplug the appliance before replacing the bulb. Follow the instructions in the manual to access the compartment.

What if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a qualified technician to avoid any risk of electric shock.

Can I exhaust the hood air into a chimney flue?

No, it is forbidden to connect the hood to flues used for exhaust of combustion fumes (boilers, fireplaces, etc.). Use a dedicated duct.

Can the hood be used by children?

This appliance can be used by children aged 8 years and older under supervision. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

What are the available speeds on the ZHT921W hood?

The hood has 3 speeds: stop (motor off), minimum speed (for silent continuous air change), medium speed (for normal use), and maximum speed (for high steam emissions).

What to do in case of malfunction?

First consult the manual for basic solutions. If the problem persists, contact the authorized Zanussi after-sales service. Do not attempt to repair the appliance yourself.

USER MANUAL ZHT921W ZANUSSI

ENUSERMANUAL 2
DE GEBRAUCHSANLEITUNG 6
FR MANUEL D'UTILISATIO 10
NL GEBRUIKSAANWIJZING 14
ES MANUAL DE USO 18
PT LIVRO DE INSTRUÇÉS PARA UTILIZAZão 22
IT LIBRETTO DI USO 26
SV ANVÄNDNINGSHANDBOK 30
NO BRUKSVEILEDNING 34
FI KAYTTOOHJEET 38
DA BRUGSVEJLEDNING 42
RU PYKOBODCTBO IO 3 KCIIV ATALIM 46
ET KASUTUSJUHEND 50
LV LIETOSANAS PAMACIBA 54
LT NAUDOTOJO VADOVAS 58
UK IHCTpykIJIa3 EKCIyATAUJI 62
HU HASZNÁLATI UTMUTATO 66
CS NAVOD KPOUZITI 70
SK NAVOD NA POUZIVANIE 74
RO MANUAL DE FOLOSIRE 78
PL INSTRUKCJA UZYTKOWANIA 82
HR KNJIZICA S UPUTAMA 86
SL NAVODILO ZA UPORABO 90
EL O△HIEXPHEH 94
TR KULLANIM KITAPCIIGI 98
BG PbKOBOIDCTBO HA NOTPEBNTEJI 102
KKIAIJIAHUYbI HYCKAYlbIFbl 106
MK YIATCTBO 3A KOPICHIK 110
SQUDHEZUESPERPERDORIMIN 114
SR KOPINCHINKO YIYTCTBO 118
AR 122

USER MANUAL

ZHT621W ZHT621X

ZHT611W ZHT611X

ZHT921W ZHT921X

ZHT611W ZHT611N

Cooker Hood Motorházte tō
Dunstabzugshaube Odsavae Par
Hotte De Cuisine Kapucha
Afzuigkap Cartier
Campana Okap Kuchenny
Exaustor Kapuljaca
Cappa Napa
Spisflakt AToppoqntnpac
Kjokkenvifte Ocak Davlumbaz
Liesituuletin AcnupaTopa
Emhaette
Bbitykka
Pliidikumm
Tvaiku Nosucejs
Dangtis
BntaXka
Motorháztetō
Odsavač Par
Kapuchna
Cartier
Okay Kuchenny
Kapuljaca
Napa
Anoppoqntnpac
Ocak Davlumbaz
AcnupaTopa
CopbIn
Acnnpatopot
Kapak Tenxhere

KyuHbckor AcnnpaTopa

= ( x1,y1) , = ( x2,y2)

ZANUSSI

EN

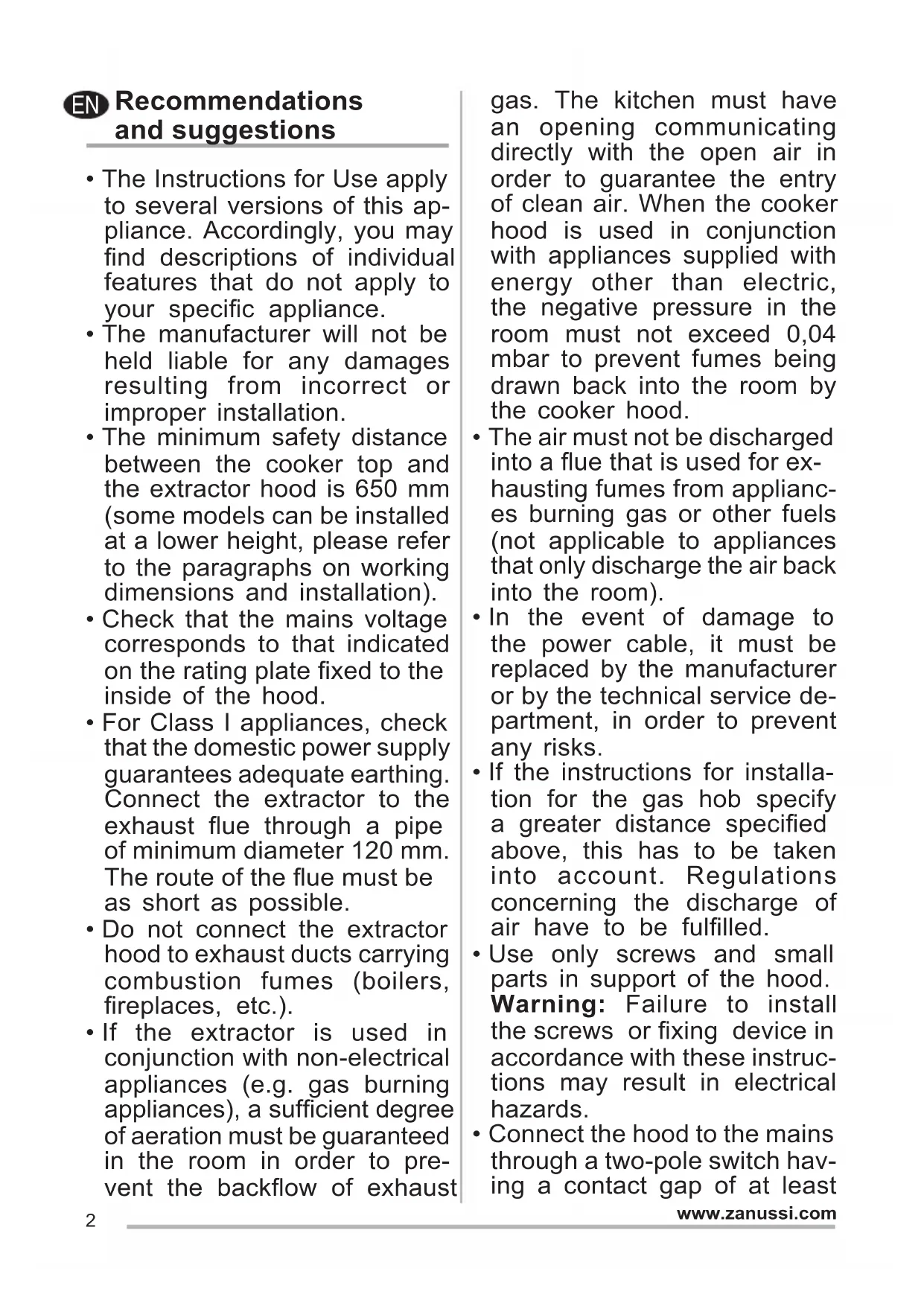

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
- Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Connect the hood to the mains through a two-pole switch having a contact gap of at least

3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa

bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

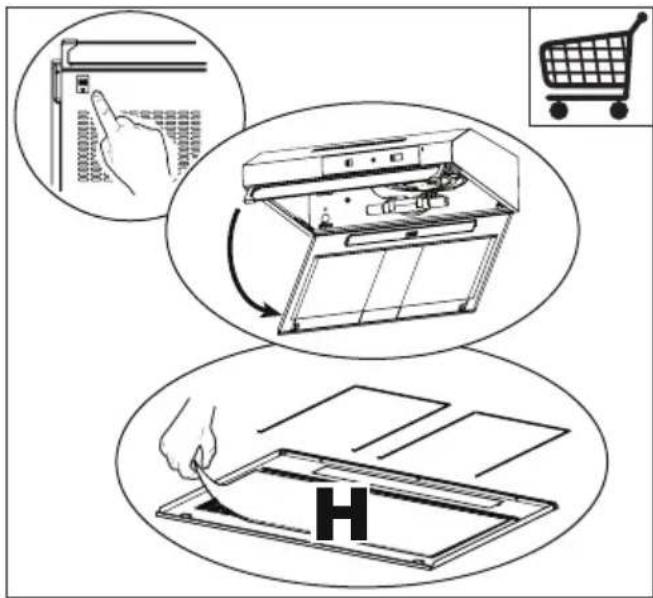

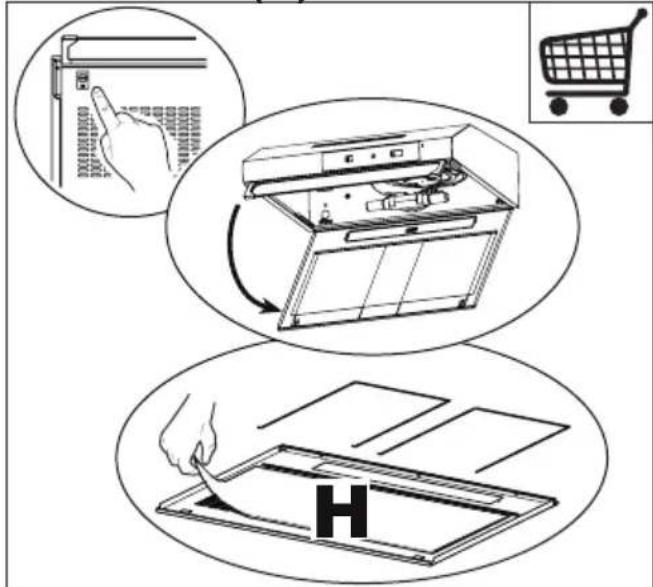

• This filter cannot be washed

and should be replaced every 2 months (H).

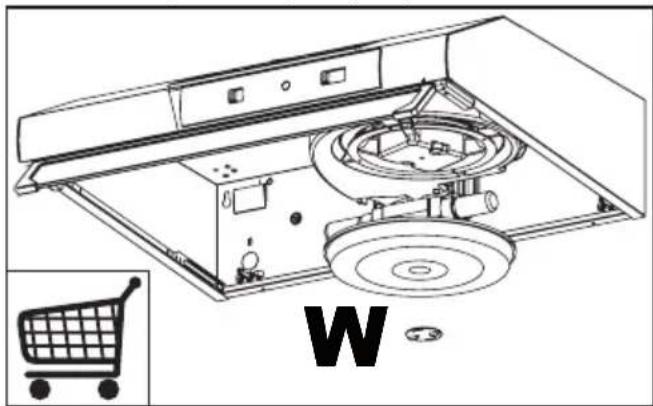

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

L	Light Switches	the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operat-ing conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

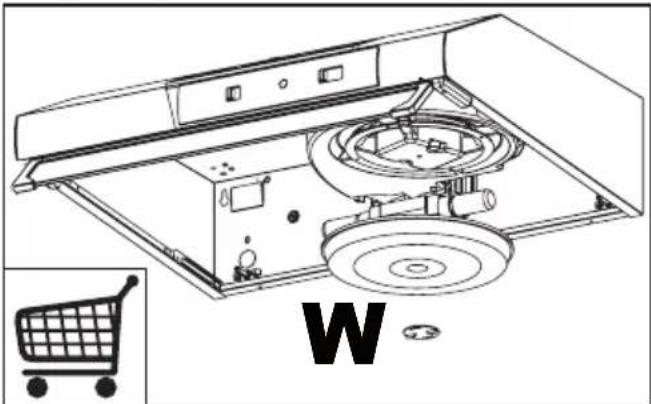

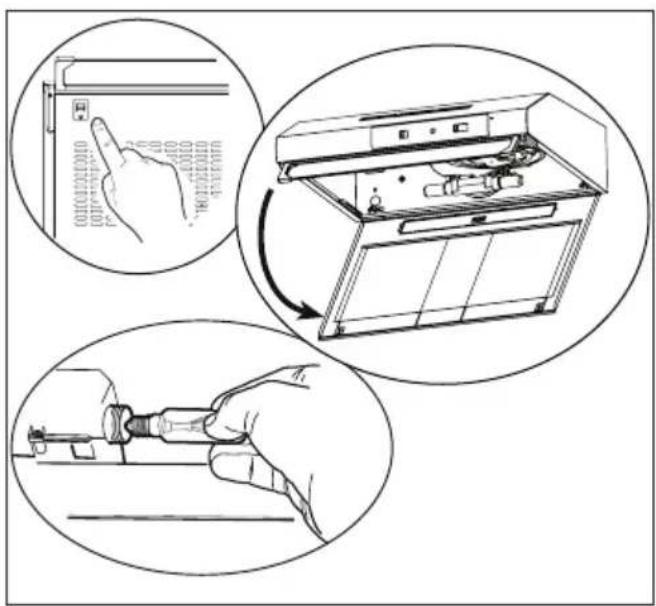

Lighting

Lamp Power (W) Socket	Voltage (V)	Dimension (mm) ILCOS Code
4 E14 220 - 240 107 x 37 DRBB/F-4-220-240-E14-35/100

FR Consels et suggestions

OuHuaTe BbITJkKBy BJaXHOI

TpIKNo, CMOueHHOB HeI-TPaJIbHOM XnIDKOM MOUcEM BeIeCTBe.

KhoPkn

I MaIe DeIOBe KoJn DpJx e acnnpaTOp.

Yno3opebe: PocTaBbAhe 3aBpTHeBa NnHocaya Koje Hnje y cKnady ca OBm yNYTCTBOM MOKe IOBecTn Do CTpyjHor ydapa.

• Прикъчи-te acnnpaTop y ctpju npeko DBOONHOR npekndaça KoI Kora je pactojaHe n3MeHy KOHTaKaTa 6ap 3 mm.

Ynotpe6a

• AcnpaTop je npojeKToBaH NCKJbUyNBO 3a yKlaHaBe KuxNbCKnx Mnpica y DOMaHnHCTBy.
  HnkaI He KopnCTnte acnpaTOp 3a 6nlo 7Ta OCIM 3a OHO 3a 7Ta je HameHbeH.
• HnkaI He octaBbajTe OTBOpeH pIaMeH nCNoD yKbUyeHOr acnnpaTopa.
• ПODEСИТЕ ИNTEH3IITET Пламена тako за-byde усмeperн сamo на дно Тигаьа, a Heда обухваши и НBERОBE 6OчHe CTpaHe.
  -Фрnte3e ce TOKOM ynoTpe6e Mopajy HePpeKnIHO Na3npaTI: nperpejaHo yJIbe MOKe Da ce 3aNaII.
  He pfam6bnpajTe HAMnprHnue nCnoaCnnpaTopa; onaCHOCT od BaTpe.
  Obaj ypehaj Mory da KopncTe deca y3pacTa od 8 roDnHa HABnIe n Oco6e ca CmaHBeHIM qn3nUkM, yJInHM nIN MeHTaJIHm cNoC0bHOCTMa, Kao n

ocobe koje HeMajy DOBOJbHo
NCKyCTBa N 3HaHb,aKO
cy NOd Hau3Opom nIi
cy uynhe y 6e36eDaH
Haun ynoTpe6yeypej a
pa3ymej myrhe onacnctn.
Maoj deu He Do3BOJnte
da ce irpajy ca ypehajem.
Ushene i OdpkaBaHbe He
Tpe6a da obabBJajy deca 6e3
Haad30pa.

OBaj ypehaj He Tpe6a da Kopncte ocobe (yKbUyjyn n Deuy) ca CmaHBeHIM m3NcHM, yJHNM nIIM MeHTaJIHm cNoC6HOCTnMa, Kao n ocobe Koje HemaJy DOBOJbHO NCKyCTBa n 3HaHa, cem aKO nx Ha3npy nIIN O ynoTpe6n ypehaja cabetyjy oc6e OndROBOpHe 3a HbNXOBy 6e36eDnOCT.
- "ONPE3: Ппстуарни дени могу пости врел кад се корисе зajeано са anapatima 3a Кубаhte."

OdpkaBaHe

Cm60n Ha npOn3Bodny nHBeROoJ aM6aJaXn O3NaUbA Da ce OH He CMe cMaTpaTn O6uHnM KyHnM OTnApOM. YmecTo Tora Mopa Ce npEdaTn Ha oDroBapajyHem MeCTy cLyXbN 3a peuKnaJx yEKeKtpuHnx N eJeKTPoHcKnx ypehaja. O6e36eHnBaHem npabINHor yKlhaHa bA OBOr npOn3BOda dOpnpHeheTe cnpueaBaHy IOTeHunJaHNx HeratNBHX NocJIeNu ca NO JKBOTHy CpeDInHy n

3dpaBbe Jbyn,do yera 6n MOrNo DoHn y clyuajy HberOBor HeoDrOBapajyher yKnaHaBa.3a DeTaJbHnje INΦopMaunje O peuzknaJN OBor npOn3BOda o6paTnte Ce IOKaJIHOJ ynpaBN, cLyX6n 3a OndHOse CmeHa nI npOdaBHNu y Kojoj cTe Kynnn npOn3BOd.

• Nckbuynte ypehaj nIra pa3dBojTe od n3Bopa HanajaHa的答案 KaKBorpaHa OndpKaBaHy.
  OuHCTnTe n/nn 3aMeHnTe nnTepeHaKoH OndpeHcHOr BpeMeHcKOr nepNoDa (onacHOCT od BaTpe).
  "Ushnebe Koje Ce He obavn KaKo je Ha3NaYeHO DoBeeHne DO OnaCHocTNoJnoXapa". -He MoKe Da Ce nepe HHTn peRHePnIe Na Mopa Da ce MeBa OTnpNIke Ha CBAka 2 Mececa paDa, a y cIyaujy BeOMa INTeH3NBHe yIOTpe6e n YeeHne (H).

-ObajФиNTep He MoKe Da ce nepe n pereHepnWe BeH Mopa Da Ce MeHa Ha OTnpNJnke

CBAKx 4 Mecea paDa, a y Cnyajy BeOMa INHTeH3NBHe ynoTpe6e n yeuhe (W).

• Acnnapot quCTte BnaXHOM Kpnom HeytpaJIHm TeuHm DeTepeHTom.

Komahde

L Φсветльец укьуу vie и посыся.

V Брзина Пodeшава Брзини рада acnirapotopa:0. МоторOff.1 Мana Брзина, корicitси ce 3aнелег��дани Нechулан поторКаздуха у сfluчajу мале КOLИЧINЕ Кухинскпх ИскAPIева.2 Срedingа Брзина, поюда 3aВешени раднix усюва, пружаОптималан odinoc КOLИЧINeВаздуха и буke.3Нajveha Брзина, корicitси ce 3aУкалыа breathe Нajveberx КOLИCHINAkyньскпх ИскAPIева, чak и уДужем лесiodу.

Дампа

Сижашица	Снarga (W) Гло Нанон (V)Димензиje	(mm) ILCOS ознaka
	4 E14 220 -	240 107 x 37	DRBB/F-4-220-240-E14-	35/100
