USER MANUAL USBC Metal Nano Docking Station i-TEC

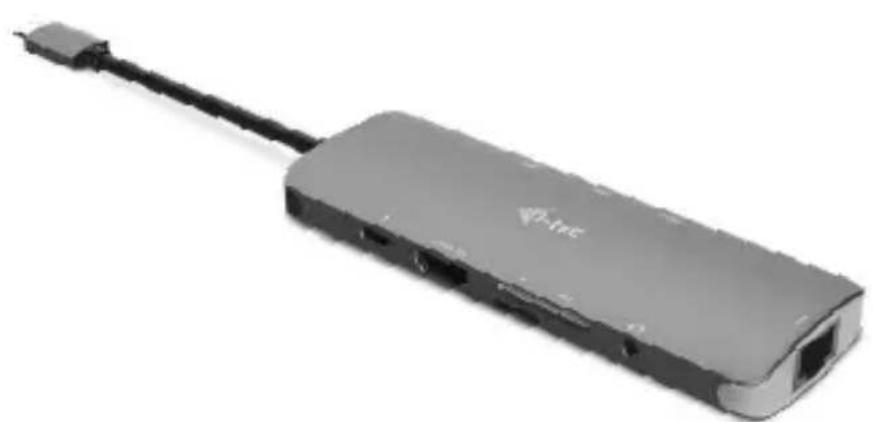

USB-C Metal Nano Dock 4K HDMI LAN + Power Delivery

User guide · Gebrauchsanweisung · Mode d'emploi Manual de instrucciones · Manuale · Uživotelská príručka Instrukcje obsfugi · Uživotelská príručka Vartotojo vadovas · Handleiding

P/N: C31 NANODOCKLANPD

EN

Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers". In case of any issues, please contact our technical support at: [e-mail]

DE

DECLARATION OF CONFORMITY. 47-48

FCC 49

www.i-tec.cz/en

i-tec USB-C Metal Nano Dock 4K HDMI LAN + Power Delivery

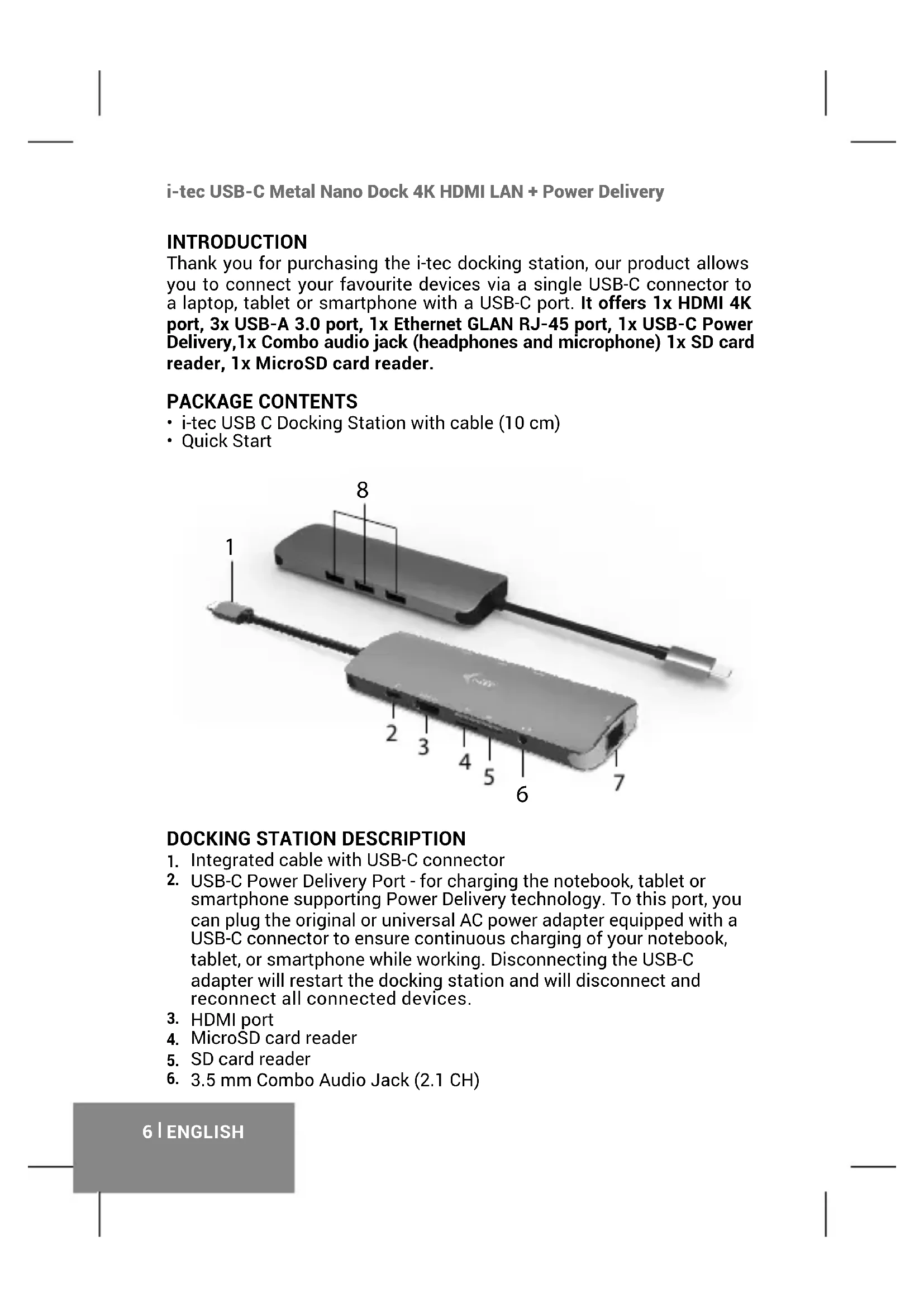

INTRODUCTION

Thank you for purchasing the i-tec docking station, our product allows you to connect your favourite devices via a single USB-C connector to a laptop, tablet or smartphone with a USB-C port. It offers 1x HDMI 4K port, 3x USB-A 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery, 1x Combo audio jack (headphones and microphone) 1x SD card reader, 1x MicroSD card reader.

PACKAGE CONTENTS

• i-tec USB C Docking Station with cable (10 cm)
• Quick Start

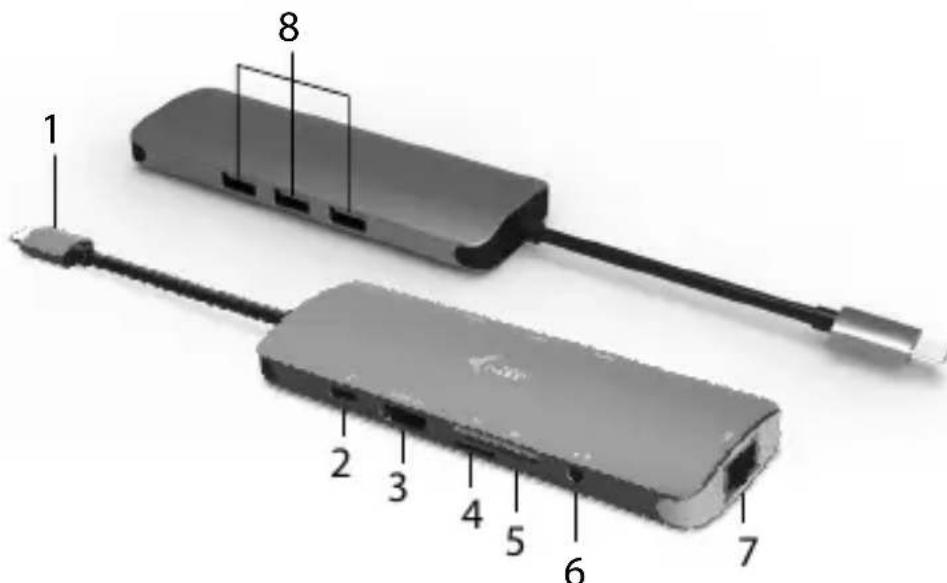

DOCKING STATION DESCRIPTION

1. Integrated cable with USB-C connector
2. USB-C Power Delivery Port - for charging the notebook, tablet or smartphone supporting Power Delivery technology. To this port, you can plug the original or universal AC power adapter equipped with a USB-C connector to ensure continuous charging of your notebook, tablet, or smartphone while working. Disconnecting the USB-C adapter will restart the docking station and will disconnect and reconnect all connected devices.
3. HDMI port
4. MicroSD card reader
5. SD card reader

6. 3.5 mm Combo Audio Jack (2.1 CH)

7. Ethernet GLAN RJ-45 port - for Ethernet network / router / switch / HUB and Internet connection

8. 3x USB-A 3.0 port - for connecting the USB devices

SPECIFICATION

• Graphic interface: 1x HDMI, max. resolution 4K 3840x2160/30Hz
  Mode: Extend, Mirror and Primary Display
  Supported colors 16 / 32 bi
• 3x USB 3.0 A port for connecting the USB 3.1/3.0/2.0 devices and for the high-speed data transfer up to 5 Gbps
• 1x USB-C Power Delivery - Power Delivery with the profile 4 (max.100W) for charging laptops, tablets or smartphones with support for Power Delivery. To this port you can connect an original or a universal AC power adapter with USB-C connector, it ensures the constant charging of your laptop, tablet or smartphone during your work.
• 1x Ethernet GLAN RJ-45 port for fast network and Internet access with Gigabit Ethernet connection, it supports speeds of 10 / 100 / 1000 Mbps
• 1x integrated USB-C 3.1 cable for connecting the docking station to laptop, tablet or smartphone
• Powered through USB bus (no power adapter is needed) or through USB-C PD
• Chipset: RTL8153B (LAN)
• OS: Requires USB-C interface with „DisplayPort Alternate Mode" and „Power Delivery" support (not all devices / systems with USB-C interface support this as standard) or Thunderbolt 3 port - Windows 10 32/64bit, Mac OS X, Chrome OS and Android 6 (Google) with Intel Broadwell Processor and R51 and higher
  Product dimensions: 130 × 43 × 15 ~mm
  Product weight: 87 g

SYSTEM REQUIREMENTS

Hardware requirements: Requires USB-C interface with „DisplayPort Alternate Mode" and „Power Delivery" support (not all devices / systems with USB-C interface support this as standard) or Thunderbolt 3 port

Operating system: Windows 10 32/64bit, Mac OS X, Google (Chrome OS and Android 6 and higher) with latest updates

DRIVER INSTALLATION

Windows 10 32/64bit: After connection, the drivers for the docking

i-tec USB-C Metal Nano Dock 4K HDMI LAN + Power Delivery

station are installed automatically on the system. Before installation make sure that your system has installed the latest drivers for your device and updated BIOS.

Mac OS X: Installation of the drivers in Mac OS X is automatic. Before installation make sure that your Mac has installed the latest OS for your device.

CONNECTING A HDMI MONITOR

The docking station is equipped with 1x HDMI 4K Ultra HD port for the connection of an external monitor or beamer with a HDMI interface. For displaying your images you can use a modern plazma or LCD monitors and TVs. The graphic chip, which is the heart of the docking station, supports up to 4K resolution 3840x2160/30Hz. Connect the monitor to the docking station using a highquality HDMI cable. During installation of an additional monitor the screen of the notebook or tablet can flicker which is a standard condition.

CONNECTING TO THE LAN

You can use the GL AN RJ-45 port for connecting the Ethernet to a router/ switch and to the internet, it supports speeds of 10 / 100 / 1000 Mbps.

CONNECTING USB DEVICES

You can use USB 3.0 ports for connecting your keyboard, mouse, external hard drive, printer and other devices or you can use it for connecting a USB HUB, which will give you more free USB ports.

CHARGING

The docking station supports charging of USB mobile devices, such as smart phones, e-book readers, multimedia players, navigation devices, and tablets. Simply connect the device that you want to charge using the original cable to the USB port of the docking station. If the device is not charged, connect the original USB-C power adapter to the USB-C Power Delivery port of the docking station.

CHARGING THROUGH POWER DELIVERY

HP Folio G1, Dell XPS13, Acer UX390, MacBook Pro 2016, Chromebook Pixels or Windows 10 devices with USB-C port and power delivery support and power adapter up to 100W. The docking station offers USB-C Power Delivery, designed for energizing of the connected "parent" device using the original power adapter and for charging of devices connected through the USB ports.

Important: Disconnecting the USB-C adapter will restart the docking station and will disconnect and reconnect all connected devices.

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces - you will prevent it from slipping and falling to the ground.
• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.
• Check functionality when the cover is broken.
• Send the device back if it does not work in accordance with the user manual.

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en on the "FAQ" tab of this product.

i-tec USB-C Metal Nano Dock 4K HDMI LAN + Power Delivery

EINLEITUNG

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This wil benefit the environment for all. (European Union only)

DEUTSCH

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
