LA90 - Hi-fi system Humantechnik - Free user manual and instructions

Brand	Humantechnik
Model	LA90
Product type	Portable hearing loop amplifier
Use	Hi-fi system for inductive audio transmission to hearing aids
Dimensions (H x W x D)	200 × 185 × 70 mm
Mains power supply	100-240 V AC, 50-60 Hz, 16 V DC (power supply unit included)
Integrated battery	NiMH 12 V rechargeable, battery life approx. 6 h, charging approx. 3 h
Output power	Max. 10 W
Microphone sensitivity	Up to 60 dB ± 3 dB
Microphone	Built-in at rear + 3.5 mm jack input for external microphone
Headphone output	3.5 mm jack, with volume potentiometer
Microphone mode selector	3 positions: internal mic only, mixed, external only
Transmission	Via built-in induction loop, flashing orange indicator
Automatic shut-off	Yes, after 2 minutes without sound
Wall/table mounting	Drilling holes under side covers
Maintenance	Soft, slightly damp cloth, no solvents
Safety	Protect from moisture, heat, water splashes
Package contents	LA90 amplifier, power supply unit, 2 color inserts, sticker, 4 rubber feet, instruction manual, warranty certificate
Warranty	Manufacturer's warranty, free repair on return in original packaging
Country of manufacture	Germany (Humantechnik brand)

Frequently Asked Questions - LA90 Humantechnik

How to set up the LA90 for the first time?

Place the device at the desired distance between you and your conversation partner, point the built-in microphone (rear) towards the person speaking, then plug in the power supply unit. Turn on the device using the power button on the rear. Use the provided sticker to mark the position if necessary.

How to use the external microphone?

Connect an external microphone (e.g. cable A-4901-0) to the 3.5 mm jack on the rear. Use the microphone mode selector to choose between internal mic only (bottom position), mixed (middle), or external only (top).

How to charge the LA90 battery?

Connect the provided power supply unit to the device. The charge indicator flashes red during charging and turns off when the battery is full (approx. 3 hours). You can use the device while charging, but this extends the charging time.

What is the battery life?

Battery life is approximately 6 hours with a fully charged battery.

How to adjust the headphone volume?

Use the volume adjustment potentiometer located on the rear of the device to adjust the volume in the headphones plugged into the 3.5 mm jack.

What to do if the device does not turn on?

Check that the battery is charged or connect the power supply unit. Make sure to press the power button on the rear. If the blue indicator on the front does not light up, contact the manufacturer.

How to clean the LA90?

Use a soft, slightly damp cloth. Never use alcohol, thinner, or other organic solvents. Do not expose it to moisture or excessive heat.

Can I mount the LA90 on a wall or table?

Yes, the device has drilling holes under the side covers. Remove the covers by pressing the clips, screw the device onto a flat surface, then reattach the covers.

What to do if the inductive transmission is not working?

Check that the orange 'magnetic loop signal' indicator is flashing. Make sure the microphone is picking up sound and the hearing aid is set to the 'T' or 'MT' position. Also check that the microphone mode selector is in the correct position.

How to recycle the LA90 at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic waste. The battery must be removed and recycled separately in a battery container or returned to the seller.

USER MANUAL LA90 Humantechnik

GB Operation Instructions

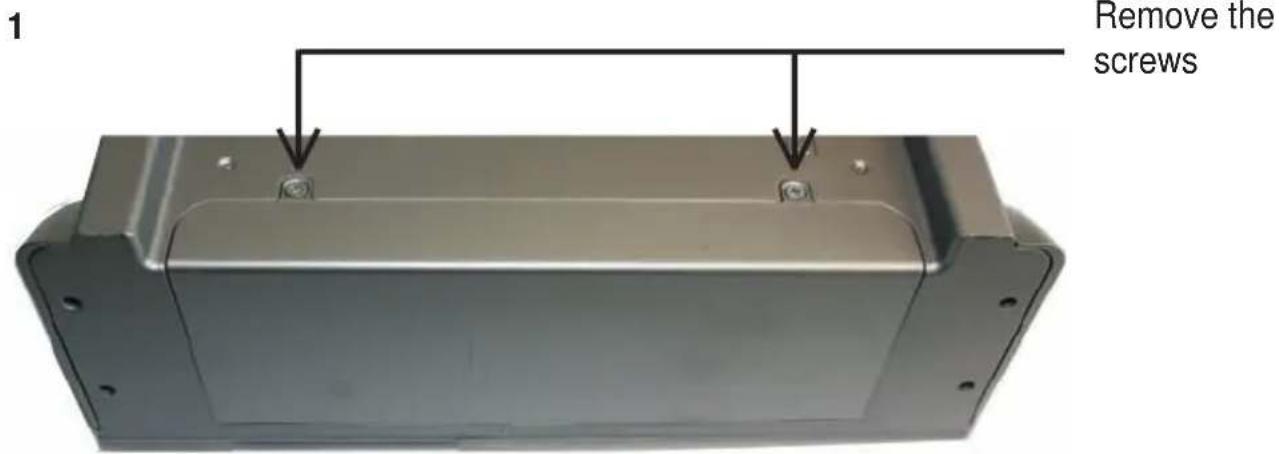

Inserting the rechargeable battery before first use

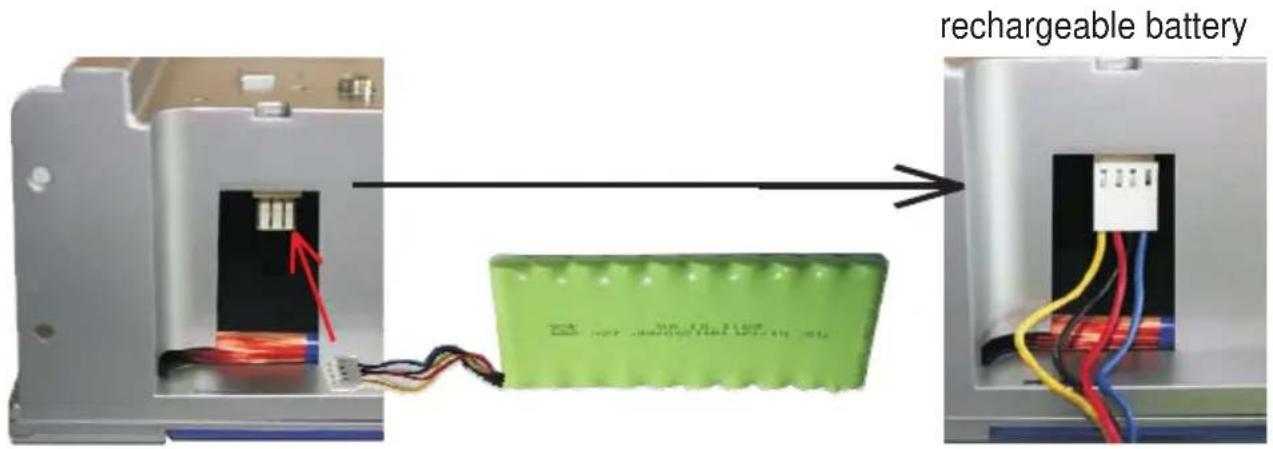

2 Locate the connector 3 Connect the

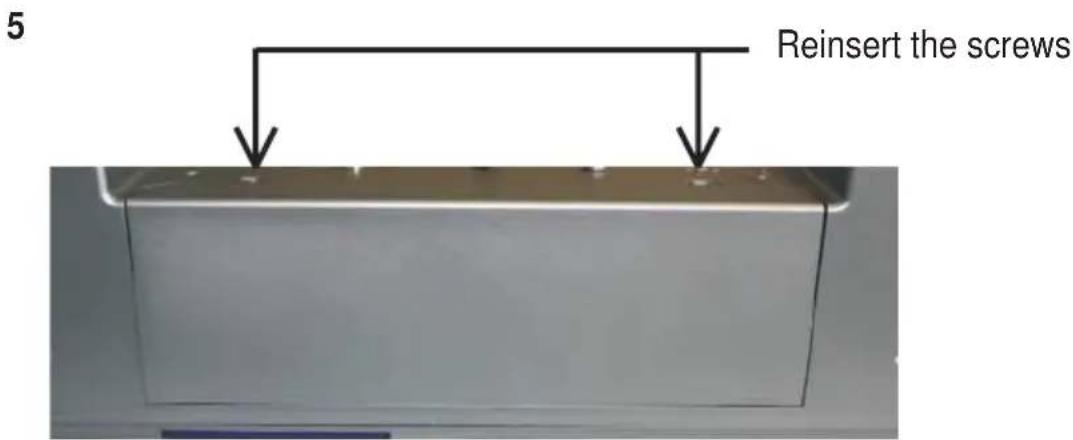

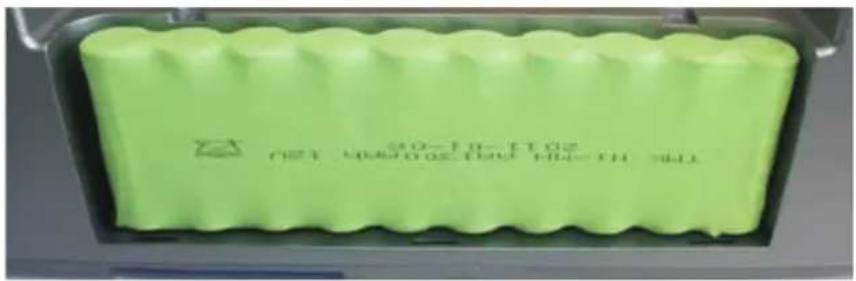

4 Place the rechargeable battery in the battery compartment

We would like to congratulate you on purchasing your portable induction loop system LA-90. You have chosen a modern, reliable device.

Please read these operating instructions carefully. They tell you how to set up the system correctly and explain all the system features to you.

Standard components

Please check if all following components are included:

• Portable induction loop system LA-90 ^次 with integrated battery,
• Power supply unit
• 2 colour signal strips
• Position marker
• 4 rubber feet
• Operating instructions
  Warranty card

If any parts are missing, please immediately contact your dealer or the manufacturer directly.

How it works

The LA-90 uses its built-in microphone or an external microphone to record sounds and emits them via the integrated induction loop. The signals emitted in this way can be received by a hearing aid that is set to the "T" or "MT" position.

Setting up the LA-90

The induction loop system is already completely installed and set up in the housing. All you have to do is to place the LA-90 at the desired position between you and the person you are talking to and connect the power supply unit. Please note that the microphone on the back of the device should be facing the speaker.

After you have placed the LA-90 you can

mark the found position with the included position marker. This is useful if the device is removed for the night.

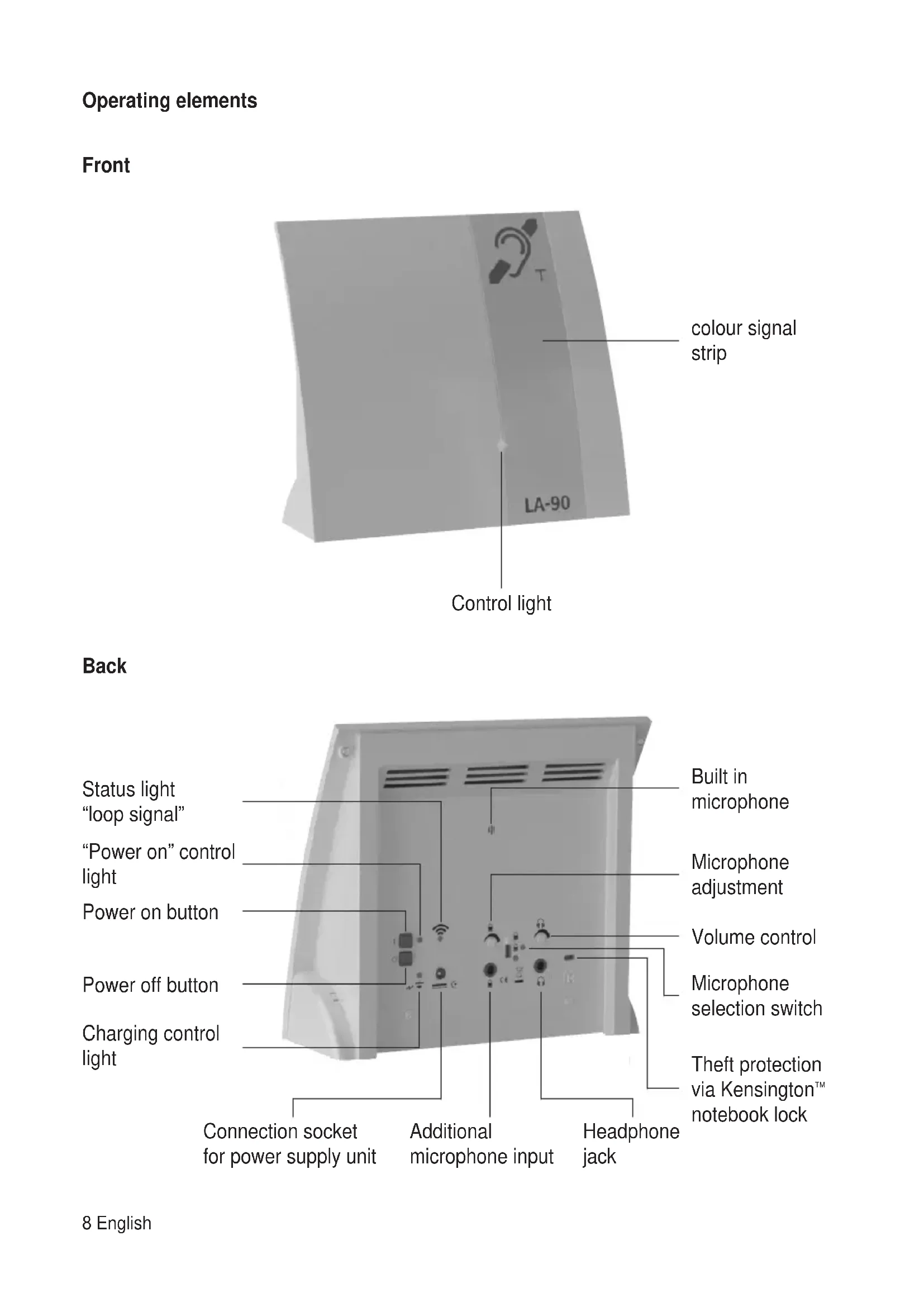

Switching the device on

To switch the induction loop system on, press the "Power on" button on the rear side of the device. Once the device is switched on, the "Power on" control light will light up green and the control light on the front side of the device will light up blue.

Recording/ emitting signals

If sounds are received by the microphone on the back of the device or via an external microphone and emitted by the device as magnetic signals, the status light "loop signal" will begin to flash orange.

Additional microphone input

(3.5 mm plug)

An external microphone can be connected to the additional microphone input (e.g. microphone cable A-4901-0).

Microphone selection switch

With the microphone selection switch you can choose the microphone which should record the sounds.

Switch position:

Up: internal microphone only

Middle: internal and external microphone

Down: external microphone only

Setting the sensitivity of the microphone input

With the control dial on the backside of the device you can adjust the sensitivity of the microphone input. This is useful if you want to connect a low-output microphone to the LA-90 .

Headphone jack (3.5 mm plug)

You can connect the following products to the Headphone jack:

DIR under-the-chin receiver
- Unobtrusive earphones
- Lightweight headset
- Audio-Cable monaural
- Audio-Cable binaural
- Induction Link monaural
- Induction Link binaural

Volume control

With the volume control you can set the volume of the headphone jack.

Automatic switch off

The LA-90 will switch off automatically if no signal is received via the internal or external microphone for a certain time (2 minutes).

Switching the device off

To switch the induction loop system off, press the "Power off" button on the rear side of the device. The "Power on" control light goes off.

Power supply for the »LA-90«

The LA-90 can be operated using the built-in rechargeable battery or the power supply unit. If the battery is fully charged, the device can be used for up to 6 hours.

A depleted battery has to be recharged for approximately 3 hours until it reaches full capacity again. You can also use the LA-90 < while it is being charged, but please note that this will lengthen the time required to fully recharge the battery. The device can remain connected to the power supply for as long as desired.

Charging control light

LED flashes red = Battery is in the process of being recharged

LED off = Battery is fully recharged

Permanent installation of the LA-90

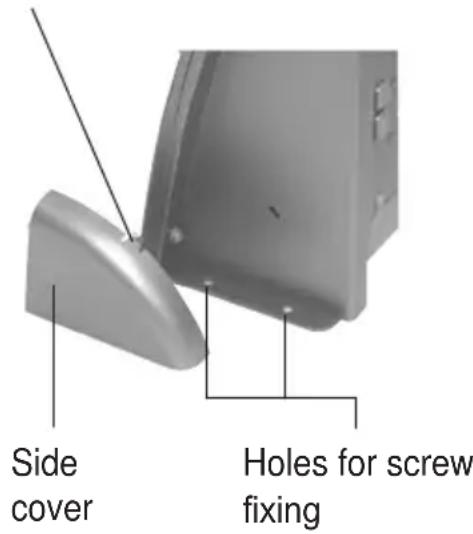

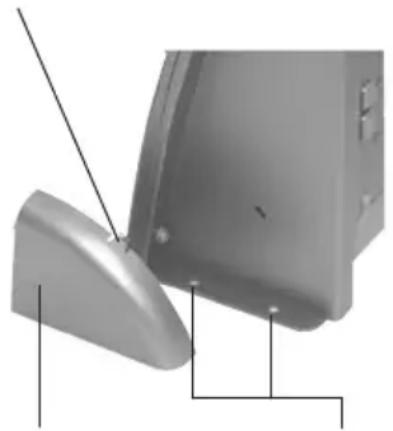

The LA-90 can be screw-fastened through the lateral holes to a tabletop or other surfaces. The holes are located under the side covers. Remove the covers as shown in the picture below.

Retaining clip

Press on the retaining clip and remove the cover.

Maintenance and care

The LA-90 does not require any maintenance. If the unit becomes dirty, simply wipe it clean with a soft, damp cloth. Never use spirits, thinners or other organic solvents. Do not set up the unit where it will be exposed to full sunlight for long periods. In addition it must be protected against excessive heat, moisture and severe mechanical shock.

Note: This product is not protected against splash water. Do not place any containers filled with water, such as flower vases, or anything with an open flame, such as a lit candle, on or near the product.

Warranty

The LA-90 is a very reliable product. Should a malfunction occur despite the unit having been set up and operated correctly, please contact your dealer.

The warranty covers the repair of the product and returning it to you free of charge during the warranty period. It is essential that you send in the product in its original packaging, so do not throw the packaging away. The warranty does not apply to damage caused by incorrect handling or attempts to repair the unit by people not authorised to do so (destruction of the seal on the unit). Repairs under warranty are only carried out providing you have filled in and returned the enclosed warranty card from the dealer as well as a copy of the sales slip. Always specify the product number in any event.

Disposal of used electric and electronic units (applicable in the countries of the European Union and other European countries with a separate collection system).

The symbol on the product or the packaging indicates that this product is not to be handled as ordinary household waste but has to be returned to a collecting point for the recycling of electric and electronic units. You protect health and environment by the correct disposal of this product. Material recycling helps to reduce the consumption of raw material. You will receive further information on the recycling of this product from your local community, your communal disposal company or your local dealer.

Rechargeable battery

The rechargeable battery that comes with the device can be recycled.

Please dispose of this rechargeable battery in receptacles designed for that purpose or return it to a retail outlet. Dispose only of those batteries that have been completely discharged to ensure environmental protection.

Specifications

Power supply: PSU: Primary 100-240 V 50-60 Hz AC/ Secondary 16 V DC or built-in 12 V NiMH rechargeable battery
Operating time per charge: approx. 6 h
Battery charging time: approx. 3 h
Output power: max. 10 W
Microphone sensitivity: Up to 60 dB ± 3 dB
Dimensions: 200 x 185 x 70 mm (HxWxD)
Weight: 635 g (with batteries)

This device satisfies the following EU directives:

• 2002/95/EG RoHS directive

• 2002/96/EG WEEE directive

• 2004/108/EG EMC directive

• 2006/95/EG Low voltage directive

Compliance with the directives listed above is confirmed by the CE seal on the device. CE compliance declarations are available on the Internet at www.humantechnik.com.

Technical specifications subject to change without notice.

Présentation

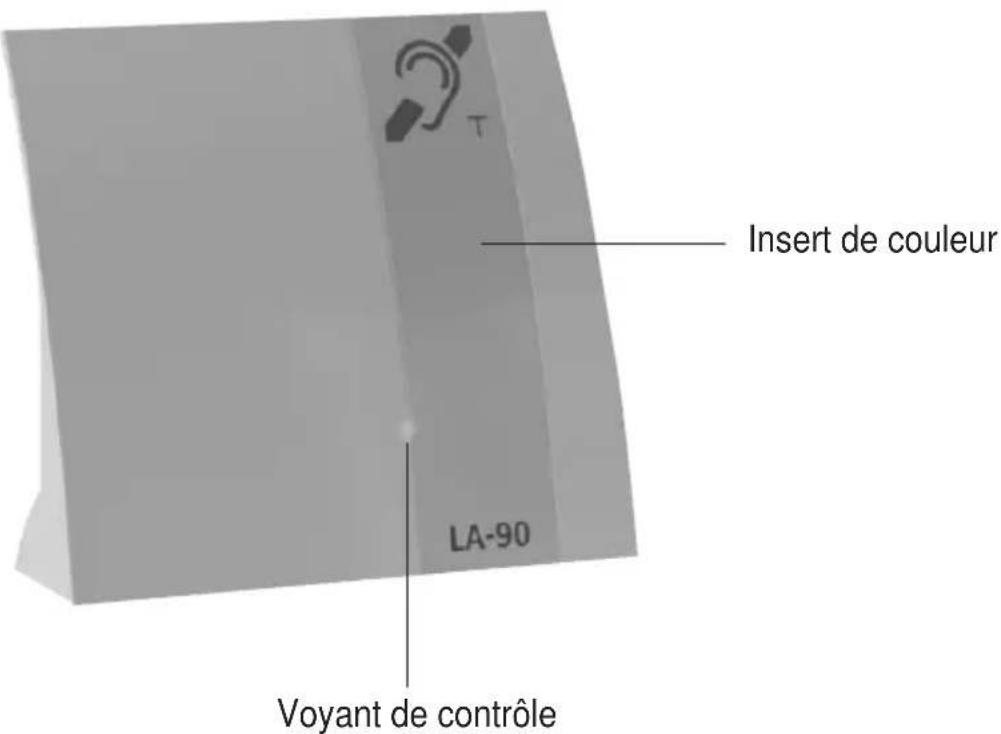

Face avant

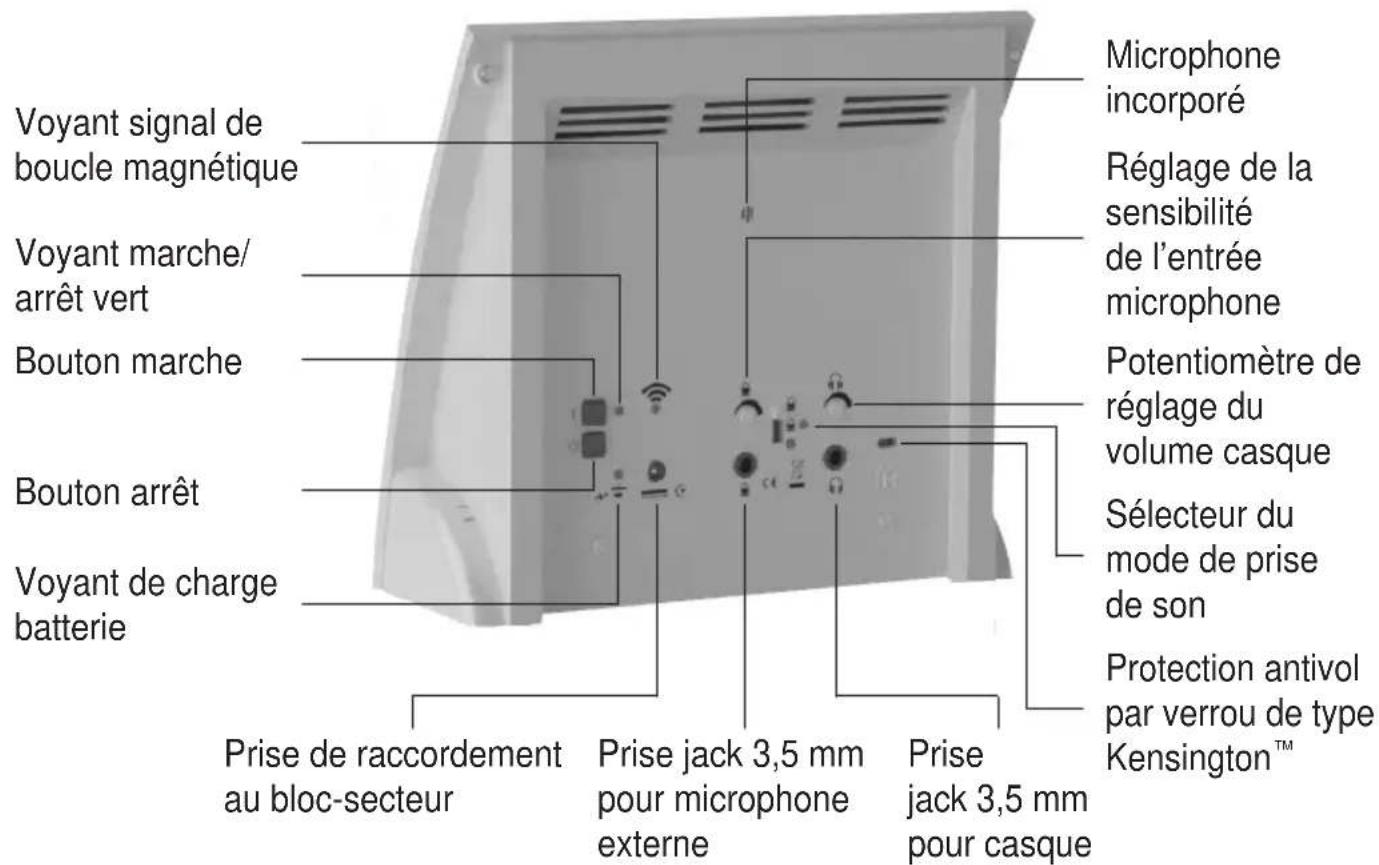

Face arrière

Poids: 635 g (battery incluse)

• 2002/95/CE Directive RoHS
• 2002/96/CE Directive WEEE
• 2004/108/CE Directive CEM
• 2006/95/CE Directive basse tension

Retaining clip
Side cover Schroefgaten

For other service-partners in Europe please contact:

Humantechnik Germany
