Cordless Li-Ion drill 18V CDM1120

Thank you for buying this Ferm product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety.

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

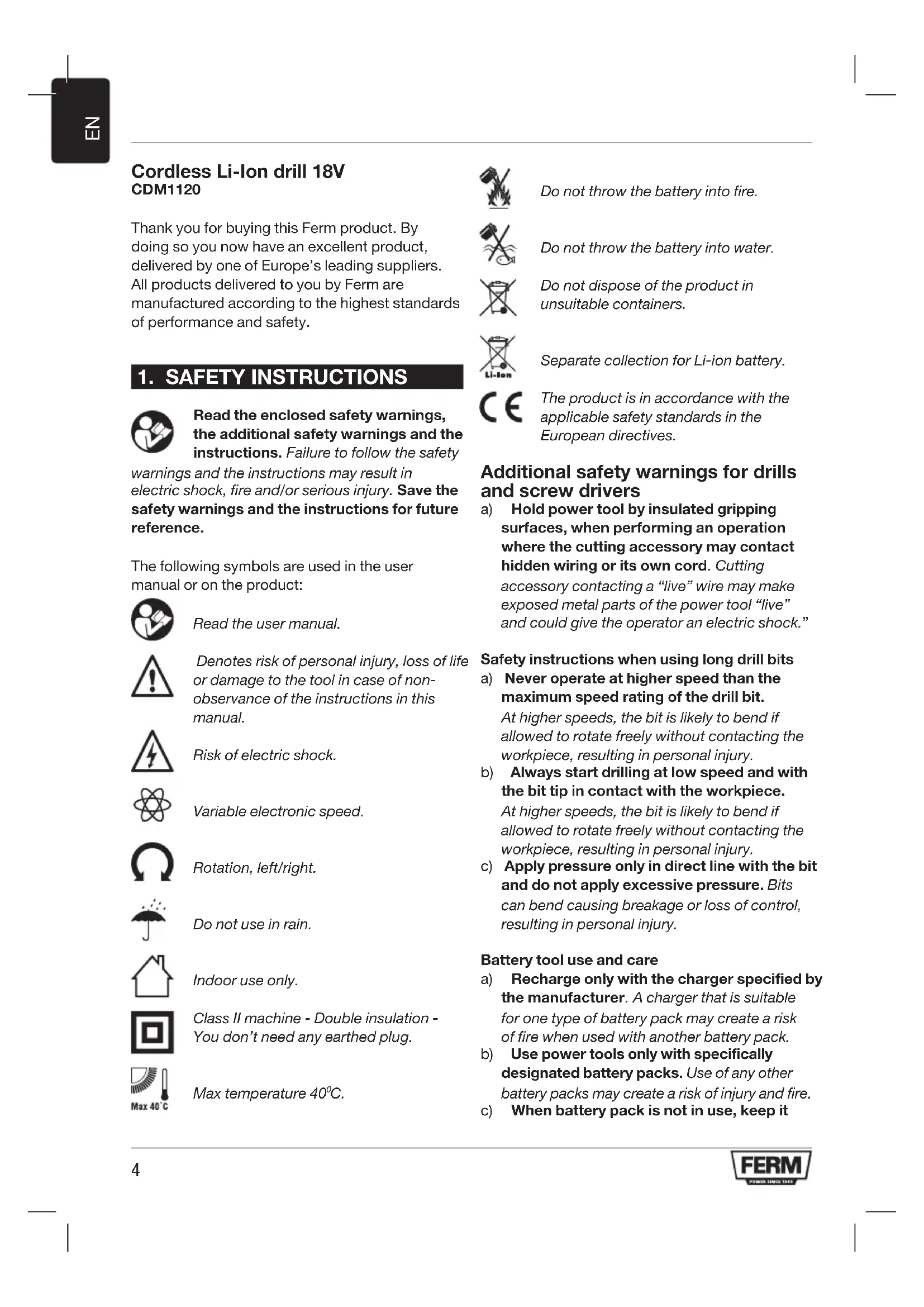

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Variable electronic speed.

Rotation, left/right.

Do not use in rain.

Indoor use only.

Class II machine - Double insulation - You don't need any earthed plug.

Max temperature 40^ C.

Do not throw the battery into fire.

Do not throw the battery into water.

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for drills and screw drivers

a) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock."

Safety instructions when using long drill bits

a) Never operate at higher speed than the maximum speed rating of the drill bit.
At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it

away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

For the charger Intended use

Charge only 18V MAX.1.5Ah Li-ion type rechargeable battery packs. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons
(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
b) Children being supervised not to play with the appliance
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

Residual risks

Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool's construction and design:

a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
b) Injuries and damage to property to due to broken accessories that are suddenly dashed.

Warning! This power tool produces an electromagnetic field during operation. This field may under some circumstances

interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool.

2. MACHINE INFORMATION

Intended use

This cordless drill is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

Technical specifications

Model No CDM1120
Charger CDA1145
Input of charger 100-240V~ 50-60Hz 50W
Output of charger 21V DC 1.5A
Rechargeable battery pack 18V	Li-ion 1.5Ah
Battery charging time 60 minutes
Chuck capacity	1.5 - 13 mm
Torque settings	17 + Drill mode
No load speed
Position 1:	0-350 /min
Position 2:	0-1300 /min
Weight (incl. battery)	1,13 kg
Sound pressure level L_PA	67.02 dB(A), K=3dB(A)
Sound power level L_WA	78.02 dB(A), K=3dB(A)
Hand-arm vibration a_h (screwdriving without impact)	1.001 m/s2K=1.5 m/s2
Hand-arm vibration a_h,D (Drilling into metal)	2.629 m/s2K=1.5 m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2 - 3.

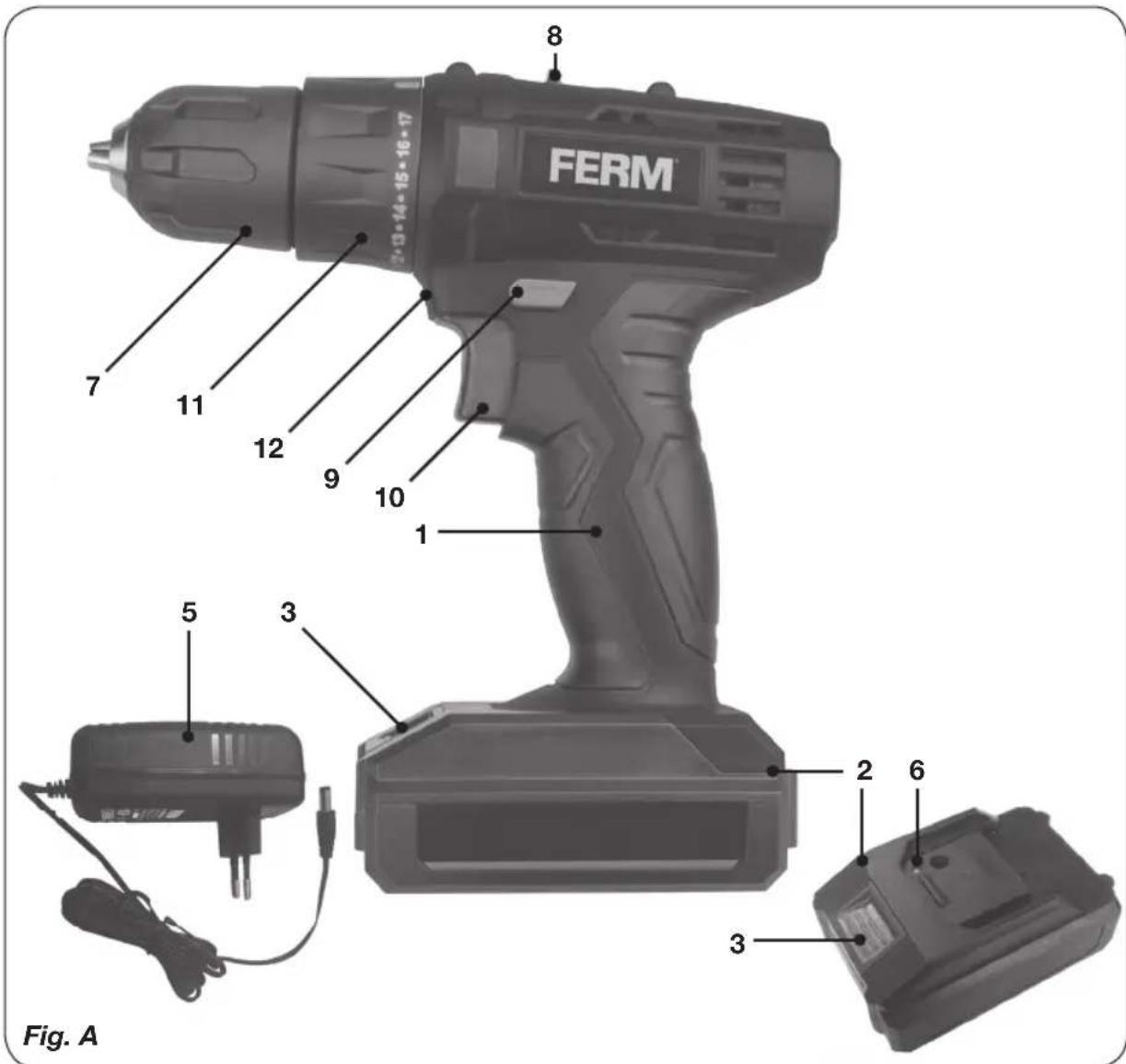

Fig. A

1. Machine
2. Battery
3. Battery unlock button
4. Charger
5. Charger LED indicator
6. Chuck
7. Gear selection switch
8. Direction switch
9. On / off switch
10. Torque adjustment ring
11. Work light

3. OPERATING

The battery must be charged before first use.

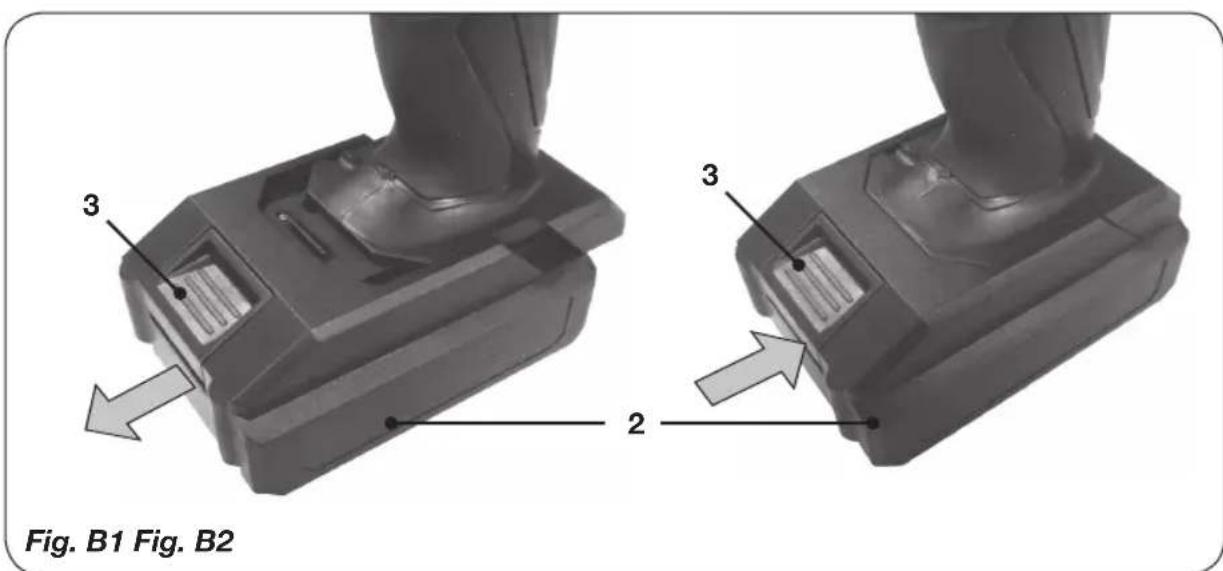

Removing the battery from the machine Fig. B1 + B2

- Push the battery unlock buttons (3) and pull the battery out of the machine like shown in Fig. B1.

Inserting the battery into the machine Fig. B1 + B2

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

• Insert the battery (2) into the base of the machine as shown in Fig. B2.
• Push the battery further forward until it clicks into place.

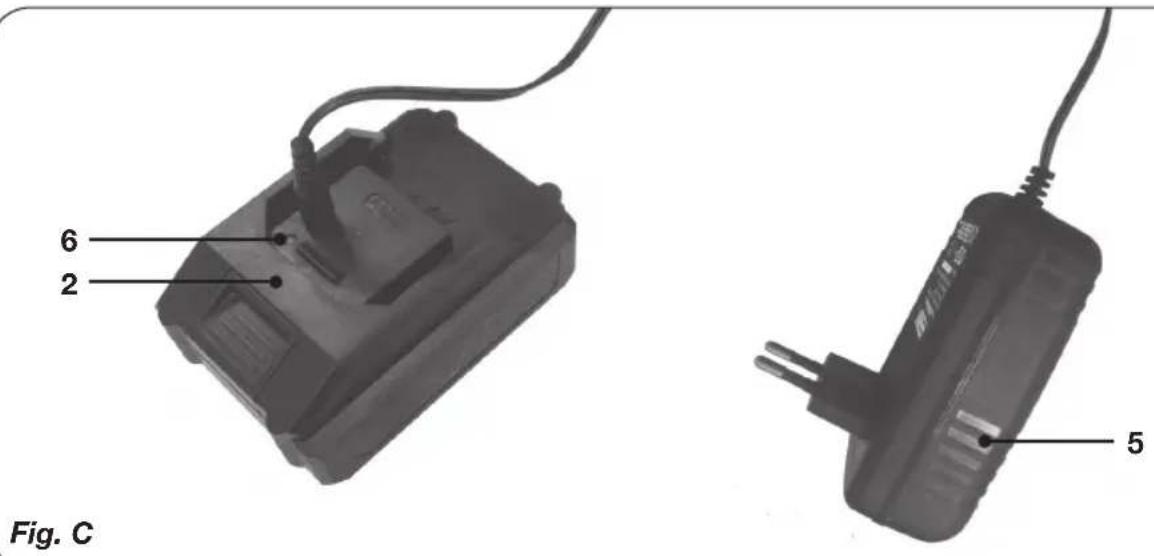

Charging the battery (with the charger) Fig. C

- Plug the charger plug into an electrical outlet and wait for a while. The LED indicator on the battery (6) will lighten up and show the charging status.

LED indicator (6)

Fig. C

The battery has 1 LED indicator (6) which indicates the status of the charging process:

LED Charger status

Red Battery charging in progress

Green Battery charging finished, battery fully charged

• Fully charging the 1.5Ah battery may take up to 60 minutes.
• After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

Fitting and removing drills or screwdriver bits Fig. D

Always remove the battery before mounting an accessory.

The drill chuck (7) is suitable for drills and screw-driver bits with round shaft as well as hexagonal shaft.

• Hold the machine firmly with one hand
• Open the drill chuck (7) by rotating the chuck with your other hand in clockwise direction until it is opened far enough for the bit to slide in.
• Insert the shaft of the drill or screwdriver bit
• Tighten the drill chuck again by firmly rotating the chuck (7) counterclockwise.
• Check if the bit is centered well by shortly activating the machine's on/off switch.

Adjusting the gears

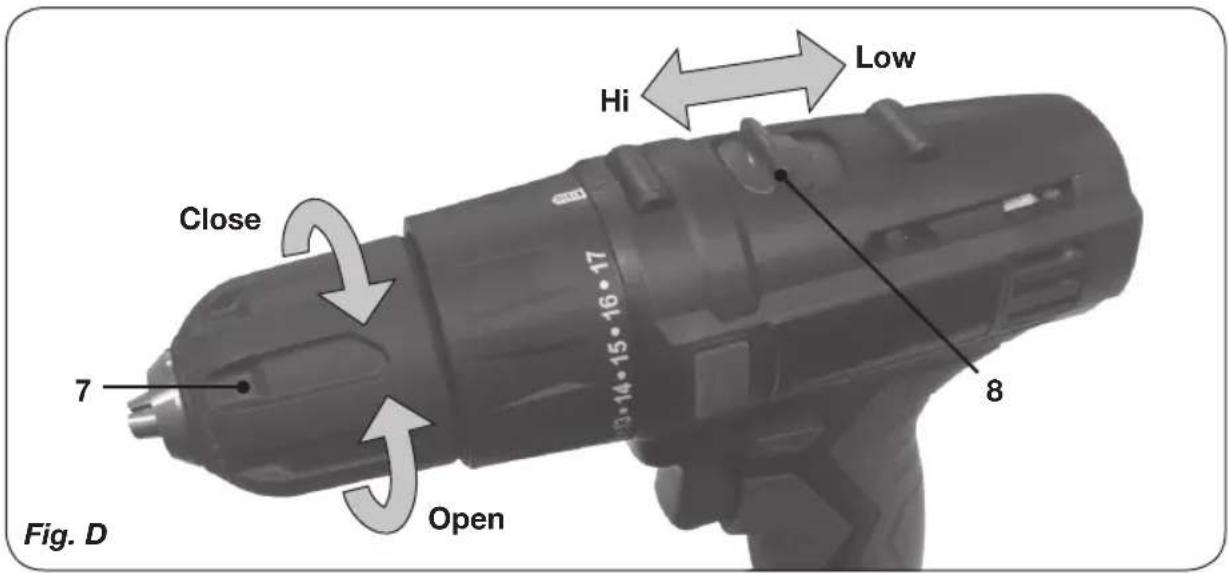

Fig. D

Never switch gears when the motor is running, this will damage your machine.

Never put switch in the middle between both positions, this will damage your machine.

The machine has 2 drill speeds, which can be adjusted by sliding the gear switch (8) forward or backwards. The number on the gear switch (8) shows which position is chosen.

• Position 1: For slow drilling, large drilling diameter or screw driving. The machine has high power at a low speed.
• Position 2: For fast drilling or small drilling diameter.

Adjusting the direction of rotation

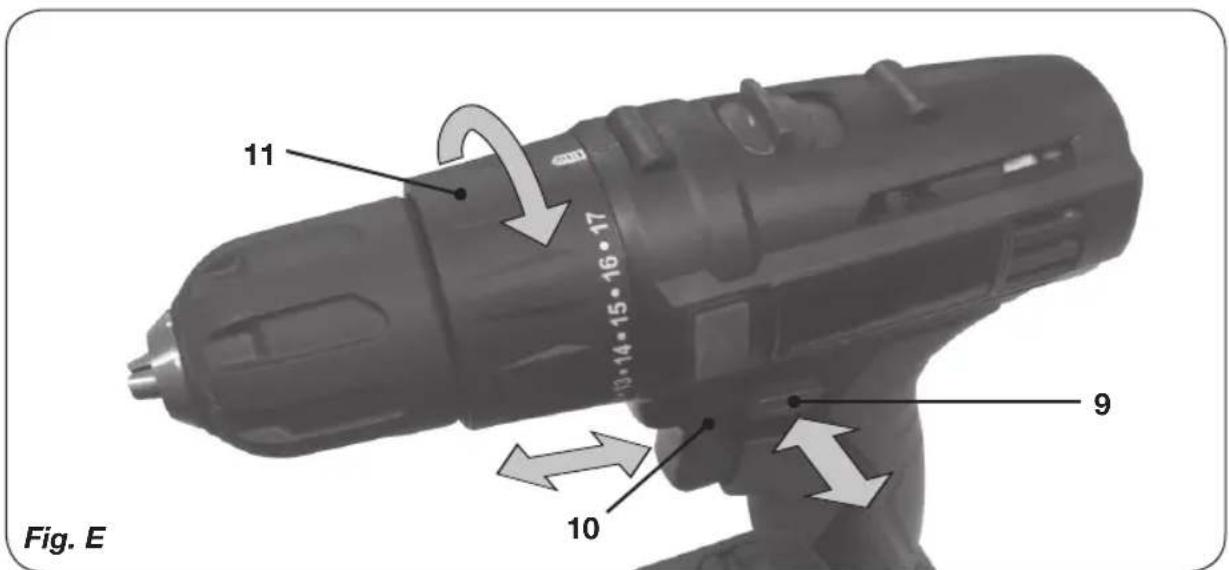

Fig. E

• Set the direction switch (9) to position in order to drive screws or to use it for drilling.
• Set the direction switch (9) to position in order to remove screws.

Switching the machine on and off

Fig. E

The on/off switch (10) is used for activating the machine and adjusting rotation speed.

• Pressing the on/off switch (10) will activate the machine, the further the switch is being pushed, the faster the drill will turn.
• Releasing the on/off switch (10) will stop the machine.
• Move the direction reversing switch (9) to the middle position to lock the movement of the on/off switch.

Adjusting the torque

Fig. E

The machine has 17 different torque settings and a special drill mode to set the power being transmitted to the chuck.

By rotating the torque adjustment ring (11), screws can be driven to a predetermined depth, which is ideal for repetitive work. The higher the number, the more torque will be transmitted.

• Select a low setting for small screws or soft work material.
• Select a high setting for large screws, hard work materials and when removing screws.
• You should preferably choose a setting as low as possible when driving screws. Select a higher setting if the motor slips before the screw is fully tightened.
• For drilling, turn the torque adjustment ring (11) to the setting for drilling (◆) by fully turning it counterclockwise.

Ensure that the direction switch (9) is always set to during drilling.

machine is equipped with electronic overload protection function. When the machine gets overloaded it will shut down automatically. When this happens, please wait for a few seconds to let the overload protection reset itself.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling

locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Exploded view diagram of a mechanical assembly with numbered parts for identification

Spare parts list

Position Description No
1 Chuck screw, M5 x 22L	101213
2 Chuck 13mm 470237
3-33 Gear box assembled	d 101209
34-35 Motor with pinion	gear 18V 101215
42-44 Switch,FET,heat sink, terminal 101212
	Battery 18V - 1.5Ah CDA1144
	Fast charger adapter 18V CDA1145
