USER MANUAL OSF 4331 W OK

mm - mm 1.35 mm2.35 mm3.5 mm4.mm5.mm6.mm7.mm8.mm9.mm10.mm11.mm12.mm13.mm14.mm15.mm16.mm17.mm18.mm19.mm20.mm21.mm22.mm23.mm24.mm25.mm26.mm27.mm28.mm29.mm30.mm31.mm32.mm33.mm34.mm35.mm36.mm37.mm38.mm39.mm40.mm41.mm42.mm43.mm44.mm45.mm46.mm47.mm48.mm49.mm50.mm51.mm52.mm53.mm54.mm55.mm56.mm57.mm58.mm59.mm60.mm61.mm62.mm63.mm64.mm65.mm66.mm67.mm68.mm69.mm70.mm71.mm72.mm73.mm74.mm75.mm76.mm77.mm78.mm79.mm80.mm81.mm82.mm83.mm84.mm85.mm86.mm87.mm88.mm89.mm90.mm91.mm92.mm93.mm94.mm95.mm96.mm97.mm98.mm99.mm100.

OSF 4331 W

STANDVENTILATOR //

STAND FAN //

VENTILADOR DE PHE/

VENTILATEUR SUR MONTAN

GBSAACGAMESR2
01 164-4X+HMI
ENUSMAMUST
MANUAL DE INSTALLED
00000000
FELASENOLIKENBDNY 23

11 MANUALLE DELLUTENTE 27

TLG

PIMNURACGNNL

PT MANUAL UTLZ-CHO1

57

HERZLICHEN GLUCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

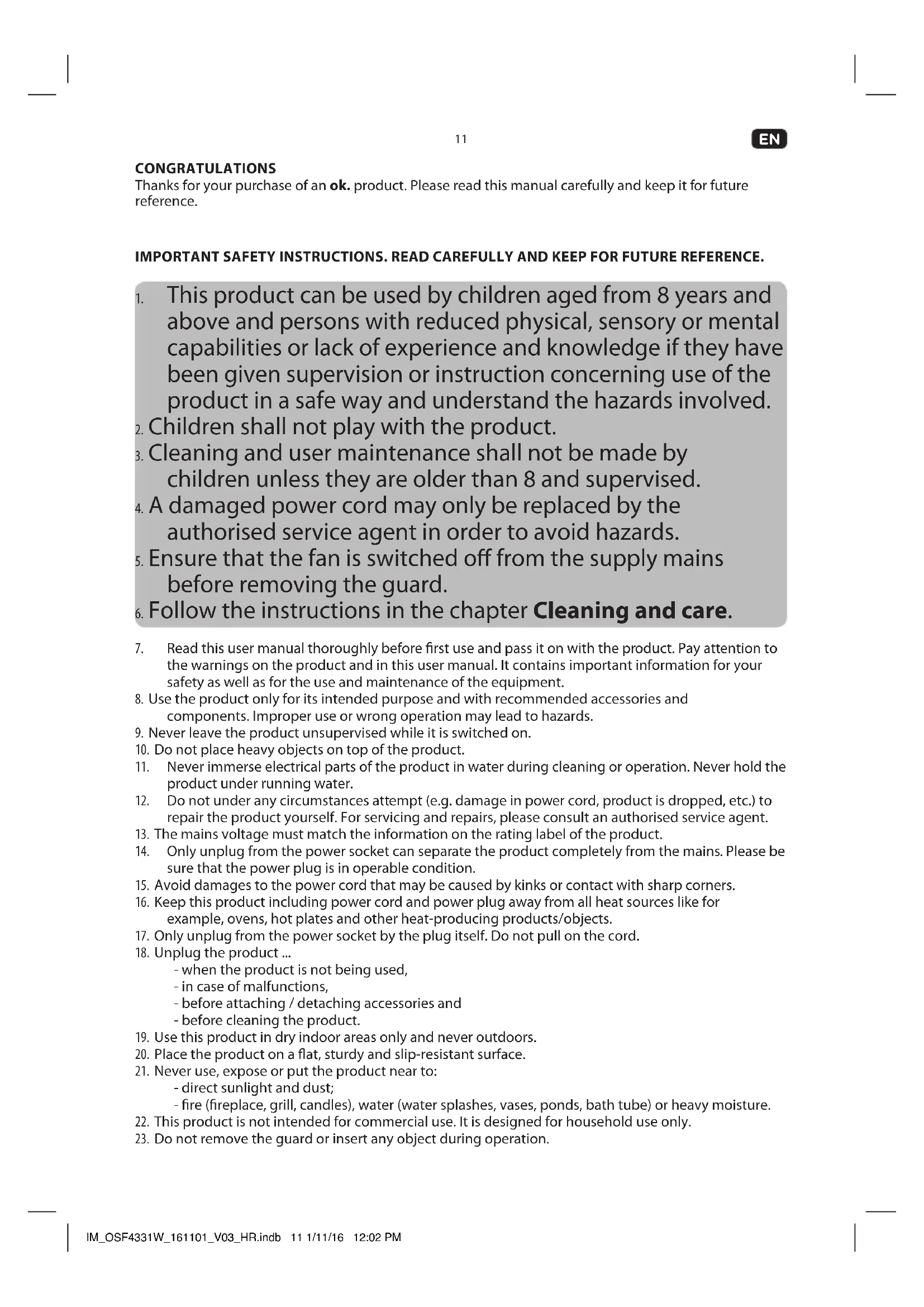

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
5. Ensure that the fan is switched off from the supply mains before removing the guard.

6. Follow the instructions in the chapter Cleaning and care.

7. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

8. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
9. Never leave the product unsupervised while it is switched on.
10. Do not place heavy objects on top of the product.
11. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
12. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
13. The mains voltage must match the information on the rating label of the product.
14. Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
15. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
16. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
17. Only unplug from the power socket by the plug itself. Do not pull on the cord.

18. Unplug the product ...

19. when the product is not being used,
    -in case of malfunctions,

20. before attaching / detaching accessories and

21. before cleaning the product.

22. Use this product in dry indoor areas only and never outdoors.

23. Place the product on a flat, sturdy and slip-resistant surface.
24. Never use, expose or put the product near to:

direct sunlight and dust;
- fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

1. This product is not intended for commercial use. It is designed for household use only.
2. Do not remove the guard or insert any object during operation.

EN

12

1. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
2. In order to avoid overheating, do not cover the product.
3. Small children, children and older people should not be exposed to cold air currents for a long time.
4. Keep product away from loose objects such as plants, curtains, etc.
5. The product may only be connected to the mains once it has been completely assembled.

INTENDED USE

The product is only intended for circulating room air. Only use according to these instructions. Any other use can lead to damages to product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

COMPONENTS

A. Motor unit
B. Oscillation knob
C. Motor shaft
D. Rear guard
E. Plastic nut
F. Fan blade
G. Fan blade nut
H. Front guard

1. Control buttons (Speed settings: 1-3, Off: 0)
   J. Screws
   K. Foot parts
   L. Stand cover
   M. Clamping nut
   N. Extension pole
   O. Power cord

BEFORE FIRST TIME USE

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
  After unpacking, please refer to chapter Cleaning and care.

ASSEMBLING AND MOUNTING

17 Assemble the two foot parts crosswise. Remove the four screws from the foot parts.
Use the four screws to mount the extension pole onto the feet. Then remove the clamping nut.
3 Slide the stand cover over the extension pole onto the feet. Pull out the extension pole and secure it by installing and fastening the clamping nut.
4 Attach the motor unit to the extension pole and secure it with the thumb screw.
5 Remove the fan blade nut and the plastic nut from the motor unit.
6 Attach the rear guard to the motor unit with the handle facing up and the screw hole facing down and secure with the plastic nut.
7 Slide the fan blade onto the motor shaft so that the pin locks to the groove. Secure the fan blade by tightening the fan blade nut onto the shaft.
8 Open the clips on the front guard and remove screw and nut.
9 Hook the front guard from top onto the rear guard, thereby aligning the screw holes at the bottom of the guards. Install the screw and nut to lock the guards.
10 Make sure all the clips are closed.
11 Place on a stable level surface. Set the desired angle.

OPERATION

Plug in the product.
13 To switch the fan on, select speeds 1-3. To switch fan off, press 0.
14 Push the oscillation knob to activate oscillation function. Pull the knob to stop the oscillation.

Caution:

The product may only be connected to the mains once it has been completely assembled.
- The product must not be disassembled during operation, general care, cleaning and user maintenance.
The product may never be operated without the stand or in a horizontal position.
- Switch off and disconnect the product before adjusting height or desired angle.
The guard must be completely closed when operating the product.
During operation, do not put fingers or other objects in the guard.
Unplug if it is not used for some time.

DISASSEMBLY

Disassemble the fan for cleaning in reverse order of assembly steps.

EN

14

CLEANING AND CARE

• Warning! Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
• Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.
• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
  Dry all parts thoroughly before storage.
• Store the product in a cool, dry and clean place, out of the reach of children and pets.

SPECIFICATION

Rated voltage: 220 - 240V 50Hz

Rated power : 50 W

Fan diameter: 16^ (approx. 406mm )

Weight: approx. 2.4 kg

Description Symbol Value Unit
Maximum fan flow rate F 58.48 m			3/min
Fan power input P 37.95 W
Service value SV 1.54 (m			3/min)/W
Standby power consumption	PSB	0	W
Fan sound power level	LWA	53.51	dB(A)
Maximum air velocity	c	2.09	m/s
Seasonal electricity consumption	Q	12.14	KWh/a
Measurement standard for service value	Commission Regulation (EU) No 206/2012 IEC 60879:1986 EN 50564:2011 EN 60704-2-7:1998 EN 60704-1:2010
Contact details for obtaining more information	Imtron GmbH Wankelstraße 5, 85046 Ingolstadt, Germany

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
