Technical Features	SILK'N AutoTwist HC1106 straightener with automatic rotation technology
Adjustable Temperature	Up to 2306C for quick and effective styling
Plate Type	Ceramic plates for even heat distribution
Usage	Ideal for straightening all hair types, even the curliest
Heating Time	Heats up quickly in a few seconds
Additional Features	Automatic shut-off for added safety
Maintenance	Clean the plates with a soft cloth after each use
Safety	Overheat protection and automatic shut-off
General Information	2-year warranty, lightweight for easy handling

Frequently Asked Questions - AutoTwist HC1106 SILKN

How do I turn on the SILK'N AutoTwist HC1106?

To turn on the SILK'N AutoTwist HC1106, plug the device into an electrical outlet and press the power button located on the handle.

What is the maximum temperature of the SILK'N AutoTwist HC1106?

The SILK'N AutoTwist HC1106 can reach a maximum temperature of 2306C.

Is the SILK'N AutoTwist HC1106 straightener suitable for all hair types?

Yes, the SILK'N AutoTwist HC1106 is designed to be used on all hair types, but it is recommended to adjust the temperature according to your hair texture.

How do I clean the SILK'N AutoTwist HC1106?

To clean the SILK'N AutoTwist HC1106, unplug the device and let it cool down. Use a soft, damp cloth to wipe the plates and do not immerse the device in water.

What should I do if the straightener does not heat up?

If the straightener does not heat up, check that it is properly plugged in and that the outlet is working. If the problem persists, contact customer service.

How long does it take for the SILK'N AutoTwist HC1106 to reach the desired temperature?

The SILK'N AutoTwist HC1106 usually reaches the desired temperature in about 30 seconds.

Does the SILK'N AutoTwist HC1106 have an automatic shut-off?

Yes, the SILK'N AutoTwist HC1106 is equipped with an automatic shut-off function that activates after 60 minutes of inactivity.

Can the SILK'N AutoTwist HC1106 be used on wet hair?

No, it is recommended to use the SILK'N AutoTwist HC1106 only on dry hair to avoid damaging the hair.

USER MANUAL AutoTwist HC1106 SILKN

Beautiful Technology

AUTOTWIST

HCl106

White electronic device labeled 'Silk'n' with a probe and connector (no readable text beyond brand name)

hanse control User-friendly Manual ID: #05007

EN USER MANUAL

Simple line drawing of a glass with a black rod inserted into it, showing liquid level (no text or symbols)

Copyright 2020 © Home Skinovations Ltd. All rights reserved.

Legal notice

Home Skinovations Ltd. reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Home Skinovations Ltd. is believed to be accurate and reliable at the time of publication. However, Home Skinovations Ltd. assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Home Skinovations Ltd.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Home Skinovations Ltd. Data is subject to change without notification.

Home Skinovations Ltd. has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Home Skinovations Ltd. Specifications are subject to change without notice.

Silk'n and the Silk'n logo are registered trademarks of Home Skinovations Ltd.

Invention Works B.V. Donk IB, 2991 LE Barendrecht, The Netherlands www.silkn.eu – [e-mail]

Table of contents

EN

I Package contents/device parts ____ 5

2 Technologies 5

3 General information 5

3.1 Reading and storing the user manual 5

3.2 Explanation of symbols 6

4 Safety 6

4.1 Proper use 6

4.2 Safety instructions ____ 7

5 Checking the product and package contents _ II

6 Operation ____ II

7 Cleaning 13

8 Storage 14

9 Troubleshooting 14

10 Technical data 15

II Disposal 15

11.1 Disposing of the packaging ____ 15

11.2 Disposing of the product ____ 15

12 Warranty 16

13 Customer service 16

EN

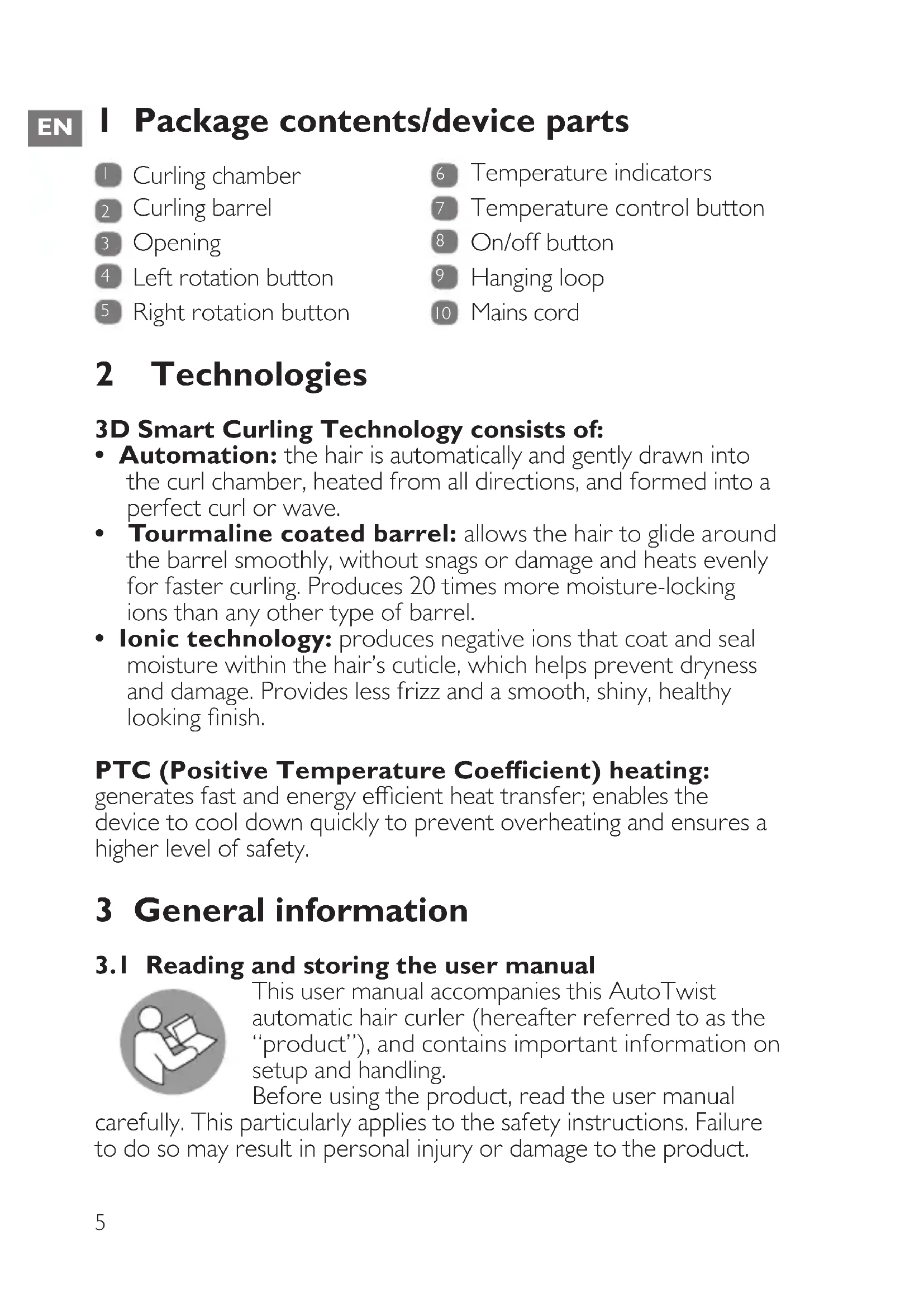

I Package contents/device parts

1 Curling chamber
2 Curling barrel
3 Opening
4 Left rotation button
5 Right rotation button

6 Temperature indicators
7 Temperature control button
8 On/off button
9 Hanging loop
10 Mains cord

2 Technologies

3D Smart Curling Technology consists of:

• Automation: the hair is automatically and gently drawn into the curl chamber, heated from all directions, and formed into a perfect curl or wave.
• Tourmaline coated barrel: allows the hair to glide around the barrel smoothly, without snags or damage and heats evenly for faster curling. Produces 20 times more moisture-locking ions than any other type of barrel.
• Ionic technology: produces negative ions that coat and seal moisture within the hair's cuticle, which helps prevent dryness and damage. Provides less frizz and a smooth, shiny, healthy looking finish.

PTC (Positive Temperature Coefficient) heating:

generates fast and energy efficient heat transfer; enables the device to cool down quickly to prevent overheating and ensures a higher level of safety.

3 General information

3.1 Reading and storing the user manual

Icon of a person using a laptop (no text or symbols)

This user manual accompanies this AutoTwist automatic hair curler (hereafter referred to as the “product”), and contains important information on setup and handling.

Before using the product, read the user manual

carefully. This particularly applies to the safety instructions. Failure to do so may result in personal injury or damage to the product.

The user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws. Store the user manual for further use. Make sure to include this user manual when passing the product on to third parties.

3.2 Explanation of symbols

The following symbols and signal words are used in this user manual, on the product or packaging.

WARNING!

This signal symbol/word designates a hazard with moderate risk, which may result in death or severe injury if not avoided.

NOTICE!

This signal word warns of possible damage to property.

This signal symbol provides you with useful additional information on handling and use.

This symbol identifies electrical devices that belong to the protection class II.

Declaration of Conformity: Products labelled with this symbol meet all applicable provisions of the European Economic Area.

Do not use the product in the vicinity of bathtubs, showers, washbasins or other vessels containing water.

4 Safety

4.1 Proper use

The product is exclusively designed for styling human hair. It is only intended for private use and not suitable for commercial purposes. Only use the product as described in this user manual. Any other use is considered improper and may result in damage to property or persons. The manufacturer cannot be held liable for damages or injury incurred through improper or incorrect use.

4.2 Safety instructions

WARNING! RISK OF ELECTRIC SHOCK!

• Only connect the product if the line voltage of the socket corresponds to the data on the rating plate.
• Only connect the product to an easily accessible socket so that you can quickly disconnect it from the mains supply in the event of a problem.
• Do not use the product if it is damaged or if the mains cord or plug is defective.
• If the mains cord of the product is damaged, the manufacturer, the customer service team or a person with similar qualifications must replace it to avoid risks.
• Do not open the housing; instead, have a qualified professional perform repairs. Contact the customer service team for this. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection or incorrect operation.
• Only parts that comply with the original device data may be used for repairs. This product contains electrical and mechanical parts which are essential for providing protection against sources of danger.
• Do not immerse the product or the mains

cord in water or other liquids.

• Never touch the mains plug with wet or damp hands.
• Keep the product away from water! Do not use the product near or over water contained in baths, washbasins, sinks etc.
• Do not use in the bathroom.
• Do not place the product such that there is a risk of it falling into a tub or sink.
• Do not reach for the product if it has fallen into water. Unplug immediately before retrieving it. Failure to unplug the product may result in an electric shock.
  • Always switch the product off when you are not using it, when you intend to clean it, or in the event of a malfunction.
• Never insert any objects into the housing.
• Do not pull the product out of the socket by the mains cord; instead, always pull it out by the plug itself. Never move, pull, or carry the product by the cord.
• Keep the product away from open flames and hot surfaces.
• Lay the mains cord so that it does not pose a tripping hazard.
• Do not kink the mains cord, wrap it around the product, or lay it over sharp edges.
• Only use the product indoors.

- Do not use an extension cord with the product.

WARNING! DANGER FOR CHILDREN AND PERSONS WITH IMPAIRED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE.

- The product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

• Children must not play with the product. Cleaning and user maintenance must not be performed by unsupervised children.
- Keep children under the age of 8 away from the product and mains cord.
- Do not leave the product unattended while it is plugged in.
- Make sure that children do not play with the plastic wrapping. They may get caught in it when playing and suffocate.

WARNING! RISK OF INJURY!

- This product is not designed for use on very long hair.

• This product reaches high temperatures and is not suitable to be used on either synthetic or real hair extensions.
• The product heats up during use. Always hold it by its handle when it is hot. Do not touch the hot surfaces of the product or let them come into direct contact with the skin.
• Do not use outdoors or operate where aerosol products are being used or where oxygen is being administered.
  • Always allow the product to cool down before storing or cleaning.

NOTICE! RISK OF DAMAGE!

• Place the product on an easily accessible, level, dry, heat-resistant and sufficiently stable surface. Do not place the product on the edge of the surface.
• Ensure that the mains cord does not come into contact with hot parts.
• Never attempt to clean the product by immersing it in water and do not use a steam cleaner to clean it.
• Never attempt to remove dust or foreign objects from inside the curling chamber using a pointed object.
• Keep the curling barrel clean from dust, dirt, hair mousse, spray and hair gel. Do not

use the product simultaneously with these styling products.

5 Checking the product and package contents

NOTICE! RISK OF DAMAGE!

- If you are not cautious when opening the packaging with a sharp knife or other pointed objects, you may quickly damage the product. Be very careful when opening it.

I. Take the product out of the packaging.
2. Check to make sure that all parts are included (see Fig. A).
3. Check whether the product or individual parts are damaged. If this is the case, do not use the product. Contact our Customer Service.

6 Operation

• Clean all parts of the product before first use as described in the chapter “Cleaning”.
• The product may emit a slight smell when it is first used. This is entirely safe and harmless. Ensure there is adequate ventilation in the room.
• Make sure your hair is clean, dry, combed and free from styling or care products (except for heat protection) before using the product.
• Separate your hair into horizontal sections. Pin or clip the sections you are not working on out of the way.

I. Connect the mains cord 10 to an easily accessible mains socket.
2. To switch the product on, press and hold the on/off button 8 until one of the temperature indicators 6 flashes and a beep sound is heard.

The product will heat up to the indicated operating temperature.

1. To select another operating temperature, press the temperature control button 7 repeatedly until the temperature indicator of the desired temperature setting starts flashing.

Options for selection: 150 °C, 170 °C, 190 °C and 210 °C.

The product will remember your last selected temperature setting for your next use.

Below are recommended settings. If you are unsure what temperature to use, start with a lower temperature and increase it as necessary.

Temperature Hair type

150 °C Fine, damaged or chemically treated hair

170 °C / 190 °C Normal hair

210 °C Thick, curly, not chemically treated hair

1. Wait until the indicator of the selected temperature setting stops flashing. The product is now ready for use.

2. Take a hair strand of 1–3 cm in width.

When working with naturally curly or longer length hair, use smaller sections. Also, for tighter curls use smaller sections, for looser curls and waves use larger sections.

1. Lay the hair strand in the curling chamber 1 through the opening 3 (see Fig. B).

Follow below instructions to style the left side of the hair. To style the right side of the hair, do the opposite.

If you want to curl the hair strand inwards, lay it to the left side of the curling barrel 2 (see Fig. C).

If you want to curl the hair strand outwards, lay it to the right side of the curling barrel (see Fig. D).

1. Let go of your hair strand.

2. Press and hold the left rotation button 4 (for inward curls) or right rotation button 5 (for outward curls).

The curling barrel will start to rotate in the selected rotation direction for about 9 seconds. The hair strand will be wound around the curling barrel (see Fig. E).

1. Once the curling barrel has stopped after around 9 seconds, you will hear 6 beep sounds. Release the rotation button.

2. When the last beep sound has stopped, gently pull the product away from your head so that the hair strand slips out of the curling chamber.

EN

To allow the curl to set, do not comb or brush the hair until it cools.

II. Repeat steps 5–10 for other hair strands.

To achieve different types of curls and waves, change the operating temperature and curling directions.

If you need to temporarily place the product on a surface, make sure it is heat-resistant to avoid damage.

1. When done, press and hold the on/off button until the temperature indicator turns off and a beep sound is heard.
   The product is now switched off.
2. Disconnect the mains cord from the mains socket.
3. Place the product on a heat-resistant surface until the product is completely cooled down.

• The product will automatically switch off when it is left idle for 30 minutes. This is designed as a safety feature only. Always remember to switch off and unplug the product after each use.
• The curling barrel may get stains if it is used on dyed hair.

7 Cleaning

WARNING! RISK OF INJURY!

• Always disconnect the mains cord and let the product completely cool down before cleaning.

NOTICE! RISK OF DAMAGE!

• Never immerse the product in water or other liquids. Make sure that no water or other liquids penetrate the housing.

• Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like.

• Clean the product with a damp cloth.

• Dry the product thoroughly with a soft and clean cloth.
• If necessary, use a soft brush to carefully clean the curling chamber ☐.

8 Storage

All parts must be completely cooled down and dry before being stored.

• Store the product in a clean and dry place, avoiding heat and direct sunlight.
• Store the product so that it is not accessible to children.
• Hang the product up on the hanging loop 9.

9 Troubleshooting

Some problems may be caused by minor faults that you can fix yourself. To do so, follow the instructions in the following table. If it is still not possible to resolve the problem, contact Customer Service. Do not repair the product yourself.

Fault Possible cause and solution
The product does not operate.	Make sure the product or mains cord is not defective. Contact our Customer Service if the problem persists.Make sure the mains cord is properly connected to a mains socket.
The hair does not curl.	The hair is not clean, dry or free of hair products (except for heat protection products).The curling barrel is not clean.The set operating temperature is too low.Select a higher temperature.
The hair is singed.	The set operating temperature is too high.Select a lower temperature.
The hair got tangled by incorrect use.	Turn the product off and resist from pulling it away from the hair. Gently tease the hair out from the curling chamber until fully released.

EN

10 Technical data

Model: HCI106

Voltage: 220–240 V, 50/60 Hz

Power: 33 W

Protection class: II

Operating temperature: 150–210 °C

Heat-up time: 90 sec. to reach 150 °C /

4–5 min. to reach 210 °C

Curling directions: Left / right

Automatic switch off: After idle for 30 minutes

Cord length:

2 m (including plug)

Weight: 439 g

Dimensions:

300 × 68 × 68 mm (product)

∅ 25 mm (curling barrel)

II Disposal

II.1 Disposing of the packaging

Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.

II.2 Disposing of the product

(Applicable in the European Union and other European countries with separate collection systems of recyclable materials)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Old appliances may not be disposed of in household waste!

Should the product no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or county. This ensures that old appliances are recycled in a professional manner and also rules out negative

consequences for the environment. For this reason, electrical equipment is marked with the symbol shown here.

12 Warranty

This product is covered by a 2-year warranty according to European regulations and law. The extent of the warranty on this product is limited to technical defects caused by faulty production processes. In the event you want to claim warranty please be sure to contact our customer service for instructions. They may be able to solve your problem without needing to return the product to the store or our service center. Our customer service is always pleased to help you!

13 Customer service

For more information about the products of Silk'n visit your regional Silk'n website: www.silkn.eu. If the device is damaged, defective, in need of repair or you need our assistance, please contact your nearest Silk'n service center. This manual is also available as a PDF download from: www.silkn.eu.

Service number: 0906-2130009

Email: [e-mail]

Icon of a person using a computer (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Icon of a person using a laptop inside a circular frame (no text or symbols)

Symbol of a trash bin crossed with no text or labels

Icon of a person using a laptop inside a circular frame (no text or symbols)

WAARSCHUWING! GEVAAR VOOR ELEKTROCUTIE!

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Symbol of a trash bin crossed with no text or symbols, accompanied by a black rectangular block below (no text or labels)

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Os Países-Baixos

www.silkn.eu – [e-mail]

Conteúdo

Icon of a person using a laptop inside a gray circle (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

Invention Works B.V.

Icon of a person using a laptop inside a circle (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Icon of a person using a laptop (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Icon of a person using a laptop inside a circular frame (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Icon of a person using a laptop inside a circle (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Icon of a person using a laptop inside a circular frame (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Icon of a person using a laptop (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Doc./Rev.-No. 197870-20200102

Silk'n®

Beautiful Technology

Invention Works B.V.

Donk IB, 2991 LE Barendrecht

The Netherlands

Four circular and recycling symbols: CE, a crescent, a person silhouette, and a recycling symbol (no text or labels)
