SilkyLocks RCY190i - Hair dryer SILKN - Free user manual and instructions

Product type	Ionic hair dryer
Model	RCY-190i (SilkyLocks)
Brand	SILKN (Silk'n)
Rated power	1850 – 2200 W
Mains voltage	220 – 240 V, 50/60 Hz
Protection class	II (double insulation)
Weight	569 g
Dimensions (L × W × H)	214 × 87 × 286 mm
Product code	HDIPEU001
Technologies	Negative ions, Balanced Heat System (EHD), Active Overheat Protection (AOPP)
Settings	6 air flow levels, 8 heat levels, smart touch screen, settings lock
Cold air function	Yes, cold air button to set the hairstyle
Included accessories	Concentrator, Diffuser
Hanging device	Yes, for wall storage
Intake filter	Removable, cleanable with a toothbrush
Safety	Automatic shut-off in case of overheating, do not use near water
Maintenance	Wipe the housing with a damp cloth, clean the filter regularly
Warranty	2 years
Customer service France	0891-655557, [e-mail]
Customer service Belgium	0900-25006, [e-mail]

Frequently Asked Questions - SilkyLocks RCY190i SILKN

How to use the smart touch screen?

Slide your finger up or down on the screen to adjust the air flow power and heat. The hair dryer offers 6 air flow levels and 8 heat levels. After adjustment, press the lock key to prevent accidental changes.

How to activate the cold air function?

Press and hold the cold air button (7) during use to get a cold air flow. Release it to return to the set temperature. This helps to set the hairstyle for longer.

What to do if the hair dryer stops suddenly?

It is probably an overheating. Unplug the device, let it cool down for at least 15 minutes. Before turning it on again, check that the air intake filter is not blocked by hair or dust.

How to clean the intake filter?

First unplug the device and let it cool down. Open the removable filter (mark ) and remove hair and dust using a toothbrush on the inside and outside. Replace the filter after cleaning.

Can I use the hair dryer in the bathroom?

Yes, but with caution: do not use it near a bathtub, shower, or sink filled with water. Unplug it after use. Never immerse it in water and do not touch it with wet hands.

What accessories are included with the SilkyLocks RCY190i?

The hair dryer comes with a concentrator (for targeted drying) and a diffuser (for curls and volume). Attach them to the air outlet after cooling.

How to adjust the speed and heat?

Turn on the device with the Power button. Slide your finger up on the touch screen to increase the level, down to decrease. You have 6 air flow settings and 8 heat settings. Use the lock key to lock the settings.

What does EHD technology mean?

EHD stands for Balanced Heat System. This technology distributes heat evenly to avoid burning hair while speeding up drying.

Is the hair dryer noisy?

The manual does not mention the sound level, but being an ionic model of 2200 W, it produces typical hair dryer noise. For quiet use, use the lowest air flow settings.

How to store the hair dryer after use?

Let the device cool down completely. Do not wrap the cable around the hair dryer. Use the hanging device to hang it. Store it in a dry, dust-free place.

USER MANUAL SilkyLocks RCY190i SILKN

Beautiful Technology

SILKYLOCKS 2200W

RCY-190i

White hair dryer with digital display and a circular tray of food items (no text or symbols visible)

EN USER MANUAL

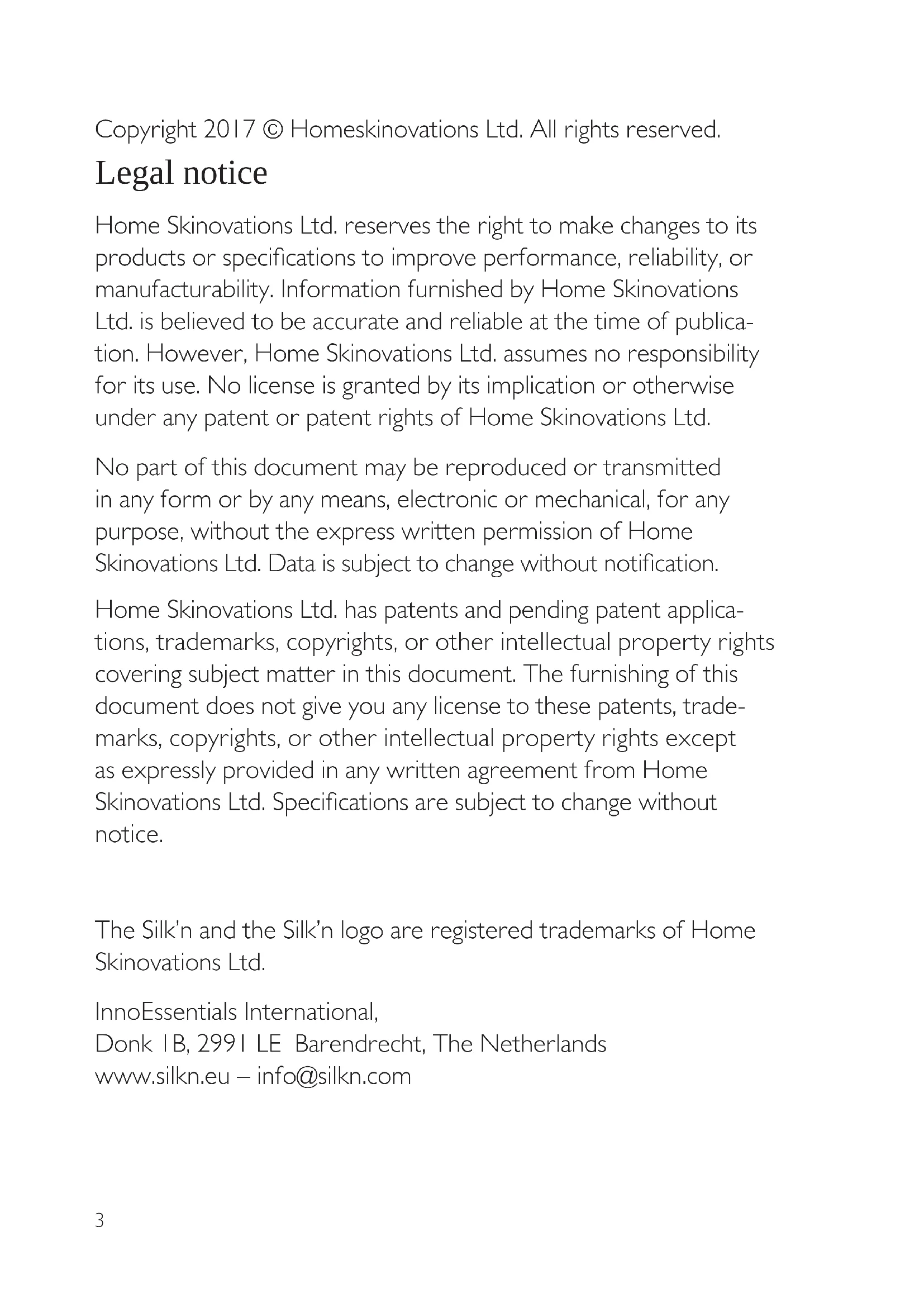

Copyright 2017 © Homeskinovations Ltd. All rights reserved.

Legal notice

Home Skinovations Ltd. reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Home Skinovations Ltd. is believed to be accurate and reliable at the time of publication. However, Home Skinovations Ltd. assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Home Skinovations Ltd.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Home Skinovations Ltd. Data is subject to change without notification.

Home Skinovations Ltd. has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Home Skinovations Ltd. Specifications are subject to change without notice.

The Silk'n and the Silk'n logo are registered trademarks of Home Skinovations Ltd.

InnoEssentials International, Donk IB, 2991 LE Barendrecht, The Netherlands www.silkn.eu – [e-mail]

Table of contents

I Package contents/device parts 5 ____
2 Technologies 5
3 General information 5

3.1 Reading and storing the user manual 5 ____

3.2 Explanation of symbols 6 ____

4 Safety 7

4.1 Proper use 7
4.2 Safety instructions 7

5 Checking the hair dryer and package contents _13
6 Operation 13

6.1 Switching on/off and adjusting fan/heat 14

6.2 Cooling function 14
6.3 Attaching the accessories 14

7 Cleaning 15

7.1 Cleaning the housing and the accessories 15
7.2 Cleaning the inlet filter 15

8 Storage 15

9 Troubleshooting 16

10 Technical data 16
II Disposal 17

II.1 Disposing of the packaging 17
11.2 Disposing of the hair dryer 17
12 Warranty 18
13 Customer Service 18

I. Package contents/device parts

Removable filter

6 Lock button

2 Hanging loop

7 Cool shot button

3 Mains plug

8 Concentrator

4 Power button

9 Diffuser

5 Smart touch display

2. Technologies

Ionic technology: produces a stream of negative ions which reduce the drying time significantly and eliminate frizz for a smooth, shiny, healthy looking finish.

Equilibrium Heat Distribution (EHD) technology: balances heat to protect hair against burning, and enables drying hair faster.

Active Overheating Protection (AOPP) system: ensures the hair dryer will automatically shut down in order to protect against overheating. After about 15 minutes it will be ready for use again.

3. General information

3.1 Reading and storing the user manual

Simple icon of a person using a laptop (no text or symbols)

This user manual accompanies this SilkyLocks 2200 W Ionic Hair Dryer (hereafter referred to as the “hair dryer”), and contains important information on setup and handling.

Before using the hair dryer, read the user manual carefully. This particularly applies to the safety instructions. Failure to do so may result in personal injury or damage to the hair dryer.

The user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws.

Store the user manual for further use. Make sure to include this user manual when passing the hair dryer on to third parties.

3.2 Explanation of symbols

The following symbols and signal words are used in this user manual, on the hair dryer or on the packaging.

WARNING!

This signal symbol/word designates a hazard with moderate risk, which may result in death or severe injury if not avoided.

NOTICE!

This signal word warns of possible damage to property.

This signal symbol provides you with useful additional information on handling and use.

Declaration of Conformity: Products labelled with this symbol meet all applicable provisions of the European Economic Area.

The symbol indicates that the product is of CLASS II (double insulated) construction. It does not require a safety connection to electrical earth (ground).

Do not use the hair dryer in the vicinity of bathtubs, showers, washbasins or other vessels containing water.

The word “GS” stands for tested safety. Products marked with this symbol meet the requirements of the German Product Safety Act (ProdSG).

EN

4. Safety

4.1 Proper use

The hair dryer is exclusively designed for drying and styling real human head hair. It is only intended for private use and not suitable for commercial purposes.

Only use the hair dryer as described in this user manual. Any other use is considered improper and may result in damage to property or persons.

The manufacturer or vendor cannot be held liable for damages or injury incurred through improper or incorrect use.

4.2 Safety instructions

WARNING! RISK OF ELECTRIC SHOCK!

• Only connect the hair dryer if the line voltage of the socket corresponds to the data on the rating plate.
• Only connect the hair dryer to an easily accessible socket so that you can quickly disconnect it from the mains supply in the event of a problem.
• Do not use the hair dryer if it is damaged or if the mains cord or plug is defective. If the mains cord of the hair dryer is damaged, the manufacturer or customer service must replace it to avoid risks.

- Do not open the housing; instead, have a qualified professional perform repairs. Contact the customer service team for this. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection or incorrect operation.

- Only parts that comply with the original device data may be used for repairs. This hair dryer contains electrical and mechanical parts which are essential for providing protection against sources of danger.

- Keep the hair dryer away from water! Do not use the hair dryer near or over water contained in baths, washbasins, sinks etc. When used in a bathroom, unplug the hair dryer after use since the proximity of water presents a risk, even when the hair dryer is switched off.

- Do not immerse the hair dryer or the mains cord in water or other liquids. Do not place the hair dryer such that there is a risk of it falling into a tub or sink.

• Never reach to retrieve an electrical device if it has fallen into water. In such a case immediately disconnect the mains plug.
• Always switch the hair dryer off and unplug it when you are not using it, when you intend to clean it, or in the event of a malfunction.
• Never touch the mains plug with wet or damp hands.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Do not use the hair dryer with an external timer or separate remote control system.
• Do not use an extension cord with the hair dryer.
• Never insert any objects into the housing.

• Do not pull the mains plug out of the socket by the cord; instead, always pull it out by the plug itself. Never move, pull, or carry the hair dryer by its mains cord.

• Keep the hair dryer and mains cord away from open flames and hot surfaces.

• Lay the mains cord so that it does not pose a tripping hazard.
• Do not kink the mains cord or wrap it around the hair dryer. Do not lay the mains cord over sharp edges.
• Never attempt to remove dust or foreign objects from inside the hair dryer using a pointed object.

WARNING! DANGER FOR CHILDREN AND PERSONS WITH IMPAIRED CAPACITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE.

- The hair dryer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the hair dryer by a person responsible for their safety. Children must not play with the hair dryer. Cleaning and user

EN

maintenance must not be performed by unsupervised children.

• Keep children under the age of eight away from the hair dryer and mains cord.
• Make sure that children do not play with the plastic wrapping. They may get caught in it when playing and suffocate.

WARNING! RISK OF INJURY!

• Never leave the hair dryer unattended while it is plugged in.
• Never block the air inlet or outlet. Keep the air inlet away from long hair or objects that could get sucked in.
• Do not place the hair dryer on a soft surface, such as a bed or couch, where the air inlet or outlet may be blocked.
• Do not use outdoors or operate where aerosol products are being used or where oxygen is being administered.
  • Active Overheating Protection (AOPP) system ensures the hair dryer will automatically shut down when the hair dryer

overheats. Unplug the hair dryer and let it cool down for a few minutes. Before you switch the hair dryer again, check the inlet to make sure it is not blocked by hair, fluff, etc.

• Always switch the hair dryer off before putting it down, even if it is only for a moment.
• Do not direct the flow of hot air into eyes or other heat-sensitive body parts.
• Do not touch the hot surfaces of the hair dryer. Always allow the hair dryer and its attachments to cool down before storing or cleaning.

NOTICE! RISK OF DAMAGE!

• Place the hair dryer on an easily accessible, level, dry, heat-resistant and sufficiently stable surface. Do not place the hair dryer on the edge of the surface.
• Ensure that the mains cord does not come into contact with hot parts.
• Never fill the hair dryer with liquid.
• Stop using the hair dryer if its plastic

parts exhibit cracks or breaks or are deformed. Only replace damaged parts with corresponding original spare parts.

5. Checking the hair dryer and package contents

NOTICE! RISK OF DAMAGE!

- If you are not cautious when opening the packaging with a sharp knife or other pointed object, you may quickly damage the hair dryer. Be very careful when opening it.

I. Take the hair dryer out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the hair dryer or individual parts are damaged. If this is the case, do not use the hair dryer. Contact our customer service.

6. Operation

• Clean all parts of the hair dryer before first use as described in the chapter “Cleaning”.
• Before using the hair dryer for the first time, switch it on for a few minutes and set it to the highest speed/temperature. As a result of the manufacturing process, you may notice a slight odour. This is normal and only occurs during first use. Ensure that the room is well ventilated.

6.1 Switching on/off and adjusting fan/heat

1. Connect the mains plug 3 with an easily accessible socket.
2. Press the power button 4 to switch on the hair dryer.
3. Slide your finger on the smart touch display 5 to adjust the fan/heat for the airflow. The hair dryer features six fan settings and eight heat settings. Slide upwards on the display for a higher fan/heat setting; slide downwards for a lower fan/heat setting.
4. After the fan/heat level is selected, press the lock button to prevent unintended setting changes.
5. Dry your hair by making brushing movements with the hair dryer at a small distance from the hair. Switch off and unplug the hair dryer after drying.

6.2 Cooling function

For long-lasting styling results, you can press and hold the cool shot button 7 to get a cool air flow during operation. When you no longer need the cool airflow, release the button.

6.3 Attaching the accessories

Snap the concentrator 8 or the diffuser 9 onto the hair dryer. Detach it by pulling it off after it has cooled down.

The concentrator enables you to direct the airflow onto specific sections of hair for styling with a brush or comb.

The diffuser emits a gentle airflow to create curls and natural waves in the lengths and tips, as well as add volume at the roots.

7. Cleaning

NOTICE! RISK OF DAMAGE!

• Always unplug and let the hair dryer completely cool down before cleaning.
- Never immerse the hair dryer in water or other liquids. Make sure that no water or other liquids penetrate the housing.
- Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like.

7.1 Cleaning the housing and the accessories

Wipe the housing and the attachments with a damp cloth. Allow them to dry completely.

7.2 Cleaning the inlet filter

Open the removable filter 1 and scrub away hairs and dust on both internal and external side of the filter using a toothbrush. Replace the filter onto the hair dryer.

8. Storage

• All parts must be completely dry before being stored.
• Do not wind the mains cord round the hair dryer.
• You can use the hanging loop 2 to hang up the hair dryer for storage purposes.

9. Troubleshooting

Some problems may be caused by minor faults that you can fix yourself. To do so, follow the instructions in the following table. If it is still not possible to resolve the problem, contact customer service. Do not repair the hair dryer yourself.

Fault Possible cause and solution
The hair dryer is not working.	The mains plug has not been inserted in the socket. Connect the mains plug with the socket.
	The hair dryer may have overheated and switched itself off. Unplug the hair dryer and let it cool down for a few minutes. Before switching the hair dryer on again, make sure the air inlet is not blocked by hair or foreign objects.

10. Technical data

Model: RCY-190i

Mains voltage: 220–240 V, 50/60 Hz

Power rating: 1,850–2,200 W

Protection class: II

Weight: 569 g

Dimension (L × W × H): 214 × 87 × 286 mm

Product code: HDIPEU001

II. Disposal

II.1 Disposing of the packaging

Sort the packaging before you dispose of it.

Dispose of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.

II.2 Disposing of the hair dryer

(Applicable in the European Union and other European countries with separate collection systems of recyclable materials)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Old appliances may not be disposed of in the household waste!

Should the hair dryer no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or county. This ensures that old

appliances are recycled in a professional manner and also rules out negative consequences for the environment. For this reason, electrical equipment is marked with the symbol shown here.

12. Warranty

This product is covered by a 2 year warranty according to European regulations and law. The extent of the warranty on this product is limited to technical defects caused by faulty production processes. In the event you want to claim warranty please be sure to contact our customer service for instructions. They may be able to solve your problem without needing to return the product to the store or our service center. Our customer service is always pleased to help you!

13. Customer service

For more information about the products of Silk'n visit your regional Silk'n website: www.silkn.eu. If the device is damaged, defective, in need of repair or you need our assistance, please contact your nearest Silk'n service center. This manual is also available as a PDF download from: www.silkn.eu.

Service number: 0906-2130009 / 0031(0)180-330550 Email: [e-mail] / [e-mail]

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a trash bin with crossed x-bracing (no text or symbols)

InnoEssentials International,

Donk IB, 2991 LE Barendrecht, Nederland,

www.silkn.eu – [e-mail]

Inhoudsopgave

WAARSCHUWING! GEVAAR VOOR ELEKTROCUTIE!

Productcode: HDIPEU001

II. Verwijdering

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple icon of a person using a computer (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a black rectangle below (no text or labels)

Inno essentials

InnoEssentials International

Donk Ib, 2991 LE Barendrecht

The Netherlands

E-mail: [e-mail]
