Product type	Hair straightener
Brand	SILKN
Model	GoSleek IR A5764
Dimensions (L × W × H)	260 × 42 × 35 mm
Weight	324 g
Power supply	110-240 V ~, 50/60 Hz, 42 W
Protection class	II (double insulation)
Adjustable temperatures	5 levels: 130 °C, 150 °C, 170 °C, 190 °C, 210 °C
Heating time	30 seconds at 130 °C, 2 minutes at 210 °C
Plate dimensions	35 × 90 mm
Plate coating	Ceramic
Integrated technologies	Infrared, PTC (positive temperature coefficient)
Automatic safety shut-off	After 1 hour of inactivity
Included accessories	Heat-resistant mat / storage pouch
Care and cleaning	Wipe with a damp cloth; do not immerse
Warranty	2 years
Customer service (France)	0891-655557, [e-mail]
Customer service (Belgium)	0800-29316, [e-mail]
Repairability	Repairs by a professional only; original parts required

Frequently Asked Questions - GoSleek IR A5764 SILKN

How to turn on and adjust the temperature of the GoSleek IR A5764 straightener?

Plug in the device, then press and hold the control button 3 to turn it on. The temperature display flashes until it reaches the default temperature of 190 °C. To change the temperature, press the control button several times to cycle through the 5 levels: 130 °C, 150 °C, 170 °C, 190 °C and 210 °C. The device heats up quickly, for example in 30 seconds for 130 °C.

Which temperature to choose based on my hair type?

Recommendations are: 130 °C / 150 °C for fine, damaged or chemically treated hair; 170 °C / 190 °C for normal hair; 210 °C for thick, curly or chemically untreated hair. If in doubt, start with a low temperature and increase if necessary.

How to properly straighten hair with this straightener?

Hair must be clean, dry and free of styling products. Brush to detangle, then divide into sections the width of the plates. Turn on the device and select the appropriate temperature. Stretch a section, place the straightener near the roots by clamping the plates, then glide slowly towards the tips. Recommended speed: 5-8 cm/s for fine hair, 5 cm/s for normal, 2-3 cm/s for thick. Do not stay too long in one place to avoid burning hair.

What to do if the straightener does not heat up?

First check that the power plug is properly inserted into an accessible power outlet. If the device still does not turn on, contact customer service. Do not attempt to repair the device yourself.

How to clean the GoSleek IR straightener?

Always unplug the device and let it cool completely before cleaning. Wipe the plates and housing with a damp cloth. Never immerse the device in water or other liquids. Do not use aggressive products, metal brushes or sharp objects.

How long does the automatic safety shut-off last?

The straightener turns off automatically after 1 hour of inactivity. This is a safety feature to prevent any risk if you forget to turn it off.

Can I use the straightener on wet hair?

No, hair must be clean and dry before straightening. Using on wet hair can damage hair and the device, and poses a risk of burns or electric shock. Also avoid using the straightener near water.

What to do if my hair remains frizzy after straightening?

Check that the plates are clean and that the selected temperature is suitable for your hair type. If necessary, increase the temperature by one level. Also make sure hair is perfectly dry and free of product residue. For better results, straighten thinner sections and slow down the gliding speed.

How to store the straightener after use?

After use, turn off the device by pressing and holding the control button until the lights go out. Unplug it and let it cool completely on the heat-resistant mat. Store it in the provided pouch or hang it by the hanging loop. Do not wrap the cord around the device.

What is the warranty of the straightener and how to contact customer service?

The product comes with a 2-year warranty covering manufacturing defects. For any claims or assistance, contact Silk'n customer service: in France at 0891-655557 or [e-mail]; in Belgium at 0800-29316 or [e-mail]. Do not attempt to repair the device yourself.

USER MANUAL GoSleek IR A5764 SILKN

Beautiful Technology

GoSleek IR

A5764

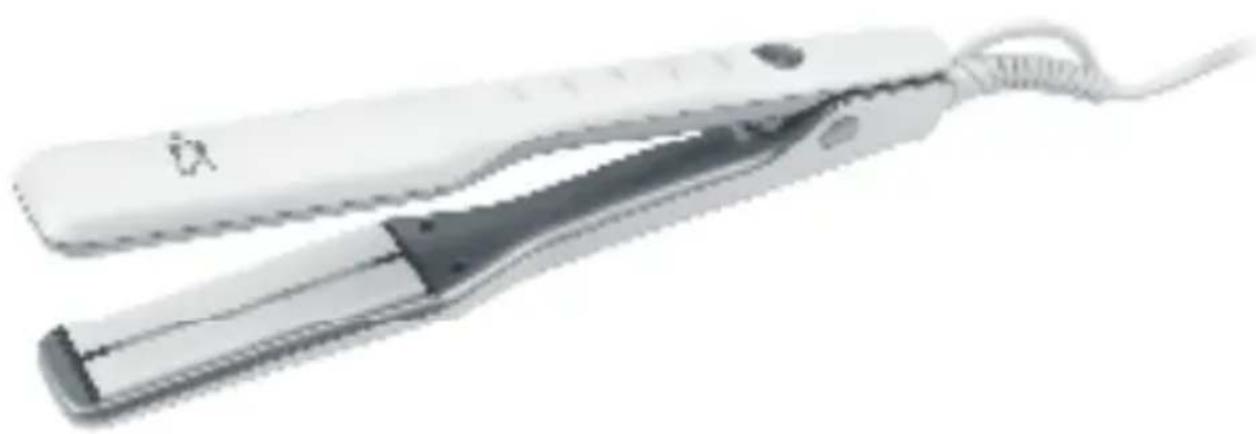

White ironing iron with a coiled cord, shown in studio style (no text or symbols visible)

EN USER MANUAL

Illustration of a person styling hair with a comb, no text or symbols present

EN

Copyright 2019 © Home Skinovations Ltd. All rights reserved.

Legal notice

Home Skinovations Ltd. reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Home Skinovations Ltd. is believed to be accurate and reliable at the time of publication. However, Home Skinovations Ltd. assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Home Skinovations Ltd.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Home Skinovations Ltd. Data is subject to change without notification.

Home Skinovations Ltd, has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Home Skinovations Ltd. Specifications are subject to change without notice.

Silk'n and the Silk'n logo are registered trademarks of Home Skinovations Ltd.

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, The Netherlands

www.silkn.eu - [e-mail]

Contents

I. Package contents/device parts ____ 5
2. Technologies 5
3. General information 5
3.1 Reading and storing the user manual 5
3.2 Explanation of symbols 5
4. Safety 6
4.1 Proper use 6
4.2 Safety instructions 6
5. Checking the hair straightener and package contents ____ II
6. Operation ____ II
6.1 Before straightening ____ ||
6.2 Switching on/off and selecting a temperature ____ I I
6.3 Straightening hair 12
7. Cleaning 13
8. Storage 13
9. Troubleshooting 14
10. Technical data 14
II. Disposal 14
11.1 Disposing of the packaging ____ 14
11.2 Disposing of the hair straightener ____ 15
12. Warranty 15
13. Customer service 15

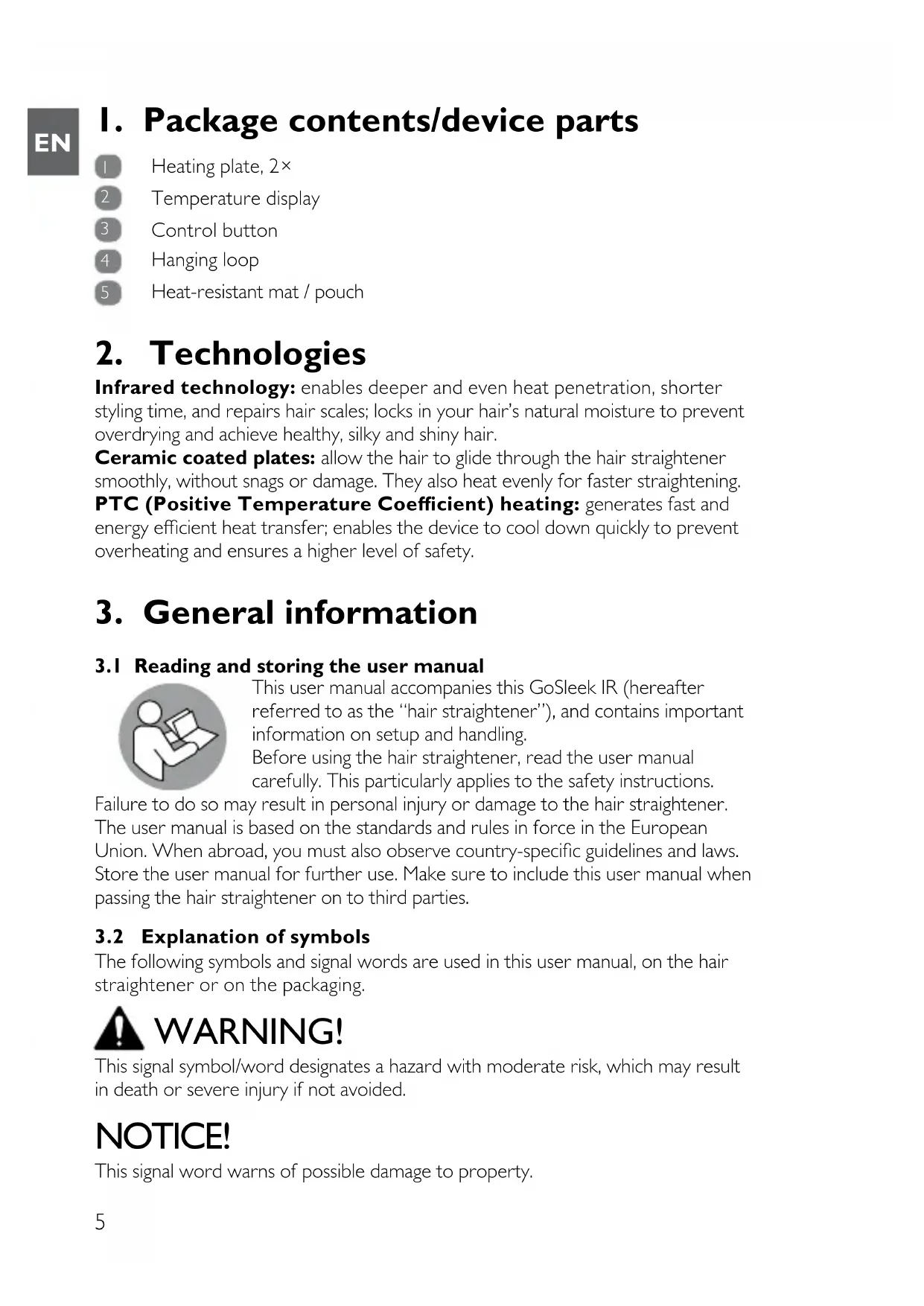

I. Package contents/device parts

1 Heating plate, 2×
2 Temperature display
3 Control button
4 Hanging loop
5 Heat-resistant mat / pouch

2. Technologies

Infrared technology: enables deeper and even heat penetration, shorter styling time, and repairs hair scales; locks in your hair's natural moisture to prevent overdrying and achieve healthy, silky and shiny hair.

Ceramic coated plates: allow the hair to glide through the hair straightener smoothly, without snags or damage. They also heat evenly for faster straightening.

PTC (Positive Temperature Coefficient) heating: generates fast and energy efficient heat transfer; enables the device to cool down quickly to prevent overheating and ensures a higher level of safety.

3. General information

3.1 Reading and storing the user manual

Simple icon of a person using a laptop (no text or symbols)

This user manual accompanies this GoSleek IR (hereafter referred to as the “hair straightener”), and contains important information on setup and handling. Before using the hair straightener, read the user manual carefully. This particularly applies to the safety instructions.

Failure to do so may result in personal injury or damage to the hair straightener. The user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws. Store the user manual for further use. Make sure to include this user manual when passing the hair straightener on to third parties.

3.2 Explanation of symbols

The following symbols and signal words are used in this user manual, on the hair straightener or on the packaging.

WARNING!

This signal symbol/word designates a hazard with moderate risk, which may result in death or severe injury if not avoided.

NOTICE!

This signal word warns of possible damage to property.

i CE □ prohibition

This signal symbol provides you with useful additional information on handling and use.

Declaration of Conformity: Products labelled with this symbol meet all applicable provisions of the European Economic Area.

The symbol indicates that the product is of CLASS II (double insulated) construction. It does not require a safety connection to electrical earth (ground).

Do not use the hair straightener in the vicinity of bathtubs, showers, washbasins or other vessels containing water.

4. Safety

4.1 Proper use

The hair straightener is exclusively designed for straightening human hair only. It is only intended for private use and not suitable for commercial purposes.

Only use the hair straightener as described in this user manual. Any other use is considered improper and may result in damage to property or persons. The manufacturer or vendor cannot be held liable for damages or injury incurred through improper or incorrect use.

4.2 Safety instructions

WARNING! RISK OF ELECTRIC SHOCK!

• Only connect the hair straightener if the line voltage of the socket corresponds to the data on the rating plate.
• Only connect the hair straightener to an easily accessible socket so that you can quickly disconnect it from the mains supply in the event of a problem.
• Do not use the hair straightener if it is damaged or if the mains cord or plug is defective. If the mains cord of the hair straightener is damaged, the manufacturer

EN

or customer service must replace it to avoid risks.

• Do not open the housing; instead, have a qualified professional perform repairs. Contact the customer service team for this. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection or incorrect operation.
• Only parts that comply with the original device data may be used for repairs. This hair straightener contains electrical and mechanical parts which are essential for providing protection against sources of danger.
• Keep the hair straightener away from water! Do not use the hair straightener near or over water contained in baths, washbasins, sinks etc. When used in a bathroom, unplug the hair straightener after use since the proximity of water presents a risk, even when the hair straightener is switched off.
• Do not immerse the hair straightener or the mains cord in water or other liquids. Do not place the hair straightener such that there is a risk of it falling into a tub or sink.
• Never reach to retrieve an electrical device

if it has fallen into water. In such a case immediately disconnect the mains plug.

• Always switch the hair straightener off and unplug it when you are not using it, when you intend to clean it, or in the event of a malfunction.
• Never touch the mains plug with wet or damp hands.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Do not use an extension cord with the hair straightener.
• Never insert any objects into the housing.
• Do not pull the mains plug out of the socket by the cord; instead, always pull it out by the plug itself. Never move, pull, or carry the hair straightener by its mains cord.
• Keep the hair straightener and mains cord away from open flames and hot surfaces.
• Lay the mains cord so that it does not pose a tripping hazard.
• Do not kink the mains cord or wrap it around the hair straightener. Do not lay the

EN

mains cord over sharp edges.

- Never attempt to remove dust or foreign objects from inside the hair straightener using a pointed object.

WARNING! DANGER FOR CHILDREN AND PERSONS WITH IMPAIRED CAPACITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE.

- The hair straightener is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the hair straightener by a person responsible for their safety. Children must not play with the hair straightener. Cleaning and user maintenance must not be performed by unsupervised children.

• Keep children under the age of eight away from the hair straightener and mains cord.
• Make sure that children do not play with the plastic wrapping. They may get caught in it when playing and suffocate.

WARNING! RISK OF INJURY!

- The hair straightener heats up during use.

Always hold it by its handle when it is hot.

• Never leave the hair straightener unattended while it is plugged in.
• Do not use outdoors or operate where aerosol products are being used or where oxygen is being administered.
  • Always switch the hair straightener off before putting it down, even if it is only for a moment.
• Do not touch the hot surfaces of the hair straightener. Always allow the hair straightener to cool down before storing or cleaning.

NOTICE! RISK OF DAMAGE!

• Place the hair straightener on an easily accessible, level, dry, heat-resistant and sufficiently stable surface. Do not place the hair straightener on the edge of the surface.
• Ensure that the mains cord does not come into contact with hot parts.
• Never fill the hair straightener with liquid.
• Stop using the hair straightener if its plastic parts exhibit cracks or breaks or are deformed. Only replace damaged parts with corresponding original spare parts.
• Do not operate the hair straightener if it has been dropped or is damaged in any way.

Have the hair straightener checked and/or repaired by qualified technicians if necessary.

5. Checking the hair straightener and package contents

NOTICE! RISK OF DAMAGE!

- If you are not cautious when opening the packaging with a sharp knife or other pointed object, you may quickly damage the hair straightener. Be very careful when opening it.

I. Take the hair straightener out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the hair straightener or individual parts are damaged. If this is the case, do not use the hair straightener. Contact our customer service.

6. Operation

• Clean all parts of the hair straightener before first use as described in the chapter “Cleaning”.
• Before using the hair straightener for the first time, switch it on for a few minutes and set it to the highest temperature. As a result of the manufacturing process, you may notice a slight odour. This is normal and only occurs during first use. Ensure that the room is well ventilated.

6.1 Before straightening

• The hair should be clean, dry and free of styling products (except special products that promote hair straightening).
  • Thoroughly comb the hair so that there are no knots in it.
• Separate your hair into horizontal sections. Each section should be around the width and thickness of a heating plate.
  Pin or clip the sections you are not working on out of the way.

6.2 Switching on/off and selecting a temperature

I. Connect the mains plug to an easily accessible socket.
2. Press and hold the control button 3 to switch on the hair straightener. The

indicator lights on the temperature display 2 flash until the hair straightener has reached the default operating temperature (190 °C) (see Fig. B).

1. To select another operating temperature, press the control button repeatedly to cycle through the temperature settings and select a desired one. There are five temperature settings: 130 °C, 150 °C, 170 °C, 190 °C and 210 °C. Once a new temperature setting is selected, the indicator lights on the display flash until the hair straightener has reached the newly selected operating temperature. Below are recommended settings. If you are unsure, start with a lower temperature and increase the temperature as necessary.

Temperature Hair type

130 °C / 150 °C Fine, damaged or chemically treated

170 °C / 190 °C Normal

210 °C Thick, curly, not chemically treated

1. To switch off the hair straightener, press and hold the control button until all indicator lights on the temperature display go out. For safety purposes, the hair straightener will automatically shut down after 1 hour (Auto Shut Off Protection) in case you forget to switch it off.

6.3 Straightening hair

WARNING! RISK OF INJURY!

• Ensure that the heating plates do not touch your scalp.
• Never touch the heating plates and the upper part of the hair straightener during use.
  • Always pull the hair straightener through the hair. Never stay at one position for too long. You may singe your hair!

I. Prepare the hair as described in the chapter "Before straightening".
2. Switch on the hair straightener and select a desired operating temperature (see chapter "Switching on/off and selecting a temperature").
3. Take a hair section and pull it taut by holding its end tightly between your index and middle finger of the hand that is NOT holding the hair straightener.
4. Clamp the hair section near the root by pressing the heating plates together.
5. Glide the hair straightener downwards from the root to the tip through the heating plates (see Fig. C).

Control the speed for better results in a single glide. Below are recommendations.

Hair type Speed
Fine Around 5–8	cm per second
Normal Around 5	cm per second
Thick Around 2–3	cm per second

1. Proceed in the same way for every hair section.

While sectioning the hair, you can let the hair straightener rest on the heat-resistant mat 5 included.

1. When done, press and hold the control button straightener off.

3 to switch the hair

1. Unplug the hair straightener and allow it to cool down completely on the heat-resistant mat.

7. Cleaning

WARNING! RISK OF INJURY!

• Always unplug and let the hair straightener completely cool down before cleaning.

NOTICE! RISK OF DAMAGE!

- Never immerse the hair straightener in water or other liquids. Make sure that no water or other liquids penetrate the housing.

- Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like.

Wipe the hair straightener with a damp cloth. Allow it to dry completely.

8. Storage

• All parts must be completely dry before being stored.

• Do not wind the mains cord round the hair straightener.

• Keep the hair straightener away from children.

• Use the pouch 5 to store the hair straightener or hang it up on the hanging loop 4.

9. Troubleshooting

Some problems may be caused by minor faults that you can fix yourself. To do so, follow the instructions in the following table. If it is still not possible to resolve the problem, contact customer service. Do not repair the hair straightener yourself.

Fault Possible cause and solution
The hair straightener is not working.	The mains plug has not been inserted into a socket. Connect the mains plug to a socket.
The hair does not straighten.	The hair is not clean, dry, or free of hair products (except hair straightening products).The heating plates are not clean.The set operating temperature is too low. Select a higher temperature.
The hair is singed.	The set operating temperature is too high. Select a lower temperature. Never stay at a position on the hair for too long.

10. Technical data

Model: A5764

Mains voltage: 110–240 V\~, 50/60 Hz

Power rating: 42 W

Protection class:

Weight: 324 g

Dimensions (L × W × H): 260 × 42 × 35 mm

Heating plate dimensions (L × H): 35 × 90 mm

Heat-up time: 30 sec. to reach 130 °C / 2 min. to reach 210 °C

II. Disposal

II.1 Disposing of the packaging

Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.

11.2 Disposing of the hair straightener

(Applicable in the European Union and other European countries with separate collection systems of recyclable materials)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Old appliances may not be disposed of in the household waste!

Should the hair straightener no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or county. This ensures that old appliances are recycled in a professional manner and also rules out negative consequences for the environment. For this reason, electrical equipment is marked with the symbol shown here.

12. Warranty

This product is covered by a 2-year warranty according to European regulations and law. The extent of the warranty on this product is limited to technical defects caused by faulty production processes. In the event you want to claim warranty please be sure to contact our customer service for instructions. They may be able to solve your problem without needing to return the product to the store or our service center. Our customer service is always pleased to help you!

13. Customer service

For more information about the products of Silk'n visit your regional Silk'n website: www.silkn.eu. If the device is damaged, defective, in need of repair or you need our assistance, please contact your nearest Silk'n service center. This manual is also available as a PDF download from: www.silkn.eu.

Service number: 0906-2130009

Email: [e-mail]

Rechtlicher Hinweis

Invention Works B.V.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Invention Works B.V.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Nederland

www.silkn.eu - [e-mail]

Inhoudsopgave

WAARSCHUWING! GEVAAR VOOR ELEKTROCUTIE!

Simple line drawing of a trash bin with no text or symbols

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Países Bajos

www.silkn.eu - [e-mail]

Índice

Symbol of a trash bin crossed with no visible text or labels

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Os Países-Baixos

www.silkn.eu - [e-mail]

Conteúdo

Symbol of a trash bin with crossed x and y lines, no text or numbers present

Invention Works B.V.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Hollanda

www.silkn.eu - [e-mail]

İçindekiler

i CE □ prohibition

Ölçüler (U × G × D): 260 × 42 × 35 mm

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Paesi Bassi

www.silkn.eu - [e-mail]

Sommario

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Nederland

www.silkn.eu - [e-mail]

Innhold

I. Leveringsomfang/apparatets deler ____ 130

1. Teknologier 130

2. Generelle opplysninger 130

3.1 Les og ta vare på bruksanvisningen ____ 130

3.2 Symbolforklaring 130

1. Sikkerhet 131

4.1 Riktig bruk 131

i CE □ prohibition symbol

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Nederländerna

www.silkn.eu - [e-mail]

Innehåll

i CE □ prohibition symbol

Simple line drawing of a trash bin with no text or symbols

Invention Works B.V.

Donk IB, 2991 LE Barendrecht, Nederlandene

www.silkn.eu - [e-mail]

DA

Indhold

I. Leveringsomfang/apparatdele ____ 154

1. Teknologier 154

2. Generelle informationer 154

Beautiful Technology

Invention Works B.V.

Donk IB, 2991 LE Barendrecht

The Netherlands

Four recycling symbols: CE, circular arrow, person icon, and recycling symbol (no text or numbers)
