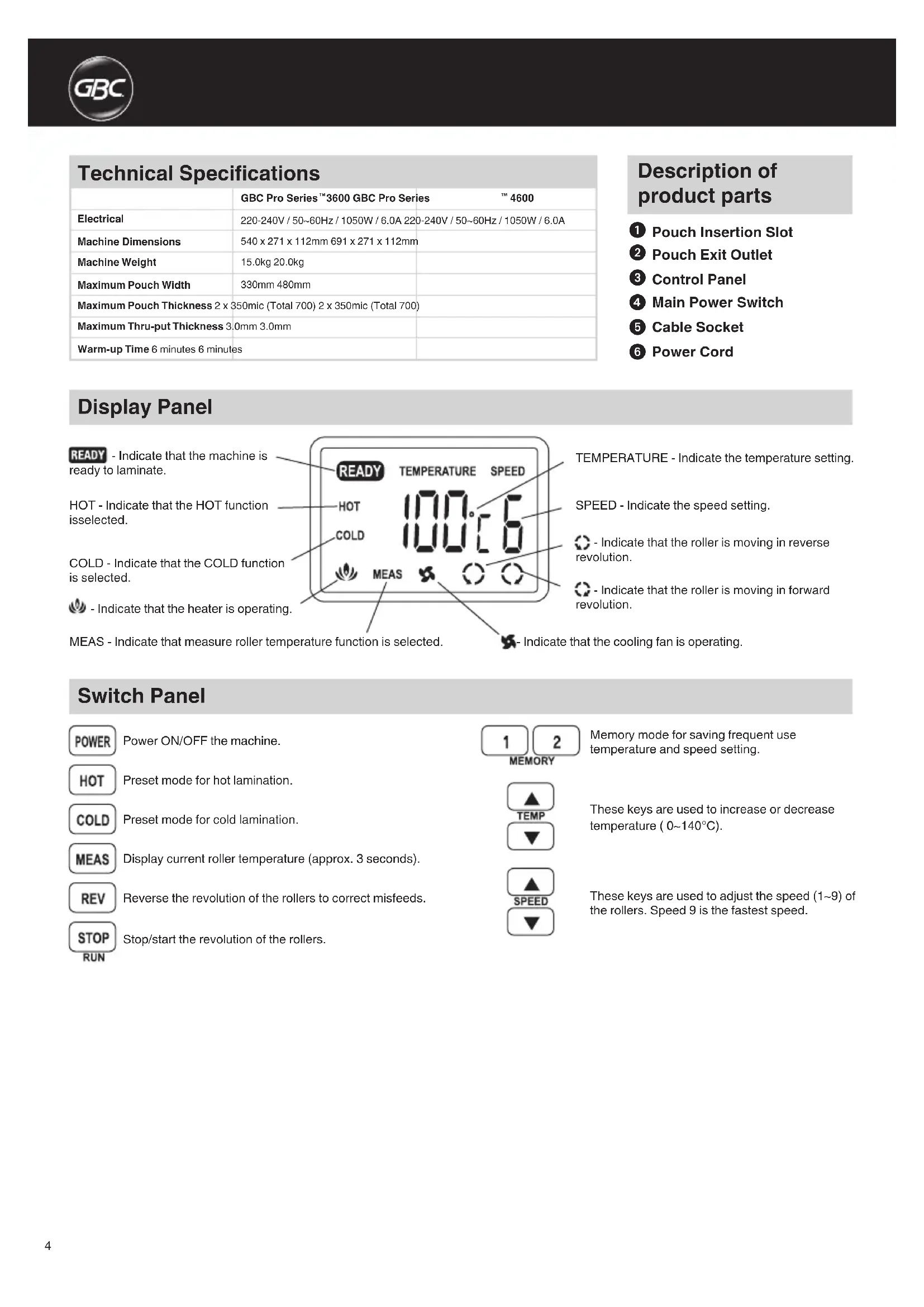

USER MANUAL Proseries 3600 GBC

Technical Specifications

	GBC Pro Series™ 3600 GBC Pro Series™ 4600
Electrical	220-240V / 50~60Hz / 1050W / 6.0A 220-240V / 50~60Hz / 1050W / 6.0A
Machine Dimensions	540 x 271 x 112mm 691 x 271 x 112mm
Machine Weight	15.0kg 20.0kg
Maximum Pouch Width	330mm 480mm
Maximum Pouch Thickness 2 x 350mic (Total 700) 2 x 350mic (Total 700)
Maxlmum Thru-put Thickness 3.0mm 3.0mm
Warm-up Time 6 minutes 6 minutes

Description of product parts

Pouch Insertion Slot
Pouch Exit Outlet
3 Control Panel
4 Main Power Switch
5 Cable Socket
6 Power Cord

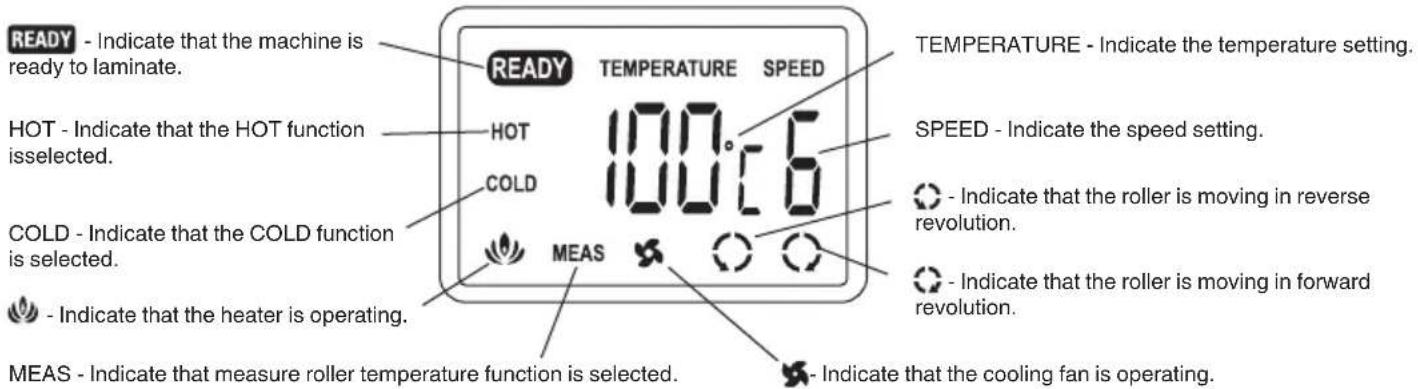

Display Panel

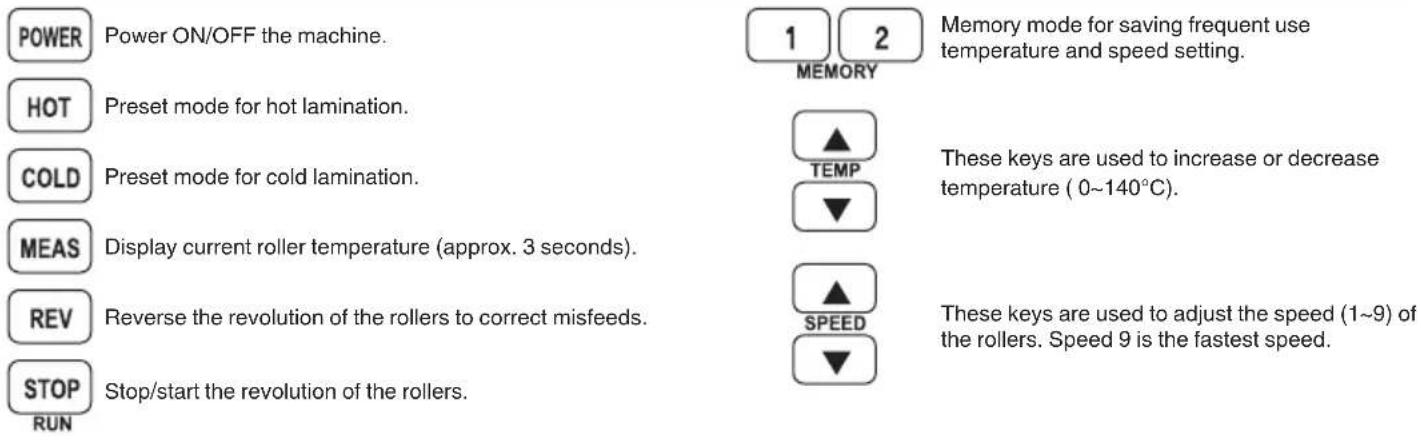

Switch Panel

Special Notice

Thank you, for your recent purchase of a GBC Pouch Laminator. Your new laminator may emit a slight odour during the initial stage of operation. It is normal and will diminish after several hours of operation.

Safety Instructions

YOUR SAFETY AS WELL AS THE SAFETY OF OTHERS IS IMPORTANT TO ACCO BRANDS. IN THIS INSTRUCTION MANUAL ARE IMPORTANT SAFETY MESSAGES. READ THESE MESSAGES CAREFULLY.

THE SAFETY ALERT SYMBOL PRECEDES EACH SAFETY NOTICE IN THIS INSTRUCTION MANUAL. THE SYMBOL INDICATES A POTENTIAL PERSONAL SAFETY HAZARD TO YOU OR OTHERS, AS WELL AS CAUSE PRODUCT DAMAGE OR PROPERTY DAMAGE.

Waste Electrical and Electronic Equipment (WEEE)

Electrical and electronic devices contain materials and substances that can have damaging effects on human health and the environment. This symbol indicates that this device must not be treated as unsorted municipal waste but must be collected separately. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment within the EU, UK and in other European countries that operate separate collection systems for waste electrical and electronic equipment. By disposing of the device in the proper manner, you help to avoid possible hazards for the environment and public health that could otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of natural resources.

Important Safeguards

WARNING: FOR YOUR PROTECTION DO NOT CONNECT THE POUCH LAMINATOR TO ELECTRICAL POWER UNTIL YOU READ THESE INSTRUCTIONS COMPLETELY. KEEP THESE INSTRUCTIONS IN A CONVENIENT LOCATION FOR FUTURE REFERENCE. TO GUARD AGAINST INJURY, THE FOLLOWING BASIC SAFETY PRECAUTIONS MUST BE OBSERVED IN THE SET-UP AND USE OF THIS PRODUCT.

General Safeguards

• Use the unit only for its intended purposes of laminating documents.
• Do not place anything in the throat opening of the laminator other than pouches/documents.
• Place unit on a secure, stable work area to prevent the unit from falling and possibly causing personal injury and damage to the unit.
• Follow all warnings and instructions marked on the unit.
• The socket outlet shall be installed near the equipment and shall be easily accessible.
• Do not attempt single side lamination, this will destroy the laminator.
• Do not block the vent slots, this will cause the laminator to overheat.

Electrical Safeguards

• The unit must be connected to a supply voltage corresponding to the electrical rating shown on the unit.
• Unplug the unit before moving it, or when it is not in use for an extended period of time.
• Do not operate with a damaged supply cord or plug. Do not alter the attachment plug. The plug is configured for the appropriate electrical supply.
• Do not overload electrical outlets beyond their capacity; fire or electrical shock could result.
• The unit is intended for indoor use only.
• Close supervision is required when this product is used near children.

Cleaning

Caution: Unplug this product before cleaning.

• Wipe exterior only with a damp cloth. Do not use detergents or solvents.
• Do not use aerosolusters or cleaners.
• Do not spray anything into the machine.

Service

Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and contact an authorised ACCO Brands service representative for any required repairs.

Operation, hot lamination

1. Connect power cord to appropriate power source.
2. Press the power switch on the back of the laminator and press the POWER button for 1 second to turn on the machine (fig. A).

3. Using the lamination guidelines, select the appropriate temperature setting for the pouch gauge thickness and material you are laminating.

4. If the laminated item appears to be cloudy, it means that the laminator temperature is not hot enough. Allow the laminator to heat for a few more minutes then run the pouch through again.

5. If the laminated item is wavy, the TEMPERATURE is too hot. Verify temperature selector is set at the appropriate temperature.

6. Always allow sufficient time for the laminator to adjust to changes in temperature setting.

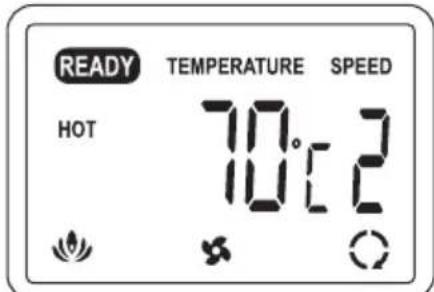

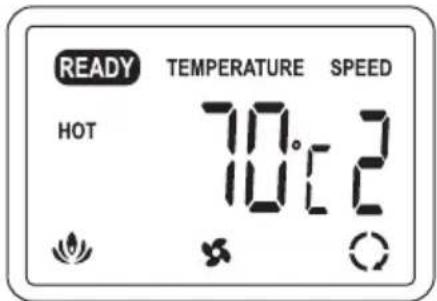

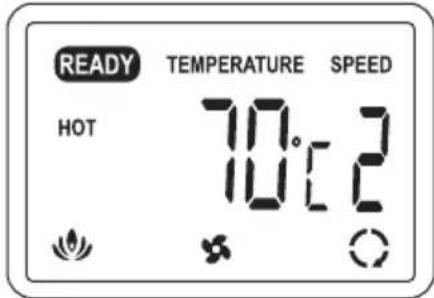

1. Preset Mode 2. Manual Mode

a. Press HOT button to choose Preset mode. Machine is set to temperature 100^ / speed 6 and "HOT" symbol appears on the LCD. (fig. B).

(to change speed and temperature manually):

a. Press the temperature Up/Down arrow keys to modify the temperature setting.
b. Press the speed Up/Down arrow keys to modify the speed setting.

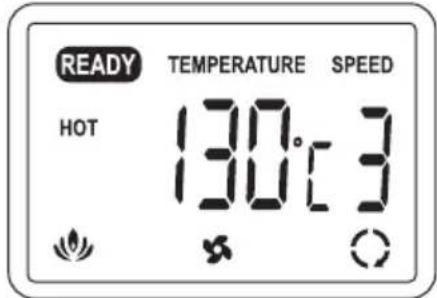

3. Memory Mode

(to save specific temperature and speed in memory):

a. Press either button 1 or 2 for one second to enter memory mode.
b. Set your frequent use temperature and speed setting using the Up/Down arrow keys.
c. Press the number button again to save setting to memory.
d. To use a saved memory, select either button 1 or 2. The LCD will indicate the temperature and speed selected.

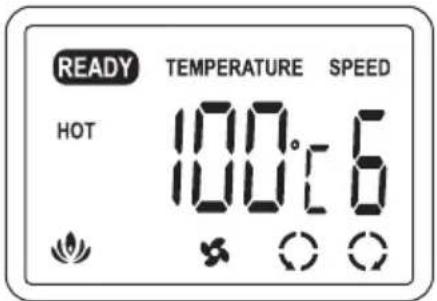

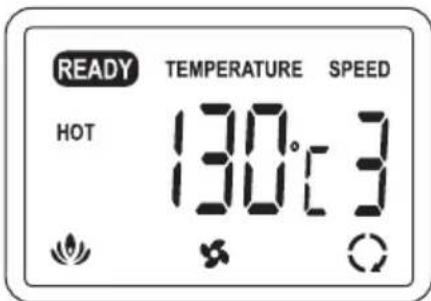

1. As the machine warms up, the heating symbol ( ) will flash. When the machine is ready to laminate, the laminator will beep and the "READY" symbol appears on the LCD (fig. C).
2. Centre the item to be laminated within the pouch left to right with the top edge against the sealed edge of the pouch (fig. D).
3. Insert the pouch with the sealed edge first into the machine (fig. E).
4. The laminated item will automatically exit the rear of the machine. After the pouch has stopped moving, immediately place it on a flat surface to cool for one minute before handling (fig. F).

Operation, cold lamination

1. Connect power cord to appropriate power source.
2. Press the power switch on the back of the laminator and press the POWER button for 1 second to turn on the machine.
3. Press COLD button and "COLD" symbol appears on the LCD.
4. When the machine is ready to laminate, the laminator will beep and the "READY" symbol appears on the LCD.
5. Use and laminate your cold pouch by pressing the STOP button to start or stop the roller.

CAUTION: If you have just done hot lamination, press COLD button (to cool down machine) and wait for the "READY" symbol to reappear on the LCD before attempting to do cold lamination.

Reverse Button

In the event of a misfeed or a jam follow these instructions.

1. Press the REV button and hold down. This will reverse the rotation of the rollers allowing the pouch to exit the front of the machine.
2. Pull the document out of the laminator.
3. After the document is out of the machine clean the rollers by running the cleaning sheet through the laminator.

CAUTION: Be careful when removing the laminated pouch from the machine. It may be hot.

Finishing lamination

1. Press and hold POWER button for one second and "COOL" symbol appears on the LCD.
2. After the roller cool down (below 65^ ), the laminator will beep and power will be stopped automatically.
3. Press the power switch on the back of the laminator to turn the machine off.

CAUTION: Cooling down the machine before turning off the power switch protects and extends the life of the rollers.

NOTE: For added safety and environmental reasons the laminator will automatically go into sleep mode after 120 minutes of inactivity. If you wish to use the laminator again, press the POWER button for 1 second to turn on the machine.

Laminating Tips

DO NOT LAMINATE AN EMPTY POUCH.
- Never insert the loose end of the pouch into the machine first. This could cause the machine to jam.
- Before laminating important or unique documents, always run a test pouch through the laminator using a similar type of document.
- As soon as hot lamination is completed, remove the lamination from the front of the machine and place on a cool flat surface for cooling to prevent the pouch from curling.
- Do not cut pouches prior to lamination.

Lamination Guide

Material Film thickness		Setting without Carrier Setting with		Carrier
		Temperature Speed	Temperature Speed
Copy Paper	75 ~ 100 Micron 100°C 6 130°C 4
	125 ~ 150 Micron 120°C 4 130°C 3
	175 ~ 250 Micron 120°C 3 140°C 2
	300 ~ 350 Micron 130°C 2 --
Brochure Paper	75 ~ 100 Micron 100°C 5 130°C 4
	125 ~ 150 Micron 120°C 3 140°C 3
	175 ~ 250 Micron 130°C 2 140°C 2
	300 ~ 350 Micron 140°C 2 --
Photo Paper	75 ~ 100 Micron 100°C 4 130°C 3
	125 ~ 150 Micron 130°C 3 140°C 2
	175 ~ 250 Micron 140°C 2 140°C 1

NOTE: For "STAND BY" mode, please keep the temperature at 70^ and speed 2.

Guarantee

Operation of this machine is guaranteed for 1 year from date of purchase, subject to normal use. Within the guarantee period, ACCO Brands Europe will at its own discretion either repair or replace the defective machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered under the guarantee. Proof of date of purchase will be required. Repairs or alterations made by persons not authorised by ACCO Brands Europe will invalidate the guarantee. It is our aim to ensure that our products perform to the specifications stated. This guarantee does not affect the legal rights which consumers have under applicable national legislation governing the sale of goods.

Register this product online at www.accobbrands.com

If you experience a technical fault with your product during the warranty period, please contact the relevant ACCO service centre. Depending on the diagnostics and the model type, we will either arrange a service call by an engineer or we will ask you to return the machine to ACCO. If you return the machine, ACCO will, at its discretion, in accordance with law, either (i) repair the machine using either new or refurbished parts, or (ii) replace the machine with a new or refurbished machine that is equivalent to the machine being replaced.
