USER MANUAL AFS NIKKOR 2485mm f3.54.5G ED VR NIKON

Labeled diagram of a Nikon E7-25 camera showing main components and parts with numbered annotations

Diagram illustrating camera lens adjustment steps with numbered instructions and labeled parts

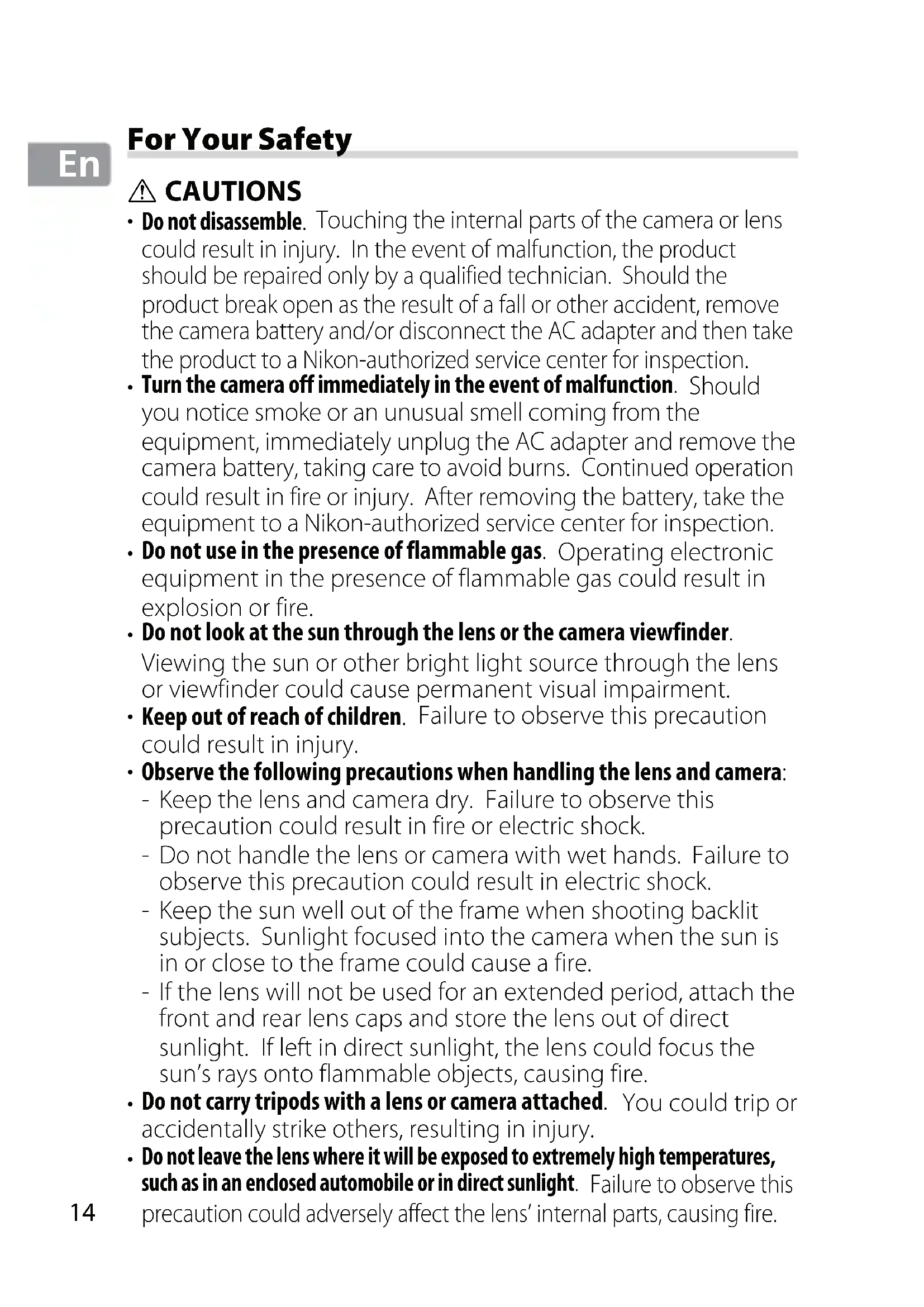

• Do not disassemble. Touching the internal parts of the camera or lens could result in injury. In the event of malfunction, the product should be repaired only by a qualified technician. Should the product break open as the result of a fall or other accident, remove the camera battery and/or disconnect the AC adapter and then take the product to a Nikon-authorized service center for inspection.
• Turn the camera off immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care to avoid burns. Continued operation could result in fire or injury. After removing the battery, take the equipment to a Nikon-authorized service center for inspection.
• Do not use in the presence of flammable gas. Operating electronic equipment in the presence of flammable gas could result in explosion or fire.
• Do not look at the sun through the lens or the camera viewfinder.

Viewing the sun or other bright light source through the lens or viewfinder could cause permanent visual impairment.

• Keep out of reach of children. Failure to observe this precaution could result in injury.

• Observe the following precautions when handling the lens and camera:

• Keep the lens and camera dry. Failure to observe this precaution could result in fire or electric shock.

• Do not handle the lens or camera with wet hands. Failure to observe this precaution could result in electric shock.
• Keep the sun well out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame could cause a fire.

• If the lens will not be used for an extended period, attach the front and rear lens caps and store the lens out of direct sunlight. If left in direct sunlight, the lens could focus the sun's rays onto flammable objects, causing fire.

• Do not carry tripods with a lens or camera attached. You could trip or accidentally strike others, resulting in injury.

• Do not leave the lens where it will be exposed to extremely high temperatures, such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could adversely affect the lens' internal parts, causing fire.

Thank you for your purchase of an AF-S NIKKOR 24-85mm f/3.5-4.5G ED VR lens. Before using this product, please carefully read both these instructions and the camera manual.

Note: When mounted on a DX-format digital single-lens reflex camera such as the D7000 or cameras in the D300 series, this lens has an angle of view of 61^ - 18^ 50' and a focal length equivalent to 36 – 127.5 mm (35 mm format).

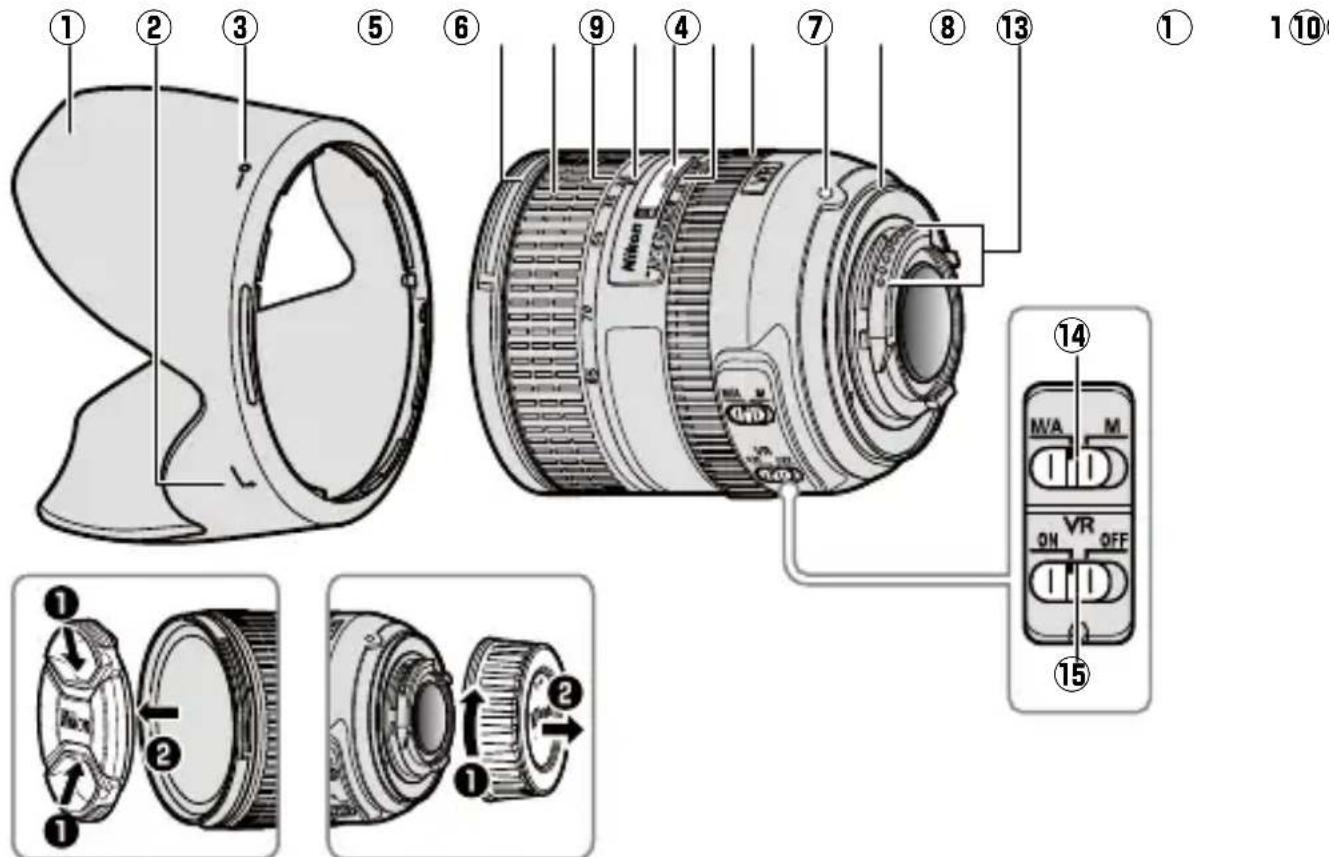

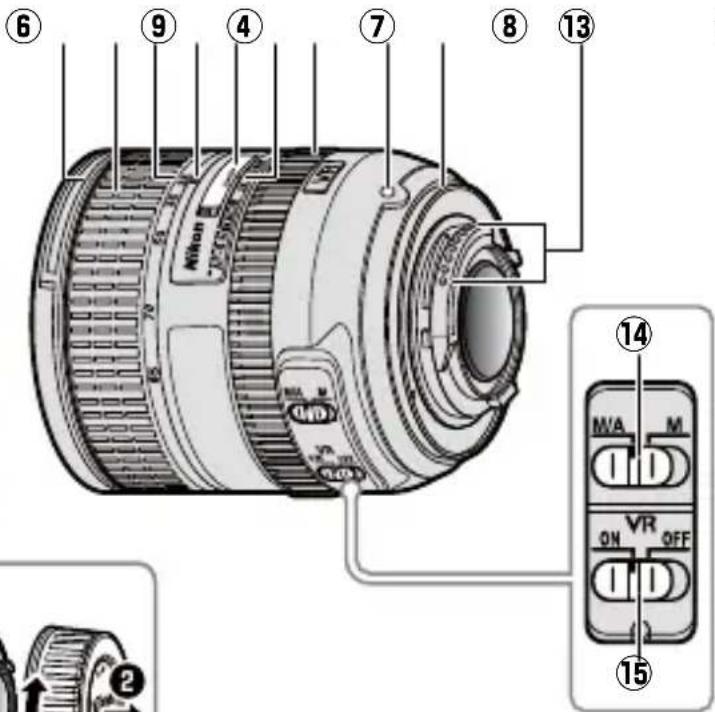

■ Parts of the Lens

Technical diagram of a Nikon E752 camera with numbered parts and control panel labels

① Lens hood .....19
② Lens hood alignment mark....19
③ Lens hood lock mark .....19
④ Lens hood mounting mark....19
⑤ Zoom ring .....16
⑥ Focal length scale .....16
⑦ Focal length mark
⑧ Focus distance indicator

⑨ Focus distance mark
⑩ Focus ring ......17
⑪ Lens mounting mark
⑫ Rubber lens-mount gasket......21
⑬ CPU contacts ......21
⑭ Focus-mode switch......17
⑮ Vibration reduction ON/OFF switch....18

En

■ Compatibility

Check marks ("√") indicate supported features, dashes ("—") features that are not supported. Some limitations may apply; see the camera manual for details.

Camera	Exposure (Shooting) mode Function
	P^4	S	A	M	A^5	VR^6
Nikon FX-format and DX-format digital single-lens reflex cameras, F6, F5, F100, F/N80-series ^1 , F/N75-series ^1 , F/N65-series ^1	√	√	√	√	√	√
Pronea 600i/6i ^1 , Pronea S ^2	√	√	√	√	√	—
F4-series, F90X/N90s ^1 , F90-series/N90 ^1 , F70-series/N70 ^1	√	√	—	—	√	—
F60-series/N60 ^1 , F/N55-series ^1 , F50-series/N50 ^1 , F-401x/N5005 ^1 , F-401s/N4004s ^1 , F-401/N4004 ^1	√	√	√	√	—	—
F-801s/N8008s ^1 , F-801/N8008 ^1 , F-601M/N6000 ^1	√	√	—	—	—	—
F3AF, F-601/N6006 ^1 , F-501/N2020 ^3 , Nikon manual focus cameras (excluding F-601M/N6000 ^1 )	—

1 N-series cameras and Pronea 6i sold in U. S. A. only.
2 Exposure mode M (manual) not available.
3 N2020 sold in U. S. A. and Canada only.
4 Includes AUTO and scene (Digital Vari-Program) modes.
5 Autofocus.
6 Vibration reduction.

■ Zoom and Depth of Field

Before focusing, rotate the zoom ring to adjust the focal length and frame the photograph. If the camera offers depth-of-field preview (stop down), depth of field can be previewed in the viewfinder (see page 220 for more information).

Note: Note that the focus distance indicator is intended only as a guide and may not accurately show the distance to the subject and may, due to depth of field or other factors, not show when the camera is focused on a distant object.

■ Aperture

Aperture is adjusted using camera controls.

Zoom and Maximum Aperture

Changes to zoom can alter the maximum aperture by up to 23 EV. The camera however automatically takes this into account when setting exposure, and no modifications to camera settings are required following adjustments to zoom.

Focus

Supported focus modes are shown in the following table (for information on camera focus modes, see the camera manual).

Camera	Camera focus mode	Lens focus mode
		M/AM
Nikon FX-format and DX-format digital single-lens reflex cameras, F6, F5, F4-series, F100, F90X/N90s *, F90-series/N90 *, F/N80-series *, F/N75-series *, F70-series/N70 *, F/N65-series *, Pronea 600i/6i *, Pronea S	AF	Autofocus with manual override	Manual focus with electronic rangefinder
	MF	Manual focus (electronic rangefinder available with all cameras except F-601M/N6000*)
F60-series/N60 *, F/N55-series *, F50-series/N50 *, F-801s/N8008s *, F-801/N8008 *, F-601 M/N6000 *, F-401x/N5005 *, F-401s/N4004s *, F-401/N4004 *	AF, MF

* N-series cameras and Pronea 6i sold in U. S. A. only.

M/A (Autofocus with Manual Override)

To focus using autofocus with manual override (M/A):

1 Slide the lens focus-mode switch to M/A.
2 Focus.

If desired, autofocus can be over-ridden by rotating the lens focus ring while the shutter-release button is pressed halfway (or, if the camera is equipped with an AF-ON button, while the AF-ON button is pressed). To refocus using autofocus, press the shutter-release button halfway or press the AF-ON button again.

En

■ Vibration Reduction (VR)

Vibration reduction (VR) reduces blur caused by camera shake, allowing shutter speeds up to four stops slower than would otherwise be the case (Nikon measurements; effects vary with the photographer and shooting conditions). This increases the range of shutter speeds available and permits hand-held, tripod-free photography in a wide range of situations.

Using the Vibration Reduction ON/OFF Switch

VR ON OFF

Select ON to enable vibration reduction. Vibration reduction is activated when the shutter-release button is pressed halfway, reducing the effects of camera shake for improved framing and focus.

Select OFF to turn vibration reduction off.

Using Vibration Reduction: Notes

• Slide the vibration reduction switch to OFF if the camera does not support vibration reduction (pg. 16). Leaving vibration reduction on may greatly increase the drain on the battery, particularly in the case of Pronea 600i/6i cameras.
• When using vibration reduction, press the shutter-release button halfway and wait for the image in the viewfinder to stabilize before pressing the shutter-release button the rest of the way down.

• When vibration reduction is active, the image in the viewfinder may be blurred after the shutter is released. This does not indicate a malfunction.

• When the camera is panned, vibration reduction applies only to motion that is not part of the pan (if the camera is panned horizontally, for example, vibration reduction will be applied only to vertical shake), making it much easier to pan the camera smoothly in a wide arc.

• Do not turn the camera off or remove the lens while vibration reduction is in effect. If power to the lens is cut while vibration reduction is on, the lens may rattle when shaken. This is not a malfunction, and can be corrected by reattaching the lens and turning the camera on.
• If the camera is equipped with a built-in flash, vibration reduction will be disabled while the flash charges.
• Slide the vibration reduction switch to OFF for long time-exposures.
• Turn vibration reduction off when the camera is securely mounted on a tripod, but leave it on if the tripod head is not secured or when using a monopod.

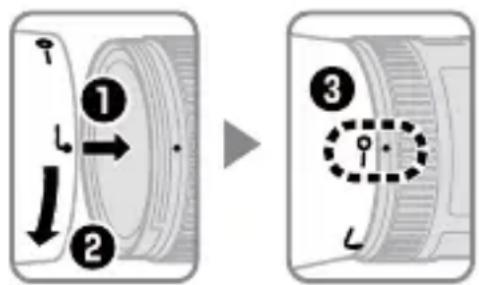

The Lens Hood

The lens hoods protect the lens and block stray light that would otherwise cause flare or ghosting.

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted circular component

Align the lens hood lock mark (—○) with the lens hood mounting mark (●) on the lens (③).

When attaching or removing the hood, hold it near the symbol on its base and avoid gripping it too tightly.

Vignetting may occur if the hood is not correctly attached.

The hood can be reversed and mounted on the lens when not in use. When the hood is reversed, it can be attached and removed by rotating it while holding it near the lock mark (—O).

En

■ Built-in Flash Units

When using the built-in flash on cameras equipped with a built-in flash unit, shoot at ranges of 0.6 m (2 ft) or more and remove the lens hood to prevent vignetting (shadows created where the end of the lens obscures the built-in flash).

■ Focusing Screens

The following cameras support a variety of focusing screens for use in different situations.

ScreenCamera A B C E

EC-BEC-E G1 G2 G3 G4 J L M U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

◎

◎

◎

◎

○

F5+DA-30

(+0.5)

◎

◎

◎

(+0.5)

○

◎: Recommended.

O: Vignetting visible in viewfinder (photographs are not affected).

—: Not compatible with camera.

( ): Figures in parentheses give the exposure compensation for center-weighted metering. Select "Other screen" for Custom Setting b6 ("Screen comp.") when adjusting exposure compensation for the F6; note that with screens other than B or E, "Other screen" must be selected even when the value for exposure compensation is 0. Exposure compensation for the F5 can be adjusted using Custom Setting 18; see the camera manual for details.

Empty cell: Not suited to use with this lens. Note that type M screens can however be used for photomicrography and macro photography at magnifications of 1 : 1 or higher.

Note: The F5 supports matrix metering with A, B, E, EC-B/EC-E, J, and L focusing screens only.

Lens Care

• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immediately and take the lens to a Nikon-authorized service center for repair.
• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fingerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• The lens hood or NC filters can be used to protect the front lens element.
• Attach the front and rear caps before placing the lens in its flexible pouch.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
  • Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic.

■ Supplied Accessories

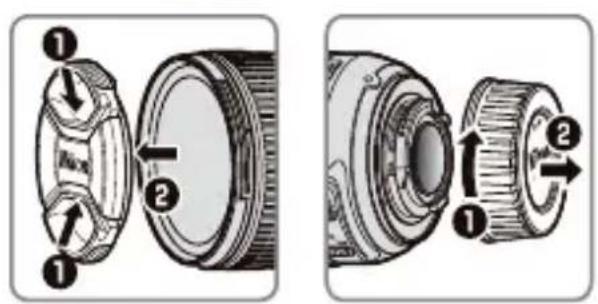

• 72 mm snap-on Front Lens Cap LC-72
• Rear Lens Cap LF-4
  • Bayonet Hood HB-63
• Flexible Lens Pouch CL-1118

En

■ Compatible Accessories

- 72 mm screw-on filters

Specifications

Type Type G AF-S lens with built-in CPU and F mount
Focal length 24–85 mm
Maximum aperture f/3.5–4.5
Lens construction	16 elements in 11 groups (including 1 ED lens element and 3 aspherical lens elements)
Angle of view Nikon film SLR and FX-format D-SLR cameras:84°–28°30'• Nikon DX-format D-SLR cameras:61°–18°50'• IX240 system cameras:71°–22°50'
Focal length scale Graduated in millimeters (24, 35, 50, 70, 85)
Distance information Output to camera
Zoom Manual zoom using independent zoom ring
Focusing Nikon Internal Focusing (IF) System with autofocus controlled by Silent Wave Motor and separate focus ring for manual focus
Vibration reduction Lens shift using voice coil motors (VCMs)
Focus distance indicator 0.38 m to infinity (∞)
Minimum focus distance 0.38 m (1.25 ft) from focal plane at all zoom positions
Diaphragm blades 7 (rounded diaphragm opening)
Diaphragm Fully automatic
Aperture range 24 mm focal length: f/3.5 to f/22• 85 mm focal length: f/4.5 to f/29The minimum aperture displayed may vary depending on the size of the exposure increment selected with the camera.
Metering Full aperture
Filter-attachment size 72 mm (P = 0.75 mm)
Dimensions Approx.	78 mm maximum diameter × 82 mm (distance from camera lens mount flange)
Weight Approx. 465	g (16.4 oz)

En

Nikon reserves the right to change the specifications of the hardware described in this manual at any time and without prior notice.

Für Ihre Sicherheit

De

Technical diagram of a Nikon E-250 camera with numbered parts and control panel labels

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

Labeled diagram of a Nikon E-3 VCD lens showing main components and internal parts with numbered parts and control buttons.

① 1⑩

① L i ② → ③ L

Technical diagram of a Nikon E-352 lens with numbered parts and control panel labels

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

Technical diagram of a Nikon lens with numbered parts and control panel labels

① 1⑩

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

Technical diagram of a Nikon E75 camera with numbered parts and control panel labels

①Ru _1 ⑩

Technical diagram of a Nikon E-VR camera with numbered parts and control panel labels

① 1⑩

NI

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted circular component

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

Câmara A B C E

EC-BEC-E G1 G2 G3 G4 J L M U

F6

◎

◎

—

◎

—

—

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

◎

◎

◎

◎

○

F5+DA-30

(+0,5)

◎

◎

◎

◎

(+0,5)

○

① ② ③ ⑤ ⑥ ⑦ ⑧ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ M/A M ON OFF VR 15 It

Diagram illustrating camera lens adjustment steps with numbered instructions and labeled parts

① ② ③ ⑤ ⑥ ⑦ ⑧ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ M/A M ON VR OFF 14 15 Gr

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted circular component

① ② ③ ⑤ ⑥ ⑦ ⑧ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ ⑫ M/A M VR OFF ON ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Cz

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

⑥ ⑨ ④ ⑦ ⑧ ⑬ Nikon FR-1950 M/A M ON VR OFF ⑭ ⑮ ⑯ ⑰ ⑮

① 1⑩

Diagram showing two mechanical components labeled 1 and 2, with arrows indicating direction of movement or assembly.

Technical diagram showing mechanical component with numbered parts labeled ① and ②

Sk

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted circular component

① ② ③ ⑤ ⑥ ⑦ ⑧ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ M/A M ON VR OFF ⑮ ⑯ ⑰ ⑫ Ro

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

① ② ③ ⑤ ⑥ ⑦ ⑧ ⑭ ⑮ ⑰ ⑱ ⑲ ⑳ Nikon E T1X 658 MVA M ON VR OFF ① ② ① ② ⑮ ⑯ ⑰ ⑱ ⑲ Ua

Labeled diagram of a Nikon E-TW-108 camera showing main components and parts with numbered annotations

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

照相机\对焦屏	J	L	M	U
F6	◎	◎		◎
F5+DP-30	◎	◎		○
F5+DA-30	◎	(+0.5)		○

◎：推荐使用。

Technical diagram of a Nikon E5 camera with numbered parts and control panel labels

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted circular component

Technical diagram of a Nikon E-325 optical lens with numbered parts and control panel labels

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted circular component.

카메라\스크린

A

B

C

EC-BEEC-E

G1

G2

G3

G4

J

L

M

U

F6

◎

◎

—

◎

—

—

—

◎

◎

◎

F5+DP-30

◎

◎

◎

◎

◎

○

F5+DA-30

(+0.5)

◎

◎

◎

◎

(+0.5)

○

Labeled diagram of a Nikon E-19 camera showing main components and internal parts with numbered parts and control buttons.

① Tudung lensa .....205
② Tanda kesejajaran tudung lensa....205
③ Tanda kunci tudung lensa ...205
④ Tanda pemasangan tudung lensa....205
⑤ Cincin zoom 202
⑥ Skala panjang fokal ....202
⑦ Tanda panjang fokal
⑧ Indikator jarak fokus

⑨ Tanda jarak fokus
⑩ Cincin fokus ......203
⑪ Tanda pemasangan lensa
⑫ Gasket karet pemasangan lensa....207
⑬ Kontak CPU 207
⑭ Switch mode fokus......203
⑮ Switch ON/OFF pengurang guncangan......204

Id

Kompatibilitas

Diagram illustrating camera lens adjustment steps with numbered instructions and a highlighted key

Sejajarkan tanda kunci tudung lensa (—○) dengan tanda pemasangan tudung lensa (●) pada lensa (③).

قيمة تعويض التagreeي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي Trustي

Diagram illustrating camera lens adjustment with labeled parts and directional arrows

Technical diagram of a Nikon lens with numbered parts and control panel labels

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

• Зе Contributions Use d'actions parkings, и totally absorption study

- Unlike other lenses, the focal length of internal focus (IF) lenses decreases with focus distance.

■ Depth of field (Imperial) (ft)

Focus distance Depth of field Reproduction ratio
[f=24 mm]	f/3.5 f/4	f/5.6 f/8 f/1	1 f/16 f/22
1.5	1 ft 4^15/_16 in. - 1 ft 7^5/_16 in.	1 ft 4^13/_16 in. - 1 ft 7^7/_16 in.	1 ft 4^7/_16 in. - 1 ft 8^1/_16 in.	1 ft 3^13/_16 in. - 1 ft 9^4/_16 in.	1 ft 3^2/_16 in. - 1 ft 10^13/_16 in.	1 ft 2^3/_16 in. - 2 ft 2^6/_16 in.	1 ft 1^5/_16 in. - 2 ft 8^14/_16 in.	1/15.3
2	1 ft 9^15/_16 in. - 2 ft 2^10/_16 in.	1 ft 9^12/_16 in. - 2 ft 2^14/_16 in.	1 ft 9 in. - 2 ft 4^5/_16 in.	1 ft 7^15/_16 in. - 2 ft 6^13/_16 in.	1 ft 6^13/_16 in. - 2 ft 10^11/_16 in.	1 ft 5^4/_16 in. - 3 ft 8^10/_16 in.	1 ft 3^13/_16 in. - 5 ft 10^9/_16 in.	1/21.5
3	2 ft 7^3/_16 in. - 3 ft 6^13/_16 in.	2 ft 6^13/_16 in. - 3 ft 7^11/_16 in.	2 ft 5^3/_16 in. - 3 ft 11^14/_16 in.	2 ft 3^2/_16 in. - 4 ft 8^4/_16 in.	2 ft ^15/_16 in. - 6 ft ^8/_16 in.	1 ft 10^1/_16 in. - 12 ft 2^14/_16 in.	1 ft 7^9/_16 in. -	1/33.8
5	3 ft 11^3/_16 in. - 6 ft 11^10/_16 in.	3 ft 10^3/_16 in. - 7 ft 3^4/_16 in.	3 ft 6^8/_16 in. - 8 ft 11^4/_16 in.	3 ft 1^15/_16 in. - 13 ft 10^1/_16 in.	2 ft 9^8/_16 in. - 47 ft 2^12/_16 in.	2 ft 4^5/_16 in. -	2 ft ^2/_16 in. -	1/58.5
10	6 ft 4^9/_16 in. - 24 ft 5^8/_16 in.	6 ft 1^15/_16 in. - 28 ft 9^12/_16 in.	5 ft 4^5/_16 in. - 129 ft 2^14/_16 in.	4 ft 6 in. -	3 ft 9^4/_16 in. -	2 ft 11^14/_16 in. -	2 ft 5^3/_16 in. -	1/120.3
	16 ft 10^9/_16 in. -	15 ft 4^3/_16 in. -	11 ft ^12/_16 in. -	7 ft 10^3/_16 in. -	5 ft 9^10/_16 in. -	4 ft 1^3/_16 in. -	3 ft ^13/_16 in. -	1/

[f=35 mm]	f/4 f/5.6 f/8 f/11 f/16 f/22 f/25
1.5	1 ft 5^4/_16 in. - 1 ft 6^12/_16 in.	1 ft 5^1/_16 in. - 1 ft 7^1/_16 in.	1 ft 4^13/_16 in. - 1 ft 7^9/_16 in.	1 ft 4^5/_16 in. - 1 ft 8^3/_16 in.	1 ft 3^12/_16 in. - 1 ft 9^8/_16 in.	1 ft 3 in. - 1 ft 11^4/_16 in.	1 ft 2^12/_16 in. - 2 ft 6^16 in.	1/11.0
2	1 ft 10^11/_16 in. - 2 ft 1^7/_16 in.	1 ft 10^5/_16 in. - 2 ft 2^1/_16 in.	1 ft 9^12/_16 in. - 2 ft 3 in.	1 ft 8^14/_16 in. - 2 ft 4^7/_16 in.	1 ft 7^13/_16 in. - 2 ft 7^3/_16 in.	1 ft 6^12/_16 in. - 2 ft 11^6/_16 in.	1 ft 6^4/_16 in. - 3 ft 2^3/_16 in.	1/15.4
3	2 ft 9 in. - 3 ft 3^10/_16 in.	2 ft 8^3/_16 in. - 3 ft 5^3/_16 in.	2 ft 6^12/_16 in. - 3 ft 7^15/_16 in.	2 ft 5^3/_16 in. - 3 ft 11^14/_16 in.	2 ft 3 in. - 4 ft 8^14/_16 in.	2 ft 13^16 in. - 6 ft 2^3/_16 in.	1 ft 11^14/_16 in. - 7 ft 3^13/_16 in.	1/24.0
5	4 ft 3^13/_16 in. - 5 ft 11^6/_16 in.	4 ft 1^9/_16 in. - 6 ft 4^11/_16 in.	3 ft 10^3/_16 in. - 7 ft 3^4/_16 in.	3 ft 6^10/_16 in. - 8 ft 9^15/_16 in.	3 ft 1^15/_16 in. - 13 ft 10^13/_16 in.	2 ft 9^8/_16 in. - 48 ft 5^1/_16 in.	2 ft 7^13/_16 in. -	1/41.3
10	7 ft 6^12/_16 in. - 14 ft 11^6/_16 in.	6 ft 11^10/_16 in. - 18 ft 1^11/_16 in.	6 ft 2^4/_16 in. - 28 ft 2^8/_16 in.	5 ft 5^3/_16 in. - 95 ft 7^15/_16 in.	4 ft 6^6/_16 in. -	3 ft 9^10/_16 in. -	3 ft 6^4/_16 in. -	1/84.4
[f=50 mm]	30 ft - f/4.5 f/5	22 ft 3^13/_16 in. - .6 f/8 f/11 f/	15 ft 8^12/_16 in. - 16 f/22 f/29	11 ft 6^8/_16 in. -	8 ft 8^16 in. -	5 ft 11^4/_16 in. -	5 ft 3^4/_16 in. -	1/
1.5	1ft5^10/_16in. - 1ft6^8/_16in.	1ft5^8/_16in. - 1ft6^10/_16in.	1ft5^4/_16in. - 1ft6^13/_16in.	1ft5^1/_16in. - 1ft7^3/_16in.	1ft4^9/_16in. - 1ft7^11/_16in.	1ft4^3/_16in. - 1ft8^8/_16in.	1ft3^12/_16in. - 1ft9^8/_16in.	1/8.1
2	1ft11^4/_16in. - 2ft^13/_16in.	1ft11^1/_16in. - 2ft1^1/_16in.	1ft10^11/_16in. - 2ft1^9/_16in.	1ft10^3/_16in. - 2ft2^3/_16in.	1ft9^8/_16in. - 2ft3^6/_16in.	1ft8^12/_16in. - 2ft4^15/_16in.	1ft7^15/_16in. - 2ft7^1/_16in.	1/11.2
3	2ft10^3/_16in. - 3ft2^1/_16in.	2ft9^13/_16in. - 3ft2^8/_16in.	2ft9in. - 3ft3^12/_16in.	2ft8^1/_16in. - 3ft5^6/_16in.	2ft6^8/_16in. - 3ft8^6/_16in.	2ft4^15/_16in. - 4ft^13/_16in.	2ft3^4/_16in. - 4ft7^7/_16in.	1/17.3
5	4ft7^3/_16in. - 5ft5^14/_16in.	4ft6^2/_16in. - 5ft7^9/_16in.	4ft3^15/_16in. - 5ft11^6/_16in.	4ft1^7/_16in. - 6ft4^15/_16in.	3ft9^15/_16in. - 7ft4^11/_16in.	3ft6^6/_16in. - 9ft^15/_16in.	3ft2^12/_16in. - 12ft5^10/_16in.	1/29.5
10	8ft5^12/_16in. - 12ft2^8/_16in.	8ft2^3/_16in. - 12ft11^1/_16in.	7ft7^3/_16in. - 14ft9^8/_16in.	6ft11^12/_16in. - 18ft1^5/_16in.	6ft1^15/_16in. - 29ft1^7/_16in.	5ft4^13/_16in. - 113ft1^7/_16in.	4ft8^14/_16in. -	1/60.0
	55ft2^3/_16in. -	44ft5^1/_16in. -	31ft2^8/_16in. -	22ft9^10/_16in. -	15ft9^8/_16in. -	11ft7^1/_16in. -	8ft10^9/_16in. -	1/
[f=70 mm]	f/4.5 f/5	.6 f/8 f/11 f/	16 f/22 f/29
1.5	1ft5^12/_16in. - 1ft6^4/_16in.	1ft5^10/_16in. - 1ft6^6/_16in.	1ft5^8/_16in. - 1ft6^8/_16in.	1ft5^6/_16in. - 1ft6^10/_16in.	1ft5^3/_16in. - 1ft6^15/_16in.	1ft4^13/_16in. - 1ft7^7/_16in.	1ft4^9/_16in. - 1ft7^15/_16in.	1/6.1
2	1ft11^8/_16in. - 2ft8^16in.	1ft11^6/_16in. - 2ft^10/_16in.	1ft11^3/_16in. - 2ft^13/_16in.	1ft10^15/_16in. - 2ft1^3/_16in.	1ft10^7/_16in. - 2ft1^13/_16in.	1ft9^15/_16in. - 2ft2^8/_16in.	1ft9^8/_16in. - 2ft3^8/_16in.	1/8.3
3	2ft11^1/_16in. - 3ft1^1/_16in.	2ft10^13/_16in. - 3ft1^5/_16in.	2ft10^5/_16in. - 3ft1^15/_16in.	2ft9^12/_16in. - 3ft2^12/_16in.	2ft8^12/_16in. - 3ft4^3/_16in.	2ft7^11/_16in. - 3ft6in.	2ft6^10/_16in. - 3ft8^6/_16in.	1/12.7
5	4ft9^6/_16in. - 5ft3in.	4ft8^10/_16in. - 5ft3^12/_16in.	4ft7^7/_16in. - 5ft5^8/_16in.	4ft5^14/_16in. - 5ft7^15/_16in.	4ft3^8/_16in. - 6ft4^16in.	4ft^15/_16in. - 6ft6^8/_16in.	3ft10^5/_16in. - 7ft3^4/_16in.	1/21.4
10	9ft1^13/_16in. - 11ft6^16in.	8ft11^10/_16in. - 11ft3^12/_16in.	8ft7^1/_16in. - 11ft11^14/_16in.	8ft2^1/_16in. - 12ft11^12/_16in.	7ft6^8/_16in. - 15ft8^16in.	6ft11^1/_16in. - 18ft7^11/_16in.	6ft3^13/_16in. - 25ft11^10/_16in.	1/42.9
∞[f=85 mm]	109ft11^12/_16in. - f/4.5 f/5	88ft5^8/_16in. - .6 f/8 f/11 f/	62ft^10/_16in. - 16 f/22 f/29	45ft3in. -	31ft2^14/_16in. -	22ft10^1/_16in. -	17ft5^3/_16in. -	1/
1.5	1 ft 5^12/_16 in. - 1 ft 6^4/_16 in.	1 ft 5^12/_16 in. - 1 ft 6^4/_16 in.	1 ft 5^10/_16 in. - 1 ft 6^6/_16 in.	1 ft 5^8/_16 in. - 1 ft 6^8/_16 in.	1 ft 5^4/_16 in. - 1 ft 6^13/_16 in.	1 ft 5^1/_16 in. - 1 ft 7^1/_16 in.	1 ft 4^13/_16 in. - 1 ft 7^9/_16 in.	1/5.5
2	1 ft 11^10/_16 in. - 2 ft 6^16 in.	1 ft 11^8/_16 in. - 2 ft 8^16 in.	1 ft 11^6/_16 in. - 2 ft 12^16 in.	1 ft 11^3/_16 in. - 2 ft 15^16 in.	1 ft 10^13/_16 in. - 2 ft 1^7/_16 in.	1 ft 10^5/_16 in. - 2 ft 2^1/_16 in.	1 ft 9^13/_16 in. - 2 ft 2^12/_16 in.	1/7.4
3	2 ft 11^3/_16 in. - 3 ft 13^16 in.	2 ft 11^1/_16 in. - 3 ft 1^1/_16 in.	2 ft 10^11/_16 in. - 3 ft 1^9/_16 in.	2 ft 10^3/_16 in. - 3 ft 2^3/_16 in.	2 ft 9^6/_16 in. - 3 ft 3^2/_16 in.	2 ft 8^8/_16 in. - 3 ft 4^9/_16 in.	2 ft 7^9/_16 in. - 3 ft 6^4/_16 in.	1/11.2
5	4 ft 9^13/_16 in. - 5 ft 2^4/_16 in.	4 ft 9^8/_16 in. - 5 ft 2^14/_16 in.	4 ft 8^6/_16 in. - 5 ft 4^3/_16 in.	4 ft 7^3/_16 in. - 5 ft 5^14/_16 in.	4 ft 5^4/_16 in. - 5 ft 9 in.	4 ft 3^2/_16 in. - 6 ft 1^1/_16 in.	4 ft 13^16 in. - 6 ft 6^12/_16 in.	1/18.7
10	9 ft 3^15/_16 in. - 10 ft 9^6/_16 in.	9 ft 2^6/_16 in. - 10 ft 11^8/_16 in.	8 ft 10^13/_16 in. - 11 ft 5^3/_16 in.	8 ft 6^10/_16 in. - 12 ft 15^16 in.	8 ft 6^16 in. - 13 ft 4^5/_16 in.	7 ft 5^12/_16 in. - 15 ft 3^15/_16 in.	6 ft 11^4/_16 in. - 18 ft 6^10/_16 in.	1/37.2
∞	144 ft 5^3/_16 in. -	119 ft 9 in. -	83 ft 11^10/_16 in. -	61 ft 2^6/_16 in. -	42 ft 2^10/_16 in. -	30 ft 10^1/_16 in. -	23 ft 6^2/_16 in. -	1/

Unlike other lenses, the focal length of internal focus (IF) lenses decreases with focus distance.

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

NIKON CORPORATION

Printed in China
