M46110R Classic - Lawn mower MCCULLOCH - Free user manual and instructions

Technical specifications	140 cc engine, 46 cm cutting width, adjustable cutting height from 30 to 75 mm, weight 25 kg
Usage	Manual lawn mower, ideal for medium-sized gardens, petrol powered
Maintenance and repair	Regular oil check, air filter cleaning, blade sharpening recommended after each season
Safety	Protective equipment recommended, do not use in the rain, follow safety instructions in the manual
General information	2-year warranty, spare parts available, accessible after-sales service

Frequently Asked Questions - M46110R Classic MCCULLOCH

How do I start the MCCULLOCH M46110R Classic mower?

Make sure the tank is full of petrol and the oil level is correct. Pull the starter cord while holding the safety lever to start the engine.

What should I do if the mower won\u0027t start?

Check the petrol level, ensure the starter cord is not damaged, and that the air filter is clean. If the problem persists, consult the user manual for additional solutions.

How do I adjust the cutting height?

Use the height adjustment lever located near the wheels to set the cutting height to your preference. Make sure the mower is turned off before adjusting.

What should I do if the mower leaves uncut strips?

Check that the blade is sharp and not damaged. Also ensure the cutting height is set correctly and that you are not mowing too fast.

How do I maintain the MCCULLOCH M46110R Classic mower?

Regularly clean the blade and underside of the deck. Change the oil and air filter as recommended in the manual. Also check the spark plugs and replace if necessary.

Where can I find spare parts for the mower?

Spare parts can be purchased from authorized MCCULLOCH dealers, online on the official website, or in specialized gardening stores.

What is the warranty on the MCCULLOCH M46110R Classic mower?

The mower is generally covered by a 2-year warranty. Please refer to the user manual for specific details and warranty conditions.

How do I store the mower in winter?

For optimal storage, drain the petrol tank, clean the blade and underside of the mower, and keep it in a dry place protected from frost.

USER MANUAL M46110R Classic MCCULLOCH

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Keep people and animals well away from the working area.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Always shut off the engine before refuelling.

Hot surface.

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

Contents Dear Customer,

KEY TO SYMBOLS

Key to symbols 54

Explanation of warning levels 54

PRESENTATION

Contents 55

Dear Customer, 55

WHAT IS WHAT?

What is what on the lawn mower? 56

MACHINE'S SAFETY EQUIPMENT

General 57

ASSEMBLING AND ADJUSTMENTS

General 58

Handle 58

Cutting height 58

Catcher 58

Mulcher insert 58

Filling with oil 58

FUEL HANDLING

General 59

Fuel 59

Fueling 59

Transport and storage 59

OPERATING

Personal protective equipment 60

General safety precautions 60

Basic working techniques 61

Transport and storage 61

Starting and stopping 62

MAINTENANCE

General 63

Maintenance schedule 63

General inspection 63

Spark plug 64

Adjusting the clutch wire 65

Air filter 65

Oil change 65

Fuel system 65

TECHNICAL DATA

Technical data 66

The line of innovative chainsaws would continue over the decades, and business was expanded, first by airplane and kart engines in the 1950s, then by mini chainsaws in the 1960s. Later, in the 1970s and 80s, trimmers and blower vacs were added to the range.

Today, as a part of the Husqvarna group, McCulloch continues the tradition of powerful engines, technical innovations, and strong designs that have been our hallmarks for more than half a century. Lowering fuel consumption, emissions and noise levels are of top priority to us, as is improving safety and user-friendliness.

We certainly hope that you will be satisfied with your McCulloch product, as it is designed to be your companion for a long time. By following this operators manual's advice on usage, service, and maintenance, its lifespan can be extended. If you should need professional help with repair or service, please use the Service Locator at www.mcculloch.com.

McCulloch has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

This manual can also be downloaded at www.mcculloch.com.

WHAT IS WHAT?

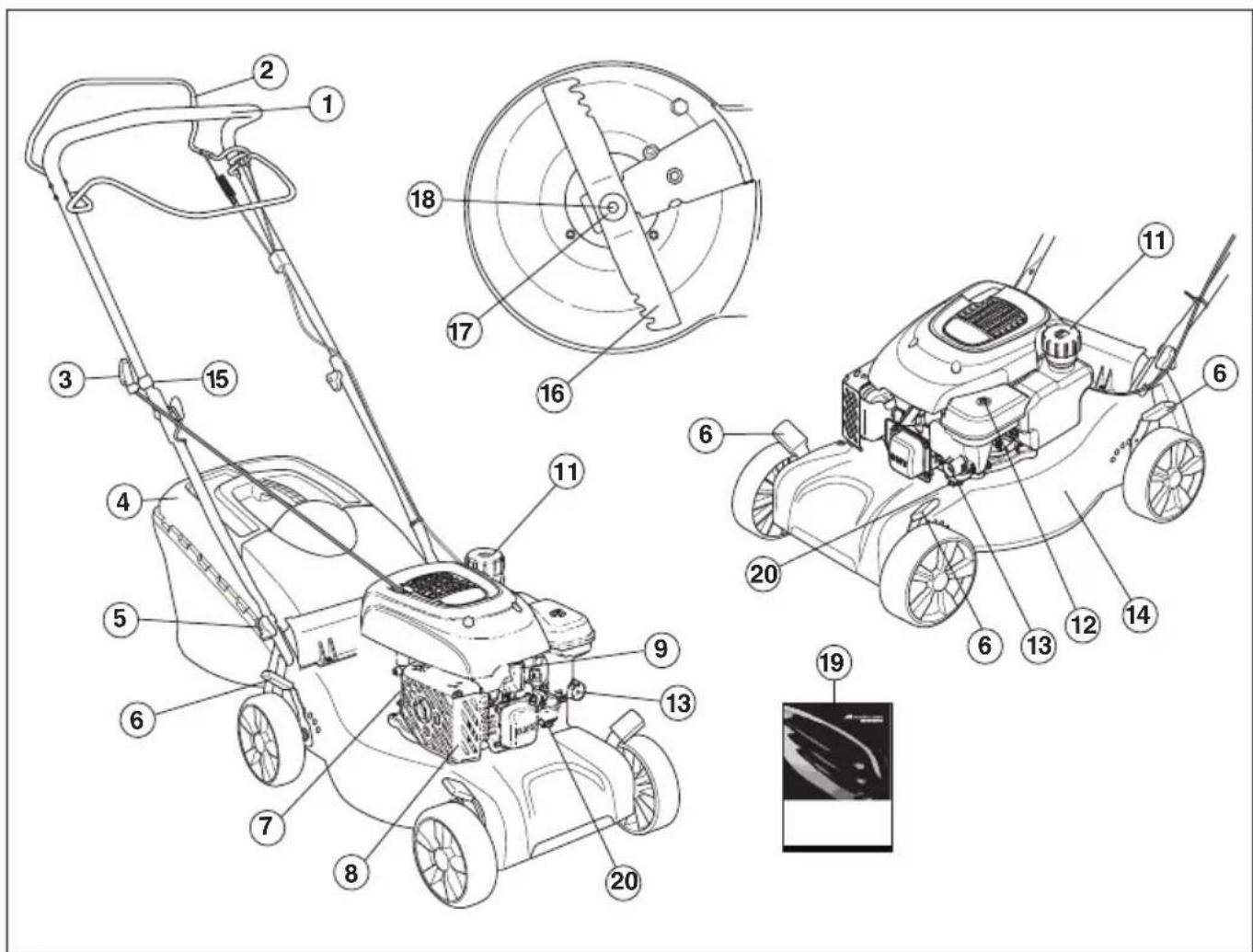

What is what on the lawn mower?

1 Engine brake handle
2 Propulsion bar (M46-110R)
3 Starter handle
4 Catcher
5 Handle, handle height
6 Cutting height control
7 Dipstick/oil filler
8 Muffler
9 Spark plug
10 Lower handle mounting

11 Refuelling
12 Air filter

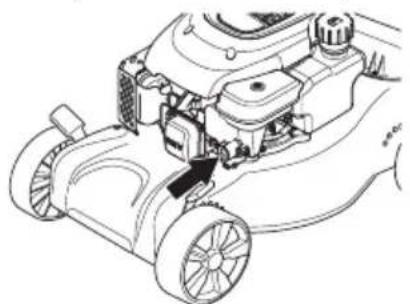

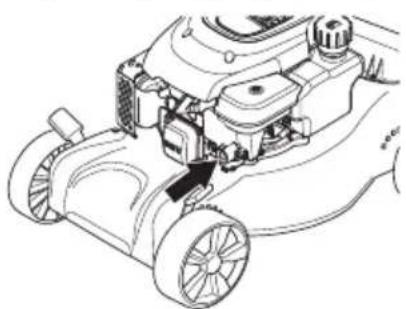

13 Primer diaphragm
14 Cutting cover
15 Starter cord guide
16 Cutter
17 Spring washer
18 Cutter bolt
19 Operator's manual
20 Carburetor bowl drain plug

General

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.

Do not modify this product or use it if it appears to have been modified by others.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Cutting cover

• The cutting cover is designed to reduce vibration and to reduce the risk of cuts.

Checking the cutting cover

• Make sure the cutting cover is not damaged and that there are no visible defects such as cracks.

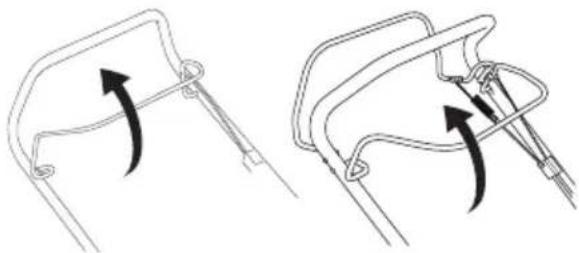

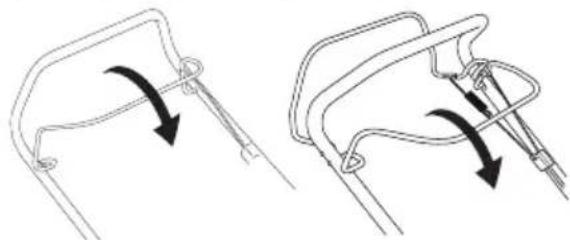

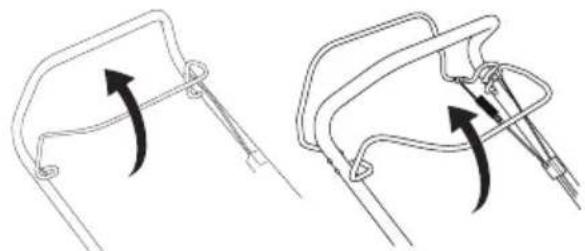

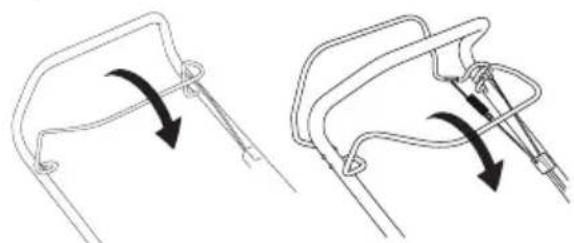

Engine brake handle

• The engine brake is designed to stop the engine. When the grip on the engine brake handle is released, the engine should stop.

Inspecting the engine brake handle

Apply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds. Contact an authorised service workshop.

Muffler

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

• The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

• Check regularly that the muffler is complete and secured correctly.

General

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug.

Handle

Assembly

Top handle

Place the handlebar's tubular construction in direct opposite to the lower part of the handlebar. Tighten the knobs properly.

Use enclosed straps to secure cables to the handle. Do not overstretch cables when mounting.

Cutting height

NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

Move the lever to the back for higher cutting height and to the front for lower cutting height.

M40-110 CLASSIC, M46-110 CLASSIC and M46-110R CLASSIC has four controls, one for each wheel.

Catcher

Assembly of the catcher

1 Put the grass catcher frame into the grass bag with the rigid part of the bag on the bottom.

2 Secure the grass bag to the frame by using the quick-action clips.

Mulcher insert

• Raise the discharge guard to mount / dismount the mulch plug.

Hook the spring in the frame.

Filling with oil

• The oil tank is empty at delivery. Fill the oil slowly. See instructions under the heading Maintenance. The engine oil should be changed according to the engine manual.

General

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly flammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fuel

NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.

Petrol

• Use good quality unleaded or leaded petrol.
• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
• Use low-emission petrol, also known as alkylate petrol, if it is available.

Engine oil

NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

• The engine oil should be changed according to the engine manual. Refer to the engine manual for recommendations on which oil type to use. Never use oil intended for two-stroke engines.

Fueling

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.

Use a fuel can at all times to avoid spillage.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.

Move the machine at least 3m from the refuelling point before starting it.

Never start the machine:

• If you have spilled fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

• When storing the machine for long periods, the fuel tank and carburetor bowl must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. Always wear:

• Use ear muffs if the noise level exceeds 85 db.
• Sturdy, non-slip boots or shoes.
• Heavy, long pants. Do not wear shorts, sandals or go barefoot.
• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

Always use genuine accessories.

Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.
• Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations, strong winds, intense cold, risk of lightning, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Observe your surroundings to ensure that nothing can affect your control of the machine.
• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.
• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.
• Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• The brake handle must never be permanently anchored to the handle when the machine is running.
• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
  Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.
• Do not tilt the machine when the engine is running.
• Pay particular attention when pulling the machine towards you during work.

• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

• Do not mow the lawn while walking backwards.

• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.
• Never run with the machine when it is running. You should always walk with the lawn mower.
• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.
• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.

Basic working techniques

• Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.
• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.
• Cut in different directions each time in order to avoid stripes in the lawn.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.
• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Store the machine and its equipment in a dry and frost proof place.
• For transport and storage of fuel, see the section "Fuel handling".

OPERATING

Starting and stopping

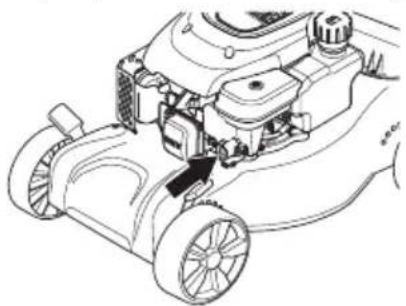

Before starting

WARNING! Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

• Keep people and animals well away from the working area.
• Perform daily maintenance. See instructions in the section "Maintenance".
• Ensure the ignition lead sits correctly on the spark plug.

Starting

All models have manual choke (primer diaphragm).

If the lawn mower is being started for the first time press on the fuel pump five times. After that you should press on the fuel pump three times when starting a cold engine.

• The engine brake handle must be held against the handlebar when the engine is started.

• Position yourself behind the machine.
• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip). Pull with force to start the engine. Never twist the starter cord around your hand.

Drive

(M46-110R CLASSIC)

• Push the propulsion bar in towards the handle in order to start the drive.

Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm.

Stopping

• Stop the engine by releasing the engine brake handle.

• The drive is also disengaged when you release the brake handle.
• By releasing the brake lever a bit only the drive will be disengaged.

MAINTENANCE

General

WARNING! The user must only carry out the maintenance and service work described in this Operator's Manual. More extensive work must be carried out by a service workshop.

Switch off the engine before carrying out any checks or maintenance. Prevent unintentional starting by removing the ignition cable from the spark plug.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.

Always use genuine accessories.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Before starting	Weekly maintenance	Monthly maintenance
General inspection	Spark plug Air filter
External cleaning M	Muffler* Fuel system
Oil level
Cutting equipment
Cutting cover*
Adjusting the clutch wire
Engine brake handle*

*See instructions in the section "Machine's safety equipment".

General inspection

• Check that nuts and screws are tight.
• Replace any damaged, worn or broken parts.

External cleaning

• Brush leaves, grass and the like off of the lawn mower.
• Do not use a high pressure washer to clean the machine.
• Never flush water directly on the engine.
• Clean the air intake on the starter. Check the starter and starter cord.
• When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank.

Oil level

The lawn mower should stand on flat ground when you check the oil level. Check the oil level with the dipstick on the oil filler cap.

• Remove the oil cap and wipe the dipstick clean.
• Put the dipstick back in.
• If the oil level is low, fill using engine oil up to the upper level on the dipstick.

MAINTENANCE

Cutting equipment

• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
  Always ensure the cutter is well ground and balanced correctly.

CAUTION! The blades should be balanced after sharpening.

Damaged blades should be replaced when hitting obstacles that result in a breakdown.

Replacing the blades

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.

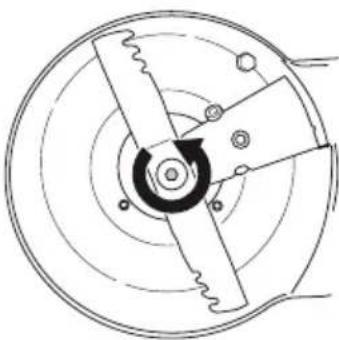

Dismantling

• Unscrew the bolt holding the cutter.

• Remove the old blade. Make sure the blade bracket is free of damage. Also check that the blade bolt is undamaged and that the engine shaft is not bent.

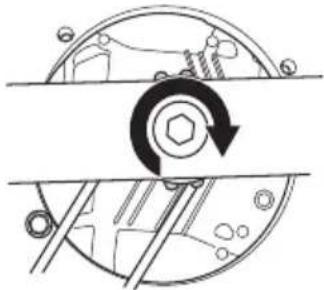

Assembly

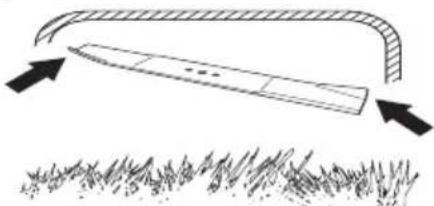

• The blade must be mounted with the angled ends pointing up towards the cover.

• Make sure the cutter centres correctly on the shaft.

• Fit the washer and tighten the bolt correctly. The bolt should be tightened with a torque of 45-60 Nm.

• Pull the blade around by hand and make sure it rotates freely.
• Test run the machine.

IMPORTANT!

Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorised service workshop.

Always use genuine parts. For more information, see the "Technical data" section.

Spark plug

NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

• If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.
• If the spark plug is dirty, clean it and check the electrode gap. Refer to technical data sheet for spark plug gap. Replace if necessary.

Adjusting the clutch wire

• Finely adjust the wire using the adjuster screw.

• Roughly adjust the cluch wire when the fine adjustment is not enough.
• Extend the wire using the fine adjustment screw.
• Roughly adjust the clutch wire by attaching it to the different brackets on the clutch bar. Then adjust the wire finely.

Air filter

• Remove the air filter cover and take out the filter.
  An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
• When reassembling, make sure that the filter completely seals against the filter holder.

Clean the paper filter

• Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

Cleaning the foam plastic filter

• Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter.

Oil change

• Empty the fuel tank.
• Unscrew the oil filler cap.
• Place a suitable vessel to collect the oil in.
• Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.
• Fill with new engine oil of a good quality. See the supplied instruction manual for the engine.

Fuel system

• Check that the fuel cap and its seal are not damaged.
• Check the fuel hose. Replace if necessary.

TECHNICAL DATA

Technical data

	M40-110 CLASSIC	M46-110 CLASSIC	M46-110R CLASSIC
Engine
Engine manufacturer Rato Rato Ratio
Cylinder displacement, cm3	113 113 113
Speed, rpm 2950 2950 2950
Nominal engine output, kW (see note 1) 1,6 1,6	1,6
Ignition system
Spark plug Torch A5RTC Torch A5RTC Torch A5RTC	A5RTC
Electrode gap, mm 0,7 0,7 0,7
Fuel and lubrication system
Fuel tank capacity, litre 0.8 0.8 0.8
*Engine oil	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30	SAE 30/SAE 10W-30
Weight
Machine with empty tanks, kg	23,6	26,5	29,2
Noise emissions (see note 2)
Sound power level, measured dB (A)	90	92	92
Sound power level, guaranteed LWA dB (A)	98	100 100
Sound levels (see note 3)
Sound pressure level at the operators ear, dB(A)	80	85	85
Vibration levels, a hveq (see note 4)
Handle, m/s2	3,7 4,8 5,0
Cutting system
Cutting height, mm 20-75 30-80	30-80
Cutting width, cm	40	46	46
Cutter	Combi 40	Combi 46	Combi 46
Article number	5871590-10	5811889-10	5811889-10
Bagger capacity, litre	50	50	50

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power (L_WA) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to ISO 5395:2013. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2dB(A)
Note 4: Vibration level according to ISO 5395:2013. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2m / s^2
*Use engine oil of quality SF, SG, SH, SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

EXPLICATION DES SYMBOLES

Attention: projections et ricochets.

Wasist was amRasenmacher? 121

I nclude 133

I03a6oTbTecb, YTo6bB pa6oey 3OHe He HaxoDiNIOcb JIOJe N KINBOTbIX.

PpeIO TBpaTnTe HnpeHaMepeHHbI 3anyck,OTcoeINHb Ka6eJb OT CBeuH 3aHHraHna.

BepenTecb OtcknBaiox npedMeTOB nPkoWToB.

BnMaHHe:BpaauoUneecpeKyuune
yacTN. IepKeIte pyKn u HOrn Ha
6e3onachOM pacCTOHN.

PpeynpeHnEHe: BpaauoueecaTn. IepHnte pyKn HOrn Ha6e3onacHom pacctOaHnn.

IaHHeu3JeJIneOTBeUaeT Tpe6oBaHnM COOTBETCTByIOx IInpeKtNB EC.

3MnccnIyMaBOKpyHaOuO cyepy corIacHo NipeKtNB Ebponeckoro Coo6eCTBa. 3MnccnMaINHbI npNBeDeHa BrJaBe T'TexHueckne xapaKTepncTKn'Ha Ta6nUKe.

HnKorda He noJb3yTecb MaHnHO B nOmeueHn HnB HnpoBeTpNBaEmbIX Mectax.B BbXIOIbIX ra3ax coepHHCTcOKncb YrIepoDa--6ecUBeTHbI, JADOBtBuN KpaHe onachbI r3.

OnachocTb B3pbBa

IpeepdIO3anpaBko Bcerda octaHaBnBaIte DnrgateJIb.

Topra na nobepxHocb.

IopcHHeK ypoBnAm npdeynpeJdeHn

CyueCTByeT Tpr npyOBn npedynpeHdEHH.

ПЕДУПЕЖДЕНUE!

PNEUYPENHEHNE!NcnoJb3yeTc, KOrda Heco6IIOJeHne IHcTpkyKuIN pyKOBoODCTBa MoKeT co3DaTb yrpo3y npUHHENr cepbe3hBx TpaBMnIcmepTN onepataOuNIOBpeHEnHaXoJaIeOcprAOM MyueCTBa.

BAXHO!

BAJHO!IcnoJIb3yeTc,KorJa Heco6JIIOJeHHe INHCTpyKcN pyKOBOIDCTBa MoKeT CO3aTb yrpo3y npuHHeHr TpaBM OepaTOpY JIN NOBpeJdeHn HaXOJaEroCpRdOM mMyEcTBA.

BHIMAHHE!

BHIMAHHE!IcnoJIb3yeTcR,KOrda Heco6JIIOJeHne IHCTpyKUIN pyKOBOIDCTBa MOHeT CO3aTb yrpo3y NOBpeJdeHn MaTePnaIOB NII MauHHbl.

CoepeHHne

IORCHEHNE CIMBOJIOB

YcNoBbIe 06o3HaueHn1 145

IopcHHeHKe KypOBnM npeDynpEnHn ...145

PPE3EHTAUZ

CoepKaHne 146

YBaHaembl nokyntb! 146

UTO ECTb UTO?

UToecTbTuToHara3oHOKOJIke? 147

CPEICTBA3AUHTbMAUHHbI

O6uHe cBeHnra 148

C6OPKA HACTPOIKN

O6uine cBeJeHHn 149

PykoTkn 149

Bbicota ctpnHK 149

C6opHnK 149

HacaKaIJa MyJbUPOBaHnra 149

3aJIbHaHneMacla 149

PABNIAOBAPSEHNCOTJINBOM

O6uHe cBeHnra 150

ToJIInBo 150

3anpaBka TOnJIINBOM 150

TpaHcnopTnpoBkA n xpaHeHne 150

3KCNJYATAUIN

CpeicCTBa 3aunTb onepaTopa 151

06uhe Mepb 6e3oNaChocTN 151

OchOBhIe npHcInbI pa6oTbI 152

TpaHcnpTupOBKa n xpaHeHne 153

3anyck n ocTaHOBka 153

TEXHINCHECKOE OBCJYKBAHNE

O6uine cBeJeHn 154

TpaΦnK TexHnueckoro 06cnyHHBaHnA 154

O6ua npoBepKa 154

Cbeua 3aHnraHna 155

PeryIipOBka Tpoca cIeJIeHnra 156

Bo3dyHbI ΦnIbTp 156

3aMeHa MacJa 156

ToJIINBHa cIcTeMa 156

TEXHNUECKNE DAHHbIE

TexHnueckne daHHbIe 157

KpbIka dIy HOnHe pa3pa6oTaHa IJIa CHINHEHNA Bn6paCUN N yMeHbWeHNA pNcKa noJyHeHNA nope3OB.
PpOBePKapeKyuueIeKn
-6eNTecb,HTo peHyuaJa IeKa He HMeet NOBpeHHneHn TAKNX BnIMbIX IeΦeKTOB,KaTpeuHbl.

PykoTka TopMo3a DnVraTeJIa

TopMo3 DBnraTeJI npeHa3HaueHДЯocTaHOBKn DBnraTeJI. Pn cnycke pyKoRTKNTopMo3a DBnraTeJIb OcTaHaBJINaBaETcJ.

PpOBepKa pyKoTKn TOpMo3a DnurTaTeJra

YBeJIuCyTe O6OpOToI Do MaKcImaJIbHbIX n OTnycTntepyKoTky TopMo3a. TopMo3 IBrIaTeJIa Heo6xOJIM HoCTpOnTb TaKIM o6pa3OM, yTO6bl DBIraTeJIb ocTaHaBJIbAJaC B TeYeHne 3 ceKyHd. O6paTIteCb K oΦNuaJIbHomy dInIepy.

IynteIb

IPEyIPEHEHNE! HIKoRda He
HcNoJIb3yTe MaunHy 6e3 rnyuHTeJIa
HnC DeEeKTHbIM rnyuHTeJIeM.
PiBpeJdeHHbI rnyuHTeJIb
3HaHTeJIbHO yBeJIuHBAeT wym n
pNCK noJaapa. ImeTe BcerDa noD
pyKo INHCTpyMeHT dJa TyuHeHra
noJaapa.

Iynte npn noB30BaHn n cpa3y nocne ocTaHOBKn DnraTeJe OyeHb ropuyn. 3To cnpaBeJnBO TaKHe npna pa6oTe Ha xOJocTbIX o6Opotax. POMHnTe o pncKe nohapa, B oco6eHHocTn npn pa6oTe pJdOm C JERKO BOCnJaMeHReMbIM BeecTBAMN/INrRa3AMN.

-「IyuHTeNb npEHa3HaueHДЯ CHINKeHnYPOBHA WMa N OTOBa B CToPOHy OTPa6oTaIOUero YeJNoBeKa BbIXIONHbIX ra3OB.
PpOBepKa rnyuHTeTnA
- PerylaHno npoBepaTe rnyuTteb, yTo6bIOH 6bl nCnpaBeH uXopoO 3akpenJeH.

067ne cBeHn

BAHXO!PpeoTbpaTnte HenpeHaMepeHHb 3anyck, OTCoeHINB Ka6eJb oT CBeuN 3aHHraHn.

PykoTkn

C6opka

BepxHpyka

IpebeHnte Tpy6aTyO cKo6y pykoTkn B noLoHeHne cTporo HAnpoTnB HnKHeu Yactnu pykoTkn. HaedHHO 3aTaNHTe fNkCaTopbl.

C noMoIbIO BXoIaIuX B KOMnJIeKT peMHei 3aKpeNITe Ka6eJIn Ha pyKoTKe. 3anpeuaeTcra Ype3MePHO paCTaRnBaTb Ka6eJIn npn IN KpenJIeHIn.

BbIcota cTpNnKn

3AMEUAHIE! He ycTaHaBnBaIte cNtKOM Hn3Kn ypoBeHb, T.K. Ra3oHoKocnJa MoKeT coPnKacaTbcr C HepoBbIMn NoBepxHocTAMN.

IpeBnHybpbuagHa3a,HTo6bIOHrTbHOHN, nBnepe-TO6bOnycTntb.

M40-110 CLASSIC, M46-110 CLASSIC, M46-110R CLASSIC nmeet YeTbpe peryIaTopa, no oHomy IJI KAnDoRo KoJeca.

C6opHnK

MOnTnpoBaHne c6OpHnKa

1 YctaHOBnTe pamy TpaBOc6OpHnKa Ha TpaBOc6OpHnK TaKIM 06pa3OM,HTo6bI HeCTkA Yaactb TpaBOc6OpHnKa OKa3aJnac BHN3y.

2 3akpenTe TpaBoc6OpHKn Ha paMe c nomoubIO 6bictpocbeMHbIX 3aHIMOB.

HacaKa IJIa MyIbUnpoBaHnIa

-ПоДнИМЛТЕ сИТOK pa3rpy3KN,чTo6bl ycTaHOBNTb/chrTb npO6Ky MyIb4HnpoBaHnA.

3aKpeNTe npyHnHy K paMe.

3aJIbBaHneMacla

MaHnHa noCTaBnIeTcNyCTbIM MacJIHbIM 6akOM.3aJIbaiTe MacNo MeJInHeHo.CM. yKa3aHnB pa3JeIe YxoD.3aMeHy MoTpHO macJa cJeDyeT npoBOuNTb B COOTBeTcTBnC pyKoBOdCTBoM no 3KcnIpyaTaUN DBIrataJIa

O6uine cBeJeHnIa

PNEyIPEKJEHNE!Pa6oTa
DINrataJIbB3akpbITOMNINB NIOXO
npOBetpNBaEMOMNOMEHIMMOKeT
nPBecNTKcMEpTeJIbHOMYNCxOyB
pe3yJIbTaTe ydyWeHnNNI3apAneHn
yrapHbIMra30M.

TOnJIbO H NcnapeHnra TOnJIbA KpaHHe nnoJapooanacHbI MOrTy npNBecTu K cepbe3HbIM TpaBMam npBvBbIXaHnN KOHTaKTe cKoKei. Po3Tomy 6yDbTe ocTopoHHbI npn o6paueHnC TOnJIbOM I o6ecneBbTe xopoSyuBeHTUNaHIO npn o6paueHn C TOnJIbOM.

BbIXlonHbIe ra3bI DnRaTeJr ropuN MoTy CoepKaTb NcKpbl, KoToPbIM MoTy CTAb npUHHo noXapa. PoTOMy MaunHy HNKOrJa He cJeDyET 3anyckaTb BHyTpN NOMeueHn IIN pAOM C JeRKOBCnJaMeHReMbIM MaTePnaJOM.

He Kypnte HcCTaBbTe HnKaKne ropayne npedMeTb pAdom C TOnJIbOM.

TOnJIInBO

3AMEUAHIE! MaunHa KOMnJIeKTyeTcra YeBbIpeXtAaTHbIM DnBraTeJemaH. Heo6xoJIMO NOCTOHHo npOBepaTb ypOBeHb MacJa.

HeaTnIInpoBaHHbI 6eH3nH

• Nolb3yTEcB BblcOKoKaueCTBeHHbIM 6eH3nHOM, B TOM YNCJI He3TNJIpOBAHHbIM.
  PekomeHnyeMoE MNHIMaJIbHOe OKTaHOBoe YncI90 (RON).EcJIN DBrIraTeJIb 6yJeT pa6oTaTb npn 6OJIee Hn3KOM OKTaHOBOM YncJIe Yem 90, DBrIaTeJIb MoKeT npOn3BOJNTb CTyK. 3To npNBOJNT K yBeJIuYeHIO TempepaTypbl DBrIaTeJIa, YTO B CBOIO OUpeEd MOHeT npNBecTIK eero cepbe3HbIM HeNCnpaBHocTAM.
• IIO BO3MOHHOCTN NOJIb3yIITecb 3KoJIoRnueckIM, T.H. ⅢeJIIOuHbIM 6eH3INHom.

MoTopHoe MacJIo

3AMEUAHNE! Npeed 3anyckom ra3oHOKOJIKN npoBepbTe ypoBeHb MacJa.CnIuKOM Hn3Kn IyPoBeHb MacJa MoKeT npNBecTu K cepbe3HbIM NOBpeHdEHNm DBNrATeJy. Cm.yKa3aHnB pa3deJe "TexHnuecKoe o6cLyhNBAHne".

3aMeHy MoTOPHOro MacJa cIeIyE T npoBOiHTb B COOTBeTCTBnC pyKOBoIDCTBOM NO 3KcNJIyatauIN DBIrTaTeJr. PeKOMeHdaUuN no BBi6OpTyNa MaCJa CM. B pyKOBoIDCTBe No 3KcNJIyatauIN DBrTaTeJr. HIKOrDa He

nPIMeHnTeMacIOIJIyDByXTaKTbIX DBNrataTeJei.

3anpaBka TOnJIINBOM

PNEyPENDEHNE! Npee3anpaBko CneyeTe 6o3aTeIbHO BblKIOHTb DBnraTeIb I DaTb eMy OxJaNTbcB TeueHHe HeckOJIbKnx MInHyT.

YTo6bI npEDoTbpaTnTb pa3JINB TonJIiBa, Bcerda NcNoJIb3yTe CneUHaJIbHbI nO,IoHOH.

Pn3anpaBKe KpbIikky TOnNIBHoro 6aKa cJeDyeT OTKpbBaTb MeIJIeHHo, UTo6bl nocTeeneHHO cTpaBNTb n36blTOuHoe daBJIeHne.

OuNTNe noBepxHocTb BoKpyr KpbIaKN TOnJIINBHO 6aKa.

IocJe 3anpaBKn nIoTHo 3aTaNHTe KpbIkw Ky TOnNlNBHOrO 6aKa. He6peXHocTb MoHeT CTaTb npuHnOH noxapa.

Ipe3anyckOM nepeMeCTnTe KybTBAToP KaK MHHMyM Ha 3 MoT MeTa 3anpaBKn.

HnKoIa He BkIIOuAITe MaINHy:

EcNn Bbl npolJIn TOnJIINBO NIn MoTOpHoe MoTOpHoe MacNo Ha MaunHy. Bbltpnte npolNToe TOnJIINBO NIn MacNo I daIte ocTaTKaM TOnJIINBa HcnapNTbcra.
EcIn Bbl npOJIIN TOnJIINBO Ha ce6nIIN CBOO OeHHy, CMeHNTe OJEnHy. NOMOIte Te YacTN TeJa, KOToPbIE 6blN B KOHTaKTe C TOnJIINBOM. IOpJB3yITecMbJIOM IN BOIOI.
- EcJn Ha MaunHe npOnCxOuNT yTeUka TOnJIbBa. PeryIpaHNo npOBepaTe KpbIuKy TOnJIbHOrO 6aka n UHaHrHa npEiMeT npoteKaHn.

TpaHcnpTnpOBka n xpaHeHne

CJIeNyET XpaHnTb N TpaHCnpTupoBaTb MaunHy n TOJINBO TaKIM O6pa3OM, YTO6bI He 6blIO pncKa KOHTaKTA NOITeKOB INIIN napOB c NCKpAMN INI ONKpbITbM ORHeM, HApPIMep, y 3JIeKTPoMaUNH, 3JIeKTPoDBiRaTeJeN, 3JIeKTPnuecKnx IN CInIOBbX NepeKJIIOuTaTeJeN/ HarpeBaTeJeN KOITNoB.
ToIINBO Bcerda cIeIyET XpaHHTb IN TpaHCnOpTnpoBaTb CneUaJIbHbIX eMKocTAX, npEHa3HaueHHbIX JJIa 3ToI LcJI.

ДиTeьHoe xpaHeHne

IpeKHe Yem HapabNTb yCTpOcTBO Ha IJIITeJIbHOe XpaHeHne, CJIeDye TOnopoHHHTb ToJINBHyB 6aN I NonJaBKOByo KaMepy Kap6OpaTopa. BbIcHnTe Ha MeCTHoH 6eH303anpaBOuHOcTaHcU, KyDa Bbl MoKeTe cJIITb JINWHee ToJINBO.

CpeicTba 3aunIbI onepaTopa

Bo Bpempa60Tb C MaunHOBbldoJHHb
ncnoIb3oBaTb CneuHaBhIe Odo6peHHbIe
cpeCTBa 3auntb. CpeCTBa LNHyHO3auntbI He
MOryT NOHocTbIO NCKLIOHTb PnCK NoLyueHnA
TpABMb, HO npn HecuaCTHom Clyuae OHN CHINHAOT
TJeecTB TpaMbI. ObpaauTeCb 3a nOmoBIO K
dInJepy npn no6ope cpeCTB 3auntbI.
Bcerda nCnoIb3yIte:

Ecn ypoBeHb Wyma npBbICHT 85 neu6eJ, nCnoJIb3yIte HayHnKn.
YcToHnBaHHeckoJIb3JaA 06yBb.
IpouHbIe IINHHbIe 6pIOKn. He HocHTe yKpaSeHnA, OoPTb IIN caHaJIaIIu, He XoJNTe 6ocIKOM.
- Pn Heo6xOIMocTn noJb3yTecb 3aUHTbHMn nepuATKaMn, HapnpMeP npMoTHIpOBaHn, ocmTope nnuCtkepehnyeero 06OpdyoBaHna.

O6uIe mepb6e3oNaChocTn

B 3TOM pa3dJe paccMaTpnuBaIOcOCHOBHbIe npaBnla 6e3oNaChocTu npu pa6ote c MaunHOJ. Ondako daHHa INHOpMaUra HNKOrda He MoKeT 3aMeHHTb noIroTOBKN I npaKTNUeCKOro onbTa npofoecCNOHaJIbHOrO noJIb30BaTeJIa.

• PpeHne Yem npncTynntb K pa6oTe c MaunHoB HIMMaTeJbHo npouHTaTe INcTpyKUHO y6eNTecb, UTo Bam Bce noHrTHo.
  -ПOMHInTe o Tom,чTo onepaTop HeceT OTBeTcTBeHHocTb 3a Bo3MOHHbIe HecyacTHbIe cJyuAn IIN aBapN, KOToPbIe cTaJI npuHOn TpaBM INI NOPn IMUseCTBa dpyrNX JIOJeI.
  MaHnHy Heo6xOJIMo CoepHaTb B YnCTOte. 3HaKn Hn KaJIeKn DOJIHHbI 6bITb XopoWo BNHbl.

Bcerda pykoBoIcTByITeCb 3IpaBBIM CMBICJLOM

HeB03MOHHo npeDnIeTb BCE cHTyaLm, KOToPbE MoYrBo3NkHyTb nepei BamH. Heo6xoJIMo co6JIIOaTb ocTopoHHocTb n pyKOBOcCTBOBaTbc3dpaBBim CmblcIOM. EcJn Bbl B kaKoJ-ll6o cTIyauIN noUyBCByTe ce6h HeyBepenHO, 6bpatNTecb 3a COBeTom K cneuaJIncTy. CnpocITe BaWero dInlepa, cnpocITe COBETa B cNeuNAIN3npOBaHHo MaCTepCKo Nn y onbTHOrO noIb30BaTeIa. N36eraIte IcNoJIb30BaHHa, JIA KOTOpO Ro Bbl He cHTaTe ce6J IOCTaTOUH NOIroTOBLeHHbIM!

PNEUYPENKDEHNE!BoBpempa6oTb ycToIcTBoCo3daeTJIeKTPomarHHTHO ne.BoOnpeJeHHbIXo6cToaTeNbCTBax 3ToNoJeMoKeTco3DaBaTbNoMexnJnnaNaccNBbIXnAKTNBBHXMeuHcknx NmHaHTaTOB.Bno36exahne pncKa cepBe3HOJNCMePeTBJHOITpABMbI JNuCaM C MeuHckMm NmJaHTaTaMn peKoMeHdyETc npOKOHcyJBtPOBaTbcC BpaOmNn3rOToBnTeJEMMnPaHTata, npExdeYemnpCTyNaTbK3KcnNyatauN daHHoroycToiCTBa.

PPEyIPEHJENHE! Pn HnpaBnblHom Nn He6peHHOM nCNoJIb3OBAHm MaunHa MoKet 6bTb OaChbIM INCTpyMeHTOM, KOToPbMoHeT npuHHTbc cepBe3HbIe NoBpeHJDeHry Nn TpaBMy Co CMepeJIbHbIM nCXoIDom JIg NIOJIb3OBaTeJIy Nn IJa dpyrNx.

3anpeaaetcanyckaTbKynpaBHeHIO
NIN peMOHTy MaunHbI DeTei NIN
B3pocJIbIX, He IMeIoUx
coOTBeTCTByIOUeI NOdroTOBKN.

JaHHyIO MaunHy 3anpeeHo
NCNoJIb30BaTb JIuAM C Hn3NueCKIMN
JINYMCTBeHHbIMn HApUWeHnAIMn, JIN
JIuCaM, He CnOCo6HbIM ynpaBJIaTb
DaHHoMaunHO NO COCTOHNIO
3dOpOBb. 3KcNlyaTaUNMaunHbI
DaHHbIMN JInLamPi aPteWaeTcToJbKO
NOI npCmOTpOM JInU, OTBeTCTBeHHbIX 3a
NX 6e3onachocTb.

HeIOnyckaTe KNoJIb3OBAHIO MaUNHOI nocToPOHHIX NlUc, He y6eINBWHscB HauaJIe B TOM, UTO OHN NOHJIu coJepeHaaHne INHCTpyKUIN.

HnkOrda He pa6oTaTc MaunHo, ecn Bby ycta, Bblnnn aNkoorb, ninn npHmaeTe JeKapcTBa, KoTopbie MoryT OKa3bBaTb BnnaHHe Ha 3peHne, peakuio nn KoopDnHaLIO.

IPEyPENHEHNE!BHeceHne
Hepa3peeHHbIX N3MeHeHNI U/UJI
NcNoJIb3OBAHnE HepeKoMeHIOBaHHbIX
npncno6JeHn MoKeT npNBecTu K
cepBe3HO TpaBMe IJIIN DaHe K
CmepTeJbHOMy NcxOdy JJI
NOJIb3OBATeJIy IJIpyrX JLIU. Hn npi KaKnx ObcToaTeJIbCTBax He
DOnycKaetcBHeceHne N3MeHeHNI B
NepBOHaaybHyO KOHCTpyKcIIMoAunHbI
6e3 pa3peeHn N3roTOBtTeJI.

HnkOrda He MoiNphiuPyTe MaunHy HacToIbko, YTo6bI ee KOHcTpkyKua 6oJIbwe He cooTBeTcTBoBaJa opnHaJIbHomy NcnoJIHeHIO, N He oCyueCTBJIArTe ee KcNlyaTaUIO, ecJI Bbl noO3peBaTe, YTO OHa 6bJa MoiNphiuPoBaHa dpyfM JInlcm.

HnkOrda He nCnoJb3yIte DeeKTHyUo MaunHy. PpOBoIte peryIaRhBie OcMoTpbI, yXoN o6cLyHHBaHne B COOTBeTCTBnC daHHbIM pyKOBOdCTBOM. HekotOpbe onepaun no yxoNy o6cLyHHBaHIO BblOnJIHraTc ToJbKO NOrdoOBJeHHbIM CneLnaJIncTaM.

IoiB3yIteCbTolbKOOpnHaJIbHbIMN 3aIyacTAMN.

БezonaHocTb pa6oeryo MecTa

-Перд Началов pa60ть Heo6хоДМо удаЛNTь cу actKa BeTKN, KaMHи T.Д.
MaHnHa MoKeT Bb6paCbIbTaHapyHy nocTopoHHne IpeDMeTbI, OKa3aBWeecr NOd HOKaMn, YTO MoKeT CTaTb npuHOn TpaBM NJIIOBpeKHeHnA mUeCTBa. He IcNoJIb3yIte MaHnHy, ecJI npaOM HaxOJaTcJ IIOJN IJIIN HVBOTHbe.
Hikorda He nCnoJIb3yIe MaunHy npn He6laonpnaTHbIX noROdHbIX ycIOBnX, HApnpMep B TymaH,doKDb, pNcNilbHom BeTpe, Ha cblbix yacTKax, pNn Hn3KNx TemnepaTpyax Bo3dyxa, PNCKe ydapa MoJHmN I T.Д. 3KcnlyaTaunMaunHb npn nloXoJ noOde yToMNTeJIbHa N MoKeT npNBecTn K Bo3NHKnHOBeHHIO onachbIX cnTyaLH, HApnpMep, I3-3a cKoJIb3Knx noBepxHocTei.
-Проверъ,ЧтбьллбилзocTи He 6blno HnUero TaKOrO,чTo MoHcet nobJnAЯТь NaBau pya60Ty c MaunHoN.
- Pn pa6oTe c MaunHoi 6paauIe BHNMaHHe Na KopHn, BeTKn, KaMHn, RaMbI, KaHaBBn npOue npenTcTBn. B BbICoKoTpabe npenTcTBn MoryT 6bITb He3aMeTHbl.
- CkaunBaHHe TpaBb Ha cKloHax MoKeT 6bItb onacHbIM. He nCnoJb3yIe Ra3oHoKocNky Ha oueHb KpyTbIX cKLoHax. HeJb3ra noJb3oBaTbcra3oHoKocNkoH Ha nobepxHocTEx c yKIoHOm, npebbIaOuIm 15 rpaDycob.
Ha cKnloHax nyTb cIeJeT npokJaDbBaTb noI npAByM yrIOM K cKJHOy. Iopa3do Jerepe pa6oTaTb nonepeK cKJHOHa, Yem noDnHmArcb n onyckaRcNo cKJHOy.
-Пи npi6JIHHeHnK 3aKpbITbIM NOBopoTaM nIIN o6BeKTam, KOTOpbIE MoryT 3aTpYdNHaTb 063Op, cJeNyET 6blb Oco6eHHo OCTopoKHbIM.

TexHnka 6e3oNaChOCTN

• Ra3oHokocnJa npeHa3HaueHa NCKJIQUHTeJbHO JI KooHeHr Ra3oHa. 3aPeeaaetcNcNoJIb3OBaTb MaunHy He no Ha3HaueHIO.
  Полььзутecb cpeДТВAMИнДИВИДУаЛБНОЗHTы.Cm.pa3дeЛ'СрсТВа3auntbI NOЛьЗВаTeJI'.
  Hikorda He 3anyckaTe raoHoKocny c OTCyTCTByUIMN NIN HeKoppeKTHO yTaHOBJIeHHbIM KOHyXAMN NIN HeKoppeKTHO yCTaHOBJIeHHbIM HOHOM. B npOTnBHOM cJyuae HOK MOKeT HaHeCTN TpaBMy.
• Y6eHITb, UTo B HOnH He nonaJIncnocTopoHHne npedMeTb, HAnpIMep, KaMHN, KopHN n T.d. 3To MoHeT 3aTyHtB HOxN INPnBEcTN K NCKpNBLeHnIO BaJa. PnC rIn6aHnO cN HApUaeeTc8 aJaHaCnpOBKa u yBeJNuHBaetcyaPoBeHb BV6paUNu, UTo MOHeT npNBecTN K CnHexHIO HaJeXHoCTN KpepeJa DeTaJIeI Ra3OHOKoJIKN.

3anpeaaetcHa npoJOnHnTeJIbHoe Bpem3aKpenJIb pyky Topmo3a npn pa6oTaoueMaunHe.
- Pn3anycKe ra3oHokocnJa doJHHa 6bITb pa3MeueHa Ha poBHO rOpN3OHTaJIbHOI NOBepxHocTn. IpOBepbTe, YTO6bI HOK He npNiWeJ B cOnpIKOCHOBeHc C rpyHTOM IJI KAKIM-JIN60 npEeMeTOM.
- Pn pa6oTe c MaunHoi cJeDyeT Bcerda HaxoNTbcra c3aAn. PnBbINOJIHeHN pa6oT BCE KoIeca DoJHKbI HaxoNTbcra Ha 3eMJIe. PyKoTky cJeDyeT depHaTb o6eIMn pyKaAMn. He npu6JIHHaIte pyKn IIn HoN K BpaauOuIMcA fpe3am.
- HeJIb3a HAKJIOHrMbMaunHy npn pa6oTaioeM DBnraTeJe.
-БудьTe oc6oВHIMaTeIbHbI npi nepeBnHeHn Ra30HOKocNkN B CBOIO cTopoHy.
Hikorda He noHmMaTe H He nepeHocnte ra30Hokocnky npna pa6oTaioeM dBiratne. TTo6bNoHNrTBra30Hokocnky,ocTaHOBNTe DBIRaTeIb nOTcoeINHITe Ka6eIb OT CBeuN 3aHHraHnA.
He noIcTpIraTe raoH Bo BpeM IbNHeHnB 06paTHOM HapBaJIeHN.
- PnpeMeHn no yAcTkU, He nOJIeHaIeMy KoIeHIO, Heo6xOIMo ocTaHaBnBaTb DnrgaTeIb. HanpImep, npn nepemEeHn no rpaBnHbIM dOpokam, KaMHaM, raJIbKe, acaJIbTy u T.D.
- He 6eraTe c pa6oTaIOSe raoHokOncIkoN.
Pnp pa6oTe c raoHokocnIkoBceIda xoInte MeJeHHo.
- OTKJIIOUHTe DnBnraTeJIb, npeJHde YemN3MeHnTb BbICOTy cKaaUNBaHn. HNKOrJa He BbINOJIHnTe peRyIINPOBky npi pa6OtaIoUeM DnBnraTeJIe.
He ocTabnIte MaunHy c pa6oTuOuIM DnurTaTeJem 6e3 npuCmToPa. BbIKIOUHTe DnurTaTeJIb. Heo6xoNMo y6eINTbcr, YTO HOK OCTaHOBUNCra.
- EcIIN nonaTeT nocToPOHHn npEdMeT, INI npIn cnJIbHOB BN6paUHN, HeMeIJIeHHO OCTaHOBNTe MaunHy. ChIMNTE cBeuHO KabeJb CO CBeuN. IpoBepbTe HeT JI Ha MaUNHe NOBpeKdEHN. Ipn HAINuIN NOBpeKdEHN, ycTaPAnHTe NX.

OchOBHbIe npnHcInbI pa60TbI

-Дя onTImaJIbHOro pe3yIbTaTa cIeIyEt IcNoJIb3OBAtB ocTpoe Je3BVe. 3aTyINBWeecr Je3BVe 6yTeCTpNHy HepOBH0, IN B MeCTe cpe3a TpaBa 6yTeT HeNTeTb.
- He ckaaBaiTe 60Jee 1/3 Bcei JInHb TpaBbl. 3To KacaetcB, B nepByo oupepeBb, 3acyuNIBoro BpemeHrOda. BbnoJIHnTe nepBoe cKaaINBaHne Ha 60JIbWei BbICote. 3aTeM npoBepbTe pezIbTaT i CKocNIte TpaBy Do Heo6XoIMOrO ypoBnHa. EcII TpaBa BbICOKa, nepeDbiraiTe raoHOKocNkUy MeJeHHO N,

Pn Heo6xOJIMOCTN,NCIOJIb3yITe Ra30HOKOcNJKyDba p3a.
- EcJIN BbXOTnTe H36eHaTb 06pa3oBaHnnaNoIoc Ha BaWeM rA3OHe, HyKHO KaHdb pa3 CTpNpyb erO B pa3HbIX HanpaBJIeHNx.

TpaHcnpTnpOBka n xpaHeHne

HaJeHHo 3aKpeNJIte o6OpyIOBaHne Bo BpeMraPcHcnpTIpObKN BO n36eHaHne IOBpeXHeHn HecUacTHbIX cIyuaEB.
XpaHnTe 60bpyOBAHHe B 3aKpbBaEMOM Ha 3aMOK NOMEeHn, He IocTynHom IJIa DeTei nIOcTopoHHx.
XpaHnTe HnCtpymeHT B cyxom TenJiom NOMeueHIN.
- PeKOMeHdauu no TpaHcnpTupOBKe u xpaHeHIO ToNJIbA npBedeHbI B pa3deJe 'PpabNu o6paueHnC ToNJIbBOM'.

3anyck n octaHOBka

Ipeid Haayalom pa6oTbI

PNEyPENHDEHNE! PpeHne yem npctTyNTb K pa6oTe c MaunHOB, BHMaTeJIbHo npouHTaJTe INcTpyKuio n y6eHnTecb, uTo Bam BCE noHrTHO.

NoIb3yTecb cpeCTBaMn HINIBNyaJIbHOJ 3aUNTBc. CM.pa3JeI 'CpeDCBa 3aUNTB noJIb3OBATeJra'.

-No3a6oTbTecb,HTo6bIBpa6ouee 30He HaxoINIOcB JIODeH NHBOTbIX.
- BbinoJHnIe eHeIHeBHOe 06cJyHnBaHne. CM. yKa3aHnB pa3JeJe "TexHnueckoe 06cJyHnBaHne".
-6eNTecb B KoppeKTHoCTn NOdkJIOueHna Ka6JIa K CBeue 3aHHraHna.

3anyck

Bce moJeIIO6OpyIOBaHbI pyuHoN Bo3NyUHoi 3acJIoHkoI (MeM6paHa HAcoca noKauKn TOnJIiBa).

Pn nepBOM 3anycke ra3oHOKocnKn nTb pa3 HAnMITE Ha TOnJIINBHn HAcOC. NocJe 3ToRo Heo6xoJIMHO HaxaTB Ha TOnJIINBHn HAcOC eue Tpna Pa3a B cIyuae XoJIOHOro 3anycka.

-Пи зanycke ДВИгаTeЯ npнMHmTe pyKoTky TopMo3a DBIgatela KpyKoTKe.

BCTaTb 3a MaunHoi.
B3aTbCya pyky cTape, npaBoi pyKoI MeJHeHNo noTaNHyTb Ha ce6y Tpoc, noKa He noCyBcTByeTc conpoTnBJeHne (cTapTe BxOHT B 3aUenJeHne). Pe3ko noTaNHyTb Tpoc, YTo6bl 3aBeCTn DnBraTeJIb. HIKoRda He HaKpyuBaYTe cTapTOBbI uHyp BoKpyr pyKn.

PbUar BKJIOueHn npVBoDa

(M46-110R CLASSIC)

HaHMMTe Ha cKo6y npNBoa B HAppaBJIeHN pyKOaTKn, UTo6bHaHaTaB DnHeHne.

-ПпсндчЕмnotянтбарperaTHa ce6Я, Heo6xOДМО OTKJIHQUHTb npINBOd NToJIKHyTB arperaT Bnpepe npN6JIu3nTeIbHo Ha 10 cm.

OctaHOBka

• OctaHOBnTE IbIraTeJIb, OTnyCTnB pyKoTky TopMo3a IbIraTeJIa.

-ПивODТаКнЕpacцeENJIeTcnpОТпсKaHnpyKoRTKnTopMo3HOrOpbIyara
-ПивоД можно paцeNTь,Чть оТпсТВ TopMo3HyO pyKoTky.

O6uine cBeJeHnIa

PNEyPENDEHNE!NoB3oBaTeIb MoHeT BbIOJNHTb ToJIbKO TaKne pa60Tb IO 06cJyHNBaHIO I cepBnCy, KOToPbIE OINCAHbIB DaHHOM pyKOBoIDCTBe NO pa6Ote.Bce npOue pa60Tb IOJINHbIBbIOJNHTbcA ABTOIN3OBaHHoMaTePckOn no 06cJyHNBaHIO.

IpeepBbINOJIHeHMe npOBepOK nJITexo6cLyHHBaHnBAblKIOuayTeDINrAteIb.IpeDoTbpaTnteHenpeHaMepeHHb3anyck,OTcoeHNHBKa6eIbOCTBeU 3aHHraHn.

CpOK cIyK6bMaunHb MoKeT 6bItb ykopoeH npck abapn yBeJIuYeH,ecJIn o6cIyKINBaHne MaunHb He BblNOJIHReTc npaBnIbHbIM 06pa3OM n ecJN cepBc N/ nn peMOHT He 6bln BBIOJIHeHbl npoceccnoHaIbHo.Ecn Bam Tpe6yeTcdoNoIHNTeJIbHa INOpMaUna, 06paNTeCB b 6lnhaMuy MaTepcKyIO no 06cIyHHaHIO.

BHIMAHHE!EcJH Heo6xOuMo HaKIOHHTb MaunHy,y6eIITecb,HTO Bo3dUuHbI ΦNtBtp HaxoINTcB BepxHeM NOLOKeHN.

• TOnb3yTecb ToJIbKO opnHHaJIbHbIMn 3anuactaMn.

TpaΦnK TexHnueckoOro 06cJyHnBaHn

B rpaΦke 06cLJyHnBaHn yka3aHo, KaKne YacTn MaINHbI Tpe6yIO TexHNueCKoR O6cLyHnBaHn, n C KaKIMN INTEPBAJaMn OHO dOJIHHO npON3BOIDNTbcr. 3TN INTEPBAJbI paCCuHTaHb I CXOJr N3 eKeDHeBHOrO NCNOJB3OBAHn MaINHbI, n MOryTM MeHrTbcR B 3aBNCUMoCTn OT YAcTObbl NCNoJIb3OBaHn.

TEXHnueCKOE OBCJIyJINBAHNE

3aMeHaJIe3BnI

PNEyPENHE!PnppeMOHTe peKyuero 06OpdyoBaHnBcerda oDeBaTe KpenKne pa6Oue nepaTkN. HoN ouEnb ocTpble n mN Bcerda Ierko nope3aTbcra.

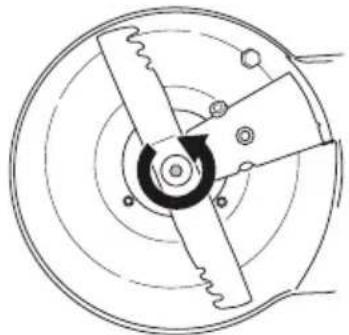

Pa360pKa

-OTKpyTITe BnHT,ydepHHBaHohn.

-CHaTb NcNoJIb30BaHHyIO peHcyUHO HacaIky. OcMoTpeTb KpenJIeHne JezBn Ha HauNue noBpeJHeH.NaKHe Heo6xoDmO y6eINTbc, 4TO BnHT HoHa He NoBpeJDeH, a BaI DnRaTeJn He corHyT.

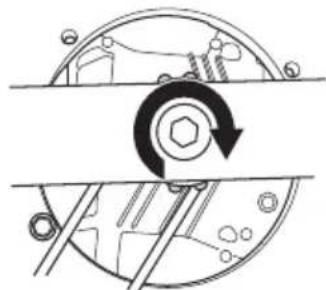

C6opKa

HHe06xOIMO yCTaHaBJIINBaTb TaKIM 6pa3OM, YTo6bI HaxoJIIeecr noD yrIOM Kpa8 6bln 6paueHb I BBepx no OTHoWeHIO K KpbIwKe.

• Y6eIITecb, yTo peHyUee ycTpoiCTBe npaBnJIbHO OTuEHTpoBaHo Ha BaJe.

• YctaHOBnTe 8aI6y n 3aTaNHTe BnHT. MoMeHT 3aTAAKN BnHTa paBeH 45 - 60 Hm.

-Провернть Лесви руко, y6eДИТбс,чTO OHO BpauaTeCBA6OdNo.
-ПронзВecтпnpo6ньлзanyckMaшины.

BAHHO!

Heo6xoJIMo 6bTb ocTopoHHbIMn pyKOBOIDCTBOBaTcR 3dpaBBIM CmblCJOM. N36eaiTe pa60T, JIA KoTOpBX, NO BaWeMy MHeHIO, yPoBeHb BaweN KBaJIuΦNKaUIn HeOcTaToueH. EcIIN nocIe I3yueHn HAcToaUNx INcTpkyKUyBac Bo3HNKJIN Bonpocbl OTHOcHTeJIbHO 3KcNJaTaUuMaunHbI, npEJe Yem npncTyuNTb K pa60Te, o6paTntEc b 3a KOHCyJIbTaUneK cNeuaJIncTy. O6paTntEc b K oHnuaJIbHomy dIIepy.

Bcerda nCnoJb3yTe opnHnHaJbHbIe deTaJI.
IJa noJyueHn6oJe noDpo6Ho HhOpMaUIn
cm.pa3dEJ《TexHnueckne daHHbIe》

Cbeua 3aHHraHnA

3AMEUAHNE!BcerdaHcnoJb3yIeToJIbKo yKa3aHHbI Tn CBeu!PpIMHeHne HecooTBcTCTByIOSeM OMeJIIM MoKeT npINBeCTNK cepbe3HbIM NOBpeJdeHnM nopHn/UnInHnpa.

• EcIINHcTpymeHT CHN3HJ MOUHocTb, C TpydOM 3aBOIDNTcra nn pa6oTaet HeycTouNo Ha XOIOCTOM XOy: Bcerda cnaJa npOBepnTe CBey 3aHnraHn, npeJe qem ppeDnpnHrTb dpyrne war.
• EcHn Ha cBuee o6pa3oBaIcra Harap, Heo6xOIMMo ee npouncTb nnpOBepntb 3a3Op MeJy 3JIeKToPdAm. 3HaueHne 3a3opa JIa CBeu cM. B pa3JeIe 'TexHueckne daHHble'. 3aMeHHTe erO B cLyuae Heo6xoIMocTn.

PergunpoBka Tpoca cCenJeHnA

ToUHOrO TpeRyIpyTe IJIHy TpOca nOMoBIO peRyIInPOBOuHO BnHTa.

• Ecπn ToUHaŋperylnpOBAKa He o6ecneuBaET HeJaemOro pe3yNbTaTa, BblOnHITe rpy6yio perylnpOBKn Tpoca MyΦTbI.
  UTo6bIyJINHITbTpoc,NCnOJIb3yIeBHT ToHOnpeYJNPOBKn.
• UTo6bOtpeRyIInpoBaTb Tpoc MyΦTbI, 3aKpenTe ero HaДpyrNk PkoHHTeHax pbUaracCuenJeHn. 3aTeM BblnoJIHnTe ToHyIO peryIInpoBky Tpoca.

Bo3dUHbI ΦnJIbTp

CHIMMTe BO3dyHbI ΦnIbTp, CHAB KpbIHKy BO3dyHOrO ΦnIbTpA.
Bo3dyuHbIyNtPnOcJe 3KcnNyatauIN B TeueHHeKoTOpOro BpeMeHN HeBO3MOHHo noJIHOCTbO BbUInCTNTb. NoTOMy ero HxHo nepNoDnueCKn MeHrTa Ha HOBbI. POBpeJdeHbI Bo3dyuHbI yuHbTp Heo6xoDnMo 3aMeHHTb.
-Пи noBToHoi c6OpKe y6eIInTeScb,уTO ΦnIbTp 3aRepeMeTn3uPoBaH B paOnHe IepKaTeJIa ΦnIbTpA.

YnctKa 6yMaHHo rO nIbTp a

OuHCTnTe FJIbTp, NoCTyuaB NM no NIOCKoN NOBepxHocTn. HIKoRJa He noJb3yIteCb paCTBOpHTeJeM c I06aBHeHem KepocHa, KepocHOM INCtBIM B03dYXOM JIA OuHCTKn FJIbTpA.

YnctKa neHonlaactoBOrO ΦnIbTpa

PeryIaRHO 06cJyHnBaIte rgyaTbI hIbTp. TuaTeJIbHO npOMbIaIte fNlTp B pactBope TeIIOI MblHo BOIb. IocJe 3TOrO npOMoITe fNlTp B uCTOn BOJe. BblMnte I daIte fNlTppy IpocoxHyTB. BAHHO! CHaTb Bo3dyX NOI BBICOKIM DaJIeHHeM MoKHe NOBpeDITb erO rgyaTyU ctpkTypy. IocJe YnCTKn fNlTp Heo6xOdHMcMa3aTb MoTopHbIM MacIOM. UTo6bYdaJIHTb H3JIuIKu MacJa, npOMOKHIne fNlTp qNCToI TKaHbIO.

3aMeHa Macla

• OnopoHHnTe TOnJIINBHyb6aK.
• OTKpyTITe KpbIuKy MacNo3anpaBOUHOro OTBepCTnI.
• POnCTaBbTe noDxOJaN cocyI dJIa c6opa Macna.
  CneIeMacNo,OnpOKHyB DBNrataTeJb TaK, TTo6bl MacNo BbTEKaNo Ype3 HaINBHyO Tpy6ky.EcHn Heo6xoDnMo HAcNIOHTb MaunHy, y6eINTecb,yTO Bo3dyuHbI ΦNtP HaxoNTcB B BepxHem NOLOKeHH. Pn3TOM cJeDeyET npokOhcyNbTnpoBaTbcraHa 6nnhaJwe 3anpaBoUHOH CTAHCn, Kyda cJeDeyET cDaTb JnHHe MacNo DJIa DBNrataTeJia.
  3aJIeTe HOBoe MOTOpHoe MacJo xopoWero KaueCTBa.CM.pyKoBOcTBoNo 3KcnIyatauIN DBnraTeJRAxOJaUeeB KOMnJIeKT nocTaBKn.

TOnJIbHajcNCTeMa

• PpOBepbTe To, UTo TOnJIINBHaN KpbIaKa N ee npOKJaKa He NoBpeHdEhbl.
  -ПоверьтTe TOnJIиВнБи naTppy6ok.3aMeHnTe B cIyuae Heo6xoДИМOCtN.

TexHnueckne daHHbIe

Tasn npOanyT OTROBapn Hn3NcKbAHnTa Ha BaJIuHnTe EO nIpeKtNB.

UyMOBn EMCN B OKJHaTa
Cpea CbIacHo DnpeKTHBaTa Ha
Ebponeckata O6HocT.EmncraTa
OT MaunHaTa e nocoHeBA pa3JeI
Texnueckn XapaKTepcntkN IN
Bbpxy JeneHKata.

PnCKOTekcnno3n

Hnkora He 3apeKdaiTe rOpBO npB KJIIOueH DIBrAteJ.

Topea noBbpxHocT.

O6aChHeHne Ha HnBaTa Ha npEduynpeJdeHne

Tei npedynpeHdHnca cTeneHyBaHn B TpH HnBa.

PPEyPPEKDEHNE!

PNEyPENHEHIE!N3noJ3Ba ce,ako nMa pNCOT cepNo3Ho HapaHBAHe IINCMbPT 3a onepaTopa INIbBpeJa 3a 3ao6kajlaata cpeJa,ako IHCTpyKUInTe BpbKOBOcTBOTO He Ce cna3BaT.

3ANOMHETE!

3ANOMHETE! N3noJ3Ba ce, aKo nMa pNCK OT HapaHЯBaHe Ha onepaTopa nJIb BpeJa 3a 3ao6nKaJyAaTa CpeJa, aKO INHCTpykUInTe BpbkoBOdCTBOTo He ce cNa3BaT.

BHIMAHHE!

BHIMAHHE! N3noJ3Ba ce, ako nMa pNcK noBpeDN B MaTePnaJIte NJI MauHnHaTa, aKO INCTpyKUInTE BpbKOBoDcTBOTHe ce cNa3BaT.

HnKora He n3noJ3BaITe MaunHaTa Ha 3aKpnto nnB npoctpaHCTba 6e3 npabNJHa BeHTnlaCn. Otpa6OteHrTa3oBe cbbpHsT BvrIepoDeH OKc, MHOrO onaceH, OToPoBeHra 6e3 MnPn3Ma.

ПЕДСТАВЯНЕ

CbIbpaHne YBaHaemn noTppe6nTeJIO!

OBRCHEHNE HA YCIOBHNTE

OBO3HAUEHNIA

O6aHHeHnHa ycJIOBHTe 06o3HaueHnI 158

O6aHHeHnHa HnBaTa Ha npEynpeKdEHNe 158

IPEDCTABRAHE

CbIbpHnHe 159

YBaKaemn noTpe6nteIIO! 159

KAKBO-KbDE?

KaKBo ce HAMnpa Bbpxy KocayKaTa? 160

OBOPYIBAHE 3A BE3OINACHOCT HA MAHHTATA

OchOBHn npHcnn 161

MOHTIPAHE HACTPOIBAHE

OchOBHn npHHnn 162

PbKoxBaTKa 162

BicouHa Ha p3aHe 162

KoJIeKTop 162

Blokka 3a MyJnHpaHe 162

3apeHdaHe c MacNo 162

PABOTACFOPNBOTO

OchOBHn npHcHn 163

TopNBHa cMec 163

3apeHdaHe c ropnBO 163

TpaHcnpT n cBxpaHeHne 163

EKCJIIOATAUJIA

JIuHa 3aunTHa eKnnpOBka 164

OchOBHn npeIpa3Hm MepKn no TexHKaTa 3a

6e3oNaChocT 164

OchOBHn npHHuHn Ha pa6oTa 165

TpaHcnpT n cBxpaHeHne 166

CTaptnpaHe Nn3KJIIOUBaHe 166

IIOIDPbIXKA

OchoBn npHcnn 167

TexHuecko 06cJyKBaHe 167

O6ua HnCneKcui 167

3anaJIteJIHa cBeeu 168

PerylnpaHe Ha Ka6eJa Ha cBeiHnTeJr ... 169

Bb3dyweH fIJIeTp 169

CmHa Ha MacJIoTo 169

TOpNBHa CnCTema 169

I3BECTE! He 3aDaBaTBe BncoUHaTa Ha
pR3aHe TBbPde HnCKo, TbKaTo mApNcK
pe3uTE Da nonaHaT Ha cKJIoHOBe C
HepaBHOCTN.

PpIuBnKeTe pBcKaTa Ha3aJ 3a no-roJaMa BucOuHa Ha pR3aHe, HAnpeJ 3a no-MaJka BucOuHa Ha pR3aHe.

M40-110 CLASSIC, M46-110 CLASSIC, M46-110R CLASSIC pa3noJara c qeTnp peryJatopa - no eDIN 3a BcAko KOJIeNo.

KoJIeKTop

MOnTnpaHe Ha KoJIeKTop

1 NocTaBeTe pamKaTa Ha KOWa 3a TpeBa TOp6aTa 3a TpeBa, KaTo paAnoJOnHInTe TBbpdaT aYact Ha Top6aTa OTdoJy.

23aKpeneTe Top6aTa 3a TpeBa KbMa paMkaTa c nOMoTuHa 6bp0eNCTBaUNTe uINKn.

Blokka 3a mylunpahe

-ПовдигнелпpeДиаNTeЛЯ,3aДаМоHTираТe/ DeMOHTиpaTe npUcTaBkAta 3a MyЛчираHe.

3aKaueTe npyHnHaTa 3a paMkTa.

3apeKdane c Maclo

• Pe3epBoaapbT 3a MacNo Ha HObTa MaunHa e npa3eH. CnBaIte MacIoTo 6abHo. B. HcTpkyKUInTe B rJaBa rIopdpkKa". MoTopHOTo MacNo Tp6Ba Da ce cMeHr B cbOTBeTCTBne C pkoBOdCTBOTo 3a DBnraTeJ.

OcHOBHn npHHuPiN

PNEyPENHEHNE！Pa6oTaHa
DINrATeN B 3aTBopeHo Nn
IOnpOBeTpRaHo NmEeHne MoHe
Da DoBeDe Do CmBpTT nopAdn
3aNywaBaHe Nn OToPaBAre C
BbIlepoH Okc.

TOpINBToIOOTnADHnTe npOyKTNO TROPIBTO CaJeCHO Bb3nJaMeHNMI N MoTa Da npuHHrT cepNo3HO HapaHBAHe pN BnWBaHe NJN KOraTO BJIa3aT B KOHTaK T C KOHaTa. IopaDi Ta3N npuHnAcb6IoudaBaIe BHNMaHne KOraTO 60paBnte c rOpINo IN HenpeMeHNo npOBepraBaIte daJIc CbueCTbByBa aadeKBaTHa BeHTnlaCnIA.

Otpa6oTeHnTe Ra0Be ot DBnraTeJc a ropeu N B TEx MoTa Da CbDbPkaT nCKpN, KOnTO da npEdu3BnKaT noHaP. He cTaptnpaIte HNKora MaunHaTa B nomeueHne nn 6JIn3o Do rOpNBn MaTePnAIn!

He nyuweTe Hn He nOmeCTBaIte HnKaKbN HaropeueHn npEaMeTn B 6JIn3oC T do rOpNBTo.

TopNBHa cMec

N3BECTNE!MaunHaTa e o6OpyDbHa cYeTupnTaKTOB DnIraTeJ.YBepeTe ce,Ye Bpe3epBoapa 3a MacNo BNHaHIMaIOCTaTBuHO MacNo.

BcH3nH

-ПолзВаиTe c BИсоКОкаЧeТВeH 6e30ЛоВeH ИЛУ OЛоВeH 6eH3ИN.
- Han-HncKTo npenOpbUbaHo OKTaHO Bo YncIoo e 90 (RON). Ako Bne noJaBaTe Ha DnRaTeJr ropnBO c OKTaHO BO YncIoo, NO-HncKO OT 90, MoHe Da ce noLyuN CyKaHe. ToBa BoDi Do eDHa BnCoKa TeMnepaTpya Ha DnRaTeJI, KoeTo MoKe Do DoBeDe Do cepNo3Ha nobpeDa Ha DnRaTeJI.
Ako imate Ha pa3noJIOHeHne EKOJIOrnueH 6eH3nH, T.H. aKInJaTeH 6eH3nH, cJeDbToI da ce n3NoJl3Ba.

ДВИгаTeЛHo MacЛо

N3BECTNE! PpoBepeTe HnBOTo Ha MacNoTo, npeIN Da cTapTnpaTe KocayKaTa. TBbpDe HnCKo HnBO Ha MacNoTo MoHe Da npuHn cepNo3H uetHa DnVraTeJb. Yka3aHnTa Bpa3deI rIpDpBHKa".

MoToPHoT O MacNo Tp6Ba Da ce CMeH B cBoTBeTcTBnE C p'koBOOcTBoTO 3a DnraTeJr. 3a npenopbKn KoTn MaLo Da n3noJ3BaTe HnpaBeTe CnpaBk a C p'koBOOcTBoTO 3a DnIraTeJr. Hnkora He

H3NOJI3BaITeMaCJIO npeHa3HaueHo 3a DByTaKToBn DBrVaTeJI.

3apeKdane c rOpNBO

PNEyPENKDEHNE！PpeN 3apeJdaHeTo cropnBo Tpr6Ba HenpeMeHHo Da ce N3KJIIOU INBnIaTeJIaT Ia Ce OCTaBN 3a HRAKOJIKO MNHT Da n3CTNIHe.

BnHaHn 3nNoJ3BaIte Ty6a 3a 6eH3nH, 3a da n36erHeTe pa3JIbAhe.

OTBopeTe BHIMaTeJHo KaNaKa Ha
RopINBnIpe3epBoap 3a da ce oTcTaHn
eBeHTyaJIHO CBpbXHaJIraHe.

NoocTe oKOJIO KanaKKaTa Ha roBnpe3epBoap.

Cne3apeHdaHeTo C rOpNBO rpnHJINBO 3aBnHTeTe KaNaKa Ha rOpNBnpe3epBoap.He6peHHocTta MoKe daIIOBeNe Do n36yXBaHe Ha noKap.

IpeiN Da cTapTnapeMaunHaTa I npHeceTe Ha-MaJko Ha 3M pa3cToHnE oT MrcTOTo Ha 3apeKJaHe c rOpNBO.

Hnkora He cTapTupaTe MaunHaTa:

• Akcpe pa3JIeJIr rOpINBO uJIM MoTOpHO MacNo Bbpxy MaunHaTa. N3TpniTe pa3JlIoTo ce rOpINBO uJIM MacNo uOCTaBeTe OCTaTbUnte OT rOpINBOTo Da ce n3naprT.
  Ako cTe n3JIeJn rOpBbV cyce cn nnI npexnte cn ce npeo6JeueTe. N3MnTe Te3n YacTn Ha TjIoTo cn, KOtO ca 6NJN B KoHTaKT C rOpBb. N3NoJ3BaIte canyH n BOda.
• Ako MaunHaTa NMa Teu Ha rOpINBO. IpoBepaBaiTe peIOBHO 3a TeOBe OT KanaKa N MapKyuNTe 3a rOpINBOTo.

TpaHcnpT n cBxpaHeHne

CbxaHbAaTe n TpaHcnpTupaaTe MaunHaTa n roPnBOTo TaKa, Ye da HMa onacHocTeBeHTyaJIeH Teu NmNImapeHna Da BJa3aT KoHTaKT C NcKpn NnOTKpNT NnAmbK, HanpIMepoT eJKeKtpUeCKn MaunHn, eJKeKtpOdBnraTeN, eJKeKtpUeCKn/CnIOBn npeBKJIOUbaTeN Nnn HarpeBaTeN.
- TopuBoTo Tp6Ba Ia ce cBxpaHraBa I TpaHCnOpTnpa B CneUnaJHo npeHa3HaueHn 3a Ta3N CeI N Odo6peHn Ty6n.

PpoIbJIxHTeJHo cBxpaHaBaHe

Korato cxbxpaHbATE MaunHaTa 3a npoIbJIHHTeJIHN nepNoJN OT BpeMe, pe3epBoapbT 3a rOpINoN KAmepaTa Ha Kap6ypaTopa Tp86Ba Da ce n3npa3nHT. O6bpHeTe ce KbM 6eH3nuHocTaHcNra Ta Cn 3a INΦopMaUg KbJe Da N3JIeeTe N3JIuNbKa OT rOpINoB.

JInuHa 3auntHa eKnnpOBka

Pp npa6oTa c MaunHaTa Tpa6Ba BnHar n da
noJ3BaTe JnUHa 3aUnTHa eKnInpOBKa Odo6peHa
OT CbOeTbHOTo BeOMCTBo. JnHaTa 3aUnTHa
eknInpOBKa He N3KJIIOuBA pNc OT TpaBMn, Ho
HamaJIyBa cepNo3HocTTa Ha TpaBMata npi
3IonoJyka. IomOJeTe CBOr DnCTpn6yTop 3a
nomoepn n36opa Ha noDxoJa7a eKnInpOBKa.
Heo6xOIMO e BnHar n Da n3noJ3BaTe:

-ИзплзВайтЕТAN3aуши,aKO HNBOToHaShyMa NaДВишаВa85db.
Kopabn 60Tuyn nn 06yBkn, KOnTo He ce xIb3raT.
-Дьлги naHTaNoH nO T 3dpab nJaT. He Hocete KbCn naHTaNoH, caHdaJIu N He pa6oTe 6ocn.
-ПиНуждТрябВаДа ce HocT pБKaBnU，HanpIMeP npMOnTaK,orJIeI.NIINNoYncTBaHeHa peJeeNte npncnoc6JIeHЯ.

OchOBHn npeIpa3Hm MepKn IO TexHnKaTa 3a 6e3OpacHocT

To3n pa3dJI onNCBa oCHOBHTe npenopbKn 3a 6e3onacha pa6oTa c MaunHaTa. Ta3n HOpMaUna He MoKe Da 3aMeHn npoepnoHaHaTa KBaINKauN I ONIT Ha eINH CneuaJIncT.

-Ппдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳 -прочеТeВнIMaTeЛНо pьКoBOДСТВОТо 3а - ekслноаТциЯ И се y6eДeTe, чу ro pa3бираTe -празИлHo.
He 3a6paBraIte, ye onepaTopbTe oTROBopeH npn HeuacTHN cJyuaH uJIN ONaCHOCTN, cJyUJIne Ce Ha dpyrH Xopa HJIN TAXHO IMJuEcTBO.
MaHnHaTa Tpr6Ba Da ce noDbPna YncTa. 3NaUTe n cTnKepeTepra6Ba da 6bdaT HnBJIHO YeTmN.

BnHaN ce ocIaHnyTe Ha 3IpaBna CMNCbJ

HeBnHaR MoKe Ia Ce npEduyraDN BcKa Bb3MOHnCaTyaUaU, KOrTo MoKe Ia Ce c6IbckaTe. BuHa rpa6oTe c NOBnSeHO BnMaHne Ie OcJaHnTe Ha 3dPaBn Cn pa3ym. Ako Ce OKaHeTe B CNTyaUa, B KOrTo CyBCTBaTe HeyBepHoCt, ppeYCTaHOBeTe pa6oTa n Ce NocBBeTBaIte Cbc CneuJInCT. CbPKeTe ce C Baun DaJIbbp, cepBN3eH areHT nnC onITe HOTpe6bTeN Ha INHcTpymEHTa P3aHe. N36raBaiTe pa6oTa, 3a KOrTO cmTaTe, ye He CTe IOCTaTbUHO KBAIIuNUPaHn!

PNEUYPENDEHNE！Ta3MaunHa c3daBa eJekTpomarHHTHO noJe no BpeMe Ha pa6ota. Pn HraKo 06ctOaTeJICTBa TOBa NOJE MOHe da INTephepnpa C AKTNBHN JIN NacNBn MeuHCN IMJaHTaHTn.3a Da HamaJIte pncKa OT cepno3HO JIN ΦaTALHO HapaHbAHe, Hne npenOpbVBeMe JInCaTa C MeuCnHcKn IMNaHTaHTn Da ce KOHCyIITnpaT C JeKapr CN IpnON3BOIDNTeJHa MaUNHCKN IMNaHTaHT, PpeNi Da 3anoHAT Da pa6OTc Ta3MaunHa.

PNEyPENDEHNE! MaunHaTa MoKe Da ce OKaHe onaceH INHcTpMyeHT aKO Ce N3NoJ3Ba HEnpaBUNHO IIN 6e3rpnKHo, KOeTo MOKe Da IOBeDe Do cepNo3Ho IIN φaTALHO HapaHbAHe Ha onepAtopa IIN dpyrN LIIca.

Hnkora He no3B0JIbAaTe Ha Deua NnI
dpyrX opa Da n3NoJ3BaT NnI
o6cLyHBaT MaunHaTa, 6e3 da ca
obyuHen npedBapntJHo.

MaunHaTa He 6nBa da ce n3noJ3Ba ot Xopa c noHHeHn Hn3nueckn nn yMCTBeHN Bb3MOHHocTn nn Xopa, KOnTO He e noDxOJaIO da pa6oTc C MaunHaTa npaAn 3dpaBOCBn npuHN, 6e3 Ha6JIIOJeHne ot YOBek, OTROBOpEN 3a TxAHaTA 6e3onacHOCT.

Hnkora de donyckaIte pyrna n3noJ3BaT Maunhata 6e3 da cte ce ybeuIn,ye Te ca pa36paJIc bIbpbHAnHeTo BnHCTpyKUnnte 3a ekcnloataua.

Hnkora He n3no3BaIte MaunHaTa aKo cTe yMopeHN, aKO cTe yNoTpe6BaJn aJkoXoJ NJIaKO B3eMaTe MeNkAmEHTN, KOINTO Bb3deiCTBaT Ha 3peHHeTo BN, npEeHKaTa BN NIO KoOpDnHaLmTa BN.

PNEUYPENJEHNE! Hepa3peWeHn
N3MeHeHn I/IN npncnoc6JeHn
MOraT Da IOBeJaT Do cepNo3Ho
HaPaHbAHe INm CMBpTHn ClyuAn Ha
NoTpe6nteJn INn Dpyr NlUca. Pn
HnKaBn 06ctoTeJcTBa He 6NuBa da ce
BHacr IN3MeHeHn B TpbBOHaJaHaTa
KOhCTpykUHa MaunHaTa 6e3
pa3peWeHne Ha npOn3BoDInTeJn.

Hrkora He npomeHnTe Ta3n MaunHa no Haun, KOTo He cboTBeTcTba Ha opnHaJIHaTa KoHCTpyKUry, HHe n3noJ3BaIte KOraTO ce BnHa, Ye e 6nla npomeHnHa OT HkOu dpyr.

He pa6oTe c Heun3npaBHa MaunHa.
N3BbPwBaIte onncaHnte B ToBa
p'koBoIDCTBO 3a eKcPiNoaTaUepeOBNi npoBepKn, noDpBHKa N cepBN3.
OnpeJeHn onepaun No noDpBHKaTa
ncepBn3a Ce n3BbPWBat EInHCTBeHO OT
KBaJIHfHUnpaHN CneLNaJInCTn.

Ioi3yBaTe cAmO opuHnHaJIHn npucnoc6JeHn.

БezonaHocT ha pa6oTHaTa o6JaCT

KlnoHOBe,BeiKN,KambHnIpyrTpr6BaJa 6bDaT npemaxHaTN O T MopabTa, ppeu Da 3anoCHTe da Kocnte.
- PpeIMeTn, yIpyIu peKeIooTo o6OpyIbAHe, MoaT Da 6bDaT N3XBbPLeH N da npNHyT BpeIHa xopa n IpeIMeTn. Ha6JIu3o He 6NuBa Ia IMa BbHUnxopa n HINBOTHN.
- HNKORA He ИзнолзВаиTe МашиНаТа В loшo BpeMe, HanpIMeP npi MbIЯ, nbKД, BJaHHO BpeMe IJIHa MoKpN MeCTa, npi CnJIHn BeTpoBe, MHOrO cINJIeH CTyI, pICK O T MbJHnA N T.H. Pa6OtaT a B loшо BpeMe e n3MopNTeJIHa N MOHe Да DoBeDEdo Bb3HnKBaHe Ha onaCHn CInTuaци, HanpIMeP do noRaT a Ha XJIb3raBn yuacTbU.
- Ha6IIOdaBaTe oKoJHaTa cpeJa, 3a Ja cTe cnrgpHn, Ye HNsO HMa Ja nonpeuHa pa6oTa Ta BVc MaunHaTa.
BHMaBae 3a KopeH, KaMbH, BeiKN, AMN, DynKn N T. H. Bucokata TpeBa MoHe Da Kpne npenrTcTBn.
KocHeTo no cKnIOH MoHe da 6bDe onaCHO.He H3NoJ3BaITe KocauKaTa Ha MHOro cTpBMn CKIoHOBe. KocauKaTa He 6NBA da ce H3NoJ3Ba Ha cKnHOBe, no-CTpbMHn O15 rpaDyca.
BnKIOHeH TepeH CJIeBa npoxoHaTa nTbTeKa Da ce npokapa HnpraKO Ha cKIoHa. 3HaunTeJHo NO-JIeCHO e Da ce DBNHITe HAnpRA KO Ha cKIoHa, OTKoJIKoTo Da ce N3KaUBaTe IcJN3aTe No cKIOHa.
BHHMaBaITe, KOraTo npn6JnHbAte cKpntu bTIN npeDMeTI, KOITOMaT da 6JoknPAT 3PHTJIHOTOBNNoJe.

БezonaHocT npa6oTa

KocaykaTa e c3daHeHa camo 3a KocHe Ha mopabn. Bcnkn npyrgn ynoTpe6n ca 3a6paHeHn.
-ИзнолзВаиTe ЛИЧаТа 3aПNTHa eKINIpOBKa. BИн ykaЗанЯТаВ pa3ДeЛ ЛИчHa 3aПNTHa ekINIpOBKa.
He cTaptnpaTKe Kocayka,OCBeH aKo pe3eUbT n BCnuk Kaan ca nocTaBeH npaBnJHo.B npoTnBeH cLyuaype3eUbT MoHe da ce pa3xla6n I da npeDn3BnKa TpaBMn.
- YBepTe ce, ye pe3eT Hma Da ydapn Dpyrno6ekTu, KaTo HAnpMep KAmbHn, KopeHn NnDpyrN. ToBa MoKe Da 3aTbnn pe3eua n daOrbHe DByceKUHOHHa BaI Ha DnRaTeJI. AKe oOrbHaTa, ocTa MoKe Da npuHn Dnc6aHaNCnINHn Bn6paun, KoTe Da DoBeDe Do rOJMa pNcK 3a OCBo60XdaBaHe Ha pe3eua.
- PbykaTa 3a cnnpaKaTa HNKora He 6nBa da 6bJe nepMaHeHTHO 3acToNopeHa,doKaTo MaunHaTa pa6oTu.

• NocTaBeTe KocauKaTa Ha Cta6nJIHa, nIOCKa NOBbpxHocT Ia CTapTnpaIte. YBepeTe ce,pe3eCbT He MoKe Da BJe3e B KOHTaKT Cbc 3emrTa nn DpyrNo6ekTu.
  BnHaH6bJeTe 3aMaunHaTa. N03BoJeTe BCNUKn KOJIeJa Da OCTaHaT Ha 3emrTa N npbHTe n DBeTe CN pIe Ha pkoXBaTKaTa, KOraTo Kocnte. IpbHTe pIcTe N KpaKaTa cN daJeU OT BbpTAAnte ce ocTpneTa.
  HeHaKJaHnTeMaunHaTa,Korato eKeKTpOdBnRaTeJrTa pa60Tu.
  Oco6eHO BnMaBaTe, KOraTo IbPaTe MaunHaTa KbM ce6e cn no BpeMe Ha pa6oTa.
• Hikora He BdnraTe NIn HocTe KocaKaTa, DOKaTo DnRaTeJaT pa6OT. Ako ce HaIra Da BnIRHeTe KocaKaTa, NpBo N3KJIIOyeTe DBnIaTeJN IN3KJIIOyeTe Ka6eJa 3a 3anaBaHeTo oT 3anaJIteJHaTa cBeu.
  He Kocete TpeBHaTa nIoU, B'bpBeiKn Ha3a.d.
  -ДИгаTeJЯТТрЯ6ВаДа 6Бдe ИЗКЛIOуeH, KOraTo ce npuДВиЖВaTe Ipe3 NOBbpxHocT, KOraTo HЯMaДа 6Бдe КосeHa. HanpIMep, n'bTeKn C YaKbЛ, KaMbK, peCHN KaMbHn, acФaANTИдр.
• Hikora He TnuaTe c MaunHaTa, DoKaTo Ta pa60Tu. BnHaru Tp8Ba Da BbPBrTe c KocayKaTa.
  -ИЗключeteДВигагелЯ,пpeиДа npomehnte BисоуннатаHa рязawe.нИКORA He perулupaTe,ДOKATOДВигагелЯт pa6OTn.
• HNkora He ocTabaIe MaunHaTa 6e3 Ha3Op, DOKaTo DnurataTpa6oTu. N3KJIouTe DnurataJIy. YBepTe ce, ye peHneIoTO o6OpUdBaHe e cnpraIO da ce BbptN.
  Ako HkaKaBcTpaHueH 06eK T 6bJe yJaepH IIN ce noLyuAT Bn6paUIn, BeDHa r cnpTe MaunHaT. Pa3KaueTe HT-ka6eJa oT 3anaJIteJIHaTa CBeU. PpOBepTe MaunHaTa JaII He e NobpeEHa. NopabTe BCa Ka nobpeJa.

OchOBHn npHHcHn Ha pa6oTa

BnHaH npHeTe c ocTpo ocTpne 3a onTmMaJIH pe3yIaTn. N3TbNeHOTo ocTpne DaBa HepaBeH cpe3 n TpeBaTa CTaBA XbIJaNo NOBbpxHoCTTa Ha cpe3a.
- HnKora He KocTe NoBce oT 1/3 OT nbJHHHaTa Ha TpeBaTa. ToBa ce OTHacr oc6eHo 3a cyxN nepNoi. NpBBo KocTe npn BncoUHa Ha pR3aHe, 3aJaEHa Ha BncoKa. CJeI ToBa npoBepTe pe3yJTTaTn HAmaJIeTe Do cBoTBeTHaTa BncoUHa. Ako TpeBaTa e MHO rDblra, kapaTe 6abHo n - aKO e Heo6xoImO - OKocTe DBA nTn.
- PeHHeTe BceKN nT B pa3JIuHn nocOKn, 3a Da n36erHeTe JINHN B MopaBaTa.

TpaHcnpT n cxbxpaHeHne

• O6e3onacete o6opyDbaHeTo no BpeMe Ha TpaHcnpTnpaHe, 3a Ja N36erHeTe nobpeJa INHcNdeHTN.
  CbxpahBaTe 60pyDbaHeTo B3akJIOUBAO ce MrcTo, TaKa Ye Da 6bJe N3BbH IOCTbNa Ha DeuN HeynbHOMoEHN JNuA.
  CbxaHbAaTeMaunHaTaNobopydBaHeToHa cyxoN3auntetoOTcpeMHcTo.
• 3a TpaHcnopTnpaHe n 3apeKdaHe c rOpNBO Bn. pa3deJa r3apeKdaHe c rOpNBo".

Статуше и заюваце

IpeNi Ia 3anoUheTe

PNEUYNPEXDEHNE! Ppei Da 3anoHete pa6ota c MaunHaTa npoyeTe BHMateJHo pBkoBOcTBTo 3a eKcnIoaTaUryce y6eTe, ye ro pa3bnpaTe npabnHO.

H3noJI3BaIte JIuHaTa 3aunTHa eKINIpOBKa.BNK yKa3aHnra Ta B pa3deJInuHa 3aUnTHa eKINIpOBKa.

B3oHaTaHa pa6oTa He 6nBa Da nMa BbHnHn Xopa.
- N3BbPwBaIe BCEKNiDHeBHO TexHnuecko 06cJyHbAHe. Bn. yKa3aHnra Ta B pa3JeI rNo,dpbHKa".
- YBepTe ce, Ye Ka6eJIbT 3a 3anaJIbHaHeTo e npaBnIHO nocTaBeH B 3anaJIteJHaTa CBeU.

CTapTnpaHe

BcunMoIpa3noJaaratcpbyeHcMyKa (Me6paHa Ha noKaUbaa nomna).

Ako cTaptnape Kocaykata 3a nbpBn nbT, HATNCHeTe rOpNBHaTa nomna net nbTu. CJeT ToBa HAtNcKaIe TropNBHaTa nomna no Tpu NbTu npn CTaptnape C OxJaDeH DvRrAteJ.

PbkoxbatkataHa cnnpaKaTa Ha DnBnraTeJr Tp6Ba Da ce IbpHn Cpeu ropHOTo ynpabJeHne npi CTapTnpaHe Ha DnBnraTeJr.

• 3actaHete 3aMauHHaTa.
  XBaHeTe npbKaTa Ha cTapeu H3TerJeTe 6aBHO cTapeHnHaHypc DAcHAta pKa Do noLoKeHne, KOrato yceTnte CbnpoTHBa (3b6uTe Ha cTapea3aenBa).NdbpnaTe cnHo uHpy,doKaTo DBnraTeJrT 3ana. He 6bBa HnKora Da HabnBaTe cTapeHnHaHyp oKOIo pKaTa cn.

3aDnBnBaHe

(M46-110R CLASSIC)

HaTnCHHe IocTa 3a 3aBnHBaHe KbM pkoXBaTKaTa, 3a Da cTapTnpaTe 3aBnHBAHeTO.

-ПпддпдьрпаТмшнотаКьмссocbo6oTe3aDbNnBaHToипdВnHeTeMaшнота HanpeДНлб6ЛИnteJIHo 10cmpa3CTOJHnE.

N3KJIIOUyBaHe

CnpeteIIBnraTeJIa,KAtoOTnycHeteIpBHKaTa Ha cnpaKaTaHa IIBnraTeJIa.

• PpeaBkata ce n3KJIIOuBa cIso N KOraTo ocBo6oNTe pKoXBtKaTa Ha cnnpaKaTa.
• Camo 3aДВИКВаHeTo MoHe Дa 6Бдe N3KЛIOUeHO npn ЛeKO OTnyCKaHe Ha CnIPAuHnЯ JIocT.

OcHOBHn npHHcHn

IPE.DYNPEXDEHNE! NoTpse6nteJrT Tp6Ba Da n3BbPwBa cMo pa6oTaTa no OndpbHKKaTa N o6cJyKBAHeTo, ONncaHN B To3n HapbUHKn Ha onepaTopa. No-KpyNHTe peMoHTN Tp6Ba Da ce n3BbPWBat B cepBN3.

N3KJIIOUoyBaIte DBNrATeJnpeiN N3NbJIHeHHeTo Ha KaKBInTO n da e npOBepKn IIN TexHnuecka NoDpBxKa. PpeIoTBpaTeTe HeKeJNaHO CTapTnpaHe, KaTo INBaIInTe 3anaJIInTeJHnKa6eJ OT 3anaJIInTeJIHaTa CBeu.

EkncnoaTaOnHHnT cpoKHa MaunHaTa MoHe Da 6bDe HamaJIeH, a PnCKbT OT Heuactn CnyuYyBEnueH, aKO TexNuecKOTo 06CnyKBaHe Ha MaunHaTa He Ce npOBekDa npaBnHOn I aKO 06CnyKBaHeTo n/nnpeMOHTnTe DeHocTu He Ce n3nbJnBaT npoecnoHaJIHo. Ako IMaTe Hyka ot OSe INΦOpMaUry, MoJIa, 06bPheTe ce KbM H-6n3KnI cepBn3.

BHIMAHHE!PnHaKJaHHe Ha MaunHaTa BnHaNc yeYBepaBaiTe,Ye Bb3DyuHNrTΦnITbpe pa3noLoHeH Bb3MoXHo Hain-BuCOko.

-ПолуБаиТе само opниналиnpincnoc6JIeHnA.

TexHnuecko 06cnyXBaHe

B rpaФИka 3a TexHnuecko 06cJIyKBaHe MoKeTe da BnDNTe KOn Yactn Ha MaunHaTa N3NCKBA T NOДpБЖka Hn KaKBr INTepBaJIn. INTepBaJInte Ca n3UcJIeHN Ha 6a3aTa Ha eJeIHeBHO n3NoJ3BaHe Ha MaUNHaTa N MoHe Da ce pa3JIuYaBaT B 3aBNCIMOCT OT CTeneHTa Ha EKCnIIOaTALIy.

Uzemanayagkeverek 176

Tankolas 176

SIGURNOSNA OPREMA STROJA

Opencito 252

MONTIRANJE I PODESAVANJA

Opencito 253

Rucek 253

Visina rezanja 253

Sakuplajc 253

SIGURNOSNA OPREMA STROJA

Općenito
