USER MANUAL GT40 Set MTD

Meaning of the symbols. 16

For your safety. 16

Safety information. 17

Intended use 19

Identification plate. 19

Operating controls 20

Start-up 20

Assembly 20

Operation 21

Servicing 22

Transport and storage 22

Troubleshooting 23

Warranty 23

CE Declaration of Conformity 23

Environmentally-friendly disposal 23

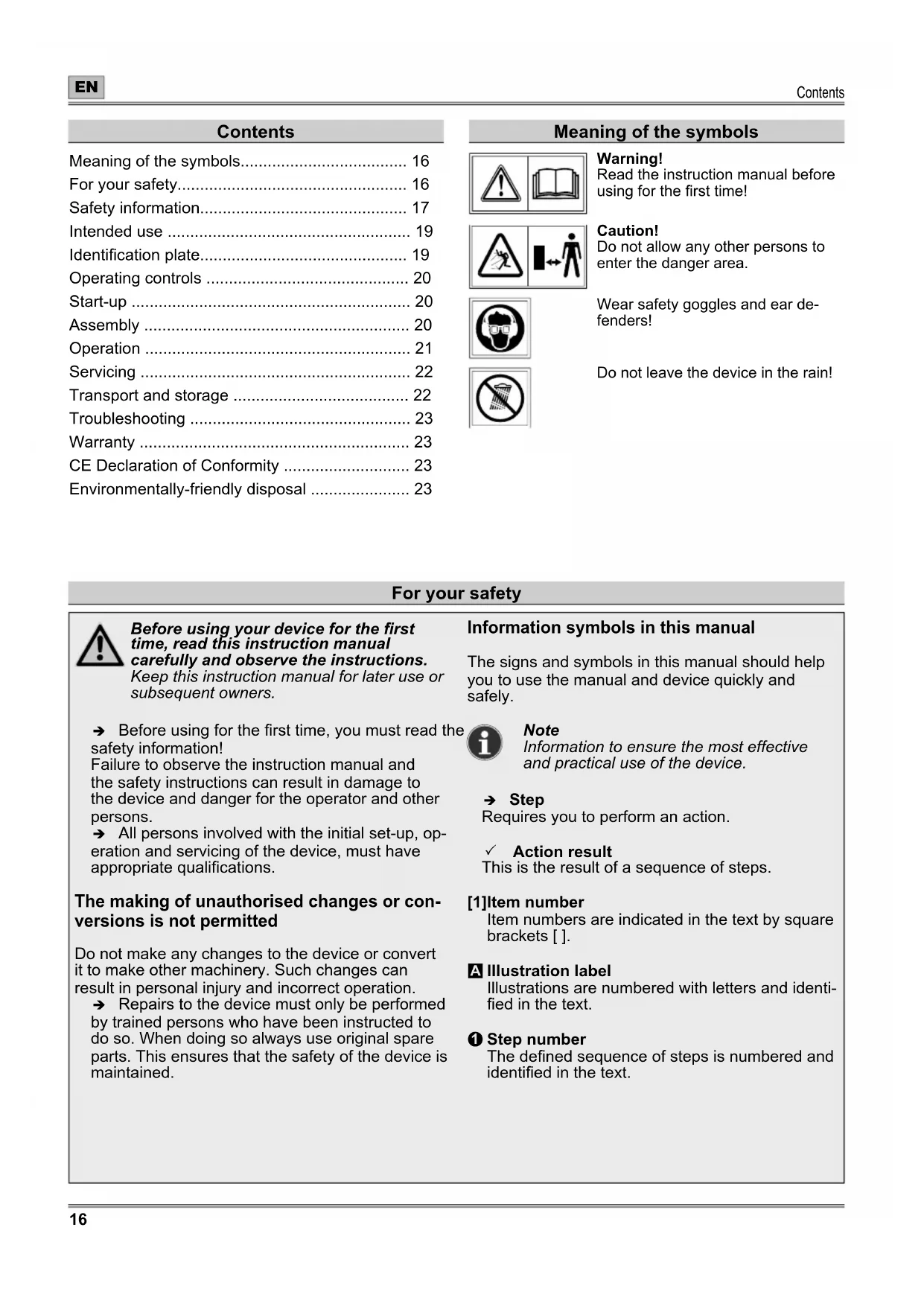

Meaning of the symbols

Warning!

Read the instruction manual before using for the first time!

Caution!

Do not allow any other persons to enter the danger area.

Wear safety goggles and ear defenders!

Do not leave the device in the rain!

For your safety

Before using your device for the first time, read this instruction manual carefully and observe the instructions.

Keep this instruction manual for later use or subsequent owners.

Information symbols in this manual

The signs and symbols in this manual should help you to use the manual and device quickly and safely.

Before using for the first time, you must read the safety information!
Failure to observe the instruction manual and the safety instructions can result in damage to the device and danger for the operator and other persons.
All persons involved with the initial set-up, operation and servicing of the device, must have appropriate qualifications.

The making of unauthorised changes or conversions is not permitted

Do not make any changes to the device or convert it to make other machinery. Such changes can result in personal injury and incorrect operation.

Repairs to the device must only be performed by trained persons who have been instructed to do so. When doing so always use original spare parts. This ensures that the safety of the device is maintained.

Note

Information to ensure the most effective and practical use of the device.

Step

Requires you to perform an action.

√ Action result

This is the result of a sequence of steps.

[1]Item number

Item numbers are indicated in the text by square brackets [ ].

A Illustration label

Illustrations are numbered with letters and identified in the text.

Step number

The defined sequence of steps is numbered and identified in the text.

Safety information

Danger levels of warning information

The following danger levels are used in this instruction manual to indicate potentially dangerous situations:

DANGER！

A dangerous situation is highly likely and, if the measures are not followed, will result in severe injury and even death.

WARNING!

A dangerous situation may occur and, if the measures are not followed, will result in severe injury and even death.

CAUTION!

A dangerous situation may occur and, if the measures are not followed, will result in slight or minor injuries.

Attention!

A possibly harmful situation may occur which if not avoided will result in property damage.

Safety information content

DANGER！

Type and source of the danger!

Consequences of non-observation

Measure for preventing the danger

Protection of yourself and others

For safety reasons, children or persons who are not familiar with the instruction manual and operation of the trimmer, must not use it. The minimum age of users may be defined by local or national legislation.
Do not operate the trimmer when there are people (especially children) or animals in the immediate vicinity. Ensure children do not play with the trimmer.

Stop using the device if persons (especially children) or animals are nearby.

This device must not be used by children or persons with reduced physical, sensory or mental capabilities or with inadequate experience or insufficient knowledge. Likewise persons must be familiar with this instruction manual before using the device. The minimum age for using the device may be specified by local or national legislation.
Cleaning and servicing may not be carried out by children.
Only switch the motor on if your feet and hands are at a safe distance from the cutting element.
Always remove the power pack from the device if you are leaving it unattended or removing a blockage.
Always wear sturdy shoes and long trousers as well as other appropriate personal protective equipment (safety glasses, ear defenders, safety gloves etc.) when working with the trimmer. The wearing of personal protective equipment minimises the risk of injury. Do not wear loose clothing, etc., which could be caught by the cutting tool.
The operator or user is responsible for accidents, injuries to other people or damage to their property.

Before use

Before use, make sure you are familiar with the trimmer, its functions and controls.

Do not use any trimmer whose switch is defective and which can no longer be switched on or off. It must be repaired by a qualified expert or workshop.
Never use a device with damaged or missing guards or covers. They must be repaired or replaced by a qualified expert or workshop.
Before use, make sure that the lawn is free from branches, stones, wire etc. and look out for such objects the whole time when trimming.
Before making adjustments to the device or cleaning it, switch it off and remove the power pack.
Read and observe the operating instructions of the power pack and the charger.

Safety information

Tips for use

Beware of injuries to the feet and hand caused by the cutting element.

Remove the power pack from the device:

• Whenever you leave the device unattended.
• Before removing blockages.
• Before checking cleaning or working on the device.
• After impacting a foreign body to check the device for damage.
• For immediate checking if the device starts to vibrate excessively.

Do not use the device in potentially explosive atmospheres containing flammable liquids, gases or dusts. The trimmer may create sparks, which could ignite the dust or vapours.

Never leave the trimmer unattended during breaks and store it in a secure location.
Hold the trimmer parallel to the lawn when switching on, otherwise there is a risk of injury.

Also when working maintain a safe distance relative to the rotating line.

Do not reach into the area of the rotating line.
Do not injure yourself on the line cutter. After pulling out new line, always hold the device in its normal working position before you switch it on.
Wear suitable safety goggles and ear defenders!
Adopt a normal posture. Ensure you are standing securely and that you maintain your balance at all times. Pay particular attention, if you are working on a slope. Do not run, rather walk forwards at a steady pace. This will ensure that you can maintain better control of the device if unexpected situations occur.
Take extra care if you are walking backwards. Risk of tripping!
Remove the power pack when carrying the device to or from separate working positions.
Never bypass or manipulate safety devices installed on the device.

Do not push the line box into the ground or hit it against wall edges. If the line box suddenly receives a heavy blow, be prepared for increased vibration at the handle. If this does occur, the device must be checked and, if necessary, repaired by a qualified expert or workshop.

After use

Switch the device off, remove the power pack and check the device for damage. Attention, danger! Cutting tool still running!
If you need to clean or service the device, switch it off and remove the power pack.
Always wait until the cutting tool comes to a standstill and do not touch any moving dangerous parts, without first removing the power pack.
Removal of guards or replacement of the line spool must only be performed with the power pack removed. Use only original line spools and observe the fitting instructions!
Ensure that ventilation slots are free from dirt.
Do not clean the trimmer using water.
Store the device in a secure location.
Store the device out of reach of children.
Do not repair the device yourself; it must be repaired by a qualified expert or workshop.
Let the device cool down before putting it away and/or storing it.

General safety information

Never replace the non-metallic cutting element with a metallic cutting element!
Always wait until the cutting tool comes to a standstill and do not touch any moving dangerous parts, without first removing the power pack.

Safety information

Spare parts must meet the requirements of the manufacturer. Therefore, use only original spare parts or those spare parts authorised by the manufacturer. During replacement, always observe the supplied fitting instructions, remove the power pack in advance.

Repairs must only be performed by a qualified technician or service centre.

This trimmer is intended for the care of lawn edges and smaller grass and lawn areas in private households. The device must not be used for purposes other than those intended because of the risk of bodily injury to the user or other persons.

Only use the trimmer in daylight or under bright artificial light. Keep your work area clean and well lit.

Only use the trimmer in dry weather conditions. Keep the device away from rain or damp and do not use it during a storm. The ingress of water into the trimmer increases the risk of an electric shock.

Even if all safety and operating instructions are heeded, there is always a residual risk of injury and property damage. Always be conscious of this!

Intended use

The trimmer with inserted line spool is intended solely for the care of lawn edges and smaller grass and lawn areas in private households.

Any other use is classed as an unintended use. The user is liable for any damages arising from unintended use.

Incorrect/abnormal use

This trimmer should not be used in public facilities, parks, sports grounds, roads etc. nor in agriculture or forestry.

To prevent bodily injury to the user, the trimmer must not be used to cut thicker branches or for shredding for the purpose of composting.

Identification plate

Position

The identification plate is located on the trimmer casing.

Note

The label has the status of a certificate. It must never be altered or obliterated.

Layout

1 Engine speed in rpm
2 Power
3 CE mark
4 Disposal instruction
5 Guaranteed sound level
6 Year of manufacture
7 Degree of protection
8 Weight
9 Rated voltage, current type
10 Model number
11 Serial number
12 Model name
13 Manufacturer

Operating controls

Operating controls K

1 Power pack release
2 Lock-on switch
3 On/off switch on handle
4 Speed switch
5 Locating button edge cutting function
6 Working angle adjustment locating knob
7 Protective cover
8 Plant protection bow
9 Spool cap
10 Line spool
11 Line box
12 Guide wheel
13 Line Cutter
14 Middle handle
15 Handle
16 Power pack

Start-up

Supplementary documentation

Make sure the operating manuals of the 40V FAST CHARGER and the 40V LI-ION power pack are available. Please read and understand them before putting the device into use.

Power pack charging

WARNING!

Risk of injuries or material damage

Only charge the power pack with the 40V FAST CHARGER.

Attention!

The power pack is supplied partially charged. Before first use, fully charge the power pack using the 40 V FAST CHARGER to ensure the full capacity of the power pack.

Power pack charging must be carried out according to the instructions in the supplementary documentation.

Operating times

Observe the times stipulated in local byelaws.
Check with your local authorities to determine if there are any operating time limitations.

Assembly

WARNING!

Risk of injuries due to the cutting tool.

Only adjust the device with the motor switched off and the cutting tool at a standstill.
Do not reach into the area of the rotating line.
Always remove the power pack prior to working on the device.

Attaching the protective cover A B

Position the protective coA r a on the trimmer B 1.
Screw on the protective cover with the supplied screws A b B 2.

Note

A guide wheel [1] is pre-mounted on the protective cover, which enables easier working with the edge-cutting function.

Middle handle A C

Remove the two pre-fitted screws and the fitting A c.
Position the middle handle at the desired height 1
Locate the fitting on the opposite side of the middle handle C 2.
Secure the middle handle by tightening the screws 3.

Connecting the trimmer unit to the operating arm D

Insert the trimmer unit in the holder of the operating arm ①.

Attention!

Note the polarity markings of the contacts.
Fully tighten the fastening sleeve

Adjusting the working angle E

WARNING!

Risk of injuries due to the cutting tool.

Only adjust the device with the motor switched off and the cutting tool at a standstill.
Do not reach into the area of the rotating line.
Always remove the power pack prior to working on the device.

The trimmer can be set in any of five different operating angles. This allows you to easily reach problematic and difficult-to-access positions in the garden.

Press and hold the locating button.
Set the operating ane
Release the locating button.
The head of the lawn trimmer engages audibly.

The edge cutting function enables precise and easy cutting along the lawn edge.

Press but and simultaneously turn the head of the lawn trimmer through 90^ 2.
The head of the lawn trimmer engages audibly.

Note

To make working easier, in this position, the device can be guided along the ground on the guide wheel [12].

Operation

Inserting the power pack G

WARNING!

Incorrect handling of the power pack and the charger

Risk of injuries and material damage
Read and observe the operating instructions of the power pack and the charger.

Push the power pack into the power pack compartment until it audibly engages 1.

The electrical contacts are closed and the device is ready for use.

Switching the device on

WARNING!

Risk of injuries or material damage.

Always hold on to the device with both hands during operation. One hand encloses the handle, the other hand holds the middle handle.

Press the lock-on switch on the hange
Simultaneously press the on-off switch on the handle ③.
The device operates.

Adjusting the speed of the cutting line G

Select between position I and II of the speed switch 4.

I = slow

II = fast

Adjusting the line

Automatic

With each switching off and on the line is adjusted out of the line cassette.

Note

Frequently switching on and off without reason results in increased line wear.

Note

If the cutting line becomes too short during operation due to wear, switch the device off and then back on again to extend the working length of the cutting line automatically.

Manual

WARNING!

Risk of injuries due to the cutting tool.

Only adjust the device with the motor switched off and the cutting tool at a standstill.

Do not reach into the area of the rotating line.
Always remove the power pack prior to working on the device.

CAUTION!

Risk of injury on the line cutter

After pulling out new line, always hold the device in its normal working position before you switch it on.

Manual line adjustment may be necessary during first use after changing the line spool.

Press but
Pull the line

Switching the device off

The device switches off as soon as you release the on/off switch on the handle ③.

Removing the power pack 1

Press the power pack release
Remove the power pack

Servicing

WARNING!

Risk of injuries or material damage due to moving parts.

Only clean or service the device if the motor is stationary and also the cutting tool.
Always remove the power pack prior to working on the device.

Do not clean the device with water.
Repair and service work as well as the replacement of safety elements must be performed by a qualified expert or workshop.

Cleaning the trimmer

Switch the trimmer off and wait until the cutting tool comes to a standstill and remove the power pack.
Clean the device with a hand brush after every use.
Clean the ventilation slots and underside of the device at regular intervals to remove grass residues.

Replacing the line spool A J

WARNING!

Risk of injuries due to the cutting tool.

Only adjust the device with the motor switched off and the cutting tool at a standstill.

Do not reach into the area of the rotating line.
Always remove the power pack prior to working on the device.

Simultaneously strongly press both of the engaging lugs of the spool cap together J 1 and pull it off J 2.
Remove the line spJ3.
If necessary, remove any dirt.
Extend the thread out of the new spool fitting (optional accessories A d) J 4.
Insert the spool in the line 10x5
Thread the end of the thread of the coil through the eye of the thread box J 6.
Simultaneously strongly press both of the engaging lugs of the spool cap together and push it on to the line spool until it engages 1 7.

Transport and storage

WARNING!

Risk of injuries due to the cutting tool.

Before transport or storage, switch off the device and wait until the cutting tool comes to a standstill.
Remove the power pack before transport or storage.

Storage

Thoroughly clean your device after every season.
Always store the device in a dry and safe location that is inaccessible to children.
Store the power pack and trimmer separately.
Store the power pack in a cool and dry location. Recommended storage temperature approx. 18^
- Keep the trimmer and especially its plastic components away from brake fluids, petrol, mineral oil containing products, penetrating oils etc. They contain chemical substances that can damage, attack or destroy the plastic components of the trimmer.
Fertilizers and other garden chemicals contain substances that may have a highly corrosive effect on the metal parts of the trimmer. Therefore do not store your trimmer in the vicinity of these substances.

Troubleshooting

WARNING!

Risk of injuries or material damage

In case of doubt always consult a specialist workshop.

Before any inspection or any work on the device, switch off the motor and remove the power pack.

Problem Possible cause Remedy
The device switches off.	The power pack is too hot. Allow the power pack to cool.
	The power pack is discharged. Charge the power pack.
	The temperature of the device (electronics) is too high.	Allow the device to cool and if necessary, clean the ventilation slots
	Overcurrent release If this occurs again take your device to a specialist workshop.
The device will not switch on.	The power pack is discharged. Charge the power pack.
	Overcurrent release If this occurs again take your device to a specialist workshop.
	Power pack temperature too high or too low. Allow the power pack to cool down or heat up.
	The power pack is defective. Replace the power pack.
Automatic line adjustment does not work.	The spool is empty. Replace the line spool.
	The totothing between the metal knob and the line spool is dirty. Use a brush to remove dirt from the parts.
	The line has torn off and is pulled into the line spool. Take off the line spool, if necessary rewind the line by gently pulling and insert the spool.
	The line has become caught in the spool.
	The line is welded onto the spool. Remove the welded line part, if necessary rewind the line by gently pulling and insert the spool.
The line breaks off too frequently.	The line comes into contact too frequently with fixed objects, e.g. fences, trees, etc. Use the plant protection bow.
Strong vibrations Device fasteners have come loose. Consult a specialist workshop.

Warranty

The warranty conditions of our local company or importer apply in all countries. Under the terms of the warranty we will repair faults on your device free of charge, insofar as material or manufacturing defects are the cause. To make a claim under warranty please contact your seller or your nearest branch.

CE Declaration of Conformity

Further details about the device are contained on the separately enclosed CE Declaration of Conformity, which forms part of this instruction manual.

Environmentally-friendly disposal

Electrical tools, accessories and packaging must be routed into an environmentally compatible recycling chain.

Power packs/batteries:

Do not dispose of power packs/batteries in domestic waste, by burning or throwing into water. Power packs/batteries must be collected, recycled or disposed of in an environmentally friendly manner. Power tools: Do not throw your power tool away with domestic waste! Take it to a disposal facility.

Table des matieres

Signification des symboles 24

Pourvoiresecurite 24

$$ \begin{array}{l} I = s a k t e \ I I = h u r t i g \ \end{array} $$

YcTpaHHeH HeNCnPaBHOCTeI 119

TapaHTnIa 119

DeknapauncooTBeCTBnE C 119

3koIorHueckn 6e3onachna yTuIn3aun .119

3HaueHne cIMBOJOB

PpeynpexdeHne!

IpeE BBOOM B 3KcNlyaTaCuIO npOuTnte pyKOBoDCTBO NO 3KcNly- aTaun!

OctopoxHo!

HnB KOem Cnyae He DonyckaIte B ONaChyIO 3OHy TpeTbNX IINU.

Hocntb 3aunTHbIe OcKn I npotnBOwymhble HayuHKn!

He donyckaite nonadaHnHa yctpOCTBO DOKDeBOBBo!

ДяВаш经6e3oanachocTu

Ipeod nepebIM uCnoB3oBaHuem ycmpoucmea eHumameJbHo npOymume Hacmoaee pykoobcmeo no 3Kcnnyamauu u deucmeyume e coombeemcemu c Hum. Coxpanme Hacmoaee Pykoobcmeo no 3Kcnnyamauu dna nocnedykueseo uCnoNb3oBaHua unu dnna nocnedykueseo enadebua.

Homep shara deHCTBna

OnpeHeneHHa nocneIOBateIbHOCTb WaOB DeICTBn IpoHymepoBaHa N 0603HaueHa B TEKCTe.

Yka3aHnno TExHnke 6e3OnachOCTn

CTeHeH onaChocTn npedynpekxden

B hactoIeM pyKOoDCTBe NO 3KcNlNyatauIN nCnObl3yOTc CNeDyUOuNE CTeENH ONaCHOCTn DnA O6O3HaueHn NOTeHuaJIbHO ONaChbIX cnTuayau:

ONACHO!

HenocpeDCTBeHHoe HAcTyPHeHne ONaCHO cnTyaUIN, KOToPA npBEdET K TAgKeIbIM TpaBMam IIN DaXe K CMePTN B Cnyae HecO6JIIODeEHn COOTBeTCTByUOnx MEP.

PNEynpKDEHNE!

Bo3MOxHnA OnaChnA CnTyauu, KOTOpaB, B cnUyae HecO6IIODeHnA COOTBeTCTByIOuX Mep, npNBeTeK TJeBIM TpaBMam IIN DaKe K CmepTu.

OCTOPOXHO!

MoKET HAcTyNITb ONaChA CnTyauNIA, KOTOPaI PnBBeDet K JeRKM NIN He3HaunTeNbHbIM TpaBMam B Cnyae HecO6JIHOdeHNr COOTBeTCTByIOuNX Mep.

BhumaHue!

MooKet HAcTyuNTb NToTeHcuaJIbHO ONaCha CnTyauNIA, KOTOpA PnpBeDeT K MaTePnaJIbHOMy UIep6y, ecn He npeDoTbpaTb ee.

CtpyKtpya yka3aHn no TexHnke 6e3onacHocTn

ONACHO!

BnD nIcTOUHnK ONaCHOCTn!

TocneIcTBnI rHOpuOBaHn
Mepa no ppeDoTbpaueHnO npachoctn

HnBnDyaIbHa 3aunTa

No coo6paXeHnM 6e3OaCHOCtN DeTAM NnIuam, He O3HaKOMNBWHMcR C pyKOBOdCTBOM NO 3KcNlYatauH, HcNOJb3OBaTb TpIMMep 3anpeSeHo. MInHMaNbHbI B03pact NOnb3OBA-TeJIa MoXeT ONpeJeJIaTBcR MeCTHbIMn HOpMaTN-BAMn.
He 3anyckaIte TpMMep, ecIn B HenocpeiCTBeHHo6bn3OCTn HaxoJrTc JIOu (B Oco-6eHHoCTn DeTu) nnn XNBOTHbIe. CJeInte 3a TEM, yTO6bl dEtN He irpaann C TpMMepom.
BbIKIOHHTe MaUNHy, ecn pIaOM HaxoTcI JHO (B OOC6eHHOCTN - DeTu) IJI N DOMaUHHe XNBOTHbIe.

3To ycTpoNCTBO He DoJXHO 3KcNpyaTHPOBaTbCn DeTbMn NnUaMn C OrpaHnueHHblMNΦn3nuecknMn, CeHCOPhIMn IINy UMCTBeHHbIMn CNOC6HOCTaMn, a TaKxE - npNOTcyTCTBnN ONbITA n 3HaHn. TaKxE 3To ycTpoNCTBO He DoJXHO 3KcNpyaTHPOBaTbCnIuAMn, He O3HaKOMNBUnmncs C HactoIzMPykoBoDCTBOM NO 3KcNpyataun. MeCThBiE npeDncaHnMOrTy YcTaHaBnBaTb OrpaHnueHnRA Bo3pacta NoB3OBaTeJe.
OuNTka n TexHnueckoe o6cIyXnBaHne He DOJIxHbI BbINoJHrTbCra DeTbMn.
BknHouaTe DnRaTeIbTOJbKO B TOM Cnyae, ecn Baun HOrn n pyKn HaxOJaTcna 6e3-onachom pacCToRHN n OT pexyUero yctpO-CTBa.
EcN Bbl co6bpaTeCb ocTaBnTb yCTpoiCTBO 6e3 npncMOtpa Hn ydaNTb 3a6NBwncB HrO MaTePnaJ, BcerDa ChMaIte C yCTpoi- CTBa aKKymyIaTOPhIe 6aTapen.
Bo BpeMa pa6oTbI C TpMMepom nJn BO3- ne Hero Bcerda Hocnte npOHyIO 6yBb I dnnHbIe uTaHbI, a TaKxe NcNoJIb3yIte NOxOJaUne CpeDCTBa INHINBnDuAaJIbHOI 3aunTbI (3aunTHbIe OUK, IpOTNBOuMhBiE HayuHKn, pa6Oue nepaTKn I. ). UcnoNb- 3OBaHHe CpeDCTB INHINBnDuAaJIbHOI 3aunTbI CHnKaet OnacHOCt b TpaBM. He Hocnte Cbo6oDHyIO OExdy I. I., KOtOpA MoKET 6bITb 3axBaueHa peKyuIm IHCTpyMeHTOM.
OTBeTCTBeHHocTb 3a HecuactHbIe Cnyan Iyuep6, npuHHeHbI dpyrM IIOJAM IIN INx IMyueCTBy, BO3JaaraetcHa onepaTopa IIN Ha NOJIb3OBaTeJI.

Peped npimHeHHem

Npeed Haayanom pa60TbI 03HaKoMbTeecb C TpMMepom, ero yHKunmN 3JeMeHTamn ynpaBneHn.
He nCloJb3yIte TprMMep, ecn erO BbIKIO- ChaTeJIb HEnCnpaBeH I nepeCTaJI BKIOUcTaBcA nn BBIKIOUcTbcra. IpOpYHTe erO peMOHT KBaJIINΦuNpOBaHHOMy CneuaJIInCTy NN CneuaJIIN- 3IPOBAHHo MaCTepCKoI.
He 3Kcnpnyatnpyute yctpoicTBO c nobpeXdeHHbIMN IIN OTCyTCTBYUOUMN 3aunTHblMN yctpoiCTBaMn IIN KpbIshkamn. NopyaTe INx peMOHT IIN 3aMeHy KBaJIncuPObAHHomy CneunaInCTy IIN CneuaIn3nPoBAHHO MacTepeCKoI.
Npeed ctpnKoR ra30Ha y6eHntecb, YTO C Hero y6paHbI cybR, KaMHN, npOBONKa NT. D., NIOCTOARHH OyHTbIBaHTe 3TO BO BpeM pa60TbIC TpMMepom.

Yka3aHnnoTexHnke6e3onacHOCTn

Перед Вынолнемпсгок усточь Ил erо ounstkn BblkIOUHTe yctpoiCTBOи СнIMTe c Hero akKymЛТOPHbIе 6aTapeN.
Почтnteи co6IIOJaTe pyKOBoIDCTBO no 3KcNpyaTaunn aKKyMylTOpHoi 6aTapen n 3apAHorO yCTpoiCTBa.

BoBpeMa npImeHHeNHa

OnachocTb TpaBM Hor npyK pexuym yctpoiCTBOM.

N3BneKaIte aKKymyIaTOpHyIO 6aTapeIO u3 yCTpoNCTBa:

• Bcerda, korga Bbl octabJare yctpoicTBO.

• neped cHrTneM 6JoknpOBKn.
  -пегд вллн HeHnem npOBepK, OYNCKn IJIpa60T ha yctpoiCTBe.

• nocne cToJNKHOBeHnC npenTCTBnEM,ДЯ npoBepKu yCTPOINCTBa Ha npedMeT NOBpeKdEHN.
  -ДЯ HEmeДлЕнHо ПpoВерки,КOrДа yСТpoИСТВО НaчИHaeТ YpeЗмepHo BnБрИрOBaTb.

  He nCnoJb3yIte yCTpoNCTBO BO B3pIIBOONaCHoI cpeI, rIe npncytCTBYOT TropOue XnKoCTn, ra3bl nnPiB. TpIMMep MOKeT CO3daBaTb NCKpbI, KOTOpbl E MOrYT BOCIIaMeHHTb PblN IIIN napbl.
  Bo Bpem nepepbIBOB pa6oTe Hn B KOem cnyuae He octabTne TpMMep 6e3 npncMoTpa n XpaHnTe erO B HaJeXHom MeTe.
  Bo BpeMa BkIIOueHnra TpIMMepa Depxnte ero napaJIeJbHO ra3OHy, B npOTNBOM cnUyae BO3HnKaet OnaCHOCTb TpaBM.
  Bo Bpempa6oTbI BblpeKnBaIte 6e3onacHoe paccToHHne K Bpaauouecna necke.
  He nbitaTecb cxBaNTb Bpaauooucnaecky.
  BybTe octopOKhI npn o6paueHn C Hoxom dIa IeCKN, YTO6bl He NOnyHTb TpaBMy. Iocne BbITraHbAHn HOBn IeCKN Do BKIO-yeHn yCTpoiCTBa BcERda DepxHrTe erO B HopMaJIbHOM pa6ooyem NOJoxeHN.
  NcnoJb3yIte noDxOJaIe 3aunTHbIe OUKn I npOTnBOwymHbIe HayuHNK!
  N36eraTe Heyo6hIx NOJoxHn TeJa. CJeDInTe 3a XopoWeyCTOuNBOcTBIO N BcerDaNoDepKNaTe paBHOBeCne.BydTe Oco6eHNOCToPOxHbI,peEaBraacb no cKnOHy.HN BKOem cnUyae He 6eraTe,DburaTecb BpeEdCNOKoINbIM WaROM.3TO No3BOInr Bam Jnywe KOHTPOINPOBaTb yCTPOINCTBO B HeOxNdaHHbxCITyaunx.
  BydbTe oco6eHHO ocToPOxHbI, Dnuracb Ha3ad. OnaCHOCTb cNOTKHyTbc!

Bo Bpemra TpaHcnpTnpoBKN yCTpOncTBA npn nepexode Mekdy OTdEJIbHbIMM MeCTaMM pa60tbi BCerda CHImaTe aKKyMyJrTOphYIO 6atapeio.

He nepembikaTe yctaHOBneHHbIe Ha ycTPOCTBe ycTPOcTBa BKIOUcHn N BbIKIOUcHn N He BBINOJIHnTe C HmN HnKaKx HeHaJNeJkaux DeIcTBn.
He ydaparTb KOHTeHepom dIJIneCKn O 3emJIO nnO KpaTcTeH. Pocne ydapa KOHTeHepa IJIa neCKn npOBepbTe HAIuHne NOBbIweH HO Bn6paunn HA pykoTke. Pn HAIuHN IOBbIWeHHoBn6paunn HEo6xOAnMo NOpuyNTb peMOHT YCTPOiCTBa KBaJIINΦNUPOBaHHOMy CNEUJaNtCTy NN IN CNEUaN3NpOBaHHoM MaCTepCKoI.

Pocne npmeHn

BbIKIOHTe yCTPOINCTBO, CHIMTE aKKyMnT-TopHyIO 6aTapeIO n npOBepbTe ycTPOINCTBO Ha npEiMeT NOBpExdHn. BHMaHne, onac-HocTB! Pexyun INHcTpymENT Bpaaaetcno HnHepuN!
EcJn Bam Heo6xOIMo BbIIOJHHTb pa60TbI NO TexHueckOMy 06cJyXNBaHNIO N OuchTke yCTpOJCTBa, BBIKJIIOUHTe erO IN CHNMTe aKKyMyJrTOphyHO 6aTapeJO.
Bcerda doxndaaTec b ocTaHOBNpeKyuero HnCTpyMeHTa n He npNKacaTecb K NOdBHXHbIM ONaChbIM qactm, ppeBaPHTeJbHO He CHyBC yCtpoiCTBa aKKymIaTOPHyO 6aTaPeIO.
CHMaTb 3aunTHbIe ycTpOcTBa NIN BbINOHrTb 3aMeHy uynbKn C JeCKo MOxHO TOnbKO npn ChrToAkkymyIaTOPHO6aTapee.1CnoJIb3yIte TOJbKO opuHaJIbHbIE KACCtBICJeCKo n co6IIOaIte IHCTpyKmN NO yCTaHOBKe!
CneIte 3a TeM, YTO6bI BEHTINJauNIOHHbI ueHn He 6bln 3arpa3HeHbl.

He MoTe TpMMep BOdoN.
XpaHnTe yctpoiCTBO BHaIeXHom MecTe.

He IepKInTe yCtpoNCTBO B MecTax,IOcTyHbIX DeTAM.

He pemOHnpyuTe yCTpOncTBO cAmocToaTeNbHO, npuyaHte ero peMOHT ToIbKO KBaHnΦuNpOBaHHOMy CneuaNtCy HIN CneuaN3npOBaHHo MaCTepcKo.
П配电дуемпocTaBtbyycTpOuCToBaHMeCTOnIIMN NOMeCTnTb erO Ha XpaHeHne, daTe DBNraTeJIIO OCTbITb.

06zne yka3aHnno TeXnke 6e3onacHOCTn

HnkOrda He yctaHaBnBaIte BmecTo pexyue- ro yCTpOncTba n3 HEmTaJInueCKoro MetaInnueckoe pexyuuee yCTpOncTBO!

Yka3aHnno TEsHHke 6e3OnachOCTn

Bcerda doxndaaTecb ocTaHOBKn peKyuero HnCTpyMeHTa n He npKacaTecb K NOdBHX-HbIM ONaChbIM qactm, ppeBaPteJbHO He CHRA C yctpoiCTBa aKKyMylrTopHyo 6aTapeIO.
3aunactn DOJXHbI COOTBeTCTBOBaTb Tpe6oBaanm, yCTaHOBJeHHbIM npOn3BOAnTeJeM.1030tomy nCIOJIb3yIte TOJbKO opuHaJIbHbIe 3aunactn IIN ODO6peHHbIe npOn3BOAnTeJeM 3aunactn. PpN 3aMeHe BcERda CObIouaIte npInaraemble INHCTpyKUIN NO yCTaHOBKe, ppeBapntelbHo CHImaIte akkyMyJrTOphyIO 6atapeIO.

NopuyaIte npoBeHne pemOnTa nCKnIOuHTeIbHO KBaIINΦuINpOBaHHOMy CneuaJIInCTU Hn CneuaJIIN3npOBaHHo MaCTepcKoI.
3TOT TpMMep npedHa3HaueH dJa yXoJa 3a KpaMn Ra3OHOB H6OJbUHMn TpaBraHbIMN LykaKamn Ira3OHAMn B DomaUHem Xo3r-CTBe.13-3a OnaCHOCTn TpaBMPOBaHnnoJIb-3OBaTeIyIpynx IIODee TpMMep HeJIb3A NcONb3OBaTb B HecBOICTBeHHbIX Emy UeJx.

NcnoNb3yIte TpMMep ToIbKO dHem Hn npHaHnUHn XopoWero NCKycCTBeHHORO OCBe-ueHn. MecTo pa6oTbI DOJIxHO 6bITb YNCtBIM XopoWIO OCBeUeHHbIM.
NcnoJb3yIe TpMMep ToIbKO B cyxuO nOrOy. BepeHte yCTpoNCTBO OT DoXJa IIN cbIpocTN He 3KcnIpyaTnpUye ero BO BpeM rpo3bl. POnaDaHne BObl B TpMMep NOBbIaet ONaCHOCTb NopaxHenr 3JIeKTPnueCKm TOKOM.
Дахе пи сбл�день Ссex уka3ан no texнke 6e3oNaChOCTn uypaBNeHNo cyueCTByeT OCTaTOUHbI PNCK TpaBM N MaTePn- anbHorO yuep6a. Bcerda nomHnte o6 ətOM.

PpimMeHHe No Ha3HaueHnIO

TpMMep C yctaHOBHeHHo 7nYbKOc c neckO npdHa3NaueH NCKJIIOUHTeJIbHO dJIyXoJa 3a KpaAMr Ra3OHOB HneBOJbIIMN TpaBArHbIMN LyKaIKaMn rA3OHAmN B DOMaSHEM XO3RNCCTBE.

Ib6oe BbIXOJaUe 3a 3TN paMKn IcNoB3OBaHne CHTaETc npImeHeHem He NO Ha3HaueHIO.

3a yuep6, npou3oweDnB Cnyuae npimeHeHn He no Ha3naueHnIO, OTBeuaeT NOlb3ObaTeJIb.

PpimHeHHe No Ha3HaueHIO

3TOT TpIMMep He DoJxKeH NcNoJIb3OBAbC8 B MeCTax 6oIeero NoJIb3OBAHnA, NapKax, ObBeKtax CnOpTINBHO INΦpactpykTypbl, Ha yNlCx, a TaKxe Ha npeDnpnTnx CeJIbCKOrO n IeCHOrO Xo3aICTBa.

YHTbIBa BO3MOXHbIe TpaBMbl, TpMMep He DOJXeH NCIOB3OBaTbCn DnI O6pe3Kn TOJCTbIX CyUbeN IINr N3MeJIbYeHnMaTePnaJa Ha KOMNOCT.

PacnopTha Ta6nUka

NoJoxeHne

PacnopTna Ta6nUka HaxoNTcHa Kopnyce TpMMepa.

Yka3aHue

Nacnpnna maBnuka Hocum xapakmep dokymehma - ee HeIb3u3MeHmbl uI npubodmb Heyumaembu eud.

Ctpykrtypa

1 Yactota BpaueHnI DnBraTeJI,06/MnH
2 MoHHoCTb
3 3HaK CE
4 Yka3aHHe no yTuIN3aUIn
5「apaHTnpOBaHHoe3HaueHHe 3ByKOBo MoUHOCn
6 Toid Bbinycka
7 Knacc 3aunTb
8 Bec
9 PaçehTHe HapPKeHne /poD ToKa
10 Hmep moen
11 CepinHbI HOMep
12 Ha3BaHne MoDEnI
11Pon3B0DTeJb

3nementbI ynpaBneHna

3JIeMeHbI ynpaBneHnra K

1 KhoIka pa3bJIOKIOBKBn aKKyMnyTOpHoi 6aTapeu
2 KhoIIka 6JIOKINPOBKN BKNIOHENI
3 BbIKIOHATeJIb Ha pyyKe
4 PepeknioateIb yacToIb BpaIeHnIa
5 KhoKkaФИКcaUmФуHкUmObpa60TK kpar Ta30Ha
6 KhoNka qKcaun peylnpoBkn pa6oero yrna
7 3aunTHbI KOKyX
8 3aunTHa yra dJa pactenH
9 KpbIuKa uNpyIbKn
10 甲尼氏ka ciecko
11 KoHTeHepIJIaJIeCKn
12 HanpaBraIooee KoIeScnKo
13 Hoxdne neckn
14 CpeHry pyKoYtKa
15 Pyka
16 Akmyntopna 6batae

BbOaB 3Kcnnyatauio

DOnonHHTeJIbHaJ DOKyMeHTaIaIa

BBOHTE yCTPOINCTBO B 3KCNJyatauHIO NnB TOM Cnyae,ecnn y Bac nmeOTc npnlaraeMbIe pyKOBoCTBa no 3KcnJyataun 3apAnHO YoCTBO 40V FAST CHARGER n aKKymyTAOpHoi 6aTApen 40V LI-ION n Bbl nonn n co6JIoudaTe nx.

3apka akkymyTopHoi 6atapei

I PENEYNPEXKDEHNE!

OnachocObI NOJyHeHr TpaBM N IOBpeKdEHHN MyuectBa

3apKaTe aKkMyJrTOpHyo 6aTapeo TOJIbKO 3apJHbIM yCTpoiCTBOM 40V FAST CHARGER.

BhumaHue!

AkkymyIaTOPHa 6aTape nocTabIeTcB uactNuHO 3apJxEHOM COCToHn. Ira oBeCneueHn POnHo MOnHOCtN AkkymyIaTOPHn 6bTape npeD nePbIM NcNoJIb3OBAHNEM PONHOCTbIO 3apdnte ee C NOMO 3apJdHoro yctpoiCTba 40V FAST CHARGER.

C6opka

I PENEyPENKDEHNE!

OnachocTb TpaBMnpoBaHnapeKyuIm nHCTpyMeHTOM.

BbIOnHnAte HacTpoNky yCTpoNCTBa TOnbKO npu BbIKIIOeHHOM DBrAteNe N HeNoDBrXK-HOM pexKysem INcTpymeHTe.

He xBaTaIteCb 3a BpaUIOUIOyOcR IeCKy.
Перед началов Лобьх pa6OT no obcnyknBaHIO yCTpoIcTb ChrTb akKMyJIaTOpHyO6batapeio.

MOHTaK 3aUHTHOKOkOyxaA B

→Pa3MeCTHTe 3aUHTbI K0x a Ha TpIM-Mepe B1.
→ BXOДЯПИМN B KOMПЛЕКТ NOCTaBKN BnHTaNb npINBHTNTe 3aUNTHbI KOKyX B2.

YKa3aHue

Ha 3aumHom Koxyxe yke npedapumelbHo CMohmuoBaHO HnpaBnouoee KOncuKO [1], ynpouaooee paobmy npu obaomKe kpar 2a0ha.

CpeHnra pyKoRtka A C

→ CHINMITE IBa IpeBapNTeIbHO yCTaHOBnEHbIX BnHTa IN KpeNEXKHyIO DeTaJIb A c.
→Pa3MecTnTe cpeHIOI pyKoRTKy Ha Tpe6yeMoN BblcoTe C1.
→PacnoIoxnTe KpeNexHyIO DeTaJIb cO6paTHoI CToPOHbI cpeINHei pyKoTKn 2.
→PnBHTTEcpeHIOyKoTky BHTaMn ③.

CoeHHeHne TpMMepHoro 6noka n uTaHn ynpabJeHna D

→ BCTaBbTe TpMMeepHbI 6JIOK B OTBeTHyIO YacTb UTAHn ynpabHeHn

BhumaHue!

Co6JIIOJaTe NOJApHOCtB KOHTaKTOB NO COOTBeTCTByIOUeM aPkKnOpOBKe.

→3aTaNHTe KpeNexKHyO BTyIky ②.

3apnTe aKKyIaTOpHyO 6aTapeIO B COOTBeTCTBUN C INHCTpyKUINM, COePkaUIMNcR B DOONHHTeHBHOJ DOKymENTaUIN.

Yacbl pa6oTbl

Co6JIIOJaIe peHIOHaJIbHbIe IpeDIIscAHHa
Y3HaIe o pa3peHHeHHbIX Yacax pa6oTbIB MecTHOM oprahe 06ueCTBeHHoro npaBONopraKa.

PergunpoBka pa6oeryrna

PENEyPPEKDEHNE!

OnachocTb TpaBMnpoBaHnpeKyuIm nHCTpyMeHTOM.

BbInonHraTe HacTpoNky yCTpoNcTBa TOnbKO npn BbIKNoeHHOM dBNraTeJe N HeNoDBrK-Hom pexyIeM IHCTpyMeHTe.
He xBaTaIteCb 3a BpaUIOUIOJneCKy.

YcTpaHHeH HeCnPaBHOCTe

I PENEyPPEXKDEHNE!

Onachoctb noJyehn TpaBm nOBpeKdHn mUyeCTBa

ПиВОЗнКНБЕнССOMHENBCErdaOBpaaIaTecbCneLmaNIm3nPoBaHHyMQaTepeckyo.
Ipeed kaxdo npOBepko nIIN nepeH hauanom pa6oT c yCTpoiCTBOM BbIKIOaIte DBNrAteIb u CHMaTe aKKyMnTOpHyIO 6aTaPeI.

PpO6JIema Bo3MoXHa nIpnuHa PeSeHne
