USER MANUAL PLG 20 A1 PARKSIDE

Translation of the original instructions

NL BE

Loadunit 12 V 2,4 A

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

（）（）

GB / MT Translation of the original instructions Page

Intended purpose.... 30

General description..31

Extent of the delivery 31

Overview 31

Technical data ...... 31

Charging time ....31

Safety instructions.... 32

Symbols in the manual 33

Symbols on the recharger 33

General Safety Directions. 34

Correct handling of the battery charger..37

Charging the battery..40

Inserting/removing the battery 41

Checking the battery charge level. 41

Recharging the battery. 42

Used batteries.....42

Storage 43

Wall mounted charger. 44

Cleaning 44

Maintenance 44

Disposal and protection of the environment....45

Replacement parts...46 Guarantee....46

Repair Service ......... 49

Service-Center 50

Translation of the original

EC declaration of conformity. 301

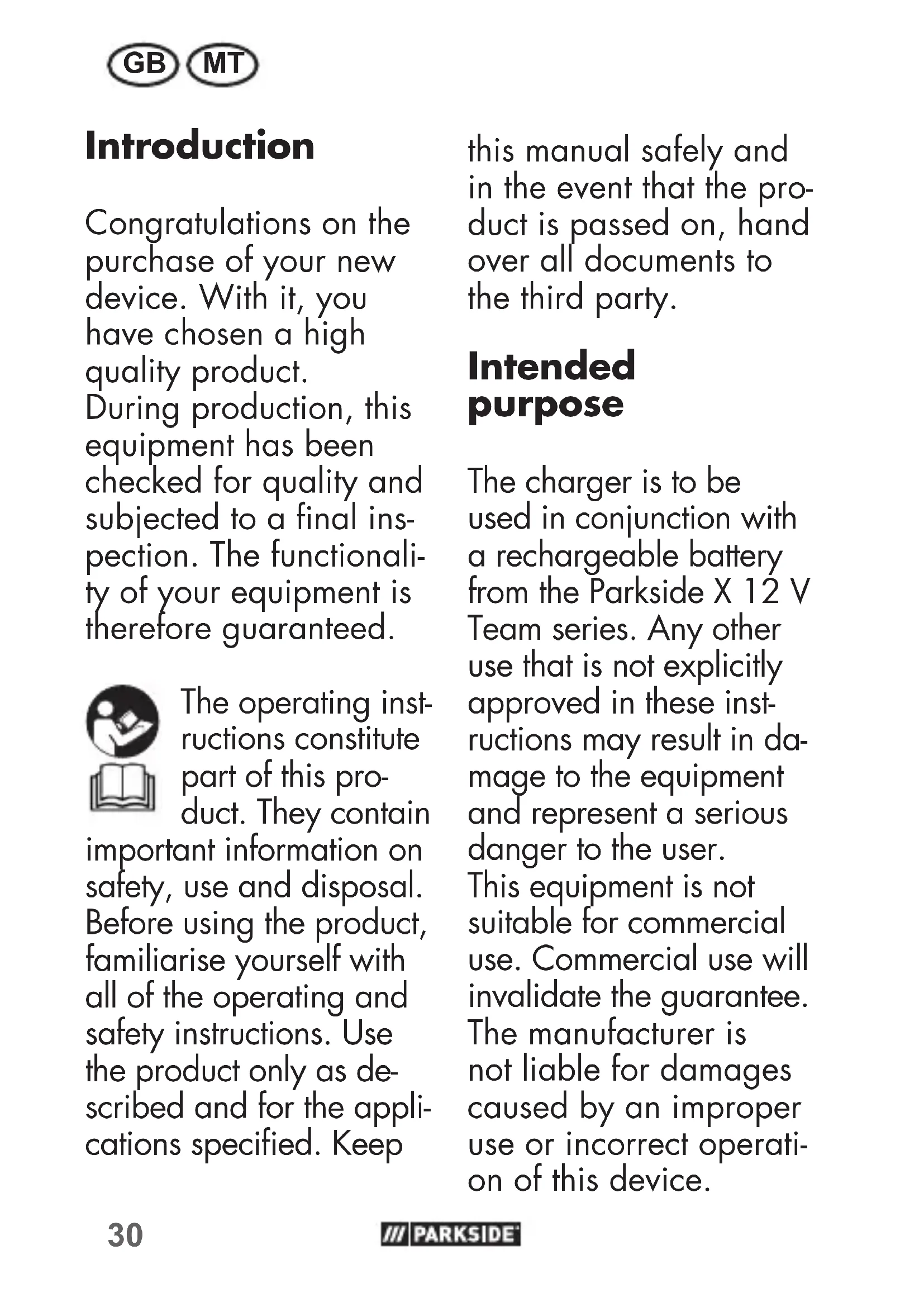

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain

important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep

this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The charger is to be used in conjunction with a rechargeable battery from the Parkside X 12 V Team series. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device.

General description

The illustrations are on the front

fold-out page.

Extent of the delivery

• Charger
• Instruction Manual

The battery is not included in delivery.

Dispose of the packaging material correctly.

Overview

1 Rechargeable battery

2 Battery release button
3 Charger
4 Red LED
5 Green LED

Technical data

Charger

PLGK 12 A3

Rated input.....50 W

Input

voltage....220-240V\~,

50-60 Hz

Output

Output voltage. 12 ~V =

Output current ..2.4 A

Device fuse.....T2A

Protection class.......II

Temperature

Charging process

4 - 40 °C

Operation..-20 - 50 °C

Storage.....0 - 45 °C

Charging time

We recommend that you only charge the following batteries with this charger:

PAPK 12 A3,

PAPK 12 B3,

PAPK 12 D1.

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Charging time (min)	PAPK 12 A1 PAPK 12 A3	PAPK 12 A2
PLGK 12 A1 60	60
PLGK 12 A2 60	60
PLGK 12 A3 60	60
PLGK 12 B2 30	45
PDSLG 12 A1 60	45

Charging time (min)	PAPK 12 B1 PAPK 12 B2 PAPK 12 B3	PAPK 12 D1
PLGK 12 A1 120 150
PLGK 12 A2 120 150
PLGK 12 A3 120 150
PLGK 12 B2 60 80
PDSLG 12 A1 60 80

Safety instructions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Help symbols with information on improving tool handling.

Symbols on the recharger

X12VTEAM The recharger is part of the Parkside X 12 V TEAM series.

Warning!

Read the operating instructions carefully.

The charger is only suitable e indoors.

for use indoors.

Device fuse

Protection class II ble insulation)

Electrical devices must not be disposed of domestic waste.

LED display while charging.

General Safety Directions

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire. Please read all these instructions before using this electric tool and please keep the safety instructions.

Careful handling and use of battery devices

• Charge the batteries only in chargers that are recommended by the manufacturer.

Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

• Keep the unused battery away

from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts.

A short circuit between the battery contacts may cause burns or fire.

• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause

skin irritations or burns.

• Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

• Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130^ C can cause an explosion.

• Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating

instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

Service

• Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Special safety directions for battery-operated tools

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

• Recharge the batteries indoors only because the battery charger is designed for indoor use only.

To reduce the electric shock hazard, unplug the battery charger from the mains

before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

• Allow a hot battery to cool before charging.

• Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance

in the event of discomfort.

• Do not use nonrechargeable batteries!

Correct handling of the battery charger

• Keep the equipment away from children and pets. Children must be supervised to ensure that they do not play with the device.

Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective

charger and do not open it up yourself. This ensures that the safety of the device is maintained.

• Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

• Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.

• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

• Avoid mechanical damage to the charger. This can result in internal short circuits.

The charger must not be operated on or in the immediate vicinity

of flammable surfaces (e.g. paper, textiles). Risk of fire due to heating caused by charging.

• If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.

• The battery of your device is only partially pre-charged upon delivery and must be fully charged before being used for the first time.

time. Insert the battery into the base and connect the charger to the mains.

• Remove the mains plug when the battery is fully charged and disconnect the battery from the charger.

• Do not attempt to charge nonrechargeable batteries in the charger.

• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/ skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only. Prior to attaching the charger, check that the battery's outer surface is clean and dry. There is a risk of injury due to electric shock.

Switch off the device and remove the battery before carrying out any maintenance work.

The rechargeable battery only reaches its full capacity once it has been charged several times.

• Charge the battery before using it for the first time.

• Only use chargers from the Parkside X 12 V Team series to recharge the battery.

• If the operating time is considerably shortened despite charging, this shows that the rechargeable battery is depleted and must be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from the online shop (see the "Spare parts" section).

Always comply with the latest safety information, as well as the regulations and information relating to environmental protection.
- Defects resulting from improper handling are not covered by the guarantee.

Inserting/removing the battery

1. To remove the battery (1) from the device, press both release buttons (2) on the battery and pull the battery out.
2. To insert the battery (1), push the battery along the guide rail into the device. You will hear it click into place.

Only insert the rechargeable battery once the

battery-operated tool is ready for use.

Checking the battery charge level

The battery's (1) charge level is indicated by the charge state indicator.

• The charge level of the battery is indicated by illumination of the corresponding LED lights while the device is in operation. Press and hold the power button to view.

red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged

Recharging the battery

If warm, allow the battery to cool before charging.

Charge the battery (1) when only the red LED on

the level indicator is illuminated.

The battery's (1) charge level is indicated by the charge state indicator.

1. Remove the battery (1) from the appliance if necessary.
2. Plug the battery charger (3) into a mains outlet.
3. Insert the battery (1) in the charging compartment of the battery charger (3).

4. Pull the battery (1) out of the battery charger (3).

5. Unplug the battery charger (3) from the mains.

Overview of the LED indicators on the charger (3):

Green LED (5) lights up without battery inserted: Charger ready.

Green LED (5) lights up: Battery such alleged charged.

Red LED (4) lights up: Battery charging.

Red (4) and green (5) LEDs flash: Error

Used batteries

If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs

to be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from the online shop (see the "Spare parts" section).

Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Storage

• Store the charger in a dry and dustproof location, out of reach of children.
• Remove the battery before storing the unit for longer periods of time.
• During a longer storage period, check the

state of charge of the battery and recharge if necessary roughly every 3 months.

• The storage temperature for the battery is between 0^ C and 45^ C . Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.
• Only store the batteries in the partially-charged state. During prolonged storage, 2 to 3 LEDs should be illuminated. The battery charge status indicator of the cordless tool signalises the state of charge of the battery (1).

Wall mounted charger (optional)

You can also mount the charger (3) on the wall.

Using dowels, place two screws 54 ~mm apart at the desired position of a wall.
- The screw head can have a diameter of 7 - 9 ~mm
- Leave the screw heads protruding at a distance of approx. 10 ~mm from the wall.
- With the openings of the wall bracket, you can attach the charger (3) to the two screws and pull the charger down until it stops.

When drilling, be careful not to damage any supply lines. Use suitab

le search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock.

Cleaning

Clean the charger and the battery with a dry cloth or with a paint brush. Do not use water or metal objects.

Maintenance

• The appliance cleaner is maintenance free.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste,

fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

Take the charger to a recycling point. The plastics and metals in the unit can be

sorted and appropriately recycled. Ask our Service Centre for details.

• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.

Defective units returned to us will be disposed of for free.

Replacement parts

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.
If you have any other questions, contact the "Service-Center" (see page 50).

Battery

PAPK 12 A3 .80001264
PAPK 12 B3 80001265
PAPK 12 D1 .80001270

Charger

PLGK 12 A3, EU .80001395
PLGK 12 A3, UK………80001396
PLGK 12 B2, EU .80001341
PLGK 12 B2, UK .80001342

Guarantee

Dear Customer, This device comes with a three-year warranty from the date of purchase.

In case of defects, you have statutory rights against the seller of the

product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee The term of the guaran- tee begins on the date of

purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The warranty is only valid for material or manufacturing defects.

This warranty does not extend to consumable parts exposed to normal wear and tear.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 385641_2107) ready as proof of purchase for all enquiries.

• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 385641_2107

MT Service Malta Tel.: [phone]

E-Mail:

[e-mail]

IAN 385641_2107

Importeur

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service-Center......82

Importateur......82

proakumulatory....143

Proces nabijeni.....146

Vyjmutí/vloženi

akumulátoru ...... 147

Kontrola stavu

Service-Center.....203

Importor. 203

Oversaettelse of

den originale CE-

konformitetserklaring 307

Introduktion

Apparatsikring.....T2A

Kapslingsklasse.....II

Temperatur

Den grønne LED (5) lyser:

consumate........246

Service-Center.....254

Importatore.....254

Traduzione della

dichiarazione di

conformità

CE originale 309

Introduzione

Pooblasceni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

GB MT	Translation of the original EC declaration of conformity
We hereby confirm that the Charger Design Series PLGK 12 A3 Serial number: 000001 - 282000 conforms with the following applicable relevant ver- sion of the EU guidelines:
2014/30/EU • 2014/35/EU 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following har- monised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A2:2019 EN 60335-2-29:2004/A11:2018 EN 62233:2008 • EN 61000-3-3:2013/A1:2019 EN IEC 63000:2018 • EN IEC 61000-3-2:2019 EN 55014-1:2017/A11:2020 • EN 55014-2:2015
This declaration of conformity (22)** is issued under the sole responsibility of the manufacturer:
CE	Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim Germany, 10.02.2022
		Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
  ** The last two digits of the year in which the CE marking was affixed.
