PAPK 12 D1 - Battery PARKSIDE - Free user manual and instructions

Product type	Rechargeable lithium-ion battery
Brand	Parkside
Model	PAPK 12 D1
Rated voltage	12 V
Capacity	5000 mAh (5 Ah)
Number of cells	6
Battery type	Lithium-ion
Charging time (with PLGK 12 B2)	Approx. 80 min
Charge indicators	Red LED (charging), green LED (finished)
Compatibility	Parkside X12V Team tools and chargers
Recommended charging temperature	10 °C to 40 °C
Storage temperature	0 °C to 50 °C
Optimal charge level for storage	50 % to 80 %
Warranty	3 years
Usage	Private, non-professional
Maintenance	Clean with a dry cloth, do not use water
Main safety instructions	Do not expose to fire, do not short-circuit, use only recommended chargers
Spare parts	Replacement battery available via customer service
Repairability	Maintenance only by the manufacturer or an authorized service center

Frequently Asked Questions - PAPK 12 D1 PARKSIDE

How to charge the PAPK 12 D1 battery?

Place the battery in a compatible charger from the X12V Team series (not included). Plug the charger into a mains socket. The red LED lights up during charging. Once charging is complete, the green LED lights up. Disconnect the charger before removing the battery.

Which chargers are compatible with this battery?

Compatible chargers are the PLGK 12 A1/A2/A3/B2 and PDSLG 12 A1 from the X12V Team series. Only use chargers recommended by Parkside.

What is the capacity of the PAPK 12 D1 battery?

The battery has a capacity of 5000 mAh (5 Ah) at a rated voltage of 12 V. It contains 6 lithium-ion cells.

How long does it take to fully charge the battery?

With the PLGK 12 B2 charger (4.5 A charging current), the charging time is approximately 80 minutes. With other chargers, the time may vary.

What do the LEDs on the battery mean?

The battery has two LEDs: a red LED that lights up during charging, and a green LED that indicates charging is complete and the battery is ready for use.

Can I use the battery in cold weather?

The battery can be used in a temperature range of 10 °C to 40 °C. Charging is not recommended below 10 °C. For storage, the temperature should be between 0 °C and 50 °C.

How to store the battery long-term?

If you do not use the battery for an extended period, store it in a clean, dry place away from sunlight. The optimal charge level for storage is between 50 % and 80 %. Check the charge level regularly.

How to clean the battery?

Clean the battery and charger with a dry cloth or brush. Never use water or metal objects. Never service a damaged battery.

What to do if the battery does not charge?

First check that the charger is compatible and the ambient temperature is between 10 °C and 40 °C. If the battery is damaged or still does not charge, contact Parkside customer service.

Where to order a replacement battery?

You can order a replacement battery on the website www.kompernass.com or by phone at 0800 919270 (France) or 0800 12089 (Belgium). Have your IAN number (391277_2201) ready.

USER MANUAL PAPK 12 D1 PARKSIDE

RECHARGEABLE BATTERY 12V 5Ah AKKU 12 V 5 Ah / BATTERIE 12 V 5 Ah PAPK 12 C1

GB IE

Translation of the original instructions

FR BE

BATTERIE 12 V 5 Ah

Technical diagram of a battery with labeled parts, showing internal structure and numbered annotations.

A

Technical diagram of a robotic device with numbered parts labeled 1 to 5

All Parkside tools and the chargers PLGK 12 A1/A2/A3/B2/PDSLG 12 A1 of the X12V Team series are compatible with the PAPK 12 A1/A2/A3/A3/B1/B3/C1/D1 battery pack.

High-performance Li-Ion battery

Cell Balancing – longer battery life, increased battery lifespan · Higher battery resources due to evenly used cells · Maximises the charge potential.

AhpackerieA2/A3	2,5 AhBattery packBatterieBatteriePAPK 12 C1	4 AhBattery packBatterieBatteriePAPK 12 B1/B3	5 AhBattery packBatterieBatteriePAPK 12 D1
nin/A	80 min2,4 A	120 min2,4 A	150 min2,4 A
nin/A	55 min3,8 A	60 min4,5 A	80 min4,5 A
nin/A	55 min3,8 A	60 min4,5 A	80 min4,5 A

Contents

Introduction 2

Intended use 2

Features 3

Package contents 3

Technical specifications 3

General Power Tool Safety Warnings ..5

Extended safety guidelines 7

Charging the battery pack (see fig. A) .. 8

Maintenance and storage ..... 9

Kompernass Handels GmbH warranty 10

Service....14

Importer....14

Disposal 15

Original declaration of conformity .... 1 8

Ordering a replacement battery ..... 2 0

Telephone ordering 20

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This rechargeable battery is suitable for:

X124TEAM

This rechargeable battery is not intended for commercial use. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

Features

1 Battery pack
2 Release buttons
3 Red charge control LED
4 Green charge control LED
5 High-speed charger (not supplied)

Package contents

1 rechargeable battery 12V 5Ah

1 set of operating instructions

Technical specifications

PAPK 12 D1

Type		LITHIUM
Rated voltage	12 V (DC) ==
Capacity	5000	mAh
Cells	6

Use only X12V Team Series high-speed battery chargers to charge the battery pack:

X12VTEAM

(not supplied).

High-speed battery charger PLGK 12 B2

INPUT

Rated current 220-240 V\~,

50-60 Hz (AC)

Rated power consumption 50 W

Fuse (internal) 2 A

OUTPUT

Rated voltage 12 V (DC)

Rated current 4.5 A

Charging time approx. 80 min

Protection class II /

□ (double insulation)

ATTENTION!

▶ This charger can only charge the following

batteries: PAPK 12 A1/PAPK 12 A2/

PAPK 12 A3/PAPK 12 B1/PAPK 12 B3/

PAPK 12 C1/PAPK 12 D1.

ATTENTION!

▶ A current list of battery compatibility can be found at www.lidl.de/akku.

General Power Tool Safety Warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION!

Never charge non-rechargeable batteries!

max. 50°C

Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture.

There is a risk of explosion.

Extended safety guidelines

• Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
  ■ Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ C ( 265^ F) can cause an explosion.
  ■ Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions.

Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

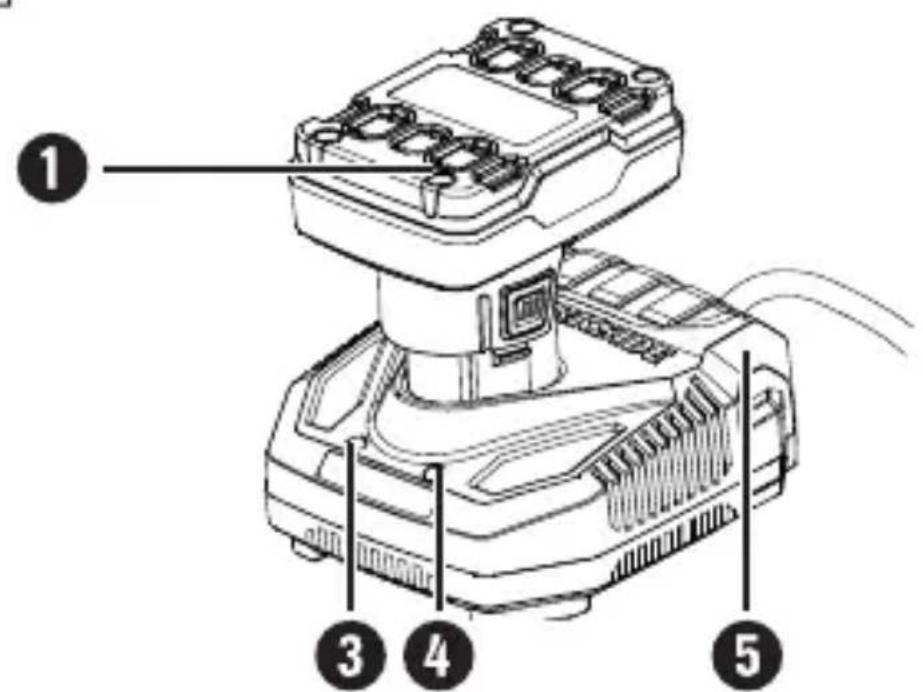

Charging the battery pack (see fig. A)

CAUTION!

▶ Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

NOTE

▶ Never charge the battery pack if the ambient temperature is below 10^ C or above 40^ C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0^ C and 50^ C.

◆ Insert the battery pack① into the high-speed charger ⑤
◆ Insert the power plug into the socket. The charge control LED ③ lights up red.
◆ The green charge control LED ^4 indicates that charging is complete and the battery pack is ready for use.

◆ Push the battery pack1 into the appliance.

You should always switch the high-speed charger ⑤ off for at least 15 minutes between successive charging processes. Also disconnect the power plug from the mains power socket.

Maintenance and storage

If you do not intend to use the battery for an extended period, remove it from the appliance and store it in a clean, dry place out of direct sunlight.

If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage environment is cool and dry.

■ Never try to repair damaged batteries.

Maintenance of batteries should only be carried out by the manufacturer or an approved customer service centre.

■ Clean the charger and the battery with a dry cloth or a brush. Do not use water or metallic objects.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product

are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 391277_2201 available as proof of purchase.

You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.idi-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 391277_2201.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 391277_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

FR RECOCONOMATION

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user.

Protect the environment and dispose of this appliance properly.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Silhouette of a person disposing of trash into a bin (no text or symbols)

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Li-ion

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to

Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/recharge able batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

Simple line drawing of a recycling symbol with three chasing arrows (no text or labels)

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

b a

Dispose of the packaging in an environmentally friendly manner. Note the labeling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Original declaration of conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

RoHS Directive

(2011/65/EU)*

(2015/863/EU)

* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied harmonised standards

EN 55014-1:2017/A11:2020

EN 55014-2:1997/A2:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 61000-3-3:2013/A1:2019

EN IEC 61000-3-2:2019/A1:2021

IEC 62133-2:2017

IEC 62133-2:2017/AMD1:2021

EN IEC 63000:2018

EN 62841-1:2015 Annex K

Type/appliance designation

Rechargeable battery 12V 5Ah PAPK 12 D1

Year of manufacture: 06–2022

Serial number: IAN 391277_2201

Bochum, 25/04/2022

fetted CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering a replacement battery

Black electronic device with a cylindrical top and base, labeled 'X12V_Tech' (no other text or symbols visible)

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

NOTE

▶ Online ordering of replacement parts might not be possible in some countries. If this is the case, please contact the Service hotline.

Telephone ordering

Service Great Britain Tel.: [phone]

ServiceIrelandTel.: 1800 101010

To ensure fast processing of your order, have the article number of your appliance to hand (IAN 391277_2201) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Inhaltsverzeichnis

Einleitung 22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Entsorgung

FR FR

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in a triangle)

Black electronic device with a cylindrical top and base, labeled 'X12V' (no additional text or symbols visible)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

Symbolic icon of a person pushing a circular arrow, representing waste or disposal (no text or symbols)

FR

Simple line drawing of an open box (no text or symbols)

Simple line icon of a trash bin with a circular arrow symbol (no text or numbers)

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

Silhouette of a person sorting trash into a bin (no text or symbols)

Simple line drawing of a recycling symbol with three chasing arrows forming a triangle (no text or labels)

Black electronic device with a cylindrical top and base, labeled 'X124' (no other text or symbols visible)

Nominale stroom 220–240 V \~, 50–60 Hz (wisselstroom)

Nominaal vermogen 50 W

Zekering (intern) 2 A

UITGANG/Output

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

Abstract icon of a person walking with arrows, enclosed in a circle (no text or symbols)

FR

Simple line drawing of an open box (no text or symbols)

Simple line icon of a trash bin with a circular arrow symbol (no text or numbers)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Black electronic device with a cylindrical top and base, labeled 'X12V_EAN' (no additional text or symbols visible)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

FR FR

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in a triangle)

Black X12V power bank battery with visible model number and branding (no text or symbols on body)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

FR FR

Symbol of a trash bin crossed with no text or labels

Silhouette of a person sorting trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in a triangle)

Sedfruck CE

Semi Uguzlu

Black electronic device with a labeled power button (no visible text or symbols on the device body)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

FR FR

Symbol of a trash bin crossed with no text or labels

Silhouette of a person disposing of trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in a triangle)

Black electronic device with a cylindrical top and base, labeled 'X12V_PAN' (no additional text or symbols visible)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

FR FR

Symbol of a trash bin crossed with no text or labels

Silhouette of a person sorting trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in a triangle)

Black electronic device with a cylindrical body and a labeled base (no visible text or symbols on the device itself)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bortskaffelse

FR FR

Symbol of a trash bin crossed with no text or labels

Silhouette of a person sorting trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 · 44867 BOCHUM

GERMANIA · www.kompernass.com

Smaltimento

FR FR

Symbol of a trash bin crossed with no text or labels

Silhouette of a person disposing of trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in opposite directions)

Black electronic device with a cylindrical top and base, labeled 'X12V' (no additional text or symbols visible)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Ártalmatlanítás

FR FR

Symbol of a trash bin crossed with no text or labels

Silhouette of a person disposing of trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (three chasing arrows in a triangle)

Sedfruck CE

Semi Uguzlu

Black electronic device with a cylindrical top and base, labeled 'X124' (no other text or symbols visible)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 391277_2201

Garancijski list

Symbol of a trash bin crossed with no text or labels

Silhouette of a person sorting trash into a bin (no text or symbols)

Simple line drawing of a five chasing recycling symbol (no text or labels)

Black electronic device with a cylindrical top and base, labeled 'X24V500' (no other text or symbols visible)

Symbolic icon of a person walking with arrows, enclosed in a circle (no text or symbols)

PDF ONLINE www.lidl-service.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informací · Stan informacji Stav informácií · Estado de las informaciones · Tilstand af information Versione delle informazioni · Információk állása · Stanje informacij: 04 / 2022 · Ident.-No.: PAPK12D1-042022-1

IAN 391277_2201
