USER MANUAL Scoop EOSG510 SAMSUNG

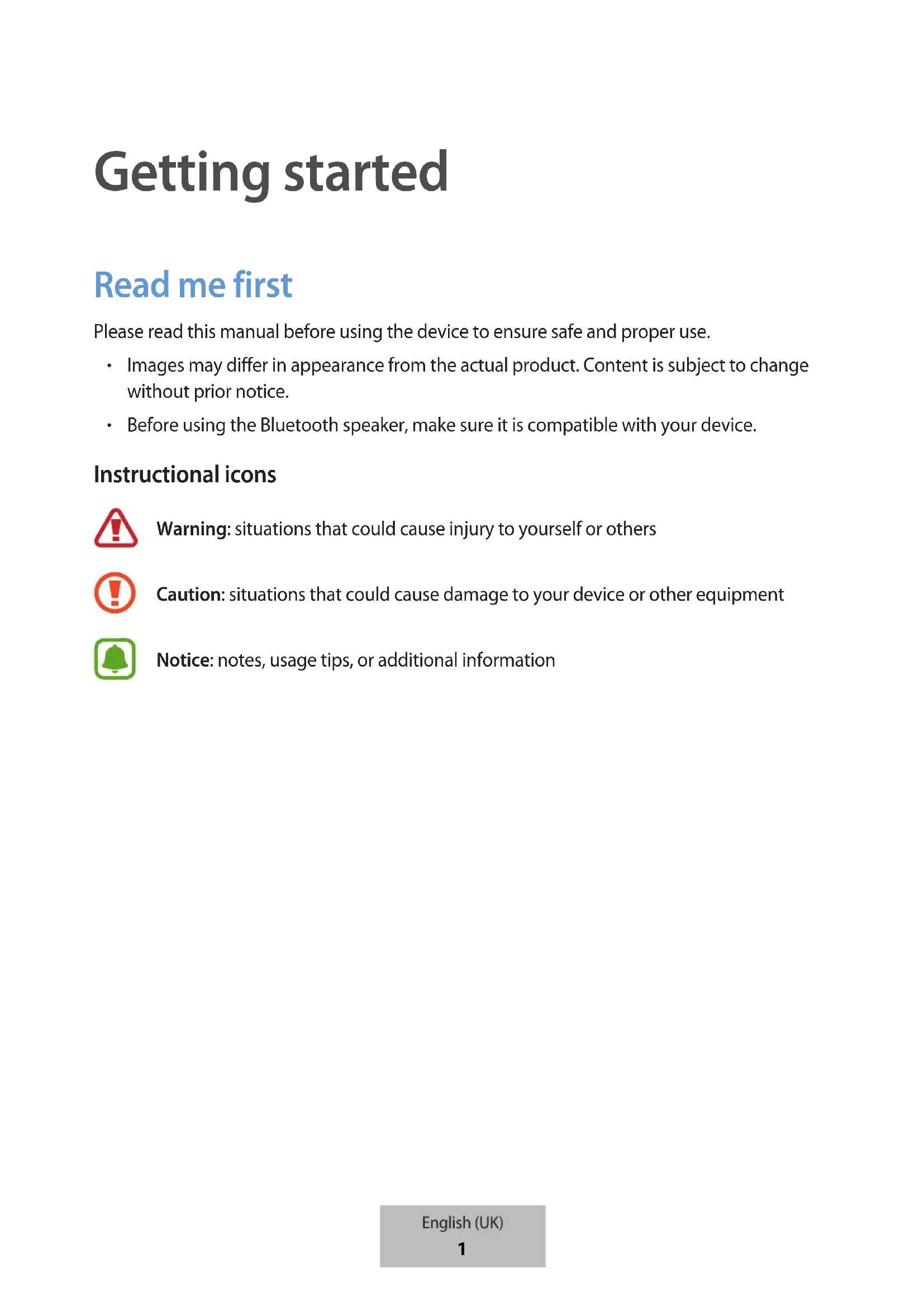

Français (Canada) Português (Brasil) 한국어3 Getting started Read me first Please read this manual before using the device to ensure safe and proper use.

Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Before using the Bluetooth speaker, make sure it is compatible with your device. Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information English (UK) 1Getting started

Package contents Check the product box for the following items:

The items supplied with the device and any available accessories may vary depending on the region or service provider.

The supplied items are designed only for this device and may not be compatible with other devices.

Appearances and specifications are subject to change without prior notice.

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. English (UK) 2Getting started

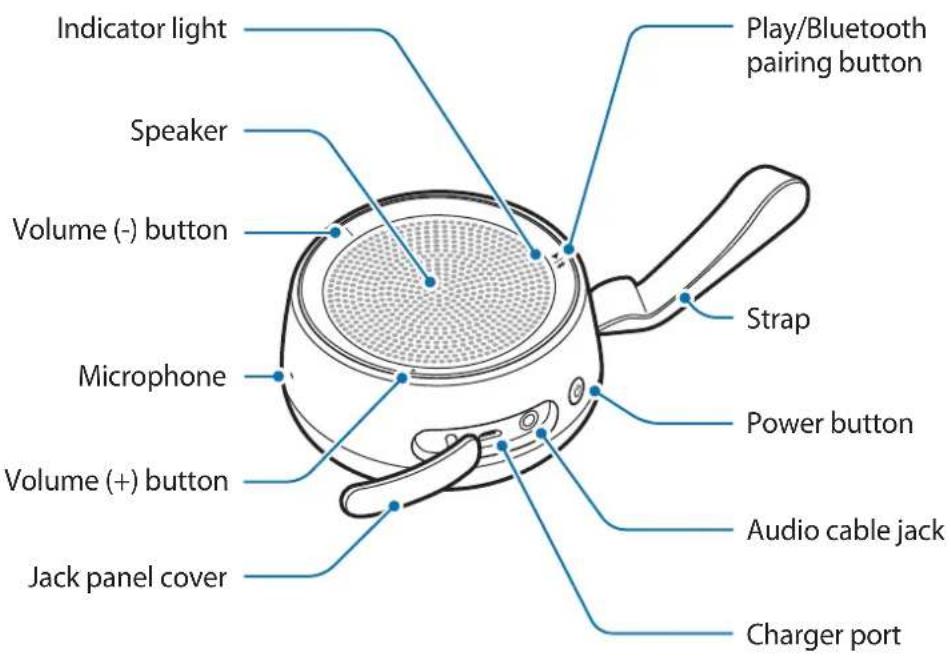

Press and hold to turn the Bluetooth speaker on or off.

Press to check the remaining battery power. Volume (+) button

Press to increase the volume during music playback.

Press and hold to skip to the next song during music playback. Volume (-) button

Press to decrease the volume during music playback.

Press and hold to skip to the previous song during music playback. Play/Bluetooth pairing button

When the connection is lost, press to reconnect devices.

Press to play or pause music. English (UK) 3Getting started

Indicator light The indicator light alerts you to the Bluetooth speaker status. Colour Status Flashes blue three times The Bluetooth speaker is powering on Flashes red three times The Bluetooth speaker is powering off Continuously red Charging Continuously blue Fully charged Flashes red and blue Bluetooth pairing mode Quickly flashes blue three times Connected via Bluetooth Quickly flashes red three times Connected via Bluetooth (when the battery is low) Flashes red every four seconds The battery is low If the indicator light does not work as described, disconnect the charger from the Bluetooth speaker and reconnect it. Charging the battery Battery charging tips and precautions

You can charge the Bluetooth speaker using the charger (sold separately).

If the battery is completely discharged, the Bluetooth speaker cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the Bluetooth speaker.

Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.

The Bluetooth speaker can be used while it is charging, but it may take longer to fully charge the battery. English (UK) 4Getting started

If the Bluetooth speaker receives an unstable power supply while charging, it may not function. If this happens, unplug the charger from the Bluetooth speaker.

While charging, the Bluetooth speaker and the charger may heat up. This is normal and should not affect the Bluetooth speaker lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

If the Bluetooth speaker is not charging properly, take the Bluetooth speaker and the charger to a Samsung Service Centre.

The charging time may vary depending on the charger specification. Wired charging Charge the Bluetooth speaker before using it for the first time or when it has been unused for extended periods. Use only Samsung-approved chargers. Unapproved chargers can cause the battery to explode or damage the Bluetooth speaker.

Open the jack panel cover.

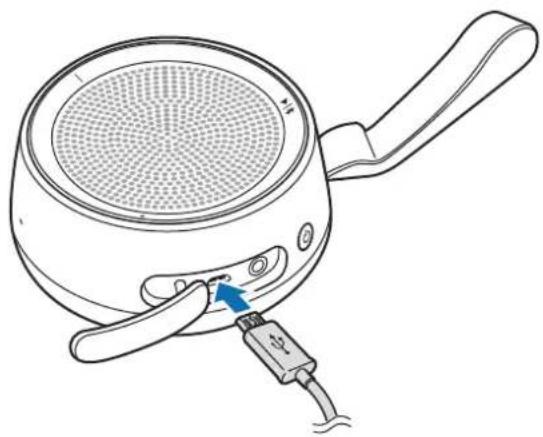

Connect the Bluetooth speaker to a charger. Connecting the charger improperly may cause serious damage to the Bluetooth speaker. Any damage caused by misuse is not covered by the warranty. English (UK) 5Getting started

After fully charging, disconnect the Bluetooth speaker from the charger.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and be easily accessible while charging.

The socket-outlet shall be installed near the equipment and shall be easily accessible. Checking the remaining battery power Press the Power button to check the remaining battery power. Colour Battery power Flashes red three times

Less than 30% Flashes violet three times

30–60% Flashes blue three times

60–100% English (UK)

Using the Bluetooth speaker Turning the Bluetooth speaker on or off Press and hold the Power button to turn the Bluetooth speaker on or off. When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

If your Bluetooth speaker is frozen and unresponsive, press and hold the Volume (+) button, the Volume (-) button, and the Play/Bluetooth pairing button simultaneously.

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals. Connecting to another device Connecting via Bluetooth Pair the Bluetooth speaker with a mobile device. Once the devices are paired, the Bluetooth speaker will automatically connect to the mobile device whenever you turn on the Bluetooth speaker.

Bluetooth speaker Press and hold the Play/Bluetooth pairing button for more than three seconds to enter Bluetooth pairing mode. The indicator light will flash red and blue. When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

Other device Activate the Bluetooth feature and search for Bluetooth devices. For more information, refer to the other device’s user manual. English (UK) 7Using the Bluetooth speaker

Other device Tap Scoop Design from the list of available devices.

If the Bluetooth connection fails or the other device cannot locate the Bluetooth speaker, remove the device’s information from the other device’s list. Then, try to connect again.

The Bluetooth connection range and sound quality may vary depending on the connected devices. Disconnecting or reconnecting devices Press and hold the Play/Bluetooth pairing button for approximately three seconds. The current connection will end. You can also end the connection by deactivating the Bluetooth feature on the connected device. If the Bluetooth connection ends due to the distance between the devices, bring the devices closer together within a certain period of time. The devices will automatically reconnect.

You can also end the connection by turning off the Bluetooth speaker or deactivating the Bluetooth feature on the connected device. When you turn on the Bluetooth speaker again and the devices are in range, or activate the Bluetooth feature on the connected device, the devices will automatically reconnect.

If the Bluetooth connection ends because of a device malfunction, use the Bluetooth menu on the disconnected device to reconnect the devices.

Noise may occur if the Bluetooth connection is disconnected improperly. Connecting to other devices After ending the connection between the Bluetooth speaker and the mobile device, you can connect the Bluetooth speaker to other devices.

Press and hold the Play/Bluetooth pairing button for approximately three seconds to end the current connection and enter Bluetooth pairing mode.

Connect the Bluetooth speaker to another device. English (UK) 8Using the Bluetooth speaker

Connecting via an audio cable Connect the Bluetooth speaker to a device via an audio cable. When the Bluetooth speaker is connected via an audio cable, you can only adjust the volume.

Bluetooth speaker Plug the audio cable into the audio cable jack.

Other device Plug the other end of the audio cable into the audio output jack.

If the Bluetooth speaker is simultaneously connected to a device via an audio cable and another device via Bluetooth, the Bluetooth speaker will only play audio from the device connected via Bluetooth.

The audio cable jack is optimised for Samsung mobile devices. When you connect the Bluetooth speaker to a device other than a Samsung mobile device, playback may suddenly stop or feedback may occur depending on the volume. Adjust the volume appropriately. Notices for using Bluetooth Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, computers, printers, and other digital home appliances, without connecting via cables.

To avoid problems when connecting your Bluetooth speaker to another device, place the devices close to each other.

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m). The distance may vary depending on the environment the devices are used in.

Ensure that there are no obstacles between the Bluetooth speaker and a connected device, including human bodies, walls, corners, or fences.

Do not touch the Bluetooth antenna of a connected device.

Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.

Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your Bluetooth speaker.

Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes). English (UK) 9Using the Bluetooth speaker

Listening to music Listen to music played on the connected device. Press the Play/Bluetooth pairing button to play music. Pausing or resuming playback Press the Play/Bluetooth pairing button to pause or resume playback. Adjusting the volume Press the Volume button to adjust the volume during playback. Skipping to other songs Press and hold the Volume (+) button to skip to the next song during playback. Press and hold the Volume (-) button to skip to the previous song during playback. Using call features When the Bluetooth speaker is connected to a mobile device, you can answer and control calls from the connected mobile device. Answering or rejecting a call To answer the call, press the Play/Bluetooth pairing button. To reject the call, press and hold the Play/Bluetooth pairing button. Adjusting the volume Press the Volume button to adjust the volume during a call. English (UK) 10Using the Bluetooth speaker

Answering a second call When a second call comes in during a call, the Bluetooth speaker will emit a beep. To end the current call and answer the second call, press and hold the Play/Bluetooth pairing button. To place the current call on hold and answer the second call, press the Play/Bluetooth pairing button. To switch between the current call and the held call, press the Play/Bluetooth pairing button. Ending a call Press the Play/Bluetooth pairing button to end the current call. English (UK)

Appendix Troubleshooting Before contacting a Samsung Service Centre, please attempt the following solutions. Your Bluetooth speaker does not turn on When the battery is completely discharged, your Bluetooth speaker will not turn on. Charge the battery completely before turning on the Bluetooth speaker. Your Bluetooth speaker freezes If the Bluetooth speaker freezes or hangs, try to resolve it by turning off the Bluetooth speaker and then turning it on again. If the Bluetooth speaker is still unresponsive, end the Bluetooth connection and reconnect it. To do this, press the Play/Bluetooth pairing button for approximately three seconds. When the Bluetooth speaker enters Bluetooth pairing mode, connect the devices again, and then check the operation of the Bluetooth speaker. If the problem is still not resolved, contact a Samsung Service Centre. The battery does not charge properly (For Samsung-approved USB cables and chargers) Ensure that the USB cable or the charger is connected properly. If the problem is still not resolved, contact a Samsung Service Centre. English (UK) 12Appendix

Another Bluetooth device cannot locate your Bluetooth speaker

Ensure that your Bluetooth speaker is in Bluetooth pairing mode.

Restart your Bluetooth speaker and search for the Bluetooth speaker again.

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m). If the tips above do not solve the problem, contact a Samsung Service Centre. Your Bluetooth speaker cannot connect to another Bluetooth device

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).

On the device you want to connect with, disconnect all paired devices and try to connect again. Bluetooth connection is often disconnected

If there are obstacles between the devices, the operating distance may be reduced.

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).

When using the Bluetooth speaker with other Bluetooth devices, the connection may be affected by electromagnetic waves. Use the Bluetooth speaker in environments with fewer wireless devices present. English (UK) 13Appendix

The Bluetooth speaker works differently as described in the manual Available functions may differ depending on the connected device. The battery depletes faster than when first purchased

When you expose the Bluetooth speaker or the battery to very cold or very hot temperatures, the useful charge may be reduced.

The battery is consumable and the useful charge will get shorter over time. The Bluetooth speaker gets dirty Gently wipe the Bluetooth speaker with a soft cloth. Do not use chemicals or strong detergents. Doing so may discolour or corrode the outside the device. Removing the battery

To remove the battery, you must visit an authorised service centre with the provided instructions.

For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.

Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung’s negligence.

Remove the cover from the bottom of the Bluetooth speaker.

Remove the three screws from the bottom of the Bluetooth speaker.

Remove the cover from the body of the Bluetooth speaker.

Disconnect the battery from the circuit board.

Remove the battery. English (UK) 14Copyright Copyright © 2016 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

is a registered trademark of Bluetooth SIG, Inc. worldwide.

All other trademarks and copyrights are the property of their respective owners. English (UK)

Getting started Read me first Please read this manual before using the device to ensure safe and proper use.

Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Before using the Bluetooth speaker, make sure it is compatible with your device. Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information English (USA) 1Getting started

Package contents Check the product box for the following items:

The items supplied with the device and any available accessories may vary depending on the region or service provider.

The supplied items are designed only for this device and may not be compatible with other devices.

Appearances and specifications are subject to change without prior notice.

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. English (USA) 2Getting started

Press and hold to turn the Bluetooth speaker on or off.

Press to check the remaining battery power. Volume (+) button

Press to increase the volume during music playback.

Press and hold to skip to the next song during music playback. Volume (-) button

Press to decrease the volume during music playback.

Press and hold to skip to the previous song during music playback. Play/Bluetooth pairing button

When the connection is lost, press to reconnect devices.

Press to play or pause music. English (USA) 3Getting started

Indicator light The indicator light alerts you to the Bluetooth speaker status. Color Status Flashes blue three times The Bluetooth speaker is powering on Flashes red three times The Bluetooth speaker is powering off Continuously red Charging Continuously blue Fully charged Flashes red and blue Bluetooth pairing mode Quickly flashes blue three times Connected via Bluetooth Quickly flashes red three times Connected via Bluetooth (when the battery is low) Flashes red every four seconds The battery is low If the indicator light does not work as described, disconnect the charger from the Bluetooth speaker and reconnect it. Charging the battery Battery charging tips and precautions

You can charge the Bluetooth speaker using the charger (sold separately).

If the battery is completely discharged, the Bluetooth speaker cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the Bluetooth speaker.

Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.

The Bluetooth speaker can be used while it is charging, but it may take longer to fully charge the battery. English (USA) 4Getting started

If the Bluetooth speaker receives an unstable power supply while charging, it may not function. If this happens, unplug the charger from the Bluetooth speaker.

While charging, the Bluetooth speaker and the charger may heat up. This is normal and should not affect the Bluetooth speaker lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

If the Bluetooth speaker is not charging properly, take the Bluetooth speaker and the charger to a Samsung Service Center.

The charging time may vary depending on the charger specification. Wired charging Charge the Bluetooth speaker before using it for the first time or when it has been unused for extended periods. Use only Samsung-approved chargers. Unapproved chargers can cause the battery to explode or damage the Bluetooth speaker.

Open the jack panel cover.

Connect the Bluetooth speaker to a charger. Connecting the charger improperly may cause serious damage to the Bluetooth speaker. Any damage caused by misuse is not covered by the warranty. English (USA) 5Getting started

After fully charging, disconnect the Bluetooth speaker from the charger. To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and be easily accessible while charging. Checking the remaining battery power Press the Power button to check the remaining battery power. Color Battery power Flashes red three times

Less than 30% Flashes violet three times

30–60% Flashes blue three times

60–100% English (USA)

Using the Bluetooth speaker Turning the Bluetooth speaker on or off Press and hold the Power button to turn the Bluetooth speaker on or off. When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

If your Bluetooth speaker is frozen and unresponsive, press and hold the Volume (+) button, the Volume (-) button, and the Play/Bluetooth pairing button simultaneously.

Follow all posted warnings and directions from authorized personnel in areas where the use of wireless devices is restricted, such as airplanes and hospitals. Connecting to another device Connecting via Bluetooth Pair the Bluetooth speaker with a mobile device. Once the devices are paired, the Bluetooth speaker will automatically connect to the mobile device whenever you turn on the Bluetooth speaker.

Bluetooth speaker Press and hold the Play/Bluetooth pairing button for more than three seconds to enter Bluetooth pairing mode. The indicator light will flash red and blue. When you turn on the Bluetooth speaker for the first time, it enters Bluetooth pairing mode.

Other device Activate the Bluetooth feature and search for Bluetooth devices. For more information, refer to the other device’s user manual. English (USA) 7Using the Bluetooth speaker

Other device Tap Scoop Design from the list of available devices.

If the Bluetooth connection fails or the other device cannot locate the Bluetooth speaker, remove the device’s information from the other device’s list. Then, try to connect again.

The Bluetooth connection range and sound quality may vary depending on the connected devices. Disconnecting or reconnecting devices Press and hold the Play/Bluetooth pairing button for approximately three seconds. The current connection will end. You can also end the connection by deactivating the Bluetooth feature on the connected device. If the Bluetooth connection ends due to the distance between the devices, bring the devices closer together within a certain period of time. The devices will automatically reconnect.

You can also end the connection by turning off the Bluetooth speaker or deactivating the Bluetooth feature on the connected device. When you turn on the Bluetooth speaker again and the devices are in range, or activate the Bluetooth feature on the connected device, the devices will automatically reconnect.

If the Bluetooth connection ends because of a device malfunction, use the Bluetooth menu on the disconnected device to reconnect the devices.

Noise may occur if the Bluetooth connection is disconnected improperly. Connecting to other devices After ending the connection between the Bluetooth speaker and the mobile device, you can connect the Bluetooth speaker to other devices.

Press and hold the Play/Bluetooth pairing button for approximately three seconds to end the current connection and enter Bluetooth pairing mode.

Connect the Bluetooth speaker to another device. English (USA) 8Using the Bluetooth speaker

Connecting via an audio cable Connect the Bluetooth speaker to a device via an audio cable. When the Bluetooth speaker is connected via an audio cable, you can only adjust the volume.

Bluetooth speaker Plug the audio cable into the audio cable jack.

Other device Plug the other end of the audio cable into the audio output jack.

If the Bluetooth speaker is simultaneously connected to a device via an audio cable and another device via Bluetooth, the Bluetooth speaker will only play audio from the device connected via Bluetooth.

The audio cable jack is optimized for Samsung mobile devices. When you connect the Bluetooth speaker to a device other than a Samsung mobile device, playback may suddenly stop or feedback may occur depending on the volume. Adjust the volume appropriately. Notices for using Bluetooth Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, computers, printers, and other digital home appliances, without connecting via cables.

To avoid problems when connecting your Bluetooth speaker to another device, place the devices close to each other.

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m). The distance may vary depending on the environment the devices are used in.

Ensure that there are no obstacles between the Bluetooth speaker and a connected device, including human bodies, walls, corners, or fences.

Do not touch the Bluetooth antenna of a connected device.

Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.

Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your Bluetooth speaker.

Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes). English (USA) 9Using the Bluetooth speaker

Listening to music Listen to music played on the connected device. Press the Play/Bluetooth pairing button to play music. Pausing or resuming playback Press the Play/Bluetooth pairing button to pause or resume playback. Adjusting the volume Press the Volume button to adjust the volume during playback. Skipping to other songs Press and hold the Volume (+) button to skip to the next song during playback. Press and hold the Volume (-) button to skip to the previous song during playback. Using call features When the Bluetooth speaker is connected to a mobile device, you can answer and control calls from the connected mobile device. Answering or rejecting a call To answer the call, press the Play/Bluetooth pairing button. To reject the call, press and hold the Play/Bluetooth pairing button. Adjusting the volume Press the Volume button to adjust the volume during a call. English (USA) 10Using the Bluetooth speaker

Answering a second call When a second call comes in during a call, the Bluetooth speaker will emit a beep. To end the current call and answer the second call, press and hold the Play/Bluetooth pairing button. To place the current call on hold and answer the second call, press the Play/Bluetooth pairing button. To switch between the current call and the held call, press the Play/Bluetooth pairing button. Ending a call Press the Play/Bluetooth pairing button to end the current call. English (USA)

Appendix Troubleshooting Before contacting a Samsung Service Center, please attempt the following solutions. Your Bluetooth speaker does not turn on When the battery is completely discharged, your Bluetooth speaker will not turn on. Charge the battery completely before turning on the Bluetooth speaker. Your Bluetooth speaker freezes If the Bluetooth speaker freezes or hangs, try to resolve it by turning off the Bluetooth speaker and then turning it on again. If the Bluetooth speaker is still unresponsive, end the Bluetooth connection and reconnect it. To do this, press the Play/Bluetooth pairing button for approximately three seconds. When the Bluetooth speaker enters Bluetooth pairing mode, connect the devices again, and then check the operation of the Bluetooth speaker. If the problem is still not resolved, contact a Samsung Service Center. The battery does not charge properly (For Samsung-approved USB cables and chargers) Ensure that the USB cable or the charger is connected properly. If the problem is still not resolved, contact a Samsung Service Center. English (USA) 12Appendix

Another Bluetooth device cannot locate your Bluetooth speaker

Ensure that your Bluetooth speaker is in Bluetooth pairing mode.

Restart your Bluetooth speaker and search for the Bluetooth speaker again.

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m). If the tips above do not solve the problem, contact a Samsung Service Center. Your Bluetooth speaker cannot connect to another Bluetooth device

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).

On the device you want to connect with, disconnect all paired devices and try to connect again. Bluetooth connection is often disconnected

If there are obstacles between the devices, the operating distance may be reduced.

Ensure that your Bluetooth speaker and the other Bluetooth device are within the maximum Bluetooth range (10 m).

When using the Bluetooth speaker with other Bluetooth devices, the connection may be affected by electromagnetic waves. Use the Bluetooth speaker in environments with fewer wireless devices present. English (USA) 13Appendix

The Bluetooth speaker works differently as described in the manual Available functions may differ depending on the connected device. The battery depletes faster than when first purchased

When you expose the Bluetooth speaker or the battery to very cold or very hot temperatures, the useful charge may be reduced.

The battery is consumable and the useful charge will get shorter over time. The Bluetooth speaker gets dirty Gently wipe the Bluetooth speaker with a soft cloth. Do not use chemicals or strong detergents. Doing so may discolor or corrode the outside the device. English (USA) 14Copyright Copyright © 2016 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

is a registered trademark of Bluetooth SIG, Inc. worldwide.

All other trademarks and copyrights are the property of their respective owners. English (USA)
