OBJ BUCH-2986-002.book Page 7 Monday, May 22, 2017 9:34 AM

Deutsch 7

Deutsch

Sicherheitshinweise

OBJ BUCH-2986-002.book Page 9 Monday, May 22, 2017 9:34 AM

Technische Daten

OBJ BUCH-2986-002.book Page 10 Monday, May 22, 2017 9:34 AM

10 | Deutsch

OBJ BUCH-2986-002.book Page 11 Monday, May 22, 2017 9:34 AM

Deutsch | 11

Problem Abhilfe

OBJ BUCH-2986-002.book Page 13 Monday, May 22, 2017 9:34 AM

English | 13

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all safety warnings and all instructions for future reference.

Safety warnings for dealing with batteries

Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

Bosch Power Tools 1609 92A 3UP| (22.5.17)

OBJ BUCH-2986-002.book Page 14 Monday, May 22, 2017 9:34 AM

14|English

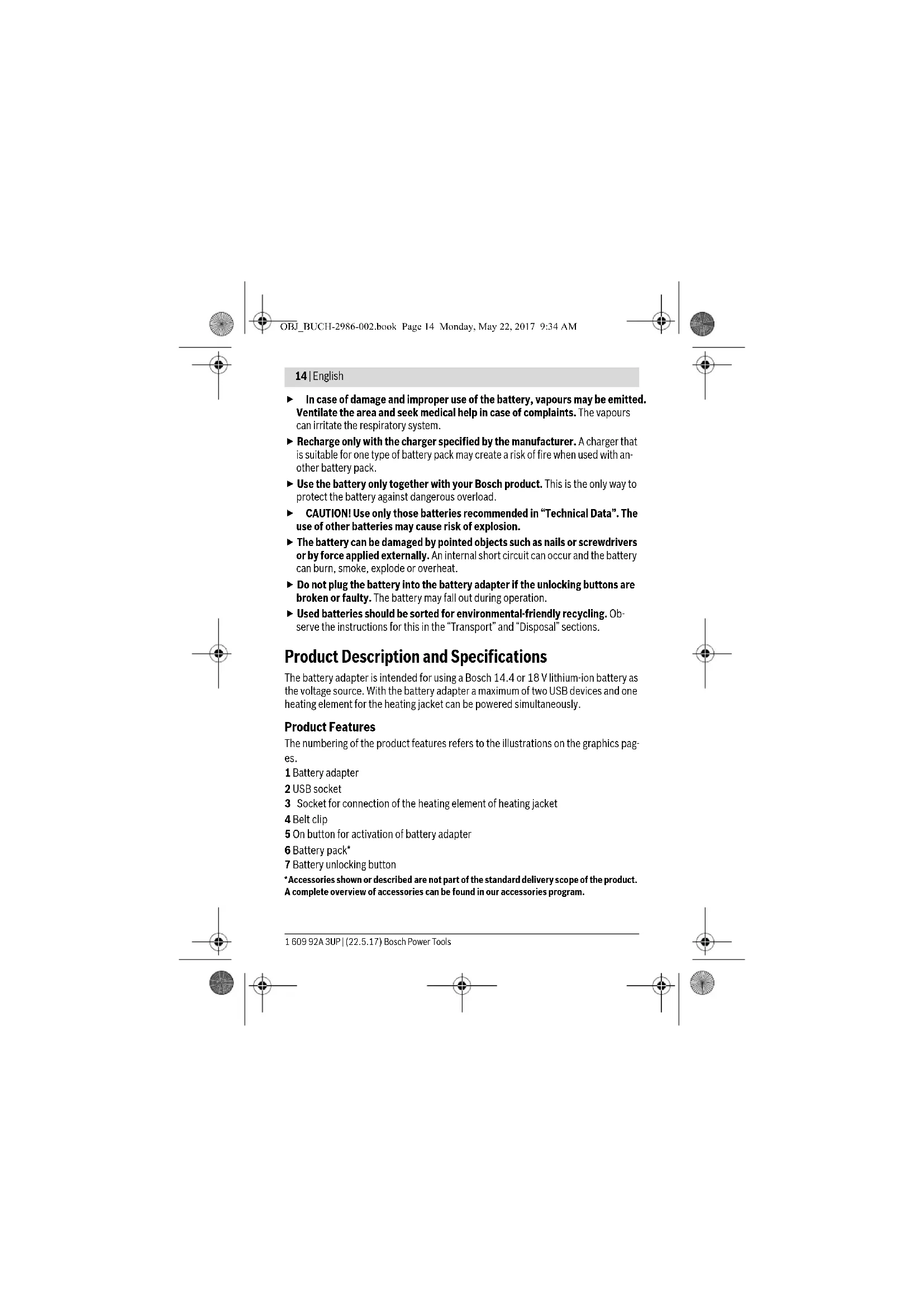

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Use the battery only together with your Bosch product. This is the only way to protect the battery against dangerous overload.
CAUTION! Use only those batteries recommended in "Technical Data". The use of other batteries may cause risk of explosion.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
- Do not plug the battery into the battery adapter if the unlocking buttons are broken or faulty. The battery may fall out during operation.
Used batteries should be sorted for environmental-friendly recycling. Observe the instructions for this in the "Transport" and "Disposal" sections.

Product Description and Specifications

The battery adapter is intended for using a Bosch 14.4 or 18V lithium-ion battery as the voltage source. With the battery adapter a maximum of two USB devices and one heating element for the heating jacket can be powered simultaneously.

Product Features

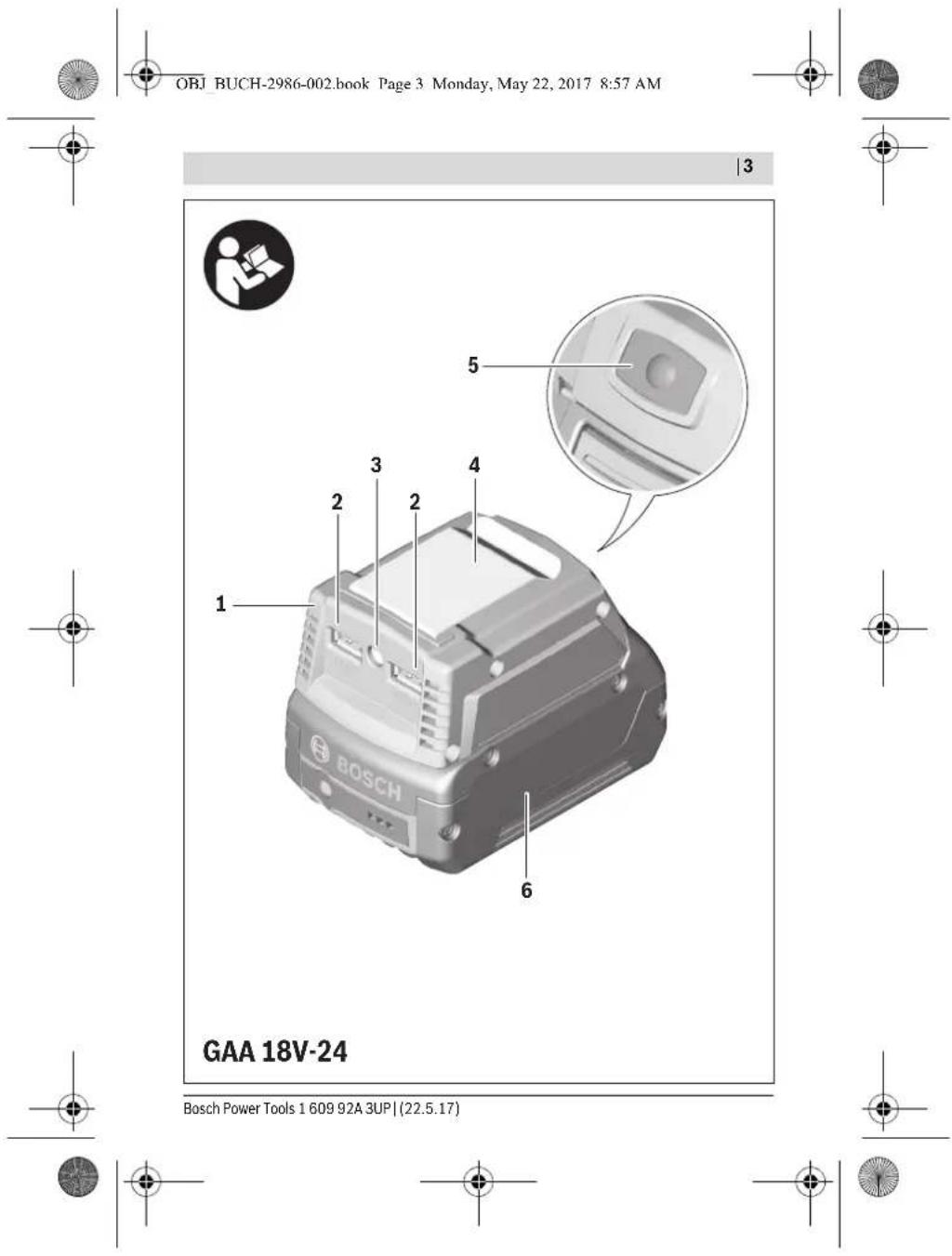

The numbering of the product features refers to the illustrations on the graphics pages.

1 Battery adapter
2 USB socket
3 Socket for connection of the heating element of heating jacket
4 Belt clip
5 On button for activation of battery adapter
6 Battery pack
7 Battery unlocking button
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

1609 92A 3UP | (22.5.17) Bosch Power Tools

OBJ BUCH-2986-002.book Page 15 Monday, May 22, 2017 9:34 AM

English | 15

Technical Data

Battery Adapter GAA 18V-24
Article number		1600 A00 J..
USB port		2 x Typ A
- Charging voltage	V=	5
- Charging current (max.)* for 1 USB device	A	2.4
- Charging current (max.)* for 2 USB devices	A	1.2
Port heating element		Bosch Heat+ Jacket
- Charging voltage	V=	12
- Charging current (max.)**	A	2.2
Max. permitted length of USB cable m		1
Permitted ambient temperature
- during charging	°C	0...+45
- during operation** and during storage	°C	-10...+50

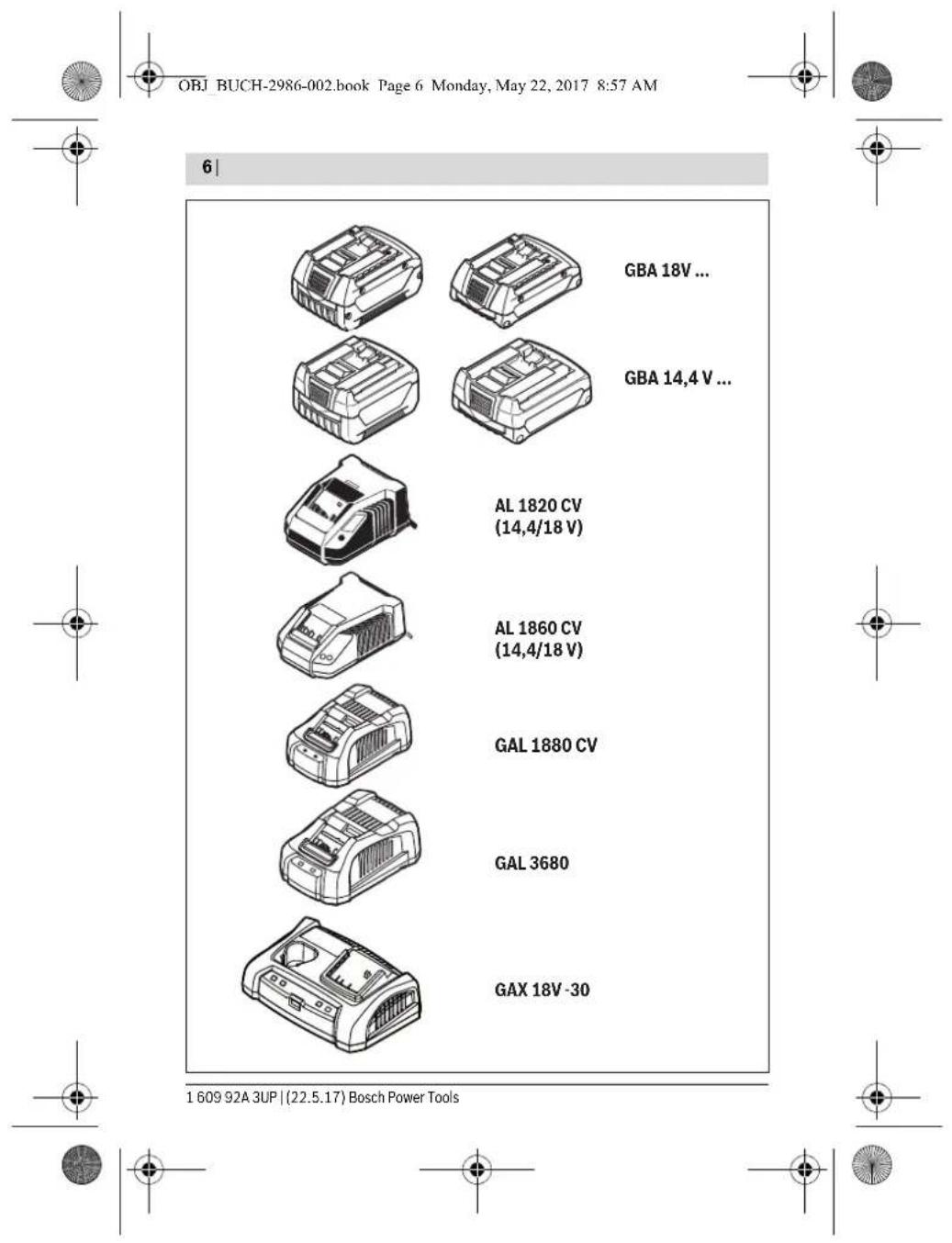

Recommended batteries		GBA 14.4 V...
		GBA 18 V...
Recommended chargers AL 18.. CV		GAL 18.. CV
		GAL 36.. CV
		GAX 18 V-30
* The actual charging current depends on the USB device connected.
** The actual charging current depends on settings of Heat+ Jacket.
*** limited performance at temperatures <0 °C
Technical data determined with battery from delivery scope.

Operation

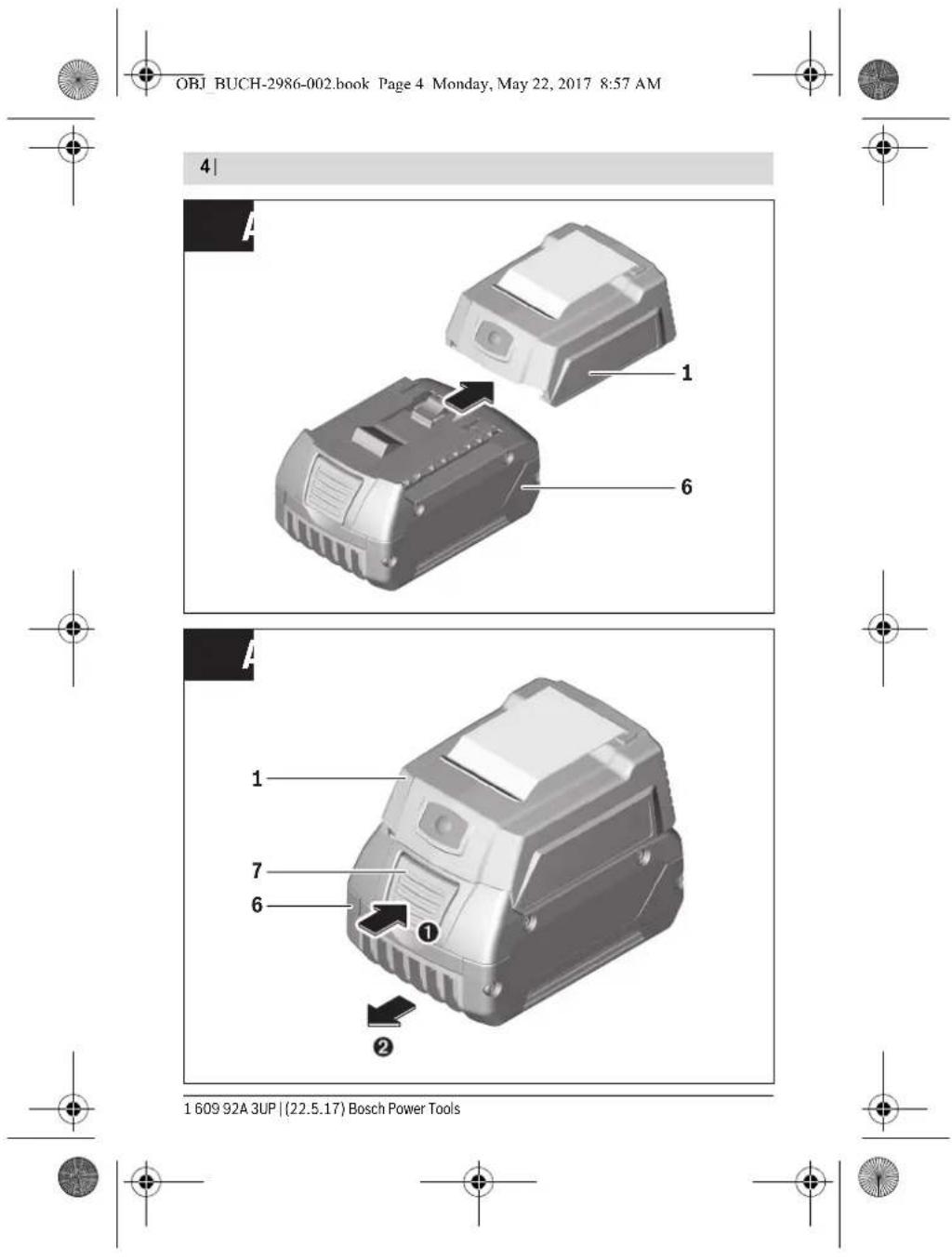

Battery Insertion/Removal (see figures A1 - A2)

• Do not use force to insert the battery. The battery is designed in such a way that it can only be inserted into the battery adapter when it is in the right position.
• To insert the battery 6, slide it all the way into the battery adapter 1.
• To remove the battery 6, press the unlocking buttons 7 on the battery and pull it out of the battery adapter 1.

Bosch Power Tools 1609 92A 3UP| (22.5.17)

5

OBJ BUCH-2986-002.book Page 16 Monday, May 22, 2017 9:34 AM

16 | English

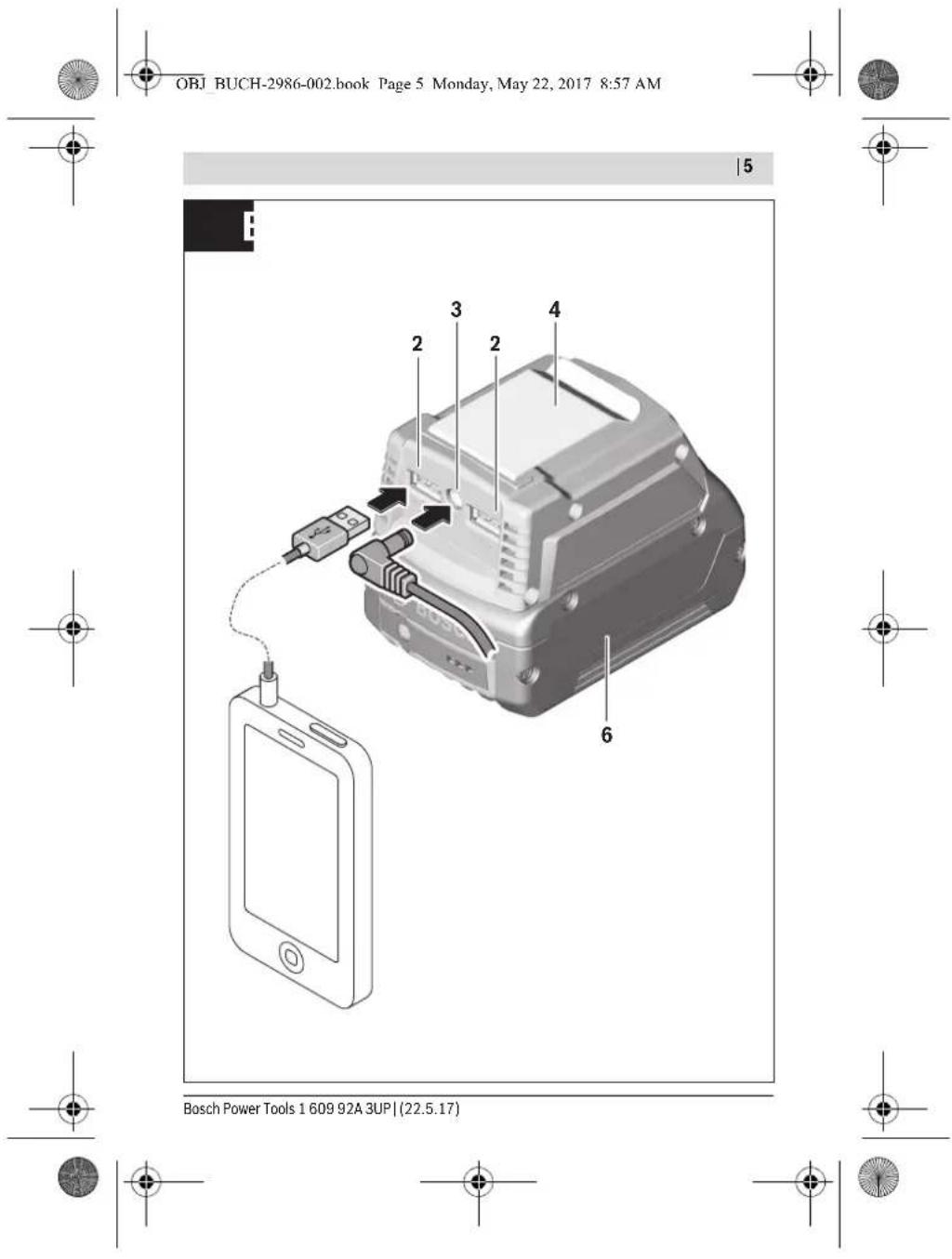

Charging External USB Devices (see figure B)

You can use the USB ports on the battery adapter to increase the battery runtime of various battery-operated USB devices, e. g. mobile phone, MP3 player or tablet PC.

• Ensure that your external USB device can be charged using the USB port on the battery adapter. Refer to the specifications on this in "Technical Data".

• Plug the charging cable of your USB device into the USB socket 2 on the battery adapter 1.

• Press the On button 5 for activation of battery adapter. The On button 5 lights. If no charger cable is connected, the USB ports are automatically disabled after 30 seconds. The On button 5 goes out.

The USB ports are disabled automatically to save power after completion of loading.

Connecting The Heating Element (see figure B)

• Plug the connector of the heating element in the socket 3 of the battery adapter 1.
• Press the On button 5 for activation of battery adapter. The On button 5 lights.
  Make the setting on the Heat+ Jacket. Observe the operating instructions for Heat+ Jacket.
• Slide the battery adapter 1 into the pocket provided in the garment or hang the battery adapter on your belt using the belt clip 4.

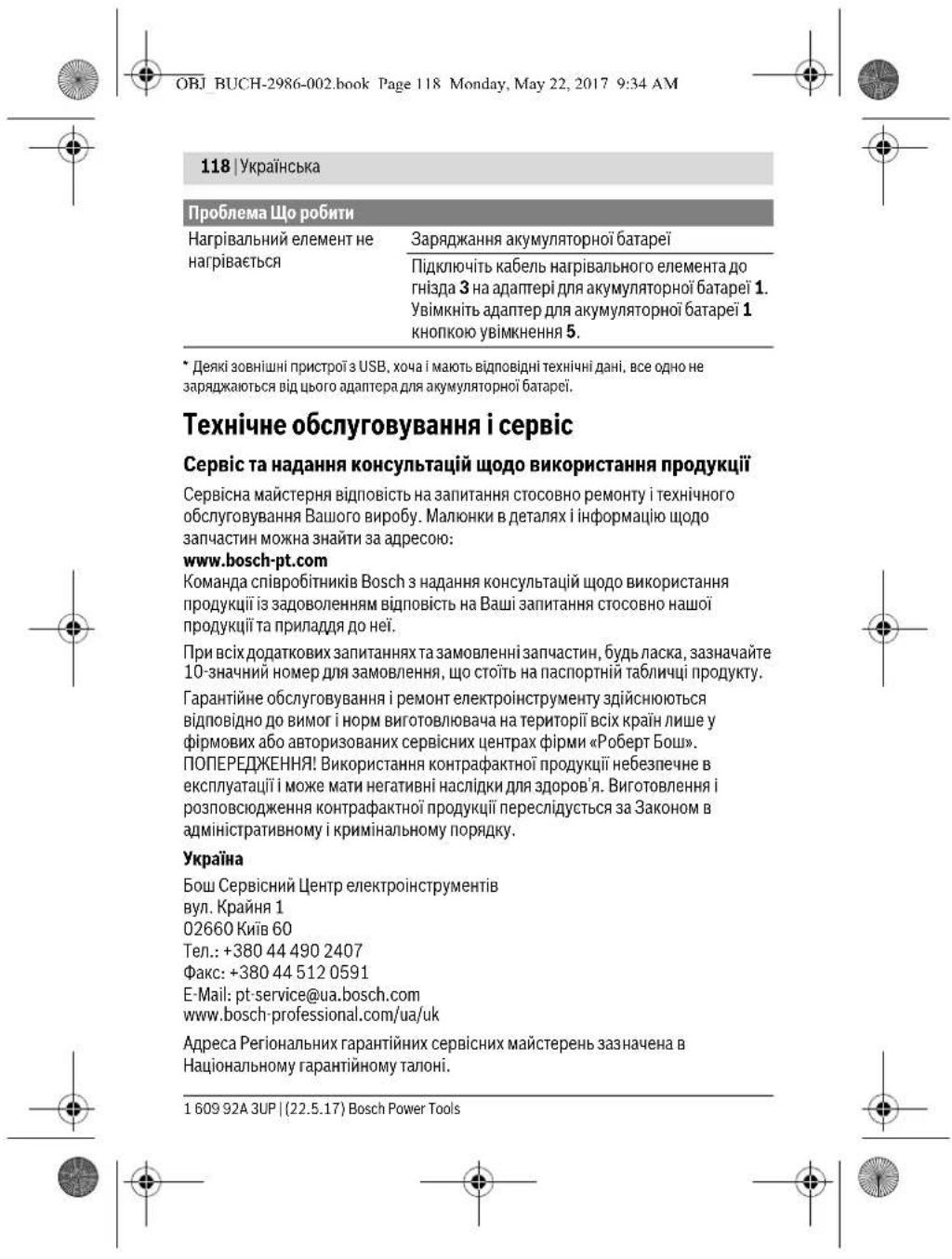

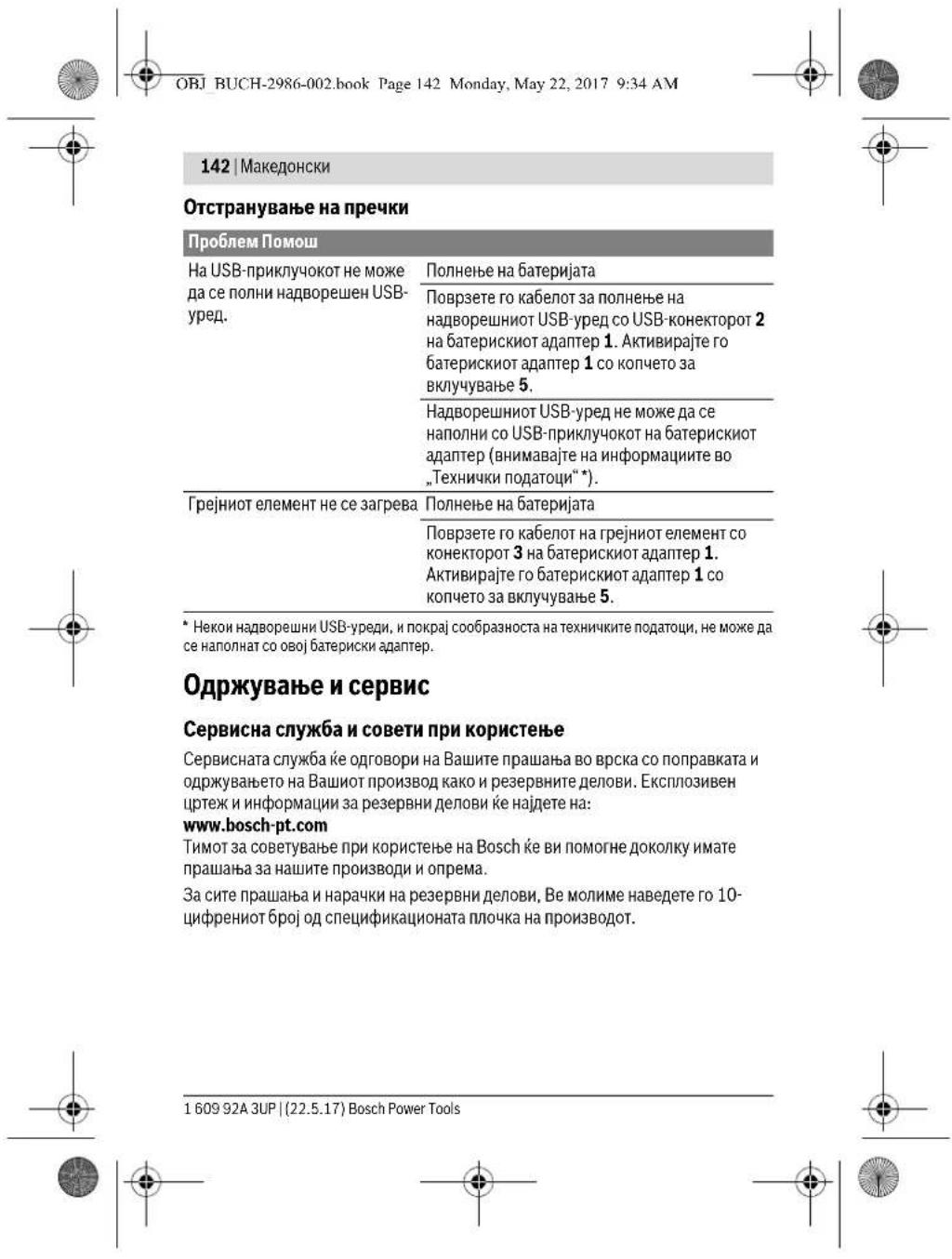

Correction of Malfunctions

Problem Corrective Measure
External USB device cannot be charged using the USB port.	Battery Charging
	Connect the charging cable of the external USB device to the USB socket 2 on the battery adapter 1. Activate the battery adapter 1 by pressing On button 5.
	External USB device cannot be charged using the USB port on the battery adapter (refer to specifications in "Technical Data").
Heating element does not heat up	Battery Charging
	Connect the cable of the heating element to the socket 3 on the battery adapter 1. Activate the battery adapter 1 by pressing On button 5.

• Some external USB devices cannot be charged with this battery adapter despite being consistent with the technical data.

1609 92A 3UP | (22.5.17) Bosch Power Tools
