USER MANUAL PNTS 1500 B3 PARKSIDE

WET AND DRY VACUUM CLEANER PNTS 1500 B3

GB

WET AND DRY VACUUM CLEANER

Translation of original operation manual

CZ

VYSAVAC NA MOKRE A SUCHE VYSAVANJI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PL

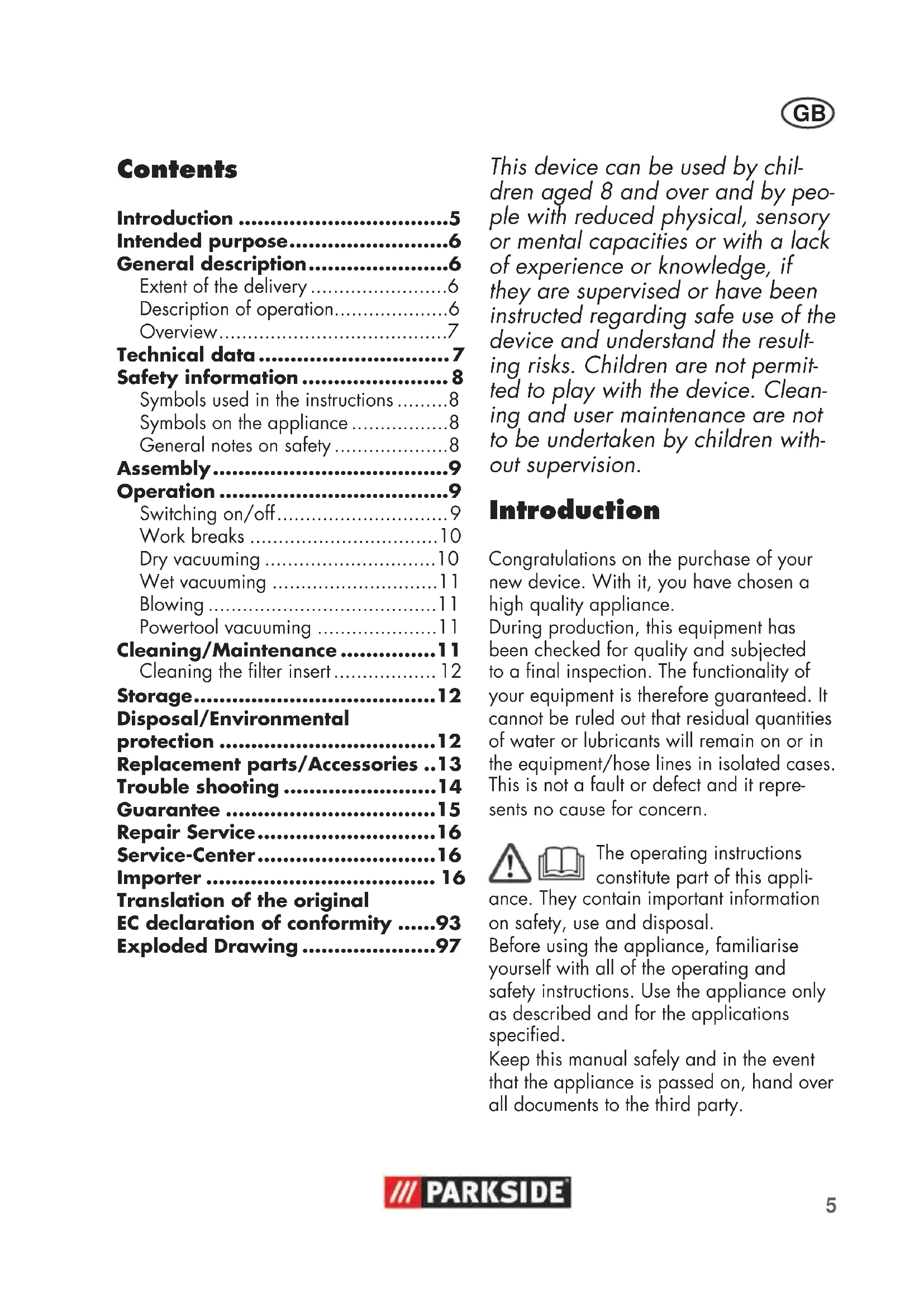

General description. 6

Extent of the delivery 6

Description of operation. 6

Overview. 7

Technical data. 7

Safety information 8

Symbols used in the instructions. 8

Symbols on the appliance. 8

General notes on safety 8

Assembly. 9

Operation 9

Switching on/off 9

Work breaks 10

Dry vacuuming 10

Wet vacuuming 11

Blowing 11

Powertool vacuuming 11

Cleaning/Maintenance 11

Cleaning the filter insert 12

Storage 12

Disposal/Environmental

protection 12

Replacement parts/Accessories..13

Trouble shooting 14

Guarantee 15

Repair Service. 16

Service-Center 16

Importer 16

Translation of the original EC declaration of conformity ....93

Exploded Drawing 97

This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality appliance.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this appli

ance. They contain important information on safety, use and disposal.

Before using the appliance, familiarise yourself with all of the operating and safety instructions. Use the appliance only as described and for the applications specified.

Keep this manual safely and in the event that the appliance is passed on, hand over all documents to the third party.

Intended purpose

The appliance is intended for domestic wet and dry vacuuming in, for example, the house, work room, car or garage. The appliance can also be used as a blower or to suction up water.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Vacuuming of flammable or explosive materials or those which endanger health is prohibited. The manufacturer will not be held responsible for injuries resulting from use which does not comply with the directions, or from incorrect use.

General description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Extent of the delivery

Carefully unpack the appliance and check that it is complete.

The appliance is supplied with the motor head fitted (A 3). To remove the motor head, open the sealing clips (A 4).

Dispose of the packaging material correctly.

3 Motor housing Collector

6a 2 feet with wheels and accessory fittings
6b 2 feet with castors and accessory fittings

11 Fluted filter (11a) and filter cover (11b) (already installed)
12 Paper filter bag
13 Foam filter
14 Accessory bag
15 Handle with air regulation
16 Telescopic suction tube
18 Vacuum hose
19 Powertool hose
20 Powertool reduction adaptor piece
21 Switchable household nozzle
22 Crevice nozzle
23 Cushion nozzle
24 Car nozzle
25 2 retaining brackets 4 cross recessed screws Instruction Manual

Description of operation

The wet and dry vacuum cleaner is equipped with a robust stainless steel container for waste collection. The guiding wheels and castors make the appliance very easy to manoeuvre. The suction flow is switched off by a float during wet vacuuming once the waste tank is full. In addition, the machine has a blower function and a socket for the connection of a further electrical appliance.

The following describes the function of the operating parts.

Overview

Housing 1 Carrying handle

2 Mains power cable
3 Motor housing
4 Sealing clip
5 Collector

6a 2 feet with wheels and accessory fittings
6b 2 feet with castors and accessory fittings
7 Drainage outlet
8 Suction connection
9 Appliance socket
10 On/off switch

Filter

11 Fluted filter (11a) and filter cover (11b) for dry vacuuming (already installed)
12 Paper filter bag for vacuuming both large and small dirt particles
13 Foam filter (wet filter) for wet vacuuming

Accessories

14 Accessory bag
15 Handle with air regulation
16 Telescopic suction tube
17 Vacuum tube holder
18 Vacuum hose
19 Powertool hose
20 Powertool reduction adaptor piece

for connecting electrical equipment for dust extraction.

Nozzles

21 Switchable household nozzle

for vacuuming carpets
for vacuuming smooth surfaces

22 Crevice nozzle
23 Cushion nozzle
24 Car nozzle

25 2 retaining brackets

F 26 Blow connection

27 Filter insert cover 28 Filter insert

29a Top cable holder 29b Bottom cable holder

Technical data

Wet and dry cleaner.....PNTS 1500 B3

Mains voltage.....220-240 V\~, 50/60 Hz

Power consumption of motor.....1500 W

Max. load on appliance socket

(Pmax.) 2200 W

Power consumption of motor

• max. load on appliance socket

(Psum.) 3700 W

Safety class

Protection category.. IPX4

Cable length. 6 m

Waste tank capacity (brutto) 301

Weight (incl. all accessories).. approx. 8,8kg

Sound pressure level

$$ \left(L _ {p A}\right) \dots \dots \dots \dots \dots 7 7 d B (A), K _ {p A} = 3 d B (A) $$

Technical and visual modifications may be carried out due to further development without prior notice. All dimensions, information and statements provided in these Operating Instructions are therefore subject to amendment. Legal claims which are based on the Operating Instructions can therefore not be recognised.

Safety information

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

Symbols on the appliance

Electrical machines must not be disposed of with household refuse.

Switching between additional appliance ^+ vacuum cleaner

Max. load on appliance socket

Device socket for power tools

General notes on safety

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire:

To avoid accidents and injuries:

Children should only be allowed to use the appliance under supervision.
Children should be supervised to ensure that they do not play with the appliance.

• Never leave a machine which is ready for operation unattended at the workplace.
  People and animals must not be vacu-umed with the machine.
• Do not vacuum any hot, incandescent, flammable, explosive materials, or those which endanger health. This includes hot ashes, petrol, solvents, acids or caustic solutions. Personal injury could occur.
• Nozzles and suction tubes must not reach head level whilst in use. Personal injury could occur.

To avoid accidents and injuries from electric shocks:

• Ensure that the mains cable is not damaged by being pulled over sharp edges, by jamming, or by pulling on the cable.
• Before each use, check the power supply lead and the extension cable for damage and ageing. Do not use the equipment if the cable is damaged or worn. Danger of electric shock hazard.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

• Switch the machine off and disconnect the mains plug:

• when the machine is not in use,

• before the machine is opened up,
• for all maintenance and cleaning work,

• if the connecting cable is damaged or tangled up.

• Never use the mains lead to pull the plug out of the socket or to pull the appliance. Protect the cable from heat, oil, and sharp edges.

• Make sure that the mains voltage corresponds with the information on the rating plate.

• Only plug the appliance into a socket which is safeguarded by at least 16 A.
  The device must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30mA .

CAUTION! The following states how damage to the appliance and possible injury to people can be avoided:

• Ensure that the machine is correctly assembled and the filters are in the correct position.
• Do not use without the filter. This could damage the machine.
• Only use replacement parts and accessories delivered and recommended by our Service Centre (see page 16). The use of parts by other manufacturers immediately renders the guarantee void.
• Only have repairs carried out at our authorised customer service points.
• Observe the instructions for cleaning and maintenance of the machine.
• Store the appliance in a dry place and out of reach of children.

Assembly

Pull out the mains plug.
Danger of electric shock.

1. Attach the feet (6) to the housing:

2. The feet with wheels (6a) numbered ① + ② into the appropriate adaptors on the rear side of the waste collec

for (see B small picture).

• The feet with guide rollers (6b) to the holders on the front side of the container (5).

• Secure the feet with the Philips head screws supplied.

• Place the motor housing (3) on top of the collector (5) and close it with the clip.
• Lightly squeeze together the ends of the retaining bracket (25) and click it into the motor housing (3).

• Installing the accessories:

• Attach the vacuum hose (18).

• Fit the handle with air control (15).
  Install the telescopic suction tube (16). (Press the button on the telescopic suction pipe towards and pull out to the desired length).
  Install the nozzle desired (A 21/22/23/24).

Never vacuum without a filter!

Operation

Fully unwind the suction hose (A 18) before commencing work.

Switching on/off

Connect the mains plug.
vacuum dust, plug the electrical tool onto the mains socket on the vacuum (A 9).

Only connect electrical appliances with a maximum power rating of 2200 W.

Switching on the vacuum cleaner (Permanent operation):

Move the On/Off switch (10) to the "I" position.

Switch on electrical appliance + vacuum cleaner:

1. Move the On/Off switch

(10) to the position

1. Switch on electrical appliance.

Switching on the electrical appliance automatically switches on the vacuum cleaner. Once the electrical appliance has been switched off, the vacuum cleaner switches off following a time lapse.

Switching off the vacuum cleaner:

Move the On/Off switch (10) to the "0" position.

Work breaks

To store the assembled suction set during a work break, the telescopic suction tube (16) can be pushed

together and the suction tube holder (17) plugged into the socket on the motor head (3);
② Place the telescopic suction tube (16) in the retaining bracket (25).

Dry vacuuming

The appliance is supplied with the folded filter (11) fitted.

Vacuuming with a fluted filter:

1. To vacuum dry, fit the fluted filter (11a) onto the filter cage on the motor housing (3). Here, the upward curved seal

ing lip must point away from the motor housing.

1. Fit the filter cover (11b) and turn it gently to lock it:

To lock the filter cover

To unlock the filter cover

Vacuuming with the paper filter bag:

To avoid the fluted filter becoming clogged, we recommend the additional use of a paper filter bag.

1. Fit the fluted filter (11).
2. Fold the side flaps on the paper filter bag (12) down on the perforation.
3. Fold the paper filter bag (12) up completely and turn it over the internal nozzle of the suction tube.

The sealing ring on the filter bag opening must completely enclosed the arm on the suction nozzle.

A fine dirt filter bag made of micro filter fleece is also optionally available, which can be used in place of the included paper filter bag (see "Replacement parts/Accessories").

Vacuuming with the dry filter (filter bag, optionally available):

The anti-tear filter bag, which is optionally available (see "Replacement parts/Accessories"), is suitable for vacuuming both large and small dirt particles.

1. Place the foam filter (A 13) on the filter basket (A 3) (see "Wet Vacuuming").
2. Pull the fabric bag over the filter basket.

Wet vacuuming

For wet sucking or to suck up water, place the foam filter (13) on the filter box on the motor head (3).

To avoid tearing the foam filter (13):

• Use only a dry filter;
  Before inserting, twist the edge of the filter slightly and then roll it back.

Suctioning up (draining) water: place the suction hose (A 18) on the handle (A 15) into the water tank and suction up the water.

Never reach into the water to be suctioned up. Danger of electric shock.

When the container is full, the suction opening is shut off by a float, and suction is then cut off. Switch the appliance off, remove the plug from the socket and empty the container (see Cleaning/Maintenance).

If foam or liquid exits, switch off the machine immediately.

Blowing

To use the blower function, screw the vacuum hose (18) on to the nozzles on the engine housing (3) (operation without the use of filters).

Powertool vacuuming

The Powertool hose can be used for the following:

• Cleaning hard-to-reach places or sensitive equipment.

• Connecting powertools for vacuuming dust off.

Place the thicker end of the powertool hose (19) straight onto the vacuum hose (18) and the other end onto the reduction adaptor (20) supplied. You can now fit vacuum nozzles or an electrical tool.

The reduction adaptor also fits onto the vacuum hose (dust vacuuming without the powertool hose).

Cleaning/Maintenance

Pull out the mains plug. Danger of electric shock.

Never hose the appliance down with water. Never use aggressive cleaning agents or solvents. This could damage the appliance.

After use, empty the waste tank (A 5). Opening the drain plug to allow the vacuumed liquid to drain out (A 7).
- Clean the waste tank with a damp cloth.
- Wash the foam filter with lukewarm water and soap, and allow to dry.
- Beat the dust out of the cloth filter (A 11) and clean it with a paint brush or hand brush.
- Replace the paper filter bag (A 12) when full (see "Replacement parts/Accessories" for reordering)
- Always check the appliance before use for any obvious faults such as a defective mains cable, and have these repaired or replaced.

Cleaning the filter insert

Check the filter insert for dirt once or twice per year.

1. Open the cover (27) on the motor head (3):

Closure upward in position Remove the cover.

OPEN

1. Take the filter insert (28) out of the cover (27).
2. Wash the filter insert (28) with lukewarm water and soap and leave it to dry.
3. Place the filter insert (28) in the cover (27) and reclose it:

Closure downward in position

CLOSE

Storage

1. To store the mains cable on the back of the device, pull out the top cable holder (29a) and turn the bottom cable holder (29b) outwards.
   Wind the mains cable (2) around the cable holders (29a + b) on the back of the device.
2. Wind the vacuum hose (18) around the motor head (3). The two retaining brackets (25) hold the vacuum hose in place.
3. Place the telescopic suction tube into the accessory holder on the unit's feet (6a).
4. The bag provided is designed for storing the small accessories (14).
5. Store the appliance in a dry place and out of reach of children.

Disposal/Environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines must not be disposed of with household refuse.

Take the machine to a recycling point. The waste plastic and metal parts can be separated, accurately graded and passed on for recycling. Contact our Service Centre for more details.

Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see "ServiccCenter" Page 16). Please have the order number mentioned below ready.

Item Instruction Manual	Item Exploded Drawing	Description	Product No.
A 4	4	Sealing clip	91096425
A 6a-1	9 Wheel, large, left 91096432
A 6a-2	11 Wheel, large, right 91096430
A 6b	10 Set of castors	91096431
A 7	7	Drainage outlet	91096428
A 11	16	Fluted filter with drainage outlet for dry vacuuming	91092030
A 12	25	Paper filter bags, 30l, pack of 5	30250133
A 13	17	Foam filter for wet vacuuming, pack of 3	30250100
A 15	23	Handle with air regulation	72800038
A 16	22	Telescopic suction tube	91098090
A 18	15	Vacuum hose	72800215
A 19	27	Powertool hose 1m	72800211
A 20	26	Powertool reduction adaptor piece	72800212
A 21	18	Switchable household nozzle	72800214
A 22	20	Crevice nozzle	72800039
A 23	21	Cushion nozzle	72800040
A 24	24	Car nozzle	91096445

Optionally available:

Description Design Use
Product No.

Fluted filter with filter cover	Without steel inner mesh	30250110
Fine dirt filter bag 30 l, pack of 5	2-layer micro filter fleece, white	91099009
Dry filter	Blue fabric bag, washable	30250131

Trouble shooting

Problem Possible cause Fault correction
Device does not start	Mains voltage is not present	Check plug socket, cable, line, plug and fuse, where appropriate, repair through electrical specialist
	Defective on/off switch (A 10)	Repair through customer service
	Worn carbon brushes
	Defective motor
Low or lack of suction	Hose system (A 18/19) or jets (A 21-24) blocked	Remove obstructions and blockages
	Air control on the handle (A 15) open	Close the air control
	Collector (A 5) open	Close collector
	Collector (A 5) full	Empty collector
	Filter (A 11/12/13) full or clogged	Empty, clean or replace filter
Float does not switch the appliance off	Float cannot move Release float
	Float faulty Repair by Customer Care

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and identification number (IAN 97734) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 97734

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Retirez le couvercle.

Inschakelen zuiger (Continue working):
