USER MANUAL PWD 25 B3 PARKSIDE

CLEANER Operation and safety notes Translation of the original instructions

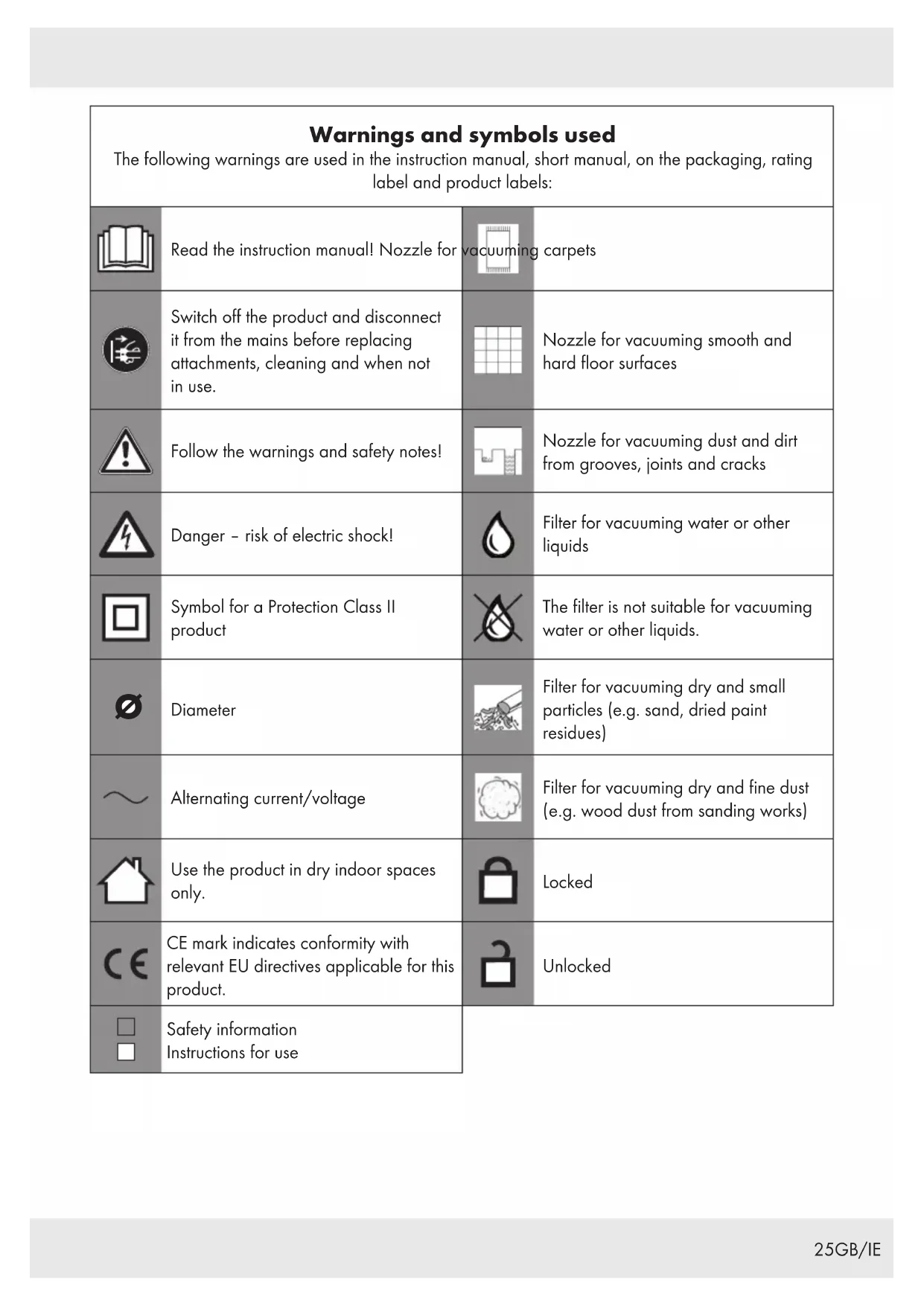

Diameter Filter for vacuuming dry and small particles (e.g. sand, dried paint residues) Alternating current/voltage Filter for vacuuming dry and fine dust (e.g. wood dust from sanding works) Use the product in dry indoor spaces only. Locked CE mark indicates conformity with relevant EU directives applicable for this product. Unlocked Safety information Instructions for use26 GB/IE

WET AND DRY VACUUM CLEANER

Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended use This product is a household appliance intended for vacuuming floors, carpets, furniture, mattresses, cars or garages. The product can also be used as a blower or to suck up water. The product is suitable for sucking up water and dirt with a temperature not higher than +40°C. Certain materials may produce explosive vapours or mixtures when agitated by the suction air. Never vacuum the following materials: Explosive or flammable gases, liquids and (reactive) dust particles Vacuuming such materials poses a danger to health and is therefore prohibited. Reactive metal dust particles (e.g. aluminium, magnesium and zinc in combination with highly alkaline or acidic detergents) Undiluted, strong acids and bases Organic solvents (e.g. petrol, paint thinners, acetone, heating oil) These substances may cause corrosion on the product. Soot and glowing embers Cement, gypsum and lime dust Small objects or ash from chimneys, charcoal stoves, ashtrays or barbecue grills Ash or dirt of heating boilers and oil-burning ovens Any other use or modification of the product are considered improper use and can result in hazards such as death, personal injury and damage. The manufacturer is not liable for any damages caused by improper use. The product is designed exclusively intended for household use. The product is not intended for commercial use, industrial operations or similar purposes. Scope of delivery After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use. 1 Container lid 1 Metal container 1 Flexible hose 1 Telescopic suction tube 1 Handle 1 Floor nozzle with brush 1 Floor nozzle with rubber lip 1 Crevice nozzle 1 Pleated filter (pre-installed) 1 Foam filter 1 Paper filter bag 5 Swivel castors 1 Short manual Description of parts Before reading, familiarize yourself with all functions of the product. [1] Carry handle [2] Container lid (incl. motor drive system and housing) [] Rib [] Filter basket [3] Mains cord holder [4] Blow connector [5] On/off switch [6] Holder (for storage of telescopic suction tube) [7] Self-cleaning button (for cleaning pleated filter) [8] Metal container [9] Vacuum connector [] Internal suction connector [] Circular rib [] Swivel castor (with nozzle holder)27GB/IE [] Mains plug [] Mains cord clip [] Mains cord [] Anti-static metal chain [] Drainage outlet [] Latch [] Nozzle holder [] Flexible hose [] Hose coupler (connect to handle) [] Hose coupler (connect to vacuum or blow connector) [] Lock button [] Handle [] Air regulator [] Telescopic suction tube [] Tube holder [] Slide lock button [] Slot [] Crevice nozzle [] Floor nozzle with brush [] Floor nozzle with rubber lip [] Foam filter [] Pleated filter [] Lever [] Paper filter bag [] Seal ring Technical data Wet and Dry Vacuum Cleaner : PWD25B3 Model number with VDE plug : HG09470 with BS plug : HG09470-BS Rated input power (power consumption) : 1400W Rated input voltage : 220–240V∼, 50/60Hz Suction force : 240Airwatt Suction pressure : 170mbar (17kPa) Suction rate : 36.7l/s Protection class : II / (double insulation) Ingress protection : IP24 Flexible hose length : 2.5m (32mm) Crevice nozzle length : approx. 19cm Telescopic suction tube length : approx. 49to76cm Mains cord length : approx.4m Metal container size Dimensions (Ø×H) : 29 × 38cm Gross volume : 25l Net volume : 15l Safety features The product will be switched off by a floating switch inside the filter basket [] once the metal container [8] is full. This prevents overflow and damage to the electric motor. When dry vacuuming, the anti-static metal chain [] grounds the product to prevent the build-up of static electricity. Safety instructions BEFORE USING THE PRODUCT, PLEASE FAMILIARISE

YOURSELF WITH ALL OF

THE SAFETY INFORMATION

AND INSTRUCTIONS FOR

USE! WHEN PASSING THIS

PRODUCT ON TO OTHERS,

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted! Children and persons with limitations

AND ACCIDENTS FOR TODDLERS AND CHILDREN! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Intended use

WARNING! Risk of injury! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way. Electrical safety

DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.29GB/IE

WARNING! Risk of electric shock! Do not immerse the product’s electrical components in water or other liquids. Never hold the product under running water.

WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the socket outlet and contact your retailer if it is damaged.

WARNING! Risk of injury! Turn off the product and disconnect it from the power supply before cleaning and when the product is not in use. Do not use the product anymore if it has been dropped. Before connecting the power plug to the power supply: Check that the voltage and the current rating correspond with the power supply details shown on the product’s rating label. Regularly check the power plug and the power cord for damages. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames. Operation

WARNING! Risk of fire and injury! Never use the product to absorb – water and any material with a temperature exceeding +40 °C, – incandescent materials. Disconnect the product from the power supply – when a malfunction occurs, – before attaching/changing accessories, – before cleaning the product, – if you will not use the product for a long time, – during a thunderstorm and – after each use.30 GB/IE Disconnect the product from the power supply by pulling the power plug, but not by pulling on the power cord. Defective components must always be replaced by original spare parts. Do not obstruct the ventilation slots during operation. Risk of overheating and damage to the product. Make sure that the mains voltage corresponds with the information on the rating plate. The product must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30mA. Cleaning and storage

WARNING! Risk of injury! Disconnect the product from the power supply before cleaning work and when not in use. Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water. Store the product in a cool, dry place, protected from moisture and out of the reach of children. Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances. Before first use Unpacking

WARNING! u The product and the packaging are not children’s toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation! Make sure the delivery contents are complete and free of damage. If you find that parts are missing or damaged, do not use the product and contact your dealer. Do not use the product unless missing parts have been delivered in addition or defective parts have been replaced. Using an incomplete or damaged product represents a hazard to people and property.

1. Unpack all parts and lay them on a flat,

2. Remove all packaging materials and shipping

devices if applicable.

3. Make sure that you have all the accessories

and tools needed for assembly and operation. This also includes suitable personal protective equipment. Before use

WARNING! u There is a risk of accident if the product is operated using an electrical mains supply that does not match the specifications shown on the rating label of the product. u The mains voltage and the frequency of the mains source must correspond with the specifications on the product's rating plate.31GB/IE

WARNING! Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use. Assembling the swivel castors Fig. C

1. Turn the metal container

[8] upside down, so its bottom is facing upward.

2. Insert the swivel castor

[] into the slots of the plastic holder until it is click-locked.

3. Check if the swivel castor can rotate freely.

Connecting/removing the flexible hose Vacuuming Fig. D

1. Align the hose coupler

[] of the flexible hose [] with the vacuum connector[9].

2. Push the hose coupler slowly into the vacuum

connector until the lock button [] clicks into place.

3. Check if the flexible hose is connected

properly by pulling the hose coupler slightly. If the hose coupler does not move, the flexible hose is connected properly.

4. Check if the flexible hose can be rotated

5. Removing: Press the lock button down. Pull the

hose coupler out of the vacuum connector. Blowing air Fig. E NOTE u This is an auxiliary function which can be used to blow away dust or small objects.

1. Align the hose coupler

[] of the flexible hose [] with the blow connector[4].

2. Push the hose coupler slowly into the blow

connector until the lock button [] clicks into place.

3. Check if the flexible hose is installed properly

by pulling the hose coupler slightly. If the hose coupler does not move, the flexible hose is connected properly.

4. Check if the flexible hose can be rotated

5. Removing: Press the lock button down. Pull the

hose coupler out of the blow connector. Connecting/Removing the handle Fig. E o Connecting the handle: Align the hose coupler [] of the flexible hose[] to the handle []. Push the hose coupler until the hose coupler is securely connected to the handle. o Removing the handle: Pull out the hose coupler from the handle. Connecting the nozzles/ extension tube Fig. F, G o You can connect the nozzles/telescopic suction tube to the handle [] in various ways in order to adapt to different environments and degrees of accessibility. Nozzle Area of application Crevice nozzle

o Grooves o Joints o Sofas o Car seats o Confined spaces Floor nozzle with brush

o Hard and flat surfaces Floor nozzle with rubber lip

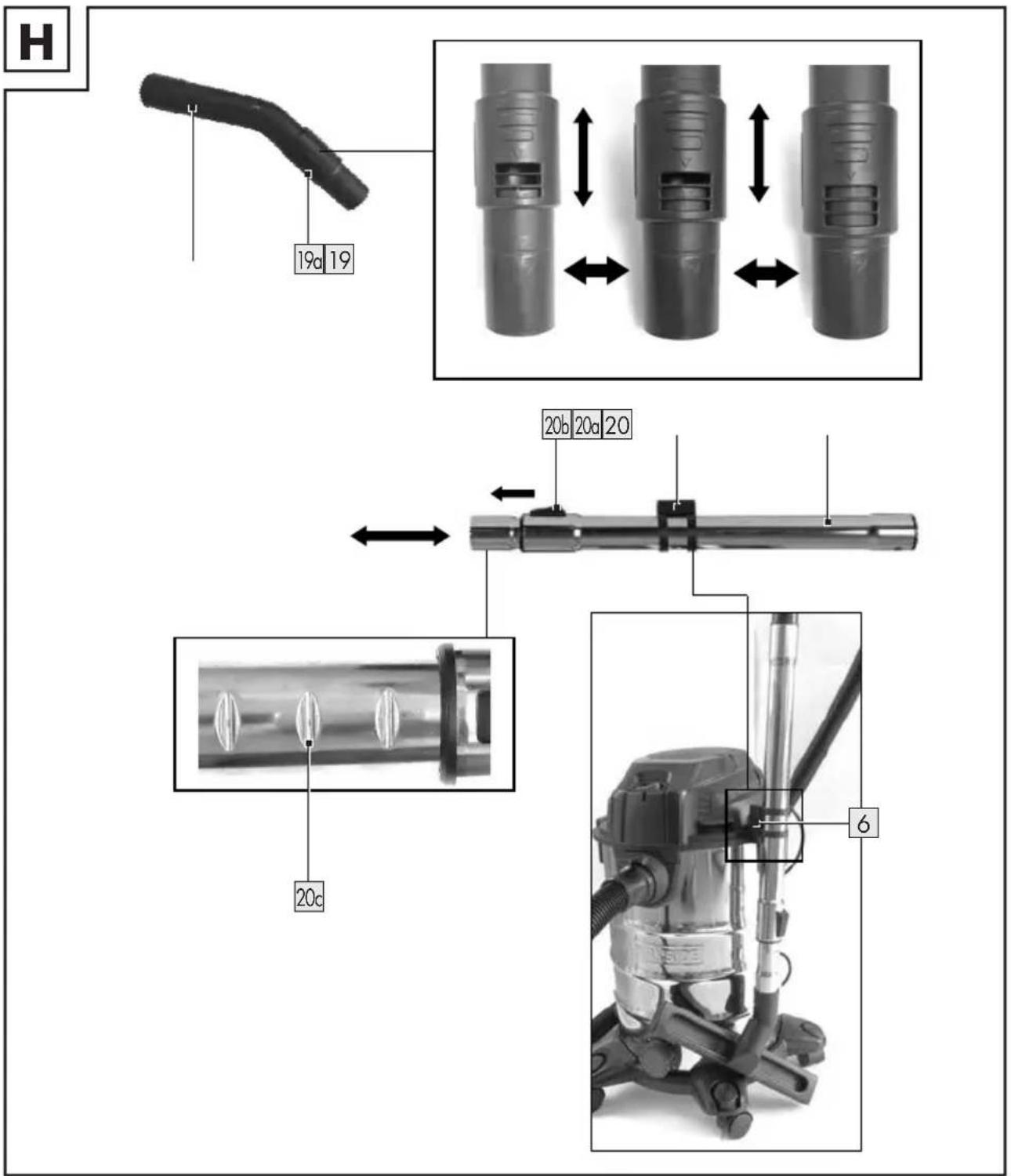

o Carpets or similar types of surface32 GB/IE Using handle and telescopic suction tube Fig. H Handle NOTE u The handle [] has a built-in air pressure regulation function. o Decrease suction power: Slide the air regulator [] in the same direction of the mark. o Increase suction power: Slide the air regulator in the opposite direction of the mark. Telescopic suction tube NOTE u The telescopic suction tube [] can be adjusted to different lengths to suit the working environment.

1. Push and hold the slide lock button

[] to release the locking action.

2. Adjust the telescopic suction tube to the

3. Release the slide lock button and slide the

telescopic suction tube until the preferred slot [] clicks into place.

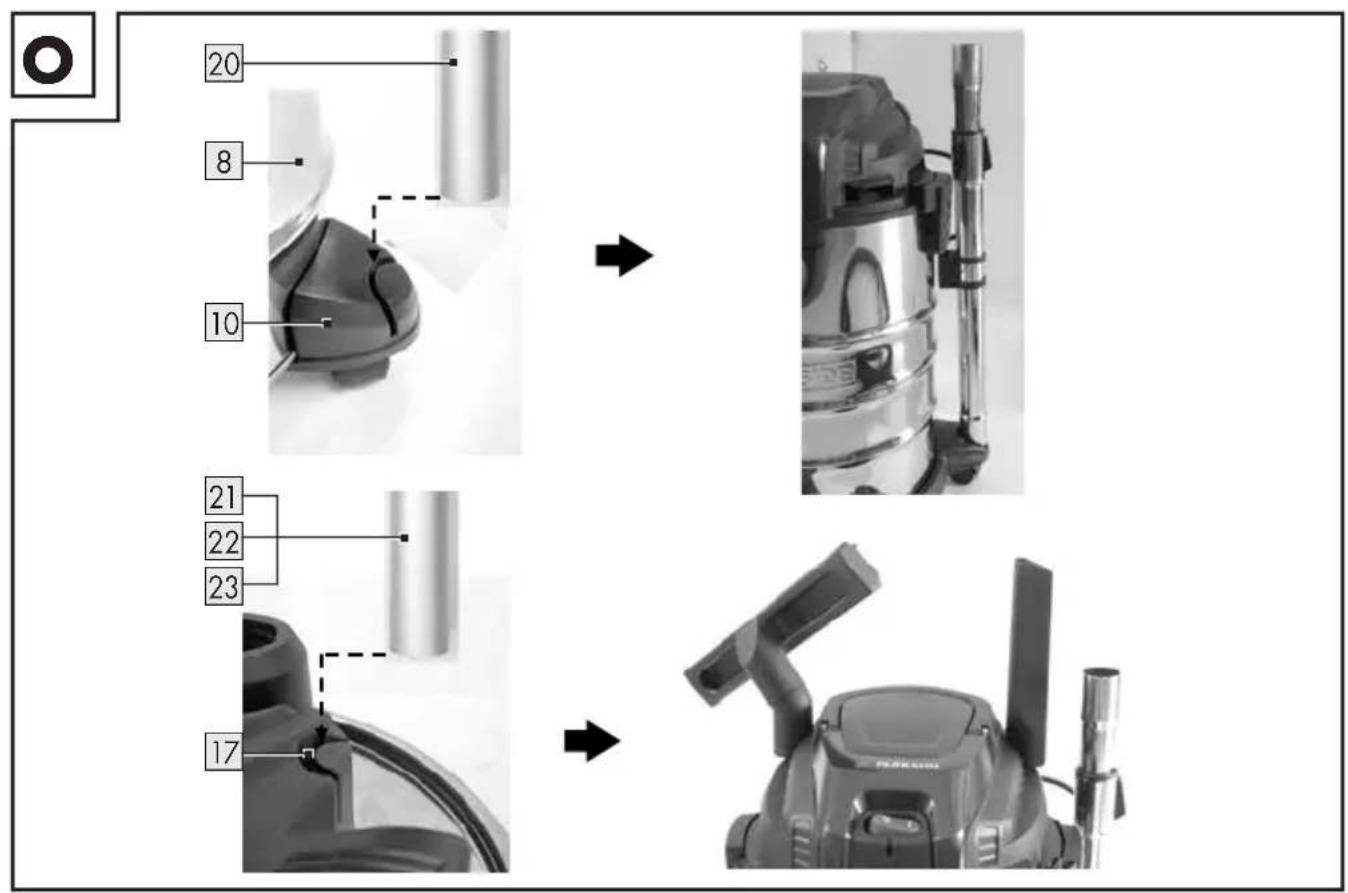

4. The telescopic suction tube can be stored on

the product by attaching the tube holder

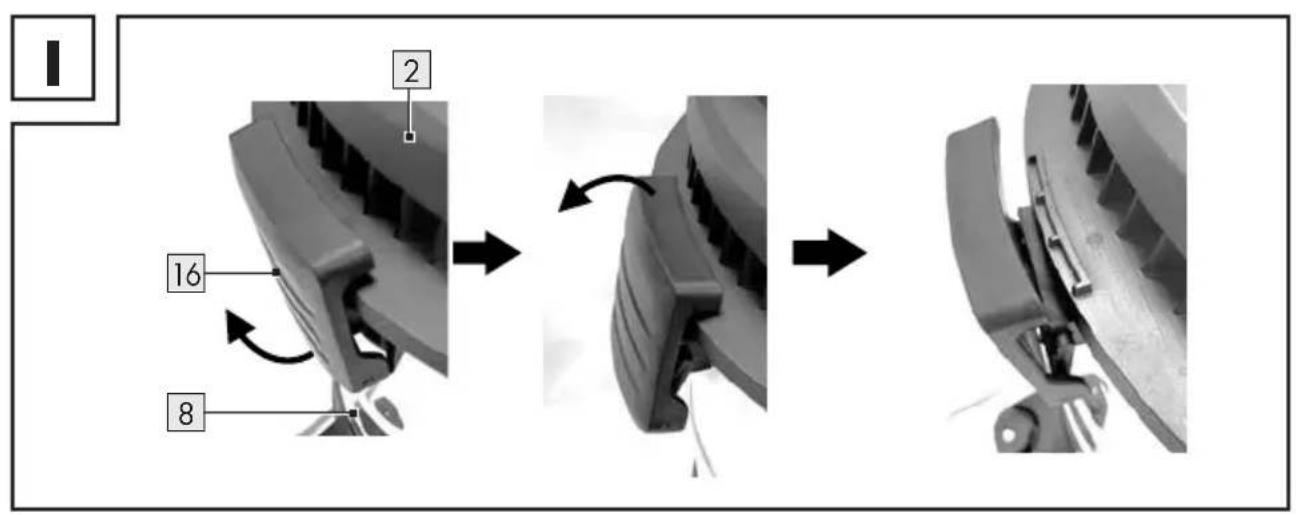

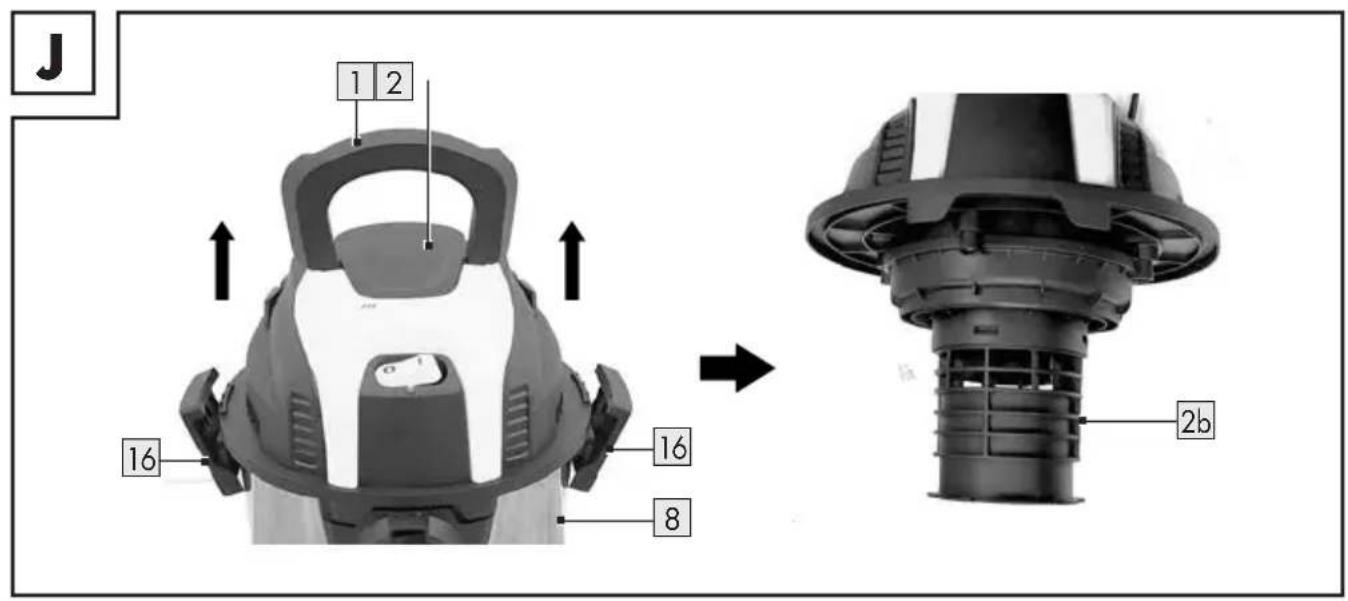

1. Unlock the latches

[] by pulling them away from the metal container.

2. Lift up the latches and disconnect them from

[1] and remove the container lid from the metal container.

[] is exposed for filter installation or replacement.

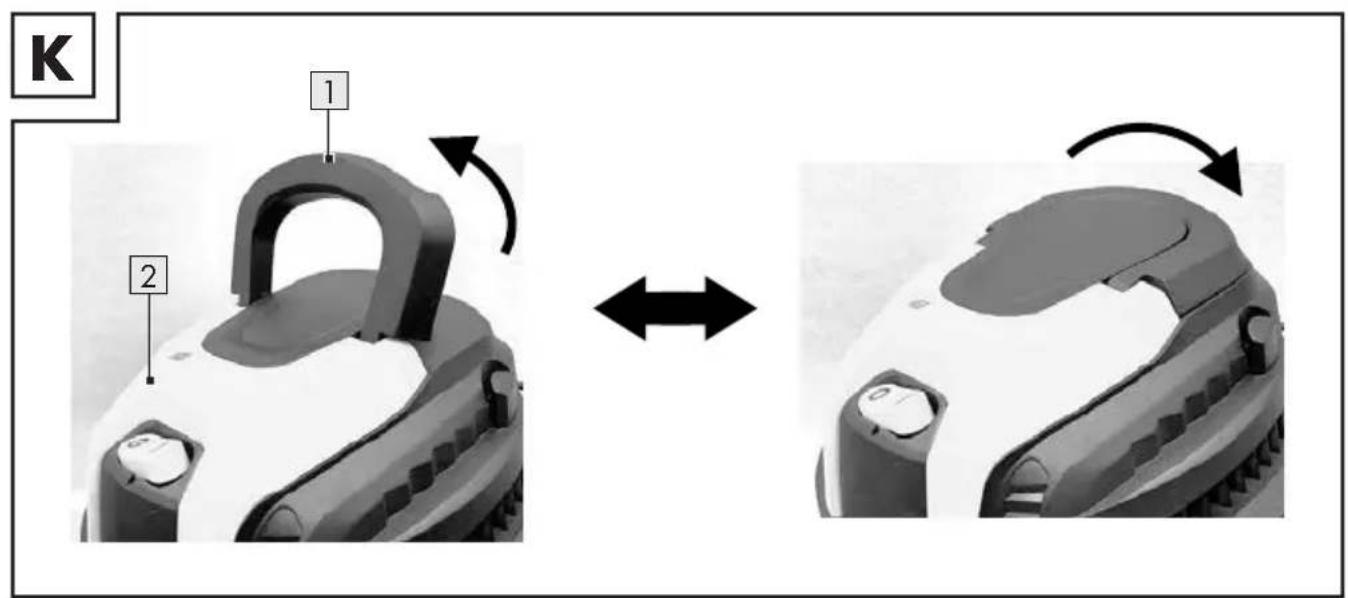

3. Fold down the carry handle after use and

before storing the product. Installing the filter

CAUTION! u Never vacuum without a filter installed to the product. Sucked in substances may contain metal or hard, sharp particles, which may damage the motor or cause an electric shock. Dust would be blown out from the blow connector [4] at a very high speed which could cause serious personal injury. u Only vacuum liquids with the foam filter

installed to the product. Otherwise the product will be damaged. The paper filter bag [] will also be damaged, if you use it for wet vacuuming. NOTE u The pleated filter [] and the paper filter bag are suitable for dry vacuuming only. u Do not use the pleated filter for vacuuming very fine dust or dirt (e.g. sanding dust). The pleated filter can be used for many other materials though. Pleated filter [] (dry vacuuming) Fig. L NOTE u Before installing pleated filter, ensure the lever [] is unlocked.

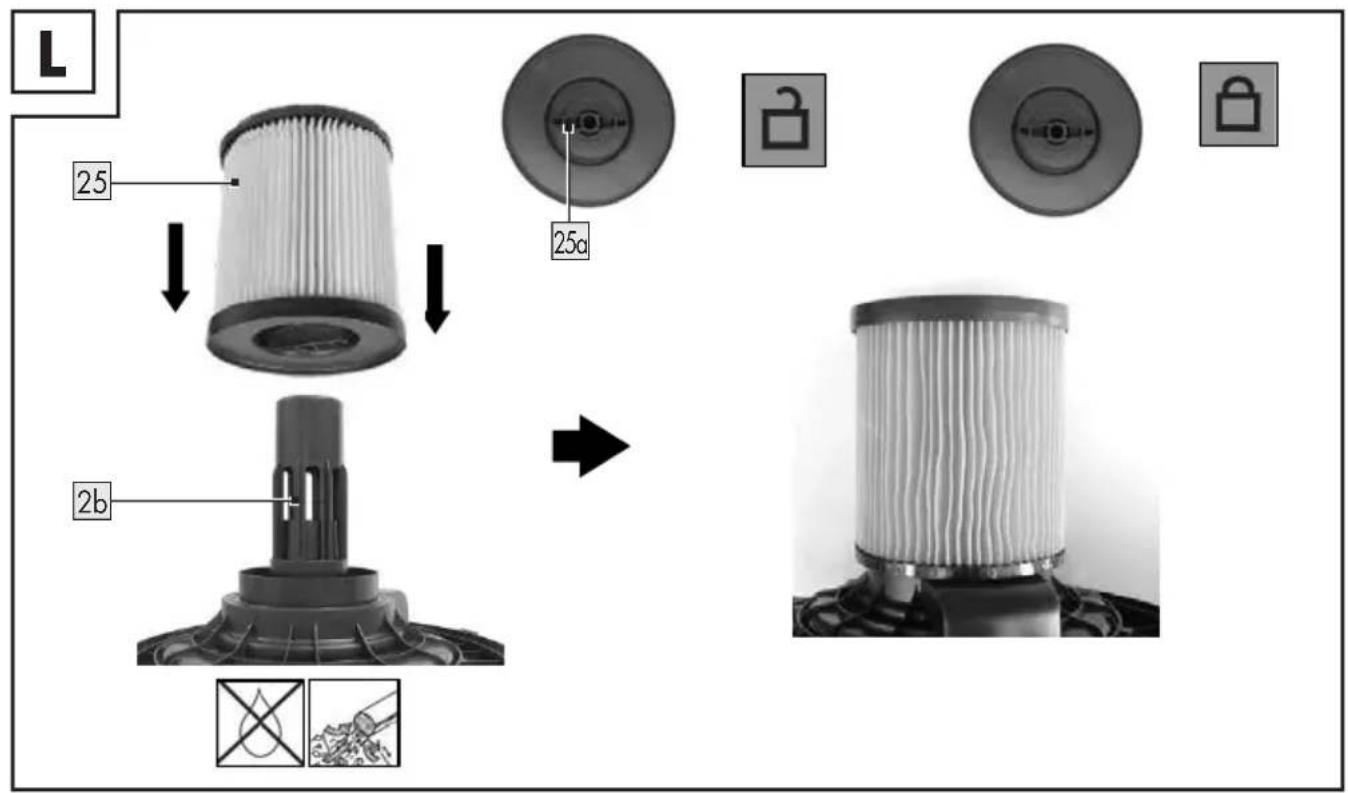

2. Install the pleated filter to the filter basket

3. Insert the pleated filter until the bottom side

of the pleated filter touches the surface of the filter basket.33GB/IE

4. Turn the lever to lock the pleated filter in

5. Pull the pleated filter slightly without

movement, to check if the pleated filter is installed properly. NOTE u If the pleated filter does not lock in place: Turn the pleated filter slightly without force, until the inside lock is sitting in place with the filter basket. Turn the lever to lock the pleated filter in place. Paper filter bag [] (dry vacuuming) Fig. M

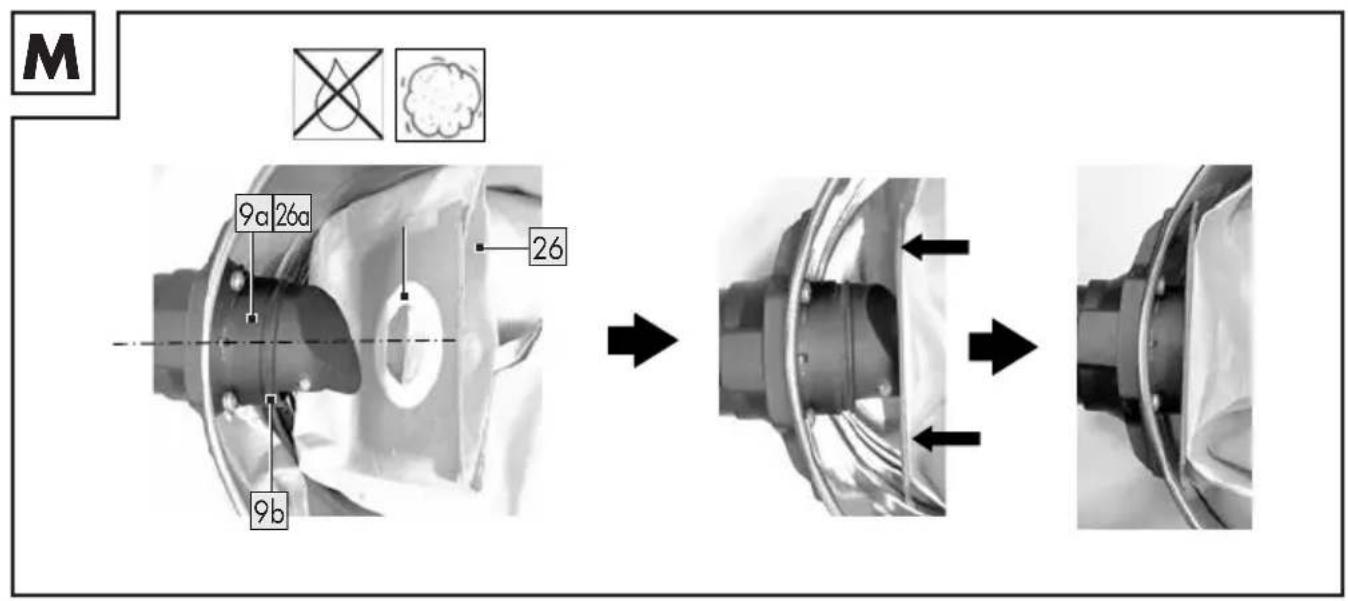

2. Align the hole of the paper filter bag with the

internal suction connector

3. Press down the paper filter bag to insert the

internal suction connector into the hole of the paper filter bag.

4. Press down the paper bag until the seal

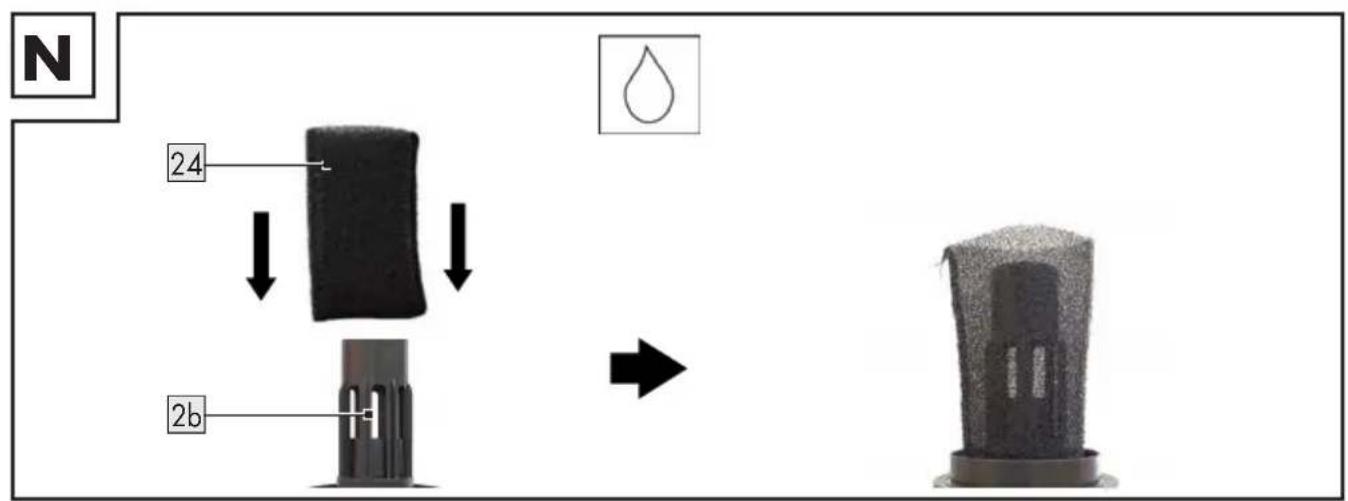

ring [] is fitted into the circular rib[]. Foam filter [] (wet vacuuming) Fig. N

3. Gently and slowly pull down the rim of the

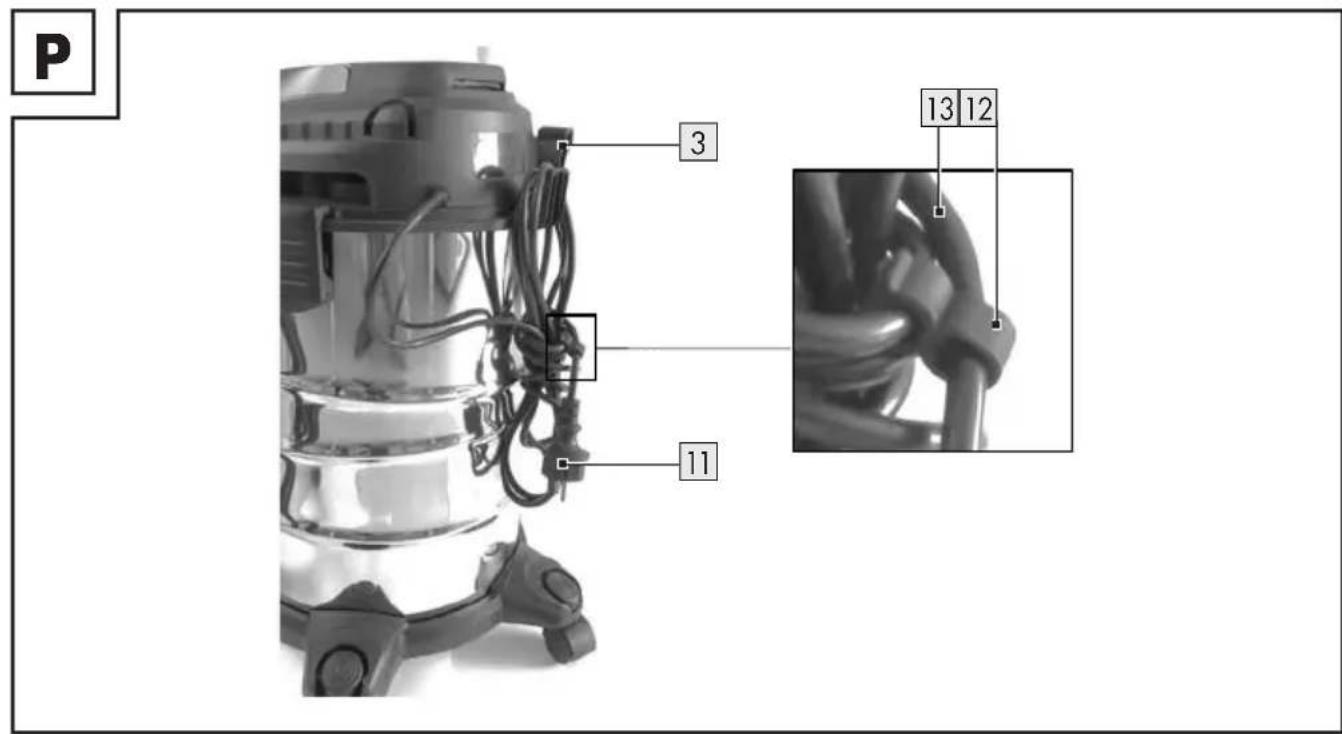

foam filter until it covers the filter basket completely. The rim of the foam filter must reach and touch the bottom surface of the filter basket. Operation Switching on/off NOTE u Before use, check if all parts are connected securely and the container lid [2] is locked in place. u Before you connect the product to the mains supply, make sure it is switched off. Fig. A o Connect the mains plug[] with a suitable socket-outlet. o Switching on: Press the on/off switch[5] to positionI. o Switching off: Press the on/off switch to position0. Storing the nozzles Fig. O o Slide the telescopic suction tube[] into the nozzle holder [] on the swivel castor[]. o Store the nozzles[]/[]/[] in the nozzle holder. Wrapping up the mains cord Fig. P o Wrap up the mains cord[]. Hang the mains cord on the mains cord holder [3]. o Fixing the mains plug[]: Connect the mains cord clip [] to the wrapped up mains cord. Emptying the metal container

WARNING! Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.

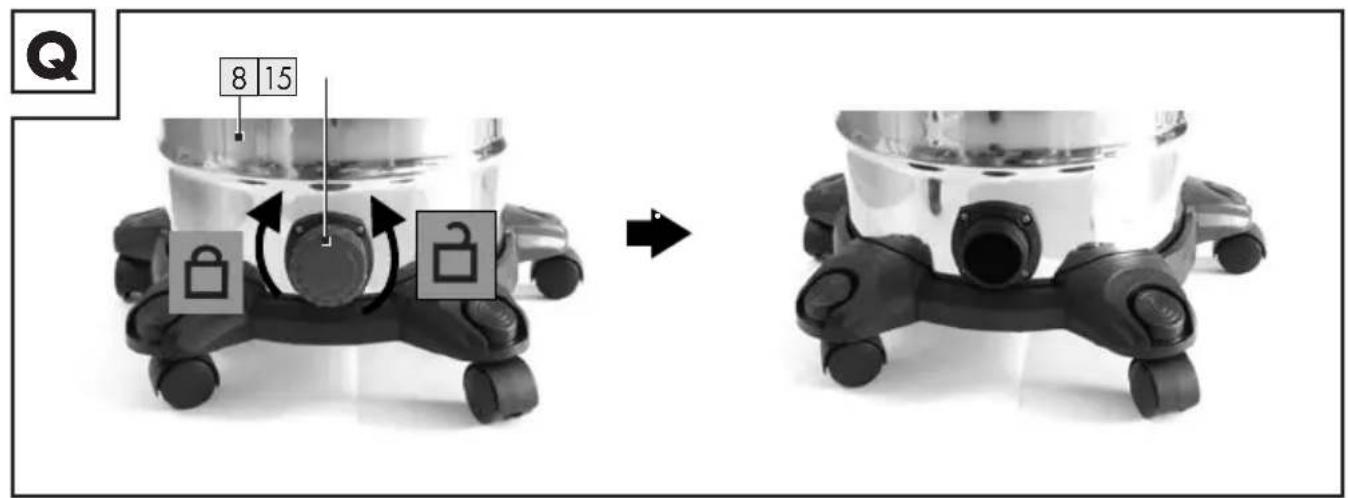

WARNING! u Empty and clean the product before and after use to avoid the collection of materials that could pose a fire hazard in the product. Fig. Q

1. Turn the cap of the drainage outlet

[] in anti- clockwise direction to remove the cap.

the cap in clockwise direction.34 GB/IE Cleaning the pleated filter

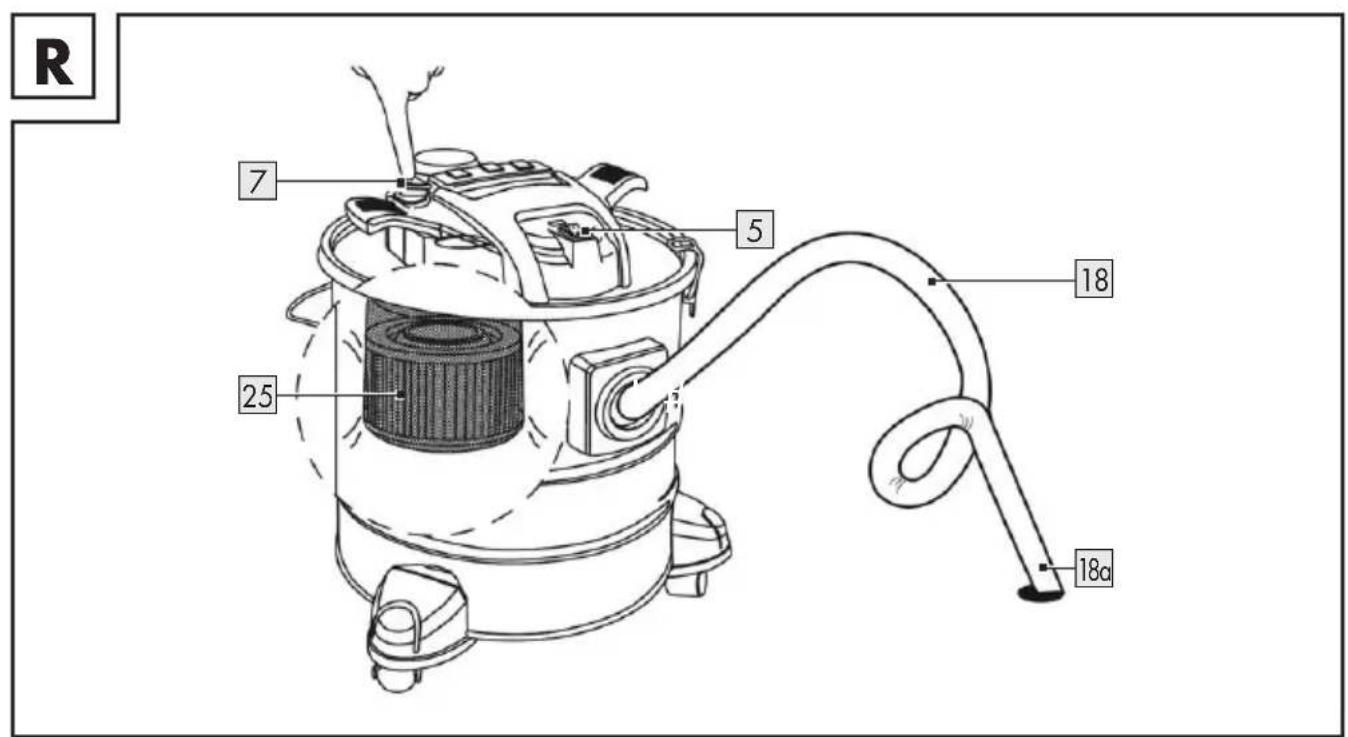

WARNING! u Check the pleated filter [] regularly for damage and deformation. A damaged or deformed pleated filter can not be cleaned and must be replaced. This is necessary to maintain the functionality of the product and to protect the product of damage. u Only use replacement filters from Lidl or authorized resellers. Filters that are not compatible with the product can lead to injury and product damage. NOTE u Clean the pleated filter after each use to preserve the full suction power of the product. Fig. R

1. Connect the mains plug

[] to a suitable mains supply.

3. Place the hose coupler

[] on a hard and flat surface to block the airflow through the hose coupler.

4. Press and hold the self-cleaning button

[7] 5× for 3seconds each.

5. This blows air through the pleated filter, to

remove residues and dirt. After use

1. Switch off the product and disconnect the

mains plug [] from the socket-outlet.

2. Let the product cool down.

3. Check, clean and store the product (see

“Cleaning and care”).35GB/IE Replacement parts/Accessories Contact the service centre via telephone (see “Service”). Have the model number mentioned below ready. Figure Part Line drawing Part name Model number

Telescopic suction tube —

Floor nozzle with brush —

Floor nozzle with rubber lip —

Paper filter bag 93926920236 GB/IE Troubleshooting Fault Possible cause Action The product does not work. The mains plug [] is not connected to the mains supply. Connect the mains plug with a suitable socket-outlet. The suction power is reduced and the product does not vacuum any dirt. The metal container [8] is full. Empty the metal container (see “Emptying the metal container”). The air path is blocked. Check the following parts for blockages and remove the blockages: Metal container [8] Flexible hose[] Telescopic suction tube[] Crevice nozzle[] Floor nozzle with brush[] Floor nozzle with rubber lip[] Dust escapes from the product. The container lid [2] was not installed correctly. Install the container lid correctly (see “Removing the container lid”). Cleaning and care

WARNING! Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use. Cleaning Never allow fluids to enter the product. The product must always be kept clean, dry and free from oil or grease. o Remove dust from the product after each use and before storage. o Regular and proper cleaning will help to ensure safe use and prolong the life of the product. o Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach. NOTE u Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. Maintenance Before and after each use: Check the product and accessories for wear and damage. Repair This product does not contain any parts that can be repaired by the user. Contact an authorized service centre or a similarly qualified person to have the product checked and repaired. Storage Always store the product in a place that is inaccessible to children. The ideal temperature for long term storage (longer than 3months) is between +10 and +30°C with a relative humidity of max. 60%.37GB/IE

1. Switch off the product and disconnect the

mains plug [] from the socket-outlet.

2. Let the product cool down.

3. Clean the product (see “Cleaning”).

4. Store the product and its accessories in a

dark, dry, frost-free, well-ventilated place. Transportation Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. Secure the product to prevent it from slipping or falling over.

1. Switch off the product and disconnect the

mains plug [] from the socket-outlet.

2. Let the product cool down.
