EERC70IW - Vacuum Cleaner ELECTROLUX - Free user manual and instructions

Product type	Ergorapido® Classic cordless stick vacuum
Brand	Electrolux
Model	EERC70IW
Nominal voltage	10.8 V
Runtime in long-lasting mode	21 minutes
Full charge time	Approximately 4 hours (24 hours before first use)
Filter type	Fine inner filter + outer pre-filter, washable
Dust bin capacity	Not specified (estimated: 0.5 L)
Included accessories	Flat nozzle, small brush, wall mount, charger
Main functions	Floor, furniture, car seat cleaning; power regulation; detachable hand vacuum
Safety	Do not use on liquids, ashes, sharp objects; do not use without filters; not recommended for children under 8 without supervision
Routine maintenance	Empty bin, quick clean of inner filter by rod, rinse filters (dry 12 h), clean rotating brush and wheels
Recycling	Batteries removable by authorized center; do not dispose with household waste
Warranty	Loss of runtime due to age or use is not covered

Frequently Asked Questions - EERC70IW ELECTROLUX

How to charge the Electrolux EERC70IW vacuum?

Place the vacuum on the wall mount, connect the charger to the rear and plug in the power adapter. The charging indicator lights up. Full charge takes about 4 hours. Before first use, charge for 24 hours to optimize the battery.

What is the battery runtime?

Runtime in long-lasting mode is 21 minutes for the EERC70IW model (10.8 V). In max power mode, runtime is reduced. Fully charge before prolonged use.

How to empty the dust bin?

Press the dust bin release buttons (K) to remove it. Take out the filters by pressing the release buttons, empty the contents into a trash bin. Never wash the bin in a dishwasher.

How to clean the filters?

For a quick clean, pull the inner filter cleaning rod (B) all the way and release it 5 times. For a deep clean, rinse the filters in lukewarm water without detergent, shake off excess, and let dry for at least 12 hours before reinstalling.

What to do if the rotating brush is blocked?

The vacuum stops automatically. Open the protective grille and the rotating brush trap cover, remove the brush, remove any threads or debris with scissors, then reassemble and check that it turns freely.

Can I use the vacuum on liquids?

No, never use the vacuum on liquids, ashes (hot or cold), glowing cigarette butts, or fine dust (plaster, flour). This can damage the appliance and void the warranty.

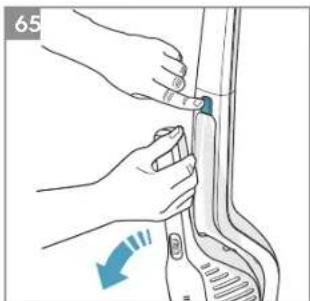

How to detach the hand vacuum?

Press the hand vacuum release button (E) on the handle to detach it from the main body. You can then attach the flat nozzle or small brush to clean furniture, cars, etc.

Where to buy accessories and consumables?

Visit www.electrolux.com/shop. You will find the replacement filter (ref. EF144, PNC 9001671529) and the Auto Kit (ref. KIT360+, PNC 9001683409).

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Batteries must be removed by an authorized Electrolux service center or collection point for recycling. Follow local regulations for recycling electrical products and rechargeable batteries.

What do the LED indicators mean during charging and use?

During charging: slow flash = 100% charge. During use: 4 LEDs = 75-100% capacity, 3 LEDs = 50-75%, 2 LEDs = 25-50%, 1 LED = less than 25% (recharge needed). For the 10.8 V model, the indicator flashes slowly at 100% charge.

USER MANUAL EERC70IW ELECTROLUX

Cordless vacuum cleaner

Li-21 (10,8V)

Li-30 (14,4V)

GB INSTRUCTION BOOK. 4
FR MODE D'EMPLOI
AR pssuall yld 10
BG 5POUYPACUNHCTPYKUN.13
CZ NAVOD KPOUZITI 16
DE GEBRAUCHSANWEISUNG.19
DK VEJLEDNING. 22
EE KASUTUSJUHEND 25
ES LIBRO DE INSTRUCCIONES. 28
FI OHJEKIRJA. 31

GR EFXEPIIIO OAHITION 34
HR KNJIZICA SUPUTAMA 37
HU HASZNÁLATI UTMUTATO 40
IT ISTRUZIONI 43
LT INSTRUKCIJU KNYGA 46
LV LIETOSANAS INSTRUKCUJA.49
NL INSTRUCTIE BOEK. 52
NO BRUKSANVISING. 55
PL INSTRUKCJA OBSLUGI. 58
PT LIVRO DE INSTRUÇOES 61

RO MANUAL DE INSTRUCTIUNI.64
RU HCHTPKU. 67
SK NAVOD NA POUZITIE. 70
SL NAVODILA 73
SR UPUTSTVO 76
SV BRUKSANVISNING. 79
TR ELKITABI 82
UA NOCIBHNIK KOPNCTYBA4A.85

2www.electrolux.

GB

FR

AR

BG

CZ

DE

DK

EE

ES

FI

GR

HR

HU

IT

LT

LV

NL

NO

PL

PT

RO

RU

SE

SK

SL

SR

TR

UA

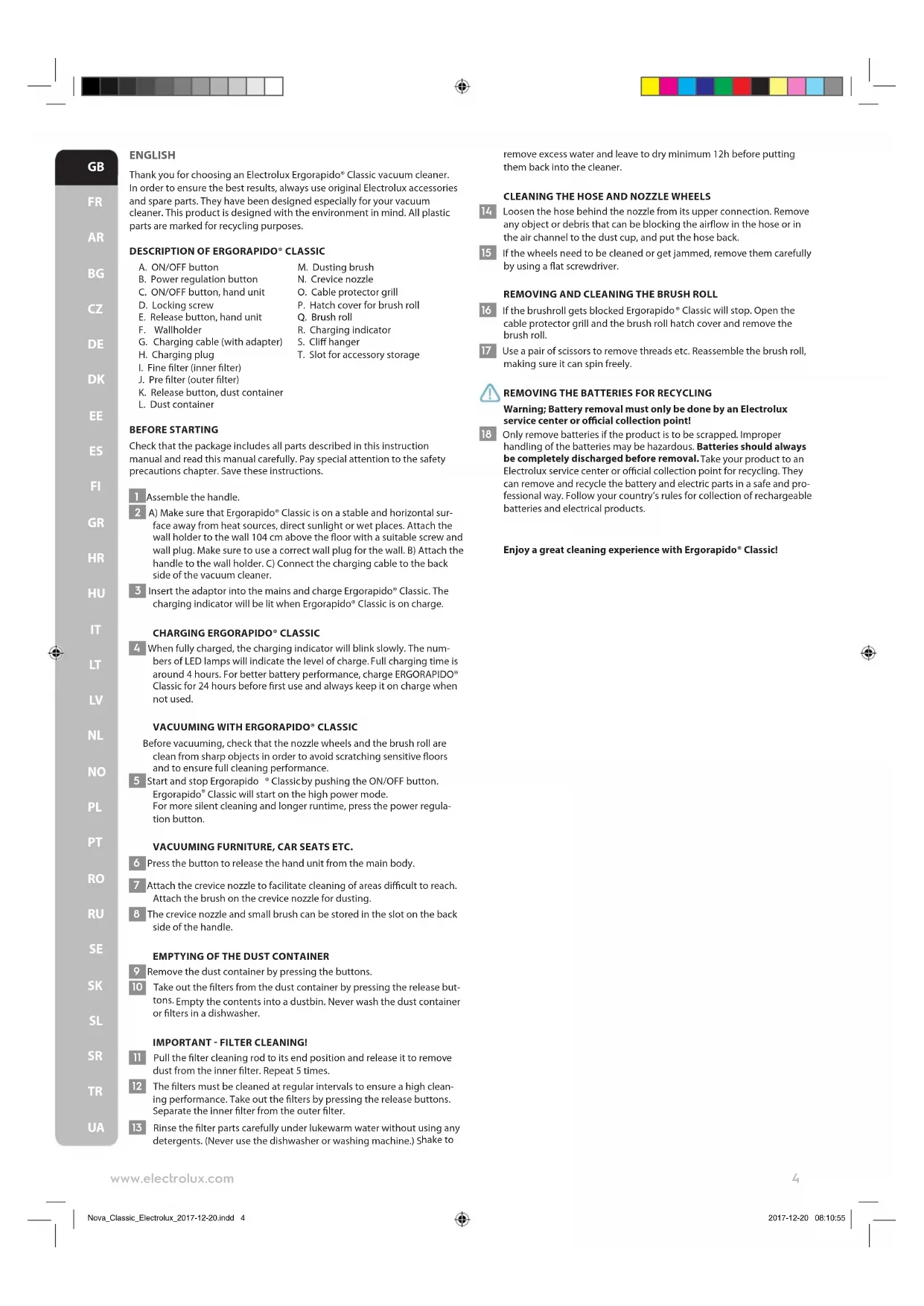

ENGLISH

Thank you for choosing an Electrolux Ergorapido* Classic vacuum cleaner. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your vacuum cleaner. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

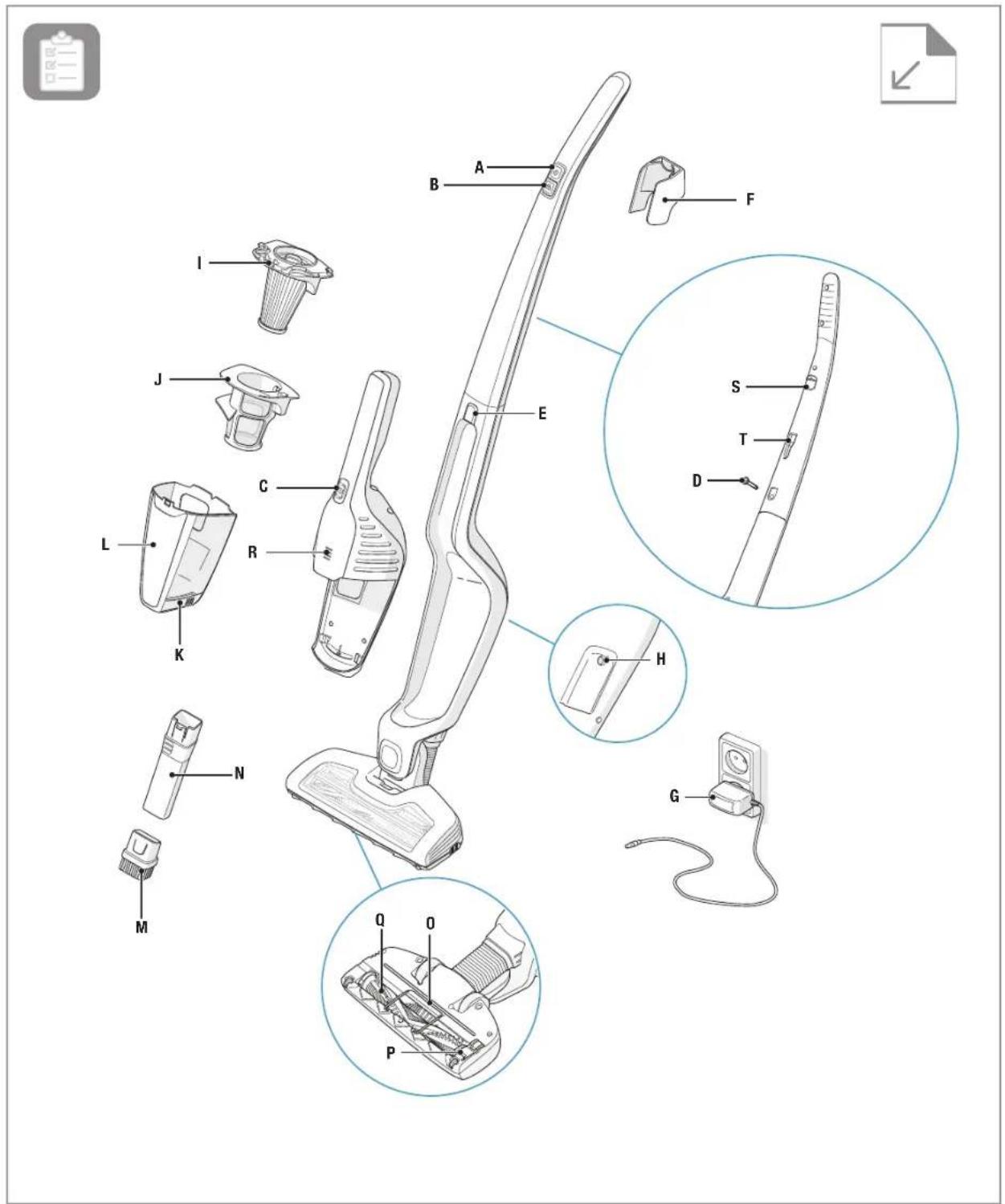

DESCRIPTION OF ERGORAPIDO CLASSIC

A. ON/OFF button
M. Dusting brush
B. Power regulation button
N. Crevice nozzle
C. ON/OFF button, hand unit
O. Cable protector grill
D. Locking screw
P. Hatch cover for brush roll
E. Release button, hand unit
Q. Brush roll
F. Wallholder
R. Charging indicator
G. Charging cable (with adapter)
S. Cliff hanger
H. Charging plug
T. Slot for accessory storage
1. Fine filter (inner filter)
J. Pre filter (outer filter)
K. Release button, dust container
L. Dust container

BEFORE STARTING

Check that the package includes all parts described in this instruction manual and read this manual carefully. Pay special attention to the safety precautions chapter. Save these instructions.

1 Assemble the handle.
2 A) Make sure that Ergorapido* Classic is on a stable and horizontal surface away from heat sources, direct sunlight or wet places. Attach the wall holder to the wall 104cm above the floor with a suitable screw and wall plug. Make sure to use a correct wall plug for the wall. B) Attach the handle to the wall holder. C) Connect the charging cable to the back side of the vacuum cleaner.

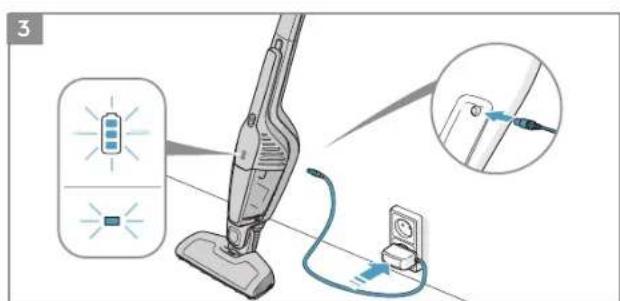

3 Insert the adaptor into the mains and charge Ergorapido® Classic. The charging indicator will be lit when Ergorapido® Classic is on charge.

CHARGING ERGORAPIDO CLASSIC

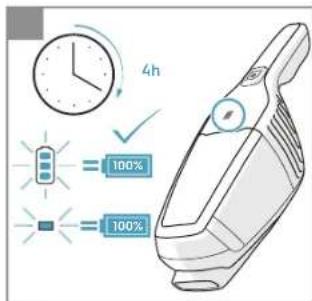

4 When fully charged, the charging indicator will blink slowly. The numbers of LED lamps will indicate the level of charge. Full charging time is around 4 hours. For better battery performance, charge ERGORAPIDO* Classic for 24 hours before first use and always keep it on charge when not used.

VACUUMING WITH ERGORAPIDO CLASSIC

Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive floors and to ensure full cleaning performance.

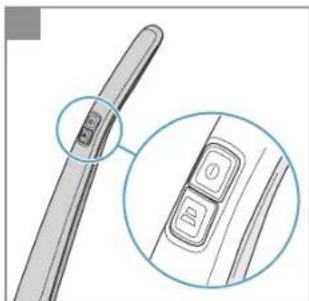

5 Start and stop Ergorapido. Classic by pushing the ON/OFF button. Ergorapido Classic will start on the high power mode. For more silent cleaning and longer runtime, press the power regulation button.

VACUUMING FURNITURE, CAR SEATS ETC.

6 Press the button to release the hand unit from the main body.

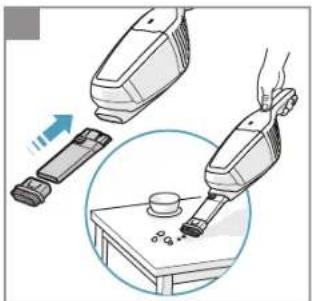

7 Attach the crevice nozzle to facilitate cleaning of areas difficult to reach. Attach the brush on the crevice nozzle for dusting.
8 The crevice nozzle and small brush can be stored in the slot on the back side of the handle.

EMPTYING OF THE DUST CONTAINER

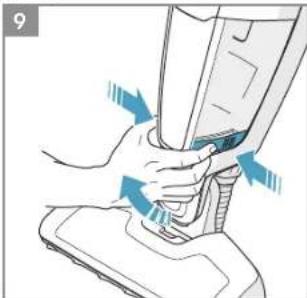

9 Remove the dust container by pressing the buttons.

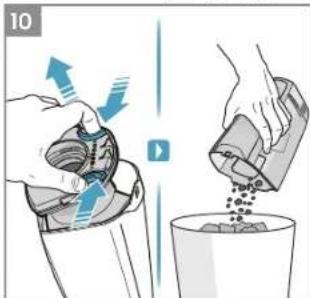

10 Take out the filters from the dust container by pressing the release buttons. Empty the contents into a dustbin. Never wash the dust container or filters in a dishwasher.

IMPORTANT - FILTER CLEANING!

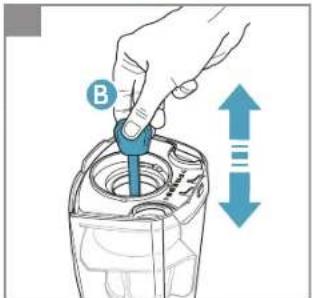

Pull the filter cleaning rod to its end position and release it to remove dust from the inner filter. Repeat 5 times.
12 The filters must be cleaned at regular intervals to ensure a high cleaning performance. Take out the filters by pressing the release buttons. Separate the inner filter from the outer filter.

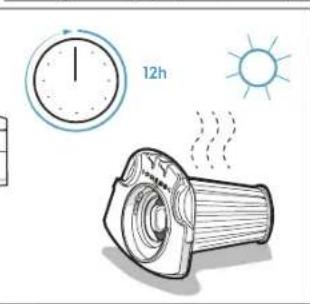

13 Rinse the filter parts carefully under lukewarm water without using any detergents. (Never use the dishwasher or washing machine.) Shake to

remove excess water and leave to dry minimum 12h before putting them back into the cleaner.

CLEANING THE HOSE AND NOZZLE WHEELS

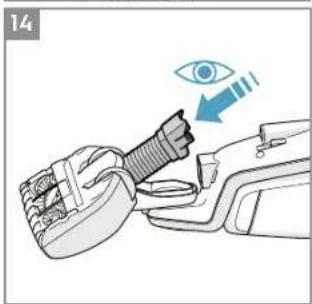

14 Loosen the hose behind the nozzle from its upper connection. Remove any object or debris that can be blocking the airflow in the hose or in the air channel to the dust cup, and put the hose back.

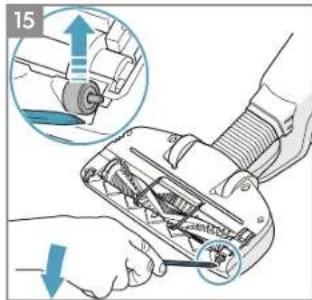

15 If the wheels need to be cleaned or get jammed, remove them carefully by using a flat screwdriver.

REMOVING AND CLEANING THE BRUSH ROLL

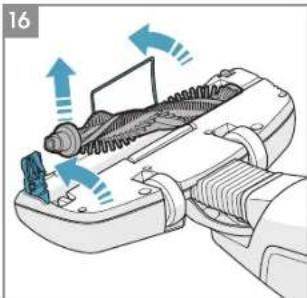

16 If the brushroll gets blocked Ergorapido Classic will stop. Open the cable protector grill and the brush roll hatch cover and remove the brush roll.
17 Use a pair of scissors to remove threads etc. Reassemble the brush roll, making sure it can spin freely.

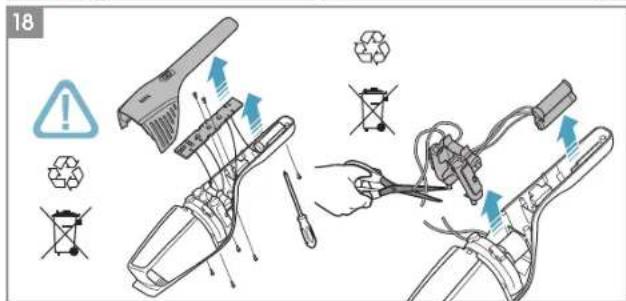

REMOVING THE BATTERIES FOR RECYCLING

Warning: Battery removal must only be done by an Electrolux service center or official collection point!

Only remove batteries if the product is to be scrapped. Improper handling of the batteries may be hazardous. Batteries should always be completely discharged before removal. Take your product to an Electrolux service center or official collection point for recycling. They can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for collection of rechargeable batteries and electrical products.

Enjoy a great cleaning experience with Ergorapido® Classic!

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

Ergorapido* Classic should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place. Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

In wet areas.
- Close to flammable gases, etc.
- When the product shows visible signs of damage.
- On sharp objects or liquids.
- On hot or cold cinders, lighted cigarette butts, etc.
- On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Do not leave the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.
• Mind your fingers if cleaning the inside of the floor nozzle.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5^ or exceeding 35^ . If the product is stored in a temperature below 5^ or exceeding 35 °C, let the product cool down or warm up and dry for a few hours before usage.
  A humidity level below 20% or exceeding 80% (noncondensing).

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product.

Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage.

INDICATION LAMPS

	CHARGING	WHAT DOES IT MEAN?	DURING USAGE	WHAT DOES IT MEAN?
14.4V	1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789	Blink slowly = 100 % fully charged 75 - 100 % capacity
		50 - 95 % charged 50- 75 % capacity remaining
		0 - 50 % charged 25 - 50 % capacity remaining
			Ergorapido® Classic needs to be recharged.
10.8V	1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567
		0 - 95 % charged

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories and Consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

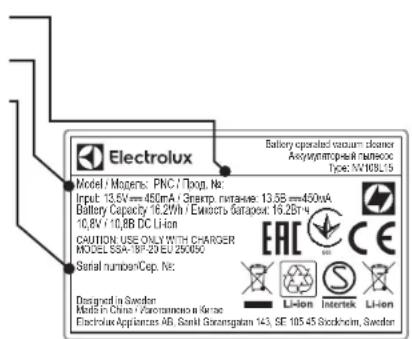

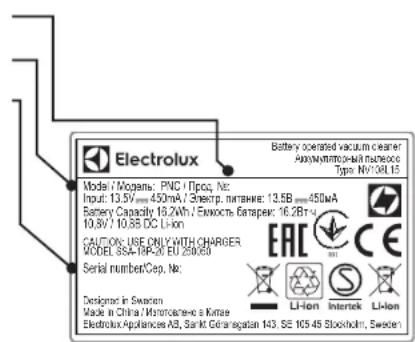

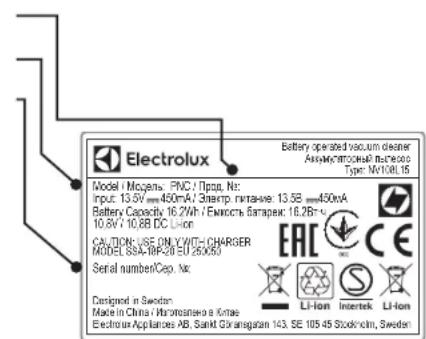

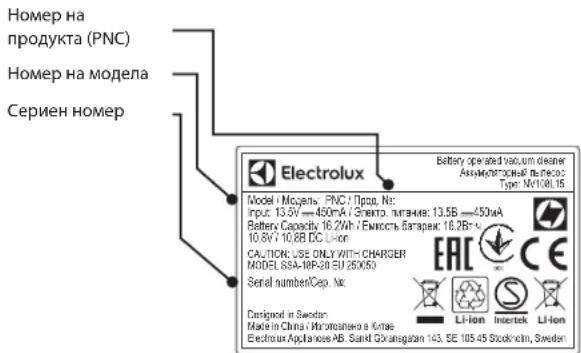

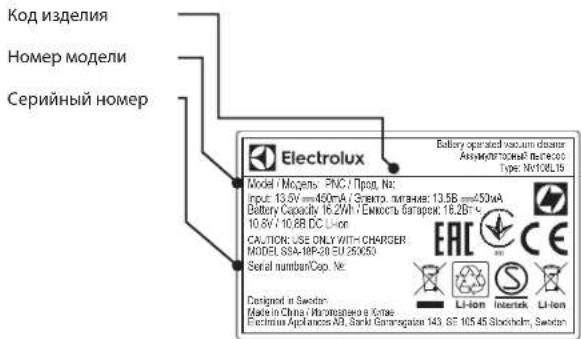

When contacting the Electrolux service center, ensure that you have following data available:

• Model number,
• PNC number
• Serial number

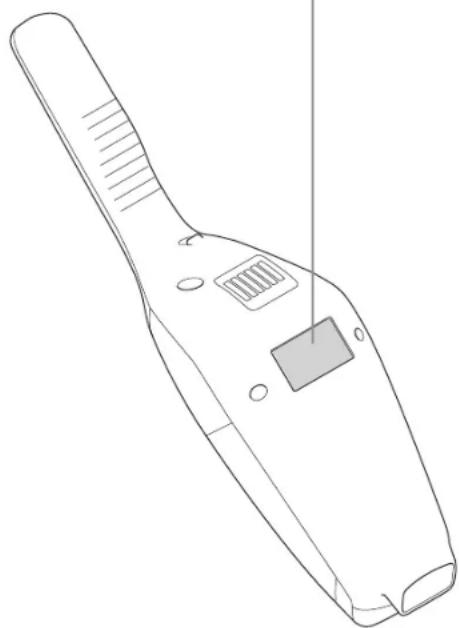

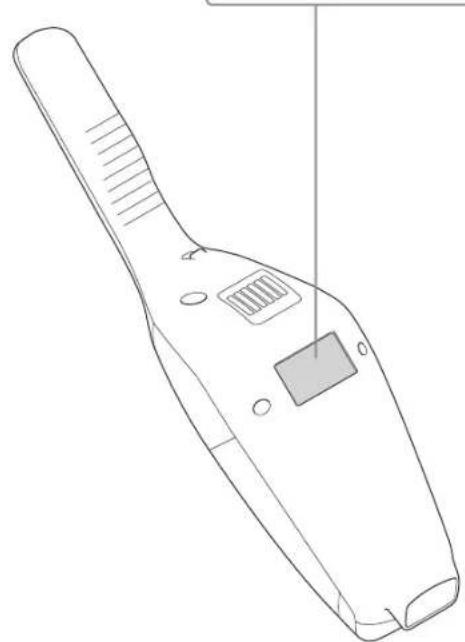

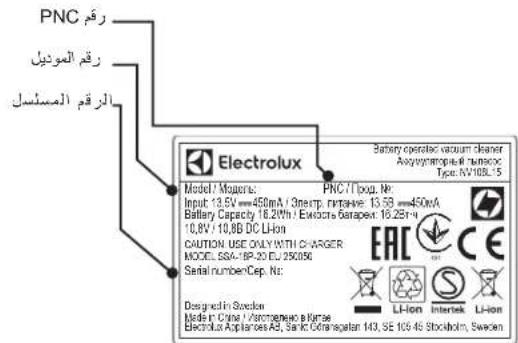

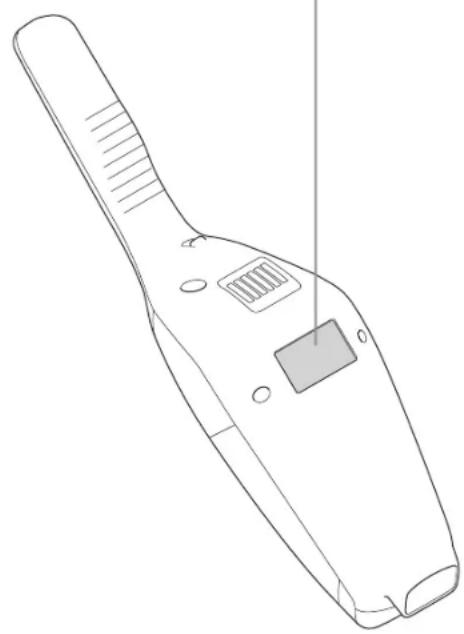

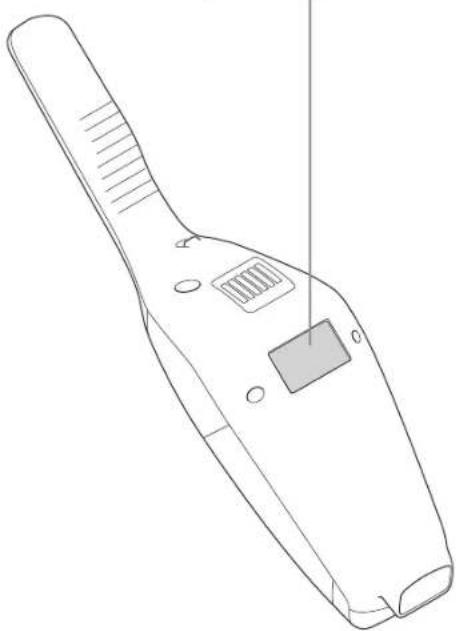

The information can be found on the rating plate.

PNC number

Model number

Serial number

Sensory operation vacuum cleaner Axysympro-2000 (MEXICO)

Model | Mopera: PNC / Tippo, No.
Input: 13.50 + 450mA / 360pF (NEMA) 13.50 - 450mA
Battery Capacity 16.2Wh / EMOC Genepor 16.2V 4
18.8V / 13.50 DC Light
CAUTION: USE ONLY WITH CHARGER
MODEL: SSA-19P-2E EU 290300
Serial number/Cep: No.

Made in China (Visonomeroe) & Kirtae Electronik Appliances AB, Sankt Geringatan 143 SE 105.46 Stockholm, Sweden

CONSUMABLES & ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF144

PNC: 9001671529

Car Kit

Ref: KIT360+

PNC:9001683409

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

RUNNING TIMES FOR ERGORAPIDO CLASSIC

Modell Volt Long runtime mode
EERC70XX 10,8V 21 min
ERC72XX 14,4V 30 min

The battery should be removed from The product before disposal. Dispose of or recycle The battery in accordance with local regulations. The symbol

on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

6www.electrolux.
