FUSION™3000L&3100L A4&A3 LAMINATORS

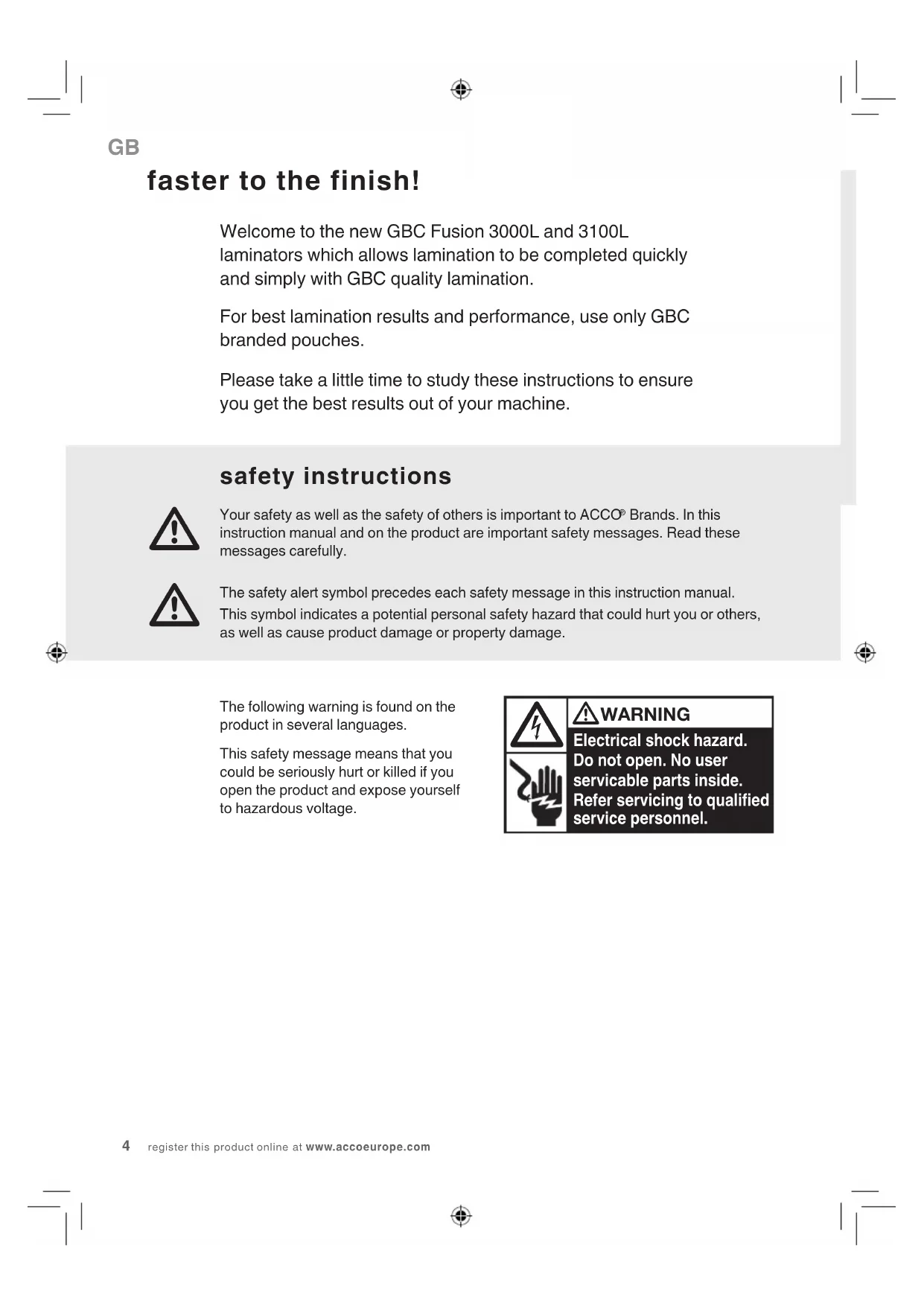

GB instruction manual 4

faster to the finish!

Welcome to the new GBC Fusion 3000L and 3100L laminators which allows lamination to be completed quickly and simply with GBC quality lamination.

For best lamination results and performance, use only GBC branded pouches.

Please take a little time to study these instructions to ensure you get the best results out of your machine.

safety instructions

Your safety as well as the safety of others is important to ACCO® Brands. In this instruction manual and on the product are important safety messages. Read these messages carefully.

The safety alert symbol precedes each safety message in this instruction manual. This symbol indicates a potential personal safety hazard that could hurt you or others, as well as cause product damage or property damage.

The following warning is found on the product in several languages.

This safety message means that you could be seriously hurt or killed if you open the product and expose yourself to hazardous voltage.

WARNING

Electrical shock hazard. Do not open. No user servicable parts inside. Refer servicing to qualified service personnel.

points to note

• Use this unit only for its intended use of laminating documents
• Do not laminate an empty pouch

• The unit must be connected to a supply voltage corresponding to the electrical rating shown on the unit
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• Do not use a carrier with this machine
• Ensure the machine is clear of pouches prior to starting the next pouch
• Clean the lamination rollers on a regular basis
  Maximum A4 document pouch 303mm× 210mm on A4 GBC Fusion 3000L laminator
  Maximum A3 document pouch 426mm x303mm on A4 GBC Fusion 3100L laminator
  Active anti jam feature may not detect issue on smaller items
• Failure to comply will result in damage and invalidate guarantee

service

Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and contact an authorised GBC service representative for any required repairs.

technical specifications

Electrical Fusion 3000L A4	220-240V AC / 50Hz/60Hz / 3.5A / 850W Fusion 3000L A3: 220-240V AC / 50Hz/60Hz / 5.0A / 1200W Fusion 3100L A3: 220-240V AC / 50Hz/60Hz / 6.5A / 1550W
Machine Dimensions A4: 370x107.5x80mm A3: 465x109x81mm
Machine Weight A4: 1.3kg	A3: 1.64kg
Maximum Pouch Width A4:	241mm A3: 303mm

Maximum Pouch Thickness	3000L 2x125 micron (total 250) 3100L 2x175 micron (total 350)
Maximum Thru-put Thickness	0.7mm
Warm-Up Time 3000L	Approximately 1.5 minutes 3100L Approximately 1.5 minutes
Speed 3000L 500 mm per minute	3100L 800 mm per minute

GB

getting ready to laminate

Easy Set Up

1 Remove the plastic exit tray from the box and place into the two holes on the back of the laminator and extend to use. Ensure that there is sufficient space behind the laminator for the item to be removed.
2 Take the electrical plug and place in an appropriate power source, which is near the table you intend to use.
3 The laminator will respond with a single beep and a sequence of brief flashes across the control panel.

Touch Control

4 To use the laminator gently tap the 'power on' button.

NOTE: Your new laminator may emit a slight odour during the initial operation. Its is normal and will diminish after a few hours of operation.

5 An orange ^ will flash indicating that the laminator is warming up to the setting which is indicated by a white light on the control panel.

NOTE: Following "power on" it will automatically set to the 75mic.

6 If setting indicated by white light on the control panel is not appropriaite for your pouch thickness, select the appropriate pouch setting by tapping the micron setting which is indicated on pouch packaging. Your new selection will be indicated by a white light on control panel.

Visual & Audible Ready Alerts

7 When the laminator is ready to use the green light next to the tick is illuminated (shown in figure) and a series of 2 beeps are heard.

NOTE: During warm up, the orange light next to the mark will be flashing until the machine is ready to use. With Fusion 3100L you cannot feed a pouch into the laminator until green tick is illuminated.

loading the pouch

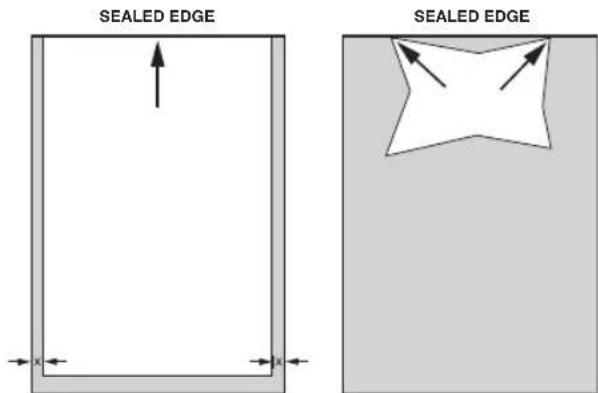

1 Take your item to be laminated and place in to the appropriate sized laminating pouch, ensuring it is firmly located along the sealed edge. This is to help ensure that you get optimal quality output.

NOTE: Do not cut pouches prior to lamination.

A3, A4, A5, etc. Irregular shaped item

Before laminating important or unique documents, always run a test pouch through the laminator using a similar type document.

GB

laminating

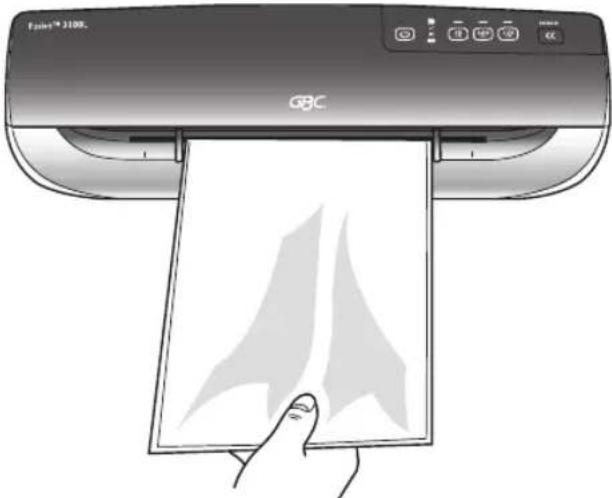

1 On the front of the laminator there are adjustable guides to help you feed your pouch accurately. Move the guides to appropriate line which matches your pouch/ item to be laminated.

2 Feed the sealed edge of the pouch, into the laminator between the guides. The laminator will grip the pouch and guide it through to the exit tray.

NOTE: Do not force guides against pouch

3 Upon exiting remove your laminated item immediately to ensure optimal quality.
4 Do not force guides tightly against pouch. Move guides to an appropriate setting to allow pouch to be fed in without touching guides.
5 When you are finished laminating tap the 'power' button and if required remove the tray, unplug and store accordingly.

Remove your laminated item immediately to ensure the best quality and finish

register this product online at www.accoeurope.com

additional features

Intelligent Status Alert

If pouch misfeeds or a jam starts to occur a series of beeps will will be heard to alert the user to take action along with a red flashing light with 'jam icon 8V'.

Manual Release

Fusion 3000L A3 & A4 Laminator

Press and hold the release button (8w) and pull the pouch towards you out of the laminator.

Manual Reverse

Fusion 3100L A3 Laminator

Press and hold reverse button (indicated by reverse ) until the pouch completely reverses out of the laminator.

Intelligent Power Off

For added safety and environmental reasons the laminator will automatically go into sleep mode after 30 minutes of inactivity. You will hear a single beep before this occurs

cleaning

WARNING: UNPLUG THIS PRODUCT BEFORE CLEANING THE EXTERIOR. WIPE EXTERIOR ONLY WITH A DAMP CLOTH AND DO NOT USE DETERGENTS OR SOLVENTS.

Regularly feed a cleaning card or sheet of paper through the laminator to clean the rollers. Cleaning sheet order code: EK50000.

guarantee

Operation of this machine is guaranteed for two years from date of purchase, subject to normal use. Within the guarantee period, ACCO Brands Europe will at its own discretion either repair or replace the defective machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered under the guarantee. Proof of date of purchase will be required. Repairs or alterations made by persons not authorised by ACCO Brands Europe will invalidate the guarantee. It is our aim to ensure that our products perform to the specifications stated. This guarantee does not affect the legal rights which consumers have under applicable national legislation governing the sale of goods.

F

Fusion 3100L A3 lamineermachine

HHCTpyKcnn no 6e3oNaChocTn

Ba7a 6e30nacHOCTb Hap4y C 6e30nacHOCTbIO DpyTHX IINU RAJIETCA BaHHbIM acNeKToM dIy KOMNaHn ACCO® Brands Europe. DaHHa INHcTpyKuNPO 3KcIIyataun yCtpoiCTBO COedePkaT BaHHyIO INHOpMaunIO NO 6e30nacHOCTN. PInBEdEHHy IO INHOpMaunIO CLeDyET BHNMaTeJbHo IpOHTaTb.

PpeDynpexkaHoum 3HaK 6e3oNaChocTn paCPOJKeH npeEd KaJdbIM COO6ueHEm O 6e3oNaChocTn B daHHo HNCTpyKcnn NO EKcNlyaTaun.
DaHHbI 3HaK yKa3bIBaet Ha NotEHuaJIbHyIO LInHyIO OnaChocTb, KOTopar MoKET
pINBeCTN K NOLyUeHIO TpaBM Bamn IIN dpYrMn IInCaM, a TaKHe Bbl3BaTb
NoBpeXdHne YcTpoiCTBa INI NMyuIeCTBa.

Cleyuounepynpexdene npedctabIeHbHa n3deJnx Ha HeckoJIbKx J3bIKax.

DaHHe CoO6eHHe O 6e30aChocTn O3Haayet, YTO Bbl MoKeTe NOLyHTb cepBe3HyIO TpaBMy IIN NOrN6HyTb,ecNI OTKpoEte yCTpOcTBo IN NOBeprHete Ce6Ba 03DeIcTBIO ONaCHORo HapJxHHeH.

I P E D U N P E X K D E H N E

Onachoctb nopaHHeHH 3eHtpnuechm
tOKOM. He oKpbIbATb. BHytpn HET Detalei,
06cLyHNBAeMbIX NpIb3oBATEMe. 3a
TEXO6cLyHNBAHHeM O6paauTecb K
KBaHNoCnHPOBaHOMy nepcoHaNy,
06ecneuHBAoUcEmy cepBNCHOe 06cLyHNBAHHe.

o6paTnte BnMaHne

• IcnoB3OBAbY yCTpoiCtBO TOnbKO NO pRmOMy Ha3HaueHnIO -IJIaAMHHpOBaHnI DOKymeHTOB
  He BBOIDTe B yCTPOIcTBo NaKeT 6e3 DoKymeHTa
  JaHHO yCTPOINCTBO DOJHKHO NOHNIOUaTbC K NCTOCHNY NHTAHN C HnPaJIeHNEM, COOTBETCTBYUOM BEIUNHaM, yKa3aHHbIM Ha yCTPOINCTBE
• Исторы сокардама в гостордама
• Дiversification of the solidified rock
• Y6eIITecb, YTO B yCTPOINCTBE OTCYTCBYOT NaKeTbIC DOHymeHTAMN, INpeJHe Yem NOMEaTb Tya CLeDyUOuN IaKeT
• PerylaRHO ouNtae poNkI lamHaTopa
  -ДлЯлamHHIOBAAHЯДOKуMeHTaФOPMaTaA4ИСПОЛь3уTe NaKeT pa3MepOM 303 MMx210 MMилamHaTop GBC Fusion 3000L A4
  -ДялamHHIOBAAHЯДOKуMeHTaФopMaTаA3Испь3уTe NaKeT pa3MepOM 426 MMx 303 MMилamHaTop GBC Fusion 3100L A3
• PnI lamHHnpoBaHn DOKyMeHTOB He60JIbIoo pa3Mepa, BKNIOUeHHa yHKuIN npedOTBpaueHn 3amTn MOKeT He onpeJeNtB npo6Jemy
• HecobJIOeHHe Tpe6oBaHn npBBeTeK NOBpeKDeHNo yCTpoiCTBa n aHHyJInpOBaHIO rapaHTn

peMOHTHO-TexHnuechoe 6cnyKuBaHne

He npednpnHmMaTe nonbToK 06cnyHnBaT bI npemOHtnpOBAb TaMHaTop camocToTeJbHO. B clyuae HeNCnPabHOCTn CledyET OTKIOUHTb N3dJIe N CBaTbC ppeCTaBNTeIe M Texo6cnyHnBaHn KOMnAHn GBC n IO6bIM Heo6xOHMbIM pemOHThbIM pa6OTam.

TexHnuechne xapaHTepncTnH

Эльскрпитане Fusion 3000L A4:220-240B / 50Фц/60Фц/3,5A / 850 BaTTFusion 3000L A3:220-240B / 50Фц/60Фц/5,0A / 1200 BaTTFusion 3100L A3:220-240B / 50Фц/60Фц/6,5A / 1550 BaTT
Размениства A4: 370 x 107,5 x 80 MMA3: 465 x 109 x 81 MM
Вес устroduства A4: 1,3 кг	A3: 1,64 кг
Манималаяши рида naнета	A4: 241 MMA3: 303 MM

HHTeJIeHTyaIbHbIe 6oEBoI rOToBHOCTN

Bcnyae HnpaBnIbHoN NoaChn IIO6 3amTna Bbl yCbIbIwHte HeckOJIbKO KOpOTKHX 3ByKOBbIX CNrHaIOB, PpeDynpEJaHOuX NObb3oBaTeY O Heo6xOIMOCtN PrnHATNa MEp, TaHHe 6yJeT MmTaB KpacbHnHdINKaTOP CO 3HauchOM 3amTna8V.

PykoBOdCTBOpeH3

JAMHaTop Fusion 3000L A3 n Fusion 3000L A4

HaHMMTe HyeepHHaBte KhoNky OcBO6OKeHnnpHHMHO pbyara W n3BleKeHTe NaKeT,NOTAHyB eO Ha Ce6ra, n3 lamHHaTopa.

PykoBocTo 06paTHOM

JAMHaTop Fusion 3100L A3

HaHMMITE ydepeKnBaIe KhoNky o6paTHoro XOJa<<do NOHOro N3BLeueHn DOkymeHTa n3 lamHHaTopa.

HHTeJIeKryaIbHOe nTahHe

Iy oecneeyn IOnHInTeJbHO 6e3onacHocTH u CO6IOJeHH 3KOJIOrHuecknx HOpM NO nCTeHn 30 MHyT 6e3dEINCTBn JAMHaTOP aBTOMaTHueckn nepeKlouaETcB V CnAun peKm).Pepe TEm, KaK 3TO npOn3oJTe, Bby yCbluHTe ODHOKpaTHbIK KOPOTKn 3ByKOBO CNrHaI.

CHCTKa

NPEDUNPEHJENHE.NEPED NCTHOB HBEHNE NOBEPXHOCTN OTCOEDINHTE YCTPOICTBO OT PO3ETN 3JIENTPONTAHN.IPOTPAITE BHESHIO IO NBEPXHOCTb TOJIbHO BIAJHHO THAHbIO.3APPEUAETCN CNOJIb3OBATb DnA 3TOI CEIN MOIOUIE CPECDTBA INI PACTBOPHTELN.

PerynphO ouHauTe poHn, nporoHra Ype3 lamHHaTOp YnCTaun JnCT nJn JnCT 6ymarN. KOn dIy 3akasa YnCTaero ncta: EK50000.

rapaHTnA

Pa60Ta DaHOrO yCTpoiCTBa o6ecneuBaTeTcB DByXLeTHe rapaHTne OT DaTbI npNo6peTeHn npYcNoBn HopMaJIbHO hKcnLIyatauN. B pAMkax rapaHTnHoro nepnoa KOMNaHn ACCO Brands Europe Ha CBOE YCMOTpeHne Ipon3BeDet IIn6o peMOHT, IIn6o 3ameHy HeNCnPabHOrO yCTPOiCTBa 6ecPiAtHO. DaHHa rapaHTnHa he pacpOCTpaHrTcH a HEnCnpaBHocTN, Bb3BaHHbIe HecobIOdeHem npABNJ EKcnLIyatauN NIN NCNOJb3OBaHNEM N3dEJIINB H EnpeDyCMOTpeHHbIX cJIeJx. Heo6xoIMo NOtBepJXDeHne DaTbI npNo6peTeHn. Pa60Tb IO pEmOHTy MOnDiKauN, npObeDEHbIe JInCaMn, He IMeOUsHM cepTHFNKaUHN KOMNaHN ACCO Brands Europe, npeKpaAioT DeIcTBne rapaHTn. Mbl CTpeMHMCr o6ecNEuHTb BlicOKHe 3KcnLIyatauONHbIe CBOIcTBa N3dEJIINa CORlacoH npEOcTAbENHO cNeuΦHKaUHN. DaHHa rapaHTn He 3aTpaRnBaet IopNiueChne npaba NotpeBnteB B pAMkax COOTBETCTByUoIero HaunOHALBOHO 3akHOdaTeNbCTBa, perylnpyuOero npOdaJy TObApOB.
