USER MANUAL AES 10001 Alpha Tools

GB Original operating instructions Energy Station

Danger! - Read the operating instructions to reduce the risk of inquiry

GB

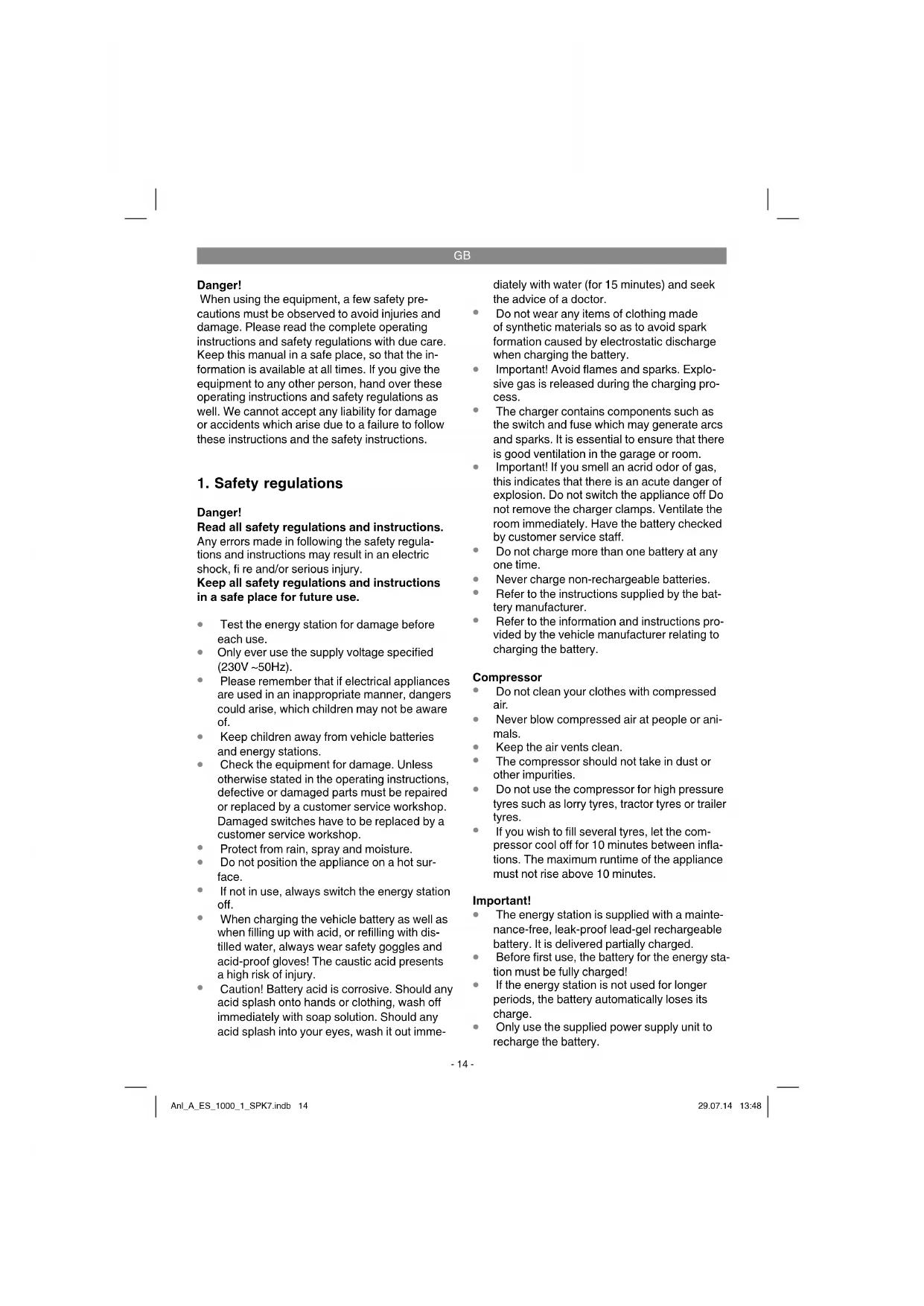

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

• Test the energy station for damage before each use.
• Only ever use the supply voltage specified (230V \~50Hz).
• Please remember that if electrical appliances are used in an inappropriate manner, dangers could arise, which children may not be aware of.
• Keep children away from vehicle batteries and energy stations.
• Check the equipment for damage. Unless otherwise stated in the operating instructions, defective or damaged parts must be repaired or replaced by a customer service workshop. Damaged switches have to be replaced by a customer service workshop.
  • Protect from rain, spray and moisture.
• Do not position the appliance on a hot surface.
• If not in use, always switch the energy station off.
• When charging the vehicle battery as well as when filling up with acid, or refilling with distilled water, always wear safety goggles and acid-proof gloves! The caustic acid presents a high risk of injury.
• Caution! Battery acid is corrosive. Should any acid splash onto hands or clothing, wash off immediately with soap solution. Should any acid splash into your eyes, wash it out imme-

diately with water (for 15 minutes) and seek the advice of a doctor.
- Do not wear any items of clothing made of synthetic materials so as to avoid spark formation caused by electrostatic discharge when charging the battery.
- Important! Avoid flames and sparks. Explosive gas is released during the charging process.
- The charger contains components such as the switch and fuse which may generate arcs and sparks. It is essential to ensure that there is good ventilation in the garage or room.
- Important! If you smell an acrid odor of gas, this indicates that there is an acute danger of explosion. Do not switch the appliance off Do not remove the charger clamps. Ventilate the room immediately. Have the battery checked by customer service staff.
- Do not charge more than one battery at any one time.
• Never charge non-rechargeable batteries.
• Refer to the instructions supplied by the battery manufacturer.
• Refer to the information and instructions provided by the vehicle manufacturer relating to charging the battery.

Compressor

• Do not clean your clothes with compressed air.
• Never blow compressed air at people or animals.
• Keep the air vents clean.
• The compressor should not take in dust or other impurities.
• Do not use the compressor for high pressure tyres such as lorry tyres, tractor tyres or trailer tyres.
• If you wish to fill several tyres, let the compressor cool off for 10 minutes between inflations. The maximum runtime of the appliance must not rise above 10 minutes.

Important!

• The energy station is supplied with a maintenance-free, leak-proof lead-gel rechargeable battery. It is delivered partially charged.
• Before first use, the battery for the energy station must be fully charged!
• If the energy station is not used for longer periods, the battery automatically loses its charge.
• Only use the supplied power supply unit to recharge the battery.

GB

Disposal

Batteries: Only dispose of these items through motor vehicle workshops, special collection points or special waste collection points. Ask your local council.

Environmental protection

Please take care that packaging, used batteries or defective batteries are not disposed of with household waste. Always dispose of them correctly.

2. Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• energy station with compressor
• power supply unit for charging
• connecting cable with cigarette lighter plug
• valve adapter set
• Original operations instruction

3. Proper use

The equipment is suitable for the jump starting of 12 V starter batteries (lead acid batteries) with too little battery capacity and for the direct or indirect connection of 12 V consumers with max. 10A power consumption to the cigarette lighter socket. Be sure to observe the operating instructions of the equipment which you connect to the energy station. With the integrated 12 V car compressor you can inflate car, motorcycle and bicycle tires as well as sports balls, small water balls, small air mattresses and other similar items.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Storage battery: 12 V / 10 Ah
Output voltages / max. current consumption: ...... .... 12 V / 10 A via 1 cigarette lighter socket Mains voltage: .... 230 V \~ 50 Hz Output from power supply unit:
Nominal voltage: 15 V
Nominal current: 800 mA
Nominal power: 12 VA
Lamp....12V / 3 W
Compressor.... 12 V/18 bar

5. Charging the energy station

Notice! Move the ON/OFF switch (Fig. 1/Item 1) to „OFF“.)

5.1 Charging the energy station with the power supply unit

1. Plug the connecting cable of the supplied power supply unit in the charging socket „RE-CHARGE“ (Figure 1 / Item 2) on the unit.
2. Plug the power supply unit into a mains socket outlet for 230 V \~ 50 Hz. The red LED

GB

indicator (Fig. 1/Item 3) fl ashes.

1. It takes around 24 hours to charge the energy station.

Pressing the pushbutton (Fig. 1/Item 4) displays the charge state of the built-in battery on the integrated voltage meter (Fig. 1/Item 5).

5.2 Charging the energy station with the automobile adapter cable

The energy station can be charged through the automobile's cigarette lighter socket.

Notice! You should only charge the energy station when en route, as otherwise the unit will run down the vehicle's battery.

Never start the vehicle as long as the automobile adapter cable is connected to the cigarette lighter socket.

Insert the 12 volt plug of the automobile adapter cable into the automobile's cigarette lighter socket and insert the other end of the cable into the charging jack of the energy station marked "(RECHARGE)".

6. Outputs

Caution!

Output 12 V through the cigarette lighter plug connection.

10 Amperes max.:

• The 12 V output (Fig. 1 / Item 12) is designed to handle 10 A, i.e. there are max. 10 A available to use.
• Observe the power/electricity consumption values of the consumer, to prevent overloading the energy station. If only the power data of the consumer is known, the maximum electricity value can be easily calculated.

Example calculation:

Consumer: 12V / 50W

The electricity consumption is equal to:

50W / 12V = 4.17A

• The cigarette lighter cable provided can be used to connect a suitable consumer. It is protected by a 10 A fuse.
  • In order to use the 12 V output, remove the protective cap and connect the consumer.

Observe the voltage and electricity values of the appliances to be used, in order not to overload the energy station.

Overload could lead to destruction of the appliance.

The ON/OFF switch (1) for the jump-start cable must be in position "0".

7. Using the light

To switch the light on, proceed as follows: The light (Fig. 1 Item 6) is switched ON and OFF with the switch (Fig.1/Item 7).

8. Jump-start for motor vehicles

Danger!

• The charging cable with pole clips are situated on the side of the appliance.
• If you do not need the charging cable, do not remove this from the appliance.
• Important. Danger of short-circuit if pole clips are contacted.
• The energy station can only be used to jump-start partially discharged motor vehicle batteries. This means you can only convey a limited capacity into the motor vehicle battery.
  • The energy station is NOT designed to start completely discharged batteries!

The terminals are insulated to prevent accidental short-circuiting when connecting the terminals to the vehicle's battery and parts. Short-circuits must be avoided at all costs.

The jump-start feature of the energy station offers a welcome helping hand when having start-up difficulties because of low battery capacity in the motor vehicle battery.

We would like to point out that even standard vehicles are fitted with a whole host of electronic equipment (such as ABS, ASR, injection pump, on-board computer and car phone). The raised starting voltage and occurrence of voltage peaks could possibly lead to defects in the electronic components when starting up. Subsequent damage caused by jump-starting cannot be covered by the product liability insurance. Please also refer to the instructions in the owner's manuals for the car, radio, navigation system, etc.

GB

Only if the energy station is at full capacity can it be used for jump-starting.

Use of the energy station for jump-starting:

1. Connect the red cable (+) of the energy station with the POSITIVE pole (+) of the battery.
2. Connect the black lead (-) of the energy station to the body of the vehicle, e.g. to the ground strap or another free position on the motor block, as far as possible away from the battery, to avoid possible ignition of built up explosive gas.
3. The switch (Fig.1 Item 2) must be in the "ON" position when jump-starting.
4. Switch on ignition, wait approx. 5 min. DO NOT START THE CAR!
5. Now you can try to start the motor with the energy station connected. Make sure that the start attempt does not last more than 3 seconds, as a very high electric current flows, when starting a car.
6. First remove the pole clips on the ground strap (negative pole)
7. Finally remove the jump-start cable from the POSITIVE pole (+) of the car battery.
8. After this start attempt, the energy station must be recharged.

9. Battery status indicator

The voltage meter (Fig. 1/Item 5) keeps you constantly informed as to the charge status of the battery. Its indicator responds when you actuate the push-button (Fig. 1/Item 4).

Green

The battery is 50 - 100 % full.

Yellow

The battery is 0 - 50 % full and should be recharged.

Red

The battery is completely run down. The battery can reach this state after jump starting a vehicle, for example. The battery must be recharged. Continuing to operate the unit from this point may damage the battery.

In order to preserve the operating life of the battery, it should be recharged at least once every 3 - 5 months, irrespective of the amount of usage.

10. Replacing the lamp

The lamp must be switched off.

Proceed as follows to replace the lamp.

1. Using both hands, squeeze the lamp cover (Fig. 1/Item 6) together slightly from the sides, then pull the cover off.
2. Turn the lamp socket anti-clockwise.
3. Replace the lamp with the same style of bulb (i.e. 12 V/0.3 A).
4. To install the new lamp, proceed in reverse order.
5. Snap the light cover (Fig. 1/Item 6) back on.

11. 12 Volt compressor

11.1 Inflating tyres

Danger! Use an air pressure measuring device to measure the actual tyre pressure. Always observe the operating instructions when inflating the tyres.

1. Remove the valve cap from the valve.
2. Push the connector piece of the compressor all the way down over the valve (Fig. 2/Item 1).
3. Secure the connector piece by fl ipping back the locking lever on top of the connector (Fig. 2/Item 2).

11.2 Inflation of air mattresses etc.

Warning! Because of the material composition of air mattresses, dinghys etc, no exact air pressure indication can be given. Therefore make sure not to infl ate these objects too far, as they could burst.

• Select the appropriate adapter and insert it into the connector piece of the air hose.
  Adapter 1 (Fig. 3/Item 1): for air mattresses Adapter 2 (Fig. 3/Item 2): for sporting balls Adapter 3 (Fig. 3/Item 3): for beach balls
• Secure the connector piece by flipping back the locking lever on top of the connector (Fig. 2/Item 2).

11.3 Starting the compressor

Notice! Please read the bulleted items listed under "1. Important Notes" prior to starting up the compressor. Ensure that the compressor cools down for 10 minutes after it has run for 10 minutes.

- Check the pressure gauge (Fig. 4/Item 2) prior to switching on.

- To switch on, flip the ON/OFF switch (Fig. 4/Item 1) to „I“.

GB

- To switch off, flip the ON/OFF switch (Fig. 4/Item 1) to „0“.

12. Care and maintenance

Danger!

• When carrying out cleaning or servicing, the energy station must be switched off and all connections must be removed from the appliance.
• Use a soft dry cloth to clean the surface, and do not use any caustic solvents. If completely necessary, you can remove dirt with a slightly damp cloth.

Accumulators and battery-powered electrical appliances contain materials which are harmful to the environment. Do not dispose of batteries in normal household refuse. If the appliance has a fault or shows wear, remove the battery and send to ISC GmbH, Eschenstraße 6, D-94405 Landau, or if inseparable, send the battery pack. There, the manufacturer will dispose of the batteries in a professionally appropriate manner.

13. Repairs

Only let an authorised expert from a customer services workshop test the appliance if there are possible errors.

14. Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info

15. Waste disposal

Appliance, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are coded for purposes of separation when recycling.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Adapter, light bulb, rechargeable battery
Consumables* Flat fuse, miniature fuse
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion.
   Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

1. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

2. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Akumulatori i elektrouređaji pogonjeni akumulatorima sadrže materijale opasne po okoliš. Ove akumulatorske uređaje ne bacajte u kućno smeće. Nakon kvara ili istrošenosti uređaja izvadite akumulator i pošaljite ga na adresu tvrtke iSC GmbH, Eschenstraße 6 in D-94405 Landau, ili, ako su oni nerazdvojivi, pošaljite cijeli akumulatorski uređaj. Tamo će proizvođač zbrinuti uređaj na stručan način.

HR

Akumulators: 12 V/10 Ah

□87/404/EC_2009/105/EC
2005/32/EC_2009/125/EC
2006/95/EC
2006/28/EC
X 2004/108/EC
2004/22/EC
□1999/5/EC
□97/23/EC
□ 90/396/EC_2009/142/EC
□89/686/EC_96/58/EC
X 2011/65/EC
□2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.
□ 2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L_ = dB (A); guaranteed L_ = dB (A)
P = KW; L/∅ = cm
Notified Body:
2004/26/EC
Emission No.:

Standard references: EN 61558-1; EN 61558-2-6;

EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR007349

Documents registrar: Landauer Josef

Wiesenweg 22, D-94405 Landau/Isar

EH 07/2014 (02)
