USER MANUAL KA241Y ACER

Line drawing of a computer monitor with a blank screen and a base (no text or symbols)

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.

2. Turn off the LCD monitor and unplug the power cord.

3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
4. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
5. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.

6. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

7. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.

8. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
9. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
10. Store the LCD monitor in a room with a temperature of -20^ to 60^ C ( -4^ to 140^ F). Storing the LCD monitor outside this range may result in permanent damage.
11. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

• Monitor-to-PC signal cable is frayed or damaged.

- Liquid spills onto the LCD monitor or the monitor is exposed to rain.

• The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the foot stand to the base. (for selected models)
3. Turn clockwise to lock. Ensure that the base is locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

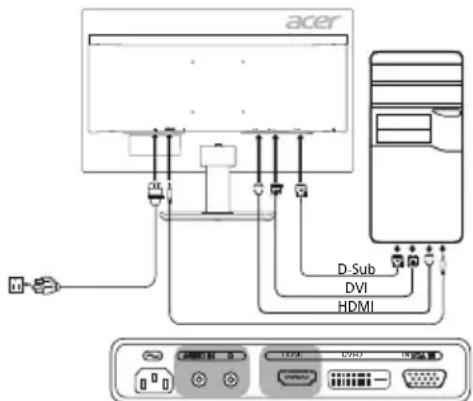

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.
2. 2-1 Connect Video Cable

a. Make sure both the monitor and computer are powered-OFF.

b. Connect the VGA video cable to the computer.

2-2 Connect Digital Cable (Only Dual-input model)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the monitor and connect the other end to the computer's port.

2-3 Connect HDMI Cable (Only HDMI-input model) (Optional)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.

1. Connect the Audio Cable. (Optional)
2. Insert the monitor power cable into the power port at the back of the monitor.
3. Plug the power cords of your computer and your monitor into a nearby electrical outlet.

External Controls

No.IconItemDescription
1, 2		Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
3	Input	Input button Press to toggle input sources.

4 Volume button Press to activate the volume sliding scale.

5 OSD funzions			Press to view the OSD. Press again to enter a selection in the OSD.
6	AUTO	Auto adjust button/Exit	If the OSD is active, press Auto to exit the OSD. Once the OSD is inactive, press Auto and the monitor will automatically optimize the display position, focus, and clock of your display.
7 Empowering key			Press the Empowering Key to open the Acer eColor Management OSD and access the scenario modes.

acer D-Sub DVI HDMI

optional

7 6 5 4 3 2 1

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice:

Acer monitor is purposed for video and visual display of information obtained from electronic devices.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SPECIFICATION

LCD Panel	Driving System TFT Color LCD
	Size 23.8"W (60 cm)
	Pixel Pitch 0.2745 mm (H) x 0.2745 mm (V)
	Brightness	250 cd/m^2 (Typical)
	Contrast 100000000:1 Max (ACM)
	Viewable Angle 178° (H) 178° (V) (CR=10)
	Response Time 4 ms (G to G)
	Panel Type VA
	Video R, G, B Analog Interface
	H-Frequency 31 kHz - 83 kHz
	V-Frequency 56 - 76 Hz
Display Colors 16.7M Colors
Dot Clock		VGA/HDMI: 170 MHzDVI: 165 MHz
Maximum Resolution 1920 x 1080 @ 60 Hz
Plug & Play VESA DDCCI/DDC2B
Energy Efficiency Class B
*Annual Energy Consumption 38 (kWh) (for HDMI-Input Model)
Power Consumption (at 200 nits)	On Mode 21 W (Typical)
	Sleep Mode	0.5 W (Typical)
	Off Mode	0.35 W (Typical)
Input Connector		D-SubDVI-D 24 pin (Only Dual-Input Model)HDMI (Only HDMI-Input Model)
Input Video Signal		Analog: 0.7 Vp-p (standard), 75 OHM, PositiveDigital signal (Only Dual-Input Model)HDMI (Only HDMI-Input Model) (Optional)
Speakers		2 W x 2 (Optional)
Maximum Screen Size		Horizontal: 534.74 mmVertical: 313.26 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 0° to 40°CStorage Temp: -20° to 60°COperating Humidity: 20% to 80%
Dimensions		539.9 (W) x 422.4 (H) x 212.9 (D) mm
Weight (N. W.)		4.11 kg (net)
Mechanism Specifications		Tilt: -5° to +20° (Only at the highest point can 20 degrees of recline be offered for the angle of elevation)Swivel: NoHeight adjustment: NoPivot: NoDetachable foot stand: Yes (Detachable foot stand with screw release)
External Controls	Switch/Buttons	Power Button Input Volume MENU/ENTER Auto/Exit E(Empowering) Key
	Functions	Brightness Contrast Blue Light ACM H. Position (Only Analog input model) V. Position (Only Analog input model) Focus (Only Analog input model) Clock (Only Analog input model) Auto Configuration (Only Analog input model) Color Temperature 6-axis Hue 6-axis Saturate Volume Over Drive Language OSD Timeout Input Auto Source DP Format Wide Mode DDC/CI On/Off Quick Start Mode Display information Reset All Settings Exit
All specifications are subject to change without notice.

Find manuals and other documents for your Acer product on the official Acer support website.

*Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.
