USER MANUAL PSSA 3.6 D4 PARKSIDE

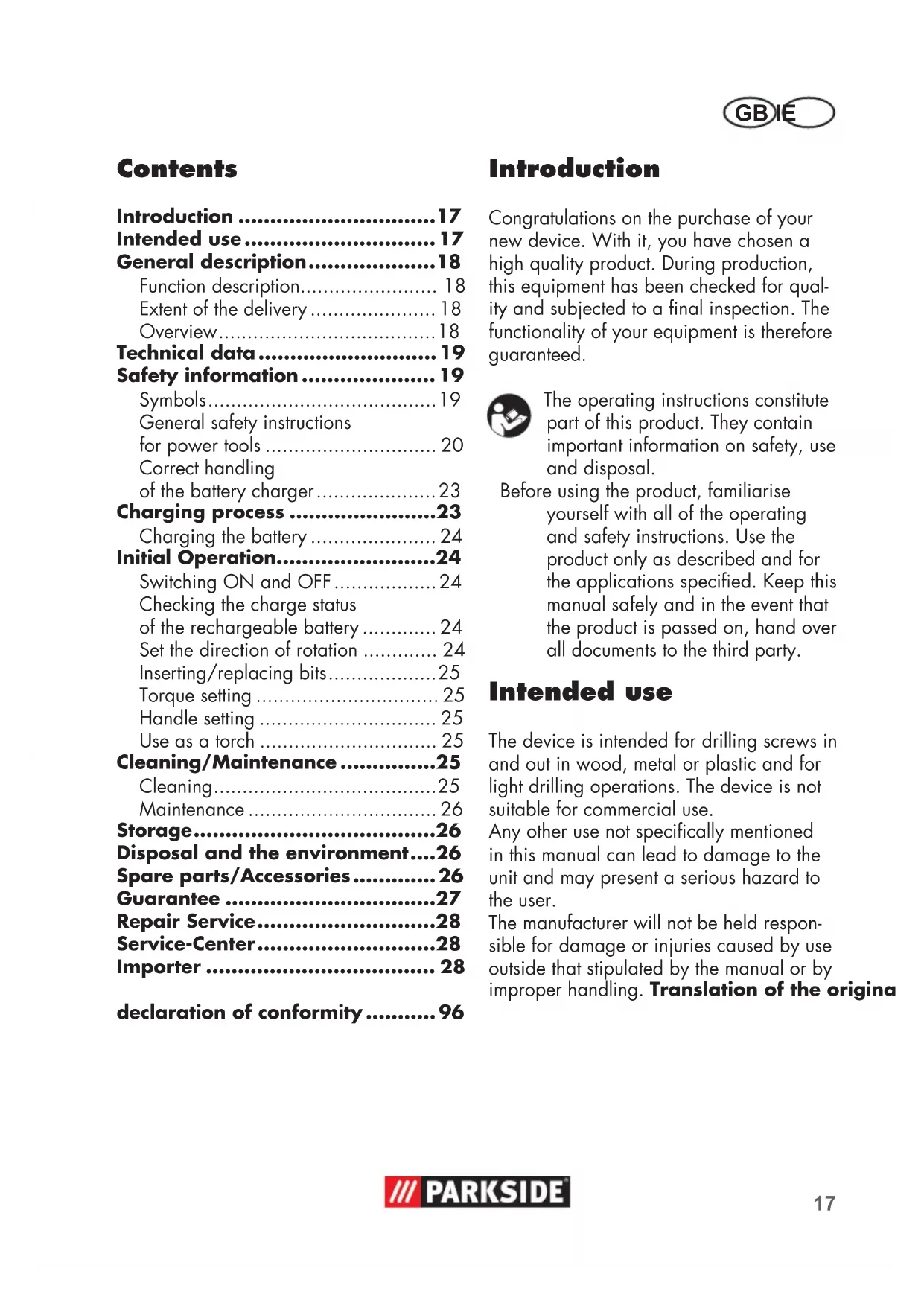

• Contents Introduction p. 17
• Intended use p. 17
• General description p. 18
• Function description p. 18
• Extent of the delivery p. 18
• Overview p. 18
• Technical data p. 19
• Safety information p. 19
• Symbols p. 19
• General safety instructions for power tools p. 20
• Correct handling of the battery charger p. 23
• Charging process p. 23
• Charging the battery p. 24
• Initial Operation p. 24
• Switching ON and OFF p. 24
• Checking the charge status of the rechargeable battery p. 24
• Set the direction of rotation p. 24
• Inserting/replacing bits p. 25
• Torque setting p. 25
• Handle setting p. 25
• Use as a torch p. 25
• Cleaning/Maintenance p. 25
• Cleaning p. 25
• Maintenance p. 26
• Storage p. 26
• Disposal and the environment p. 26
• Spare parts/Accessories p. 26
• Guarantee p. 27
• Repair Service p. 28
• Service-Center p. 28
• Importer p. 28
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for qual- ity and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended use The device is intended for drilling screws in and out in wood, metal or plastic and for light drilling operations. The device is not suitable for commercial use. Any other use not specically mentioned in this manual can lead to damage to the unit and may present a serious hazard to the user. The manufacturer will not be held respon- sible for damage or injuries caused by use outside that stipulated by the manual or by improper handling. Translation of the original EC declaration of conformity GB IE p. 96

General description The illustration of the prin- cipal functioning parts can be found on the front foldout pages. Function description The cordless screwdriver with clockwise/ anticlockwise rotation has 6 torque steps, one drilling level and one LED work light. Furthermore, the device can be used as a torch. Please read the following descriptions for the function of the various controlling parts of the unit. Extent of the delivery Carefully unpack the appliance and check that it is complete. Dispose of the packaging material cor- rectly. - Cordless screwdriver - Charger - 26 bits - 1 Bit holder - Case - Instruction Manual 26 bits: Slot No. No. No. No. No. No. No. Cross Cross Torx Hexagonal

Protection category ...................... IPX0 The noise and vibration levels have been calculated according to the norms stated in the conformity statement. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage condi- tions (all parts of the operating cy- cle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle). Safety information When using the device, please observe the safety instructions. Symbols Symbols in the manual Warning symbols (instead of the exclamation mark, the danger may be explained) with information on damage and injury prevention. Instruction symbols (the instruction may be explained at the place of the exclamation mark) with informa- tion on preventing damage. Wear ear protection. Help symbols with information on improving tool handling. Symbols on the unit Before using for the rst time, care- fully read through the user manual. Do not dispose of the device with the battery installed in household waste.GB IE

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pull- ing or unplugging the power tool. Keep cord away from heat, oil, sharp edges or mov- ing parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Symbols on the charger Attention! Read the manual. The charger is for indoor use only. Pole orientation Protection class II Electric devices do not belong with domestic waste. General safety instructions for power tools WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and in- structions for future use. The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-op- erated power tools (without power cord).

a) Keep work area clean and well lit. Cluttered or dark areas invite ac- cidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.GB IE

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inu- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce per- sonal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the pow- er tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and prop- erly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the bat- tery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of mov- ing parts, breakage of parts and any other condition that may af- fect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control.GB IE

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation. h) Hold the device by the insulated gripping surfaces when per- forming work in which the cut- ting tool may come into contact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of re if a charger that is suitable for a specic type of battery is used with other batteries. b) In the power tools, use only the batteries designed for the pur- pose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery con- tacts may cause burns or re. d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery uid may cause skin irritations or burns.

a) Have your power tool serviced by a qualied repair person us- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained.

7) SPECIFIC SAFETY INSTRUCTIONS

FOR POWER SCREWDRIVERS: a) Hold the appliance by the in- sulated handle grips when performing work in which the screw may come into contact with hidden wiring or its own power cord. If the screw were to come into contact with a live electrical cable, metal parts of the appliance could also become live and cause an electric shock.

a) Do not subject the battery to strong sunlight over long pe- riods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion. b) Allow a hot battery to cool be- fore charging. c) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.GB IE

Correct handling of the battery charger a) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. b) Do not use the charger to charge non-rechargeable batteries. c) Before each use, check the charger, cable and plug and have them repaired by qualied profession- als and only with original parts. Do not use a defec- tive charger and do not open it up yourself. This ensures that the safety of the de- vice is maintained. d) Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the speci- cations on the charger rating plate. Risk of electric shock. e) Disconnect the charger from the mains before closing or opening con- nection to the battery / power tool / device. This ensures that the battery and charger are not damaged. f) Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock. g) Operate the charger only with the appropriate original batteries. Charging other batteries may result in in- juries and risk of re. h) Avoid mechanical damage to the charger. This can re- sult in internal short circuits.

i) Do not operate the charg-

er on a combustible sur- face (e.g. paper, textiles). Risk of re due to heating dur- ing charging. j) In order to minimise the risk of electric shock, pull the charger plug out of the socket prior to clean- ing it. k) If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualied person in order to prevent hazards. Charging process Do not expose the battery to extreme conditions such as heat and impact. There is a risk of injury from leaking electrolyte solution! In case of contact, rinse with water or neutraliser and consult a doctor if contact has occurred with eyes etc.GB IE

Charge the battery only in dry areas. There is a risk of injury from electric shock.

• The device may only be powered with SELV (Safety Extra Low Voltage) as marked on the device.

• Before initial use, charge the battery installed in the equipment. Do not charge the battery for several short pe- riods in succession.

• To charge the integrated Li-ion battery of the device, preferably use the battery charger supplied.

• In all cases, observe the applicable safety information as well as the regu- lations and directions for environmen- tal protection.

• Defects resulting from improper han- dling are not subject to the guarantee. Charging the battery

1. Connect the charging cable con-

nector (12) with the charging socket (7) of the device.

2. Plug the charger (

3. The battery indicator (3) lights up:

red => Start of charging red and yellow => Battery appr. half charged red-yellow-green => Battery fully charged.

4. After the charging process,

disconnect the charger ( 13) from the mains supply. Initial Operation Wearing hearing protection reduc- es the risk of hearing damage. Switching ON and OFF

1. Press the on/off switch (8) to start

the device. The LED work light (10) lights up during operation.

2. To turn it off, release the on/off

switch (8). Overload protection: The safety cut-off of the device switches off in case of overload. Release the On/Off switch, the device can be switched on again after a few seconds. Checking the charge status of the rechargeable battery The battery indicator ( 3) signalises the state of charge of the battery.

• Press the On/Off switch, the state of charge of the battery is displayed by turning on the 3 coloured LED lights: red-yellow-green => Battery fully charged red and yellow => Battery appr. half charged red => Battery is empty, please charge. Set the direction of rotation You can select the direction of rotation with the direction switch (clockwise and anti- clockwise direction) and secure the device against accidental start up.

1. Wait for the device to shut-

2. Clockwise direction:

Press direction switch (9) to the right.

3. Anticlockwise direction:

Press direction switch (9) to the left.

4. Switch lock: Bring direction

switch to neutral position.GB IE

Direction switch may only be acti- vated at a standstill to prevent dam- age to the transmission. Inserting/replacing bits Prior to commencing any work on the device, bring the direction switch (

9) to the neutral position

in order to prevent an accidental start up.

1. Insert the desired bit (14) or bit

holder (15) into the bit adapter (11). It locks into place audibly.

2. To remove the bit or bit holder

pull the spring sleeve (1) back.

3. With the spring sleeve (1) pulled

back remove the bit or bit holder from the bit adapter (11). Release the spring sleeve. Torque setting Always turn off the device, before setting the torque.

1. Turn the adjusting ring (2) to se-

lect the desired torque: Step 1 --> lowest torque, Step MAX --> highest torque (5Nm). Screws: Steps 1 - 6 Drilling: Step MAX.

2. Start with a lower torque step

and increase according to re- quirement. The necessary torque is dependent on: - the type and hardness of the material to be treated; - the type and length of the screws used. Handle setting Prior to commencing any work on the device, bring the direction switch (

9) to the neutral position in

order to prevent an accidental start up. The device can be locked in two hand settings: - Pistol grip position - Rod position Press the release key PRESS (4) and turn the handle (6) of the device by 180°. It locks into place audibly. Use as a torch

1. Press the torch lens (5) on the

underside of the handle (6). The torch LEDs light up.

2. To switch off the LEDs press the

torch lens (5) again. Cleaning/Maintenance Leave any work not covered in this manual to our Service Centre. Only use original parts. There is a risk of injury! Cleaning Clean and service the device regularly as fol- lows. This guarantees a long life for your unit: Do not jet water onto the ap- pliance and do not clean it un- der owing water. This would result in the danger of an elec- tric shock and the appliance could be damaged.

• Keep the ventilation slits, motor housing and handles on the equipment clean. To do this, use a damp cloth or brush.GB IE

Never use cleaning agents or solvents, which can cause irreparable damage to the unit. Maintenance The device is maintenance free. Storage

• Keep the device in the blade guard sup- plied, dry and out of reach of children.

• Store the battery only in a partially charged state. The state of charge should be 40 – 60 % over a longer storage pe- riod.

• Store the device between 10° C and 25° C. During storage, avoid extreme cold or heat so the battery does not lose power.

• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3months. Disposal and the environment Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have nished with them. Machines do not belong with do- mestic waste. Do not dispose of the device with the battery installed in household waste, re (risk of explosion) or water. Damaged batteries may damage the envi- ronment and your health if toxic fumes or liquids leak out.

• Dispose of the equipment with the battery discharged. Do not open the equipment or the battery.

• Dispose of the equipment in accord- ance with the local regulations. Take the equipment to a collection point, where it will be recycled in an environ- mentally friendly manner. For informa- tion about this, ask your local waste management company or our service centre.

• Defective units returned to us will be disposed of for free. Spare parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” page 28). Please have the order number mentioned below ready. 26 Bits .................................. 91104080 Bit holder .............................. 91104081 Charger EU ........................... 80001062 Charger UK ........................... 80001063GB IE

Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. bits, charger) or to cover damage to break- able parts (e.g. switches, batteries). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identica- tion number (IAN 290720) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.GB IE

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In or- der to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We hereby conrm that the Cordless screwdriver PSSA 3.6 D4 series Serial number 201712000001 - 201803260700 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2014/35/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied: EN 60745-1:2009+A11:2010 • EN 60745-2-2:2010 EN 55014-1:2006/A2:2011 • EN 55014-2:2015 • EN 62471:2008 EN 61000-3-2:2014 • EN 61000-3-3:2013 EN 60335-2-29:2004/A2:2010 • EN 60335-1:2012/A11:2014 • EN 62233:2008 This declaration of conformity (17)** is issued under the sole responsibility of the manufacturer: Christian Frank Documentation Representative Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, GERMANY

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the Europe- an Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.** The last two digits of the year in which the CE marking was afxed. 96FR
