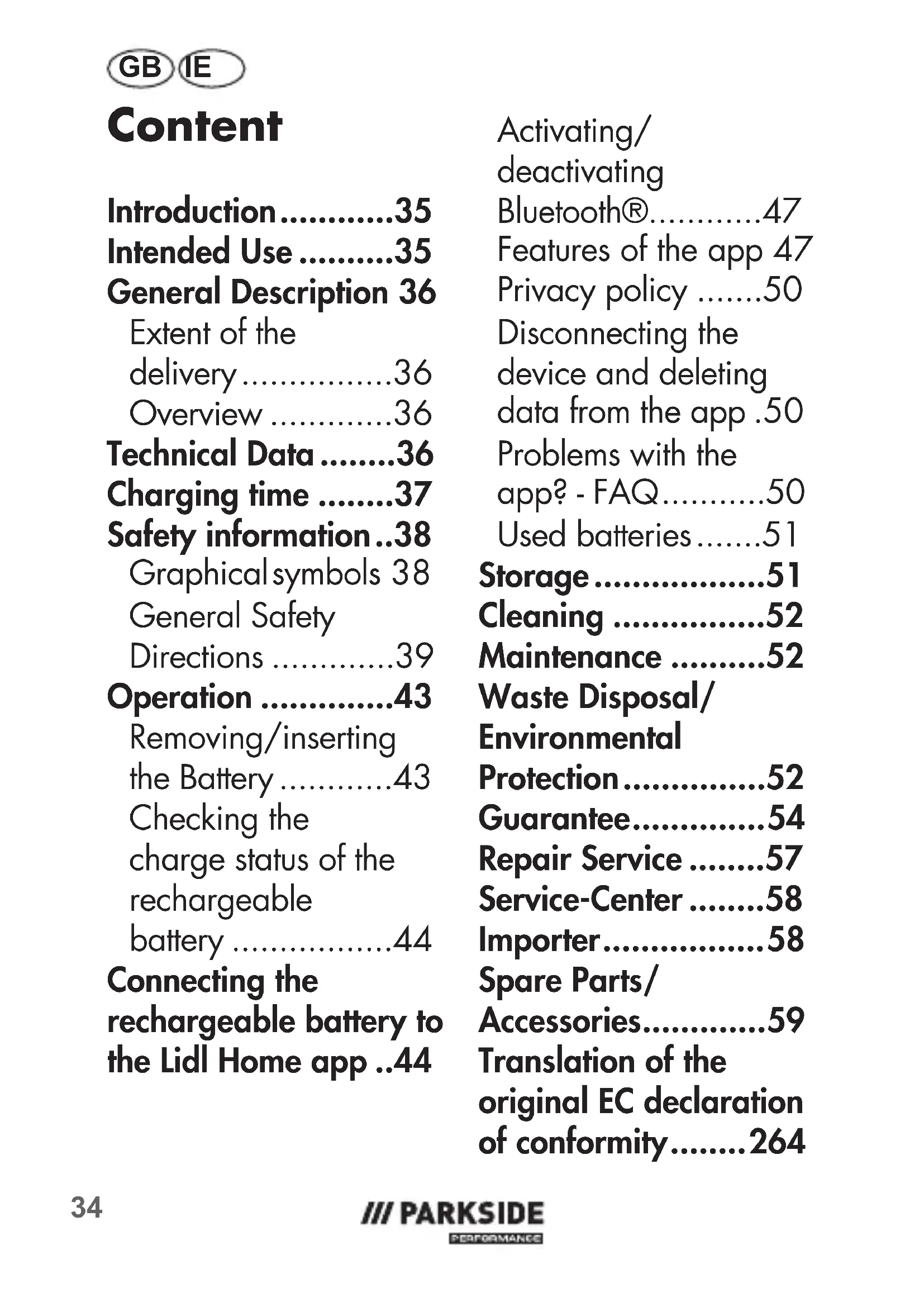

• 124834 GB IE Content Introduction p. 35
• Intended Use p. 35
• General Description 36 Extent of the delivery p. 36
• Overview p. 36
• Technical Data p. 36
• Charging time p. 37
• Safety information p. 38
• Graphical symbols 38 General Safety Directions p. 39
• Operation p. 43
• Removing/inserting the Battery p. 43
• Checking the charge status of the rechargeable battery p. 44
• Connecting the rechargeable battery to the Lidl Home app p. 44
• Activating/ deactivating Bluetooth® p. 47
• Features of the app 47 Privacy policy p. 50
• Disconnecting the device and deleting data from the app .50 Problems with the app? - FAQ p. 50
• Used batteries p. 51
• Storage p. 51
• Cleaning p. 52
• Maintenance p. 52
• Waste Disposal/ Environmental Protection p. 52
• Guarantee p. 54
• Repair Service p. 57
• Service-Center p. 58
• Importer p. 58
• Spare Parts/ Accessories p. 59
• Translation of the original EC declaration of conformity 5 GB IE Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equip- ment has been checked for quality and subject- ed to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions consti- tute part of this product. They contain important information on safety, use and disposal. Be- fore using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as de- scribed and for the ap- plications specied. Keep this manual safely and in the event that the product is passed on, hand over all docu- ments to the third party. Intended Use The rechargeable battery is compati- ble with all devices from the PARKSIDE X20VTEAM series. The batteries may only be charged using chargers from the PARK- p. 2643

• series. Any other use can damage the device and thus pose a sub- stantial risk to the user. This device is not suita- ble for commercial use.36 GB IE The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect oper- ation. General Description The illustra- tions can be found on the front fold- out page. Extent of the delivery - Rechargeable battery - Instruction manual The charger is not included in delivery. Dispose of the packag- ing material correctly. Overview 1 Release button 2 Button for the charge status display 3 Battery charge level indicator 4 Rechargeable battery Technical Data Battery (Li-Ion)
• Smart PAPS 204 A1 Battery cells p. 5
• Nominal voltage p. 20
• V Capacity p. 4
• .0 Ah Energy p. 80
• Wh Frequency performance .≤ 20 dBm Frequency band - 2483,5 MHz Temperature .max. 50°C37 GB IE Charging process p. 2400

resp. 50 - 60 °C with a charging current of max. 2 A

a charging current of max.6A Operation -20 - 50°C Storage 3 months .. -20 - 45 °C 1 year ....... 0 - 25 °C This type of battery may be charged with the following chargers: PLG20A3, PLG20C1, PLG20C3, PLG20A4, PDSLG20A1, SmartPLGS2012A1. An up-to-date list of battery compatibility can be found at: www.lidl.de/akku Charging time Battery SmartPAPS204A1 Char- ger PLG 20 C1 PLG 20 A4 120 min PLG 20 C3 PLG 20 A3 64 min PDSLG20A1 55 min Smart PLGS2012A1 42 min38 GB IE Safety information Graphical symbols Symbols in the manual Warning symbols with informa- tion on damage and injury pre- vention. Hazard symbol with informa- tion on the pre- vention of per- sonal injury caused by electric shock. Help symbols with informa- tion on improving tool handling. Symbols on the Battery This re- chargea- ble battery is part of the Parkside X20VTEAM series Read through the instruction manual carefully. Button for the charge status display

not dis- pose of batteries in39 GB IE household waste, re or water. Do not sub- ject the bat- tery to strong sunlight over long periods and do not leave it on a heat- er (max. 50 °C). The Blue- tooth

name and logos are regis- tered trademarks owned by the Blue- tooth SIG, Inc. and any use of such brands by Grizzly Tools GmbH & Co. KG is subject to a license. Other trademarks and brand names are the property of their respective owners. Take batter- ies to an old battery col- lection point where they will be recycled in an environmentally friendly manner. Electrical ap- pliances must not be dis- posed of with the domestic waste. General Safety Directions Caution! When using power tools, ob- serve the following basic safety meas- ures for the preven- tion of electric shocks and the risk40 GB IE of injury and re. Please read all these instructions before using this electric tool and please keep the safety instructions. Careful han- dling and use of battery devices

• Only recharge batteries using chargers be- longing to the

TEAM series. If a charger that has been designed for a particular type of battery is used to charge other batteries, there is a risk of re.

• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in in- juries and risk of re.

• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal ob- jects, which could cause bridging of the contacts. A short circuit between the bat- tery contacts may cause burns or re.

• If used incorrect- ly, liquid may leak from the41 GB IE over 130C° can cause an explo- sion.

• Follow all instruc- tions for charging and never charge the battery or the battery-pow- ered tool outside the temperature range stated in the operating instructions. In- correct charging or charging out- side the permit- ted temperature range may de- stroy the battery and increase the risk of re. Service

• Never repair damaged batter- battery. Avoid contact with this. In the event of ac- cidental contact, rinse off with wa- ter. If the liquid gets into eyes, seek medical as- sistance. Leaking battery uid may cause skin irrita- tions or burns.

• Do not use dam- aged or altered batteries. Dam- aged or altered batteries can be unpredictable and lead to re, explosion or risk of injury.

• Do not expose batteries to re or elevated tem- peratures. Fire or temperatures42 GB IE ies. All battery repairs should be carried out by the manufacturer or authorised customer service centres only. Special safety directions for battery- operated tools

• Ensure that the device is switched off be- fore inserting the battery. Inserting a battery into a power tool that is switched on may result in ac- cidents.

• Recharge the batteries indoors only because the battery charger is designed for indoor use only.

• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat dam- ages the battery and there is a risk of explosion.

• Allow a hot bat- tery to cool be- fore charging.

• Do not open up the battery and avoid mechan-43 GB IE ical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the res- piratory tract. Ensure fresh air and seek medical assistance.

• Do not use any accessories that are not rec- ommended by PARKSIDE. This can result in elec- tric shock or re. Observe the safety infor- mation and notes on charging in the instruction manual for your Parkside X20 V Team series tool and charger. Operation Removing/ inserting the Battery Only insert the rechargea- ble battery once the battery-operat- ed tool is ready for use. Risk of injury!

1. To remove the bat-

tery (4) from the appliance, press the release button (1) on the battery and pull out the battery.

2. To insert the battery

(4), place it on the guide track and push it into the appliance. It will audibly snap in.44 GB IE Checking the charge status of the rechargeable battery The battery charge sta- tus indicator (3) signal- ises the state of charge of the battery (4). Press the button (2) on the battery. The state of charge of the battery is displayed by illumi- nating the 3-colour LED lights of the state of charge display. 3 LEDs light up (red, orange and green): Battery is fully charged. 2 LEDs light up (red and orange): Battery has a residual charge. 1 LED lights up (red): Battery has to be charged Only charge the battery (4) when the red LED on the charge status indicator (3) is on. During char- ging, the char- ge status is continuous- ly shown on the charge level indicator (3). Connecting the rechargeable battery to the Lidl Home app Only Smart Per- formance rechar- geable batteries can be connected to the Lidl Home app.45 GB IE

1. Press the button for

the charge level indicator (2) on the smart battery for 3 seconds to ensure that Bluetooth® is activated on the battery. Also see the section “Activating/ deactivating Blue- tooth®”.

App. From here there are options

to connect the battery.

If the battery is the rst device you want to connect to the app:

tab, select the option „Add device“. The app scans the area for available devices and indica- tes if available de- vices have been found. If this is not the case, read on if possible

add“, the available devices are display- ed in a list.

6. Select the battery

by setting the check mark . Select only one device at a time. If there are other check marks for other devices, clear the check marks by pressing them.

, that has the same46 GB IE colour as the set check mark.

8. Conrm the success-

ful connection with „Finish“. The battery is now listed in the tab and can be selected.

If you have already connected other de- vices to the app:

select the in the upper right. The app scans the area for available devices and indicates if available devices have been found. If this is not the case, read on if possible

If a list of available devices is not automati- cally suggested to you: If the battery is not sug- gested automatically, follow these steps:

select the in the upper right.

7. Conrm that the dis-

play is ashing rapid- ly. The app now se- arches for available devices and suggests them to you.

8. Select the desired

battery by pressing the to add it to the app.

„Next“, then with „Finish“.47 GB IE Upgrading the rmware can change the features of the app. Activating/ deactivating Bluetooth® To activate Bluetooth®, press and hold the button for the charge level indi- cator (2) for 3 seconds until only the central LED is lit up, this means Bluetooth® is enabled and you can release the button for the char- ge level indicator (2). If you hold the button for the charge level indicator (2) for 10 seconds until the single yellow LED goes out, Bluetooth® is deacti- vated. The battery is shown in the Lidl Home app as “ofine”. Features of the app If you select a battery, this will take you to the overview page.

• Brief overview (above) Here, in the window above, a brief over- view of the rechargeab- le battery is provided with a picture. The current temperature, status, discharge to empty time and charge level in % are shown. If you swipe right in the top window, you will scroll through one dia- gram after another indi- cating the temperature48 GB IE curve, charging current curve, the discharge cur- rent curve and capacity curve of the battery. The red line in the temperature diagram shows the threshold to overheating. The black line shows the current battery temperature.

• Locking the battery Here you can lock the battery against use by specifying and conr- ming a PIN. You will then need the PIN again to unlock the battery.

• Battery work mode Here you can select between the different work modes: Perfor- mance, Balance, ECO and Expert. The low discharge voltage and max. cont- inual discharge current change depending on the work mode. You can set the low discharge voltage and max. continual dischar- ge current yourself in Expert mode by selec- ting this mode and then setting and conrming the desired value in the list provided.

• Notication Here you can select to receive a notication on your smartphone if the battery exceeds the overheating threshold. To do this, select the „Overheated Alarm Switch“ eld. You can illuminate the battery’s charge level indicator using49 GB IE the „Battery identier“ eld. The battery char- ge level indicator stops lighting up automatical- ly after a short time.

• °F/°C switch Here you can select between displaying the temperature in degrees Celsius and degrees Fahrenheit

• Information Here you will nd an overview of informati- on about the battery.

• Statistics Here you will nd the number of charging cy- cles, discharging cycles and total runtime of the battery.

- Settings You will nd the

the top right after you have selected the bat- tery. Press the icon again and you can assign a new image to the bat- tery under „Symbol“, you can rename the battery under „Name“ or assign a „Location“ to the battery. You can also access „Device info“ from this menu. Under „ Enable device“, you can authorise another user from the same household to use the battery via the Lidl Home app. You can also nd the frequently asked questions here under „FAQ“. In this menu, you can check whether the rmware needs to be upgraded and also perform the upgrade via „Check for rmware upgrade“.50 GB IE The battery can also be removed under „Re- move device“. See also chapter „Disconnecting the device and deleting data from the app“. Privacy policy The complete data pro- tection guideline can be found under the tab in the eld „Data protection guideline“. Disconnecting the device and deleting data from the app

tab, select the device that you want to remove and whose data you want to delete.

icon in the top right.

4. To delete the data,

select „Disconnect and delete data“. If you just want to disconnect the de- vice without deleting the data, select „Dis- connect“. Problems with the app? - FAQ

1. Select the battery

you have questions about from the de- vice list.

icon in the top right.

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be re- placed. Only use an OEM battery pack replacement availa- ble from our Custom- er Service.

• Always take heed of the applicable safety instructions as well as the environmental protection regula- tions and information (see “Cleaning and Maintenance”). Storage

• Remove the battery before storing the unit for longer pe- riods of time (e.g. hibernation).

• Store the battery only in a partial- ly charged state. During prolonged storage, 2 to 3 LEDs should be illuminat- ed.

• During a longer stor- age period, check the state of charge of the battery and recharge if neces- sary roughly every 3months.

• In order to keep the battery well charged, avoid exposing the appliance to extreme heat or cold in stor- age.

• The storage temper- ature for the battery is between -20°C52 GB IE and 45°C for 3 months, and between

0 - 25°C for a year.

Avoid extreme cold or heat during stor- age to ensure the battery output is not adversely affected.

• You can select the “Storage” charging function in the app settings of the smart charger for storage. This optimally charg- es the battery for storage. Cleaning Clean the battery with a dry cloth or with a paint brush. Do not use water or metal objects. Maintenance The equipment is main- tenance free. Waste Disposal/ Environmental Protection Remove the battery from the device and recycle the battery and packaging in an environmentally-friendly manner. Dispose of the packag- ing material properly. Electric units do not belong with domestic waste. Do not dispose of batteries in household53 GB IE waste, re (risk of ex- plosion) or water. Dam- aged batteries may damage the environ- ment and your health if toxic fumes or liquids leak out.

• Defective or used batteries must be recycled in accord- ance with Directive 2006/66/EC.

• Return the unit and the recharger to a recycling centre. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

• Dispose of batteries in discharged condi- tion. We recommend covering the pole with adhesive tape to prevent a short cir- cuit. Do not open up the battery.

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our ser- vice centre.

• Defective units re- turned to us will be disposed of for free.54 GB IE Guarantee Dear Customer, This device comes with a three-year warranty from the date of pur- chase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee pre- sented below. Terms of Guaran- tee The term of the guaran- tee begins on the date of purchase. Please retain the original re- ceipt. This document is required as proof of purchase. If a material or manu- facturing defect occurs within three years of the date of purchase of this product, we will re- pair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written de- scription of what con- stitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.55 GB IE Guarantee Peri- od and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be re- ported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guide- lines and conscien- tiously checked prior to delivery. The warranty is only valid for material or manufacturing defects. This warranty does not extend to consum- able parts exposed to normal wear and tear (e.g. battery capacity). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Neither does it extend to dam- age resulting from wa- ter, frost, lightning and re or improper trans- port. Precise adherence to all of the instructions specied in the operat- ing manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or56 GB IE warns must be categor- ically avoided. The product is de- signed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not un- dertaken by our author- ised service branch. Processing in Case of Guarantee To ensure efcient han- dling of your query, please follow the direc- tions below:

• Please have the receipt and item number (IAN 365905_2101

ready as proof of purchase for all en- quiries.

• Please nd the item number on the rating plate.

• Should functional er- rors or other defects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the57 GB IE defect and when it occurred. In order to avoid acceptance problems and addi- tional costs, please be sure to use only the address com- municated to you. Ensure that the con- signment is not sent carriage forward or by bulky goods, ex- press or other special freight. Please send the equipment inc. all accessories sup- plied at the time of purchase and ensure adequate, safe trans- port packaging. Repair Service For a charge, repairs not covered by the guarantee can be car- ried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with ade- quate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent car- riage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us.58 GB IE Service-Center

• EN IEC 63000:2018 EN 300 328 V2.2.2:2019 • EN 50663:2017 This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, Germany, 01.10.2021
