Inhaltsverzeichnis

Einleitung......4

Introduction......20

Proper use....20

Scope of delivery/accessories....21

Overview...... 21

Description of functions...... 21

Technical data.... 21

X 20 V TEAM.... 22

Safety information.... 22

Meaning of the safety information.... 22

Pictograms and symbols......23

General Power Tool Safety Warnings...... 23

Safety warnings for screwdrivers....25

Residual risks...... 26

Preparation......26

Control elements......26

Attaching and removing the attachment tool.... 27

Checking the battery charge level.... 27

Charging the battery.... 27

Operation......28

Working instructions...... 28

Inserting and removing the battery.... 28

Switching on and off.... 28

Transport.... 28

Cleaning, maintenance and storage....29

Cleaning.... 29

Maintenance....29

Storage....29

Disposal/environmental protection....29

Disposal instructions for rechargeable batteries....30

Spare parts and accessories......30

Service....30

Guarantee....30

Repair service....32

Service Centre....32

Importer....32

Translation of the original EU declaration of conformity....33

Exploded view....173

Introduction

Congratulations on purchasing your new cordless drywall drill and screw-driver (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following use:

- Screwing in and loosening screws Only operate in dry areas.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any acci-

dents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation. The device is part of the

X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Cordless Drywall Screwdriver
- Screw bit (63 mm: + PH2)
- Bit holder
- Storage case
• Translation of the original instructions
- Magazine attachment with instruction manual
- Rechargeable battery and charger with instruction manual

Overview

The illustrations for the device can be found on the front fold-out page.

1 Screw bit
2 Stop sleeve
3 Adjustment sleeve
4 Direction of rotation switch
5 Lock button
6 On/Off switch

7 Belt clip
8 Battery holder
9 Button (Charge level indicator)
10 Charge level indicator
11 Battery
12 Battery release
13 LED work light
14 Handle (Insulated gripping surface)
15 Tool holder
16 Bit holder
17 Charger

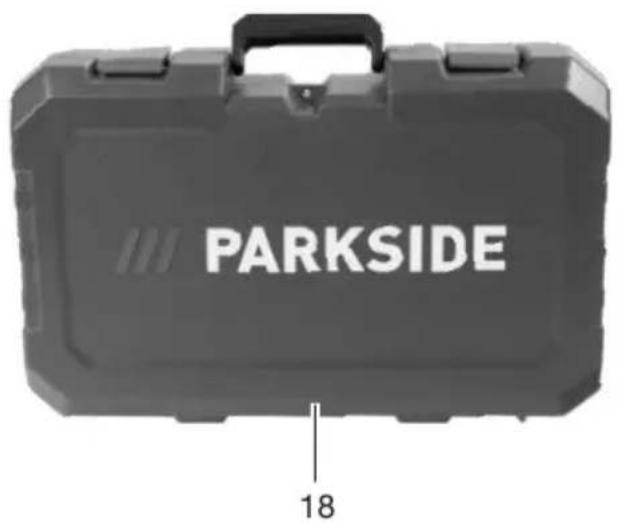

18 Storage case

Description of functions

The drywall screwdriver is equipped with a clutch that decouples the drive from the work spindle when a preselected screw depth is reached. Please refer to the descriptions below for information on how the operating elements work.

Technical data

Cordless Drywall Screwdriver PTBSA 20-Li A1

Rated voltage U .... 20 V = Weight with battery (20 V, 2 Ah) ..\~≈1.55 kg No-load rotation speed n₀ ..0–4000 min⁻¹

Max. torque ....15 Nm Tool holder .... ¼" (6.35 mm) Hexagon socket Sound pressure level (LpA) ....81.3 dB; KpA=3 dB Sound power level (LWA) ....89.3 dB; KWA=3 dB Vibration (ah) ..1.219 m/s²; K=1.5 m/s² Battery ....Li-Ion Temperature ....≤50 °C

• Charging 4 - 40 °C
• Operation ......-20 - 50 °C
• Storage 0 - 45 °C
  PARKSIDE Performance Smart battery Smart PAPS 204 A1/Smart PAPS 208 A1/Smart PAPS 2012 A1
  – frequency band .. 2400–2483.5 MHz
• transmitted power ....≤ 20 dBm

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

⚠ WARNING! The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used. Try to keep the exposure to vibrations as low as possible. An example of a measure to reduce vibration exposure is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

X 20 V TEAM

The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 204 A1, Smart PAPS 208 A1, Smart PAPS 2012 A1

We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C2, PLG 20 C3, PLG 201 A1, PDSLG 20 A1, PDSLG 20 B1, PDSLG 20 B2, Smart PLGS 2012 A1 Rechargeable battery and charger technical data: See separate manual.

Safety information

This section deals with the basic safety instructions for using the device.

⚠ WARNING! Injury and property damage due to improper handling of battery. Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the series X 20 V TEAM. A detailed description of the charging process and further information can be found in these separate operating instructions.

Meaning of the safety information

⚠️ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

⚠ WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

⚠ CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury.

NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols

Symbols on the device

The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Read the instruction manual

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

Symbols used in the instruction manual

Attention!

General Power Tool Safety Warnings

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many acci-

dents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact acci-

dentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Li- quid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

1. SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety warnings for screwdrivers

- Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and

could give the operator an electric shock.

• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.

- Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions.

- Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.

- Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

Residual risks

There will always be residual risks even if you operate this device according to the instructions. The following hazards may occur in connection with the type and design of this device:

• Hearing damage if suitable ear protection is not worn.
• Health injuries resulting from the effect of hand/arm vibration in the event that the tool is used over a longer period of time or is not used and maintained properly.
• Cutting injuries

⚠ WARNING! Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the tool.

Preparation

⚠ WARNING! Risk of injury due to unintentional start-up. Only insert the battery into the device once the device is fully prepared for use.

Control elements

Familiarise yourself with the operating elements before using the device for the first time.

• Direction of rotation switch (4)
NOTICE! Only operate the direction of rotation switch when the tool has stopped!
Direction of the switch viewed from behind:

• Left Screw in screw
• Centre Switch lock
  • Right Unscrew screw

- On/Off switch (6)

• Switching on: Press
• Control the speed progressively: The further you press the on/off switch, the higher the speed.
• Switching off: Release

- Lock button (5)

• Lock the on/off switch: Press
• Unlock the on/off switch: Press the on/off switch (6)

- Adjustment sleeve (3)

Direction of rotation as seen from behind.

turn: Increase screw depth

○ turn: Reduce screw depth

Attaching and removing the attachment tool

Notes

- Tool holder (15): 14'' (6.35 mm) Hexagon socket

Assembling the bit holder and screw bit

1. Pull off the stop sleeve (2) and the adjustment sleeve (3).
2. Insert the bit holder (16) into the tool holder (15).
3. Insert the screw bit (1) into the bit holder.
4. Attach the adjusting sleeve (3) and the stop sleeve (2).

Changing the screw bit

1. Pull off the stop sleeve (2).
2. Change the screw bit (1).
3. Attach the stop sleeve (2).

Removing the bit holder and screw bit

1. Pull off the stop sleeve (2) and the adjustment sleeve (3).
2. Pull the screw bit (1) out of the bit holder.
3. Pull the bit holder (16) out of the tool holder (15).
4. Attach the adjusting sleeve (3) and the stop sleeve (2).

Checking the battery charge level

LEDs Meaning

red, orange, green Battery charged red, orange Battery partially charged

red Battery needs to be charged

1. Press the button (9) next to the charge level indicator button (10) on the battery (11).
   The LEDs of the charge level indicator show how much charge remains in the battery.
2. Charge the battery (11) when only the red LED on the charge level indicator (10) is illuminated.

Charging the battery

See also the charger instruction manual.

Notes

• If warm, allow the battery to cool before charging.
• Do not expose the battery to direct sunlight for long periods and do not place it on a radiator (max. 50°C).

Charging the battery

1. Remove the battery (11) from the device.
2. Push the battery (11) into the charging slot of the battery charger (17).
3. Connect the battery charger (17) to a power outlet.
4. After charging, disconnect the battery charger (17) from the mains.
5. Pull the battery (11) out of the battery charger (17).

Control LEDs on the charger (17):

green red Meaning
lights up — Battery is fully chargedstand-by (No battery inserted)
— lights up Battery is charging
green red	Meaning
— flashes	Battery is	over-heated
flashes flashes	Battery is defective

Operation

Working instructions

General Information

• Because of the clutch, the screw bit only turns when it exerts pressure on the screw.
• First press the screw bit onto the screw head before switching on the device.
• The locking button is designed for operation with magazine attachment (available as accessory).

Screwing in screws with the depth stop

• Start with a shallow screw depth. Increase the screw depth gradually until you reach the desired screw depth.
• It is not possible to unscrew screws with a depth stop.

Inserting and removing screws without depth stop

• Pull off the stop sleeve (2).
• Work carefully when screwing in and unscrewing the screws. There is no torque limit.

Inserting and removing the battery

⚠ WARNING! Risk of injury due to unintentional start-up. Only insert the battery into the device once the device is fully prepared for use.

NOTICE! Risk of damage! An incorrect battery can damage the device and battery.

Inserting the battery

1. Push the battery (11) along the guide into the battery holder (8). You will hear the battery click into place.

Removing the battery

1. Press and hold the battery release (12) on the battery (11).
2. Pull the battery out of the battery holder (8).

Switching on and off

Switching on

1. Select the direction of rotation with the rotation direction switch (4).

2. Press and hold the On/off switch (6). The LED work light (13) illuminates.

3. Lock the On/off switch (6): Press the lock button (5) when the On/off switch is pressed all the way down.

Switching off

1. On/Off switch locked: Press the On/off switch (6).
2. To turn it off, release the on/off switch (6).
3. Wait until the power tool has stopped before placing it down.
4. During work breaks: Set the rotation direction switch (4) to the centre. This precaution prevents the power tool from starting unintentionally.
5. Remove the rechargeable battery (11) from the device if you are leaving the device unattended or if you have finished working.

Transport

Notes

• Turn off the device.

• Make sure that all moving parts have come to a complete stop.

• Remove the rechargeable battery.

• Remove the attachment tool.
  • Always carry the device by the handle (14).

Cleaning, maintenance and storage

⚠ WARNING! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and remove the battery (11).

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

⚠ WARNING! Electric shock! Never spray down the device with water. NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

- Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this.

Maintenance

The device is maintenance free.

Storage

Always store the device and accessories:

• clean
  • dry
  • protected against dust
  • out of the reach of children
  Devices with battery:

- The storage temperature for the battery and device is between 0 °C

and 45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

- Remove the battery from the device before storage over a longer period (see separate operating instructions for battery and charger).

Disposal/ environmental protection

Remove the battery from the device and recycle the device, battery, accessories and packaging in an environmentally-friendly manner.

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Disposal instructions for rechargeable batteries

Do not throw batteries into domestic waste, fire (risk of explosion) or water. Damaged batteries can harm the environment and your health if poisonous fumes or liquids escape.

Dispose of the batteries according to local standards. Defective or used

batteries must be recycled. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please contact your local waste management provider or our service centre. Dispose of batteries in a discharged state. We recommend covering the contacts with an adhesive strip to protect against short circuits. Do not open the battery.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 32

Pos. nr. p. 173* Name Order No.

2, 3, 16 1–9 Stop sleeve, Adjustment sleeve, Bit holder 91110366

Magazine attachment PMA 55 A1 91120173

*Exploded view

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product

for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately

after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Screw bit) or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use.

The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and product number (IAN 476212_2407) ready as proof of purchase for all enquiries.
• Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or

the sticker on the back or under- side of the product.

• Should functional errors or other defects occur, please initially contact the service centre specified below by telephone or use the contact form available on parkside-diy.com in the category Service.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search

mask. You can open your operating instructions by entering the article number (IAN) 476212_2407.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

• We can only work on devices which are sent in properly packed and with postage paid.
Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.
- The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.

- We will dispose of defective devices you ship to us free of charge.

Service Centre

GB Service Great Britain Tel.: [phone] Contact form on parkside-diy.com IAN 476212_2407

MT Service Malta Tel.: [phone] Contact form on parkside-diy.com IAN 476212_2407

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Translation of the original EU declaration of conformity

Product: Cordless Drywall Screwdriver

Model: PTBSA 20-Li A1

Serial number: 000001-070000

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC • 2014/30/EU • 2011/65/EU & (EU) 2015/863

Product with battery Smart PAPS 204 A1/

Smart PAPS 208 A1/Smart PAPS 2012 A1: 2014/53/EU

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN 62841-1:2015/A11:2022 • EN 62841-2-2:2014 • EN IEC 63000:2018

EN IEC 55014-1:2021 • EN IEC 55014-2:2021

IEC 62471:2006 • EN 62471:2008

Product with battery Smart PAPS 204 A1/

Smart PAPS 208 A1/Smart PAPS 2012 A1:

EN 301 489-1 V2.2.3:2019 • EN 301 489-17 V3.3.1:2024

EN 300 328 V2.2.2:2019 • EN 50663:2017

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation

Sommaire

Introduction......34

Reparationsservice......169

Service-Center.... 169

Importør......169

FSC® www.fsc.org MIX Paper from responsible sources FSC® C142944

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C142944
