USER MANUAL PBSA 12 E4 PARKSIDE

PDF ONLINE www.lidl-service.com

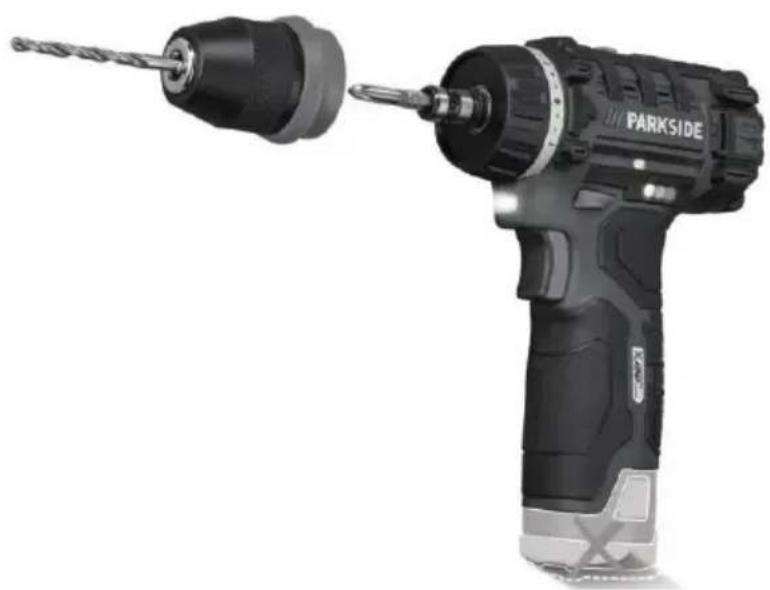

Black Parkside electric drill with a drill bit and power cord (no text or symbols visible)

Akku-Bohrschrauber 12 V / Cordless Drill 12V / Perceuse-visseuse sans fi l 12 V PBSA 12 E4

DE AT CH

Translation of the original instructions

NL BE

Accu-schroefboormachine 12 V

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / MT Translation of the original instructions Page

D 9 1 E 17 PARN

Inhalt

Einleitung......4

Bestimmungsgemäße

Verwendung......4

Service-Center....17

Importeur 17

Original-EG-

Intended purpose......18

General description......19

Extent of the delivery 19

Overview....19

Functional description 19

Technical data....19

Charging time 20

Safety instructions......20

Symbols and icons 20

General Safety Directions for Power Tools 21

Operation 25

Removing/inserting the Battery......25

Checking the battery charge level ....25

Recharging the battery....25

Choice of gear 25

Set the direction of rotation .....25

Torque setting 26

Tool change 26

Keyless drill chuck removal......26

Using the bitholder....26

Switching on/off......27

Cleaning and maintenance......27

Cleaning....27

Maintenance 27

Storage......27

Disposal and protection of the environment ....27

Replacement parts/accessories...28

Guarantee 28

Repair Service....29

Service-Center....29

Importer 30

Translation of the original EC declaration of conformity .....173

Exploded Drawing ......185

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device is intended for drilling screws in and out and for drilling holes in wood, metal or plastic.

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. The user or operator is responsible for accidents causing injury to other people or damage to property. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The device is part of the Parkside X 12 V TEAM series and can be operated using Parkside X 12 V TEAM series batteries. The batteries may only be charged using chargers from the Parkside X 12 V TEAM series.

General description

The illustrations are on the fold-out page.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Cordless Drill
• Storage case
• 8 Screw bits, length 50 mm:
  Cross recess: PHO, PH1, PH2, PZO, PZ1, PZ2 Recess: SL5, SL6

- 8 drill bits: 1.5 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm

- Bit holder, length 60 mm

- Instruction Manual

Battery and charger are not included.

Overview

1 Keyless drill chuck

2 Chuck ring
3 Torque adjustment ring
4 Battery Indicator
5 Speed selector
6 Direction of rotation switch
7 On/off switch
8 LED working light
9 Drill chuck aperture 10 Battery

11 Battery release button

12 Storage case 13 Charger

14 Screw bits

15 Bit holder

16 Drill bits

17 Bitholder

Magnetic bit holder

Functional description

The cordless drill with two-speed gearing has a 19+1 level torque adjustment, left/right running, a removable keyless chuck, a 6-point bitholder and an LED working light.

Technical data

Cordless Drill......PBSA 12 E4

Motor voltage U....12 V=Idling speed n _0

1st gear....0-350 min ^-1

2nd gear 0-1300 min ^-1

Maximum torque....28 Nm

Span-chuck ∅....0.8-10 mm

Weight ...... ca. 0.8 kg

Weight (accessories only)......ca. 0.9 kg

Drilling capacity

for wood....max. 25 mm

for steel max. 10 mm

Sound pressure level

(L_pA) 70.1 dB(A), K_pA = 5 dB

Sound power level

(L_WA) 81.1 dB(A); K_WA = 5 dB

Vibration ( q_n )

Drilling in metal .... < 2.5 m/s ^2

Screwdriving .... < 2.5 m/s ^2

K = 1.5 ~m / s^2

Temperature..... max. 50 °C

Charging process....4-40 °C

Operation....-20 - 50 °C

Storage....0-45 °C

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

Charging time

The device is part of the Parkside X 12 V TEAM series and can be operated with batteries of the Parkside X 12 V TEAM series.

Batteries of the Parkside X 12 V TEAM series may only be charged using chargers of the Parkside X 12 V TEAM series.

We recommend that you operate this appliance with the following batteries only: PAPK 12 A3, PAPK 12 B3, PAPK 12 D1.

We recommend charging these batteries with the following chargers: PLGK 12 A2, PLGK 12 B2.

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Charging time (min)	PAPK 12 A1 PAPK 12 A3	PAPK 12 A2	PAPK 12 B1 PAPK 12 B2 PAPK 12 B3	PAPK 12 D1
PLGK 12 A1 60	0 60 120 150
PLGK 12 A2 60	0 60 120 150
PLGK 12 B2 30	0 45 60 80
PDSLG 12 A1	60 45 60 80

Safety instructions

Ensure that the safety instructions are observed when operating the appliance.

Symbols and icons

Symbols on the appliance:

Carefully read these operating instructions.

This device is part of the Park-side X 12 V TEAM series

Electrical appliances must not be disposed of with the domestic waste.

Symbols on the drill set:

Wear personal protective equipment. Wear eye protection!

Wear hearing protection!

Wear a dust protection mask!

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols with information on preventing damage.

Help symbols with information on improving tool handling.

General Safety Directions for Power Tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a RCD (Residual Current Device) protected supply with a rated leakage current of not

more than 30 mA. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose

clothes, jewellery or long hair can be caught in moving parts.

g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small

metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 °C can cause an explosion.

g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

7) ADDITIONAL SAFETY INSTRUCTIONS

a) Hold the appliance by the insulated gripping surfaces when performing work in which the tool may come into contact with hidden wiring. Contact with a live wire can also cause a charge in metal parts of the appliance and result in an electric shock.

b) Hold the device by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord. If the screw were to come into contact with a live electrical cable, metal parts of the appliance could also become live and cause an electric shock.

c) Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

8) SAFETY INFORMATION FOR USING LONG DRILLS

a) Do not work at a speed higher than the maximum permissible speed for the drill. Higher speeds can cause the drill to bend slightly when rotating freely without contact with the workpiece and can also cause injury.

b) Always begin drilling at a low speed and when the drill is in contact with the workpiece. Higher speeds can cause the drill to bend slightly when rotating freely without contact with the workpiece and can also cause injury.

c) Do not apply excessive pressure to the drill. Only apply pressure lengthwise along the drill. Drills can bend and break or cause a loss in control, thus resulting in injuries.

9) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 12 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Operation

Remove the rechargeable battery from the device to prevent accidental operation. Risk of injury!

Ensure that the ambient temperature does not exceed 50°C or fall below -20°C during work.

Removing/inserting the Battery

1. To remove the battery (10) from the appliance, press the release button (11) on the battery and pull out the battery.
2. To insert the battery (10), place it on the guide track and push it into the appliance. It will audibly snap in.

Checking the battery charge level

The battery's (10) charge level is indicated by the charge state indicator (4).

The LEDs indicate the battery's charge level, when the device is in operation. Press and hold the power button (7).

red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged

Recharging the battery

Allow a hot battery to cool before charging.

Charge the battery (10) when only the red LED on the level indicator is illuminated.

1. Remove the battery (10) from the appliance if necessary.
2. Plug the battery charger (13) into a mains outlet.
3. Insert the battery (10) in the charging compartment of the battery charger (13).
4. Pull the battery (10) out of the battery charger (13).
5. Unplug the battery charger (13) from the mains.

Overview of the LED indicators on the charger (13):

Green LED illuminated while the rechargeable battery is not inserted:

Charger is ready

Green LED lights up: Battery is charged

Red LED lights up: Battery charging

Red LED flashes: Error

Choice of gear

Slide the gear selector (5) to 1 or 2, corresponding to a low or high torque selection.

1st gear....0-350 min ^-1

2nd gear 0-1300 min ^-1

A gear change may only be performed in standstill mode!

Set the direction of rotation

You can select the direction of rotation with the direction switch (clockwise and anti-clockwise direction) and secure the device against accidental start up.

The arrow on the direction switch indicates the working direction.

GB MT

1. Wait for the device to shut-down.
2. Clockwise direction: Press direction switch (6) to the right.
3. Anticlockwise direction: Press direction switch (6) to the left.
4. Switch lock: Bring direction switch to neutral position.

The direction changed may only be performed in standstill mode.

Torque setting

You can preset the maximum torque by rotating the torque adjustment ring (3).

19+1 torque levels are provided.

1. Turn the adjusting ring (3) to select the desired torque:

Step 1 -> lowest torque,

Step -> highest torque.

Screws: Steps 1 - 19

Drilling: Step

1. Start with a lower torque step and increase according to requirement.

Torque adjustment should only be performed in standstill mode.

Reaching the preset torque limit produces a noticeable rasping sound. This sound is caused by the slip clutch.

Tool change

1. Rotate the keyless chuck (1) towards RELEASE until the drill chuck aperture (9) is large enough to accommodate the tool.
2. Push the tool as far as possible into the keyless chuck (1).

3. Turn the keyless chuck towards GRIP in order to clamp the tool.

4. To remove the tool again, rotate the keyless chuck (1) and pull out the tool.

Keyless drill chuck removal

To use the bitholder (17), you must remove the keyless chuck (1).

1. Hold the keyless chuck (1) tightly from the front. Pull or push the drill chuck ring (2) in the direction of the keyless chuck (1).
2. This unlocks the keyless chuck (1) and it can be pulled off from the front.
3. In order to put the keyless chuck (1) back in position, pull the drill chuck ring (2) in the direction of the keyless chuck. Push the keyless chuck (1) on as far as it will go.

When setting the keyless chuck, a 25 mm bit may remain in the bit holder (17).

If the keyless chuck (1) does not engage automatically, turn the drill chuck ring (2).

Using the bitholder

After removing the keyless chuck (1) you can use the bitholder (17).

There is a magnet bit holder (C18) on the left and right of the housing.

You can attach one bit at a time to the magnetic bit holder.

1. Insert a suitable 6-point bit in the bitholder (17). Because of the 6-point bit holder, it may be that you need to rotate the bit slightly.

2. Slide the bit right into the bitholder (17). The bit is held firmly by the duct and the magnetic bitholder.

3. To remove the bit, simply remove the bit from the bitholder (17).

Switching on/off

By using the on/off switch (7) you can progressively control the speed. The longer you push the on-off button, the higher the speed.

1. Press the on/off switch (7) to start the device. The LED work light (8) lights up during operation.
2. To turn it off, release the on/off switch (7). When you move the direction switch (6) to the middle position, the device is secured against being switched on.

Cleaning and maintenance

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

Turn off the appliance and, before doing any servicing, remove the battery.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

- Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.

Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Maintenance

The appliance cleaner is maintenance free.

Storage

• Store the equipment in a dry place well out of reach of children.
• The storage temperature for the battery is between 0 °C and 45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

Disposal and protection of the environment

Remove the rechargeable battery before disposing of the device! The device, accessories and packaging should be properly recycled.

Instruction on how to dispose of the rechargeable battery can be found in the separate instruction manual for your battery and charger.

Machines do not belong with domestic waste.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Defective units returned to us will be disposed of for free.
• Defective or used batteries must be recycled in accordance with Directive 2006/66/EC.

GB MT

• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.

Replacement parts/ accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 29).

Keyless drill chuck (A 1)......91103354

Screw bits +

Drill bits (A 14+16)....91105284

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. keyless drill chuck) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and item number (IAN 385624_2107) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and

additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 385624_2107

Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 385624_2107

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ......47

Service-Center......47

Importateur ....47

Service-Center......61

Importeur ......61

Service-Center....75

Importer 75

Service-Center......88

Dovozce....88

Service-Center....101

Dovozca....101

Service-Center......114

Importør 114

Skruning: Trin 1 - 19

Boring: Trin

Service-Center....128

Importador 128

Service-Center....142

Importatore ....142

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

We hereby confirm that the Cordless Drill model PBSA 12 E4 Serial number 000001 - 507000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN 62841-2-1:2018/A11:2019 • IEC 62471:2006 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 • EN IEC 63000:2018
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, GERMANY 26.01.2022	Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Exploded view diagram of a disassembled electric motor with numbered parts for identification

informativ · informative · informatif · informatief · pouczający · informační informatívny · informativo · informatív · informativen

GRIZZLY TOOLS GMBH & CO. KG

FSC www.fsc.org MIX Paper from responsible sources FSC® C142944

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C142944

IAN 385624 _2107
