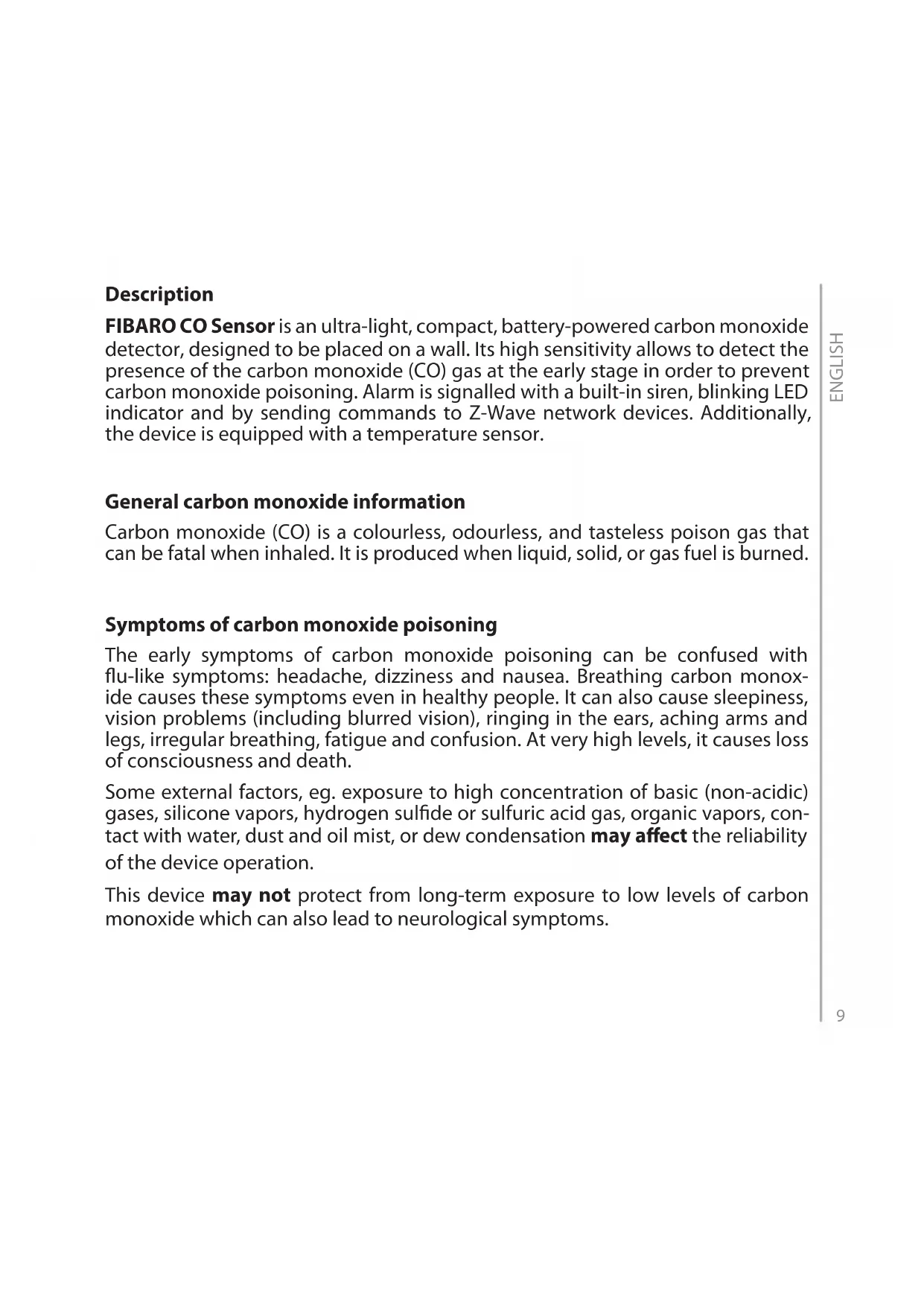

Description

FIBARO CO Sensor is an ultra-light, compact, battery-powered carbon monoxide detector, designed to be placed on a wall. Its high sensitivity allows to detect the presence of the carbon monoxide (CO) gas at the early stage in order to prevent carbon monoxide poisoning. Alarm is signalled with a built-in siren, blinking LED indicator and by sending commands to Z-Wave network devices. Additionally, the device is equipped with a temperature sensor.

General carbon monoxide information

Carbon monoxide (CO) is a colourless, odourless, and tasteless poison gas that can be fatal when inhaled. It is produced when liquid, solid, or gas fuel is burned.

Symptoms of carbon monoxide poisoning

The early symptoms of carbon monoxide poisoning can be confused with flu-like symptoms: headache, dizziness and nausea. Breathing carbon monoxide causes these symptoms even in healthy people. It can also cause sleepiness, vision problems (including blurred vision), ringing in the ears, aching arms and legs, irregular breathing, fatigue and confusion. At very high levels, it causes loss of consciousness and death.

Some external factors, eg. exposure to high concentration of basic (non-acidic) gases, silicone vapors, hydrogen sulfide or sulfuric acid gas, organic vapors, contact with water, dust and oil mist, or dew condensation may affect the reliability of the device operation.

This device may not protect from long-term exposure to low levels of carbon monoxide which can also lead to neurological symptoms.

Warnings

This product is not a toy. Keep away from children and animals!

Failure to observe recommendations included in this manual may cause risk to life and health or result in malfunction of the device.

The manufacturer, Fibar Group S.A. will not be held responsible for any loss or damage resulting from not following instructions of the manuals.

Risk of malfunction as a result of tampering with the device.

The device should be installed below the ceiling level.

The device should not be installed: in a bathroom, next to heat sources, within range of kids, obstructed from possible carbon monoxide sources, in direct sunlight.

The device is not a substitute for appropriate ventilation and exhaust systems.

Do not paint the device.

The device should be cleaned with a slightly damp cloth or moistened tissue.

Replace the device before date on the front or if sensor error is detected.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Apparatus may not prevent the chronic effects of carbon monoxide exposure. The apparatus will not fully safeguard individuals at special risk.

The remote alarm silencing function should only be used within sight of the apparatus.

If there is any question as to the cause of an alarm, it should be assumed that the alarm is due to a dangerous level of carbon monoxide and the dwelling should be evacuated.

Place of installation (page 4)

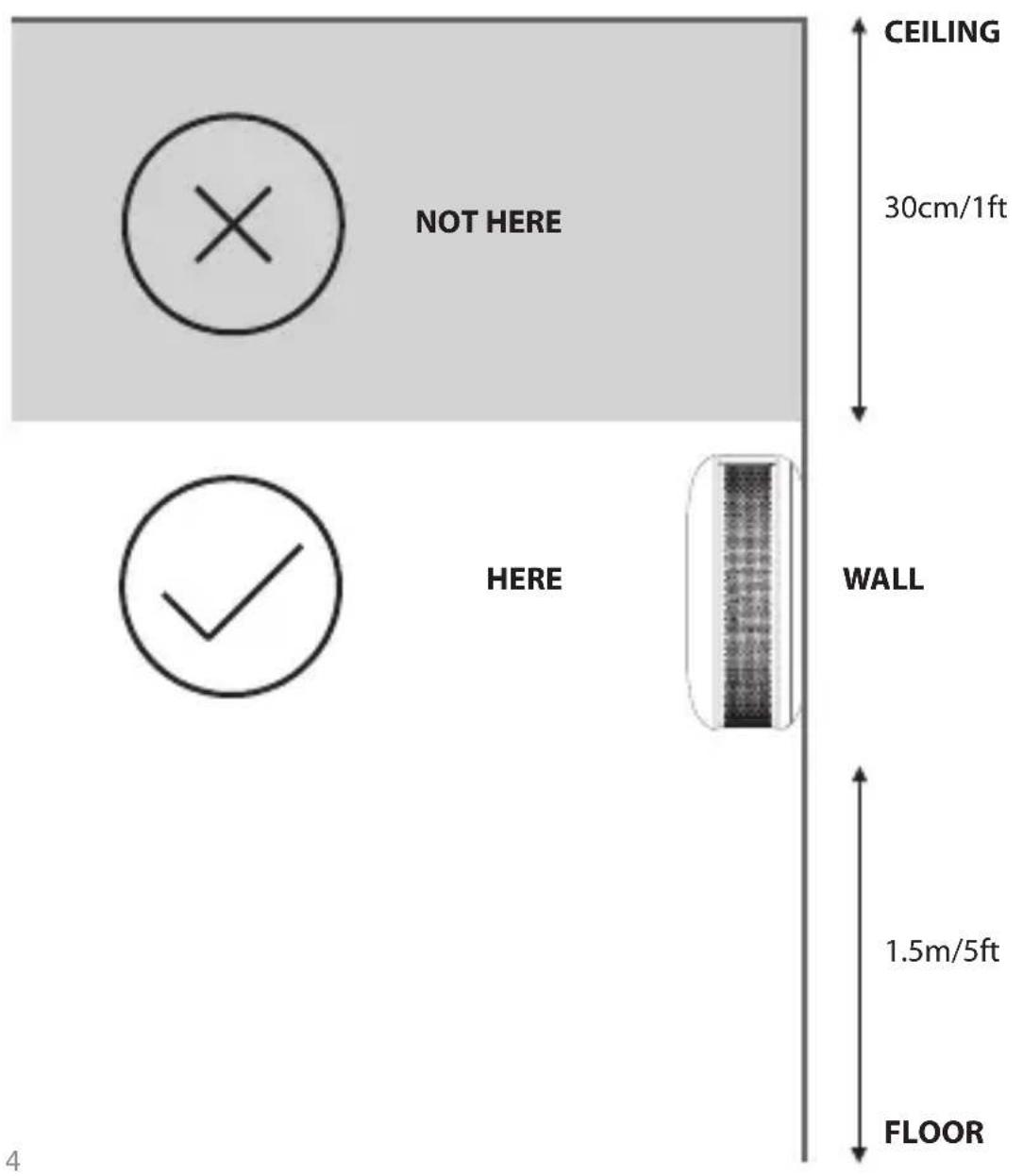

Install the device on the wall, at least 30cm (1 ft) away from the corner.

Recommended height of installation is dependant on the purpose of the room and height at which head typically is.

Installation (page 6/7)

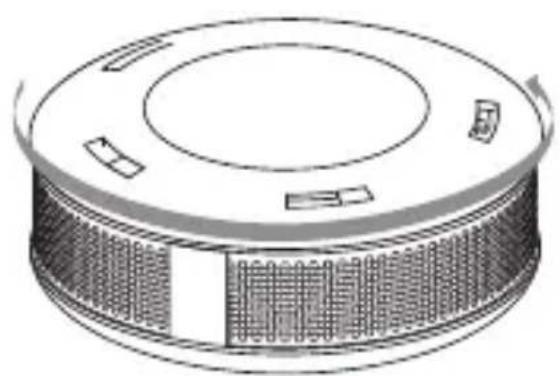

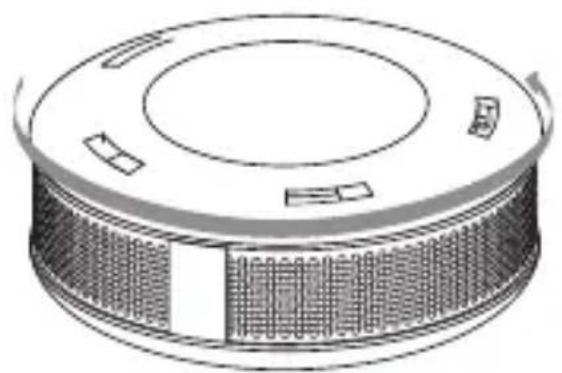

1. Turn the cover counter clockwise (Fig. 1).

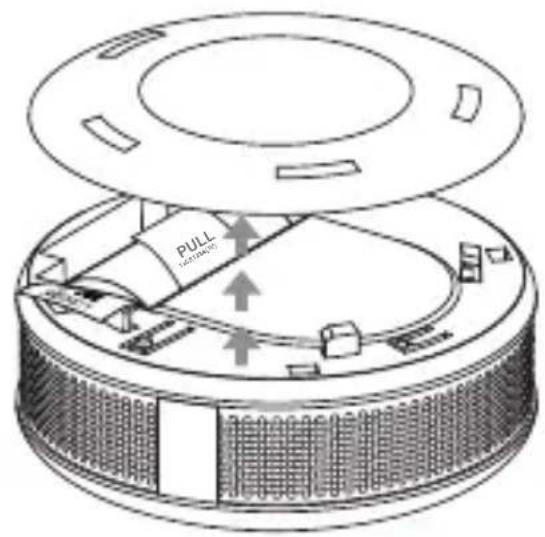

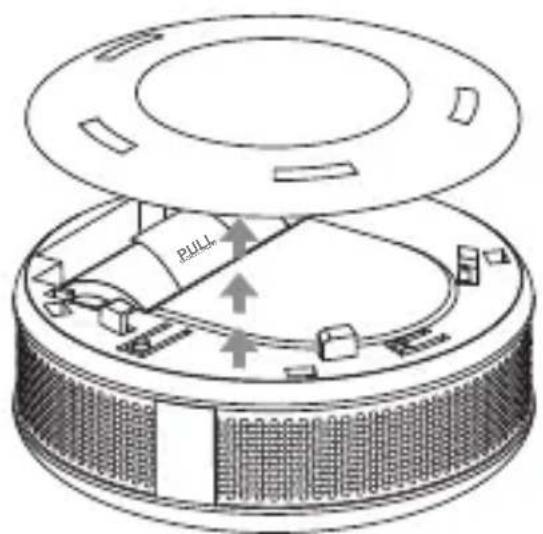

2. Take off the cover (Fig. 2).

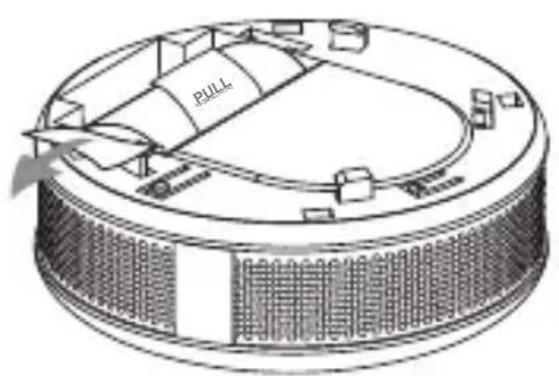

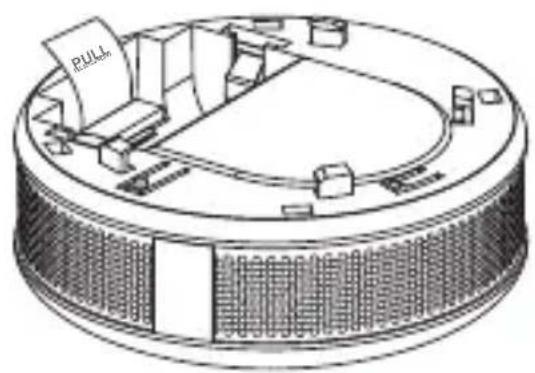

3. Remove the paper strip protecting the battery (Fig. 3).

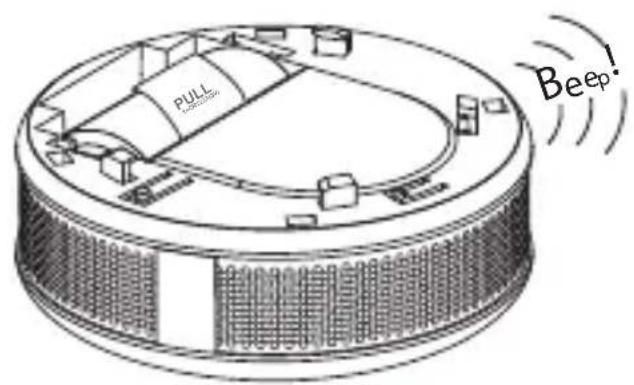

4. Proper powering up will be confirmed with a short beep (Fig. 4).

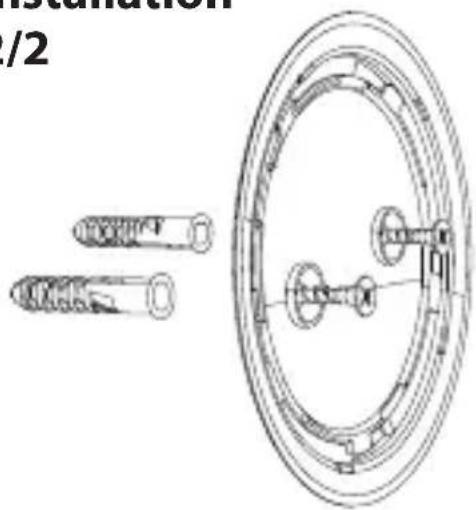

5. Mount the cover on a wall (Fig. 5).
6. Attach the device to its cover (Fig. 6).

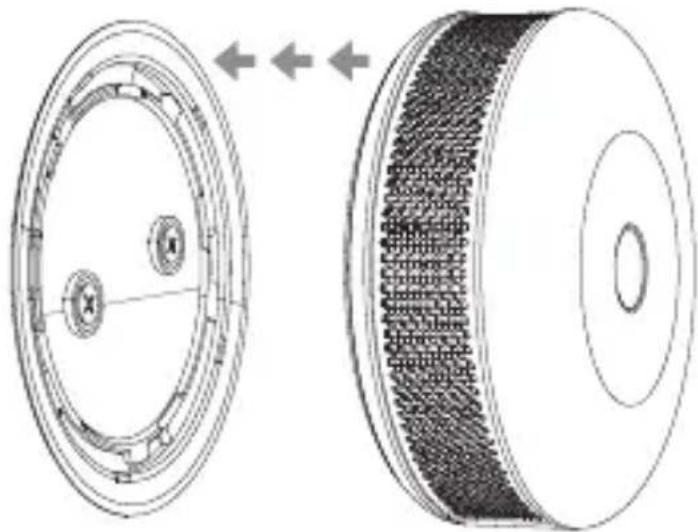

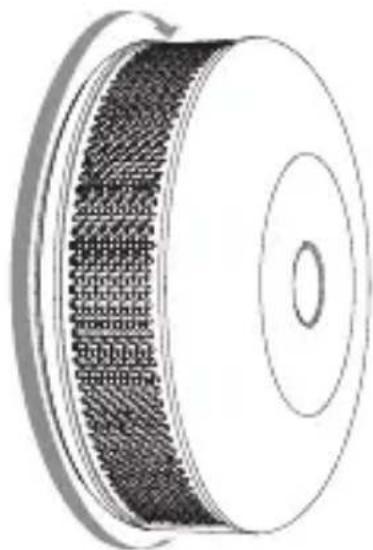

7. Turn the device clockwise to close it (Fig. 7).

WHAT YOU HEAR WHAT YOU SEE WHAT IT MEANS WHAT TO DO

4 x BEEP every 5s	4 x RED BLINK every 5s	DETECTED PRESENCE OF CARBON MONOXIDE WHICH CAN KILL YOU!	1. Open windows 2. MOVE TO FRESH AIR! 3. Contact emer- gency services
1 x BEEP	1 x YELLOW BLINK every 30s	Low battery level Replace battery
2 x BEEP every 60s	2 x YELLOW BLINK every 60s	Sensor error, DOES NOT DETECT CARBON MONOXIDE	Reset device, replace if no effect
3 x BEEP every 60s	3 x YELLOW BLINK every 60s	End of lifespan Reset device, replace if no effect
3 x BEEP every 30s	1 x BLUE BLINK every 30s	Heat alarm Be cautious of fire
1 x BEEP 1 x WHITE BLINK Tamper alarm Check housing
- 1 x GREEN BLINK every 60s		Device powered -
1 x BEEP 1 x GREEN BLINK after powering		Added to Z-Wave -
1 x BEEP 1 x RED BLINK after powering		Not added to Z-Wave	-
1 x BEEP 1 x MAGENTA BLINK Out of range Check Z-Wave
-	CYAN BLINKING	Firmware update	Wait for completion

Testing

Caution! The alarm is very loud! Only the first alarm sequence is quieter.

1. Press and hold the button.
2. The LED indicator will glow white and you will hear a short beep - keep holding.
3. Release the button when you hear the first alarm sequence.
4. Move away from the device to protect your hearing.

Battery replacement (page 5)

1. Remove the device from the cover by turning it counter-clockwise.

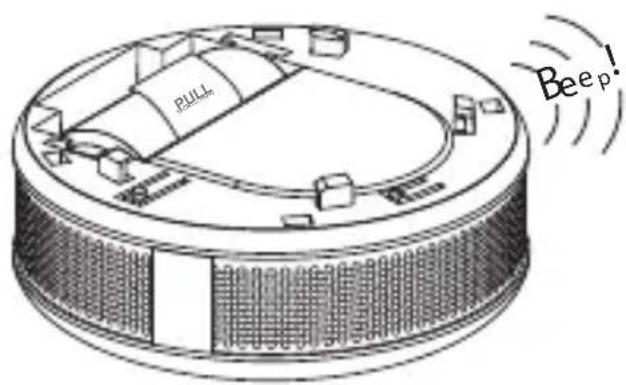

2. Pull the paper strip to take out the battery.
3. Press and hold the button for at least one second.
4. Insert a new CR123A battery observing the polarities shown inside.
5. Attach the device to its cover by turning it clockwise and perform the test.

Use only type of battery specified in this manual and keep proper polarity!

Z-Wave procedures

Adding to the network

1. Place the device within direct range of the Z-Wave controller.
2. Set the main Z-Wave controller into adding mode.
3. Quickly, triple click the button located on the casing.
4. Wait for the device to be added into the system.
5. Install the device in desired location.

Reset

1. Press and hold the button.
2. Release the button when LED indicator glows white.
3. Click the button when LED indicator glows yellow.
4. After few seconds the device will be reset (confirmed by red LED indicator).

Technical data

Battery type: 3V, CR123A (included)

Battery life: 3 years on default

settings (tested with Panasonic Industrial Lithium)

Lifespan 8 years under typical conditions:

Operating 0 - 50^ (32-122°F) temperature:

Operating 10-95%RH without humidity: condensation

Measuring ±10ppm / ±5% accuracy:

Type of Type B apparatus:

Alarm re- 50ppm 60-90min
sponse times 100ppm 10-40min
on default 300ppm < 1.5min
settings:

Radio Z-Wave protocol:

Radio 868.0-868.6 MHz (EU) frequency: 869.7-870.0 MHz (EU) 915.0-928.0 MHz (ANZ, BR)

Max. transmit -5 dBm (EU) power:

Dimensions 65 x 28 mm (d x h):

Conformity EN 50291-1:2018 with:

Declaration of Conformity

Hereby, Fibar Group S.A. declares that the device is in compliance with Directives 2014/53/EU and 2011/65/EU, 2015/863. The full text of the EU declaration of conformity is available at the following internet address: manuals.fibaro.com

WEEE Directive Compliance

Device labelled with this symbol should not be disposed with other household wastes. It shall be handed over to the applicable collection point for the recycling of waste electrical and electronic equipment.

Guarantee terms and conditions

1. FIBAR GROUP S.A. with its registered office in Wysogotowo, ul. Serdeczna 3, 62-081 Wysogotowo, entered into the Register of Entrepreneurs of the National Court Register maintained by the District Court for Poznan-Nowe Miasto and Wilda in Poznan, VIII Commercial Division of the National Court Register (KRS) under number: 553265, NIP 7811858097, REGION: 301595664, share capital PLN 1,182,100 paid in full, other contact information is available at: www.fibaro.com (hereinafter "the Manufacturer") guarantees that the device sold (hereinafter: "the Device" is free from material and manufacturing defects.
2. The Manufacturer shall be responsible for malfunctioning of the Device resulting from physical defects inherent in the Device that cause its operation to be incompatible with the specifications within the period of:
3. 24 months from the date of purchase by the consumer,
4. 12 months from the date of purchase by a business customer (the consumer and business customer are further collectively referred to as "Customer").
5. The Manufacturer shall remove any defects revealed during the guarantee period, free of charge, by repairing or replacing (at the sole discretion of the Manufacturer) the defective components of the Device with new or regenerated components. The manufacturer reserves the right to replace the entire Device with a new or regenerated device. The Manufacturer shall not refund money paid for the device.
6. Under special circumstances, the Manufacturer may replace the Device with a different device most similar in technical characteristics.
7. Only the holder of a valid guaranty document shall be entitled to make claims under guarantee.
8. Before making a complaint, the Manufacturer recommends using the telephone or online support available at https://www.fibaro.com/support/.
9. In order to make a complaint, the Customer should contact the Manufacturer via the email address given at https://www.fibaro.com/support/.
10. After the complaint has been properly filed, the Customer will receive contact details for the Authorized Guarantee Service ("AGS"). The customer should contact and deliver the Device to AGS. Upon receipt of the Device, the manufacturer shall inform the Customer of the return merchandise authorization number (RMA).
11. Defects shall be removed within 30 days from the date of delivering the Device to AGS. The guarantee period shall be extended by the time in which the Device was kept by AGS.
12. The faulty device shall be provided by the Customer with complete standard equipment and documents proving its purchase.

13. The cost of transporting the Device in the territory of the Republic of Poland shall be covered by the Manufacturer. The costs of the Device transport from other countries shall be covered by the Customer. For unjustified complaints, AGS may charge the Customer with costs related to the case.

14. AGS shall not accept a complaint claim when:

15. the Device was misused or the manual was not observed,
16. the Device was provided by the Customer incomplete, without accessories or nameplate,
17. it was determined that the fault was caused by other reasons than a material or manufacturing defect of the Device
18. the guarantee document is not valid or there is no proof of purchase,
19. The guarantee shall not cover:
20. mechanical damages (cracks, fractures, cuts, abrasions, physical deformations caused by impact, falling or dropping the device or other object, improper use or not observing the operating manual);
21. damages resulting from external causes, e.g.: flood, storm, fire, lightning, natural disasters, earthquakes, war, civil disturbance, force majeure, unforeseen accidents, theft, water damage, liquid leakage, battery spill, weather conditions, sunlight, sand, moisture, high or low temperature, air pollution;
22. damages caused by malfunctioning software, attack of a computer virus, or by failure to update the software as recommended by the Manufacturer;
23. damages resulting from: surges in the power and/or telecommunication network, improper connection to the grid in a manner inconsistent with the operating manual, or from connecting other devices not recommended by the Manufacturer.
24. damages caused by operating or storing the device in extremely adverse conditions, i.e. high humidity, dust, too low (freezing) or too high ambient temperature. Detailed permissible conditions for operating the Device are defined in the operating manual;
25. damages caused by using accessories not recommended by the Manufacturer
26. damages caused by faulty electrical installation of the Customer, including the use of incorrect fuses;
27. damages caused by Customer's failure to provide maintenance and servicing activities defined in the operating manual;
28. damages resulting from the use of spurious spare parts or accessories improper for given model, repairing and introducing alterations by unauthorized persons;
29. defects caused by operating faulty Device or accessories.
30. The guarantee shall not cover natural wear and tear of the Device and its components listed in the operating manual and in technical documentation as such elements have a defined operational life.
31. The Device Guarantee shall not exclude, limit or suspend the Customer's warranty rights.
32. The Manufacturer shall not be liable for damages to property caused by defective device. The Guarantor shall not be liable for indirect, incidental, special, consequential or punitive damages, or for any damages, including, inter alia, loss of profits, savings, data, loss of benefits, claims by third parties and any other damages arising from or related to the use of the Device.
