976 - Toilet DOMETIC - Free user manual and instructions

Product type	Portable toilet
Brand	Dometic
Model	976
Flush water tank capacity	8.7 litres
Collection tank capacity	18.9 litres
Number of flushes per fill	27 flushes
Flush type	Manual with pump
Level indicator	Fill level display
Overflow protection	Yes
Discharge hose	Swivel
Material	Plastic
Use	Mobile, camping, caravan, boat
Maintenance and cleaning	Clean with a damp cloth and mild detergent. Do not use sharp objects or gasoline.
Storage	Empty tanks completely and store in a clean, dry place
Safety	Do not allow incapable persons to use without supervision. Do not modify the appliance.
Spare parts available	Mounting kit (9108559158), additional tank (9107100031), MSD connector (9107100029)
Warranty	According to legal conditions, contact the dealer
Weight (approx.)	Approximately 5 kg

Frequently Asked Questions - 976 DOMETIC

How to prepare the toilet for first use?

Before first use, equalize the pressure in the collection tank by opening and then closing the slide valve (seat closed). Remove the flush water tank cap, fill with water to about 25 mm below the opening, then screw back on. Open the valve, add a suitable sanitary product to the collection tank, close the valve and pump 15 times until air escapes through the safety valve.

How to flush the toilet after use?

Pull the flush handle to let waste soften in the collection tank. Press the flush button to rinse. Then press the flush handle to close the slide valve.

When and how to empty the collection tank?

Empty the collection tank when the level display indicates 'Full'. Separate the flush water tank from the collection tank by pulling the rear lock upward. Carry the collection tank to an authorized disposal station or normal toilet. Swivel the discharge hose, open the vent valve and empty. Rinse if possible.

What cleaning products to use?

Use a mild detergent and a damp cloth. Never use sharp, hard objects or gasoline-based detergents to avoid damaging the product.

How to maintain the toilet during non-use?

Empty the collection and flush water tanks completely. Store the toilet in a clean, dry place.

What is the capacity of the flush water tank?

The flush water tank has a capacity of 8.7 litres, sufficient for about 27 flushes.

Is the collection tank equipped with a level indicator?

Yes, the toilet is equipped with a fill level display on the collection tank to indicate when it is full.

What accessories are available for this model?

Accessories include: mounting kit for 970 series (ref. 9108559158), additional tank for 976 (ref. 9107100031) and MSD connector for 976 (ref. 9107100029). They are not included in delivery.

Can chemical products be used in the tank?

Yes, use a suitable sanitary product directly in the collection tank. Never place the product when the slide valve is closed.

What to do in case of underpressure or overpressure in the tank?

Equalize the pressure by opening and then closing the slide valve while keeping the seat closed. This may occur due to temperature or altitude variations during transport.

USER MANUAL 976 DOMETIC

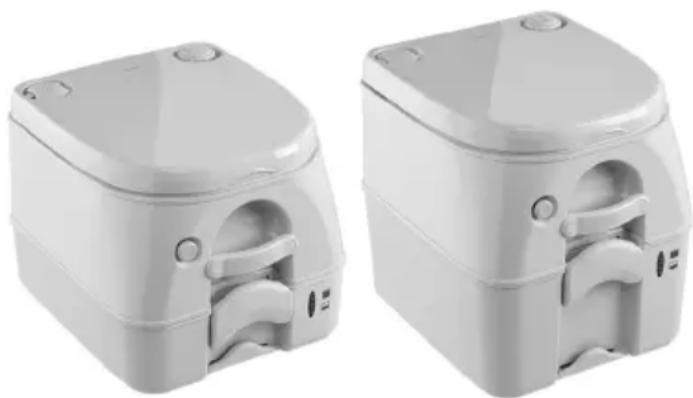

Portable Toilets 972, 976

EN Portable toilet

Operating manual 6

DE Portable Toilette

Please read this instruction manual carefully before first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols. 6
2 Safety instructions 7
3 Scope of delivery 7
4 Accessories 7
5 Intended use 8
6 Technical description 8
7 Operation 9
8 Cleaning and maintenance. 11
9 Warranty 11
10 Disposal. 11
11 Technical data 11

1 Explanation of symbols

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

-Faulty assembly or connection
- Damage to the product resulting from mechanical influences
- Alterations to the product without express permission from the manufacturer
- Use for purposes other than those described in the operating manual

CAUTION!

• People (including children) whose physical, sensory or mental capacities prevent them from using this device safely may not be allowed to operate it without the supervision of a responsible adult.

NOTICE!

• Only use the device as intended.
• Do not make any alterations or conversions to the device.

3 S C O P E O F D

• Portable toilet
• Operating manual

4 A c c e s o r i

Available as accessories (not included in the scope of delivery):

Description Item no.

Fastening kit for 970 series 9108559158

Additional tank for 972 9107100030

Additional tank for 976 9107100031

MSD connection for 972 9107100028

MSD connection for 976 9107100029

5 Intended use

The portable toilet is intended for mobile use.

6 Technical description

Flushing is carried out with a few pumping actions using the push button. The flush water tank of 8.7 litres is sufficient for 27 flushes. The portable toilet is equipped with overflow protection and filling level display. The drainage system simplifies disposal with a long rotatable waste pipe.

6.1 Operating and display elements

No. in fig. 1, page 3	Description
1	P	u	m	p
2	Cap for flush water tank
3	Flush water tank
4	Holding tank
5	Filling level display
6	Flush grip
7	Locking grip
8	Flush button

7 O p e r a t i o n

7.1 Setting up the portable toilet

NOTE

Changes in the ambient temperature or the actual height above sea level while travelling can cause the pressure in the holding tank to rise or fall. Before use, make sure that the pressure in the holding tank is equalised by opening and closing the slide valve with the seat cover closed.

Before use, make sure the pressure in the holding tank is equalised: to do this, open the slide valve with the seat cover closed by pulling the flush grip out and then pushing it closed it again (fig. 2, page 3).
Remove the cap of the flush water tank and fill it up until the water level has reached approx. 25~mm (1 inch) below the top. Screw the cap on again on the flush water tank (fig. 3, page 3).
Pull the flush grip to open the slide valve (fig. 4, page 3).
Put an appropriate sanitary additive directly into the holding tank.
Close the slide valve (fig. 5, page 3).

NOTICE!

Never put the sanitary additive into the portable toilet when the slide valve is closed

Press the pump approx. 15 times or until air comes out the cap of the flush water tank through the pressure relief valve (fig. 6, page 3).

NOTICE!

• Do not subject the flush water tank to too much pressure, for instance by covering up the pressure relief valve.
• Do not pressurise the flush water tank if it is separated from the holding tank.

7.2 Flushing the portable toilet

NOTE

Changes in the ambient temperature or the actual height above sea level while travelling can cause the pressure in the holding tank to rise or fall. Before use, make sure that the pressure in the holding tank is equalised by opening and closing the slide valve with the seat cover closed.

▶ Pull out the flush grip to allow the waste to pass into the holding tank (fig. 8, page 4).
Press the flush button to flush the portable toilet (fig. 9, page 4).

Push the flush grip to close the slide valve.

7.3 Emptying the holding tank

When the filling level display shows "Full", (fig. 10, page 4), the holding tank needs to be emptied.

Pull the locking grip on the holding tank if the toilet is fitted with the optional fastening holders. To reach the rear bracket, lift up the toilet and move it.
Pull up the rear latch to disconnect the flush water tank from the holding tank (fig. 11, page 4).
Take the holding tank to a reliable disposal station (or a normal toilet).

NOTE

To protect the environment, never empty the holding tank directly into the environment, only into an approved disposal station or a toilet.

Turn the waste pipe away from the tank and open the pressure relief valve on top of the tank.
Empty the tank (fig. 12, page 4).
If there is a water connection, flush out the holding tank.

7.4 Storing the portable toilet

Empty the holding tank and flush water tank completely if you are not planning to use the portable toilet for a long time.

Store the portable toilet in a dry, clean state.

8 Cleaning and maintenance

NOTICE!

Do not use sharp or hard objects or petroleum-based cleaning agents for cleaning as these may damage the product.

Clean the product with a wet cloth and mild detergent regularly.

9 W a r r a n t y

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses).

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

10 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

11 Technical data

	972976
Ref. no.: 9108557678 (white)	/beige)	9108557680 (white/beige)
	9108557679 (white/grey)	9108557681 (white/grey)
Flushing water tank: 8.7 l
Holding tank: 9.8 l	18.9 l
Dimensions:	see fig. 13, page 5
