Product type	Outdoor patio heater (terrace heating)
Brand	Hendi
Model	272701
Power supply	Propane/butane gas (9 kg bottle recommended)
Heating power	Not specified in the manual
Ignition type	Piezo with pilot light
Heat adjustment	From LOW to HIGH
Heating area	Radius of approximately 3 meters (estimation)
Materials	Stainless steel, metal reflector
Adjustable height	Yes, by retracting the mast
Safety distance from combustible materials	0.9 m minimum
Usage	Outdoor or very well ventilated areas (open surface ≥ 25%)
Assembly required	Yes, with provided screws
Maintenance	Clean exterior with soapy water; check for leaks before each use
Leak check frequency	Once a month and after each bottle change
Gas hose replacement	Once a year or according to EN16436:2014 (max length 1.5 m)
Storage	After cooling, cover and protect from weather
Warranty	12 months (defects)
Spare parts	Use only original Hendi parts
Repairability	By a qualified technician

Frequently Asked Questions - 272701 Hendi

How to light the Hendi 272701 patio heater?

Open the gas supply, push the control knob and turn it to the PILOT position. Hold it down and press the IGNITION button several times until the pilot lights. Keep the knob pressed for an additional 10 seconds after the pilot lights.

What to do if the pilot does not light?

Check that the gas bottle valve is open. Purge the gas line by holding the knob pressed in the PILOT position for 1 to 2 minutes. Clean the pilot orifice or tube. If the igniter does not work, use a match with the provided match holder.

How to turn off the appliance?

Hold the control knob and turn it clockwise to the OFF position. Then close the gas bottle valve.

How to check for gas leaks?

Use a soapy solution (1 part dish soap to 3 parts water). Apply it to the connections with a bottle or brush. Open the gas valve: if bubbles form, there is a leak. Never use a naked flame to check for leaks.

What safety distance should be maintained?

Maintain a distance of at least 0.9 m between the appliance and any combustible material (walls, furniture, clothing, etc.). Do not hang anything above the heater.

Can this patio heater be used indoors?

No, this appliance is designed for outdoor use only or in very well ventilated spaces (open surface at least 25% of the wall area). Indoor use is dangerous and prohibited.

How to maintain the patio heater?

Clean the exterior surfaces with warm soapy water. Do not wet the burner and pilot area. Regularly check that the air openings and burner are not obstructed (spider webs, insects). Clean the openings with a pipe cleaner or compressed air.

What to do if the burner flame is low or yellow?

A low flame may indicate insufficient gas pressure: replace the bottle. Check that the hose is not kinked. If the flame is very yellow, turn off the appliance and clean the burner. Do not use if temperature is below 5°C.

What are the safety instructions for the gas bottle?

Place the bottle outdoors or in a well-ventilated area. When installing, secure it with the provided strap. Replace bottles only outdoors, away from any flame or heat source. Never use a damaged bottle.

How to store the appliance after use?

Wait until the appliance has completely cooled down. Turn the knob to OFF, close the bottle valve and disconnect it if not used for a long time. Store the appliance sheltered from the weather (rain, snow, dust) and cover if necessary. Store the gas bottle separately in a ventilated area.

USER MANUAL 272701 Hendi

You should read this user manual carefully before using the appliance.

Keep these instructions with the appliance.

XpaHntb pyKOBOCTBO BmecTe C yCtpoCTBOM.

ΦaAεTe aute cti odyiec μaiz e tm ouakeun.

Thank you for purchasing this Hendi appliance. Please read this manual carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very carefully.

Safety regulations

• This appliance must be used outdoors or in a well ventilated area, and should not be installed or used indoors.
• Change the gas cylinder in a well ventilated area, away from any inflammation sources.
• The cylinder must be stored outdoors or in a well ventilated area.
• Storage this appliance indoors is permissible only if gas cylinder is disconnected and removed from the appliance.
• Do not move this appliance when in operation, or after it has been turned off before the temperature has cooled down.
• Do not attempt to alter the appliance in any manner. Do not paint the radiant screen, control panel or reflector.
• Do not obstruct the ventilation holes of the cylinder housing.
• The appliance must be installed and gas cylinder stored in accordance with local gas fitting regulations.
• Shut off the valve at the gas cylinder or the regulator before moving the appliance.
• Use only the type of gas specified by the manufacturer.
• Repairs should be done by a qualified person.
• In case of violent wind, particular attention must be taken against tilting of the appliance.
• Check that the regulator seal is correctly fitted and able to fulfil its function.
• Close the gas supply at the valve of the gas cylinder or the regulator after use.
• Do not use this appliance until all connections have been leak tested.
• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the appliance shall be investigated and rectified before it is used again.
• Checking the tubing or the flexible hose per month and each time the cylinder is changed.
• The tubing or the flexible hose must be changed within the prescribed intervals or with in one year. The flexible hose should not extended than 1.5m according to standard EN16436:2014.
• The hose assembly must be replaced prior to the appliance being put into operation if there is evidence of excessive abrasion or wear, or if the hose is damaged, and that the replacement hose assembly shall be that specified by the manufacturer.
• The heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that control compartment, burners and circulating air passageways of the appliance be kept clean.
• Shut off and check heater immediately if any of the following conditions exist:
• The smell of gas in conjunction with extreme yellow tipping of the burner flames.

□ Heater does not reach a proper temperature. A temperature less than 5^ will cause restricted heat flow and the appliance will not work properly.
The appliance starts making popping noises during use (a slight popping noise is normal when the appliance is extinguished).

• The regulator & hose assembly must be located out of pathways where people may trip over it or in area where the hose will not be subject to accidental damage.
• Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
• Children and adults should be warned of the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
• Young children and pets should be carefully supervised when they are in the area of the heater.
• Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
• Do not place articles on or against this appliance. Certain material or items when stored under or near this appliance will be subjected to radiant heat and could be seriously damaged.
• Do not use or store flammable materials near this appliance.
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Always maintain at least 0.9m clearance from combustible materials.
• Always position the appliance on a firm level surface. An amply ventilated area must have a minimum of 25% of the surface area open. The surface area is the sum of the walls surface.
• The injector in this appliance is not removable and the injector is only assembled by manufacture. This appliance is forbidden to convert from one gas pressure to another pressure.
• Do not connect the gas cylinder directly to the appliance without regulator.
• The gas cylinder must be fixed by cylinder belt, which is inside the housing, while installation.

Intended use

• The device is intended for professional use and can be operated only by qualified personnel.
• The appliance is designed only for heating outdoors or well ventilated areas. Any other use may

lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Part List

Assembly parts supplied:

• 5pcs bolts M5 x 12 and 5pcs washers M5 for rear panel of housing and base.
• 5pcs bolts M5 x 12 and 5pcs washers M5 for rear panel of housing and housing lid.
• 3pcs bolts M5 x 12 and 3pcs washers M5 for connection of post assembly.
• 4pcs bolts M6 x 12 and 4pcs washers M6 for the post and housing lid.
• 9pcs bolts M6 x 8, 12pcs wing nuts M6 and 12pcs washers M6 for reflector.
• 3pcs bolts M5 x 10 and 3pcs washers M5 for main burner and the post.
• 6pcs bolts M5 x 12 and 6pcs washers M5 for base stands and base.
• 2pcs bolts M8 x 12, 4pcs washers M8 and 2pcs M8 nuts for wheels assembly.

Patio heater part:

Item No	Description
1 Reflector assembly
2 Burner	screen
3 Lower	tray of burner
4 Lower	screen cone as- sembly
5 Post assembly
6 Housing lid
7 Rear panel of housing
8 Wheel
9 Base
10 Door
11 Hinge
12 Assembly Bolts M5x10
13 Washers M5
14 Bolts M6x8
15 Wing Nut M6
16 Lock
17 Plastic cover
18 Inner pipe
19 Igniter
20 Assembly bolts M5x12
21 Washer M6
22 Bolts M8x12
23 Washer M8
24 Nut M8
25 Bolts M6x12

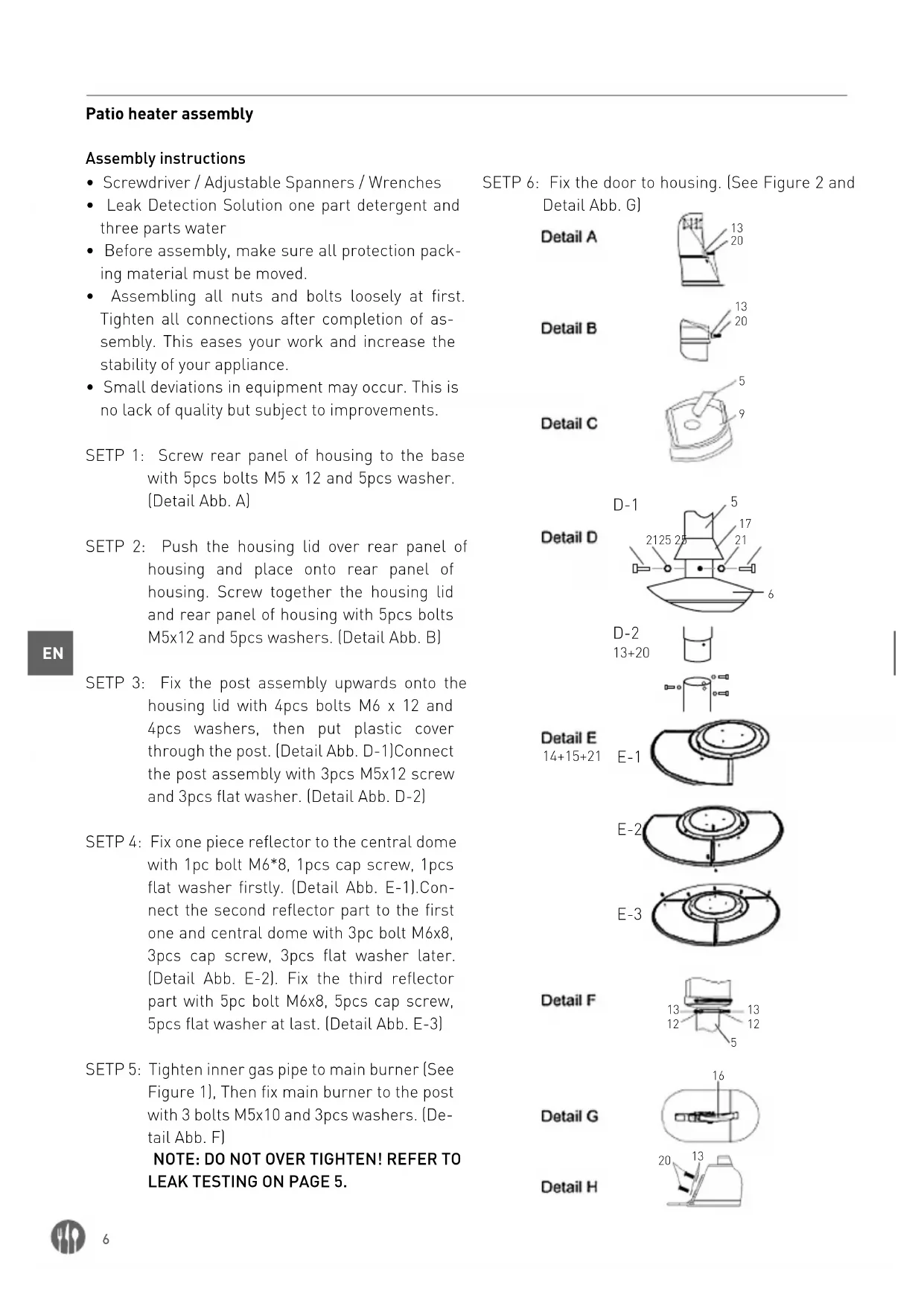

Patio heater assembly

Assembly instructions

• Screwdriver / Adjustable Spanners / Wrenches
• Leak Detection Solution one part detergent and three parts water
• Before assembly, make sure all protection packing material must be moved.
• Assembling all nuts and bolts loosely at first. Tighten all connections after completion of assembly. This eases your work and increase the stability of your appliance.
• Small deviations in equipment may occur. This is no lack of quality but subject to improvements.

SETP 1: Screw rear panel of housing to the base with 5pcs bolts M5 x 12 and 5pcs washer. (Detail Abb. A)
SETP 2: Push the housing lid over rear panel of housing and place onto rear panel of housing. Screw together the housing lid and rear panel of housing with 5pcs bolts M5x12 and 5pcs washers. (Detail Abb. B)
SETP 3: Fix the post assembly upwards onto the housing lid with 4pcs bolts M6 x 12 and 4pcs washers, then put plastic cover through the post. (Detail Abb. D-1)Connect the post assembly with 3pcs M5x12 screw and 3pcs flat washer. (Detail Abb. D-2)
SETP 4: Fix one piece reflector to the central dome with 1pc bolt M6*8, 1pcs cap screw, 1pcs flat washer firstly. (Detail Abb. E-1). Connect the second reflector part to the first one and central dome with 3pc bolt M6x8, 3pcs cap screw, 3pcs flat washer later. (Detail Abb. E-2). Fix the third reflector part with 5pc bolt M6x8, 5pcs cap screw, 5pcs flat washer at last. (Detail Abb. E-3)
SETP 5: Tighten inner gas pipe to main burner (See Figure 1), Then fix main burner to the post with 3 bolts M5x10 and 3pcs washers. [Detail Abb. F]

NOTE: DO NOT OVER TIGHTEN! REFER TO LEAK TESTING ON PAGE 5.

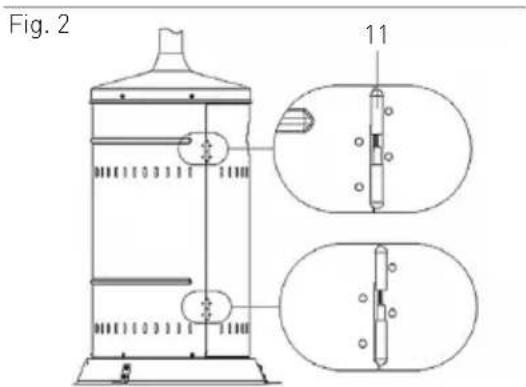

SETP 6: Fix the door to housing. (See Figure 2 and Detail Abb. G)

Optional base stand

Base stand assembly parts: 6pcs bolts M5 x 12 and 6pcs washers for base stands and base.

Attach 3pcs stands to the base.

Buy suitable hook bolts or rawlbolts from your lo

cal market to insert them into the ground or floor through base stand holes for this appliance stability. (See Figure 3)

Fig. 3

Optional wheels

Wheels assembly parts: 2pcs bolts, 4pcs washers and 2pcs nuts for wheels assembly.

Collect wheels parts together and fix wheels to the base. (See Figure 4)

Fig. 4

Operating instructions

Before first use and after every gas cylinder change, gas delivery system must be purged of air before igniting! To do this, turn the control knob counter-clockwise to the pilot setting. Press knob in and hold for 3 minutes before attempting ignition.

To light the pilot

• Check all connections prior to each use.
• Turn on main gas supply.
• Press to turn control knob counter-clockwise to PILOT, see right photo.
• Hold knob depressed, press IGNITION button repeatedly until pilot flame is lit, then continue to hold the knob depressed for 10 seconds until the pilot remains it after releasing knob.
• If pilot fails to ignite or alight, press to turn knob clockwise to OFF and repeat.

To light the patio heater

• The pilot should be lit and the knob set to PILOT.
• Press the knob 3mm and turn anti-clockwise to HIGH.
• When mesh glows lit, turn knob clockwise from HIGH to LOW as needed.

Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn the control knob to the pilot position. Then, turn the knob to the level of heat desired.

Re-lighting

Note: For your safety, Control Knob cannot be turned OFF without first depressing Control Knob in PILOT position and then rotating it to OFF.

• Turn Control Knob to OFF.

• Wait at least 5 minutes, to let gas dissipate, before attempting to re-light pilot.

• Repeat the "Lighting" steps

To extinguish

• Hold knob depressed & turn the knob clockwise to 'OFF'

• Close the valve of the gas cylinder or the regulator after use.

• Allow this appliance to cool before moving. Note: After use, some discoloration of the emitter screen is normal.

Leak testing

The gas connections on this appliance are leak tested at the factory prior to shipment.

This appliance needs to be periodically checked for leaks and an immediate check is required if the smell of gas is detected.

Make a soap solution using 1 part of liquid dish-washing soap to 3 parts water. The soap solution can be applied with a soap bottle, brush, or rag to the leak tested points shown in the figure above.
- The valve of the gas cylinder should be in the OFF position at this point of the leak test. Once the soapy solution is applied to the gas connections, the valve of the gas cylinder needs to be turned to the ON position.

• Soap bubbles will begin to form in the soapy solution if a leak is present.
• In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and recheck.

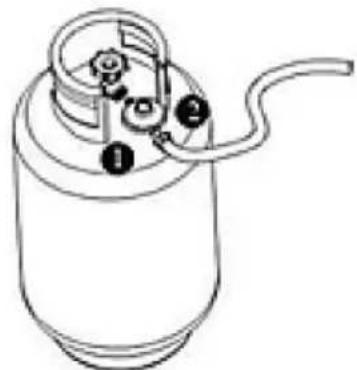

Leak Test Point ①②

Gas requirements

• The pressure regulator and hose assembly to be used must conform to local standard codes.
• Never use a gas cylinder with a damaged body, valve, collar, or foot ring.
• A dented or rusty gas tank may be hazardous and should be checked out by a gas supplier.

• Never connect this appliance to an unregulated gas source.

• When the appliance is not in use, turn the gas cylinder OFF.
  Always perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in the leak test solution, do not use. Never use a flame to test for leaks.

Connecting to a gas cylinder

• Recommend to use 9kg gas cylinder or refer to your gas supplier for suitable gas cylinder.
• Approved gas regulator is used according to appliances categories and countries listed in data plate. Approved flexible hose would be changed when the national conditions require it & consult the local regulations, these may differ.
• Warning: assembly of the tubing must be conducted by some qualified tuber of destination countries.
  Refer to your gas supplier for instructions on the use of your gas cylinder.

• Only change gas cylinders outdoors or in a well ventilated area away from naked flames and any other source of ignition.

• The gas cylinder must always be used in an upright position.

• Close the heater control knob by turning fully clockwise.
• Close the gas cylinder tap and then attach the regulator onto the gas cylinder.
• Tighten all connections firmly and with a spanner where appropriate. The cylinder should be located on the cylinder base.
• The gas cylinder must be fixed by cylinder belt, which is inside the housing, while installation.
• Check for leaks at all joints using soapy water. If a leak is found, tighten the joint and then re-test.

Securing the gas cylinder

Fix both brackets of Velcro tapes onto the base using 4pcs M6*12 bolts, M6 washer and M6nuts.
- Position a gas cylinder inside the tank housing.
- Connect the gas cylinder with a regulator. Please refer to the instructions attached with the regulator on how to connect a regulator with the gas cylinder.

• Stick Velcro tapes together as above photo illustrated. The tapes must be in a proper tightness for the gas cylinder.

Caution: Please take care that the Velcro tapes. DO NOT strain the regulator assembly.

Important safety rules

For use outdoors or in amply ventilated areas. An amply ventilated area must have a minimum of 25% of the surface area open. The surface area is the sum of the walls surface.

The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.

Children and adults should be aware of the high operating temperatures of areas above the post when operating this heater. Children should be carefully supervised when in the vicinity of the heater.

NEVER hang anything, including clothes or any other flammable items, on this heater.

DO NOT operate this heater unless it is fully assembled with its reflector in place. Respect the minimum clearances from combustible materials.

The length of the gas hose may not exceed 1,5 meters.

EN

Maintenance

To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis:

• Keep exterior surfaces clean.
• Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
  While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
  Airflow must be unobstructed. Keep controls burner and circulation air passageways clean. Signs of possible blockage include:
  Gas odor with extreme yellow tipping of flame.

• Heater does NOT reach the desired temperature.

• Heater glow is excessively uneven.

• Heater makes popping noises.
• Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render it unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away smaller particles.
• Carbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine with warm soapy water.

Note: in a salt-air environment (such as near the sea), corrosion occurs more quickly than normal. Frequently check the corroded areas and repair them promptly.

Servicing

• Please consult your local dealer for servicing this appliance and replacement of its parts. The servicing of the appliance shall be carried out only by authorised personnel.

• Caution: do not use unauthorized parts or components for this appliance, only use original equipment replacement parts and components. The use of unauthorized parts or components will void the warranty and can create an unsafe condition.

Storage

Between uses:

Turn control knob OFF

Turn gas cylinder OFF

Store Heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).

If desired, cover to protect exterior surfaces and to prevent build up in air passages.

Note: Wait until heater is cool before covering.

During periods of extended inactivity or when transporting:

Turn control knob OFF.

Disconnect gas cylinder and move to a secure, well ventilated location outdoors. DO NOT store in a location that will exceed 50^ .

Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).

If desired, cover heater to protect exterior surfaces and to prevent build up in air passages.

Note: Wait until heater is cool before covering

CAUTION: DO NOT USE UNAUTHORIZED PARTS OR COMPONENT FOR THIS APPLIANCE. ONLY USE ORIGINAL EQUIPMENT REPLACEMENT PARTS AND COMPONENTS.

To retract the heater (272701 only)

Retracting the heater makes storage much easier. Loose the plastic screw [17] properly. Pull up the main post vertically until it encounters housing lid. Turn the main post clockwise and lower it until it has reached the desired level. To lock the main post on the desired level pull up the main post just

a little and turn it counter clockwise. Then lower it until the main post stands on its screws. Tighten the plastic screw to keep the heater stable.

Note: Mind your head. Wait until heater is cool before retracting.

Troubleshooting

PROBLEM AND THIS CONDITION	Cylinder valve is closed Open valve
	Blockage in orifice or pilot tube	Clean or replace orifice or pilot tube.
	Air in the gas line	Open gas line and bleed it (pressing control knob in) for not more than 1-2 minutes or until you smell gas.
	Low gas pressure	Replace propane gas (disposable) cylinder with a new cylinder

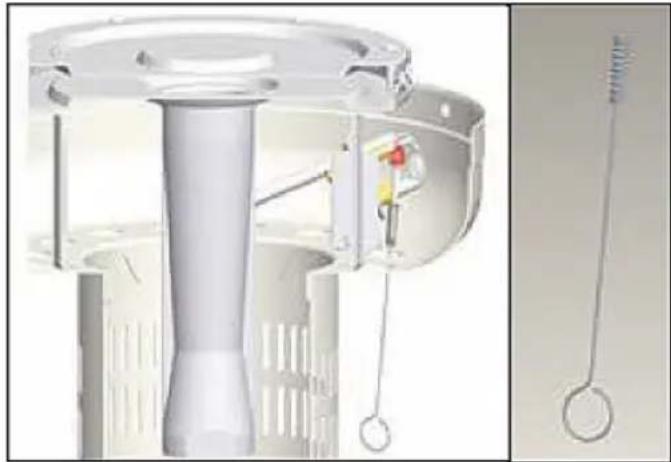

	Igniter fails	Use match to light pilot (with match holder, see picture**); obtain new igniter and replace
Pilot won't stay lit	Dirt build up around pilot Clean	dir t from around pilot
	Connection between gas valve and pilot assembly is loose	Tighten connection and perform leak test
	Thermocouple is not operating correctly	Replace thermocouple
Burner won't light	Gas pressure is low	Replace propane gas (disposable) cylinder with a new cylinder
	Blockage in orifice Clear blockage
	Control knob is not in "ON" position	Turn control knob to "ON" position
Burner flame is low Note: Do not operate heat-er below 5°C (40°F)	Gas pressure is low	Replace propane gas (disposable) cylinder with a new cylinder
	Outdoor temperature is greater than 40°F and tank is less than 25% full	Replace propane gas (disposable) cylinder with a new cylinder
	Supply hose is bent or kinked	Straighten hose and per for m leak test on hose
	Control knob is fully " ON"	Turn control knob to " OFF", let cool to room temperature and check burner and orifices for blockage
Emitter glows uneven Note: Bottom 1 inch of emitter normally does not glow	Gas pressure is low	Replace propane gas (disposable) cylinder with a new cylinder
	Base is not on a level surface Place heater on a level surface
	Heater is level Clean burner
Carbon build-up	Dirt or film on reflector and emitter	Clean reflector and emitter
Thick black smoke Blockage	in burner	Turn control knob to "OFF", let cool to room temperature and remove blockage and clean burner inside and outside.

If for some reasons your ignition fails to deliver a spark, the heater can be started by inserting a lit match using supplied match holder through the burner hole (see left photo) while pushing the control knob in the "PILOT" position.

IN THE EVENT OF ANY PROBLEM, PLEASE ALWAYS CONSULT YOUR LOCAL DEALER.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural re

sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

PoiKJIIOUeHne ra3oBOrO 6aJIIOHa

• PekomeHnyetcnaNoB30BaTb ra3OBbI 6aIIoH 9KnIb6aIIIOH, pekomeHdoBaHHbI NOCTaBUnKOMra3a.
• IcnoJb3yETcra Odo6peHHbI peYnTOp ra3a COOTBcTCTBm C KATEropnM yCTpoNCTB n CTpaHAMn, yKa3aHHbIMn B NaCnOptHO T6NJUKe. Odo6peHHbI r6kN m JlaHr cJeDyET 3ameHATb B COOTBcTCTBm C Tpe6oBaHnMn HaCuNoHaJIbHbIX perlAmeHTOB IMecTHbIX pePamaHTOB, KOtOpbIE MOrYT OTnUaTbcR.
• PnpdynpexkdeHne. C6opka Tpy6 doJxHa ocUeCTBnTbCRA KBaINΦnIupoBaHHbIM cneuaJIInCTOM B COOTBeTCTByIOSe CTpaHe.

• RykoBoDCTBO no 3KcNlyatauHra30BOro 6aIloHa ДоЖен NOCTaBHTb NOCTaBUnK ra3a.
  3aMeHnTe ra3OBbI 6aJIIOH Ha OTKpbITOM B03- DyXe, B XopoIo BeHTnIpyEmOM MecTe, BdJI N OT OTKpbIToRo PnAmEHn Ipyrnx NCTOCHNKOB BOCnPnAmHeHn.

• Ra3OBbI 6aIIIOH IOJIKeH 3KcNlyaTInpoBaTbcr Nc-KIIOHTeBHO B BepTNKaIbHOM NOJIOKeHN.
  3akpynte pyky peynilpoBkn oborpeBaTeJn, noBopauHBa e do ynpa no yacoboi cTpeKe.

• PerekpoTe BeHTnIb ra3oBOrO 6aIINoHa n npncoeHNHTe K Hei peDyKTop.
  Xopo0o 3aTAHnTe coeINHeHHn, nCNoJIb3yInTe KJIouB CJIyuae Heo6xOdUmocTn. NocTaBbTe 6aI- loH Ha OCHOBaHN.
• Пп установке ra30воро 6алноа erо Heo6холmo ппкpenntb с помоью ремня BHyтри Корпуca.
• Поберпге BCE coeINHeHЯ Ha rePMeTnUHocTb, ИспльзУЯ BODу CMbIOM.Еси Вbl obHapyKHTe yTeKY,ЗатанITE coeINHeHЯ И пobeДNTe пobeRpy eше pa3.

3aunTa ra30BbIX 6aJIIOHOB

-Прикpeniteоба конца lentы Ha Лпунcke K oc-HOBaHnO c nOMoцьIO 4 BnHTOB M6*12,шaN6 M6и raekM6.
- Помет范围内 ra30вьй 6аллон В корпс Контейни. - pa.
- PoiocoeHnHTe ra3OBbI 6aJIIOH K peDyKTOpy. IpoHTte HnCTpyKcUN, npNJraEMBie K peDyKTOpy, yTo6bl npOBepNTb, KaK PoiocoeHNHTb Ra3OBbI 6aJIIOH.

3akpennte IInnyuKn, KaK noka3aHO Bblwe. JeHTbI DOJXHbI 6blb 3akpenneHbI TaKIM 06pa3OM, YTO-6bl r30BbI 6aIIOnH 6bl HAdexHo 3akpenneH.

Ipimechane: He 36ydbTe coxpaHnTb IInnyuKn. HE 3aRpykaTe peDyKTop B c6ope.

RU

OchOBhble npaBnla TexHnK6e30nacHoCTn

IINHcNoJIb3OBAHNHaOTKpbITOM BO3dYxE INN B Xopo0IO npOBeTpNBaEmbIX NOMEueHHx.

MecTo c xopoWei BeHTnIaIeN DoJXHO 6bITb OT-KpbIto KaK MUNHMym Ha 25%

3TO OTHOCITcK 25% OT 6uei NOBepxHOCTN CTeh.

IcnoJb3oBaHne 3TOO 6OpyIOBaHnB 3aMKHyTOM npocTpahCTBe MoKet 6bItb onacHo n 3APELU EHO.

IeTn IB3pocJIbe I0JXHbI 6bITb OCBeOmJIeHbIO BBICOKo TEMNepaType HAd CTOL6OM BKJIOUeHHORO 60rpeBaTeJI. DeTei, HaxOJaUncB HEnOCpeICTBeHHoH 6JIN3OCTn OT HaPeBaTeJI, HyKHO BHMaTeJIbHO KOHTpOJIuPoBAtB

Ha obopebaTeIe HNKoIa HeJIb3a HnUero Be- WAtb, BkIIOuOa OJExKdy NII JERKOBOcPNaMeHAnu- UneecnpeDmTbl.

HE nCnoB3yIe o6orpeBaTeIb, noka OH He 6ydet NOnHocTbIO cO6paH I OTPaXaTeIb NOMeUeH Ha CBOE MeTo. Co6JIoJaIte MNHmAlbHoe paCtOraHne OT RopUHX MaTePnaIob.

Диног罗пова He mokeT pbeBbIaTb 1,5M.

TexHnueckoe obcnyKuBaHne

YTo6bHa npotjXeHm MHornx neT paOBAtbcn OTnueHon pa60To n 6oRpeBaTeI, peryIpaHO BblnoHnYe cneNyUoIe DeNCTBnNo TExHnueckomy 06cnyKnBaHnIO:

• POnnepKnBaIeB uHcTote BHeuHne noBepxHocTn.
  -Дяоунstkn nCnoJb3yIte TeNnyIO BODy CMbIOM. HkoRda He nCnoJb3yIte JERKOBOcPnAmeHЯIOuOuIeCra IIN eKne YnCTaUne cpeIcTba.
• 06paaIte BnMaHHe, yTo6bI Bo Bpem OunchKnycTpoNCTBa He HAMoHTb npoctpaHCTBa BOKpyr ropeKN nn KOHTpOJbHOrO nJaMeHN. B cNyuae Ka-Koro-Jn6o KoHTa peYJrTopa ra3a c BoOn, HE np6yIte ero nCNoJIb3OBaTb. Ero cNeDuYET 3aMeHITb.
  He nepekpbyaIte noTOK BO3dyxa. IOpIepKuBaIte B uNCTOTE ynpabIeHne, rOpEKNy KaNAbblu CnRPkUaun BO3dyxa. PpN3HaKn BO3MOxHOn 3a-KynopKn BkJIouaIOT:

3anaxra3aN60nbune,yeMobiyHoXeIbte 0KoHuaHnIpaMeHn.

• oborpbeBateIb HE doctnraet hyxhoT emnpa-typbl.
• HakaonoborpeBaTeIaHepaBHomepHbI
• 06orpeBaTeIb n3daet noTpecknBaiouue ne 3Bykn.
• Pnykn Hacekombie Moryr rHe3nTbcra B ropeKe nn OTBepctnx. 3To moKet noBpeNTb o6oTgeBaTeJIb nn npBecTN K TOMy, yTO nM 6ydet onacHO nolb30BaTbcra. OunuAte OTBepCTna TopeJIKN, nCnoJb3yra HaJeKhbl INHcTpymeT dIaOuNCTKn pOBoDoB. MeIknue aactu bIOxH O ydaJIbT cKaTbIM BO3dyXOM.
• Harap moxket co3daTb onaCHOCTb BO3HnKHOBeHHn noXapa. Ecnn noBRTcKaKne-Jn6o OTNoXeHHn caXn, ouNCTnte Kynon n Dnuratel TeIIOB BoOn C MbIOM.

3aMeuHHe: B cpeIe C BbICOKo coJeHoCTbIO (Ha npmep, Ha Mope) Kopp03n IpnOCxOaNT 6blCTpee, YemoblyNo. Yacto npOBepaTe KoppOpaHOBaHHbIe yuaCTKN HemeJIeHNO pnoBOaNTe Heo6XoDmbl peMOHT.

CepBnC

• IoxaIyIcTa, o6paTInTeCb K MeCTHOMy NoCTaBUNky OTHOCHTeJIbHO TexHNueCKOrO 6cLyXnBaHHaYcTpoINCTBa n 3aMeHbI erO qacte. TexHNueCKoe 6cLyXnBaHHe yCTpoINCTBa dONJHbI npoBOdITb NCKJIIOHTeJIbHO yNOJHOMOeHHbIe JNca.

3ameuHHe: He noIb3yItecb HeopnHaHaBbIMn qactaMn n DetanMaN. IcnoIb3yIte Tolbko opnHaHbHbIe 3aIacHbIe qactn N KOMNoHeHTbl. IcNoIb3oBaHne HeopnHaHaBbIX qacte Nnn KOMNoHeHTOB npNBedeT K aHHynpoBaHIO rapaHTn N MoKet 6bITb OaChbIM dIra Notpe6nteJei.

XPAHEHNE

B nepepbixax, korga ycToiCtBO He nCNoIb3yeTc: NOBepHnTe pyky ynpabIeHnB noIoxeHne OFF. 3AKPYTITE ra30b6aIIIOH.

XpaHnTe 6oBpeBaTeIb B BepTnKaIbHom nOIOxEHN, B MecTe, rIe OH He NODBepraetc Bo3JeNCTBnIO He6laFOnpnaTHbIX NOrOHBix ycNoBn (HaNPmEp, DoXdb, MOKpbi CHer, rpaI, CHer, nbIb nn Ipr3b). B cnyae Heo6xOdmoctn NaKpoIte yCTpoINCTBO dJIa 3aUHTbI BHeuHnx NOBepxHocTe IN dJIa PpeIoTbPaAsHEn 3acOpEHn KaHAnob CuNPKyJLauCn BO3Dyxa.

BHHMaHHe: Npeed HaKpbItnem 6oBorpeBaTeJr, noDoxkndTe, noka OH octbIHeT.

Bcnyae 6oJee dIInTeIbHOro nepepbIBa B nCnOJIb30-BAHHu yCTpOINCTBa HIN BO BpeM TpaHCnOpTnpOBKn: NObepHIne pykU peylnpoBKN B noLoXeHne OFF. OToeHNHe ra3OBbI 6aIIIOH n NOMeCTte erO chapxN B 6e3Onachom MeTe C xopoWe BeHTnJauee. HE xpAHIne erO B MeTe, rJe Tempepatypa npebblaaet 50^

XpaHnte o6orpeBaTeB B BepTKKaIbHOM noLoxe-Hn B MecTe, 3aUuSeHHom OT He6laRopnTbIx nOrOdHbIX ycNoBn (HaPpMep, DoxDb, MOKpbI cHer, rpaD, cHer, nbIbN rpr3b).

B cnyae Heo6xOJMoCTn HAKPOTe yCTpoIcTBo dIaunbI BHeuHnx NOBepXHocTe N dIe npDoTbpa- 3acopeHnaHaoB cnpKyJauu Bo3dyxa.

BHHMaHHe: npeH haKpbItnem o6orpeBaTeIe noDoXkDnte, noka OH octbIHeT.

BHIMAHNE: HE NOJIb3YITECb HEOPINHAlbHbIMN YACTMNI JETAJMI. IcNoJIb3YIte TOJIb-KO OPINHAbHbIE 3APACHbIE YACTN KOMIOHEHTbl.

Ykpblne o6orpeBaTeIa (ToIbko 272701)

CklaabbaHne TeNIOBOrO 3oHTnKa 3NaHTeJIbHO 06-nerHaet erO xpaHeHne.ДЯ 3ToRo HxKHO npaBnIbHO OCBo6OnTb PnactIKOBbI BnHT (17).NotAHnte BepTKaJIbHO rIaBHyIO CTOnKy, NOKa OHa He KocHeTcraAaHTHO KpbIshKn Kopnyca. NobepHnte rIaBHyIO CTOnKy NO HAnpAbLeHnIO YacOBoN CTpeKNu ONyCTnTe eE NOKa OHa He DoCTnIRET HyXHO UPOBH.NJrTOr, QTo6bl 3a6NoKnpOBaTb rIaBHyIO CTOnKy DO HxKHO UPOBH,NOTAHnte BBepx,a NOTOM NobepHnte npOTNB

yacobon cTpekn. 3aTeM onyctnte e, noka rnaBnaCToikae he 6ydet cToarbHa CBOx BNHTax. 3aTnHnTePnactMaCCOBbl BnHT, yTo6bl TeNIOBO 3OHTNK 6bl CTa6nIbHbI.

3ameuHHe: OcToPOxKHo, 6epeRrTe rOIOBy. Ipeed NaIOM cKlaIbIbAHnI, nOIOXdIte, noka o6orpeBaTeJIb OCTbIHet.

YcTaPaeHHe HeCnPaBHOcte

ПОНБЛЕМВОЗМоЖ	НА ПИЧИHA PELSEЕНЕ
He можно заочець контrolьно пламен	3атян't вентлиь 6аллona. 0TKpyтinte вentлиь.
	Заблакрован bixiod ivii shlahand kohtрльно рламен.	Очирпite ivii zamehite bixiodhoe OTberpсtle ivii shlahandkohtрльно рламен.
	Воздух в ratоовий установке.	Откypгnte ra3obую установку и bivnyctite hemhoroRa3a [нaximая руху ретулрови] в чеке мадс. 1-2MinHyt ivii noka he nouchвсыte ra3.
	Hizskoe давел�数 ra3a. 3amehite 6alloon [odnapazobu]	i c npoanahom ha nobiy.
	He Dei'stbyet zaxinralka.	Icnpb3yte cnilchki,чтбу zaxeyb kohtрьhoe pllamay; [Дя STOTOИСПОЛБ3yte cneunalbni DEPxatelnydЯ спчek(сm. рсунok**) 3akaxite u yctahOBite HObyu 3axinralky.
Контrolьно плама rachatET	Bokpyr kontrolьно ropeлки ckollnacb griazb. Ouchstte	Icnpb3yte cnilchki,чтбу zaxeyb kohtрьhoe pllamay; [Дя STOTOИСПОЛБ3yte cneunalbni DEPxatelnydЯ спчek(сm. рсунok**) 3akaxite u yctahOBite HObyu 3axinralky.
	Прервано coeiniellome jezdy ra3obblm bENTnilem u yzilom kohtрьhoe ropeлки.	3atyrnite coeiniellome i npobepbte repermetnucnoctb.
	Tepmonapa He pa6otaeТ долхныm obpa3om. 3amehite	Teprmonapy.
Горелka Ne zaropается	Hizskoe dablenie ra3a. 3amehite 6alloon [odnapazobu]	i c npoanahom ha nobiy.
	3acopen Bixod ra3a. YctraHnite
	Pyuka perynipovkn He haxoDITCBA INOLOXeHIN .ON".	Iobepnite pyuky perynipovkn B noLOXeHIne .ON".
Плама рогелки симшkom салобе Вимани: не Исплзайуные обогратыпри temпарatype nitke 5°C	Hizskoe dablenie ra3a. 3amehite 6alloon [odnapazobu]	i c npoanahom ha nobiy.
	Tempeparatya prpeblyaet 5 °C, a 6alloon 3anonhen Mehee 25%.	3amehite 6alloon [odnapazobu] c npoanahom ha nobiy.
	Гazobii shlaanr n3orhyt ivii ckpyen BvIpramite shlaan	Ic npoerpbte repermetnucnoctb.
	Pyuka unpaBelenia uystahOBleHa B maksimalmbhoe noLOXeHIne .ON".	Iobepnite pyuky perynipovkn B noLOXeHIne .OFF",постждite,пoka harpebaileb ocbyinet do komnathoi Tempeparatby, a 3aTe m npobepbte,чтбу рогелкаиВылUCKhble otberpctna He 6bln 6lOKinpobahly.
ОBGpeBaTeN He roporit paBHomepno 3amuchaine: Нжхий учасок 2,5 sm obtu-ho He harpeBaetcra.	Hizskoe dablenie ra3a. 3amehite 6alloon [odnapazobu]	i c npoanahom ha nobiy.
	Ochnobanie He stoit Na pOBhoi noBepxHoctn. Noctabte	e oborpbebaileb na pOBhoi noBepxHoctn.
	ОBGpeBaTeN He ypaBHOBeWeHn BvIpramite oborpeBaTe	Ib.
Harap Гязь и с两点	Iи Na OTPaKATENE I oborpeBaTeNe. Ouchstite OTPaKATEN	i oborpbebaileb.
Густо чьн'dыIM	Зakynopera ha ropenka.	Iobepnite pyuky perynipovkn B noLOXeHIne .OFF",постждite,пoka harpebaileb ocbyinet do komnathoi Tempeparatby, поlete чero BOCSTAHOBite прахдимocь TGorekni n ouichstite e'e chapuxn i BNYtrn.

Ecn no kaon-TO npnue He nckpa 3axnraHnHe NoBnaeTc, oBorpeBaTeIb MoXHO BKNIOHTb, BCTaBnA CnUky B OTBepCTne RopeKn C NOMOuTo npnaraemoro DePxAteIa DNr CnUeK (cm. oToTOrpaΦnIO cNeBa) n OndOBpeMeHHo NOBopauHBa pykny perynipOBKn B noJooKeHne .PILOT".

B clyae kaKx-1n6o npo6IeM, Mbl npocm CBA3aTbca C MeCTHbIM NocTaBUnKOM.

RapaHTn

JIb6a HeoJekKa IINI NOnOMKa, KOTopaB BJeUe3a co60n HnnpabInbHyu pa6Otu yCTpoNCTBa, KOtopa8ydt BbIBNeHa B TeueHne nepBOrO rOda O TdaTbI NOKynK, 6yTeYcTaPHeHa 6ecnPaTHo, INn Xe BCE yCTpOcTBo 6yTe3aMeHEnHO HObIM, ECNI OHO 3KcNpyATnpOBaNoCb n 06cnyXnbANoC b COrnaCHO HnCTpyKUnn No 06cnyXnbAHnIO n He NCnoB3OBANoCb HnnpabNbHo, INn B pa3pe3 c Ha3NaueHEm. DaHHoe NonoXeHne Hn KoE Mepe He HApYsae INhIx npAB Notpe6nteJra, IN3IoXeHHbx B 3aKOHO

dATEIbCTBe.Bcnyae 3aBHeHn yCTpoiCTBa B peMOHT nHa 3aMeHy B paMKax rapaHTn, cNe dyETyKa3aTb MeCTO n DaTy NOKyPkN yCTpoiCTBa n npINO-XNTb CHT, nN YeKOByIO KBNTaHciHIO.

CorgaHo HaWei NOJNTKe COBepHeCTBOBaHnHaIINx npOyKToB OCTabJIeM 3a Co60n IpaBO HaBBOD n3MeHEnB KOHcTpyKcNIO, yNaKOBky N B TexHNueckne npaMeTpbl, yKa3bIBaEmble B TexHueckOn dOKymeHTaCm 6e3 npedynpeXdEHH.

Yttnn3aunn n 3aunTa OKpykaUoien cpebl

B cnuyae BbIbOda o6OpyIOBaHnI 3 EKcnIyatauN, npOdyKT HeJIb3a yTUNI3nPoBaTb BMeCTe C dpYrIMN 6bITOBbIMN OTXODAMN. PONb3OBaTeJIb HecET OTBeTCTBeHHocTb 3a NpepaUy o6OpyIOBaHnI B COOTBcTCTByUoIuN INyK TnpEma TexHnIK 6bIBwe B yNoTpe6IeHN. HecobJIoJeHne BblIeYka3aHnHO IonoJHnM MoKeT npNBecTN K HanoJeHnIO UTPa-ΦOB B COOTBeTCTBnN C DeIcTByUoIuMn IpabNJaMn B OTHoSeHN N yTUNI3aUIN OTxOIOB. CeJIeKTHBhI c6Op n yTUNI3aUIN NCnoJIb3OBaHHoro o6OpyIOBaHnI CNOC6CTByIOT COxPahEnHIO npIpOaNbIX

pecypcoB n obecneuBaHT peuPKyIaIIO TaKIM o6pa30M, KOtOpbI He BpeDeH IJIa 3DopOBbI n OKpykaOoSei cpebl. IJIa IOnlyeHnI DaONHInTeJbHO HΦOpMaUIN O TOM, rIe MoKHO OTDaTb NcNoJIb3OBAHHoe 6OpUdOBAHHe IJIa YTNlN3aUIN, 6bpatNTecb B MeCTHyIO KOMNaHnIO No c6opy OTxo-DOB. PpOn3BOJnteBn IMNOPTep He Hecyt OTBeTCTBeHHocTn 3a peuPKyIaIIO n Nepepa6OTky OTXoOB 3KOJIoRnueckn 6e3OpaChbIM CnOCobOM, KaK HeNoocpeIcTBeHHo, TAK N B paMKax rOcydApCTBeHHo CNCTeMbI.

Euxapiotouneouayopaaoteauto npoiovHendi.iaBaoTe npooektikto npov eyxepio npiv auvdoettn ouakeun, npokieevou va npolaBete nOavn BbaBn nou mnpei va opeiIeai oe Iav- 0aouevn xpon.iaBaote iowc touc kavovmuoc aopaaleiac nou npooektikda.

Oδnyiες ασφαλείας

Autn n ouokcun npenla xnpouonoiietal oE EeWTEpikoCxwpouc n oE kaa aepizoEvoxpo kal dev npenla va eYkaBiotatal na xnpouonoiietal oE eOwTEpkoCxwpouc.
AaaTeTn piAn aepiou eKaa aepizoEvoxwpo paKpia anEupkntc nnyec.
H piaan npenv va ano nkeuetal oE Ewepikouc xwpouc n e ka'aepizoevo xwpo.
- H anoθnkeuon autnc tnc ouokεunç oε εωτερικό xwpo επιρεπειλ μóvo εav n φιαλn aερεou exi anoouvδεθεi kal aφaipεθεi ano tn ouokεun.
Mnv n ouokekun otav eival oE i n otav eival anevepyonoinpuevn kal dev exI KpuwoeI.
Mnv enixepnoe va kavte aalayec otn ouakue n e oniovodnotrpo. Mnv Bapet ne oxapa aktivoBoiaic, tov nivaka eEyxou n tov avaklaotnpa.
Mnv qpaZeTc onec aeploou tou nepBnaTOC tou piaInc.
H ouokeu npenvla ykataotaekai n pialn aepiou npenei va anoynkeutai oupwva touc tonikouc kavovioouc ykataotaonc puotowdavopuc.
KlaTe Tn BaBida 0tn qiaIau n oToV puOuot npiv eakvnoeTn ouokun.
Xpnouoie Tov tuno aepiou nou kaopizetai ano tv kataokuaotn.
O1 eiokeuec npenei va yivovtal ano Eeikumu evo npoomegaiko.
- Σε πεπτωσιοχρού ἀνέμου, δώτε προσακή στην πεπτωσιοῦν ἐχει πάρει κλίση n Σωακεύή.
BεBaωθειτε οι n BaλBiδa ρύθμιονς ἐχει τοῦθετηθει σωσα τοι εἰναι σε θεσαν αλει touργήσει σωσα.
KlEioTe Tnv npoxn aepiou otn BaBbDaa tnc pfalnc aepiou n tou puOmuotn eTa tn xpnon.
Mnv xpnaonoiie t n ouakeun npiv dookmaote oAec tic ouvdoeic yia diappoe.
- Σε πεπτωπ διαροής αερίου, n συοκεύν δεν πρέπειν αυχραμούηθει και στην περτιωπ φωτιὰς, n napox ἀερίου πρέπειν αλιακόπει και n συοκεύν πρέπειν αξεταοτει και να διορθωθει πριν xρομούηουπθει ξάν.
- Eλεγχετε ηι σωλήνωσι n τον εύκαμπιο σωλήνα κάθε μήνα και κάθε φρός nou αλλάζετε κύλινδρο.
H n o eukantoc owlhvac npenei va aalazetai evtoc twv npokaopioeewv dia otnpatov n evtoc evoc etouc. O eukantoc owlhvac dev npenei va unepBaivt a 1,5 tpa oupwa u to npotuno EN16436:2014.
H diatae n tou oaniva npenei va avikataotaeei npiv mnei oE leitoupyia n ouokun, eav unapxouv evdeiEic unepBoaiknC trBnC n opac,n av o ukauntoc oanva cival katotpauevoC. O oanva c avikataoanaC kaOpizetal ano tov kataokuaotn.
H 3epa npenei va eniEewpeitai npiv ano tn xpnon kal toulaiootov ia qopka 8xpovo ano eikueuévo texviko. O auxvotepoc kaapiaouoc mopevi a evai eniB5nuevo

avaloya Tc avaykeç. Eiva 1nitakikó va kaθapizεtaI to diaepioa eλeyxou, oI kauotnpεc kal oI dioboi kukloopopiaac aepa.

Anevepyonoiote kai eleye aoeowc tn eepa ev uipotatai kanaia ano tcaakooth ouvthkec:
Eav mupizciaepio kai ouvodueetal ano eyaan ekpon ano ktpivn olaoya ano tov kaou npa.
Eav tn 3epmuotpa 3e 4avei tn 0wotn 3epkoopaia. Mta 3epmuokpaa ukpotepn ano 5^ 8a npokaalei nepioipouevn poh 3epoTntac kai n oukeun 3ev th a letoupynoe i owta.
Eav n ouokeuñ kavei θópuBo oa va okaéi kati, kaàtn diapkeia tnc xpñoc (o μikpòg òopuBoç okaaiμatoç εiva φuoiλoyikóc òav oBnvei n ouokeuñ).
- O puθμiαntc kal o εικαμπος ωλνας πεπειν αβρικονται ἔξω anò διαβρομες nou μnορειν ακονταψει καποιος kal aλθος, kal anò περioxn nou μnορειν unοστει ζημία σωλνας.
- Onoiooohnonr npopuakntpaç n àλn npoataeutikn ouokéun nou apalpeital ia tn ouvtn pnon tnc Θερμaotpaç npénεi va tonoθεtnθεi Gava npiv ano tn λεitoupyia tcns Θεpμaotpaç.
- Ta naiδiá kal oI evnλikεç npéneI va npoεldonoinθouv yia tov kivduvo uynlnc θεροκpaoiaç tcN επιφανεliaç kal npéneI va napaévouv μakpiä yia va anopeuxθouv εykaúμata kal va πiàouv φωτiá ta poùxa touc.
- Ta μικρά παίδιὰ καὶ τα κατοικίδια ζώα πρέπειν αἰ ἀπιβλέπονται ὄτavirus Bpiokovtai στην περioxh tcns θερμάστρaς.
- Ta pouxa n àλλa εύφλεκτa uλικα δεν πρέπει va κρέμονται στn συσκεύн kal δεν πρέπει va tonoθετούνται napw n kovτα στn συσκεύн.
Mnv tono0e1e kal mny otnpizet e avtikieeva otn ouokeu. Oipoueva uka n avtikiemu eva nou aonkovta kal kato knov t an ouokeu h npoei va ekteouv o e aktivoBoolouevn 0epotnta kal npoei va unootouv oBapn BbaBn.
Mn xpnoiopoiei te kai un aoonkeu ete uokk ta uikovt a on ouokun.
Mnv k z e aepoluuma kovt a tnv ouokeun otav elal oE l toupyia.
- Διαπρείτε πάντa anοσαση τουλαχιοτον 0,9 μέτρων anο εύφλεκτa uλικα.
- Tonoθετειε παντα Σοικευήσε σταθερή επιηδόν επιφάνεια. Evac kaλα αεριςμενος xωρος πρεπειν ἀ εχει τουλαχίοτου 25% ελεύθερο εμβαδόν επιφάνειας. To εμβαδόν επιφάνειας εieval to ἀθρομα της επιφάνειας των τοixων.
- O εγxutnpac σε autn tn σωκειδεν εival anoonωενος και ouvapμoλoyεια μόνο anο tov kataokεuaotn. Autn n σωκειn anayopeuεια va μεtatpèneι μia niεσa εpiou σε àλλn πεσn.
Mn ouvodetov kulivopaoepiou aneuethiaoctn ouokun xwpicpuotn.
- O kúlvöpoc aεpiou npènεi va στερεωθει με tov iμávτa kuλivöpou, o onoioç Bpiokετai μèσa στο πεpißλnμa, kalà tnν εγkaṭàσaon.

PpO8λeNoεvn xρησ

H ouakeun npoopizetai yia enayyEaatikn xpon kal npenla xnpouonolitai movo ano etiku-u- mevo npoownko.
H ouakeun eival oxediaouevn yia oepuavon movo 0e EwTepiKo n ka aepizoevo xwpo. OnilaOn note aan xpnon npopci va npokaloei BbaBn otn ouakeun n tpaumatoo.

H xpñan tnc ouokéunç yia onoiovodñnote aλlo akono θεωpeitai kakn xpñon tnc ouokéunç. O xpñatnc εival anokλeotiká unéuθuvoc yia tvv akataλnnxpnon tnc ouokéunç.

Kataooyoc EAptnmuTowv

EuvaipoIoynon 0eepaotpa

Odyie ouvapmooynonc

KaataBidi/PuOmuZoEva Kλeioia/Kλeioia
- i u a avixveuong diappoNC, eva eepoc anoppu-navtuko kal pia eepn vepo
Piv ano tn ouvapmooynon, BεBaωθεitε oti oλa ta uλiká ouokεuαoiac exou apαipεθi.
- Suvapuoynote npwa xalapa ola ta naEmuadia kal tic Bioc. ZpiEte oec tic ouvdoecic me Ta nV ooknwn tcouvapuoynonc. Eto dukovote otnv epyaia oac kal auavetal n otaepo-tnta tnc oukeunocac.
Evexetai va unapxouv ukec anoklaoeic otov Egonlao. Auto dev opeiEeTal eKakn noIotna, aaa oBtioeic.

BHMA 1: BldwTe nviow eniupaveia nepiBnmuatoc 0tn Baon tC 5 BiEc M5 x 12 kai Tc 5 poEeAEC. [x. AenToupeiaac A]

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

Str. 13 decembris 94A, Hala 14

Braşov, 500164, Romania

Tel: [phone]

Email: [e-mail]

PKS Hendi South East Europe SA

5 Melsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

FindHendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen und Druckfehler vorbehalten.
  -Wijzigingen en drukfouten voorbehouden.
• Producent zastrzega sare prawo do zmian oraz będow drukarskich w instrukcji.
• Variations et fautes d'impression réservés.

• Errori di cambiamenti, di stampa e di impaginazione riservati.

• Drepturi rezervale cu privire la modificari si gresei de imprimare.
  -3mehenHn, neaTHn BepCTKn 0wn6Kn 3aunuheHbI.
  -Me enipuaen aayaw,aaBw ekwnoncn katoxioeoiac.
  -Zmeney, chyby tisku a sazby vyhrazeny.

• Spremembe, tiskarskih napak ter pridrzane.
• A vátzoṭatások, a nyomtatási és a szedési hibák jogát fenntartuk.
  -Zadrzano pravo na izmjene, pogreske u ispisu tiskarske pogreske.
