Product type	Mobile monoblock air conditioner
Brand	Suntec
Model	Motion 90+
Functions	Cooling (COOL), Dehumidification (DEHUM), Fan (FAN)
Temperature adjustment	From 16°C to 31°C
Fan speeds	LOW and HIGH
Timer	Programmable for 24 hours (automatic on/off)
Remote control	Yes (with functions POWER, MODE, TEMP +/-, TIMER, SPEED)
Refrigerant	R410A (GWP 2088)
Filter cleaning	Every 14 days with lukewarm water
Housing cleaning	Lukewarm water and mild detergent, soft cloth
Safety	Overheat protection (shutdown at >70°C), full water tank alarm, automatic shutdown
Spare parts available	Air-Block Klima-Sail, Air-Extension-Kit, Window-Kit (www.suntec-wellness.de)
Warranty	24 months from purchase date (subject to proper handling)
Power supply	220-240 V ~ 50 Hz (estimated according to European standards)

Frequently Asked Questions - Motion 90+ SUNTEC

How to install the air exhaust hose?

Attach the round adapter to one end of the hose and the rectangular adapter to the other. Insert the rectangular adapter into the opening at the back of the unit, then direct the other end outside.

What to do if the internal water tank is full?

The water level indicator lights up. Remove the drain plug at the bottom of the unit and let the water drain into a container. Purge the water regularly.

How to clean the air filter?

Turn off and unplug the unit. Open the grille, remove the filter and clean it with lukewarm water. Let it dry completely before reinstalling. Do not expose it to sunlight. Perform this operation every 14 days.

What to do if the unit does not start after pressing POWER?

Check if the water tank is full (flashing alarm). If so, empty it. Otherwise, check that the room temperature is higher than the selected temperature. If the problem persists, contact customer service.

Why is the air conditioner not efficient enough?

Make sure all windows and doors are closed. Turn off heat-generating devices. Check that the exhaust hose is not blocked and properly installed. Clean the air filter. Lower the target temperature if necessary.

What does error code E0 mean?

Error code E0 indicates a faulty room temperature sensor. Contact your service provider for replacement.

What does error code E2 mean?

Error code E2 indicates a defective water pump. Restart the unit. If the problem persists, contact customer service.

How to store the unit during winter?

Empty the water tank. Power on the unit, press and hold the FAN button for 5 seconds to activate low fan mode for half a day until the piping is dry. Turn off, unplug, coil the cable, disconnect the hose, place the unit in a plastic bag in a dry place. Remove the batteries from the remote control.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, use a heavy-duty extension cord that is properly grounded. Ensure the power cord is not damaged.

Where can I buy accessories or spare parts?

You can purchase spare parts and accessories (Air-Block Klima-Sail, Air-Extension-Kit, Window-Kit) from your local dealer or on the website www.suntec-wellness.de.

USER MANUAL Motion 90+ SUNTEC

Please do not install or use your mobile local air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference.

Safety instruction

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• The unit may not be connected to a defective outlet. Please make sure before using that the unit has been properly installed.
• The unit has to be placed within the reach of a power outlet.
  The unit is for indoor use only.
• Do not use the unit near open fire sources.
• Do not use the unit on a place where it could be splashed with an oil or water.
• Do not expose the unit to direct sunlight.
  . Do not use the unit near bath, shower or swimming pool.
• Never insert fingers, pencils or other objects into the unit if the power cord is plugged, and especially not during operation. Warn your children against these dangers.
• This local air conditioner must be stored and transported upright, otherwise you may cause irreparable compressor damage. In case of doubt let the unit rest for at least 24 hours before you start it.
• Before cleaning the unit, turn it off and unplug the power cord.
• Before replacing the unit please make sure that the power cord is not plugged in and move it slowly.
• Empty the water tank before transporting the local air conditioner.

• Do not cover the unit and make sure that the air inlet and outlet are not blocked.

• The unit has to be installed in accordance with national wiring regulations.

• Please make sure that the unit stands upright.
• The unit should have a distance of 30 cm from other objects, otherwise they can strongly influence the operation of the device.
  . You should never repair your local air

conditioner by yourself. Please contact your dealer if the unit needs to be repaired.

• In case of breakdown turn off the unit (only by the POWER button located on the control panel) and contact your dealer.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

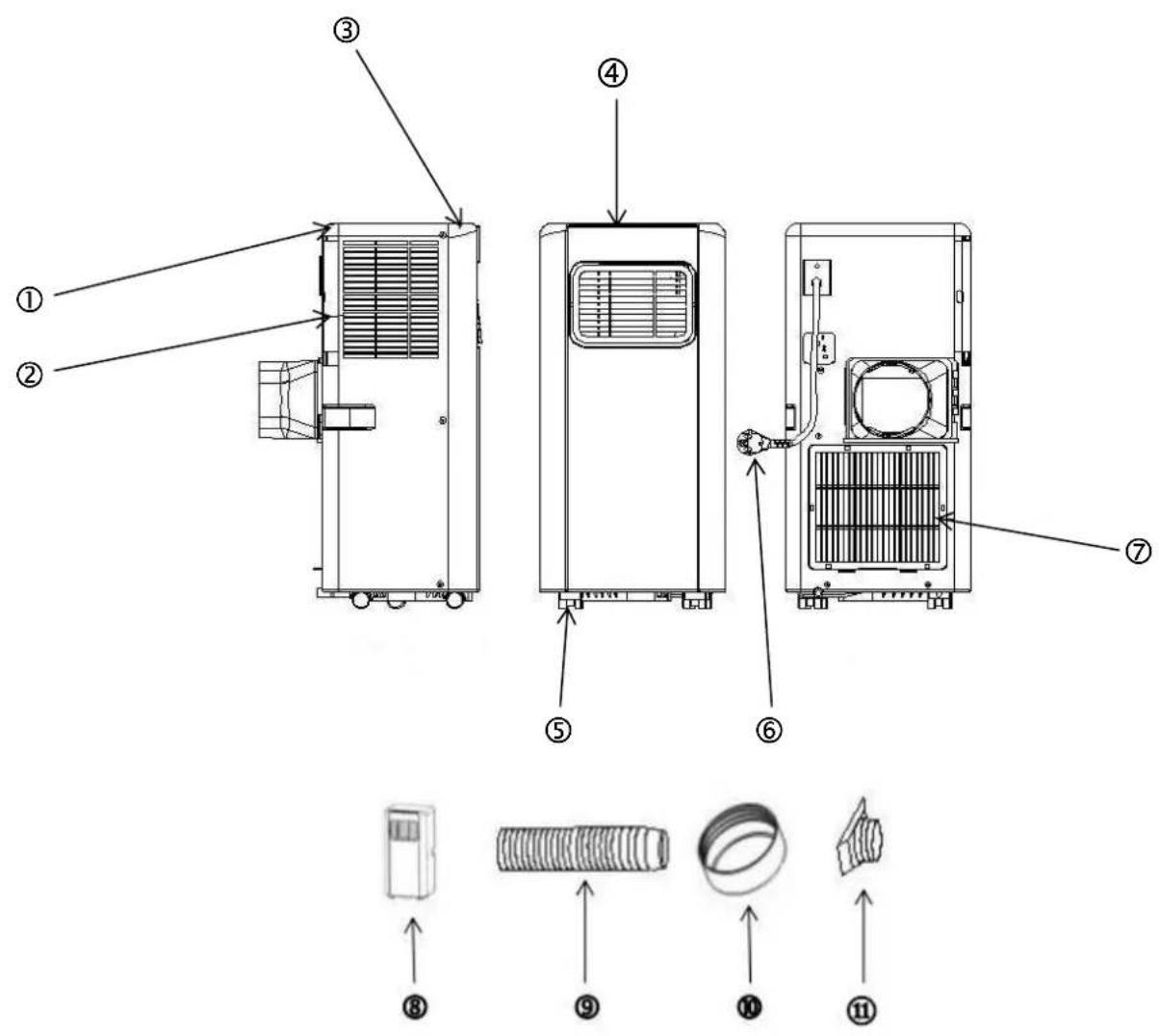

Components

1. Lateral cover
2. Air outlet
3. Front cover
4. Control panel
5. Castor
6. Power cord
7. Air outlet

8. Mobile local air conditioner

9. Exhaust hose

10. Rounded fixing clip

11. Square fixing clip

Installation

Warning: Let the unit rest for at least 24 hours before you start it. The unit can be easily moved between rooms, but please note the following:

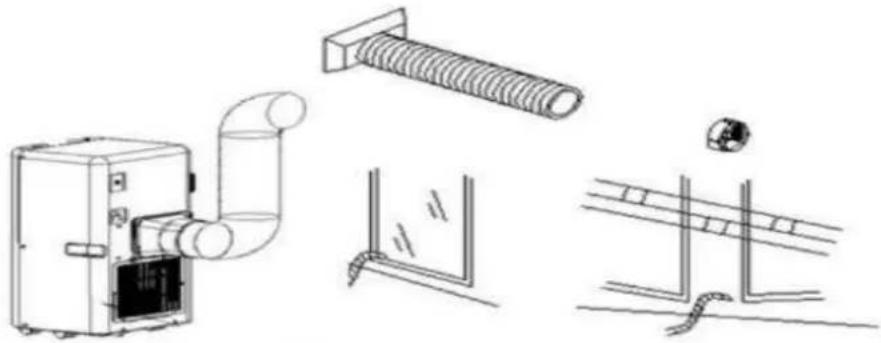

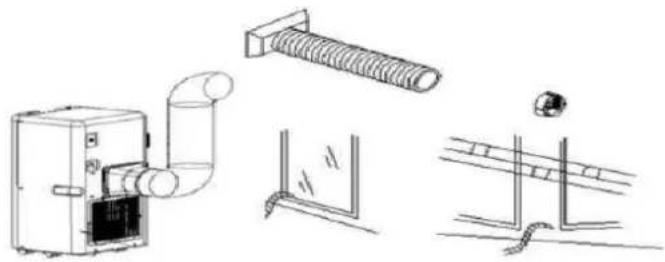

Installation of the exhaust hose, Fig. 1 and 2

1) Place the unit near a power outlet.
2) Attach the rounded fixing clip at the one side of the exhaust hose and the square clip at the other side.
3) Attach the flat clip to the fitting opening at the back of the unit.
4) Put the other side of the exhaust hose to the outside.
5) Plug the power cord into the outlet (220-240V, 50 Hz).

Functions

This mobile local air conditioner has following functions: COOL, DEHUM, FAN.

The fan has two speeds: LOW and HIGH.

Possible settings: 16 - 31°C 24h timer, overheat protection function.

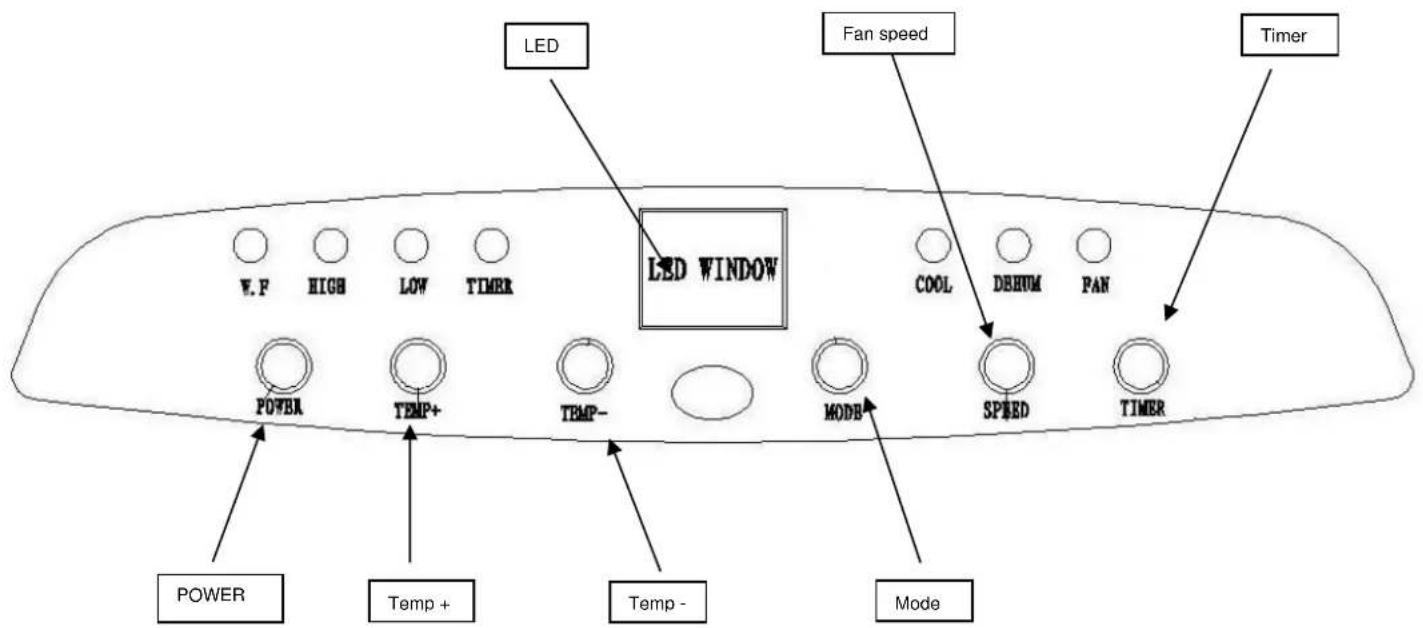

Control panel

1. After starting the unit you can hear a start signal, the unit will be automatically set in a standby mode.

2. Power button: Once you press this button, the model switches to cooling mode (temperature 25°C ). By default, the lowest fan speed is set. Press the Power button again, the unit will switch off and you will hear the final signal.

3. Cooling mode

4. Press the MODE button until "Cool" appears on the display.

5. Press TEMP + or TEMP - to adjust the temperature (16° C-31° C).

6. Press the SPEED button to adjust the fan speed.

7. Dehumidifying mode

8. Press the MODE button until the indicator light shows "DEHUM".

9. The fan speed is automatically set to "low".

10. Fan

11. Press the MODE button until the indicator light shows "FAN".

12. Press the SPEED button to adjust the fan speed.

13. Timer

Timer On:

• Turn off the unit. Press the TIMER button and set the desired waiting time for automatic system start (use buttons "Temp -" and "Temp +").
• The adjusted time appears on the display.
• Press the TIMER button to save the settings. The indicator light "Timer" is on.
• The unit will automatically turn on by the adjusted time.
• You can reset the settings anytime. Press the TIMER button to deactivate the timer.

Timer Off:

• You can set the timer to turn off the unit by the fixed time.
• Turn on the unit. Press the TIMER button and set the time, by which the unit has to turn off (use buttons "Temp -" and "Temp +").
• Press the TIMER button to save the runtime. The indicator light for "timer" indicator lights.

Remote control

1. POWER: Power on or off.
2. MODE: Press the button to select cooling, dehumidifying or fan mode.
3. TEMP + Press the button to increase the temperature.
4. TEMP-: Press the button to decrease the temperature.
5. TIMER: Press the button to turn on or off the timer.
6. SPEED: Press the button to adjust the fan speed.

Internal Water Tank Full Alarm Function

The inner water tank of the local air conditioner has a water level safety switch, which controls the water level. If the water tank is full, the water level indicator lights on the control panel. To empty the water tank remove a rubber stopper on the bottom and let the water leak in a container.

Cleaning, Fig. 6

1) Before starting cleaning or maintenance, turn the power off by pressing the POWER button, wait a few minutes and then unplug the power cord from the outlet.
2) Do not clean the local air conditioner with water.
3) If the unit is damaged, please contact your dealer immediately.

4) Surface cleaning

Clean the unit using a damp cloth, and then wipe it using a dry cloth. Do not use chemical solvents (such as gasoline, alcohol). The surface and the entire housing could be damaged.

5) Air filter cleaning

Clean the air filter regularly. If the air filter is clogged with dust, the efficiency of the device could be reduced.

1) Open the air outlet and remove the filter.
2) Wash the air filter by submersion into warm water (about 40°C ) with neutral detergent, rinse it under running water and dry it with a soft cloth.
3) Install air filter carefully after cleaning and drying.

Storage

1. Pull the power plug and empty the water tank. Then set the device into the operating mode. Press the fan button and hold it for a 5 seconds until the device switches to low fan speed. Let the unit run in this mode for half a day until the inner construction has dried. Thus, it will not become mouldy.
2. Turn off the unit and unplug the power cord.
3. Coil the cord and attach it to the holder.
4. Disconnect the exhaust tubing from the device and keep it safe.
5. Put the unit into a box and bring it to a dry place.
6. Remove the batteries from the remote control and keep them safe as well.

Troubleshooting

Don't repair or disassemble the unit by yourself, unsuitable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession.

Problems	Cause	Solution
1. The unit does not turn on when you press the Power button.	Power cord is not plugged.	Insert the plug into the socket and turn on the unit.
	Water full indicator lamp blinks.	Empty the water tank.
	Room temperature is higher or lower than the adjusted temperature.	Reset the temperature adjustment.
2. The unit does not cool properly.	Windows and doors are open.	Close all windows and doors.
	Another heat source in the room.	Remove the heat source.
	Exhaust hose is disconnected or blocked.	Connect or clean exhaust hose.
	The adjusted temperature is too high.	Reset temperature adjustment, set the desirable temperature (16°C-31°C)
	Air inlet is blocked by smth.	Clean the blocked place.
3. The unit switches off automatically.	Overheat protection (the unit switches off automatically when the temperature at the air outlet exceeds 70°C).	Restart the unit and adjust lower temperature.
4. Noise	The unit is not on a flat surface.	Place the unit on a hard flat surface (reduces noise).
	You hear refrigerant flowing.	That is normal.
5. E0 error	This error message indicates too high ambient temperature. Please observe the instructions for the optimal operation of your MOTION unit. It can also be a temporary error measurement between the input and the output temperature.	In this case turn off the unit and restart it after 30 minutes again. If the error occurs for long, the unit must be checked by your dealer.
6. E2 error	Water tank is full.	Empty the water tank.

Spare parts and accessories supply (fast convenient supply)

You can obtain spare parts and accessories for your MOTION unit from your local dealer or on our website

www.suntec-wellness.de

you will find further information on individual accessory products as well as information on obtaining our spare parts quickly and conveniently. You will also find other information (e.g. FAQ, lists of spare parts, document download, etc.) about your MOTION unit.

Name EAN	Description	Drawing
Air-Block Klima-Sail 4250058312099	A sail which can be used for all types of windows and doors. As for an external fly screen, it is fixed with Velcro and operated via a zip. The window or door can be closed at any time.
Air-Extension-Kit 4250058312105	A World First with which you can air-condition almost every corner of your house, and it doesn't matter where the local air conditioner is located. You can extend the extract air hose by 5 meters via a special propeller. For MOTION this also applies for the air supply and extraction.
MOTION Wall-Kit 4250058312471	Clean closing of a wall or wall boring from inside and outside with connection element for the air hose.
Window-Kit 4250058312013	Sliding seal of window and connection adapter for air hose, especially for sliding windows.

In the case of complaints

Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIAMTRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Refrigerant

(CE) N 842/2006: This local air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your local Suntec air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

GWP: R410A (R32/125: 50/50): 2088

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

© 2016 KLIMATRONIC® MOTION plus

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40221 DUSSELDORF / GERMANY

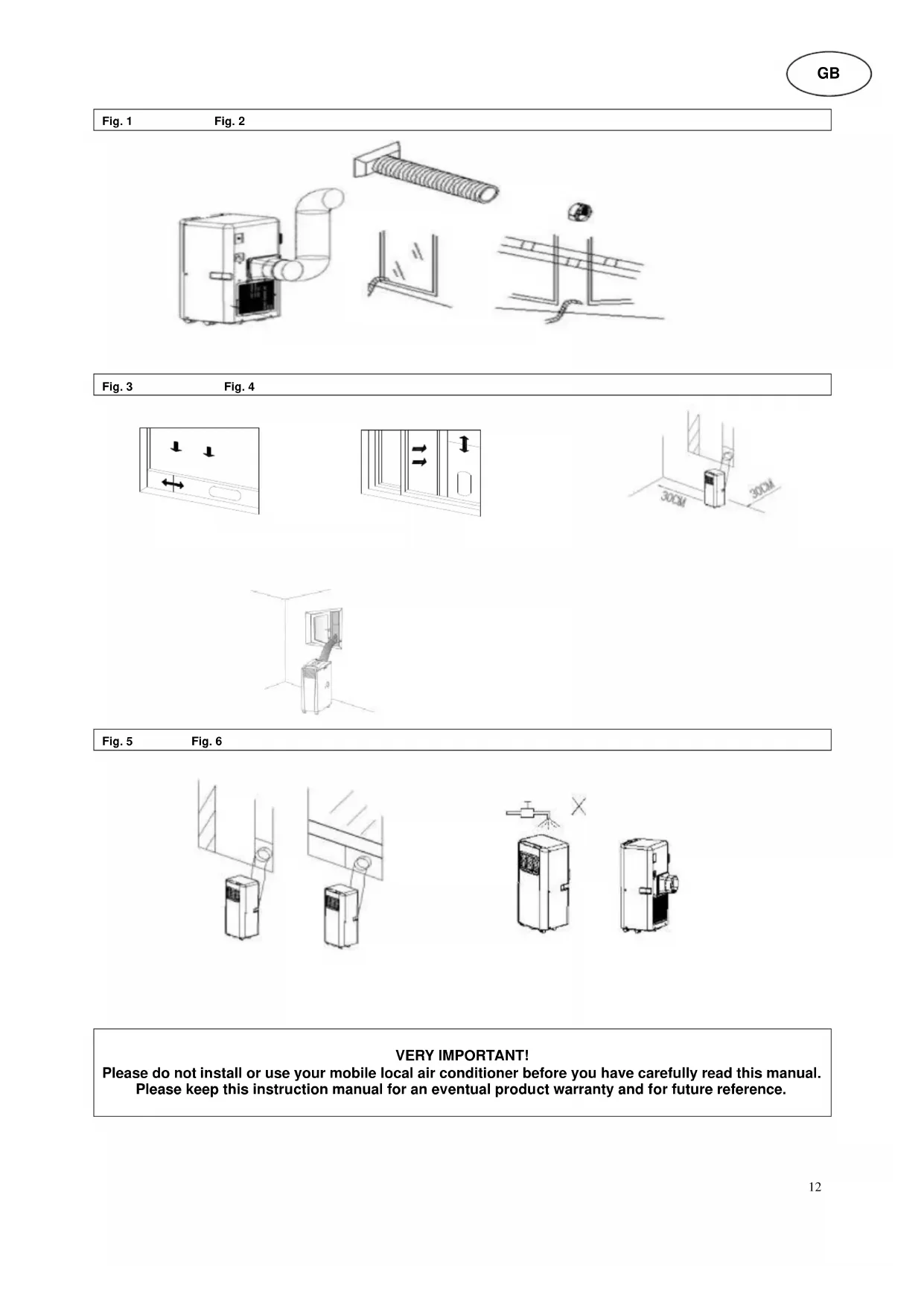

Dib. 1
