Brand	SUNTEC
Model	Coolfixx 14000 BTU App
Product type	Mobile monobloc air conditioner
Cooling power	14000 BTU
Operating modes	Cool, Heat, Fan, Dehumidification, Night
Refrigerant	R290 (propane)
Refrigerant quantity	195 g
Power supply	220-240 V ~ 50 Hz
Wi-Fi connection	Yes (802.11b/g/n, 2.4 GHz)
Mobile app	SUNTEC Wellness (iOS, Android)
Compatible with voice assistants	Amazon Alexa, Google Assistant
Remote control	Yes, included
Timer	1 to 24 hours
Oscillation	Automatic vertical
Night function	Yes
Anti-freeze protection	Automatic
Compressor protection	3-minute delay
Air filter	Washable (clean every 2 weeks)
Water drainage	Internal tank or drainage hose
Warranty	24 months
Included accessories	Exhaust hose, adapters, sliding bar, remote control, drainage hose

Frequently Asked Questions - Coolfixx 14000 BTU App SUNTEC

How to install the exhaust hose?

Attach the two adapters to the ends of the exhaust hose, then connect the adapter to the back of the air conditioner. Pass the other end through the window or use the included sliding bar for a sealed installation. Make sure the hose is not bent.

Why is my air conditioner not cooling enough?

Check that the exhaust hose and window seal are properly insulated to prevent hot air from entering. Clean the air filter regularly. Make sure the room is not too large for the 14000 BTU cooling capacity. If the problem persists, contact your dealer.

The air conditioner makes noise, is that normal?

A sound level of 50 to 70 dB is normal (equivalent to a conversation). If the noise is louder, check that the ventilation blades are securely attached, no obstacle blocks the air intake, the filter is clean, and the unit is placed on a stable surface.

How to clean the air filter?

Turn off the unit and unplug it. Remove the air filter from the unit. Vacuum the dust, then rinse it under running water in the opposite direction of airflow. Let it dry completely before reinstalling. Clean it every two weeks.

What type of refrigerant is used and does it need to be refilled?

The air conditioner uses R290 (propane), a natural refrigerant, in a closed circuit. It is not necessary to refill or replace the coolant. Any intervention must be carried out by a certified technician.

How to empty the water tank?

Turn off the unit. Remove the drain plug at the back and let the water flow into a container using the included drainage hose. Tilt the hose downward (angle < 20°) to prevent blockages. Replace the plug after draining.

How to connect the unit to Wi-Fi and the app?

Download the SUNTEC Wellness app from the App Store or Google Play. Create an account, enable Bluetooth on your phone and place the unit 5 meters from the router. Hold the WiFi button for 5 seconds until the indicator blinks, then follow the instructions in the app.

Can I use the air conditioner without an exhaust hose?

No, all portable air conditioners require an exhaust hose to expel hot air outside. Without a hose, the unit cannot cool the room effectively. The hose must be installed correctly for optimal operation.

What is the recommended operating temperature?

The unit can operate in an ambient temperature between 5 °C and 35 °C. Below 5 °C, anti-freeze protection may activate; above 35 °C, efficiency may be reduced.

What to do if an error code appears?

Common codes: FT (tank full) → empty the water; E0 (communication error) → contact your dealer; E1 (ambient sensor faulty) → contact your dealer; E2 (coil sensor faulty) → contact your dealer. For unlisted codes, turn off the unit, unplug it for 10 seconds then plug it back in.

USER MANUAL Coolfixx 14000 BTU App SUNTEC

White portable air purifier with perforated surface and black wheels (no text or symbols visible)

White portable water heater with black wheels and a silver stripe (no text or symbols visible)

Sicherheitshinweise

QR code with a central circular logo containing a stylized white star or symbol.

Line drawing of a cylindrical object with concentric grooves, no text or symbols present

Diagram of a coiled spring with a flanged end and directional arrow indicating rotation (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and a separate cylindrical object with an arrow indicating direction (no text or symbols present)

Abb. 2

Diagram showing airflow around a window with a hose and directional arrow (no text or symbols)

Abb. 3

Inbetriebnahme

QR code image containing encoded data, no visible human-readable text

Suntec Wellness App Download

Close-up of a grid-patterned plastic sheet with no visible text or symbols

Illustration of a faucet spraying water onto a black rectangular surface (no text or symbols)

Achtung!

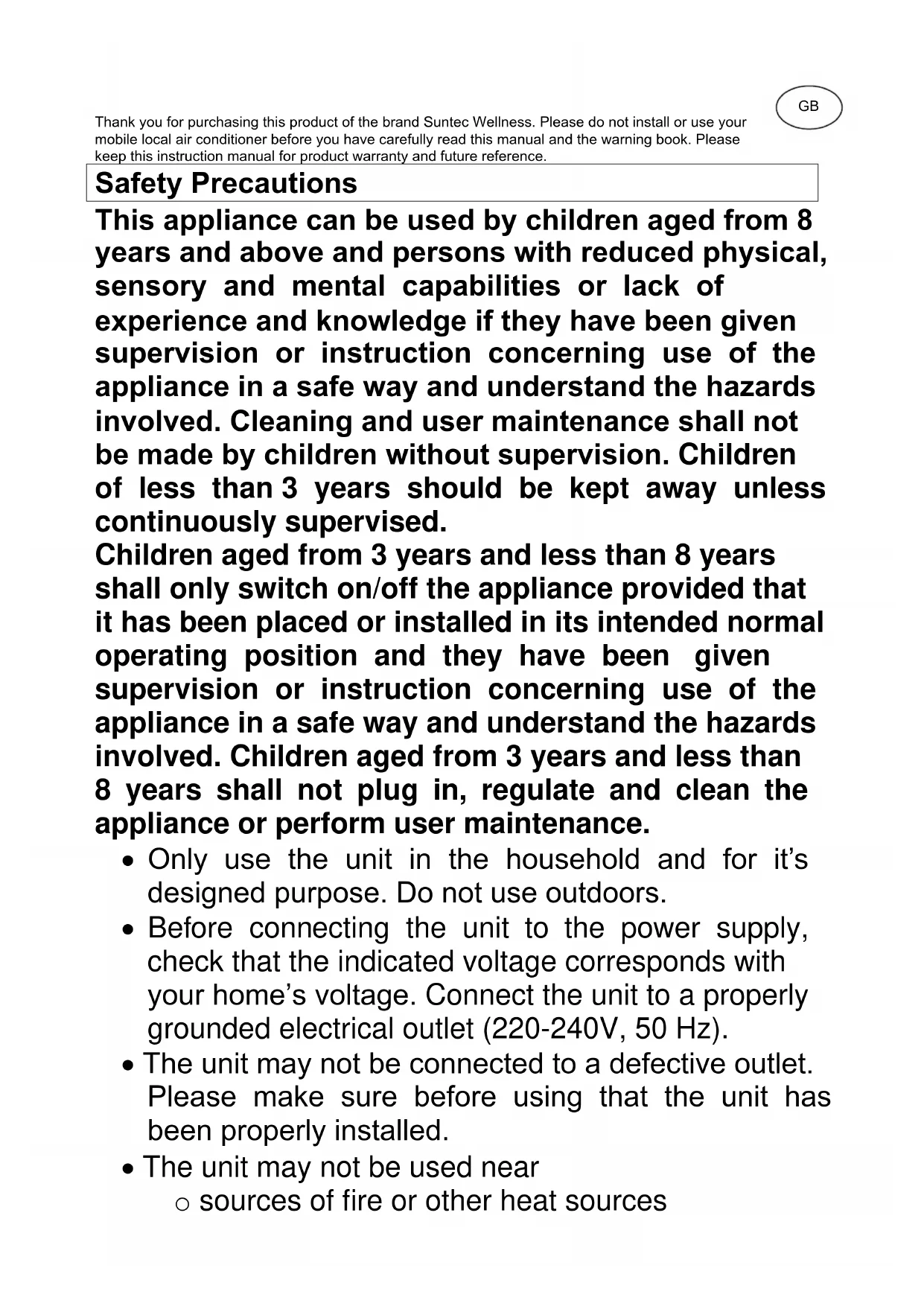

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Only use the unit in the household and for it's designed purpose. Do not use outdoors.
• Before connecting the unit to the power supply, check that the indicated voltage corresponds with your home's voltage. Connect the unit to a properly grounded electrical outlet (220-240V, 50 Hz).
• The unit may not be connected to a defective outlet. Please make sure before using that the unit has been properly installed.
• The unit may not be used near
• sources of fire or other heat sources

o areas where oil is likely to splash
o areas exposed to direct sunlight
○ baths, a laundry, showers or swimming pools

• Never insert objects or your fingers into the air vents. Take special care regarding children.
• Always turn off the unit and remove the plug from the power outlet when you do not use the unit for a longer time, clean it, in case of malfunctions or when moving it. Always move the unit slowly.
• Do not operate or stop the unit by inserting or pulling out the power plug. Risk of electric shock and fire!
• Never cover the unit. Risk of fire!
• Refrain from further usage if the power cord, power plug or the unit are damaged and contact your seller.
• Only operate the unit on a flat and stable surface.
• Never leave the unit unattended.
• Do not attempt to repair, disassemble or change the unit by yourself.
• The usage of accessories other than those of SUNTEC may cause harm.
• Never immerse the unit, cable and plug into water or other liquids to avoid electric shocks.
• Do not use a multiple socket.
• Do not use the unit in case of strange sounds, smells or smoke.
• Do not use extension leads.
• Do not put objects on top of the unit.
• Make sure that air inlet and outlet are never blocked.
• Improper use may damage the unit.
• Always empty the watertank before moving the unit.
• Never touch the power plug with wet hands.
• Suntec Wellness GmbH assumes no responsibility

for damage caused by improper use or non-compliance with the operating instructions.

• Do not drop the remote control.
• Do not expose the remote control to direct sunlight.
• Do not use pesticides or other flammable sprays near the appliance as this may lead to damage.
• Be careful when adjusting the lamellas with your

hands.

Important.

This portable local air conditioner must always be stored and transported in an upright position. In case of doubt, let the unit rest for at least 24 hours before starting it.

Packing list

Components	Description	Amount
Main component	portable local air conditioner	1
	Exhaust hose	1
Exhaust hose adapter	for the window	1
	Exhaust hose adapter for the portable local air conditioner	1
Window kit		1
	Remote control	1
Drainage host		1

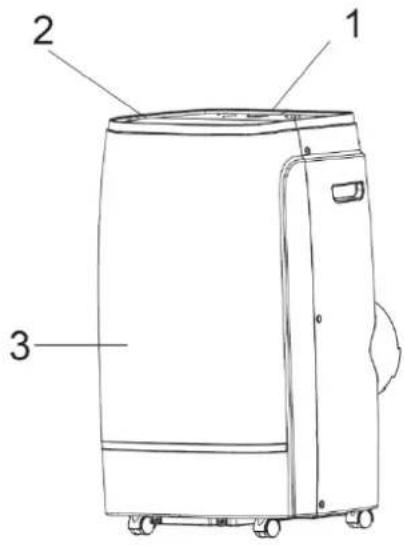

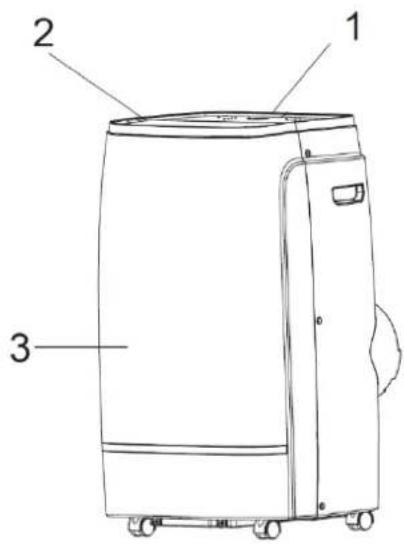

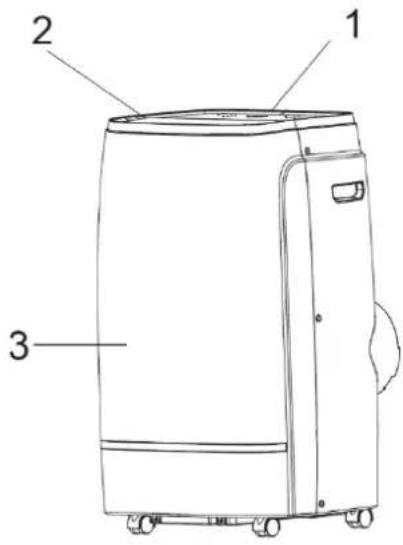

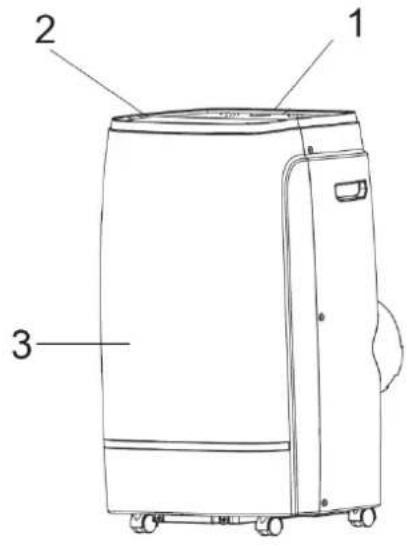

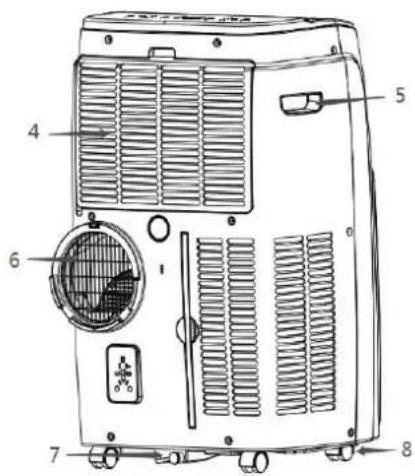

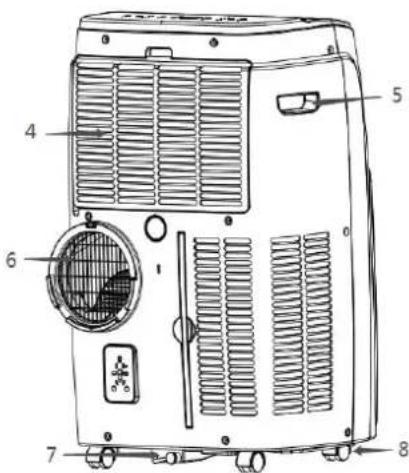

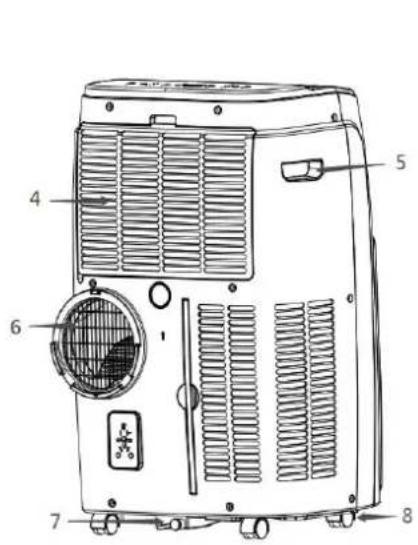

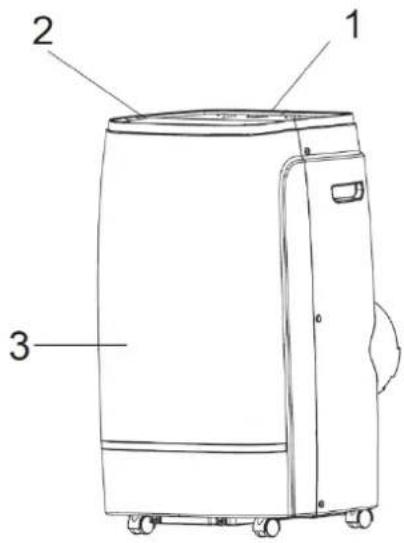

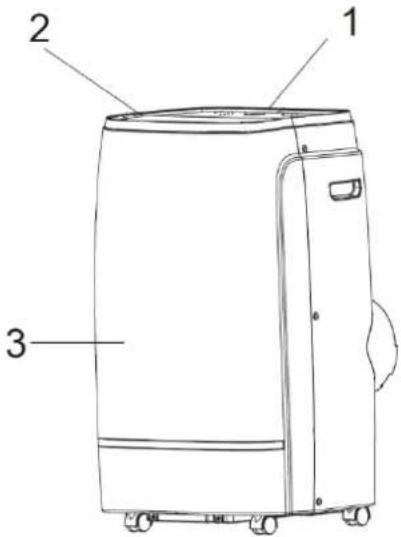

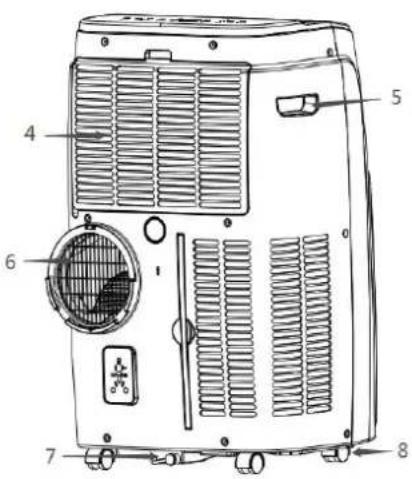

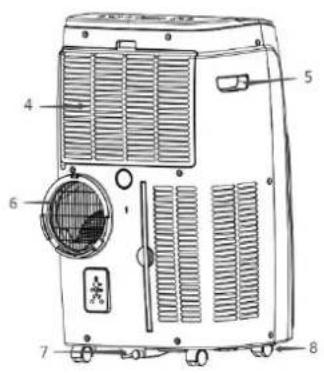

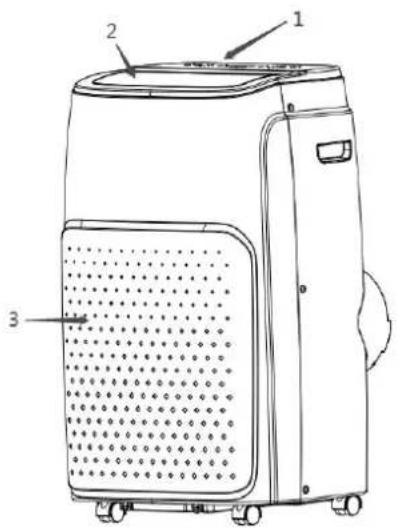

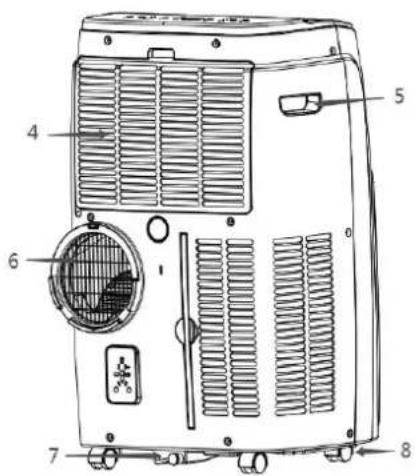

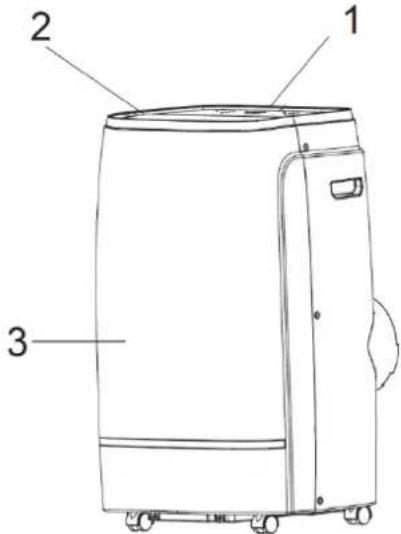

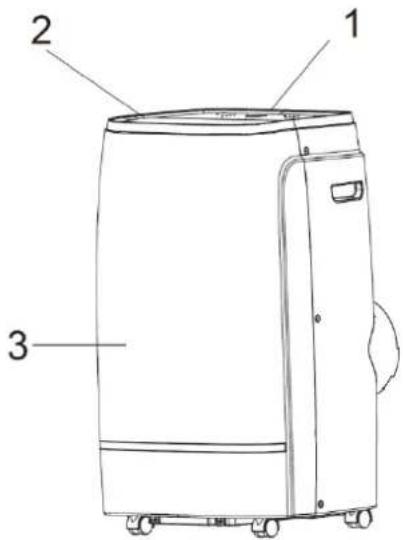

Parts description

Technical diagram of a portable air purifier with labeled parts 1, 2, and 3

Technical diagram of an air conditioner unit with numbered parts labeled 4 through 8

1 2 3

1 Control panel 5 Carrying Handle
2 Air outlet 6 Exhaust Air Outlet Opening
3 Front Panel 7 Drain
4 Air Inlet with dust filter 8 Castor

Exhaust hose installation

• Place the unit on a flat surface near a power socket, but at least 50cm away to other objects

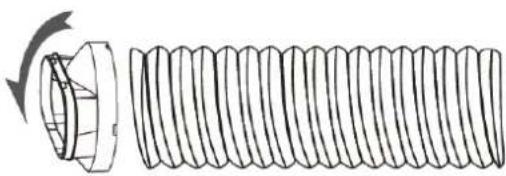

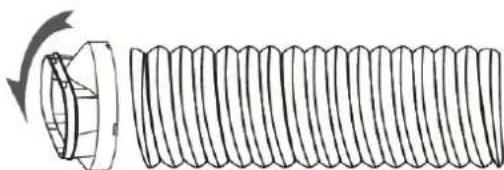

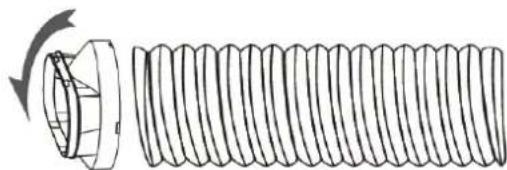

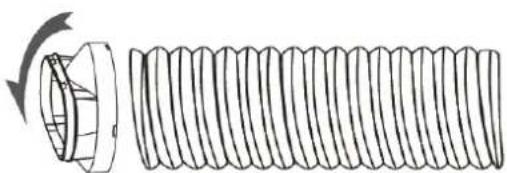

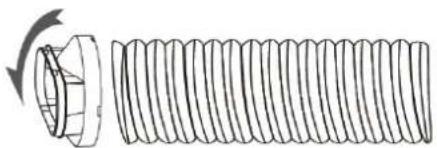

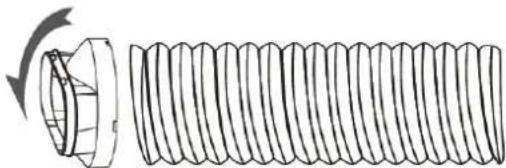

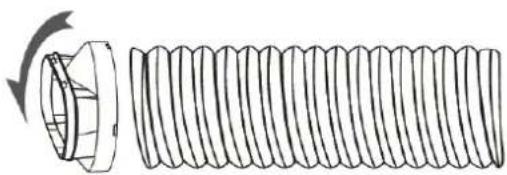

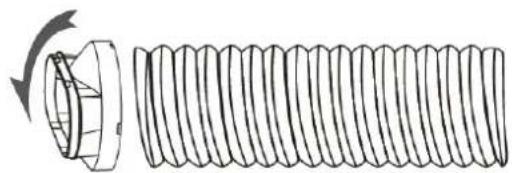

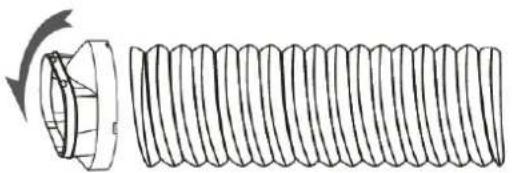

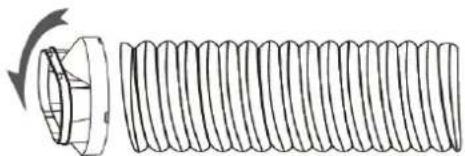

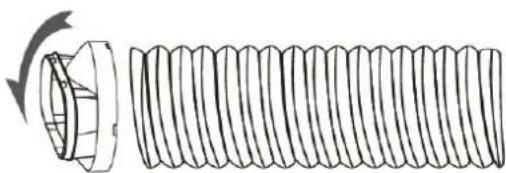

• Connect the exhaust hose adapters with one end each of the exhaust hose by turning. Then, fix the exhaust hose at the back of the portable local air conditioner (see pic.1).

Pic. 1

Technical line drawing of a mechanical component with curved internal structure (no text or symbols)

Diagram of a coiled spring with a flanged end and rotation arrow (no text or symbols)

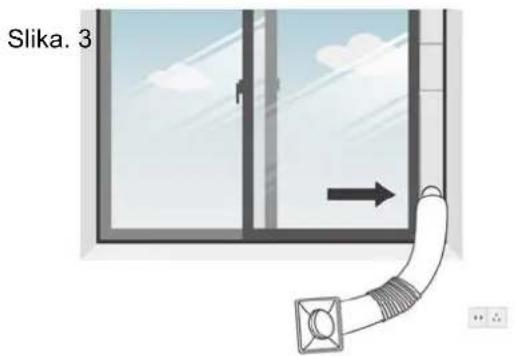

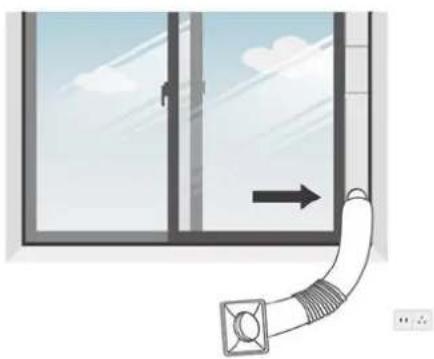

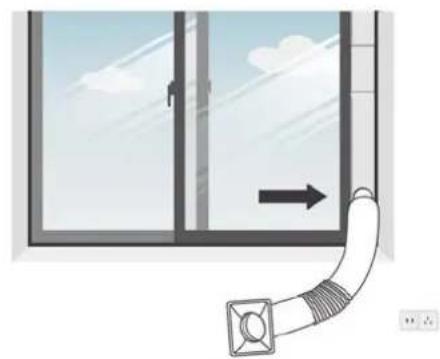

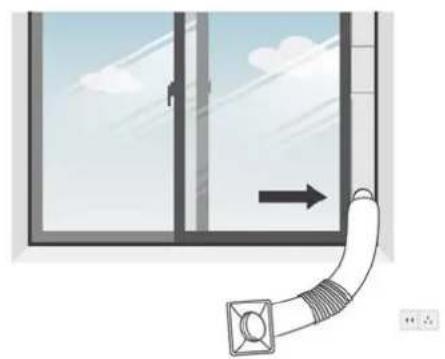

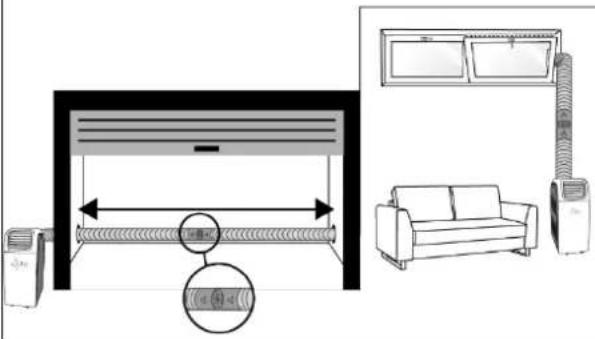

• Temporary exhaust hose installation: Please lead the free end of the exhaust hose out of the window.

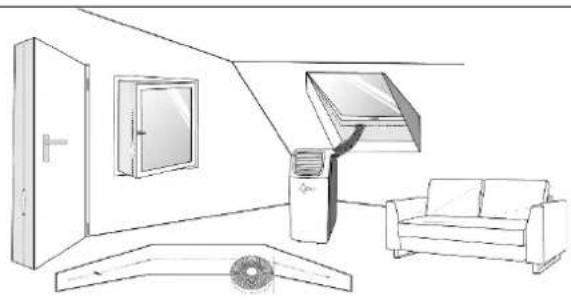

• Exhaust hose installation with window kit: Depending on your type of window, insert the window kit horizontally or vertically into your window. Lead the exhaust hose through the hole at the window kit (see pic.2 and 3).
• Make sure that the outlet is not blocked to prevent damage to the unit.
• The exhaust hose should not be bent.

Diagram showing three vertical cylindrical objects labeled A, B, and a separate cylindrical object with an arrow indicating direction (no text or symbols present)

Pic. 2
Pic. 3

Diagram showing a window with a hose and arrow pointing to the left side, no text or symbols present.

Commissioning

Please place the device on a firm, level surface in an area with at least 50 cm free space around the device to ensure good air circulation.

Do not operate the unit in the immediate vicinity of walls, curtains or other objects that may block air entry or exit. Please keep the air inlet and outlet free of obstructions.

Never install the unit:

• Near heat sources such as radiators, heat registers, stoves, or other products that produce heat.
• In direct sunlight
• In places where the device is exposed to vibrations or shocks
• In overly dusty places.
• In a cupboard or similar poorly ventilated place.
• On uneven surfaces

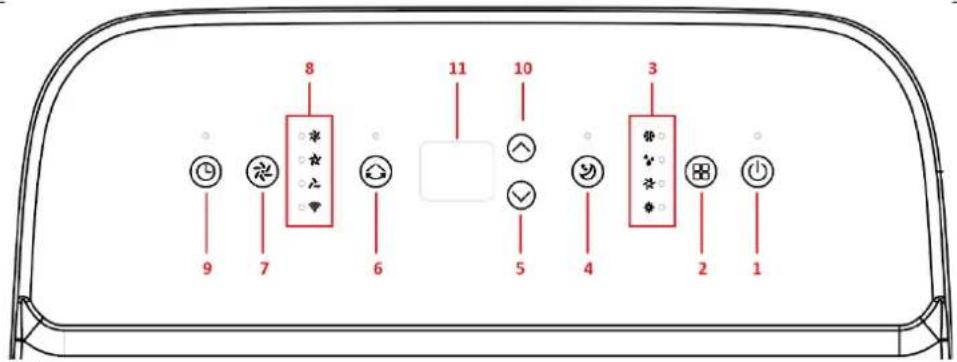

Control Panel

8 11 10 3 9 7 6 5 4 2 1

1. Power
2. Mode Setting
3. Indicator Modus Setting
4. Sleep mode
5. Runter

6. Oscillation 11. Display

7. Fan Speed

8. WiFi- Indicator
9. Timer
10. Up

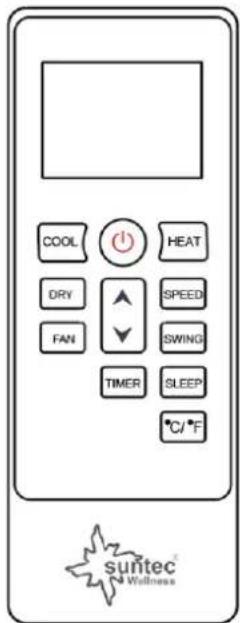

Remote Control

Speed = Set Fan Speed

Up = Up (Temperature +/ Timer +)

Down = Down (Temperature - / Timer -)

Cool = Cooling Mode

Dry = Dehumidification Mode

Fan = Fan Mode

Heat = Heating Mode

Sleep = Sleep Mode

°C / °F = Switch Temperature Display between °C und °F

Timer = Timer Mode

Power = Switch Device On / Off

COOL HEAT DRY SPEED FAN SWING TIMER SLEEP °C/°F suntec® Wellness

Functions

1. Switch On and Off

• Please press the POWER button to turn on the unit.
• The unit starts in fan mode by default. ("Fan" indicator for fan speed lights up)
• Please press the MODE button to select the desired function.
• Please press the POWER button again to turn off the unit.

2. Functions

- The device has four functions: Cooling, ventilation, heating and dehumidification. For night operation, we recommend that you operate the unit in sleep mode.

2.1 Cooling Mode

• Please press the MODE button repeatedly until the "Cool" indicator lights up.
• Press the up/down button to set the temperature. The temperature can be set between 16°C and 32°C.
• Please press the fan speed button repeatedly until the desired indicator lights up.
• Please press the oscillation button in order to activate or deactivate the automatic vertical movements of the fins.

NOTE: The air conditioner stops when the room temperature is below the set temperature.

2.2 Fan Mode

• Please press the MODE key repeatedly until the "Fan" indicator lights up.
• In ventilation mode, the room air is circulated but not cooled.
• Please press the SPEED button to select high, medium or low speed.

2.3 Dehumidification Mode

- Press the MODE button on the control panel or remote control until the "Dry" indicator lights up. The fan speed cannot be selected. The user should connect the drainage hose to the drain at the bottom of the unit.

Note: In this mode, the fan speed switches to Low and cannot be set.

2.4 Sleep Mode

The cooling mode can be activated in sleep mode.

In Cooling Mode:

After 1 hour the preset temperature is automatically increased by 1 ^ , after another hour the preset temperature is automatically increased again by 1 ^ .

In Heating Mode:

After 1 hour the preset temperature is automatically decreased by 1 ^ , after another hour the preset temperature is automatically decreased again by 1 ^ .

2.5 Heating Mode

• Please press the MODE button repeatedly until the "Heat" indicator lights up.
• Press the up/down button to set the temperature. The temperature can be set between 16°C and 32°C.
• Please press the fan speed button repeatedly until the desired indicator lights up.
• Please press the oscillation button in order to activate or deactivate the automatic vertical movements of the fins.

3. TIMER 1h-24h:

When the unit is switched on, press the TIMER button first. Now you can set the desired switch-off time with the up/down buttons.

When the unit is switched off, press the TIMER key to set the switch-on time.

Deactivate Timer: Press the Up/Down button repeatedly until '00' appears on the display.

Note: If you press the POWER button during this time, the timer function will be deactivated.

4. Automatic Frost Protection:

At low room temperatures, frost may accumulate on the evaporator during operation. In this case, the unit automatically starts defrosting and the POWER LED flashes. The defrost control sequence is as follows:

When the unit is operating in cooling mode or dehumidification mode, the ambient temperature sensor detects the evaporator coil temperature. As soon as this drops below -1^ , the compressor is switched off. After the compressor has stopped operating for 10 minutes or reaches the coil temperature 7^ , the unit restarts in cooling mode.

5. Overload Protection:

In the event of a power failure, there is a 3-minute delay until the compressor restarts to protect the compressor.

Connection to the WLAN and the Suntec Wellness APP

WiFi standard	802.11B:17.5dBm;802.11g:14.5dBm;802.11n:13.5dBm
WiFi frequency	2,400 GHz - 2,4835 GHz
WiFi radio-frequency power (max.)	<20.0dBm

• Please download the "SUNTEC Wellness" app from the App Store or Google Play and install it.
• Please create a user account after the installation.
• Please activate the Bluetooth access in the settings of your mobile device.
• Please place the device within 5 meters of your router.
• As soon as you have connected the device to the power, the WiFi indicator flashes. If no connection attempt is made for 3 minutes, the indicator on the device goes out.
• To establish a new connection, please press the "WiFi" button for approx. 5 seconds until the WiFi indicator flashes quickly.

• Please follow the steps below in the app as soon as the indicator flashes:

• Please select "Add device" and then follow the instructions on your mobile phone screen.

• As soon as the device is successfully connected, the WiFi indicator lights up constantly.
• The device works with the most popular voice assistants from Amazon and Google.
  In order to use the voice function of Amazon or Google, it is necessary to couple the device once with the "SUNTEC Wellness" app. All further steps are displayed in the app.
  To remove the device from the WLAN, please press the "Wifi" button for approx. 3 seconds until the WiFi indicator disappears.
• If you have any further questions about the app, please visit our web page at www.suntec-wellness.de/suntec-app/

Suntec Wellness App Download

Emptying of the water tank

Please switch off the appliance before emptying the water tank.

Remove the plug from the water outlet and keep it in a safe area. Please connect the drain hose securely and properly and ensure that it is not kinked and free of obstacles. Please place the hose outlet over a drain or bucket and make sure that the water can escape freely from the unit. Please do not immerse the end of the hose in water, as this may result in an "air lock" in the hose.

To avoid water leakage:

Since the negative pressure of the condensate tray is high, please tilt the drain hose downwards to the floor. It is advisable that the inclination exceeds 20 degrees.

Cleaning

Cleaning the housing

1. Press the POWER button to turn off the power and unplug the power cord.
2. Please use a neutral detergent with a soft cloth to clean the exterior surfaces and a dry cloth to dry them off.
3. Please do not use petrol or other chemical cleaning agents to clean the unit.

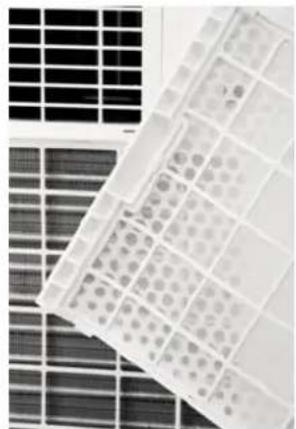

Cleaching the air filter (every two weeks)

Dust collects on the filter and restricts the air flow. The restricted airflow reduces the efficiency of the system and can cause damage to the unit if clogged.

The air filter must be cleaned regularly. The air filter is removable for easy cleaning. Do not operate the unit without the air filter as this may contaminate the evaporator.

1. Please remove the filter fabric from the unit.
2. Use a vacuum cleaner to remove dust from the filter.
3. Please turn the filter over and rinse the air filter under running water. Let the water flow through the filter in the opposite direction to the air flow. Set the filter aside and allow it to air dry completely before reinstalling.

Close-up of a grid-patterned panel with circular indentations, partially covered by a solar panel (no text or symbols visible)

Illustration of a hand spraying water onto a black surface (no text or symbols)

Beware!

Do not touch the surface of the evaporator with your bare hand as this may cause injury to fingers.

Troubleshooting

Problem		Control	Solution
The device does not work.		Please check the power connection.	Please plug the mains cable firmly into the socket.
		Check that the water level indicator is lit. The display shows .	Please empty the water tank. (see section "Error codes")
		Check if the room temperature is too high / too low	The operating temperature range is 5-35°C.
The device operates at reduced power		Check the air filter for dirt.	Please clean the air filter if necessary.
		Check whether the air outlet is blocked.	Remove the blockage.
		Check whether the door or window of the room is open.	Keep the doors and windows closed.
		Check if the desired mode is selected and that the temperature is set correctly.	Set the mode and temperature to the correct setpoint according to the instructions.
		The exhaust hose is disconnected.	Please make sure that the exhaust hose is not stuck.
Water is leaking.		Overflow when moving the unit.	Please empty the water tank before transport.
		Check whether the drain hose is bent or kinked.	Please align the hose to avoid the presence of an obstacle.
Excessive noise.		Check that the unit is securely positioned.	Please place the unit on a level and solid floor.
		Check for loose, vibrating parts.	Secure and tighten the parts.
		Noise sounds like water flowing.	Noise is caused by the flowing refrigerant. This is normal.
Network connection timeout		Please check your network connection	Switch off the device, disconnect the power plug and reconnect it after 10 seconds. Please start a new connection attempt.
The Wifi-indicator does not light up		Please check if the device is connected to the power.	Please hold the timer button for 3 seconds.
Wifi hotspot disappears and the Wifi-Indicator flashes		Please check your network connection.	Switch off the device, disconnect the power plug and reconnect it after 10 seconds. Please start a new connection attempt.
Error codes	E0	Communication error between motherboard and display board.	Please contact your sales representative.
	E1	Ambient temperature sensor failure.	Please contact your sales representative.
	E2	Coil temperature sensor error.	Please contact your sales representative.
	FE	Water tank full.	Please empty the water tank by removing the rubber plug.

Spare parts and accessories supply (fast convenient supply)

You can obtain spare parts and accessories for your Coolfixx/Advance unit from your local dealer. And at our website

www.suntec-wellness.de

you will find further information on individual accessory products as well as information on obtaining our spare parts quickly and conveniently. You will also find other information (e.g. FAQ, lists of spare parts, document download, etc) on your Coolfixx/Advance unit.

Name EAN	Description	Drawing
Air-Block Klima-Sail 450 XXL 4250058312099	Sail which can be used for all types of windows and doors. As for an external fly screen, it is fixed with Velcro and operated via a zip. The window or door can be closed at any time.
Air-Extension-Kit 4250058312105	A World First with which you can air-condition almost every corner of your house, and it doesn't matter where the local air conditioner is located. You can extend the extract air hose by 5 meters via a special propeller.
Drainage-Kit 16/17d 4250058315700	Drainage hose 4 rubber stoppers
Remote Control IPU21 HE 4250058316271	Remote control

ERP regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Refrigerant

(CE) N 842/2006: This local air conditioner contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore, only trained technicians with refrigerant certificate make a filling or emptying. Your local Suntec air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

Coolfixx/Advance 12000 BTU App: R290, GWP: 3, 195g = 0,000585t CO2e

Coolfixx/Advance 14000 BTU App: R290, GWP: 3, 195g = 0,000585t CO2e

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
- A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
- If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
- Without a proof of purchase, generally there will be no repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
- The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
- The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

Among other things, Suntec Wellness GmbH confirms that the radio system type complies with Directive 2014/53/EU. You can access the full text of the declaration of conformity in our web shop at: https://www.suntec-wellness.de/coc/

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2023 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

Technical diagram of a portable air conditioner unit with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Line drawing of a cylindrical object with concentric grooves, mounted on a rectangular base (no text or symbols)

Diagram of a coiled spring with a flanged end and rotation arrow (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A and B with directional arrows, next to a separate mechanical component (no text or symbols present)

Fig. 2

Diagram showing a pipe being inserted into a window with a directional arrow, no text or symbols present

Fig. 3

Close-up of a grid of small electronic components with no visible text or symbols

Illustration of a hand spraying water onto a black surface (no text or symbols)

¡ATENCIÓN!

QR code with a central circular logo containing a starburst design

Technical diagram of a portable air purifier with labeled parts 1, 2, and 3

Technical diagram of an air conditioner unit with numbered parts labeled 1 through 7

Technical line drawing of a mechanical component with layered cylindrical structure (no text or symbols)

Diagram of a coiled spring with a rotating head and spiral groove (no text or symbols)

Fig. 2

Diagram showing three vertical cylindrical objects labeled A, B, and a separate mechanical component with an arrow indicating direction (no text or symbols present)

Diagram showing airflow around a window with a coiled hose and directional arrow (no text or symbols)

Fig.2 Fig.3

QR code image containing encoded data, no visible human-readable text

Suntec Wellness App Download

Technical diagram of a washing machine with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Line drawing of a cylindrical object with concentric grooves, no text or symbols present

Diagram of a coiled spring with a flanged end and rotation arrow (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A and B with directional arrows, next to a separate mechanical component (no text or symbols present)

Fig. 2

Diagram showing airflow from a pipe into a window with cloud patterns (no text or symbols)

Fig. 3

Messa in funzione

Close-up of a grid-patterned panel with circular patterns, no visible text or symbols

Illustration of a faucet spraying water onto a black surface (no text or symbols)

Attenzione!

Technical diagram of a washing machine with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Technical line drawing of a cylindrical mechanical component with internal grooves (no text or symbols)

Diagram of a coiled spring with a flanged end and directional arrow indicating rotation (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and a separate mechanical component with an arrow indicating direction (no text or symbols present)

Diagram showing airflow around a window with a coiled hose and directional arrow (no text or symbols)

Afb. 3
Afb.2

Ingebruikname

Suntec Wellness App Download

Watertank aftappen

Close-up of a grid of small electronic components with no visible text or symbols

Illustration of a person falling off a black rectangular object with motion lines, no text or symbols present

Let op!

© 2023 SUNTEC WELLNESS GMBH

Technical diagram of a portable air purifier with labeled parts 1, 2, and 3

1. painel de controlo
2. saída de ar
3. painel frontal
4. entrada de ar com filtro de pó

Technical diagram of an air conditioner unit with numbered parts labeled 4 through 8

Line drawing of a cylindrical object with curved internal bands, mounted on a rectangular base (no text or symbols)

Diagram of a mechanical spring assembly with a rotating component (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and R with directional arrows indicating movement or force (no text or symbols present)

Fig. 2

Diagram showing a curved pipe extending into a window with an arrow indicating direction (no text or symbols)

Fig. 3

Suntec Wellness App Download

Close-up of a grid-patterned surface with scattered circular patterns (no text or symbols visible)

Simple line drawing of a hand spraying water onto a black rectangular object (no text or symbols)

Atenção!

Technical diagram of a portable air conditioner unit with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 1 through 8

1 2 3

1. Upravljačka ploča

2. Držač

3. Izlaz zraka

4. Izlaz ispušnog zraka

5. Prednja ploča

6. Otvor za odvod s brtvenim čepom

7. Otvor za zrak s filtrom za prašinu

8. Lako valjanje

Technical line drawing of a cylindrical mechanical component with internal grooves (no text or symbols)

Diagram of a coiled spring with a flanged end and directional arrow indicating rotation (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and a separate 3D mechanical component with arrows indicating motion (no text or symbols present)

Sl. 2

Diagram showing a pipe with a square outlet and an arrow indicating direction, next to a window with clouds (no text or symbols)

Sl. 3

Stavljanje u pogon

Suntec Wellness App Download

Pražnjenje spremnika za vodu

Close-up of a grid of photovoltaic cells with visible internal structures (no text or symbols)

Illustration of a faucet spraying water onto a black surface (no text or symbols)

Pozor!

Technical diagram of a washing machine with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4, 5, 6, and 7-8.

1 2 3

Technical line drawing of a cylindrical mechanical component with concentric grooves (no text or symbols)

Diagram of a coiled spring with a rotating head and spiral shaft (no text or symbols)

• Privremeno postavljanje crijeva za odvod zraka: Provedite slobodan kraj crijeva za odvod zraka van prozora.
• Postavljanje crijeva za odvod zraka s prozorskom kliznom letvom: Postavite prozorsku kliznu letvu na prozor uspravno ili vodoravno, zavisno od vrste prozora. Crijevo za odvod zraka zatim provucite kroz otvor prozorske klizne letve (pogledajte sl. 2, 3).

- Pripazite da izlaz zraka nije blokiran, jer bi to moglo oštetiti vaš aparat.

Diagram showing a pipe with a directional arrow pointing to a window, no text or symbols present

Sl. 3

Stavljanje u pogon

Suntec Wellness App Download

Pražnjenje spremnika za vodu

Prije pražnjenja spremnika za vodu isključite uređaj.

Close-up of a grid-patterned plastic tray with circular indentations, alongside a dark panel array (no text or symbols visible)

Simple line drawing of a faucet spraying water onto a black surface (no text or symbols)

Pažnja!

Površinu isparivača nemojte dodirivati golim rukama jer to može rezultirati povredama prstiju.

Rješavanje problema

Technical diagram of a portable air purifier with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Line drawing of a cylindrical object with concentric grooves, no text or symbols present

Diagram of a coiled spring with a flanged end and rotation arrow (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and a separate mechanical component with an arrow indicating direction (no text or symbols present)

Slika. 2

Slika. 3

Začetek uporabe

Napravo postavite na trdno in ravno površino tako, da bo okoli nje najmanj 50 cm prostega prostora, s čimer zagotovite dobro prezračevanje.

QR code image containing encoded data, no visible human-readable text

Suntec Wellness App Download

Praznjenje posode za vodo

Close-up of a grid-patterned panel with circular patterns, no visible text or symbols

Illustration of a faucet spraying water onto a black rectangular surface (no text or symbols)

Pozor!

Technical diagram of a washing machine with labeled parts 1, 2, and 3

Technical diagram of an air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Line drawing of a cylindrical object with concentric grooves, no text or symbols present

Diagram of a coiled spring with a flanged end and rotation arrow (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and a separate mechanical component with an arrow indicating direction (no text or symbols present)

Obr. 3

Diagram showing a pipe being inserted into a window with an arrow indicating direction (no text or symbols)

Obr. 2

app/

■Suntec Wellness App Download

Close-up of a grid-patterned panel with no visible text or symbols

Illustration of a faucet spraying water onto a black surface (no text or symbols)

Pozor!

Technical diagram of a washing machine with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Technical line drawing of a cylindrical mechanical component with concentric grooves (no text or symbols)

Diagram of a coiled spring with a flanged end and rotation arrow (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A and B with directional arrows, next to a separate 3D mechanical component (no text or symbols)

Obr. 2

Diagram showing airflow around a window with a coiled hose and directional arrow (no text or symbols)

Obr. 3

Uvedení do provozu

Suntec Wellness App Download

Close-up of a grid of small electronic components with no visible text or symbols

Illustration of a hand spraying water onto a black surface (no text or symbols)

Upozornění!

Technical diagram of a portable air purifier with labeled parts 1, 2, and 3

Technical diagram of a portable air conditioner unit with numbered parts labeled 4 through 8

1 2 3

Line drawing of a cylindrical object with concentric grooves, no text or symbols present

Diagram of a mechanical spring assembly with a flanged end and internal threading (no text or symbols)

Diagram showing airflow around a window with a pipe extending outward (no text or symbols)

Üzembe helyezés

Suntec Wellness App Download

Close-up of a grid-patterned plastic sheet with circular indentations, placed on a dark surface (no text or symbols visible)

Illustration of a faucet spraying water onto a black surface (no text or symbols)

Figyelem!

Technical line drawing of a mechanical component with curved internal structure (no text or symbols)

Diagram of a coiled spring with a flanged head and spiral shaft, showing rotational motion (no text or symbols)

Diagram showing three vertical cylindrical objects labeled A, B, and a separate cylindrical object with an arrow indicating direction (no text or symbols present)

Diagram showing a window with a curved pipe extending into the corner, indicating airflow or ventilation direction (no text or symbols present)

II. 3

Uruchomienie

Suntec Wellness App Download

Close-up of a grid-patterned surface with scattered circular spots, no visible text or symbols

Simple line drawing of a person falling off a black surface with motion lines (no text or symbols)

Uwaga!

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany
