Brand	Festool
Model	T 15+3 Li
Product type	Cordless drill driver
Motor voltage	14.4 – 15.6 V
No-load speed (1st gear)	0 – 450 rpm
No-load speed (2nd gear)	0 – 1500 rpm
Max. torque (soft screwing / wood)	27 Nm
Max. torque (hard screwing / metal)	40 Nm
Chuck clamping range	1.5 – 13 mm
Tool holder in spindle	1/4" (hex)
Weight (without battery)	1.0 kg
Battery	Li-ion 14.4 V, 4.2 Ah
Charger	TCL 3, 220–240 V ~, 50/60 Hz
Charging time (4.2 Ah) – 80%	approx. 70 min
Charging time (4.2 Ah) – 100%	approx. 90 min
Main functions	Drilling, screwdriving, torque adjustment (0.5–8 Nm)
LED lighting	Integrated, turns on with the switch
Belt clip	Integrated
Acoustic signal	In case of overload, low battery or overheating
Automatic stop	When the set torque is reached
Maintenance	Clean the ventilation openings and contacts
Spare parts	Original Festool, available at www.festool.com/Service
Repairability	Authorized Festool service centers only

Frequently Asked Questions - T 15+3 Li FESTOOL

How to adjust the screwing torque?

Use the torque adjustment wheel [1-12] to select a value between 0.5 and 8 Nm. An acoustic signal sounds and the tool stops once the torque is reached.

What to do if the battery does not charge?

Check that the charger is properly connected and the LED indicates a normal state. If the red LED flashes, there may be a contact fault or a defective battery. Refer to chapter 6.3 of the manual.

How to change the direction of rotation?

Use the switch [1-4]: to the left for clockwise rotation, to the right for counterclockwise rotation. Only adjust when the tool is stopped.

What is the charging time of the 4.2 Ah battery?

With the TCL 3 charger, the battery reaches 80% in approximately 70 minutes and 100% in approximately 90 minutes.

Can I use 13 mm diameter drill bits?

Yes, the drill chuck accepts drill bits up to 13 mm in diameter. Use the BF-FX chuck or the Centrotec adapter.

How to know if the battery is discharged?

When you press the switch, the capacity indicator [1-10] shows the charge level. An acoustic signal 'peep - -' sounds if the battery is discharged or the tool is overloaded.

What does an acoustic signal 'peep peep peep' mean?

This signal indicates overheating or a defect in the Li-ion battery. Let the battery cool down and check its condition with the charger.

How to clean the screwdriver?

Keep the ventilation openings and contacts of the tool, charger and battery clean. Use a dry cloth. Do not use liquids.

Where to find spare parts?

Use only original Festool spare parts. Go to www.festool.com/Service to find an authorized service center.

Can I use this screwdriver for drilling metal?

Yes, the drill/screwdriver T 15+3 Li is designed for drilling metal, wood, plastic and other similar materials. The maximum torque for metal drilling is 40 Nm.

USER MANUAL T 15+3 Li FESTOOL

Three black FESTOOL T15+3 power drillers with visible shafts and base plates (no text or symbols on the devices themselves)

3B

Line drawing of a FESTOOL electric drill press with a screwdriver inserted (no text or symbols on the device itself)

Original operating manual

1 Safety instructions

1.1 General safety instructions

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1.2 Machine-related safety instructions

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• This charger can be used by children of 8 years and upwards and persons with impaired physical, sensory or mental abilities, or insufficient experience or knowledge, providing they are supervised or have been instructed in the proper use of the appliance and understand the risks involved. Children are not permitted to play with the appliance. Children must not carry out cleaning tasks or maintenance unless they are supervised.

- Wear suitable protection: such as ear protection, safety goggles, a dust mask for work which generates dust, and protective gloves when working with raw materials and when changing tools.

CAUTION! Rebound!

Rotation: Switch off device immediately!

• Do not lock the on/off switch permanently!
• Do not open the battery pack or the charger!
• Prevent metal parts (e.g. metal chips) or fluids from entering the charger!
• Do not use battery packs or chargers from other manufacturers!
• Protect the battery pack from excessive heat or constant heat sources such as sunlight or naked flames!
• Never use water to extinguish burning li-ion battery packs! Use sand or a fire blanket.
• Check the plug and the cable regularly and should either become damaged, in order to avoid a hazard, have them replaced by an authorised after-sales service workshop.
• Always pull the mains plug out of the socket when the charger is not in use.
• Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less.

1.3 Emission levels

Levels determined in accordance with EN 60745 are typically:

Sound pressure level L _PA = 65 dB(A)

Sound power level L WA=76 dB(A)

Uncertainty K = 3 dB

Wear ear protection.

Vibration emission value a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 60745:

Drilling in metal a h < 2,5 m/s^2 K = 1,5 m/s^2

Screwing a h < 2,5 m/s^2 K = 1,5 m/s^2

The specified emissions values (vibration, noise)

• are used to compare machines.
• They are also used for making preliminary estimates regarding vibration and noise loads during operation.
• They represent the primary applications of the

3 T e c h n i c a l d a t

power tool.

Increase possible for other applications, with other insertion tools or if not maintained adequately. Take note of idling and downtimes of machine!

2 S y m b o l

Warning of general danger

Risk of electric shock

Read the Operating Instructions/Notes!

Wear ear protection.

Wear protective gloves.

Wear protective goggles.

Do not throw in the household waste.

Cordless drill		T12 + 3	T15 + 3	T18 + 3
Motor voltage		10,8 - 12 V	14,4 - 15,6 V	18 V
Idling speed*	1st gear		0 - 450 rpm
	2nd gear		0 - 1500 rpm
Max. torque	Soft material (wood)	20 Nm	27 Nm	30 Nm
	Hard material (metal)	34 Nm	40 Nm	45 Nm
Adjustable torque**	1./2. gear		0,5 - 8 Nm
Chuck clamping range			1,5 - 13 mm
Max. drill diameter in	wood	25 mm	35 mm	45 mm
	metal	14 mm	16 mm	16 mm
Tool holder in drill spindle			1/4"
Weight without battery, with Centrotec		1,0 kg	1,0 kg	1,05 kg

Charger	TCL 3
Mains voltage (input)	220 - 240 V ~
Mains frequency	50/60 Hz
Charging voltage (output)	10,8 - 18 V=
Rapid charging	max. 3 A
Conservation charging, intermittent (NiCd, NiMH)	approx. 0,06 A
Charging times for BP, BPS and BPC battery packs
Li-ion 1,5 Ah, 80 %/100 %	approx. 25/35 min.
Li-ion 3,0 Ah, 80 %/100 %	approx. 55/70 min.

Charger TCL 3

Li-ion 4,2 Ah, 80 %/100 % approx. 70/90 min.

Permitted operating temperature range - 5 °C to +45 °C

Temperature monitoring via NTC resistor

Safety class /II

Battery Pack	BPC 12 Li	BPC 15 Li	BPC 18 Li
Voltage	10,8 V	14,4 V	18 V
Capacity	3,0 Ah	4,2 Ah	4,2 Ah
Weight	0,49 kg	0,58 kg	0,68 kg

* Speed specifications with fully charged battery pack.
** The maximum speed is reduced in the lower torque stages.

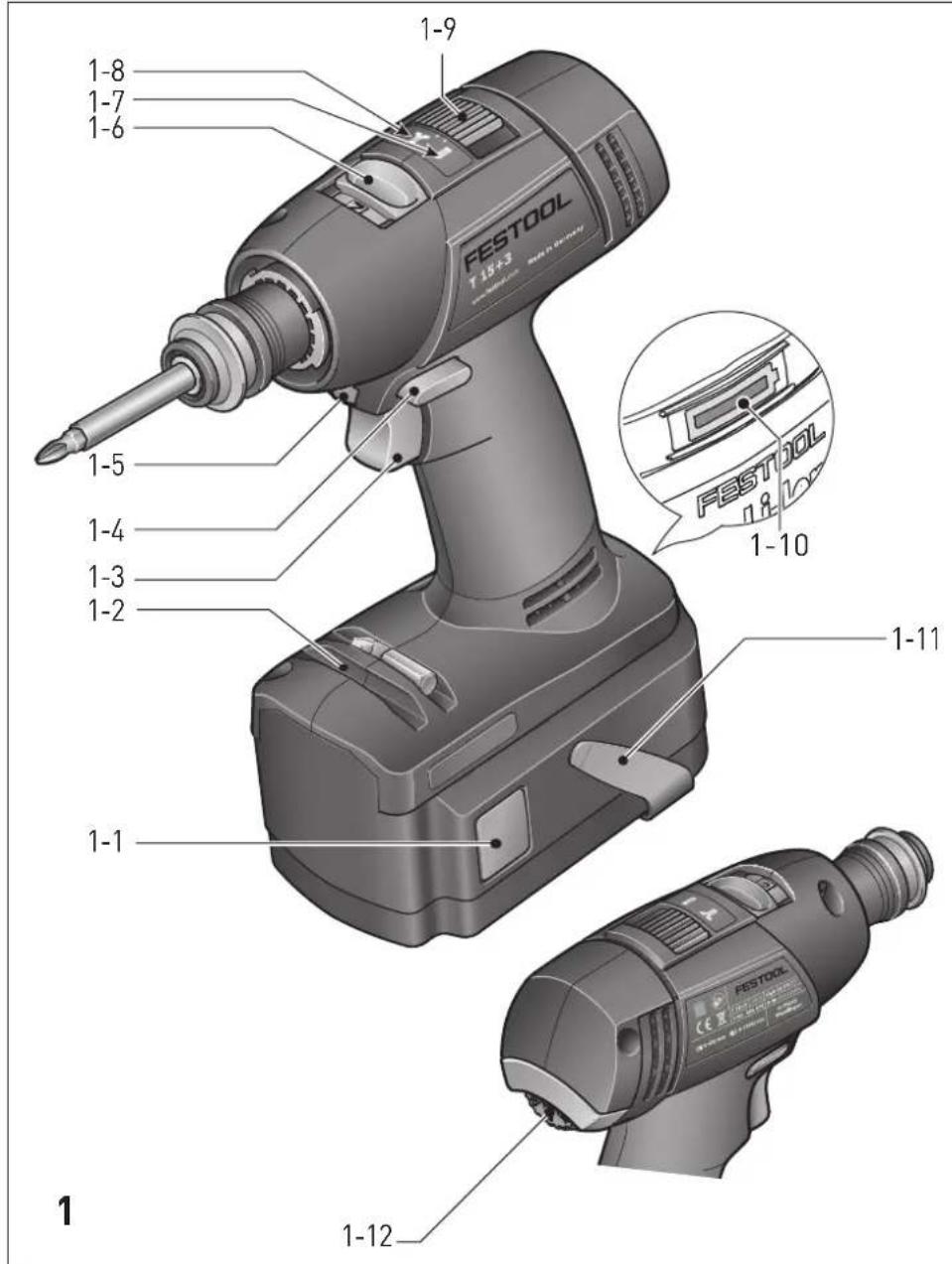

4 Machine features

[1-1] Buttons for releasing the battery pack
[1-2] Bit store
[1-3] On/Off switch
[1-4] Right/left switch
[1-5] LED lamp
[1-6] Gear switch
[1-7] Drilling symbol
[1-8] Screwdriving symbol
[1-9] Drilling/Fastening selector switch
[1-10] Capacity display
[1-11] Belt clip
[1-12] Torque thumbwheel
[2-1] Battery blanking plug
[3-1] LED-Display
[3-2] Cable holder

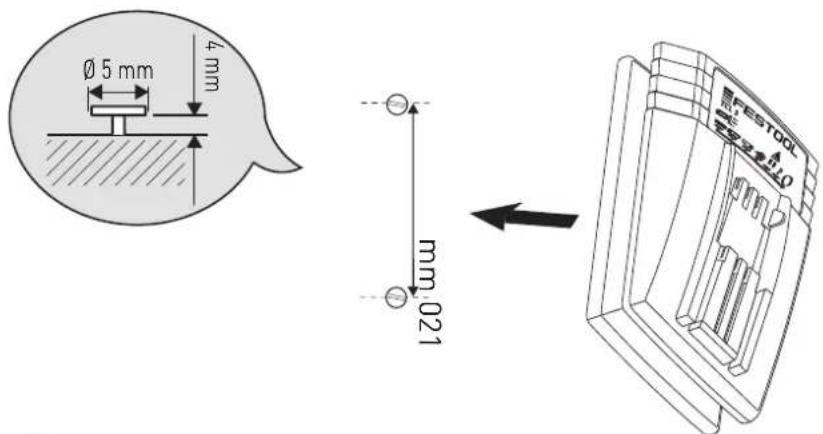

[3B] Wall mount

The specified illustrations appear at the beginning of the Operating Instructions.

5 Intended use

Cordless drill suitable for

• drilling in metal, wood, plastic and similar materials,
• inserting and tightening screws
• use with Festool batteries BPC and BPS of the same voltage.

Charger TCL 3 suitable for

• charging Festool battery packs: BP, BPS and BPC (NiMH, NiCd, li-ion are recognised automatically.)
• indoor use only.

The user is liable for improper or non-intended use; this also includes continuous industrial operation.

6

0

p

e

r

a

t

6.1 Charger cable holder[3-2]

Unwind the cable completely from the recess before using the charger.

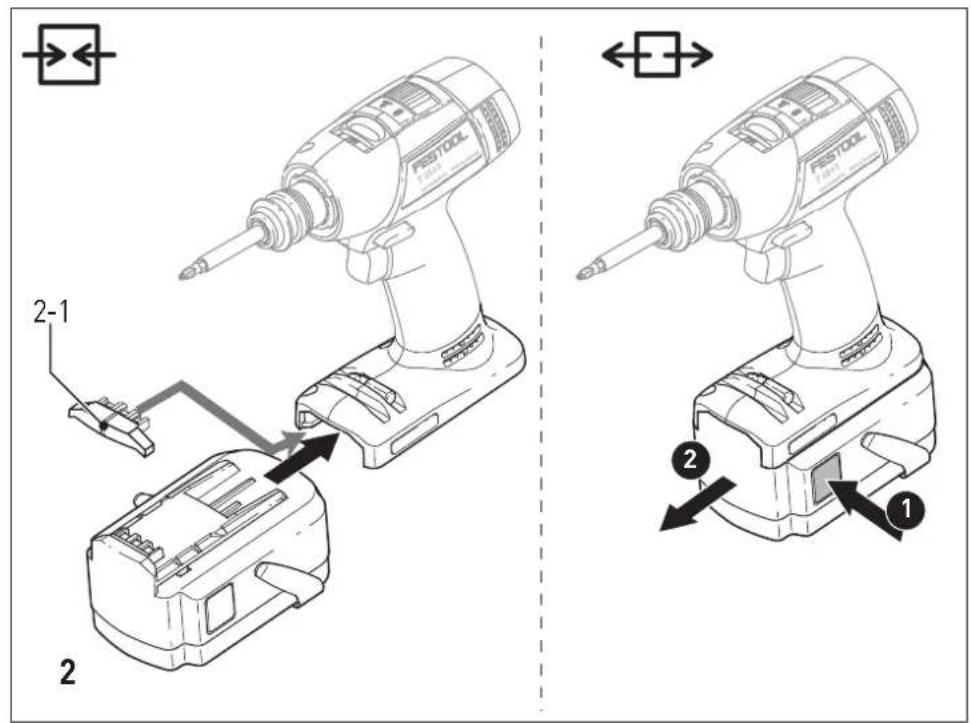

6.2 Changing the battery pack [2]

① Battery pack is ready for use immediately upon delivery and can be charged at any time.
① When using NiMH or NiCd battery packs, the vacant opening can be closed with the blanking plug [2-1].

The capacity display [1-10] automatically displays the charge state of the battery pack [1-3] when the ON/OFF switch is actuated:

(not NiCd- and NiMH-battery packs)

Four horizontal bars with varying internal patterns and a highlighted segment, no text or symbols present

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

Recommendation: Charge battery pack before further use.

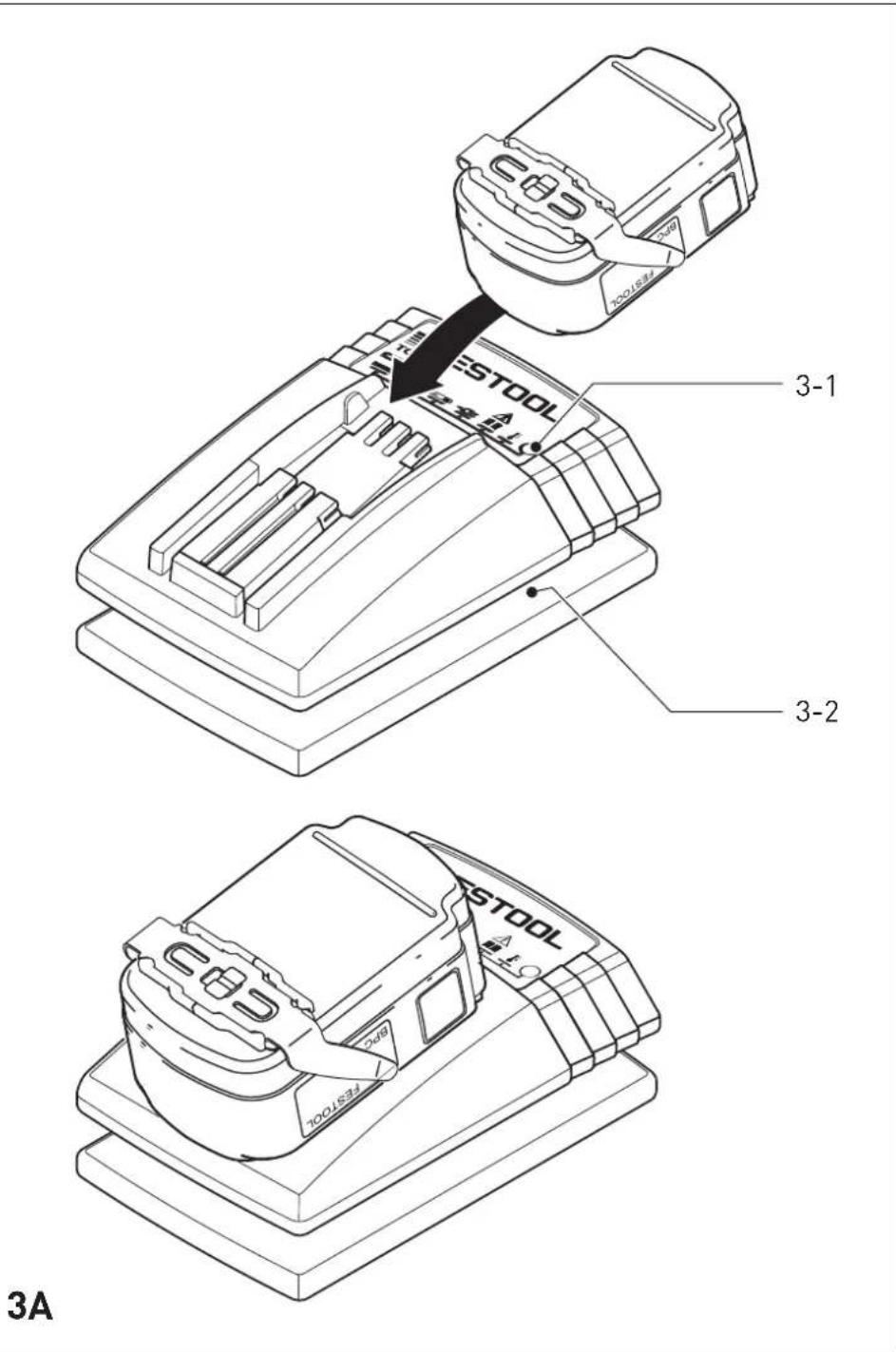

6.3 Charging the battery pack [3A]

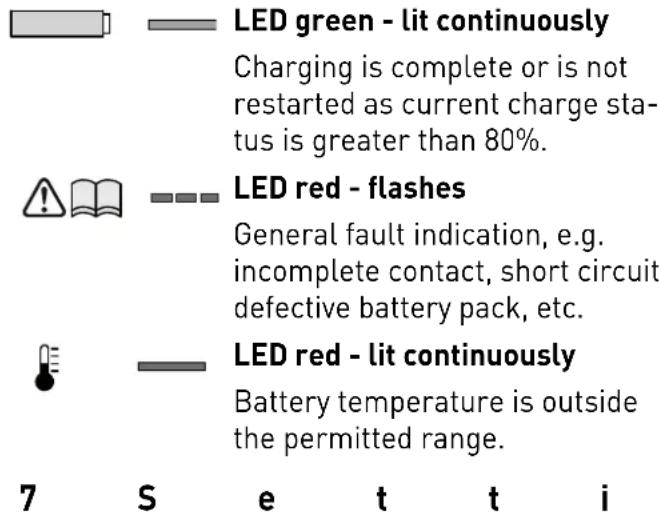

The LED [3-1] on the charger indicates the respective operating status of the charger.

LED yellow - lit continuously

Charger is ready to use.

LED green - flashes quickly

Battery pack is charged to maximum capacity.

LED green - flashes slowly

Battery pack is charged with reduced current. Li-ion is charged to 80 %.

WARNING

Risk of injury

▶ Always switch off the machine before adjusting settings!

7.1 Changing direction of rotation [1-4]

• Switch to the left = clockwise rotation
• Switch to the right = counterclockwise rotation

7.2 Changing gear [1-6]

• Gear switch forwards (digit 1 visible) = 1st gear
• Gear switch to rear (digit 2 visible) = 2nd gear

7.3 Fastening

Adjust the switch so that its marking [1-9] faces the screw symbol [1-8] .

Adjust the torque accordingly at the torque wheel[1-12].

Position 1 = low torque

Position 25 = high torque

An acoustic signal sounds when the preset torque is reached and the machine then switches off. You must release and press the ON/OFF switch [1-3] again to start the machine.

7.4 Drilling

Adjust the switch so that its marking [1-9] faces the drilling symbol [1-7] = maximum torque.

8 Tool holder, attachments

WARNING

Risk of injury, electric shock

▶ Always disconnect the battery pack before any type of work on the machine!

The order numbers of the accessories and tools can be found in the Festool catalogue or on the Internet under "www.festool.com".

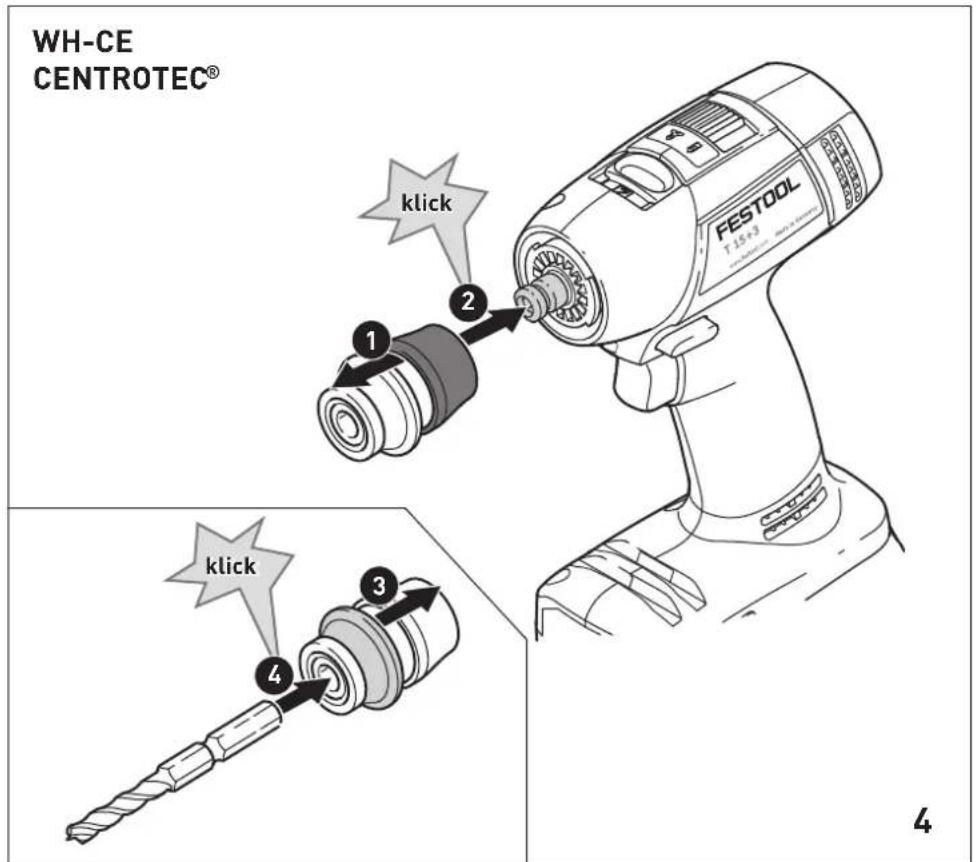

8.1 CENTROTEC tool chuck [4]

Quick change of tools with CENTROTEC shaft

Only clamp CENTROTEC tools in CENTROTEC tool chucks.

Wear gloves when replacing!

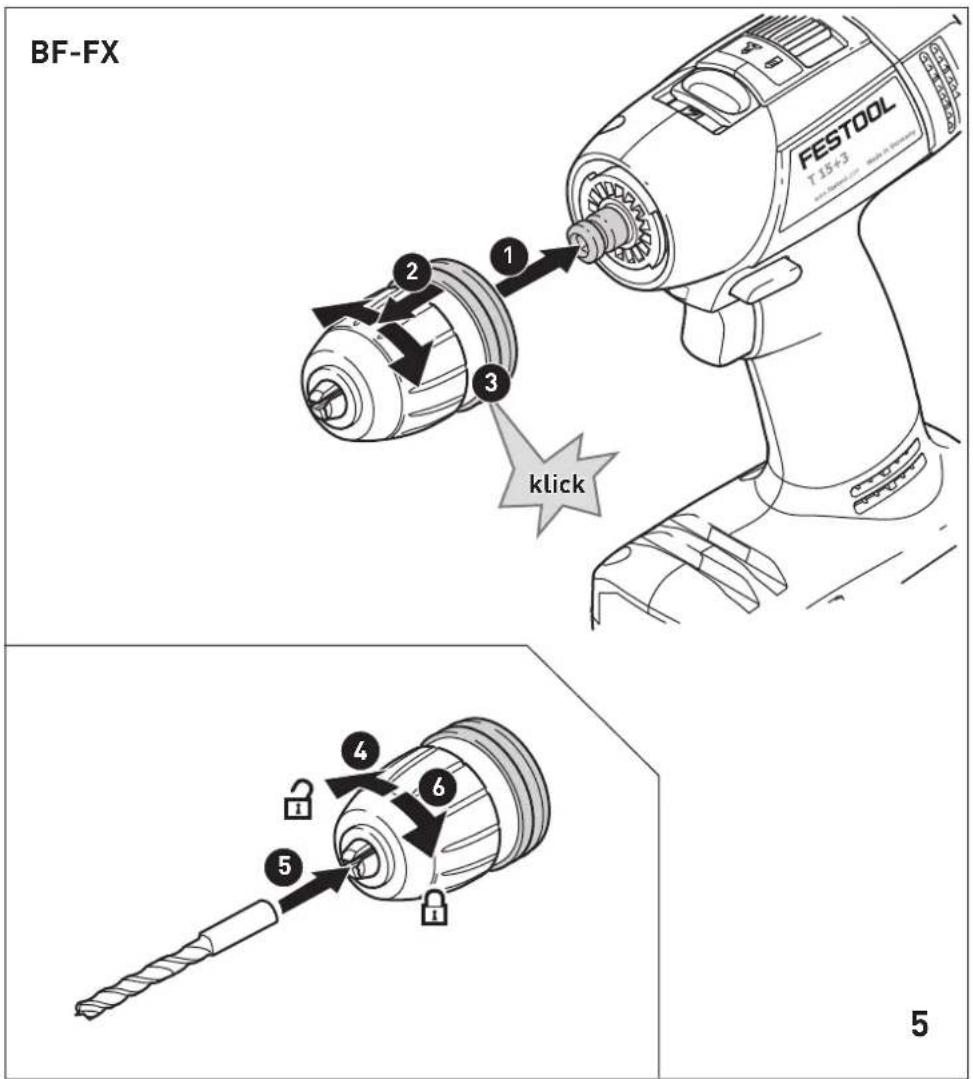

8.2 Chuck BF-FX [5]

For clamping drill bits and bits with max. shaft diameter of 13 mm.

Clamp tool centrally in the chuck.

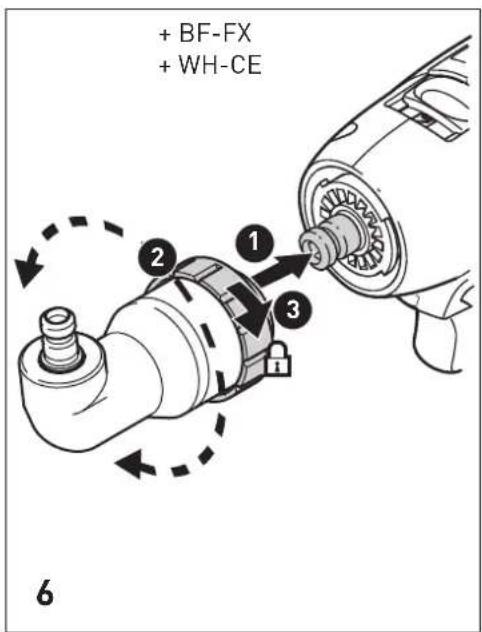

8.3 Angle attachment DD-AS [6]

Drilling and screwing at right angle to machine (partly as an accessory).

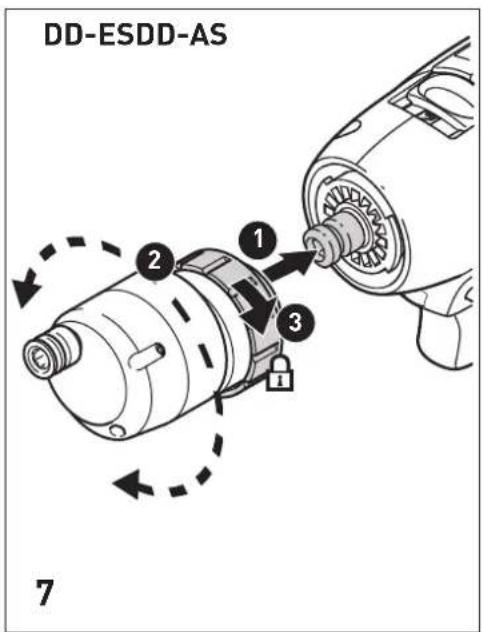

8.4 Eccentric attachment DD-ES [7]

Screwdriving near edges with bits according to ISO 1173 (partly as accessory).

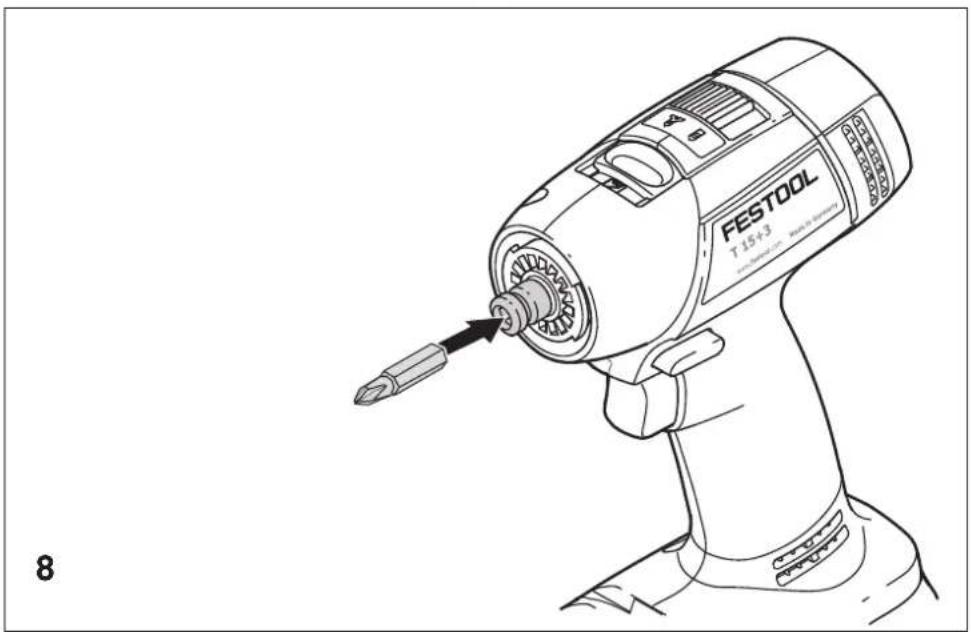

8.5 Tool holder in the drill spindle [8]

Bits can be inserted directly into the hexagon socket holder of the drill spindle.

9 Working with the machine

9.1 On/Off switch [1-3]

Press = ON, release = OFF

① The speed of the machine depends on how far the on/off switch is pressed in.

The LED bulb [1-5] lights up when the ON/OFF switch is pressed[1-3].

9.2 Bit depot [1-2]

Magnetic, for storing bits and bit holders.

9.3 Acoustic warning signals

Acoustic warning signals sound and the machine switches off in the following operating states:

peep - -

Battery flat or machine overloaded.

• Change the battery.
• Place the machine under reduced stress.

peep peep -

Machine is overheating.

- You must allow the machine to cool before using again.

peep peep peep

Lilon battery pack is faulty or has overheated.

- Once the battery pack has cooled, perform a functional check using the charger.

10 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always disconnect the battery pack from the machine before any maintenance or care work!
▶ All maintenance and repair work which requires the motor housing to be opened, must only be carried out by an authorised service workshop.

Customer service and repair only through manufacturer or service workshops: Please find the nearest address at:

www.festool.com/Service

Use only original Festool spare parts! Order No. at:

www.festool.com/Service

Note the following information:

• Keep the ventilation slits on the machine free and clean to ensure adequate cooling.
• Keep the contacts on the machine, charger and battery pack clean.

Information on battery packs

• Store in a cool, dry place at a temperature between 5^ and 25^ .
• Protect battery packs from moisture, water and heat.
• Do not leave flat battery packs in a charger disconnected from the mains power supply for longer than one month. Danger of deep discharge!
• If you intend to store li-ion battery packs for longer periods without use, you should charge them to 40% capacity (approx. 15 min charging time).
• To avoid short circuits the battery pack should be stored in the packaging supplied.
• Significantly shorter operating times after each charge indicate that the battery pack is worn and should be replaced with a new one.

11 Environment

Do not dispose of the device in household waste! Recycle devices, accessories and packaging. Observe applicable country-specific regulations.

EU only: European Directive 2002/96/EC

stipulates that used electric power tools must be collected separately and disposed of at an environmentally responsible recycling centre.

Return used or faulty battery packs to your local specialist retailer, Festool after-sales service or a designated public waste management facility. The battery packs will then be recycled. (Observe the regulations applicable in your country). The batteries must be discharged on return.

EU only: European Directive 91/157/EEC stipulates that faulty or used battery packs/batteries must be recycled.

Information on REACH: www.festool.com/reach

12 Transport

A li-ion battery pack alone falls below the applicable limit value and certified as per UN manual ST/SG/AC.10/11/rev. 3 part III, subsection 38.3. However, dangerous goods regulations may apply when several battery packs are transported.

13 EU Declaration of Conformity

Cordless drill Serial no.

T 12 + 3 497835

T 15 + 3 497836

Year of CE mark: 2010

T 18 + 3 497933

Year of CE mark: 2012

We declare under sole responsibility that this product complies with all the relevant requirements in the following Directives, standards and normative documents:

2004/108/EC, 2006/95/EC, 2011/65/EU, EN 60745-1, EN 60745-2-1, EN 60745-2-2, EN 55014-1, EN 55014-2.

Charger Serial no.

TCL 3 10002345, 10004911

Year of CE mark: 2013

We declare under sole responsibility that this product complies with all the relevant requirements in the following Directives, standards and normative documents:

2004/108/EC, 2006/95/EC, 2011/65/EU, EN 60335-1, EN 60335-2-29, EN 61000-3-2, EN 61000-3-3, EN 61204-3.

Head of Research, Development and Technical Documentation

2013-05-22

[1-2] Support d'embouts

[3B] Fixation murale

Four horizontal bars with varying internal segments and a small circular icon at the bottom (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< à 15 %

Position 1 = petit couple

Position 25 = grand couple

Presser = ON, relâcher = OFF

8.1 Mandril CENTROTEC [4]

E T 12 + 3, T 15 + 3, T 18 + 3

Four black circular icons representing safety and hand protection symbols (no text or labels)

Four black circular icons representing human head, glasses, headphones, and gloves (no text or symbols)

Four horizontal bars with varying internal segments and a highlighted segment, no text or symbols present

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

6.3 Accupack laden [3A]

Machine is oververhit.

- Na afkoeling kunt u de machine weer in gebruik nemen.

Li-ion-accupack is oververhit of defect.

peep peep peep

Four black circular icons representing different workplace or safety symbols: helmet, glasses, headphones, and hand (no text or labels)

S T 12 + 3, T 15 + 3, T 18 + 3

Four horizontal bars with varying internal patterns and a highlighted segment, no text or symbols present

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

S T 12 + 3, T 15 + 3, T 18 + 3

Äänenpainetaso L PA = 65 dB(A)

Äänentehotaso L WA = 76 dB(A)

Epävarmuus K = 3 dB

Skruning a _h < 2.5 m/s^2

$$ K = 1, 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Four black circular icons representing different workplace safety symbols: helmet, glasses, headphones, and hand (no text or labels)

6.1 Kabeloppvikling for lader [3-2]

Før bruk må kabelen vikles helt ut av utsparingen.

6.3 Lade batteriet [3A]

LED-en [3-1] på laderen viser gjeldende driftstil-gstand forladeren.r u k

Laderen er klar til bruk.

Four horizontal bars with varying internal patterns and a highlighted segment, no text or symbols present

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

Four horizontal bars with varying shades of gray and white, showing a battery icon at the bottom (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %
