USER MANUAL T 18+3 Li FESTOOL

Original operating manual

1 S y m b o l s

Symbol Significance

Warning of general danger

Risk of electric shock

Read operating instructions and safety notices!

Wear ear protection.

Wear protective gloves.

Wear a dust mask.

Wear protective goggles.

Do not dispose of with domestic waste.

Tip or advice

Handling instruction

• Mains voltage (input) and frequency

Voltage [output]

Rapid charging max.

Permitted temperature range

Safety class II

Charging times

Capacity

Weight

2 Safety instructions

2.1 General safety instructions

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.2 Machine-specific safety notices for cordless drills

• Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

• Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.

• Wear suitable protection: such as ear protection, safety goggles, a dust mask for work which generates dust, and protective gloves when working with raw materials and when changing tools.

CAUTION! Power tool can block and cause sudden kickback! Switch off immediately!

• Hold the power tool firmly in your hand. Adjust the torque correctly for screwing. Be prepared for a high reaction torque, which may cause the power tool to turn and possibly lead to injury.
• Do not use the power tool in the rain or in damp surroundings. Moisture in the power tool may cause a short circuit and burning.
• Do not lock the on/off switch permanently!

2.3 Battery pack and charger safety instructions

• This charger can be operated by persons with reduced physical, sensory or mental capabilities or a lack of practical experience and knowledge, provided they are supervised or have been instructed to use the machine safely and understand the dangers of machine operation. Children are not allowed use or play with the machine.
• Do not open the battery pack or the charger!
• Prevent metal parts (e.g. metal chips) or fluids from entering the charger!
• Risk of explosion! Do not use battery packs or chargers from other manufacturers!
• Protect the battery pack from excessive heat >50^ C or constant heat sources such as sunlight or naked flames!
• Never use water to extinguish burning li-ion battery packs! Use sand or a fire blanket.
• Check the plug and the cable regularly and

GB T15+3Li，T18+3Li

should either become damaged, in order to avoid a hazard, have them replaced by an authorised after-sales service workshop.

• Always pull the mains plug out of the socket when the charger is not in use.

2.4 Emission levels

Levels determined in accordance with EN 60745 are typically:

Sound pressure level L PA=65 dB(A)

Sound power level L WA=76dB(A)

Uncertainty K = 3 dB

Wear ear protection.

Vibration emission value a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 60745:

Vibration emission value a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 60745:

Drilling in metal a h < 2,5m / s^2

$$ K = 1, 5 \mathrm {m} / \mathrm {s} ^ {2} $$

Screwing a h < 2,5m / s^2

$$ K = 1, 5 \mathrm {m} / \mathrm {s} ^ {2} $$

The specified emissions values (vibration, noise)

• are used to compare machines.

• They are also used for making preliminary estimates regarding vibration and noise loads during operation.

• They represent the primary applications of the power tool.

Increase possible for other applications, with other insertion tools or if not maintained adequately. Take note of idling and downtimes of machine!

3 Intended use

Cordless drill suitable for

drilling in metal, wood, plastic and similar materials,
- inserting and tightening screws
- use with Festool batteries BPC and BPS of the same voltage.

Charger TCL 3 suitable for

• charging Festool battery packs: BP, BPS and BPC (NiMH, NiCd, li-ion are recognised automatically.)
• indoor use only.

The user is liable for improper or non-intended use; this also includes continuous industrial operation.

4 T e c h n i c a l d a t a

Cordless drill T 15+3 Li T 18+3 Li

Motor voltage 14,4 - 15,6 V 18 V
Idle engine speed*	1st gear	0 - 450 min-1
	2nd gear	0 - 1500 min-1
Max. torque	Soft material (wood)	27 Nm	30 Nm
	Hard material (metal)	40 Nm	45 Nm
Adjustable torque**	1st gear	0,5 - 8 Nm
	2nd gear	0,5 - 8 Nm
Chuck clamping range		1,5 - 13 mm
Drill diameter max.	Wood	35 mm	45 mm
	Metal	16 mm	16 mm
Tool holder in drill spindle		1/4 ″	1/4 ″
Weight without battery pack with Centrotec		1,0 kg	1,0 kg

• Speed specifications with fully charged battery pack.
  ** The maximum speed is reduced in the lower torque stages.
  Further technical data on the charger and battery packs can be found on page 6.

5 Machine features

[1-1] Buttons for releasing the battery pack
[1-2] Bit store
[1-3] On/Off switch
[1-4] Right/left switch
[1-5] LED lamp
[1-6] Gear switch
[1-7] Drilling symbol
[1-8] Screwdriving symbol
[1-9] Drilling/Fastening selector switch
[1-10] Capacity display
[1-11] Belt clip
[1-12] Torque thumbwheel
[1-13] Insulated gripping surfaces (grey shaded area)
[2-1] Battery blanking plug
[3-1] LED-Display
[3-2] Cable holder
[3B] Wall mount for charger

The specified illustrations appear at the beginning of the Operating Instructions.

6 O p e r a t i o n

6.1 Charger cable holder [3-2]

Unwind the cable completely from the recess before using the charger.

6.2 Changing the battery pack [2]

Battery pack is ready for use immediately upon delivery and can be charged at any time.
When using NiMH or NiCd battery packs, the vacant opening can be closed with the blanking plug [2-1].

The capacity display [1-10] automatically displays the charge state of the battery pack [1-3] when the ON/OFF switch is actuated:

not NiCd- and NiMH-battery packs]

70 - 100%

40 - 70%

15 - 40%

<15%

Recommendation: Charge battery pack before further use.

6.3 Charging the battery pack [3A]

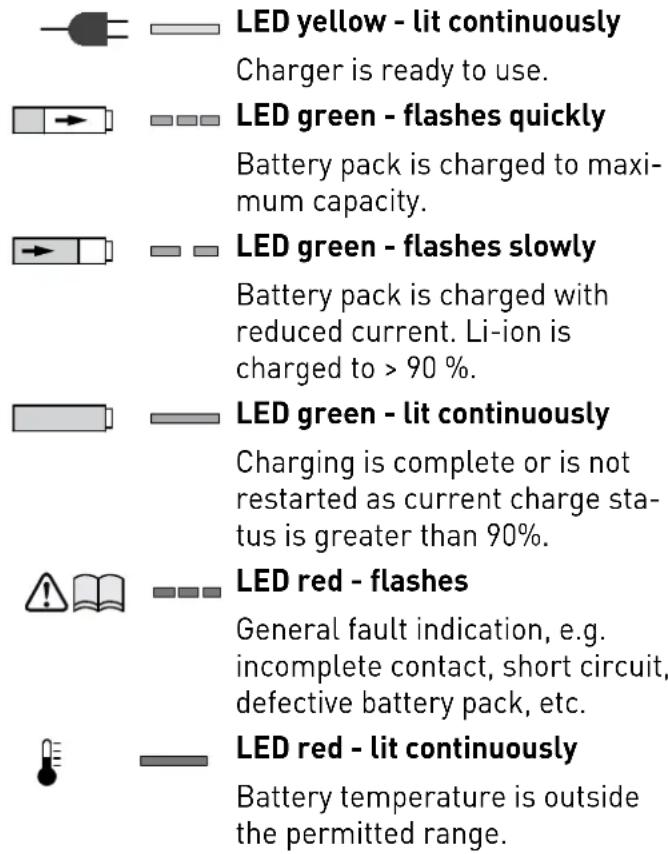

The LED [3-1] on the charger indicates the respective operating status of the charger.

7 Settings

CAUTION

Risk of injury

Always switch off the power tool before adjusting settings!

7.1 Changing direction of rotation [1-4]

• Switch to the left = clockwise rotation
• Switch to the right = counterclockwise rotation

7.2 Changing gear [1-6]

Gear switch forwards (digit 1 visible) = 1st gear
- Gear switch to rear (digit 2 visible) = 2nd gear

7.3 Fastening

Adjust the switch so that its marking [1-9] faces the screw symbol [1-8].

Adjust the torque accordingly at the torque wheel [1-12].

Position 1 = low torque

Position 25 = high torque

An acoustic signal sounds when the preset torque is reached and the machine then switches off. You must release and press the ON/OFF switch [1-3]

7.4 Drilling

Adjust the switch so that its marking [1-9] faces the drilling symbol [1-7] = maximum torque.

8 Tool holder, attachments

WARNING

Risk of injury

Always disconnect the battery pack before performing any type of work on the machine!

CAUTION

Hot and sharp tools

Risk of injury

Do not use insert tools that are blunt or defective.
Wear protective gloves.

8.1 CENTROTEC tool chuck [4]

Quick change of tools with CENTROTEC shaft

Only clamp CENTROTEC tools in CENTRO-TEC tool chucks.

8.2 Chuck BF-FX [5]

For clamping drill bits and bits with max. shaft diameter of 13mm

Clamp tool centrally in the chuck.

8.3 Angle attachment DD-AS [6]

Drilling and screwing at right angle to machine (partly as an accessory).

8.4 Eccentric attachment DD-ES [7]

Screwdriving near edges with bits according to ISO 1173 (partly as accessory).

8.5 Tool holder in the drill spindle [8]

Bits can be inserted directly into the hexagon socket holder of the drill spindle.

9 Working with the power tool

WARNING

Risk of injury

Always secure the workpiece in such a manner that it cannot move while being machined.

9.1 On/Off switch [1-3]

Press = ON, release = OFF

The speed of the machine depends on how far the on/off switch is pressed in.

The LED bulb [1-5] lights up when the ON/OFF switch is pressed [1-3].

9.2 Bit store [1-2]

Magnetic, for storing bits and bit holders.

9.3 Acoustic warning signals

Acoustic warning signals sound and the machine switches off in the following operating states:

peep ——

Battery flat or machine overloaded.

• Change the battery.
• Place the machine under reduced stress.

peeppeep

Machine is overheating.

• You must allow the machine to cool before using again.

peep peep peef-Once the battery pack has cooled, perform a functional check using the charger.

10 Service and maintenance

WARNING

Risk of injury, electric shock

Always disconnect the battery pack from the machine before any maintenance or care work!
All maintenance and repair work which requires the motor housing to be opened, must only be carried out by an authorised service workshop.

Customer service and repair only through manufacturer or service workshops: Please find the nearest address at: www.festool.com/service

Use only original Festool spare parts! Order No. at: www.festool.com/service

Note the following information:

• Keep the ventilation slits on the machine free and

clean to ensure adequate cooling.

• Keep the contacts on the machine, charger and battery pack clean.

Information on battery packs

• Store in a cool, dry place at a temperature between 5^ and 25^ .
• Protect battery packs from moisture, water and heat.
• Do not leave flat battery packs in a charger disconnected from the mains power supply for longer than one month. Danger of deep discharge!
• If you intend to store li-ion battery packs for longer periods without use, you should charge them to 40% capacity (approx. 15 min charging time).
• To avoid short circuits the battery pack should be stored in the packaging supplied.
  Significantly shorter operating times after each charge indicate that the battery pack is worn and should be replaced with a new one.

11 Environment

Do not dispose of the device in household waste! Recycle devices, accessories and packaging. Observe applicable national regulations.

EU only: In accordance with European

Directive on waste electrical and electronic equipment and implementation in national law, used electric power tools must be collected separately and handed in for environmentally friendly recycling.

Return used or faulty battery packs to your local specialist retailer, Festool after-sales service or nearest public waste management facility (observe applicable regulations). Batteries must be discharged on return. Battery packs will then be recycled.

EU only: In accordance with the European Directive on batteries and implementation in national law, defective or used battery packs/batteries must be collected separately and handed in for environmentally friendly recycling.

Information on REACH: www.festool.com/reach

12 Transport

The lithium-ion batteries are subject to the requirements of the legislation on hazardous goods. A li-ion battery pack alone falls below the applicable limit value and certified as per UN manual ST/SG/ AC.10/11/rev. 3 part III, subsection 38.3. However,

dangerous goods regulations may apply when several battery packs are transported For shipping by third parties (e.g. air transport or freight forwarding company) special requirements with regard to packaging and labelling must be observed.For the preparation of the package an expert on hazardous goods must be consulted. Please observe any further national regulations.

Only return the battery pack if the housing is undamaged. Tape over the exposed contacts and wrap the battery pack so that it cannot move inside the packaging.

13 EU Declaration of Conformity

Cordless drill Serial no.

T15+3Li497836

T18+3Li497933

Year of CE mark:

T 15+3 Li 2010

T 18+3 Li 2012

We declare under sole responsibility that this product complies with all the relevant requirements in the following Directives, standards and normative documents:

2004/108/EC, 2006/95/EC, 2011/65/EU, EN 60745-1, EN 60745-2-1, EN 60745-2-2, EN 55014-1, EN 55014-2.

Charger Serial no.

TCL 3 10002345, 10004911

Year of CE mark: 2013

We declare under sole responsibility that this product complies with all the relevant requirements in the following Directives, standards and normative documents:

2004/108/EC, 2006/95/EC, 2011/65/EU, EN 60335-1, EN 60335-2-29, EN 61000-3-2, EN 61000-3-3, EN 61204-3.

Festool GmbH

Wertstr. 20, D-73240 Wendlingen, Germany

paa. 0jdaannn

Head of Research, Development and Technical Documentation

2014-10-10

[1-2] Support d'embouts

[2-1] Cache accumulator

[3-1] LED

Position 1 = petit couple

Position 25 = grand couple

Presser = ON, relâcher = OFF

8.1 Mandril CENTROTEC [4]

6.2 Accupack verrangen [2]

6.3 Accupack laden [3A]

Machine is oververhit.

peep peep

• Na afkoeling kunt u de machine weer in gebruik nemen.

Li-ion-accupack is oververhit of defect.

peep peep peep

Varning for allman risk!

Varning for elstötar

6.1 Kabelloppvikling for lader [3-2]

Før bruk ma kabelen vikles helt ut av utsparingen.

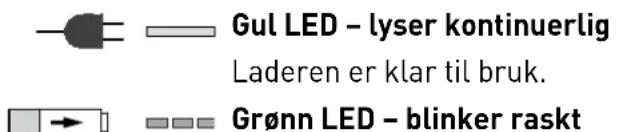

6.3 Lade batteriet [3A]

LED-en [3-1] på laderen viser gjeldende driftstilstand for laderen.

CoxpaHnTe Bce yKa3aHnNo TeXHnKe 6e3oNaChOCTn n HnCTpyKcnn.

HcnoJb3yeMby B yka3aHnX No TexHnKe 6e3oNaChocTn TepMH «3neKtpOnHCTpyMeHT> OTHOCNTc K cTeBbIM 3JeKtpOnHCTpyMeHTam [C ceTeBbIM Ka6eIem] n aKKyMyJrTOpHbIM 3JeKtpOnHCTpyMeHTam (6e3 ceTeBOrO ka6eJI).

2.2 Yka3aHnno TeXnKe 6e30nacHocTn npu pa6oTe c dpeIbIO- WypynOBepTom

-При Bынолненpa6OT B6ln3n CкрбToN 3ЛeКТponpoBoDNK N DEpXHTe 3ЛeKTPoHHCTpyMeHrTOJbKO 3a H3OJInpOBaHHbIe ChT pykoTKn. B npOTnBHom cIyuae BO3MOxHbI KOHTaKT CmEHHO rHCTpyMeHrTa IIN BnHTa/шупа C npOBdKoI NOI HanPЯжHeM MOxET Bbl3BaTb yIap 3ЛeKTPnueckm TOKOM Yepe3 MeTaNueckne ChT INHCTpyMeHrTa.

• Icnoj3yTe NOxOJaNe DeTeKTOpbI DnIaOBHApJXeHH cKpbITOn 3JIeKTPoPBOkN,ra30- IN BODOpPOBDoB, HIN npNBLeKNTe Kpa6ote CneuAnCTOB MeCTHO3HeprochabkaioSei KOMNaHN. KoHTaKTcMeHHOro IHCTpyMeHtA C 3/npoBoDKoM oKeT Bbl3BaTb yIap 3JIeKTPnuCeCKm TOkOM n PpNBecTN K BO3rOpAHIO. NObpeXdHne ra3OpPoDaMOKe TcTaB npuHoiB B3pBa. 3acBepnBaHneHIn BBopauHBaHne Uwpyna B BoDOpBOD CTaHETnpuHOn MaTePnaJIbHO rUep6a.

-ИсноьзунTe cpeDCTBa HNINBnDyalbHOn 3aHTbl:3aHThIe HayshHK,3aHThIe OOK, pecnnapToB Cnyae o6pa3OBaHnЯ nbIn BO Bpem pa60Tb, 3aHThIe nepaTkn npn pa6oTe C MaTePnaJAmc C IepoxObaTo NObepxHoCTbU n npn cMeHe pa6Oeyo INHCTpyMeNTa.

OCTOPOXHO! Bo3MOxHa 6JOKnpoBka 3JIeKTPoHnHCTpyMeHTa N BHe3aHnA oTdaa! HeMeJeHHo BBKJIouHTe!

Kpenko DepeXnTe 3JeKtpOnHCTpyMeHT B pyke. PpaBnIbHo OTperylnpYte KpyTAnM MoeHT npn 3aBHHuBaHnn. BybTe rTObbl K NOBLeHNIO BBICOKOro peAKTNBHoro (o6paTHoro) MOMHa, KOtOpBIMoXeTBbBA Tb BpaUeHne 3JeKtpOnHCTpyMeHT n CTaTb PpuHOn TpaBMnpOBaHna.

He nCnoJb3yIte 3JeKtpOnHCTpyMeHT NOddoXdEm Hn BO BnXHoN cpe. NopaHaHneBn BHyTpB 3JeKtpOnHCTpyMeHTa MoKETnpNBecTn K KopoTKOMy 3aMbKaHnO NBO3rOpAHIO.

-HeΦικυργιTe BbIKJIouaTeJIb!

2.3 0co6bIe yka3aHnNo ToTexHnKe 6e3oNaChOCTn IJy aKKyMylTopa N 3apdHOrO yCTpoiCTBa

• JIuam c OrpaHnueHHbIMN fN3NuYeCKMn, ceHCopHBIMn IJN yMCTBeHHbIMN CnOc06HOCTaMn IJN He NMeoUImm Heo6xOUMOrO onbTa n 3HaHn 3aPpeuaetcra NcNoJIb3OBaTb 3TO 3apAIDHOe ycTPOINCTBO 6e3 npncMOtpa IJN COOTBETCTByIOUeero INHCTpyKTAka NO TEXHNKe 6e3OanacHocTN. DeTAM 3aPpeuaeTCra NCpOJIb3OBaTb DaHHoe ycTPOINCTBO IJN INrPaTb C HIM.
• He oTKpbIbaiTe aKKyMylTOp n 3apJHoe yCTpoiCTBO!
  He DonyckaIte nonadaHnB 3apdHoe yctpoiCTBO MeTaNlueeckoj CtpyKKn IIN KndKocTei!
  -Onachocb B3pbIbA! He noJIb3yIteCb aKKymJrTopaMn 3apJHbIMu ycTpoIcTBamn cToPOHHx npOIN3BOIDTeJe!
• Bepernte akKymyIaTOp oT HArpeBa > 50 °C, HanpImep, oT Bo3JeNcTBnA cOnHeuHbIX Lyuei nn OrHa!
• HeNb3a racntb 3aropeBwncsra NHTn-HoHbI aKKymyIaTOp BOo! NcnoJb3yIe dJIg 3TOrO necOK nI npOTuBOxKapHoe NOKpbBaIIO.
• Perylnapno npOBepnTe uTKepe n Ka6eIb. B cnlyae noBpeJdHn 3aMeHnTe nx B aBTopu3oBaHHbIX MacTepecknx CepBnchOn cnjx6bl.
• Ecni 3apJHoe yctpoiCTBO He nCnoJIb3yeTcB, BblHmaiTe BNkCy ceTeBOrKa6eNn 13 pO3eTKn.

2.4 ypOBHn uyma

OnpeIeHbIe B coOTBeTcTBn c EN 60745 TInOBbIe 3HaueHn:

YpoBEnb 3ByKOBOrO LpA=65D(A)ДаВлелпя

YpoBHeHbMoUHocTn3ByKOBbIX LwA=76D(A) KOJIe6aHnI

IorpeuHocTBK=3D5

IcnoJb3yIe 3aunTHbIe HayuHnKn!

Ko3ΦnueH Tmccnn Kone6aHn ah (cymma BeKTOpOB TpEx HappaBHeHn) n porpeuHocTb K paaccuTBaIOTc corlacho EN 60745:

Ko3ΦnueH Tmccnn Kone6aHn ah (cymma BeKTOpOB TpEx HappaBHeHn) n porpeuHocTb K paaccntbIbaOTca corlacho EN 60745:

CbepeHne B meTaJIe a

$$ h < 2. 5 \mathrm {M} / \mathrm {c} ^ {2} $$

$$ K = 1, 5 \mathrm {m} / \mathrm {c} ^ {2} $$

3aBnHbHaHne a

$$ h < 2. 5 \mathrm {M} / \mathrm {c} ^ {2} $$

$$ K = 1, 5 \mathrm {m} / \mathrm {c} ^ {2} $$

Yka3aHHbIe 3HaueHnra ypoBna/Bn6paun

• cnykataIpaBHeHnHcTpymeHTOB
  MOKHO TaKKe NCIOJIb3OBaTb ДЯпразиTeIbHOn OeHKn WymOBoN Bn6paunOHNo Harpy3KN Bo BpeMa pa6Otbl;
• OTPaKaIOT OCHOBHeIe 0bJaCTn npMHeHnE 3JIeKTpOuHcTpyMeHtA.

Ipn nCpOJIb30BaHnMaUHHKnB dpyHX ueJx, CdpyHMn cMeHHbIMn (pa6oUMn) INcTpymeHTamn HIN B Clyuae nx HeydOBneTBOpntelbHorO 6cbnyKBAHn yMBoaY n Bu6paunOHna HaRpy3KN MoYr Bo3pacTaTb. Co6IIOJaTe 3HaueHn BpeMeHn pa6oTbHa XoIoocToM XOdy N BpeMeHn nepepbIBOB B pa6oTe!

HctpymeHT cKoHcTpynpoBaH ⅡI npOceccnHaJIbHOrO npMHeHn.

OTBETCTBEHHOCTb 3a NcNoJIb3OBaHHe He NoHa3HaueHnO Hecet NOLb3OBaTeJb; CIOdaTakKe OTHCQrTc ClyuAn DInTEJbHoN

6.3 3apdka aKKymyIaTOpHoro 6loka [3A]

CBeToIIOI [3-1] noka3bIBAeTeKyuIpeXIM pa60TbI 3apAaHOrO yCTpoiCTBa.

CД,желтын - ropHT HenpepbIBH0 3apянhoe yctpoiCTBO rOTOBOK 3KcnplyaTaUIN.

CD,3eJHbI-4acTo MNraet

AkkymyIaTOp 3apJxKaETcMaKcImaJIbHbIM TOKOM.

CД,3eJIeHbI-peKo MnraE

AkkymyIaTOp 3apJxJaTeCn HOnHXeHHbIM TOKOM, NHTIN- HOHHbIe AKKymyIaTOpbl [Lilon] 3apJxKeHbI Ha 90% .

CД,3eJIeHbI-N-roPHT HENpepbIBHo

ПюцeccЗардкзаершенизапшип.Tak Кak Tekyшунуовьзардксocтавлaret6oilee 90%

A D, KpaC hbl - Mnraet

06uHn HndKaTOp HeNcnpaBHOCTn,HaNPmep, HeNpaBnIbHoe 3aMbIkaHne KOHTaKTOB,KOPOTKOE 3aMbIkaHne, HeNcnpaBHOCTb aKKyMylrTopa n T.D.

CД,КрасьИ-ROPHT HepepbIBHo

TemnepaTypa aKKymyIaTopa npebblwaeT Onyctmoe 3HaueHne.

7 H a c T p o n K u

OcTopoXHo

OnachocTb TpaBMnpoBaHHa

BbInoJHnTe HacTpoiKn TOnbKO npN BbIKNoUeHHOM 3JIeKTPoIHcTpymHe!

7.1IpeeknueHne HappaBHeHnBaune [1-4]

CdBnHyTb nepeKJIyOaTeIb BNeBO = npaBoe BpaueHne
CdBnHyTb NepeKJIouaTeIb BnpaBO = JeBoeBpaueHne

7.2 IepeKJIIOUeHHe cKOpocTn [1-6]

• IpeeknjuoyateIb ckopocTei Bneped (BnuHa cnΦpa 1) = 1-ayckopocTb
• IpeeknioateIb ckopocTei Ha3aI (BnHa cHΦpa 2] = 2-ra ckopocTb

7.3 3aBnHnBaHne

MeTka Ha nepeKJIIOUaTeIe [1-9] yKa3bIBaET Ha CnMBoJ 3aBnHcNBAHn [1-8].

KpyTauxm MOMeHT coTlacHo HacTpoKe Ha peryIaTope [1-12].

He nCnoB3yIte 3aTyINBwIeCn I deΦeKTHbIe CMeHHbIe NHCTpyMeHTbl!
HaedeBaIe 3aunTHbIe npuATkn!

8.1Инструмений наразон CENTROTEC [4]

I03B0JraTe 6bIcTpo MeHrTa pa6OuN (cMeHHbI) HCTpyMeHT C XBOCTOBnKOM CENTROTEC

3axmamTe CMeHHbIe HcTpyMeHTbl C XBOCTOBKOM CENTROTEC TOnbko B NaTpoHe CENTROTEC.

8.2 ZaHroBbI naTpoH BF-FX [5]

Для зжима CBepи 6ntOB c MaKc. ДиametpOM XBOCTOBUKa 13 MM.

3aXmMaTe pa6oUHcTpymeHT B nAtpOHe no ceHTpy.

8.3 YrIIOBaH HacaKa DD-AS [6]

I03B0JraT CBePnITb N 3aBopauNBA Tb NOI npRMBIM yrLOM K dpelen (B KOMnJIeKTe nIIOnuJy).

8.4 3KcueHtpNKoBa HacaKa DD-ES [7]

3aBnHnBaHne upynoB B6IIN3n KpaC 6ntamn no ISO 1173 (B KOMPNeKTe nIn onzna).

8.5 3aXMMHoe npncnoc6JeHne B uHHne [8]

BntbMOxHO BCTaBnTb HenocpeDCTBeHHo B 3axm C BHyTpEHNM WecTNrpaHHNKOM (Ha wHnHneIe).

9 Pa6ota c əJIeKTpOuHcTppyMeHTOM

PpeDynpexKdEHe

Onachoctb TpaBMnpoBaHn

Bcerda ykpenIte o6pa6aTbIbAemyo DeTaIb TaK, YTo6bl OHa He DBrIraIacb npn o6pa6oTke.

9.1 BkIIOueHne/BbIKIOueHne [1-3]

HαKaTb=BKJI,OTnyctntb=BblKJI

B 3aBnCmOCTN OT CnIbI HaxaTna Ha BbyIKJIouaTeIb PJIaBHO MeHReTcra YacToTa BpaUeHn.

CBeToIIOHnA JAmNa [1-5]rOpNT npN BkJIoueHHOM BbIKJIouyateNe[1-3].

9.2ДерхаTeJB 6ntOB[1-2]

MaHHTbI,ДЯКрплЕнг6ntOBиHacdoK.

9.3 3BykoBbI npedynpeKdauuue cnHaJIbI

B cIeDyUoXx CnyaX IOnaETCa 3ByKOBoN npedynpexKaIOuCnHnMaHnHa BbIKIouaETc:

akkymyjatop pa3pJxKeH nI npelb pa6oTaet c neperpy3KoI

• CmehnTe aKKyMylrTOp.
  -ymeHbUHTe Harpy3ky Ha npelb.

3NeKtpoHHcTpymeHT neperpet.

• Pocne oxlaekdeHnAppeHn MoXHo CHOba npncTyNaTb K pa6Ote.

Ipeperpet nnn HeucnpaBeH IHTNmHOHHbI aKKymyIaTOPbI 6JOK.

peep peep peef- PpOBePbTe pa6oTocnoc6HocTB npN OCTbIBWeM aKKyMyJrTopHom 6Ioke c NOMOuBIO 3apJdHOrO yCTpoiCTBa.

10 06cnyxkBaHne n yxoJ

PpeDynpexKdEHe

OnachocTh TpaBmnpoBaHn, yap Tokom

■Ipeed Haayanom IIO6bix pa6oT no yxOdy INTexHnueckomy 06cnyKuBaHnIO INHCTpyMeHTa Bcerda BbIHMaTe aKKyMylrTopHbI 6lOK!
Bce pa6oIb no peMoHTy n TexHnueckomy 6cLyXnBaHHIO, KOToPbIE Tpe6yHOt OTKpbIBaHHN KOpNyCa DBrIaTeJIa, MOrY TBInOJIHrTbcra ToJIbKO abTopn3OBaHHoM MacTepCKo CepBnCHoN clyx6bl.

CepBnchoe 06cIyKnBaHne n peMOHT ToIbKO uepe3 fnpMy-13roTOBNTeJIa IIN B HauNX cepBnCHbIX MaCTepCKNX: aDpec 6JnxKaIweMacTepckOcM. Ha www.festool.com/service

IcnoJIb3yIe ToIbKO opuRnHaIbHbIe 3aIaChbIe qactn Festool! NdIa 3aka3a Ha: www.festool.com/service

Co6IIOaIte cIeMyIoUne yKa3aHnra:

• He donycka nTe 3a6n BaHnB BeHTNJOTBepCTn Ha nHcTpymHe: OHn CnyXaT nIe oXlaJxDeHn.
  He donyckaIte 3aRpy3HeH I OndcoeINHITeJIbHbIX KOHTaKTOB Ha 3JIeKTPoINHCTpyMeHTe, 3aprHOM yCTpOInCTBe n aKKyMylTope.

Yka3aHn, KacaIOuIneC aKKyMylrTopoB

-XpaHnTe nHCTpyMeHT BCyXOM, npoxlaHOM MeCTe npn TempeType MeKdy 5^ n 25^
- PendeoxpaHnTeaKkMyJyTopbIOBlaRn,BoDbI IN BbICOKnx TemnepaTyp.
- He ocTabIaIe pa3pIeHHbIe aKKyMylTOpbl B OTKJIuHcEHHom OT cETN 3apJHOM yCTpoiCTBe doJIbWe, Yem Ha MecaI. ONaCHOCTb rIy60KOrO pa3pIa!
- Пи ДЛNTeьHOM XpaHeHn JINTN-NOHHbIX aKKyMylTOpOB 6e3 NcNoIb3OBaHn OH NOJXHbI 6bITb 3apJxKeHbI Ha 40 % (ok. 15 MIn HnoДЗapЯДКИ).
-Дяпразовашиона choctи корткого 3амыканя Akkyмлгтор Heo6xodmoхрнв Б пилагаemon yanaKOBke.
- 3aMeTHoe cOKpaUeHne BpeMeHn pa60tbl nocJe 3apAdkn yka3bIBaet Ha Heo6xOIMOCtB 3aMeHbI aKKyMylrTopa.

11 Onachoctb dIy okpykaIouei cpebl

He BBb6paBbAaTe NHcTpymeHT BMeCTe C 6bITOBbIMn OTXoJaM!

06ecneybe 3KoIOrnueckn 6e3oNaChyU yTnJIn3aunu HNCTpyMeHTOB,OCHAcTKN yNaKOBKn.

CobIpaTe DeIcTByUoNe HaunHaJIbHbIe npedncaHna!

ToIbKO dIaC TpaH EC: corIacHo InpeKtUbe EC o6 0TxOax 3JIeKTpNueCKoTO N 3JIeKtpOnHOrO 06OpyIOBaHna, a TaKKe rApMOHN3IpOBaHHbIM HaunHOJIbHbIM cTaHdApTAM OTCJyXNBWHne CBOI CpOK 3JIeKTPOnHCTpyMeHTbl DOJXHbI yTUN3InpOBAtbcra pa3JeIbHO n HappaJIrTbcra Ha 3KoIoRnueckn 6e3ONaChyIO nepepa60TKy.

Otpa6oTaHHbIe Hn HeHcnpaBhIe AKKymyJrTopbl CdaBaIte B CneuaJIIN3NpOBaHHbIe MaRa3HbI, cepBnCHyIO cnyk6by Festool nII MecTHbIe NyKtbl npiEma (co6IoudaIte DeIcTBYIOUne npednscAHn). CdaBaIte aKKymyJrTopbl TOJbKO B pa3prXeHHOM coCTOaHN. B 3TOM cNyuae INx MoXHO OTnpaBnTb Ha yTuIN3aCNIu.

ToIbKO dIaCpaH EC: corlaacHO dIpeKTIbe EC o6 nCIOJIb3OBAHHbIX 6aTapeRx/AnemeHTax NITAHIN aKKyMylrTopax, a TaKKe rapMOHN3nPOBaHHbIM HaUNoHaJIbHbIM cTaHdApTAM OTCJyXNBWe CBOI cPOK 6aTapeN/AnemeHTbI NITAHIN/aKKyMylrTopbl DOJXHbI yTNJIN3nPOBaTbcra pa3JeJbHO HAnpaBIArTbcra Ha 3koJIoRnueckn 6e3OnacHyIO nepepa60Ky.

HhOpMaunno DnpeKtNBRe REACH:

www.festool.com/reach

12 TpaHcnpTnpoBka

IpnlaeMbIe IHTN-NOHbIe aKKymJrTOpbI
NoIpaIOT NoI DeIcTBnE 3aKoHa O nepeBO3Ke
OanChbIX rpy3OB. 3KBINBaJIeHTHOe KOINueCTBO
JIITN B IINTN-IONHOM aKKymJrTope HaxODNTc
HNke COOTBeTCTBHyUx NpeJeNbHbIX 3NaYeHn I
npOBepReTcB COOTBeTCTBnC pyKOBoDCTBOM OOH
ST/SG/AC.10/11/PebIO 3 acTb III, NOpa3deI 38.3.
IoTOMy IHTN-IONHbIy aKKymJrAToP, HN
OTdJIbHO, HN yCTaHOBJIeHHbI B DpeJIb, He
NoIpaIaET NoI HaOnoHaJIbHbIe IM MekdyHapOJHbIE
Tpe6OBaHnK O NaChbIM rpy3am. OdHaKO
Tpe6OBaHnK O NaChbIM rpy3AM MOYt IMeTb CIny
pR TpaHCnOpTIpOBKe HeCKOJIbKnx aKKymJrAToPob.
B 3Tom cLyuae Heo6XoDIMO BBINOHNITb
CneuJIbHbIe Tpe6OBaHn. Ppi nepeBO3Ke
CTOPOHHMn OPraHn3aunm (HaNPmEp,
ABNaTPaHCnOpTOM nII TpaHCnOpTHoN KOMPaHnei)
PpeBJBJIOTc OcO6bIe Tpe6OBaHnK UynakOBKe m
MapKnPOBKe. Ppi NOdTObK ToBapa K OTpy3Ke

Heo6xOdmo BocnoJb30BaTbc8 yClyrAmn CneuaJIncTa nO o6paueHIO C onaChbIMn rpy3amN. YuHTbBAeTe DOnoJIHNTeJIbHbIe HaCNoHaJIbHbIe npednscAHn.

IpeceblaIte aKKymyIaTOp T0JIbKO C HeNoBpeXdEHHbIM KOpnycOM. Pn 3ToM cJeDyET 3aKJleNTb OTKpbITbIe KOHTaKTbI N pa3MeCTtB aKKymyIaTOp B yNaKOBKe TaKIM 6pa3Om, 4TO6bl NCKJIQUHTb erO CmeUeHne.

13ДeКларацьcoOTBeTCTBnE EC

6.2 Vymena akumulatoru [2]

Pokyny pro akumulatory
