USER MANUAL TXS Li 2 6-Plus FESTOOL

Close-up of a black and green power tool with a screwdriver, no visible text or symbols

1

1-4 1-3 1-2 FESTOOL TXS Li-Ion 1-5 1-6 1-1 1-11 1-10 1-7 1-8 1-9

2

FESTOOL TES FLU LHR ① ②

FESTOOL 125 H-198 ① ② ②-1

3

klick 1 FESSTOOL MXO 3-1

1 2 FESTOOL MXo

3A

3 mm 5mm 85 mm (3 11/32") ✓ ×

√

×

4 WH-CE CENTROTEC® FESTOOL TX5 L-ion 1 2 klick 3 klick 4

5 BF-FX 10 FESTOOL TX5 LI-Ion www.festool.com 1 2 3 klick

6 XS-AS BF-FX 8 BF-FX 10 WH-CE FESTOOL TXS L-ion

Line drawing of a FESTOOL TXS power tool with a screwdriver inserted (no text or symbols on the device itself)

MXC
	V~	220 - 240
	Hz	50/60
	V=	10,8
	A	2,6
	C	-10° - 40°
		II

		100 %
Lilon 1,5 Ah	min.	~ 23
Lilon 2,6 Ah	min.	~ 45

BP-XS
		CXS, TXS
U	V=	10,8
	Ah	2,6
#		3
	C	0° - 55°
	kg	0,22

Akkubohrschrauber	Seriennummer *
Cordless drill / Screwdriver	Serial number *
Perceuses-visseuses sans fil	N° de série * (T-Nr.)

TXS 10008076

2006/42/EG, 2014/30/EU, 2011/65/EU

EN 62841-1: 2015 + AC:2015, EN 62841-2-1:2018,

EN 62841-2-2:2014 + AC:2015, EN 55014-1:2017,

EN 55014-2: 2015, EN 50581: 2012

Ladegerät	Seriennummer *
Charger	Serial number *
Chargeur	N° de série *(T-Nr.)

MXC 204911

2014/35/EU, 2014/30/EU, 2011/65/EU

EN 60335-1:2012 + A11:2014 + A13:2017, EN

60335-2-29:2003 + A2, EN 62233:2008, EN 55014-

1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN

61000-3-3: 2013 + A1:2017, EN 50581:2012

de EU-Konformitätserklärung. Wir erklären in alleiniger Verantwortung, dass dieses Produkt mit allen relevanten Anforderungen folgender EU-Richtlinien übereinstimmt, und folgende Normen oder normative Dokumente zugrunde gelegt wurden:
en EU Declaration of Conformity. We declare under sole responsibility that this product complies with all the relevant requirements in the following EU Directives, and following standards and normative documents were applied:
fr Déclaration de conformité de l'UE. Nous déclarons, sous notre seule responsabilité, que ce produit satisfait à toutes les exigences pertinentes des directives UE suivantes et repose sur les normes ou documents normatifs suivants :
es Declaración UE de conformidad. Declaramos bajo nuestra responsabilidad que este producto cumple todos los requisitos relevantes de las siguientes directivas de la UE y que se han tomado como base las siguientes normas o documentos normativos:
it Dichiarazione di conformità UE. Dichiariamo sotto nostra unica responsabilità che il presente prodotto sia conforme a tutti i requisiti di rilevanza definiti dalle seguenti Direttive UE e che siano stati applicati le seguenti norme o i seguenti documenti normativi:
nl EU-conformiteitsverklaring. Wij verklaren en stellen ons ervoor verantwoordelijk dat dit product volledig voldoet aan alle volgende EU-richtlijnen en volgende normen of normatieve documenten daaraan ten grondslag gelegd werden:
SV EU-försäkran om överensstämmelse. Vi förklarar på eget ansvar att denna produkt uppfyller alla relevanta krav enligt följande EU-direktiv och baseras

Signed on behalf of and in name of/

Head of Product Development

i.A.Q.B.c.m.c.h

Ralf Brandt

Head of Product Conformity

1 Symbols....14
2 Safety warnings....14
3 Intended use 15
4 Technical data.... 16
5 Machine features.... 16
6 Operation....16
7 Settings....16
8 Tool holder, attachments.....17
9 Working with the power tool....17
10 Service and maintenance....18
11 Environment....18
12 Transportation....18

1 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety instructions.

Wear ear protection.

Wear protective gloves.

Wear a dust mask.

Wear protective goggles.

Do not dispose of it with domestic waste.

Inserting the battery pack

Removing the battery pack

Tip or advice

Handling instruction

Permitted temperature range

Safety class II

Weight

Charging times

Mains voltage (input) and frequency

Voltage (output)

Rapid charging max.

Capacity

Number of cells

2 Safety warnings

2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" used in the safety instructions refers to mains-powered power tools (with power cable) or battery-powered power tools (without power cable).

2.2 Machine-specific safety notices for cordless drills

• Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Use suitable detectors to determine if utility lines are hidden in the work area or call the lo-cal utility company for assistance. Aontact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Pene-trating a water line causes property damage or may cause an electric shock.

Four black circular icons representing head, face, helmet, and hand symbols (no text or labels)

Wear suitable personal protective equipment: ear protection, safety goggles, a dust mask for work which generates dust, and protective gloves when working with raw materials and when changing tools.

CAUTION! Power tool can block and cause sudden kickback! Switch off immediately!

- Do not lock the on/off switch permanently!

Safety instructions when using long drill bits

• a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
  – c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

2.3 Machine-specific safety instructions for battery pack and charger

• This charger can be operated by persons with reduced physical, sensory or mental capabilities or a lack of practical experience and knowledge, provided they are supervised or have been instructed to use the machine safely and understand the dangers of machine operation. Children are not allowed use or play with the machine.
• Do not open the battery pack or charger.
• Protect the charger from metal components (e.g. swarf) and liquids.
• Do not use power adapters or battery packs form other manufacturers to operate the cordless power tool. Do not use any charger from other manufacturers for charging the battery pack. The use of impermissible accessories may result in electric shock and / or serious accidents!
• Protect the battery pack from heat > 50 °C or constant heat sources such as sunlight or naked flames.
• Never use water to extinguish burning Li-ion battery packs; always use sand or a fire blanket.
• Check the plug and the cable regularly in order to prevent a hazard. In the event of damage, these must be replaced by an authorised service workshop only.
• Always pull the mains plug out of the socket when the charger is not in use.

2.4 Emission levels

The levels determined in accordance with 62841 are typically:

Sound pressure level L

$$ _ {P A} = 6 3 \mathrm{dB(A)} $$

Sound power level L

$$ _ {W A} = 7 4 \mathrm{dB(A)} $$

Uncertainty K = 3 dB

Noise generated when working Risk of damage to hearing

▶ Use ear protection.

Vibration emission level a_h (vector sum for three directions) and uncertainty K measured in accordance with 62841:

Fastening

$$ a _ {h} = < 2. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Drilling in metal

$$ a _ {h} = 3. 0 \mathrm{m} / \mathrm{s} ^ {2} $$

$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

The specified emission levels (vibration, noise)

• are used to compare machines.
• They are also used for making preliminary estimates regarding vibration and noise load during operation.
• They represent the primary applications of the power tool.

CAUTION

The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined.

▶ The actual load during the entire operating cycle must be evaluated.
▶ Depending on the actual load, suitable protective measures must be defined in order to protect the operator.

3 Intended use

Cordless drill suitable

• for screwing in and tightening screws,
• for drilling in metal, wood, plastics and similar materials.

Not intended for clamping tools other than drills and drill bits, e.g. compass saws, stirring rods, metal brushes.

Charger MXC suitable

• for charging the listed battery packs.
• only for indoor use.

The user is liable for improper or non-in-tended use; this also includes continuous trial operation.

4 Technical data

Cordless drill TXS
Motor voltage 10.8 V
No-load speed*
1st gear	0-430 rpm
2nd gear	0-1300 rpm
Max. torque soft/hard screwdriving application 10/16 Nm
Adjustable torque 0.3-3.4 Nm
Chuck clamping range 1-10 mm
Max. drill diameter Wood/metal 12/8 mm
Tool holder in drill spindle 1/4"
Weight (incl. battery pack and chuck) as per EPTA procedure 01:2014	1.1 kg
Weight incl. battery pack and Centrotec	0.9 kg

* Speed values based on fully charged battery pack.

More technical data about the charger and the supplied battery pack can be found on page 6.

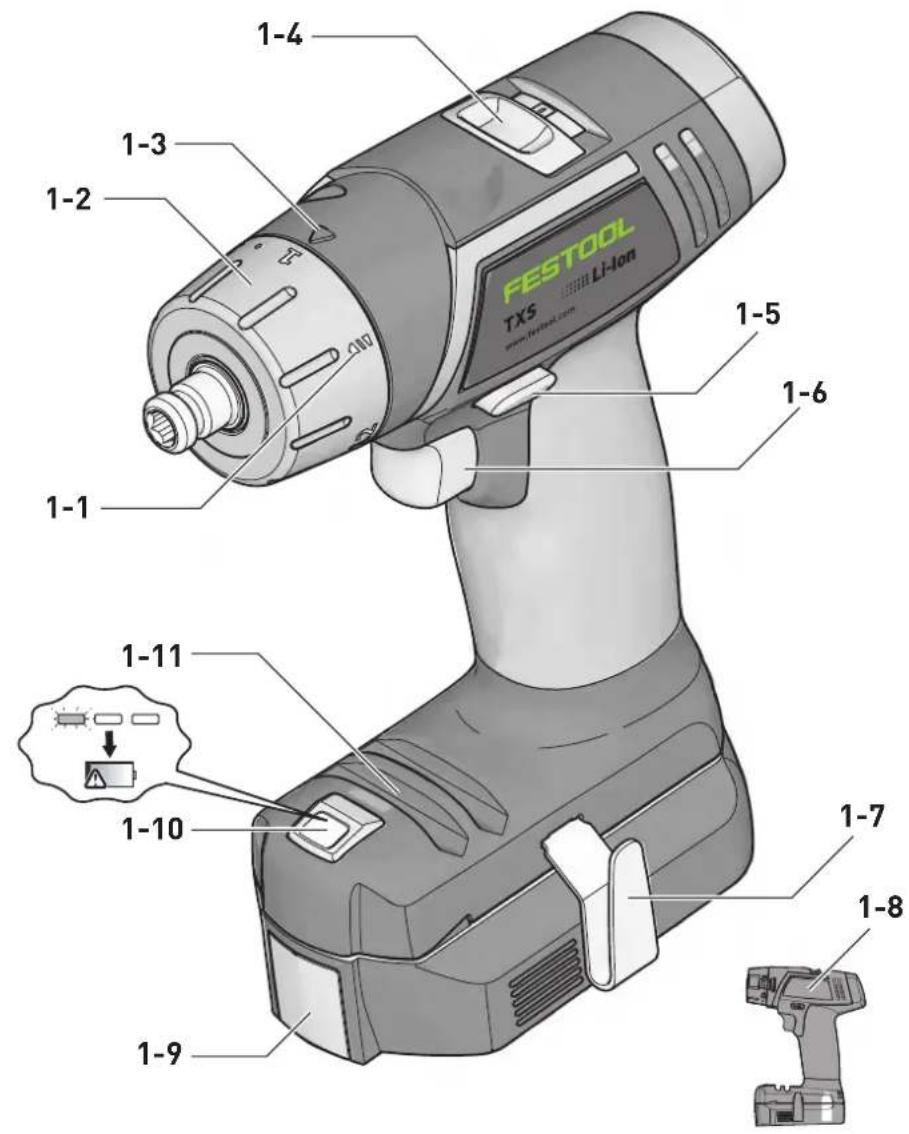

5 Machine features

[1-1]	Drilling symbol
[1-2]	Torque thumbwheel
[1-3]	Torque/drilling position marking
[1-4]	Gear switch
[1-5]	Right/left switch
[1-6]	On/Off switch
[1-7]	Belt clip
[1-8]	Insulated gripping surfaces (grey shaded area)
[1-9]	Button for releasing the battery pack
[1-11]	Bit store
[1-10]	LED lamp with capacity indicator

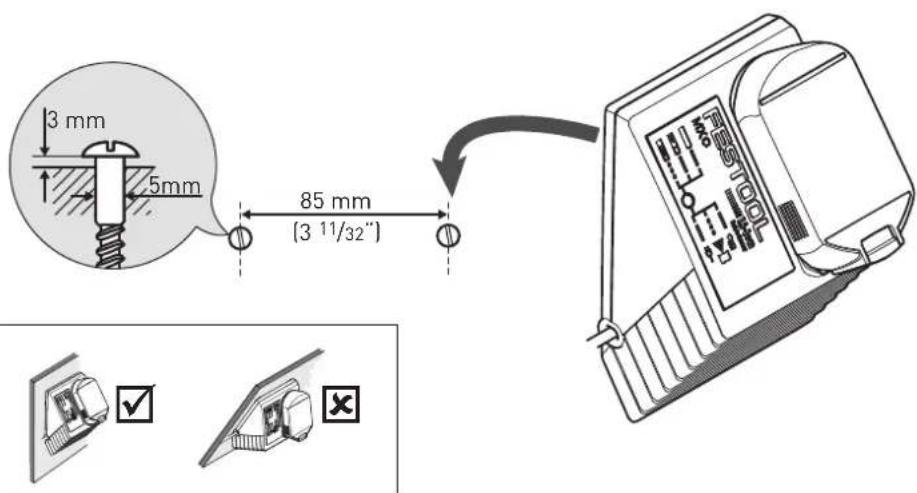

[3A]	Wall mount for charger

The specified illustrations appear at the beginning of the Operating Instructions.

The specified illustrations appear at the beginning of the Operating Instructions.

6 Operation

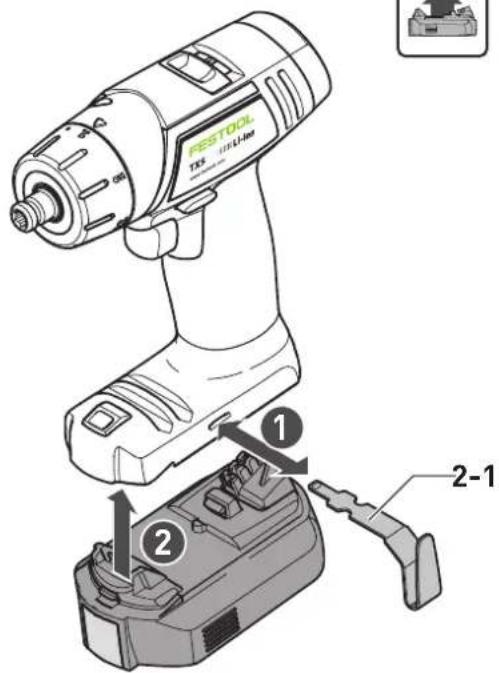

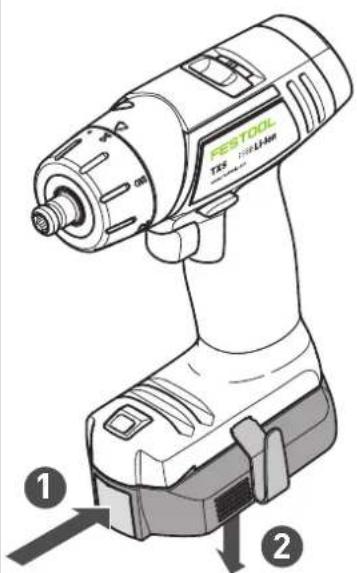

6.1 Changing the battery pack [2]

Battery pack is ready for use immediately upon delivery and can be charged at any time.

Side of the belt clip [2-1] can be replaced when battery pack is removed.

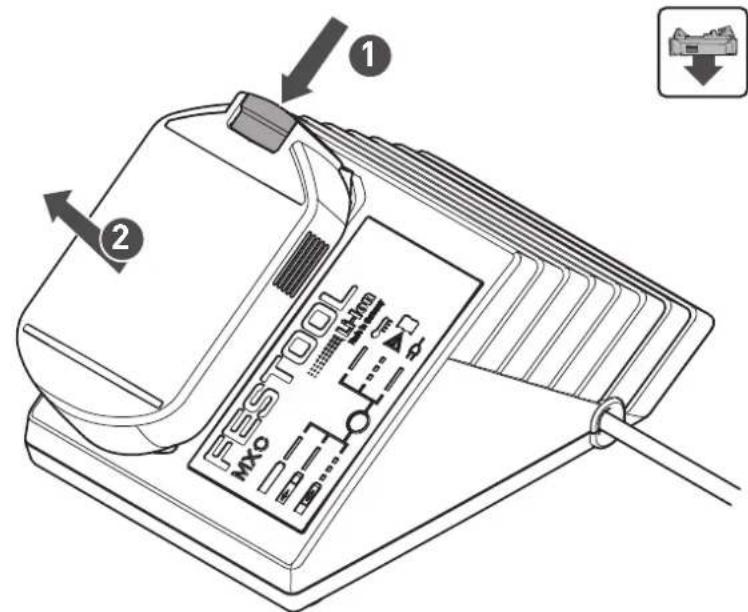

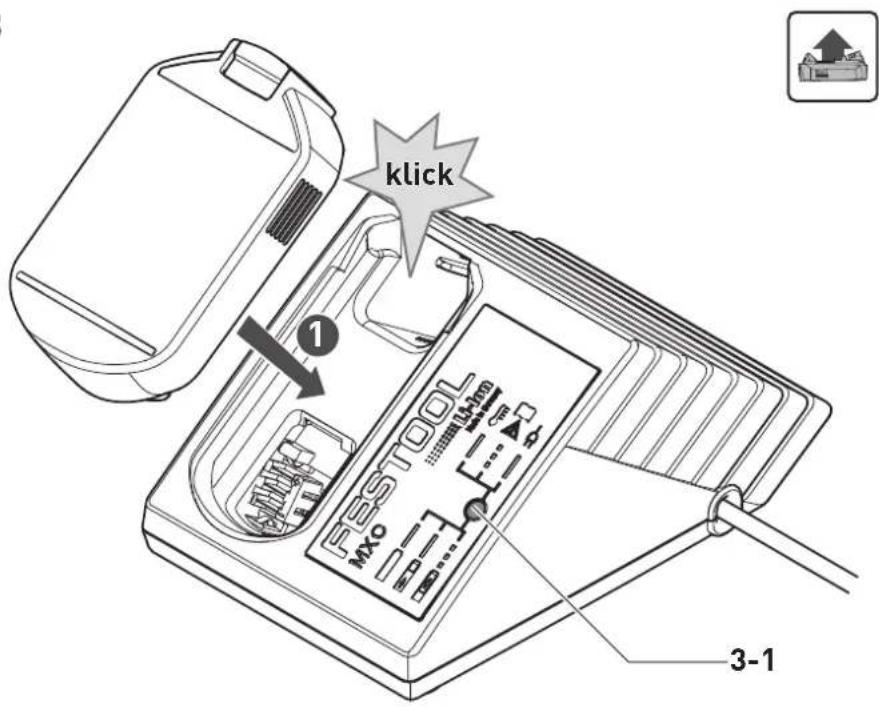

6.2 Charging the battery pack [3]

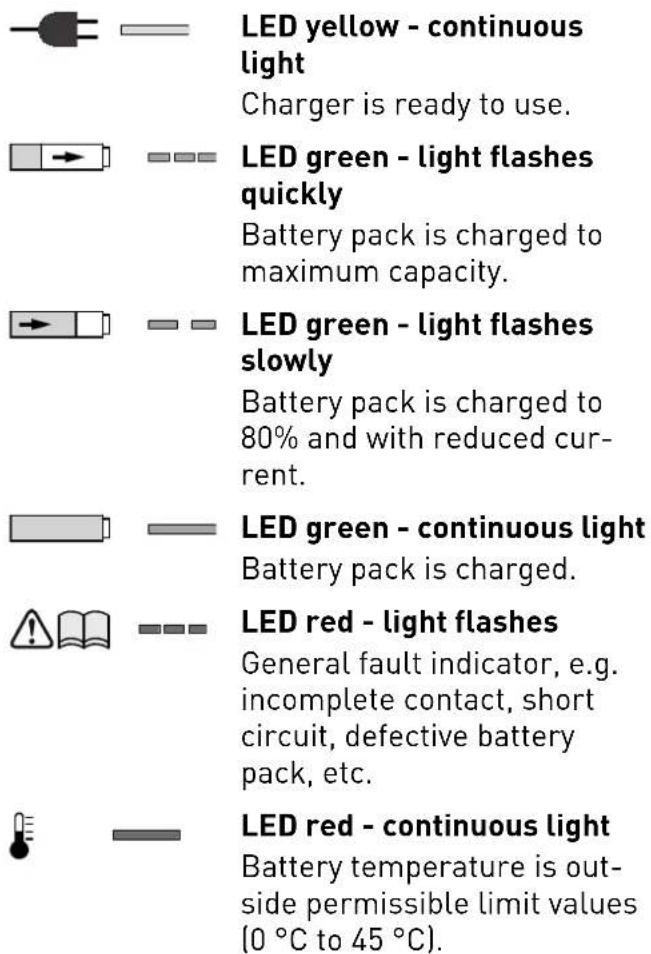

The LED [3-1] on the charger indicates the respective operating status of the charger.

LED yellow - continuous light Charger is ready to use. LED green - light flashes quickly Battery pack is charged to maximum capacity. LED green - light flashes slowly Battery pack is charged to 80% and with reduced current. LED green - continuous light Battery pack is charged. LED red - light flashes General fault indicator, e.g. incomplete contact, short circuit, defective battery pack, etc. LED red - continuous light Battery temperature is outside permissible limit values (0 °C to 45 °C).

7 Settings

CAUTION

Risk of injury

▶ Only adjust the settings when the power tool is switched off.

7.1 Changing direction of rotation [1-5]

• Switch to the left = clockwise rotation
• Switch to the right = counterclockwise rotation

7.2 Changing gear [1-4]

• Gear switch forwards (digit 1 visible) = 1st gear
• Gear switch to rear (digit 2 visible) = 2nd gear

7.3 Adjust torque [1-2]

The marking [1-3] shows the selected position.

Drilling

Marking shows the drill symbol [1-1] = Maximum torque.

Fastening

Torque corresponding to setting:

Position 1 = low torque

Position 12 = high torque

8 Tool holder, attachments

WARNING

Risk of injury

• Remove the battery pack from the power tool before performing any work on the power tool.

UTION

Risk of injury from hot and sharp tool

▶ Do not use any blunt or faulty tools.
▶ Wear protective gloves.

The PO numbers of the accessories and tools can be found in the Festool catalogue or online at "www.festool.co.uk".

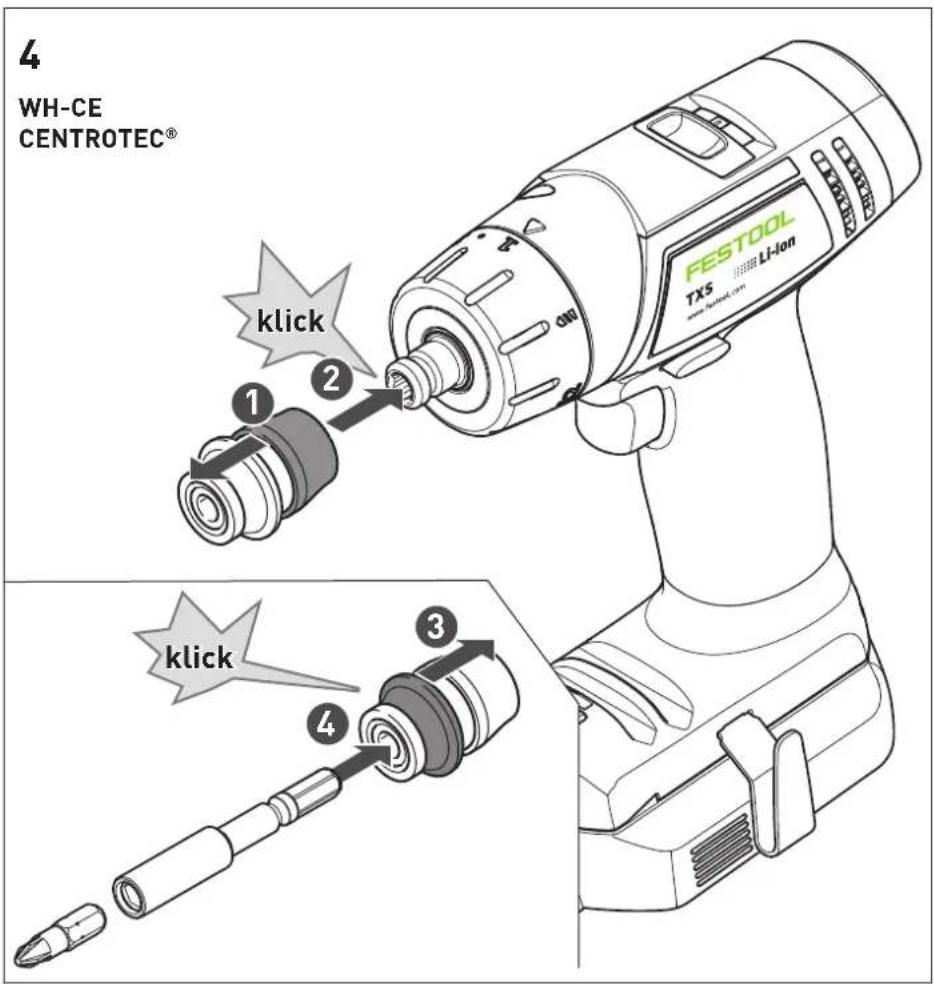

8.1 CENTROTEC tool chuck [4]

Quick change of tools with CENTROTEC shaft

Only clamp CENTROTEC tools in CENTROTEC tool chucks.

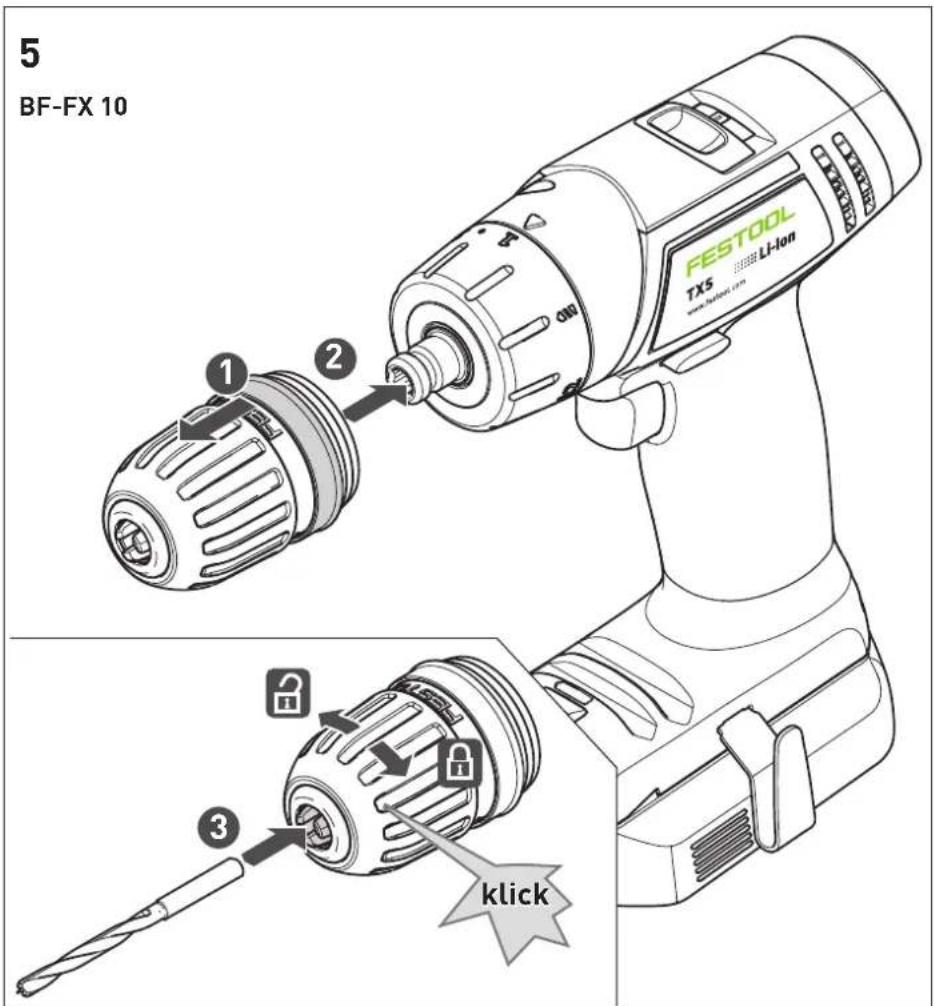

8.2 Chuck BF-FX10 [5]

For clamping drill bits and bits with max. shaft diameter of 10 mm.

Clamp tool centrally in the chuck.

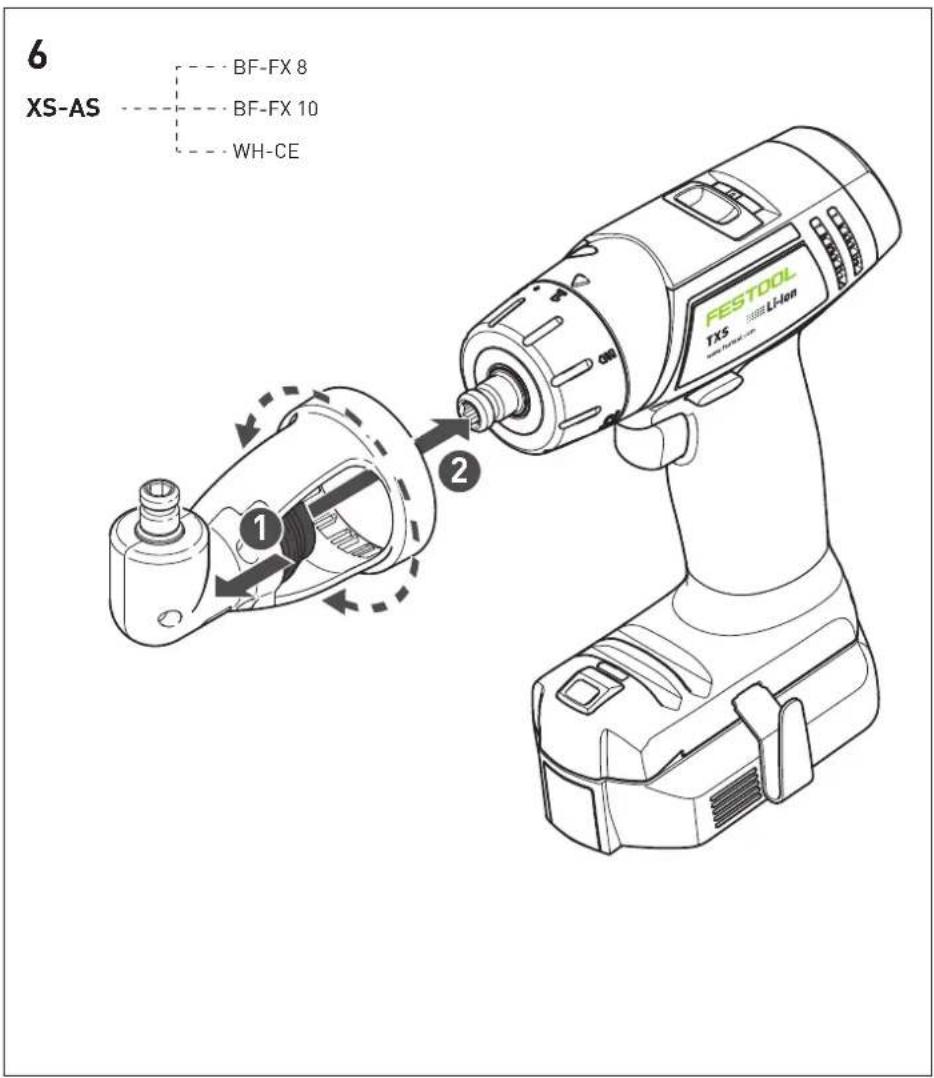

8.3 Angle attachment XS-AS [6]

(accessories) Drilling and screwdriving at right angle to power tool.

You can engage the angle attachment in 16 different angle settings.

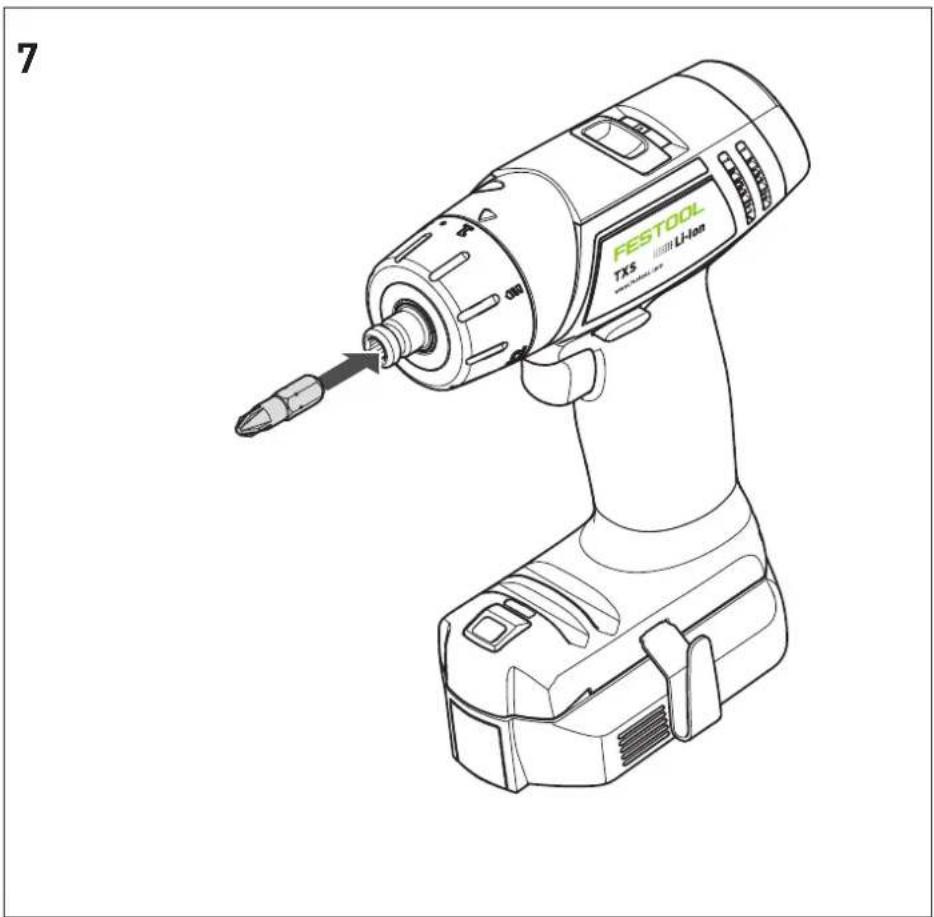

8.4 Tool holder in the drill spindle [7]

Bits can be inserted directly into the hexagon socket holder of the drill spindle.

9 Working with the power tool

WARNING

Risk of injury

▶ Always secure the workpiece in such a manner that it cannot move while being machined.

9.1 On/Off switch [1-6]

Press = ON, release = OFF

The speed of the machine depends on how far the on/off switch is pressed in.

9.2 LED lamp with capacity indicator

The LED bulb [1-10] lights up when the ON/OFF switch is pressed [1-6].

After releasing the ON/OFF switch [1-6] the capacity indicator on the LED lamp [1-10] displays the state of charge of the battery pack for a few seconds:

Recommendation:

Charge battery pack before further use.

9.3 Bit depot [1-11]

Magnetic, for storing bits and bit holders.

9.4 Warning signals

Power tool shuts down, capacity indicator flashes: Battery pack is empty.

▶ Change the battery pack.

Power tool shuts down, capacity indicator does not flash: Power tool is overheating or has been overloaded.

▶ Apply a lesser load to power tool.

▶ Allow power tool to cool down.

10 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always remove the battery pack from the power tool before performing any maintenance or service work.
▶ All maintenance and repair work which requires the motor housing to be opened should always be carried out by an authorised service workshop.

FESTOOL

Customer service and repairs

must only be carried out by the manufacturer or service workshops. Find the nearest address at: www.festool.co.uk/service

EKAT FESTOOL

Always use original Festool spare parts. Order no. at: www.festool.co.uk/service

Note the following information

• Keep the ventilation slits on the machine free and clean to ensure adequate cooling.
• Keep the contacts on the machine, charger and battery pack clean.

Information on battery packs

• Store in a cool, dry place at a temperature between 5 °C and 25 °C.
• Protect battery packs from moisture, water and heat.
• Do not leave empty battery packs in a charger disconnected from the mains power supply for longer than one month. Danger of deep discharge!
• If you intend to store li-ion battery packs for longer periods without use, you should charge them to 40 % capacity (approx. 15 min charging time).
• To avoid short circuits the battery pack should be stored in the packaging supplied.

11 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe appli-national regulations.

EU only: In accordance with European Directive 2002/96/EC on waste electrical and electronic equipment and implementation in national law,

used power tools must be collected separately and handed in for environmentally friendly recycling.

Information on REACH: www.festool.com/reach

12 Transportation

The Li-ion battery packs included are subject to the requirements of the legislation on hazardous goods. The user must familiarise themselves with the local regulations prior to transport. Special requirements apply to shipping via third parties (e.g. air transport or haulage) and these must be observed. When preparing the item to be sent, a dangerous goods expert must be consulted. Only return the battery pack if it is undamaged. Observe local regulations when shipping. Observe any further national regulations.

Sommaire

Presser = ON, relâcher = OFF

World map with a wrench and upward arrow symbol, labeled 'FESTOOL' below (no other text or symbols)

Consignes relatives aux batteries

8.1 Mandril CENTROTEC [4]

Four black circular icons representing head, face, headset, and hand symbols (no text or labels)

Accu-schroefboormachine TXS

6.2 Accupack laden [3]

9.3 Bit-depot [1-11]

Abstract diagram with gray and white rectangular blocks and a central gray icon (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

World map with a house icon and the word 'FESTOOL' below it, no other text or symbols visible.

[1-1] Symbol for boring

[1-2] Reguleringshjul dreiemoment

[1-3] Markering dreiemoment/borstilling

[1-4] Girbryter

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany declare under our sole responsibility that the product(s):

Designation:

Designation of Type(s):

Serial number(s) 1:

Cordless drill/screwdriver

TXS

10008076, 722189

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597
S.I. 2016/1091
S.I. 2012/3032
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

• BS EN 62841-1: 2015
• BS EN 62841-2-1:2018
• BS EN 62841-2-2: 2014
BS EN 55014-1:2017 ^2)
• BS EN 55014-2:2015 ^2
• BS EN IEC 63000:2018

11 in the specified serial number range (S-Nr.) from 400000000 - 49999999

Place and date of declaration: Wendlingen, 31.03.2021

Signed on behalf of and in name of Festool GmbH

ppa-108

Markus Stark

Head of Productdevelopment

i.v. Q. B. cmch

Ralf Brandt

Head of Productconformity
