USER MANUAL UM 3334 CLATRONIC

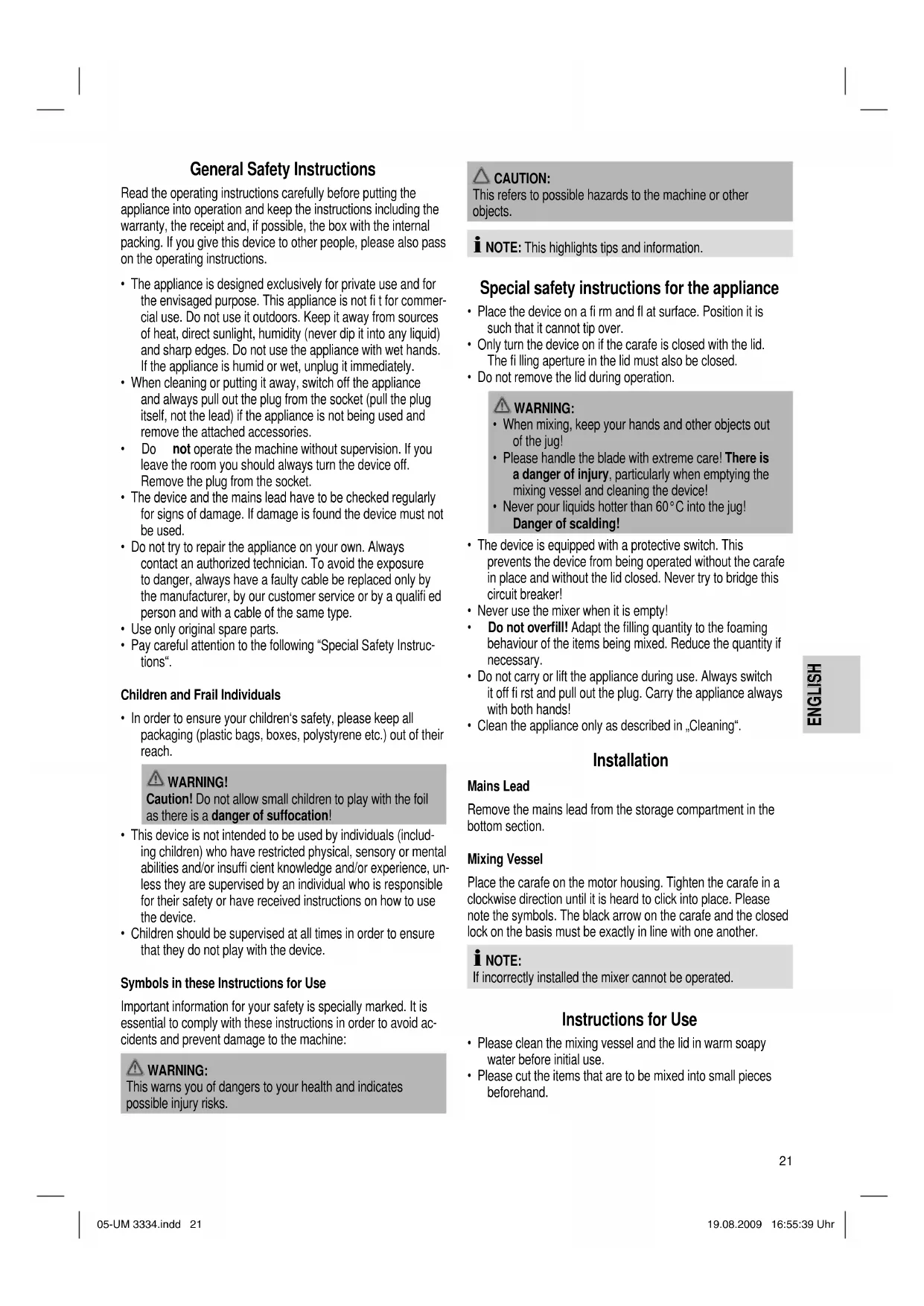

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commer- cial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc- tions“. Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (includ- ing children) who have restricted physical, sensory or mental abilities and/or insuffi cient knowledge and/or experience, un- less they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

• Children should be supervised at all times in order to ensure that they do not play with the device. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid ac- cidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Special safety instructions for the appliance

• Place the device on a fi rm and fl at surface. Position it is such that it cannot tip over.

• Only turn the device on if the carafe is closed with the lid. The fi lling aperture in the lid must also be closed.

• Do not remove the lid during operation.

• When mixing, keep your hands and other objects out of the jug!

• Please handle the blade with extreme care! There is a danger of injury, particularly when emptying the mixing vessel and cleaning the device!

• Never pour liquids hotter than 60°C into the jug! Danger of scalding!

• The device is equipped with a protective switch. This prevents the device from being operated without the carafe in place and without the lid closed. Never try to bridge this circuit breaker!

• Never use the mixer when it is empty!

• Do not overfi ll! Adapt the fi lling quantity to the foaming behaviour of the items being mixed. Reduce the quantity if necessary.

• Do not carry or lift the appliance during use. Always switch it off fi rst and pull out the plug. Carry the appliance always with both hands!

• Clean the appliance only as described in „Cleaning“. Installation Mains Lead Remove the mains lead from the storage compartment in the bottom section. Mixing Vessel Place the carafe on the motor housing. Tighten the carafe in a clockwise direction until it is heard to click into place. Please note the symbols. The black arrow on the carafe and the closed lock on the basis must be exactly in line with one another. NOTE: If incorrectly installed the mixer cannot be operated. Instructions for Use

• Please clean the mixing vessel and the lid in warm soapy water before initial use.

• Ingredients: Do not put any hot items into the mixing vessel. The blade in the mixing vessel is not suitable for chopping up ice cubes. Short-term operation: The device is suitable for short-term operation of not more than three minutes. After this time it should be switched off.

• Pulse operation: Pulse mode is turned on by turning the switch to the “P” position and releasing it again. The device should not be used in this mode for more than 1 minute. Allow it to cool down for 2 minutes before using it again! Operation Electrical connection Check whether the electrical voltage that you intend to use is the same as that of the machine. Details are to be found on the label on the base. Preparation

• Ensure that the function switch is in the “0” position.

• Place the mixing vessel in position.

• Now put the ingredients that are to be mixed into the mixing vessel. NOTE: Adapt the fi lling quantity to the foaming behaviour of the items being mixed. Reduce the quantity if necessary.

• Place the lid in position in such a way that the tab is on the right next to the handle. Tighten the lid in a clockwise direction until it is heard to click into place. NOTE: If incorrectly installed the mixer cannot be operated.

• The fi lling aperture in the lid must also be closed.

• Connect the mains lead to a properly installed 230 V, 50 Hz safety power socket.

• Please hold the carafe fi rmly during mixing. Mixing

• For constant mixing (continuous mode): If the device is operated on levels 1 and 2 the switch locks in place in the respective position. Level 1 = low rpm Level 2 = high rpm Shift the selector to “0” to switch off the appliance.

• For pulse mode (mixing at brief intervals): Move the switch to the “0” position. The switch snaps into place. The appliance is off now. Turn the switch now to position “P”. The switch must be kept in this position for the desired interval. When the switch is released, it returns automatically to “0” position. Adding further ingredients to be mixed Items to be mixed or spices can be fed in through the fi lling aperture.

• Please switch off the machine before doing so.

• Please use your thumb to press fi rmly on the narrow end of the opening (PUSH).

• Before you switch the device on again, close the opening. This must be heard to lock into place. Stopping Operation

• Turn the switch to the “0” position.

• Remove the mains plug from the socket

• Remove the mixing vessel.

• Take off the lid before pouring. Turn it in an anticlockwise direction. IMPORTANT NOTE: Citrus juices and food containing acids should never be stored in metal vessels.

• The mains lead can be stored in the bottom section. Cleaning Preliminary Cleaning Half fi ll the mixing vessel with water and turn the switch to “P” for approximately 10 seconds. Then pour out the liquid.

• Always remove the plug before cleaning!

• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fi re. CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents. For thorough cleaning, please remove the mixing vessel. Carafe

• Clean the carafe immediately after use in warm soapy water.

WARNING: DANGER OF INJURY!

The blades on the blade block are sharp.

• After all parts have been cleaned and dried, assemble your mixer as described under Installation. Housing Only a moderately moist cloth should be used for cleaning the outside of the device. Troubleshooting

• Device is not working. Remedy: Check the mains connection. Check the position of the rotary switch. Other possible causes: The device is fi tted with a safety switch. This prevents the motor from starting up unintentionally. 05-UM 3334.indd 2205-UM 3334.indd 22 19.08.2009 16:55:39 Uhr19.08.2009 16:55:39 UhrENGLISH ENGLISH

Remedy: Check that the mixing vessel and the lid are fi rmly in place. Noise development The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744. Sound pressure level detected: 85 dB(A) (no limit) Technical Data Model: ..............................................................................UM 3334 Power supply: ..............................................220-240 V~ 50/60 Hz Power consumption: ............................................................500 W Protection class: ...........................................................................II Short-term operation: ...........................................................3 Min. Net weight: .........................................................................1.93 kg This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisa- tion of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-UM 3334.indd 2305-UM 3334.indd 23 19.08.2009 16:55:39 Uhr19.08.2009 16:55:39 Uhr24
