USER MANUAL HM 2998 CLATRONIC

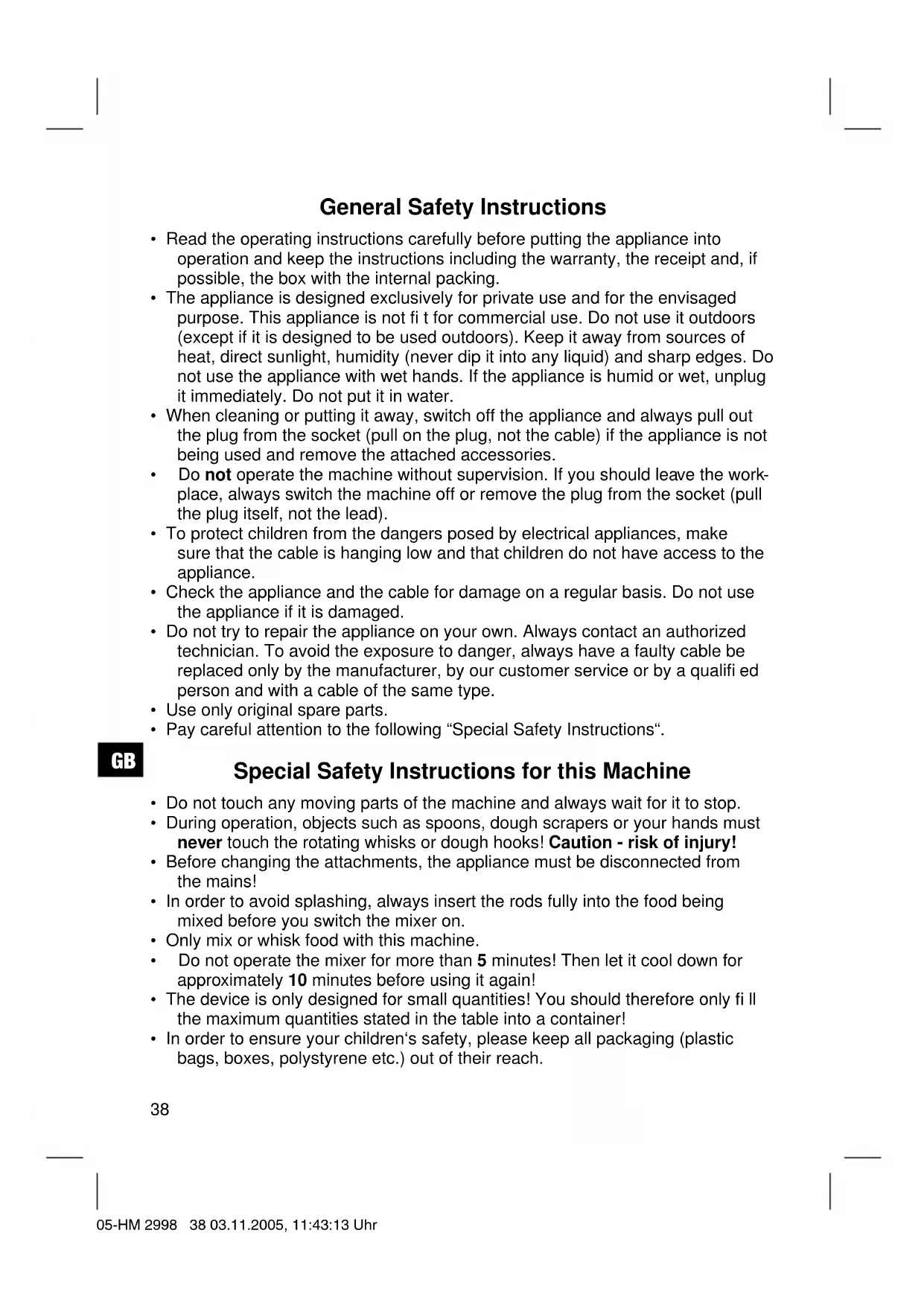

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

GB

Special Safety Instructions for this Machine

• Do not touch any moving parts of the machine and always wait for it to stop.
• During operation, objects such as spoons, dough scrapers or your hands must never touch the rotating whisks or dough hooks! Caution - risk of injury!
• Before changing the attachments, the appliance must be disconnected from the mains!
• In order to avoid splashing, always insert the rods fully into the food being mixed before you switch the mixer on.
• Only mix or whisk food with this machine.
• Do not operate the mixer for more than 5 minutes! Then let it cool down for approximately 10 minutes before using it again!
• The device is only designed for small quantities! You should therefore only fit the maximum quantities stated in the table into a container!
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Overview of the Components

1 TURBO switch 5 Beater
2 5-position switch 6 Kneading hook
3 EJECT button
4 Mixer kneading hook

7 Opening for the marked

Initial Operation

• Ensure that the machine is not connected to the mains.
• Before initial use we recommend that the dough hooks and whisks should be cleaned in soapy water.

Assembly of the Kneading Hook/Beater

Press the two whisks and dough hooks lightly on the bottom until they lock into place.

Warning: The dough hook marked with the ring has to be inserted into the opening marked with the dot (7) of the mixer!

It does not matter which whisk is inserted into which opening.

Using the Machine

1. Please ensure that the speed switch (2) is turned to "0".
2. Connect the mixer to a properly installed power socket, 230V 50Hz
3. Insert the kneading hook or whisk into the food to be mixed. Set the desired speed with the speed switch (2). Begin at a low speed (level 1-2) and then increase this if necessary.
4. Tilt the machine slightly up and down.
5. Always turn the device off before removing it from the vessel.

Note: For optimum results use high-walled vessels that are not too large.

TURBO Switch (1)

If you wish to turn the device briefly to the highest speed, first move the speed switch (2) to any level. Press at short intervals for pulsed mode operation.

Warning: Do not use this function for more than 1 minute!

Always choose a utensil and a speed according to the following table:

Product/Type of Preparation Max.	Quantity Utensil Level		Max Operating Time
Heavy dough (e.g. yeast dough) 500 g kneader hook	-3 3 min
Cake mixture, Dressings, Desserts 750 g beater 2 -5 5 min
Sponge mixture, wafer mixture, Cream	750 g beater		1 -5 or turbo 5 min 1 min.

Releasing the kneading hook / beater

In order to release the hook, press the EJECT button (3).

Note: The hooks can only be removed if the speed switch (2) is in the „0“ position.

Cleaning

• Before cleaning the equipment, always remove the mains plug from the socket.
• Only a damp cloth should be used for cleaning the outside of the machine.
• Under no circumstances should the device be immersed in water for cleaning.
• Do not use any caustic or abrasive detergents.
• Removable parts that have been in contact with the dough or mixture (kneading utensil and whisk) can be cleaned in soapy water.

Technical Data

Model: HM 2998

Power supply: 220-240 V, 50/60 Hz

Power consumption: 300 W

Protection class: II

Short operation time:

Level 1-5: 5 min.

Turbo operation: 1 min.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GB

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on.

TapaHTnHoe 6aTeJIbCTBO

TapaHTnHbI cPOK Ha TeppntOpH N PocCnCKo Fedepaun yCTaHaBnBaETcN NOHOMOHyIMN IpeDCTaBNTeJIaMn.

KaccobbuekraJIeTcrapaHTnHbIM TaIOHom. Be3 Hero HeBO3MOKeH 6ecnlaTHb peMOHT nIIN 3aMeHa n3deJIIn.

B cnyae BO3HKnHOBxHHn npnteH3n no rapaHTn, npeIbBAte H3dJIne B NOHOBOMNKeTAtuH, C opHnHaHbHO yNaKOBKO n KaCCOBbIM YeKOM TOPROBOI TOUKe, npOdaBwe 3TO I3dJIne.

*) DepeKtI npHaJnEJXHOCTe He cIyJxat npuHOn IJIa ABToMaTHueCKo3aMeHb BCero n3denn. B 3OM cIyuae no3BOHnte Ham, noKaIyIcTa, noToprae JInHH! Pa36NtBe cTEKJHhbIe I NOIOMaHbIe INaCTMaCCOBbIe DeTaNBo3MeUaOTcA TOnbKO 3a DOnONHHTeJbHyO ONLatY!

DeΦeKtBi N3HaUNBaEMbIX npHnAdJIeXHOCTe INI TpyuNXcR DeTalei (HapnMep KOHTaKTBHe Ie TckN MOTOpOB, CMEcNTeNbHbIe KpIOKN, pnpBOdHbIe peMHN, 3aNaChbIe NylbTBI ynpabNeHnA, 3aNaChbIe 3y6HbIe UeTKN, NIIbHbIe NOLOTHa nT.D.), a TaKke YnCTKa, Texo6CnyXnBaHne INI 3aMeHa TpyuNXcR DeTalei He nonaDAOT NOI rapaHTNo, IN OToTMy npoBOdTcR 3a OTdeJIbHyO ONLatY!

IapaHTnTepaETc npBCKpbITn N3dEINr NOCTOPOHMMN IuaMn.

После rapаенти

Iocne okOHuaHn cPoka rapaHTn, peMOHT n3denn npOn3BODntcra 3a onNaTy, COOTBeTCTByUOzHM MaCTepCKmN nn nyHKtamn cepBnCHOro o6CnyKbaHn.
