Product type	Multifunction chopper
Brand	Clatronic
Model	MZ 3435
Power supply	220-240 V~, 50/60 Hz
Power consumption	250-300 W
Bowl capacity	1.5 L
Net weight	Approx. 2.05 kg
Bowl material	Glass
Blade material	Stainless steel
Number of blades	2
Pulse function	Yes
Speeds	2 (LOW slow, HIGH fast)
Crushed ice function	Yes, in pulse mode
Short-time operation	20 seconds max, then 2 minutes cool down
Protection class	II
Included accessories	Motor unit, safety lid, 2 blades, glass bowl, non-slip mat
Maintenance	Clean the motor unit with a dry cloth; wash accessories by hand
Safety	Safety switch prevents startup if assembly is incorrect
Intended use	Chopping food for domestic use only

Frequently Asked Questions - MZ 3435 CLATRONIC

How to use the appliance safely?

Read the instruction manual carefully. Make sure the appliance is properly assembled before plugging it in. Never use it if the lid or blades are not securely attached. Always unplug before cleaning or changing accessories.

How long can I run the appliance continuously?

Continuous operation must not exceed 20 seconds. Let the appliance cool for at least 2 minutes before using it again.

Can I put the accessories in the dishwasher?

No, the accessories (bowl, lid, blades, and mat) must be washed by hand with dish soap. The dishwasher can dull the surfaces.

How to clean the motor unit?

Never immerse the motor unit in water. Simply clean it with a dry cloth.
Use a slightly damp cloth if necessary, but make sure no water enters the appliance.

What to do if the appliance does not start?

First check that the appliance is properly plugged in. Then make sure the motor unit, lid, and blades are correctly installed. The appliance is equipped with a safety switch that prevents startup if the assembly is incorrect.

What is the maximum capacity of the appliance?

The maximum bowl capacity is approximately 1.5 liters. Do not fill beyond the quantities indicated in the table for each food, otherwise it will not chop properly.

Can I chop meat with bones?

No, the meat must be cut into 2 cm cubes without bones, skin, or sinew. Use only boneless meat to avoid damaging the blades.

How to crush ice with this appliance?

Use the pulse mode (brief press of the switch). Do not fill the bowl beyond the 0.75 mark with ice cubes. Only crush ice in pulse mode.

Are the blades removable and replaceable?

Yes, the blades are removable and can be replaced. Use only original Clatronic parts. For replacement, contact our after-sales service.

Where can I find the complete user manual?

The complete manual is available for free download in PDF format at notice-facile.com. You can also request it translated into another language via our form.

USER MANUAL MZ 3435 CLATRONIC

Close-up of a CMTRONC blender with black and white casing, no visible text or symbols on the device itself.

DEUTSCH

Inhalt

Location of Controls ...... Page 3

User manual Page 20

Technical Specifications Page 22

Disposal Page 22

NEDERLANDS

Inhoud

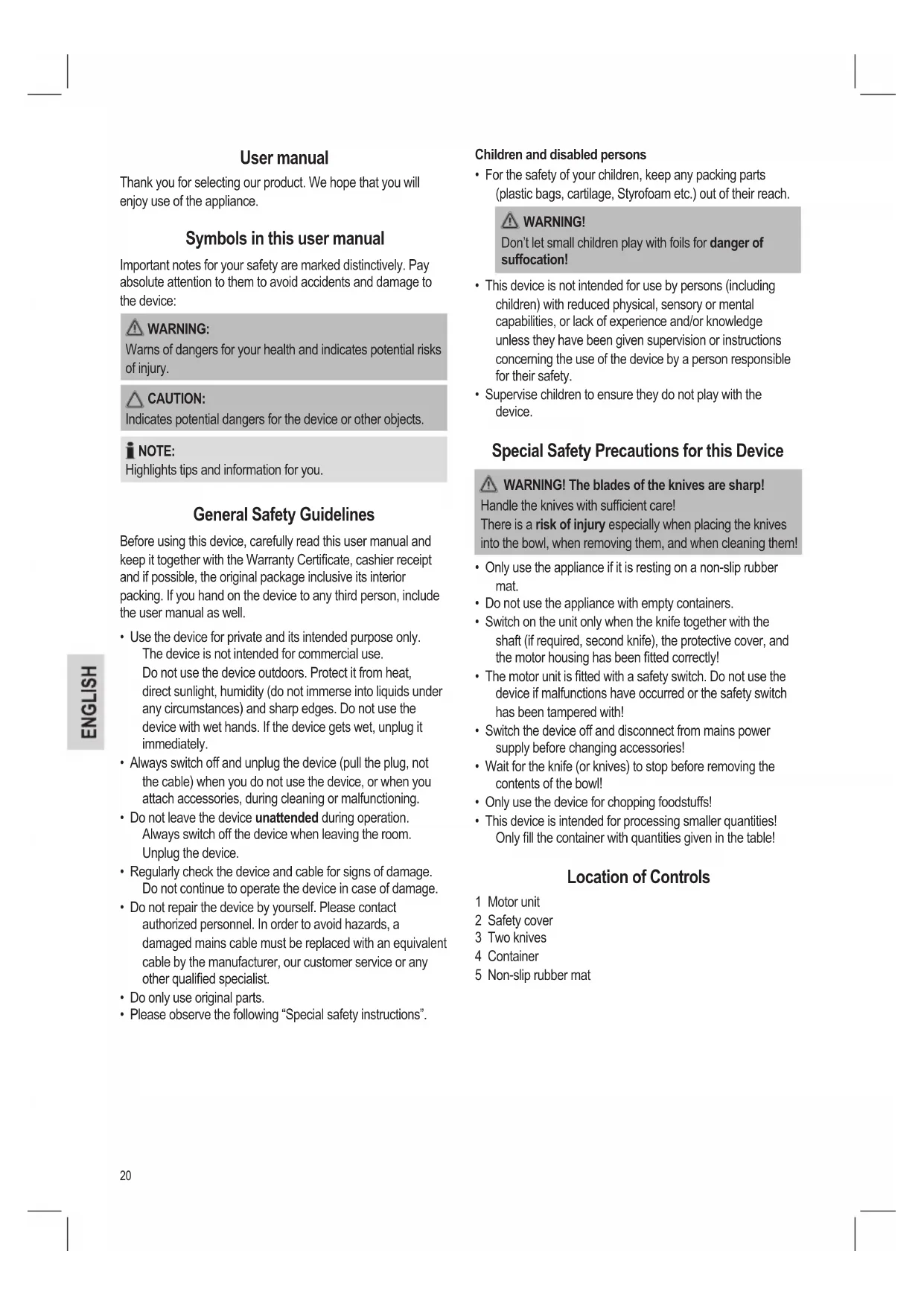

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device:

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE:

Highlights tips and information for you.

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.
  Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug it immediately.
• Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.
• Do not leave the device unattended during operation. Always switch off the device when leaving the room. Unplug the device.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• Do only use original parts.
• Please observe the following "Special safety instructions".

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
• Supervise children to ensure they do not play with the device.

Special Safety Precautions for this Device

WARNING! The blades of the knives are sharp!

Handle the knives with sufficient care!

There is a risk of injury especially when placing the knives into the bowl, when removing them, and when cleaning them!

• Only use the appliance if it is resting on a non-slip rubber mat.
• Do not use the appliance with empty containers.
• Switch on the unit only when the knife together with the shaft (if required, second knife), the protective cover, and the motor housing has been fitted correctly!
• The motor unit is fitted with a safety switch. Do not use the device if malfunctions have occurred or the safety switch has been tampered with!
• Switch the device off and disconnect from mains power supply before changing accessories!
• Wait for the knife (or knives) to stop before removing the contents of the bowl!
• Only use the device for chopping foodstuffs!
• This device is intended for processing smaller quantities! Only fill the container with quantities given in the table!

Location of Controls

1 Motor unit
2 Safety cover
3 Two knives
4 Container
5 Non-slip rubber mat

Intended Use

This device is intended to chop foodstuffs which are suitable for cutting.

It is only designed for this use and should only be used for this intended purpose.

Only use this device as instructed in this user manual. Do not use this device commercially.

No other use is intended and can cause damage or personal injuries.

Clatronic International GmbH is not responsible for any damages incurred due to improper use

Unpack Device

• Take the device out of its packaging.
- Remove all packaging materials, such as foils, filling materials, cable ties and cartons.
- Check that all accessories are included in the box.

i NOTE:

Clean manufacturing residues and dust from the device as described under "Cleaning".

Start-Up

1. Prepare the dish. Refer to the table below.
2. Place the rubber mat on a level, flat surface. Place the glass container on the rubber mat.

3. Use one knife or both knives depending on the quantity of the food. Fit the knife (or the knives) carefully into the glass bowl:
   3.1. Fit the knife with the shaft onto the glass pin in the center of the container.
   3.2. If required, fit the second knife with the blades facing down onto the shaft of the first knife.

4. Empty the desired foodstuffs into the container.

i NOTE:

Do not overfill the container; otherwise the foodstuffs cannot be properly chopped (quantities see table)!

1. Place the safety cover onto the container in such way that the blade shaft rests in the recess. The safety cover is properly positioned if it cannot be moved.

i NOTE:

Before use, always check that the silicone seal fits correctly.

1. Place the motor unit on the cover. In doing so, use the recesses in the safety cover.

7. Electric Connection

Connect the mains plug to a properly installed and earthed 220-240 V\~, 50/60 Hz wall outlet.

i NOTE:

• The motor unit is fitted with a safety switch.

• If the device cannot be switched on, check that the motor unit, safety cover and blade are fitted correctly.

• Hold the motor housing in your hand and press the LOW or HIGH button at the same time.

LOW = low speed

HIGH = high speed.

The unit starts up.

CAUTION:

This device is suitable for short time operation (KB) of maximum 20 seconds. Leave to cool down for at least 2 minutes before using the device again.

i NOTE:

PULSE OPERATION: Briefly press and release the switch for pulse operation. Use the device in this mode for maximum 1 minute. Leave to cool down for at least 2 minutes before using the device again!

1. After chopping, take your hand off the motor unit. Disconnect from mains power supply.

2. Remove the motor unit from the transparent container.

3. Lift off the safety cover and carefully remove the blade.
4. Now you can empty the contents in the transparent container.

Crushing ice: The blades in the mixing bowl are suitable for breaking ice cubes. Fill the container no higher than the

0.75 marking with ice cubes. Only crush ice cubes in pulse mode.

Table

Food Preparation		Max. Quantity	Max. Duration
Boiled eggs	Shelled, quartered	450 g (1/4 pieces)	10 sec
Herbs 300 g	15 sec or pulse
Walnuts/hazelnuts	Without nutshells!	300 g 15 sec.
Almonds Without shells! 300 g		15 sec
Garlic Peeled	300 g 15 sec or pulse
Onions 2 cm cubes 300 g			5-10 sec or pulse
Parsley	Wash, destalk	60 g 10 sec
Bread (breadcrumbs)	2 cm cubes	80 g	15 sec or pulse
Meat	2 cm cubes, without bones, skin and sinews!	300 g	15 sec or pulse

Food Preparation	Max. Quantity	Max. Duration
Parmesan cheese	1 cm cubes 150 g 15-20 sec
Cooking chocolate	1 cm cubesice cold	150 g
Carrots 1 cm	cubes 300 g	10-15 seconds

Obviously, you can chop other foodstuffs as well. Compare with the hardness of the foodstuffs in this table to find out the approximate chopping time; i.e. an apple is about as hard as an onion. In this case follow the instructions in the table for "onions".

Cleaning and Storage

WARNING!

• After use and before cleaning always disconnect from mains power supply!
- Do not submerge the motor unit in water! It could lead to electric shock or fire.
- The cutting edges of the knives are sharp. There is a risk of injury! Handle them with sufficient care!

CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.
• Do not use aggressive or abrasive cleaning agents.

- Clean the motor unit with a dry cloth without additional cleaning agents.

Transparent Container, Safety Cover, Blade and Rubber Mat

CAUTION:

• Do not wash these accessories in the dishwasher.
  • The surfaces may become dull.

- Wash these accessories manually in dishwater.

• Rinse with clear water and dry with a cloth.
• Assemble the Multi Chopper before storage.

Troubleshooting

Device does not work.

Solution:

Check mains power connection.

Further possible causes:

The device is fitted with a safety switch.

This prevents accidental starting of the motor.

Solution:

Check that the motor unit, safety cover and blade are fitted correctly.

Noise Emission

The sound pressure level was measured close to the ear of an operator (LpA) according to DIN EN ISO 3744.

Resulting sound pressure level: 82.0 dB(A) (no limit)

Technical Specifications

Model: MZ 3435
Power supply: 220 - 240 V\~, 50/60 Hz
Power consumption: 250 - 300 W
Protection class:
Short term operation: 20 sec.
Capacity: approx. 1.5 litre
Net weight: .... approx. 2.05 kg

Subject to change without prior notice!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
