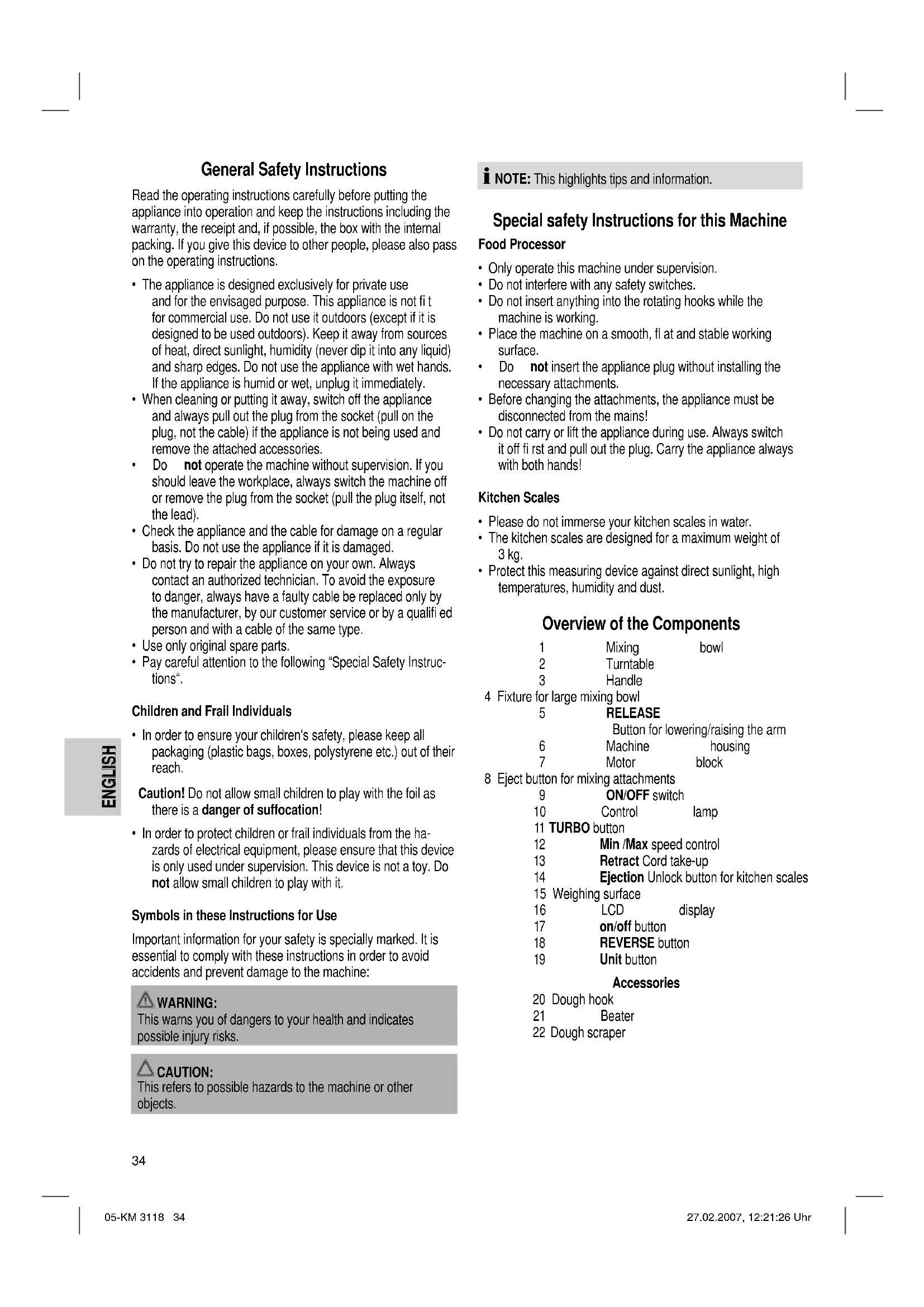

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
  Caution! Do not allow small children to play with the foil as there is a danger of suffocation!
• In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE: This highlights tips and information.

Special safety Instructions for this Machine

Food Processor

• Only operate this machine under supervision.
• Do not interfere with any safety switches.
• Do not insert anything into the rotating hooks while the machine is working.
• Place the machine on a smooth, flat and stable working surface.
• Do not insert the appliance plug without installing the necessary attachments.
• Before changing the attachments, the appliance must be disconnected from the mains!
• Do not carry or lift the appliance during use. Always switch it off fi rst and pull out the plug. Carry the appliance always with both hands!

Kitchen Scales

• Please do not immerse your kitchen scales in water.
• The kitchen scales are designed for a maximum weight of 3 kg.
• Protect this measuring device against direct sunlight, high temperatures, humidity and dust.

Overview of the Components

1	Mixing	bowl
2	Turntable
3	Handle

4 Fixture for large mixing bowl

5	RELEASE Button for lowering/raising the arm
6	Machine	housing
7	Motor	block

8 Eject button for mixing attachments

9	ON/OFF switch
10	Control	lamp
11	TURBO button
12	Min /Max speed control
13	Retract Cord take-up
14	Ejection Unlock button for kitchen scales
15	Weighing surface
16	LCD	display
17	on/off button
18	REVERSE button
19	Unit button

Accessories

20 Dough hook
21 Beater
22 Dough scraper

Unpacking the appliance

• Remove the appliance from the box and all the enclosed accessories.
• Do not through the packaging away, but keep it together with the inner packing and the warranty documents for the whole life of the warranty.
• Place the appliance on smooth, level and stable work surface.
• Do not insert the appliance plug without installing the necessary attachments.
• In order to remove any contamination from the production line please clean the mixing bowl (1) and other accessories before initial use in a soapy water solution.
  • Dry well all the parts after washing.

Instructions for Use

Attachments, Speeds and Operating Times for max. 1.2 kg of mixture:

Product/Type of Preparation	Max. Quantity	Utensil Speed		Max. Operating Time
Heavy mixtures (e.g. bread dough or short pastry)	1 kg	Dough hook	min medium	First min. 2 min.
Light mixtures (e.g. sponge mixture)	1,2 kg Beater medium			8 to 10 min.
Sponge mix-ture or waffl e mixture	1 l Beater		min-medium/turbo	5 to 10 min.

• With heavy mixtures, do not operate the machine for more than 10 minutes, and then allow it to cool down for a further 30 minutes.
• Depending on the consistency of the mixture it is necessary to remove the mixture from the edge of the mixing bowl and place it back on the kneading attachments. To this purpose you can turn the bowl by hand and use the dough scraper (22). The device must be turned off.

TURBO Switch (11)

In order to switch the device to the maximum speed for a short time press the TURBO button.

CAUTION:

Do not use this function for more than 1 minute!

Cable winding device

The mains lead should only be pulled as far as the stop. Under no circumstances should you pull the lead with force as this may damage the cable take-up. Said damages are not covered by the warranty.

Winding

Press the cable winding button Retract (13) and guide the cable. Hold the cable to avoid wrapping.

i NOTE:

The mixing bowl does not have its own drive. It is turned as a result of the movements of the attachments in the items being mixed, or you can turn it by hand. Clean the edge from time to time with the dough scraper (22).

• During operation no objects such as spoons, the dough scraper or your hands should touch the rotating whisks or dough hook!
• Danger of injury!
• Do not press the RELEASE button (5) during operation.

Assembly

1. Please ensure that the ON/OFF switch (9) is turned to "OFF".
2. Place the turntable (2) into the fi xture (4) for the large bowl. Place the mixing bowl on the turntable.
3. In order to lift the arm, press the RELEASE button (5) and pull the arm upwards. Assemble the desired attachment (20, 21) by inserting the upper end into the openings provided on the arm.
4. The dough hook with the curved washer on the shaft can only be inserted into the „ ^2 ” opening and the dough hook with the hexagon only into the corresponding opening marked „ ^2 ”
5. The whisks can be inserted into any openings. Please ensure that the attachment locks into place.
6. Weigh the ingredients with the integrated kitchen scales. Now fi ll in your ingredients.
7. Do not overfi ll the device; the maximum quantity of ingredients is 2 kg.
8. Lower the arm by means of the button (5).

Electrical Connection

Pull the lead out of the compartment. Insert the mains plug into a properly installed 230 V/50 Hz safety power socket.

Operation

- Turn the control (12) to min initially. Move the ON/OFF switch (9) to ON.

CAUTION: The device is already switched on!

The control lamp (10) remains on and shows that the device is working.

• Turn the control (12) to a speed between Min and Max (depending on the mixture).
• After you have finished kneading / mixing, move the switch (9) back to the „OFF“ position as soon as the mixture or a ball of dough has formed. Then remove the mains plug.
• Press the RELEASE button (5) and pull the arm upwards.
• The inserted tool can be removed by pressing the eject button (8).
• The finish dough can be loosened with the dough scraper supplied and taken out of the mixing bowl.
• Remove the mixing bowl.
• Clean the parts as described under „Cleaning“.

Kitchen Scales

Inserting the batteries (batteries not supplied)

The battery compartment of the kitchen scales is located on the underside of the device.

1. Push the kitchen scales into the device or into the compartment.
2. If necessary, remove the turntable. Place the device on its side. Open the battery compartment on the underside. Use a screwdriver, for example, to carefully press open the mounting.
3. Insert 3 batteries of type AM4 „AAA“ 1,5V. Please ensure that the polarity is correct (see the floor of the battery compartment)!
4. Close the battery compartment again.
5. If the device is not going to be used for a prolonged period, please take the batteries out of the device in order to prevent the leaking of battery acid.
6. A battery symbol and the letters „Lo“ in the display indicate that the batteries should be replaced.

CAUTION:

• Different battery types or new and used batteries must not be used together.
• Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

WARNING:

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!

Use

Press the Ejection unlock button (14) to eject the kitchen scales. Please ensure that nothing is located in front of the kitchen scales when you press the button.

NOTE:

You can also use the kitchen scales if the device is not connected to the mains.

Weighing Function

1. Press the on/off (17) button to switch the device on. The display sets itself to „0.000“ kg or „0.000“ Lb. or „0.00 oz“ (see „Unit“ section).
2. Place the items to be weighed on the weighing surface. If further ingredients are placed on the weighing surface the weights are added together.
3. As the bowl supplied is not suitable for weighing you should use a suitable vessel (not larger than the weighing surface). Place it on the weighing surface and then press the REVERSE button; the display returns to 0.000 (0.00). If the vessel is filled, only the weight of the ingredient is shown.

Unit

In the weighing mode you can choose between kilograms (kg), pounds (lb) and ounces (oz) by pressing the Unit button.

Weigh-in Function (TARA)

1. If you would like to weigh further ingredients for example, use the weigh-in function.
2. Now put a further ingredient on the weighing surface. The actual weight of the second ingredient is now shown in the display. Repeat this procedure if necessary.
3. If the scales are not being used they switch off automatically after approx. 2 minutes in order to prolong the battery life, or you can press the on/off button (17).
4. Push the kitchen scales manually back into the compartment.

Handle the balance with care. It is a precision measuring instrument. Do not place a greater weight on the scales than their maximum measuring range.

Do not load the appliance with more than 3 kg (Vessel and ingredients) to avoid damaging the device.

If the letters „0-Ld“ appear, the weight is above 3 kg.

Cleaning

1. Remove the plug from the socket before cleaning!
2. Use a moist towel to clean the outside of the basis appliance.
3. Never use abrasive detergents!
4. Removable parts that have come into contact with dough (kneading attachments and mixing bowl) can be cleaned by hand.

Suggested Recipes

Sponge Mixture (Basic Recipe) Level Min Medium

Ingredients:

250 grams soft butter or margarine, 250 grams sugar, 1 packet vanilla sugar or 1 bag Citro-Back, 1 pinch of salt, 4 eggs, 500 grams wheat flour, 1 packet baking powder, approx. 1/8 litre milk.

Preparation:

Put the wheat fl our with the other ingredients into the mixing bowl; then stir with the whisk for 30 seconds on the minimum level and approx. 3 minutes on the medium level. Grease a tin or cover with baking paper. Fill in the mixture and bake. Before the cake is removed from the oven, test to see if it is done. With a sharp wooden stick pierce the centre of the cake. If no mixture sticks to it, the cake is cooked. Turn the cake on to a cake grid and allow to cool.

Traditional Oven

Insertion height: 2

Heating: electric oven, top and bottom heat 175-

200° Celsius;

gas oven: level 2-3

Baking time: 50-60 minutes

Depending on taste, this recipe can be changed, for example with 100g raisins or 100g nuts or 100g grated chocolate. In fact, the possibilities are endless.

Linseed Bread Rolls Level Minimum

Ingredients:

500-550g wheat flour, 50g linseed, 3/8 litre water, 1 cube of yeast (40g), 100g low-fat curds, well drained, 1 tsp salt. For coating: 2 tbsp of water

Preparation:

Soak the linseed in 1/8 litre of lukewarm water. Put the rest of the lukewarm water (1/4 l) into the mixing bowl, crumble in the yeast, add the curd and mix thoroughly with the dough hook at a low speed. The yeast must be completely dissolved. Put the fl our with the soaked linseed and the salt into the mixing bowl. Knead thoroughly at a low level; then increase the level slightly and continue kneading for 3-5 minutes. Cover the mixture and allow to rise in a warm place for 45-60 minutes. Knead thoroughly once more, remove from the bowl and form sixteen rolls. Cover the baking tin with wet baking paper. Place the rolls on this and allow to rise for 15 minutes. Coat with lukewarm water and bake.

Traditional Oven:

Insertion height: 2

Heating: electric oven: top and bottom heat 200-

220°C (preheated for 5 minutes),

gas oven level 2-3

Baking time: 30-40 minutes

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 82 dB(A) (no limit)

Technical Data

Model: KM 3118

Power supply: 220-240 V, 50/60 Hz

Power consumption: 500 W

Protection class:...... II

Short-term operation:....10 Min.

Power supply-

Kitchen Scales : ......DC 4,5 V (3 x 1,5V "AAA" batterijen)

Min. / max. weight load: 10 g - 3 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase.

Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
