USER MANUAL PCUMS 1085 PROFICOOK

Exterior view of a modern kitchen blender with a side view of its empty plastic cup (no text or symbols visible)

Smoothie-Maker PC-UMS 1085

2 Granny-Smith-Äpfel

5–6 Minzblätter

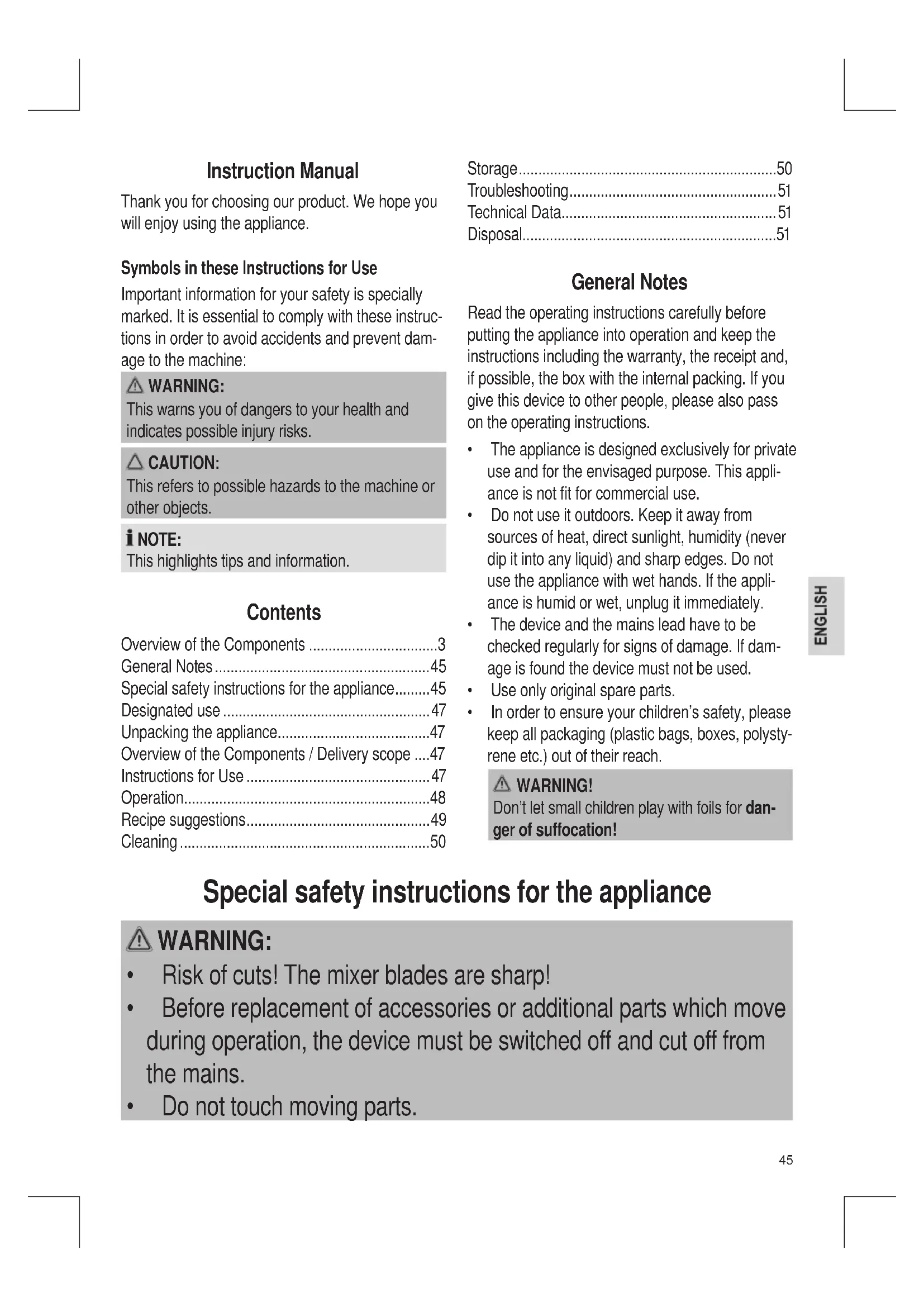

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

Contents

Overview of the Components ....3

General Notes 45

Special safety instructions for the appliance.....45

Designated use 47

Unpacking the appliance....47

Overview of the Components / Delivery scope ....47

Instructions for Use 47

Operation....48

Recipe suggestions....49

Cleaning 50

Storage....50

Troubleshooting....51

Technical Data....51

Disposal....51

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
  • Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

Special safety instructions for the appliance

WARNING:

• Risk of cuts! The mixer blades are sharp!
- Before replacement of accessories or additional parts which move during operation, the device must be switched off and cut off from the mains.
- Do not touch moving parts.

WARNING:

• Always check that the accessories are seated solidly and securely before switching the device on.
- CAUTION: Ensure that the blender is switched off before removing it from the stand.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• This appliance shall not be used by children.
- Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- This device must not be immersed in water for cleaning. Please follow the instructions provided in chapter “Cleaning”.

• Do not use the appliance if the mixing vessel is empty.
• Do not operate the appliance for more than 2 minutes. Afterwards, let it cool for approx. 1 minute before using it again.
• When you have used it 5 times in a row, let the appliance cool to room temperature before using it again.
  • The machine should only be used under supervision.
  • Do not manipulate any of the safety switches!
  • Do not remove the lid during operation!

• Do not put your fingers into the filler opening.
- Objects like spoons or scrapers never may be in the mixing vessel during operation.

Designated use

This device is used for

• Mixing of liquids
  • Chopping firm foodstuffs

Do not use for too hard foodstuffs such as nuts or chocolate.

It is intended for the use in private households and similar applications.

It is only to be used as instructed in this user manual. The appliance is not intended for commercial use.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

The manufacturer shall not be liable for damages caused by not intended use.

Unpacking the appliance

1. Remove the device from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.

i NOTE:

There may still be dust or production remains on the device. We recommend that you clean the device as described under “Cleaning”.

Overview of the Components / Delivery scope

1 Refill opening cap
2 Mixing vessel lid with refill opening
3 Mixing vessel
4 Knife block with sealing ring
5 Base section with motor
6 Setting switch

7 Smoothie container / Drinking cup

8 Drinking cup lid with lock

Instructions for Use

CAUTION:

• Do not overfill the containers. Observe the MAX marking.
  • Do not fill with liquids above 50°C.

• Fully unwind the mains cable from the bottom of the appliance.

• Place the device on a firm and flat surface. Position it is such that it cannot tip over.
• Only switch on the appliance if the mixing vessel is closed with the lid. The refill opening in the lid must also be closed.
• Froth requires a large capacity. Reduce quantities of liquids which produce a lot of froth.
• Cut the food to be mixed into small pieces beforehand.
  • Always add at least 200 ml liquid when processing fruit with solid pulp.
• The knife is not suitable for crushing pure ice. When you want to prepare beverages with crushed ice, add the ice cubes when mixing the beverages. The ice will be crushed during mixing.
• The appliance is equipped with overload protection. If the motor should switch off during operation, immediately turn the switch to the position "0". Disconnect the mains plug from the wall socket. Let the appliance cool for at least 15 minutes before switching it on again. Reduce the quantity in the vessel.
• Use only a scraper made of plastic or rubber to remove the mixture from the vessel. Do not use metallic objects.

Electric Connection

• Before inserting the power plug into the outlet, check that the mains voltage to be used matches that of the device. You can find the required information on the nameplate.
• Connect the device only to a correctly installed safety socket.

Short-interval use

The appliance is suitable for short-interval use of a maximum of 2 minutes. Let the appliance cool for 1 minute before using it again!

Pulse mode

Switch to pulse mode by turning the control to the "P" position and then release it. Use this operation mode for example to chop larger pieces.

Operation

i NOTE: Safety switch

Operation of the appliance is prevented in case of wrong installation.

• You can mount either the mixing vessel or the smoothie container on the base unit.
• Always check for correct seating of the sealing ring in the knife block. The smooth surface of the sealing ring must face down.
• Ensure that the function switch is in the "0" position.

Preparation of the Mixing Vessel

1. Tighten the knife block by hand to the bottom of the mixing vessel.
2. Place the mixing vessel onto the motor housing. Follow the symbols on the housing. Position the mixing vessel so that the handle lies above the 6 symbol.
3. Secure the mixing vessel by turning it clockwise.
4. Now put the ingredients that are to be mixed into the mixing vessel.

5. Put the lid on. Press it down firmly.

6. Close the refill opening with the cap. Tighten the lid by turning it clockwise.

Preparation of the Smoothie Container

1. Fill your ingredients into the smoothie container.
2. Screw the knife block by hand onto the opening of the smoothie container.
3. Turn the smoothie container upside down and set it onto the base unit.
4. Tighten the smoothie container by turning it clockwise.

Mixing

Operation is carried out with the setting control:

$$ \begin{array}{l} \text { Level } 0 = \text { off } \ \text { Level } 1 = \text { low rpm } \ \text { Level 2 } = \text { high rpm } \ P = \text { High speed in pulse mode } \ \end{array} $$

i NOTE:

Mixing vessel and smoothie container can be operated in all speed steps.

Adding further ingredients to be mixed (when using the mixing vessel)

Items to be mixed or spices can be fed in through the filling aperture.

• Please switch off the machine before doing so.
• Before you switch the device on again, close the opening.

Stopping Operation

1. Turn the switch to the position "0".
2. Wait until the knife has stopped.
3. Disconnect the mains plug from the wall socket.
4. Remove the container together with the knife block. A short counterclockwise turn is sufficient.
5. a) Take off the lid to pour the contents.
   b) Turn the smoothie container upside down and replace the knife block by the lid (8).

i IMPORTANT NOTE:

Citrus juices and food containing acids should never be stored in metal vessels.

Recipe suggestions

i NOTE:

• The quantities listed in the following recipes refer to use of the mixing vessel.
• Adjust the quantities accordingly when you want to mix directly in the smoothie container.

Raspberry cream smoothie

Glasses: 4

Ingredients:

200 g raspberries
150 g skimmed milk yogurt
100 g whipped cream
50 g powdered sugar

Preparation:

Mix the raspberries and the yogurt in the smoothie maker. Stir in the liquid cream. Season with powdered sugar and pour into glasses. Decorate with fresh raspberries.

Strawberry mango smoothie

Glasses: 4

Ingredients:

1 ripe mango
300 g strawberries
2 tbs. mango syrup
2 tbs. cranberry full-fruit syrup
200 ml soy drink calcium with vanilla

Preparation:

Peel the mango and cut off the pulp along the seed. Weigh 250 g of pulp. Rinse the strawberries thoroughly and dab them dry. Put 4 strawberries and the remaining mango aside. Cut the remaining strawberries and the weighed mango into small pieces. Mix the fruits, both syrups, and the soy drink in the smoothie maker. Cut the remaining mango into small cubes, stir them in, and freeze in the freezer for at least 2 hours. Fill the drink into glasses and decorate with strawberries.

Orange carrot smoothie

Glasses: 4

Ingredients:

300 g carrots
- salt
4 juice oranges
1 pc. fresh ginger (3 cm)
1 pinch of red pepper
2 tbs. maple syrup
1 bunch coriander
1 lime
1 tbs. rape seed oil
- freshly ground pepper
- lime slices for decoration

Preparation:

Peel the carrots and cook them in a little salt water for approx. 30 minutes. Then drain them and let them cool. Squeeze the orange and measure 250 ml juice. Peel the ginger and grate it. Mix carrots, orange juice, ginger, red pepper, and maple syrup together in the Smoothie Maker and cool the mixture well. Rinse the coriander, shake it dry, and pull off the leaves. Squeeze the lime. Stir in the coriander, 1 to 2 tbs. lime juice, and oil. Pour the carrot mixture into glasses and add a little coriander. Season with salt and pepper and serve. If desired, decorate with a slice of lime.

Apple kiwi smoothie

Glasses: 4

Ingredients:

1 pc. (approx. 40 g) fresh ginger
4 kiwi fruit
150 g salad cucumber
2 granny smith apples
5 to 6 leaves of mint
250 ml clear apple juice
Crushed ice

Preparation:

Peel the ginger and grate it. Peel the kiwi fruit

and cut them into pieces. Peel the cucumber and the apples, remove the seeds, and cut into small pieces. Wash the mint and dab it dry. Mix in the smoothie maker together with the apple juice. Together with the crushed ice, pour into four glasses and serve immediately.

Cleaning

WARNING!

• Always remove the plug before cleaning.
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.
- The blades on the knife block are very sharp. A risk of injury exists!

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
  • The individual parts are not dishwasher-safe.

i NOTE: Preliminary Cleaning

Fill the mixing vessel or the smoothie container halfway with water and turn the switch for approx. 10 seconds to "P". Then pour out the liquid.

1. Detach the mixing vessel or the smoothie container for thorough cleaning.
2. Unscrew the knife block.
3. Remove the seal ring for cleaning. If necessary, hold the knife block under running water for this.
4. Set the dry sealing ring again into the knife block.

CAUTION:

Only operate the appliance if you have properly fitted the knife block with the seal ring! Otherwise the mixing vessel will not be sealed.

Mixing vessel, lid, lock, smoothie container, knife block with sealing ring

Clean these parts in a bowl of hot water. Then dry everything before assembling the parts again.

Housing

Only a moderately moist cloth should be used for cleaning the outside of the device.

Storage

• Clean the device as described. Let the accessories dry completely.
• You may wind the mains cable at the bottom of the appliance.
  • We recommend that you store the device in its original packaging when it is not to be used for a longer period.
  • Always store the device at a well ventilated and dry place outside the reach of children.

Troubleshooting

Device is not working

Remedy:

• Check the mains connection.
• Check the position of the rotary switch.

Other possible causes:

The device is fitted with a safety switch. This prevents the motor from starting up unintentionally.

Remedy:

Check for correct seating of the mixing vessel or the smoothie container.

The appliance stops during operation

Possible cause:

The device is fitted with a protective switch. It blocks the motor in case of an overload.

Remedy:

• Immediately turn the switch to the position "0". Disconnect the mains plug from the wall socket.
• Let the appliance cool for at least 15 minutes before switching it on again.
• Reduce the quantity in the vessel.

The appliance leaks

Possible cause:

The seal ring inside the blade unit is missing or has not been inserted correctly.

Remedy:

Check the correct positioning of the seal ring. The smooth surface of the sealing ring must face down.

Unscrewing the knife block is very difficult

Possible cause:

The contents cause pressure during mixing. The airtight seal causes a vacuum. This is normal and no fault.

Technical Data

Model: PC-UMS 1085

Power supply: 220 - 240 V\~ 50/60 Hz

Power rating: 350 W

Protection class:....II

Net weight: ....approx. 1.44 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
