Product Type	Multimedia radio with Bluetooth
Brand	AEG
Model	MR 4139 BT
Net Weight	0.39 kg
Power Supply	DC 6 V, 1 A (AC adapter AC 100-240 V~ 50/60 Hz, DC output 6 V 0.8 A included)
Power Consumption	5 W
Protection Class	III
Radio Frequency Band	FM 87.5 - 108 MHz
Bluetooth Version	V2.1 + EDR
Bluetooth Range	Approx. 15 m
Bluetooth Protocols	A2DP, AVRCP
Main Functions	FM Radio, Bluetooth, AUX IN, alarm (buzz or radio), clock, sleep timer
Backup Power	4 x R6/AA 1.5 V batteries (not included)
Antenna	Telescopic
Cleaning	Soft damp cloth without detergent; do not immerse in water
Safety	Do not expose to water or humidity; keep out of reach of children; do not open the casing

Frequently Asked Questions - MR 4139 BT AEG

How do I set the clock?

Turn off the device with the RADIO button. Press and hold SET for 3 seconds until the time flashes. Use UP/DOWN to set the hours, confirm with SET, then the minutes, confirm. Finally, choose 12 or 24 hour format with UP/DOWN and confirm with SET.

How do I pair a Bluetooth device?

Set the switch (13) to AUX IN • BLUETOOTH. Enable Bluetooth on your player (phone, tablet). Search for AEG MR 4139 BT in the device list. If prompted, enter the password 0000. A beep confirms pairing.

How do I save a radio station?

Search for the station with UP/DOWN or automatic search (hold UP/DOWN). Press and hold SET: the memory location flashes. Use UP/DOWN to choose a location (e.g., 1-10), then press SET to confirm.

How do I set the alarm?

Turn off the device. Press MODE to display ALM/SET. Hold SET for 3 seconds: the hour flashes. Set hours and minutes with UP/DOWN, confirm with SET. Enable or disable the alarm (alarm icon visible if enabled) with UP/DOWN and confirm. Use the switch (13) to choose BUZZ (buzzer) or RADIO (radio wake-up) mode.

How do I use the AUX function?

Connect a 3.5 mm stereo audio cable to the AUX IN jack (17) and to your external source. Set the switch (13) to AUX IN • BLUETOOTH. Start playback on the external source. Adjust volume with the knob (8) and if possible on the source.

How do I clean the device?

Unplug the device. Clean with a soft damp cloth (no detergent). Never immerse the device in water.

What should I do if the device becomes unresponsive?

Disconnect the mains power supply for 5 seconds, then reconnect and turn on the device with the RADIO button.

How do I deactivate the alarm?

Follow the alarm setting steps (hold SET in ALM/SET mode). At the step where you enable the alarm, use UP/DOWN to select OFF. The alarm icon disappears. Confirm with SET.

How do I activate the sleep timer?

In radio mode, press MODE. The display shows 60 (minutes). Use UP/DOWN to choose 30, 60, 90, 120 minutes or --- to disable. Confirm with MODE. The radio will turn off after the selected time.

Why is the Bluetooth not connecting?

Check that the switch (13) is set to AUX IN • BLUETOOTH. Make sure the audio source supports the A2DP profile and that Bluetooth is enabled. If connection fails, disable Wi-Fi or mobile data on the source. Try deleting the device from the Bluetooth list and repairing. The range is about 15 meters without obstacles.

USER MANUAL MR 4139 BT AEG

GB Multimedia Radio with Bluetooth

PL Radio mmultimedialne z Bluetooth

Location of Controls Page 3

Instruction Manual......Page 30

Technical Specifications Page 34

Disposal Page 34

Język polski

Spis treści

Location of Controls

Alcance:....aprox. 15 metros

Cordless via Bluetooth

Supporto Bluetooth: V2.1 + EDR

Gamma: ca. 15 metri

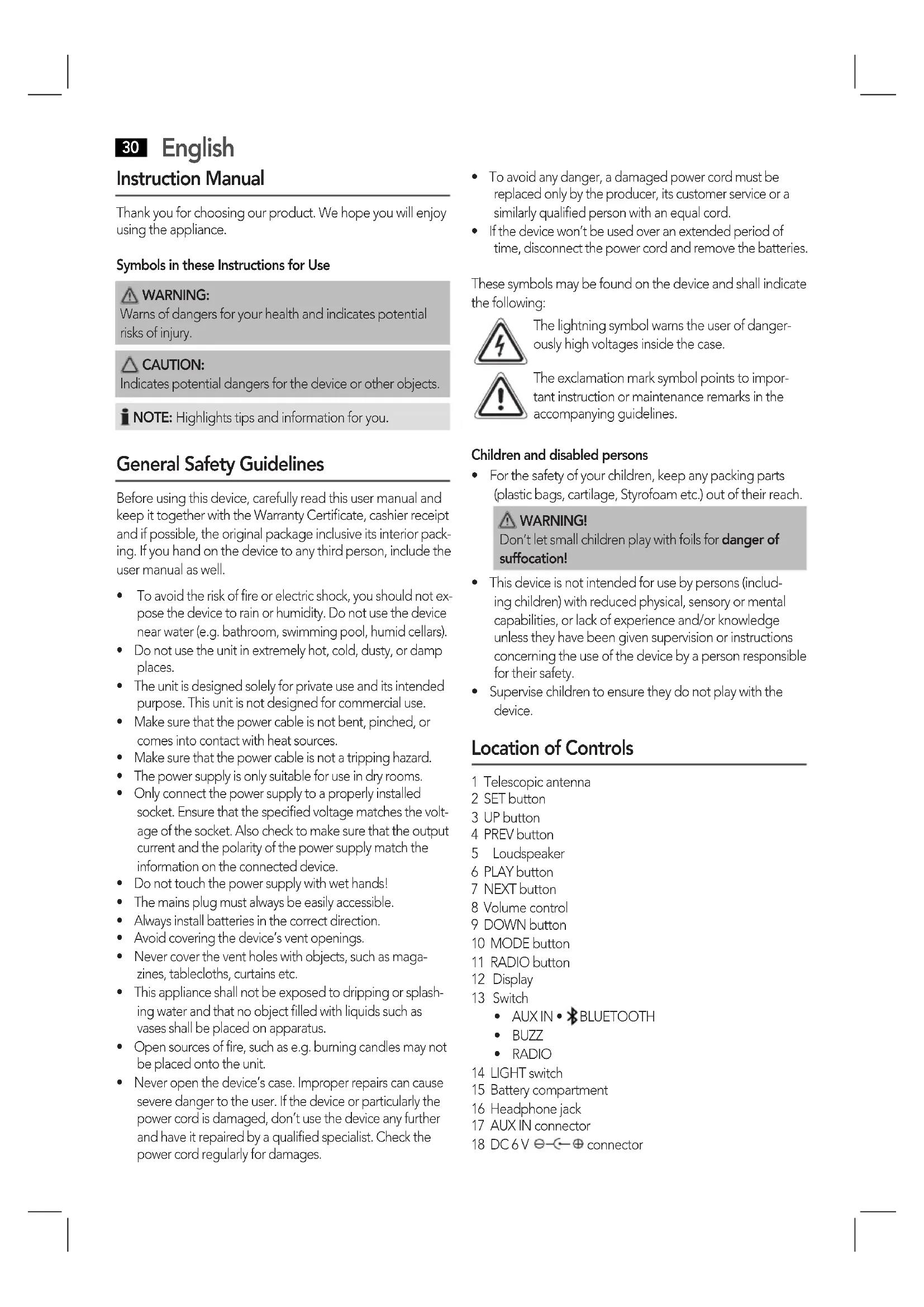

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

△ CAUTION:

Indicates potential dangers for the device or other objects.

NOTE: Highlights tips and information for you.

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• To avoid the risk of fire or electric shock, you should not expose the device to rain or humidity. Do not use the device near water (e.g. bathroom, swimming pool, humid cellars).
• Do not use the unit in extremely hot, cold, dusty, or damp places.
• The unit is designed solely for private use and its intended purpose. This unit is not designed for commercial use.
  • Make sure that the power cable is not bent, pinched, or comes into contact with heat sources.
  • Make sure that the power cable is not a tripping hazard.
  • The power supply is only suitable for use in dry rooms.
• Only connect the power supply to a properly installed socket. Ensure that the specified voltage matches the voltage of the socket. Also check to make sure that the output current and the polarity of the power supply match the information on the connected device.
  • Do not touch the power supply with wet hands!
  • The mains plug must always be easily accessible.
  • Always install batteries in the correct direction.
• Avoid covering the device's vent openings.
• Never cover the vent holes with objects, such as magazines, tablecloths, curtains etc.
• This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on apparatus.
• Open sources of fire, such as e.g. burning candles may not be placed onto the unit.

• Never open the device's case. Improper repairs can cause severe danger to the user. If the device or particularly the power cord is damaged, don't use the device any further and have it repaired by a qualified specialist. Check the power cord regularly for damages.

• To avoid any danger, a damaged power cord must be replaced only by the producer, its customer service or a similarly qualified person with an equal cord.

• If the device won't be used over an extended period of time, disconnect the power cord and remove the batteries.

These symbols may be found on the device and shall indicate the following:

The lightning symbol warns the user of dangerously high voltages inside the case.

The exclamation mark symbol points to important instruction or maintenance remarks in the accompanying guidelines.

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
• Supervise children to ensure they do not play with the device.

Location of Controls

1 Telescopic antenna
2 SET button
3 UP button
4 PREV button
5 Loudspeaker
6 PLAY button
7 NEXT button
8 Volume control
9 DOWN button
10 MODE button
11 RADIO button
12 Display
13 Switch
• AUX IN • BLUETOOTH
- BUZZ
• RADIO
14 LIGHT switch
15 Battery compartment
16 Headphone jack
17 AUX IN connector
18 DC 6V ⊖-←⊕ connector

English

First Use of the Device/Introduction

• Select a proper place for the device. A dry, level and slip proof surface is suitable.
  • Make sure the device is vented sufficiently!
• Remove the protective film from the device, if present.

Stromversorgung

• Insert the grid plug into a properly installed socket. Connect the device with the plug connector by inserting its plug into the DC 6V jack of the device.
• Make sure the grid voltage corresponds to the figures on the rating plate.

CAUTION:

• The included AC adapter may only be used with this device. Do not use it for other devices.
• Use only an AC adapter with 6 V ( - ). A different AC adapter may damage the unit.

NOTE:

• Disconnect from mains power supply during longer periods of non-use.
• The time and the stored radio stations are lost as soon as the power supply has been interrupted.

Inserting batteries (batteries not included)

Alternatively, you may operate the device with batteries.

1. Open the battery compartment located at the back of the device.
2. Insert 4 batteries of type R6/AA 1.5 V, thereby observing the correct polarity (see bottom of the battery compartment).
3. Close the battery compartment.

WARNING:

Do not expose batteries to extreme heat such as sunlight, fire or the like. There is a risk of explosion!

CAUTION:

• Batteries can leak battery acid. If you do not use the device for a prolonged period of time, remove the batteries from the device.
  • Follow the instructions by the batteries' manufacturer!
• Different battery types or new and used batteries must not be used together.
• Do not dispose of batteries through normal household waste. Return batteries to appropriate collection facilities or retailers.

Setting the clock (during standby mode)

You may only set the clock when the clock time is displayed. If necessary, switch off the device with the RADIO button.

1. Press and hold the SET button for approx. 3 seconds. The hour indicator starts to flash.
2. Use UP/DOWN buttons to set the hours. Confirm with SET.
3. Use UP/DOWN buttons to set the minutes.
4. Use the UP/DOWN buttons to select the 24- or 12-hour time format. Confirm with SET.

NOTE: When choosing the 12-hour time format, the display shows AM = morning, PM = afternoon.

1. Press SET again in order to save the time settings.

NOTE:

In case of power interruptions the clock time will be lost.

Light button

Press down the LIGHT button (14) to continuously light the display. When pressing LIGHT again, the display backlight will turn off time-delayed.

Switch (13)

Use this switch to select the following functions:

\* BLUETOOTH

The device supports AUX and Bluetooth operation. Please refer to "Playing back music files" below.

- BUZZ

Listen to radio or set an alarm time. If an alarm has been activated, the device will wake you with a signal sound.

- RADIO

Listen to radio or set an alarm time. If an alarm has been activated, you will wake up to radio operation. The device will switch on the radio station listened to last with the volume set at the volume control.

Alarm function

You may only set the alarm time when the clock time is displayed. If necessary, switch off the device with the RADIO button.

Set the alarm time

1. Press the MODE button. The display will show ALM/SET and the currently set alarm time.
2. Press and hold the SET button for approx. 3 seconds. The hour indicator starts flashing.
3. Use UP or DOWN to set the hours. Confirm with SET.
4. Use UP or DOWN to set the minutes. Confirm with SET.
5. Use UP or DOWN to activate or deactivate the alarm function. Alarm function activated: an alarm icon will be displayed.
6. Press SET to save your settings.
7. At the end, press MODE to return to clock time mode.
8. Use the switch (13) to select your desired wake-up mode. BUZZ = signal sound, RADIO = radio station listened to last.

32 English

Turn off the alarm sound

You have been woken and want to turn off the alarm? Press the MODE button to turn off the alarm. It will sound again the next day.

Deactivate the alarm function

Proceed as described under "Set the alarm time". When reaching step 5, deactivate the alarm function. The alarm icon disappears.

Radio mode

Search for a radio station

1. Fully extend the telescopic antenna.
2. You have two options in order to search for a radio station:
3. Adjust the desired radio station using the UP or DOWN button.
4. Keep the UP or DOWN button pressed down for a short while. The device will stop at the next radio station.
5. In case of weak signal and noise, try to change the antenna position for better reception.

Storing radio stations

1. Search for a radio station as described under "Search for a radio station".
2. Press and hold SET. The memory location starts flashing.
3. Using the UP/DOWN buttons select the memory location where the radio station is to be stored.
4. Press the SET button again. The radio station will be stored.

i NOTE:

The stored radio stations are lost as soon as the power supply has been interrupted.

Select the preset radio station

1. Shortly press the SET button.
2. Use UP or DOWN to select a memory location.
3. Press SET to listen to the selected radio station.

Sleep timer

1. Press the MODE button during radio operation. The display will show "60" (minutes).
2. Use UP or DOWN to select 30, 60, 90, or 120 minutes. Selecting “- - -” will deactivate the function.
3. Confirm with MODE and the radio will turn off after the pre-set time has expired.

i NOTE:

Due to technical reasons, the activated function cannot be displayed. In order to cancel this function early, press the RADIO button.

Playing back music files

There are two options to play back your own music files: with cable or wireless via Bluetooth.

By cable

1. Connect an audio cable with a 3.5 mm stereo cinch plug to the AUX IN connector (17).
2. Connect the other end of the cable with the external audio device.
3. Set the switch (13) to "AUX IN • ✦ BLUETOOTH".
4. Start playback of your external device. Use the control (8) to adjust the volume.
5. For the further procedure, please refer to the user manual of the external audio source.

i NOTE:

If possible, adjust the volume of the external unit to a comfortable level.

Cordless via Bluetooth

Bluetooth involves a technology for wireless radio connection of devices over a short distance. Devices with Bluetooth standard are transmitting between 2.402 and 2.480 GHz in the ISM band (Industrial, Scientific and Medical). Interference can be caused for example by WLAN-networks, DAB radios, cordless phones, or microwave ovens which work on the same frequency band.

This device offers you the possibility to use a Bluetooth-enabled device. The functional radius is limited to approx. 15 metres depending on the surroundings and the unit used. If your playing device supports the A2DP profile (Advanced Audio Distribution Profile) and has a music-player function, then you can also wirelessly transfer music to the device. The A2DP profile involves a multi-vendor Bluetooth profile. By streaming, stereo-audio signals are wirelessly transferred between the playing device (source) and the receiving device. In order to be able to perform remote control of the source, the player must support the AVRCP profile (Audio Video Remote Control Profile).

Due to the different device manufacturers, models, and software versions, a full functionality cannot be guaranteed.

- Logging on devices (Pairing)

Before you listen to music via the unit, you must pair the devices.

1. Ensure, that the Bluetooth function is activated in your player (e.g. mobile phone). For this, refer to the operation manual of your player.

2. Set the switch (13) to "AUX IN • BLUETOOTH". The device will peep several times to indicate that the device is in pairing mode.

3. Chose the Bluetooth menu in your player and register the device in your player. For this, refer to the operation manual of your player. The device "AEG MR 4139 BT" will show in your player as a selection.

i NOTE:

Your device can only connect one player at a time. If your device is already connected with another player, your device will not be listed in the Bluetooth menu.

1. Now enter the password "0000" in your player, depending on the device manufacturers, model, and software version.

If the registration has been carried out successfully, a short beep is emitted.

For the further procedure, please refer to the user manual of the playback unit. If possible, adjust the volume of the external unit to a comfortable level.

i NOTE:

• Depending on the device manufacturer, you need to perform the registration (PAIRING) again to connect the devices
• In the case of problems when registering a player, deactivate the WiFi / mobile data function of your player.
• The Bluetooth compatibility cannot be ensured for devices (e.g. mobile phones) getting released in the future.
• To ensure an optimal connection, make sure that the battery of your player is completely charged.
• Some of the mobile phone brands have an energy-saving mode. Deactivate the energy-saving mode as it can otherwise result in problems during the data transfer through Bluetooth.
• To be able to transfer audio data, Bluetooth needs to stay activated in your player Observe the operation manual of your player.
• If a mobile phone on which you are playing music receives a call, the music will be interrupted. The device, however, will not play back the sound. After you have ended the call, the devices are connected to each other again and playback continues.

Description of the Bluetooth controls

i NOTE:

Depending on the player, not all functions might be supported.

PLAY (6)

You can pause and continue music playback. Press again to continue playback.

PREV (4)

Press 1 x = Restart of the song from the beginning.

Press 2x = Skip to the previous song.

Press 3 x = Skip to the song before the previous song.

Keeping the button pressed initiates a track search.

NEXT (7)

Press to skip to the next song and the following songs. Keeping the button pressed initiates a track search.

Cleaning

• Before cleaning disconnect from mains power supply.
- Clean the device with a soft damp cloth without detergents.
- Do not submerge the device in water.

Troubleshooting

Fault Cause Solution
Unit cannot be operated.	Unit crashes and "hangs".	Disconnect from the mains for around 5 seconds. Then switch the unit on again.
No audio signal via the Bluetooth connection	Device is not paired to audio source.	Check whether a connection exists. If necessary, pair the device again to the audio source.
	Volume too low	Increase the volume on your device.
		Increase the volume on the audio source.
Device cannot be connected.	Pairing does not work	Check whether the audio source supports the A2DP protocol.
	Audio source is switched off	Switch on the audio source
	Bluetooth is switched off at the audio source.	Switch on the Bluetooth function in the audio source.
	Bluetooth version is not supported.	Use a different playback unit.

34 English

Technical Specifications

Model: MR 4139 BT

Power supply:DC 6 V, 1 A⊖—⊕

Power Consumption: 5 W

Protection class:....III

Net weight:......approx. 0.39 kg

Radio component Frequency range: FM 87.5 \~ 108 MHz

AC adapter

Protection class:

Input: AC 100-240 V\~ 50/60 Hz

Output: DC 6 V, 0.8 A

Polarity: -

Bluetooth

Bluetooth support:.....V2.1 + EDR

Range:......approx. 15 metres

Transmission frequency: 2.4 GHz

Protocols:....A2DP, AVRCP

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

CTC Clatronic Sp. z o.o
